PoissonRatioUQ: An R package for band ratio uncertainty quantification
T0 review · 3 major / 6 minor · reviewed 2026-08-03 · deepseek-v4-flash
Pith's one-line read Closed-form posterior for the ratio of Poisson means, delivered as an R package
desk verdict A useful R package for ratio UQ that overstates its closed-form posteriors; the math is mostly right, but the UQ needs a calibration check. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The central object is the permanental process, where the Poisson intensity is λ(s) = (c/2) f(s)^2 with f drawn from a Gaussian process. The posterior of f is approximated as Gaussian via the Laplace method; squaring and scaling turns each bin intensity Λ_i into a Gamma distribution by moment matching. The ratio of two independent Gammas is then a generalized Beta Prime distribution, and the known algebraic relationship between Beta Prime and Beta distributions enables exact CDF, quantile, and random-number generation. This chain of exact analytic transformations is what carries the argument from count data to closed-form posteriors.
What would settle it
Simulate binned Poisson count data with mean counts well below one per bin (generating many zero counts), then compare the package's closed-form 95% HPD intervals for the intensity ratio Z against a long-run MCMC posterior. If empirical coverage of the HPD intervals falls far below 95% (e.g., below 80%) across repeated simulations, the central approximation is falsified.
Extended reading notes
Core claim
The paper shows that under a permanental process model with a Laplace approximation to the latent Gaussian field and a moment-matched Gamma approximation for each bin intensity, the posterior distribution of the intensity ratio Z = Λ_a/Λ_b is a generalized Beta Prime distribution. When the forward model has the form Z = (mT + z0)^p, the quantity of interest T inherits a shifted generalized Beta Prime distribution. This yields analytic posteriors, highest posterior density sets, and scoring metrics without sampling, and the package implements the full pipeline: kernel-based spatial estimation, pointwise conjugate-Gamma estimation, ratio and T retrieval, and CRPS/HPD utilities.
Load-bearing premise
The load-bearing premise is that the log-posterior of the latent Gaussian field is close to quadratic, so the Laplace approximation and the moment-matched Gamma distribution for bin intensities adequately describe the posterior; with very low counts, many zero bins, or a mis-specified kernel, the closed-form Beta Prime posterior is only approximate and the reported uncertainty intervals may be miscalibrated.
Editorial extensions
If this is right
- Users can obtain full posterior distributions, including HPD intervals, for intensity ratios and derived quantities in seconds—about 15 seconds for 1000 bins on a desktop—without MCMC.
- Estimating the ratio of latent Poisson means rather than the ratio of observed counts reduces bias and properly propagates Poisson shot noise into uncertainty bounds.
- The package supports both spatially correlated retrievals via the permanental process and pointwise retrievals via conjugate Gamma priors, and it can handle missing realizations using NaN placeholders.
- For forward models of the form Z = (mT + z0)^p, the quantity of interest T has a closed-form shifted generalized Beta Prime posterior, enabling direct uncertainty quantification for nonlinear retrievals such as temperature from FUV radiance ratios.
- Built-in CRPS and HPD functions provide model scoring and credible intervals for arbitrary parametric predictive distributions, including multimodal cases.
Reading between the lines
- Because the posterior is a standard parametric family, downstream tasks like hierarchical modeling, Bayesian updating, or importance sampling become straightforward—one can analytically marginalize or reweight without drawing samples from the raw count process.
- The same Beta-Prime change-of-variable trick should extend to other monotone forward models beyond the power law (e.g., exponential or log-linear), giving closed-form T posteriors whenever the inverse transformation is tractable.
- A practical diagnostic for the package would be a built-in coverage check: simulate data under known parameters, compare the claimed 95% HPD intervals to empirical coverage, and warn when the Laplace/Gamma approximation breaks down in low-count regimes.
- The method is naturally portable to any photon- or particle-counting instrument with band ratios—X-ray hardness ratios, lidar ratios, isotope-ratio mass spectrometry—beyond the atmospheric remote sensing applications cited.
Signed reviews
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript introduces an R package, PoissonRatioUQ, for Bayesian estimation and uncertainty quantification of ratios of Poisson intensities from binned count data. The modeling uses a permanental process with a latent Gaussian field and the quadratic link Lambda_i = c/2 f_i^2; after a Laplace approximation for the latent field and a moment-matched Gamma approximation for each Lambda_i, the intensity ratio is modeled as a generalized Beta Prime distribution, and quantities of interest T defined by Z=(mT+z0)^p are obtained by a location-scale transformation. The paper describes the mathematical derivation, package functions for optimization, generalized Beta Prime calculations, CRPS, and HPD intervals, and gives two toy demonstrations. A timing experiment reports that a full posterior for 1000 bins takes roughly 15 seconds.
Significance. If the approximations are well calibrated, the package would fill a practical gap in spatial count-ratio analysis: it would provide fast, analytic UQ without MCMC. The paper's strengths are the explicit formulas for the generalized Beta Prime distribution, the analytic CDF/quantile/random-generation functions, the HPD and CRPS utilities, and the public package implementation. These are genuinely useful and clearly described. However, the central claim that the package yields closed-form posterior distributions is stated strongly, while the actual posterior is only approximate, and no calibration evidence is provided. The authors should be credited for making the code and examples available, but the UQ claim is not yet supported.
major comments (3)
- [Section 2, Eq. (2.7)] There is an internal inconsistency in the penalty term. With f = Ktilde psi, the quadratic form in Eq. (2.5) becomes -(1/2)<psi, Ktilde psi>, not -(1/2)<psi, Ktilde^{-1} psi>. The gradient in Eq. (2.8) matches the corrected form, so this is likely a typographical error, but it appears in the central derivation and should be fixed.
- [Section 2, Eqs. (2.9)-(2.10); Section 3.1] The abstract and Section 2 describe the method as yielding 'closed-form posterior distributions,' but Eq. (2.9) is a Laplace approximation and Eq. (2.10) is a moment-matched Gamma approximation. These are not exact. The log-posterior (2.4) contains terms a_i log(f_i^2), which are strongly non-quadratic near zero, so in low-count or zero-bin regimes the HPD intervals may be miscalibrated. Section 3.1 reports only CRPS and relative MAE of the MAP, not interval coverage or comparison to an exact posterior sampler. I recommend a simulation study reporting empirical coverage of the 95% HPD intervals over repeated datasets with Poisson means near or below 1 and with zero bins, and, if feasible, a comparison to MCMC.
- [Section 2, Eq. (2.9)] The covariance formula defines D = diag(psi_i^2 / (2 a_i)). For zero-count bins, a_i=0, this quantity is undefined. Since zero counts are common in the motivating low-count applications, the manuscript should state how zero counts are treated in the optimization and in constructing the Laplace covariance, e.g., whether D^{-1} is set to zero. Without this, the package's behavior for the key low-count regime is ambiguous.
minor comments (6)
- [Abstract and Section 2] Consider replacing 'closed-form posterior distributions' with 'analytic approximations to the posterior' or 'closed-form approximate posterior distributions' to avoid overstating the Laplace/Gamma approximations.
- [Eq. (2.10)] The notation in the denominator of alpha_i and beta_i appears as '2 mu_i2 + sigma_i^2'; this should be '2 mu_i^2 + sigma_i^2'.
- [Section 3.1] The text contains a typo: 'Conitnuous Rank Probability Score' should be 'Continuous Rank Probability Score.' Also report the count levels used in the toy example (e.g., average counts per bin) so readers can judge whether the low-count regime is exercised.

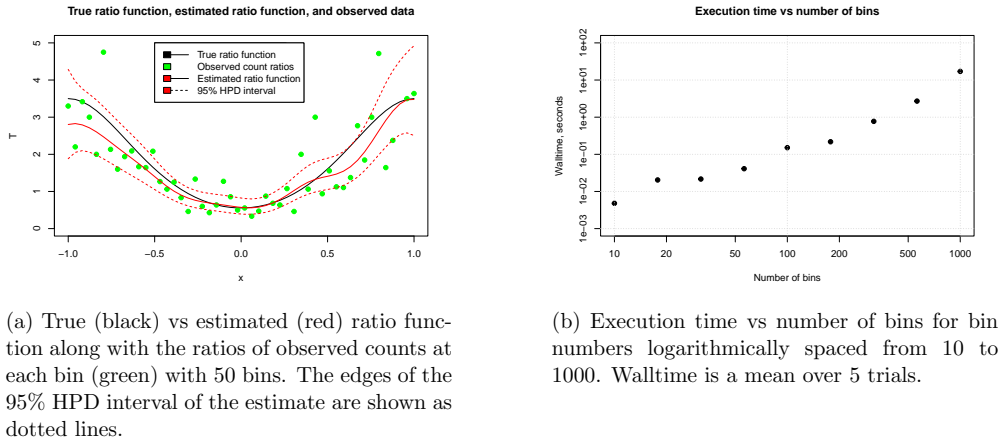

- [Figure 3.1(a)] The legend repeats 'True ratio function / Observed count ratios / Estimated ratio function' three times. The legend should be cleaned up.
- [Reference [34]] The second author's name is misspelled: it should be 'Raftery,' not 'Rafferty.'
- [Section 5] There is a typo: 'involve' should be 'involve' in 'Two immediate applications for future work invole the ability...'
Circularity Check
No significant circularity: the closed-form posterior chain is derived in-line and tested against independent toy truth; the self-citation to [7] is provenance, not load-bearing.
full rationale
I find no circular step. The central derivation in Section 2 is presented in the paper itself: log-posterior (2.4)-(2.5), equivalent kernel (2.6), MAP/gradient (2.7)-(2.8), Laplace covariance (2.9), Gamma moment matching (2.10), Beta Prime ratio (2.11)-(2.12), and the transformation to T (2.13). These are mathematical consequences of the stated model, not definitions of the target quantity. The toy demonstrations generate Poisson data from an independent true ratio curve, and the hyperparameters (kernel width 0.75, gamma=c=1) are chosen by hand, not tuned to the truth; CRPS, MAE, and timing are evaluated against that independent synthetic truth. The package functions implement published algorithms [10], [11], [24], [26], and the algorithm is attributed to [7] by the same first author, but the self-citation is provenance rather than the load-bearing proof because the equations are restated inline. No fitted parameter is renamed as a prediction, no uniqueness theorem is imported from the authors' prior work, and no ansatz is hidden behind a citation. There is a non-circular correctness caveat: Eq. (2.7) writes the penalty as -1/2 <psi, Ktilde^{-1} psi> while the gradient in Eq. (2.8) and the substitution f = Ktilde psi imply -1/2 <psi, Ktilde psi>; this appears to be a typographical inconsistency, and the absence of interval-coverage validation is an accuracy concern, not a circularity. The score of 2 reflects only a minor self-citation that is not load-bearing.
Assumptions & free parameters
free parameters (3)
- γ (marginal precision) =
default 1
- c (intensity scaling) =
default 1
- Wendland kernel support width =
0.75 in §3.1 demo
assumptions (7)
- domain assumption Counts a_i are independent Poisson(Λ_i) random variables.
- domain assumption The latent field f has prior f ~ N(0, γ^{-1}K) and intensity is Λ_i = (c/2) f_i^2.
- domain assumption The log-posterior of f is well approximated by a Gaussian (Laplace approximation).
- domain assumption The forward model is exactly Z = (mT + z0)^p with known m, z0, p.
- domain assumption The ratio of Poisson means is the physical quantity of interest, not the ratio of counts.
- standard math The Representer Theorem applies, giving f = K̃ψ.
- standard math Known relationships between generalized Beta Prime and Beta distributions.
Cite this review
Pith. "Pith review of PoissonRatioUQ: An R package for band ratio uncertainty quantification." pith.science (2026). https://pith.science/paper/IRASRYUZ
@misc{pith2026260207165,
author = {Pith},
title = {Pith review of: PoissonRatioUQ: An R package for band ratio uncertainty quantification},
year = {2026},
howpublished = {\url{https://pith.science/paper/IRASRYUZ}},
note = {Machine review of arXiv:2602.07165}
}
abstract

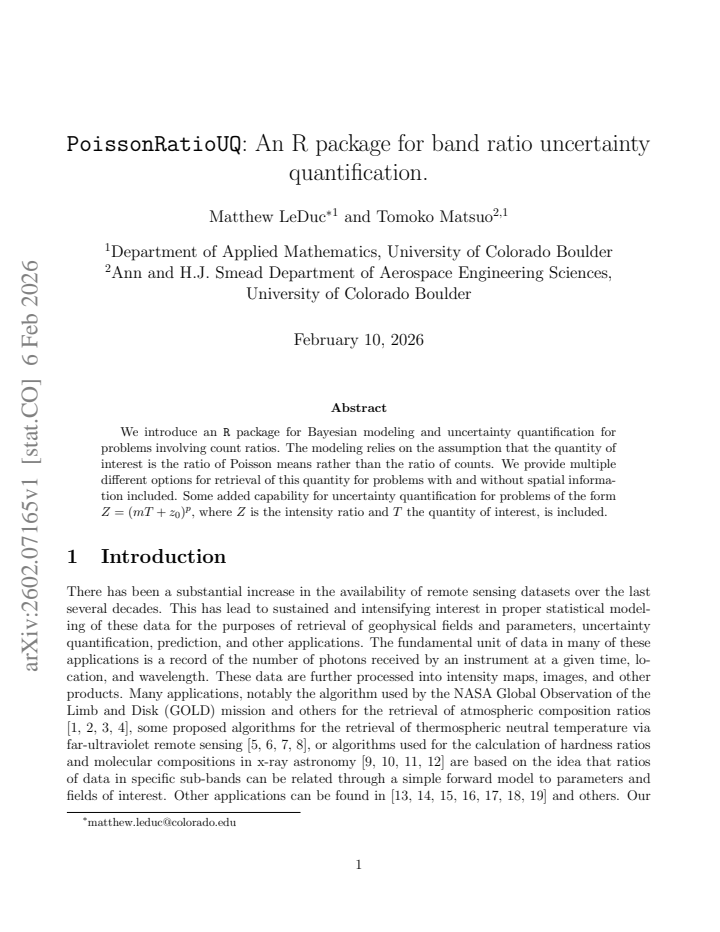

We introduce an R package for Bayesian modeling and uncertainty quantification for problems involving count ratios. The modeling relies on the assumption that the quantity of interest is the ratio of Poisson means rather than the ratio of counts. We provide multiple different options for retrieval of this quantity for problems with and without spatial information included. Some added capability for uncertainty quantification for problems of the form $Z=(mT+z_0)^{p}$, where $Z$ is the intensity ratio and $T$ the quantity of interest, is included.
