Confidence-Aware Automated Assessment of Student-Drawn Scientific Models

Luyang Fang , Yingchuan Zhang , Jongchan Park , Zhaoji Wang , Ping Ma , Xiaoming Zhai This is my paper

Pith reviewed 2026-06-26 17:12 UTC · model grok-4.3

classification 💻 cs.AI
keywords automated scoringstudent drawingsVision Transformerconfidence estimationscience educationNGSS assessmentselective automationeducational technology
0
0 comments X

The pith

Adapting a Vision Transformer to extract confidence from test-time predictions enables selective automation of student-drawn science model scoring while raising reliability.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper aims to establish that a vision model can handle the costly expert scoring of complex student drawings in NGSS-aligned science tasks by automating only when confident and sending uncertain cases to humans. This would matter because manual review limits how often such modeling assessments can be used in classrooms. A sympathetic reader would focus on the practical balance: more drawings scored without full human effort, yet with controlled error. Experiments across six middle school items show the method improves overall reliability while letting users adjust how much gets automated versus reviewed.

Core claim

The authors claim that parameter-efficient adaptation of a Vision Transformer, paired with a confidence-aware framework that derives response-level confidence from test-time predictive distributions, supports selective scoring: high-confidence student drawings receive automated scores and uncertain ones are deferred to human review. On six NGSS-aligned middle school assessment items this produces improved scoring reliability together with a workable trade-off between automated coverage and scoring risk.

What carries the argument

Response-level confidence signal extracted from test-time predictive distributions of the adapted Vision Transformer, used to route high-confidence cases to automation and low-confidence cases to human review.

If this is right

  • Scoring reliability rises on the six NGSS-aligned middle school items.
  • Users can adjust the share of responses handled automatically against the resulting risk.
  • Confidence-aware routing adds value for trustworthy large-scale educational assessment.
  • Selective automation reduces full human review load while keeping overall error manageable.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same deferral logic could apply to other student visual work such as diagrams in mathematics.
  • Lower per-assessment costs might encourage schools to use drawing tasks more frequently.
  • Combining the signal with additional uncertainty methods could tighten the coverage-risk curve further.

Load-bearing premise

The predictive distributions produced by the adapted model at test time give a trustworthy signal of when automation would not add unacceptable error.

What would settle it

An evaluation in which error rates on the high-confidence automated subset exceed those on the full set or human agreement levels would show the confidence signal fails to support safe selective automation.

Figures

Figures reproduced from arXiv: 2606.20264 by Jongchan Park, Luyang Fang, Ping Ma, Xiaoming Zhai, Yingchuan Zhang, Zhaoji Wang.

Figure 1

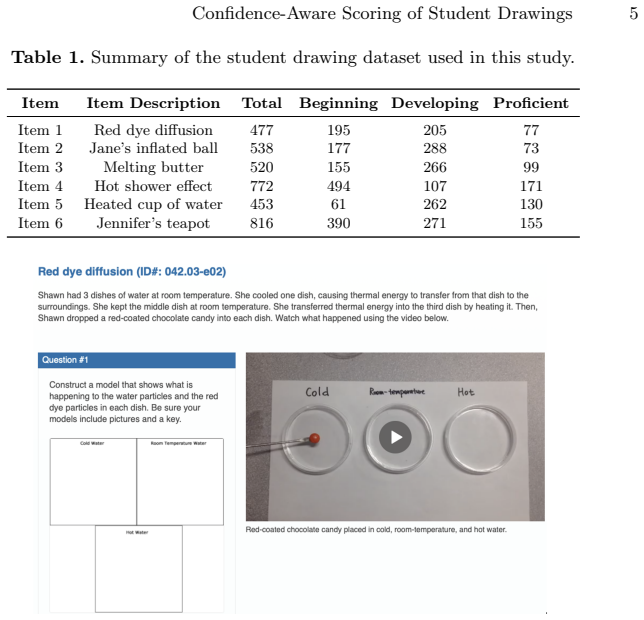

Figure 1. Figure 1: Example science modeling assessment item. Students observe red dye diffusion in cold, room-temperature, and hot water and are asked to construct a visual model representing the behavior of water and dye particles. experts using rubric-based criteria. Following the original annotation protocol, each drawing is assigned to one of three ordered proficiency levels: Beginning, Developing, or Proficient [PITH_F… view at source ↗
read the original abstract

Student-generated drawings are widely used in science education to assess learners' conceptual understanding in modeling-based tasks aligned with the Next Generation Science Standards (NGSS). However, scoring such drawings requires expert human judgment to interpret complex visual representations, making large-scale assessment costly to implement and sustain in classroom settings. In this work, we study automated scoring of student-generated scientific drawings using a vision-based model. We evaluate a Vision Transformer (ViT) with parameter-efficient adaptation and propose a confidence-aware scoring framework that derives response-level confidence from test-time predictive distributions. This confidence signal enables selective automation by scoring high-confidence responses automatically while deferring uncertain cases for human review. Experiments on six NGSS-aligned middle school assessment items show that the proposed approach improves scoring reliability while supporting a practical trade-off between automated coverage and scoring risk, highlighting the value of confidence-aware methods for trustworthy educational assessment.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 1 minor

Summary. The paper introduces a confidence-aware framework for automated scoring of student-drawn scientific models using a parameter-efficiently adapted Vision Transformer (ViT). It derives response-level confidence from test-time predictive distributions to selectively automate high-confidence scores while deferring uncertain ones to human review. Experiments on six NGSS-aligned middle school assessment items demonstrate that this approach improves scoring reliability and allows a practical trade-off between automated coverage and scoring risk.

Significance. If the results hold, this work offers a method to make large-scale assessment of NGSS modeling tasks more feasible and trustworthy by integrating AI with human oversight. The use of standard ViT techniques and focus on real classroom assessment items strengthens its applicability to educational technology.

minor comments (1)
  1. [Abstract] Abstract: the claim of improved reliability is stated without any quantitative results, error bars, baseline comparisons, or details on how confidence correlates with accuracy; a brief summary of key metrics should be added to support the central claim at first reading.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive summary, significance assessment, and recommendation for minor revision. No major comments appear in the provided report, so there are no specific points requiring point-by-point response or manuscript changes at this stage.

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper describes an empirical ML framework adapting a standard Vision Transformer for scoring student drawings, deriving confidence from test-time predictive distributions, and evaluating selective automation on six NGSS items. No equations, derivations, or load-bearing steps reduce the reported reliability improvements or coverage-risk trade-off to a fitted quantity defined by the same data, a self-citation chain, or an ansatz smuggled via prior work. The central claims rest on experimental results that remain independent of the inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

Review performed from abstract only; no explicit free parameters, axioms, or invented entities are stated in the provided text.

axioms (2)
  • domain assumption Vision Transformer with parameter-efficient adaptation can extract features relevant to scoring scientific drawings
    Implicit in the choice of model architecture for the task
  • domain assumption Test-time predictive distributions yield a usable confidence signal for deferral decisions
    Central premise of the confidence-aware framework

pith-pipeline@v0.9.1-grok · 5686 in / 1249 out tokens · 33021 ms · 2026-06-26T17:12:08.622987+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

17 extracted references · 2 linked inside Pith

  1. [1]

    arXiv preprint arXiv:2006.16705 (2020)

    Bahat, Y., Shakhnarovich, G.: Classification confidence estimation with test-time data-augmentation. arXiv preprint arXiv:2006.16705 (2020)

    arXiv 2006

  2. [2]

    principles, policy & practice, 5 (1), 7–74 (1998)

    Black, P., Wiliam, D.: Assessment and classroom learning assessment in education. principles, policy & practice, 5 (1), 7–74 (1998)

    1998

  3. [3]

    In: Proceedings of the AAAI Conference on Artificial Intelligence

    Fang, L., Wang, T., Ma, P., Zhai, X.: Generalizable and efficient automated scoring with a knowledge-distilled multi-task mixture-of-experts. In: Proceedings of the AAAI Conference on Artificial Intelligence. vol. 40, pp. 40831–40839 (2026)

    2026

  4. [4]

    arXiv preprint arXiv:2508.15260 (2025)

    Fu, Y., Wang, X., Tian, Y., Zhao, J.: Deep think with confidence. arXiv preprint arXiv:2508.15260 (2025)

    Pith/arXiv arXiv 2025

  5. [5]

    arXiv preprint arXiv:2507.23470 (2025)

    Gürtl, S., Schimetta, G., Kerschbaumer, D., Liut, M., Steinmaurer, A.: Automated feedback on student-generated uml and er diagrams using large language models. arXiv preprint arXiv:2507.23470 (2025)

    arXiv 2025

  6. [6]

    IEEE transactions on pattern analysis and machine intelligence45(1), 87–110 (2022)

    Han, K., Wang, Y., Chen, H., Chen, X., Guo, J., Liu, Z., Tang, Y., Xiao, A., Xu, C., Xu, Y., et al.: A survey on vision transformer. IEEE transactions on pattern analysis and machine intelligence45(1), 87–110 (2022)

    2022

  7. [7]

    arXiv preprint arXiv:2403.14608 (2024)

    Han, Z., Gao, C., Liu, J., Zhang, J., Zhang, S.: Parameter-efficient fine-tuning for large models: A comprehensive survey. arXiv preprint arXiv:2403.14608 (2024)

    Pith/arXiv arXiv 2024

  8. [8]

    NSTA Press, National Science Teaching Association (2024)

    Harris, C.J., Krajcik, J.S., Pellegrino, J.W.: Creating and using instructionally sup- portive assessments in NGSS classrooms. NSTA Press, National Science Teaching Association (2024)

    2024

  9. [9]

    In: International Conference on Learning Representations (ICLR) (2022)

    Hu, E.J., Shen, Y., Wallis, P., Allen-Zhu, Z., Li, Y., Wang, S., Wang, L., Chen, W.: Lora: Low-rank adaptation of large language models. In: International Conference on Learning Representations (ICLR) (2022)

    2022

  10. [10]

    In: International conference on artificial intelligence in education

    Latif, E., Fang, L., Ma, P., Zhai, X.: Knowledge distillation of llms for automatic scoring of science assessments. In: International conference on artificial intelligence in education. pp. 166–174. Springer (2024)

    2024

  11. [11]

    Journal of Science Education and Technology pp

    Lee, G., Zhai, X.: Nerif: Gpt-4v for automatic scoring of drawn models. Journal of Science Education and Technology pp. 1–18 (2025)

    2025

  12. [12]

    Journal of Science Ed- ucation and Technology32(4), 549–566 (2023)

    Lee, J., Lee, G.G., Hong, H.G.: Automated assessment of student hand drawings in free-response items on the particulate nature of matter. Journal of Science Ed- ucation and Technology32(4), 549–566 (2023)

    2023

  13. [13]

    In: Proceedings of the Fifth Annual ACM Conference on Learning at Scale

    Leong, C.W., Liu, L., Ubale, R., Chen, L.: Toward large-scale automated scoring of scientific visual models. In: Proceedings of the Fifth Annual ACM Conference on Learning at Scale. pp. 1–4 (2018)

    2018

  14. [14]

    Journal of Science Education and Technology pp

    Li, T., Haudek, K., Krajcik, J.: Utilizing deep learning ai to analyze scientific models: Overcoming challenges. Journal of Science Education and Technology pp. 1–22 (2025)

    2025

  15. [15]

    British Journal of Edu- cational Technology50(6), 3391–3404 (2019)

    Pei, B., Xing, W., Lee, H.S.: Using automatic image processing to analyze visual artifacts created by students in scientific argumentation. British Journal of Edu- cational Technology50(6), 3391–3404 (2019)

    2019

  16. [16]

    In: 2024 International Conference on Innovations in Science, Engineering and Technology (ICISET)

    Rahaman, M.A., Rahman, T., Hossain, M.M.: Automated grading and classifica- tion of hand-drawn sketches using deep learning. In: 2024 International Conference on Innovations in Science, Engineering and Technology (ICISET). pp. 1–6. IEEE (2024)

    2024

  17. [17]

    Neurocomputing338, 34–45 (2019)

    Wang, G., Li, W., Aertsen, M., Deprest, J., Ourselin, S., Vercauteren, T.: Aleatoric uncertainty estimation with test-time augmentation for medical image segmenta- tion with convolutional neural networks. Neurocomputing338, 34–45 (2019)

    2019
