Shubnikov-de Haas Characterization of Superconductor-Semiconductor Heterostructures

A. M. Zimmerman , Saeed Fallahi , Sergei Gronin , Tyler Lindemann , Patrick Sohr , Ray Kallaher , Alejandro Alcaraz Ramirez , Georg W. Winkler
show 8 more authors
Samuel M. L. Teicher William Cole Sebastian Heedt Eoin O'Farrell Gijs de Lange Roman Lutchyn Michael J. Manfra John Watson
This is my paper

Pith reviewed 2026-05-14 17:44 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords Shubnikov-de Haasproximity-induced superconductivitytwo-dimensional electron gasspin-orbit couplingscattering timesInAs quantum wellhybrid heterostructures
0
0 comments X

The pith

Shubnikov-de Haas analysis in superconductor-semiconductor stacks extracts scattering times that reflect the proximity-induced gap.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper presents a method to characterize hybrid superconductor-semiconductor devices using straightforward magnetoresistance measurements. By analyzing the full set of Shubnikov-de Haas oscillations, one can determine the carrier density in the quantum well, the strength of spin-orbit coupling, and the transport and quantum scattering times. The central advance is that these scattering times are sensitive to how strongly the metallic superconductor couples to the semiconductor, which in turn indicates the size of the induced superconducting gap. This provides a way to assess an important parameter for quantum devices without needing to cool to millikelvin temperatures or perform extra fabrication steps.

Core claim

Proper analysis of the full magnetoresistance data from Shubnikov-de Haas oscillations in aluminum-on-InAs quantum well heterostructures allows extraction of the two-dimensional electron gas carrier density, spin-orbit coupling strength, transport scattering time, and quantum scattering time. These scattering times are affected by the metal-semiconductor coupling strength, which permits inference of the proximity-induced superconducting gap from measurements that do not require millikelvin temperatures or additional device processing.

What carries the argument

The full magnetoresistance curve in Shubnikov-de Haas measurements, where the modulation of quantum and transport scattering times by the proximity coupling serves as the indicator for the induced gap.

Load-bearing premise

That the scattering times extracted from standard SdH fitting change in a direct and calibratable way due to the proximity-induced gap, without needing independent confirmation from millikelvin measurements.

What would settle it

Compare the SdH-derived scattering times to independently measured superconducting gap values from tunneling spectroscopy or similar low-temperature techniques on the same samples to check for quantitative correlation.

Figures

Figures reproduced from arXiv: 2605.13722 by Alejandro Alcaraz Ramirez, A. M. Zimmerman, Eoin O'Farrell, Georg W. Winkler, Gijs de Lange, John Watson, Michael J. Manfra, Patrick Sohr, Ray Kallaher, Roman Lutchyn, Saeed Fallahi, Samuel M. L. Teicher, Sebastian Heedt, Sergei Gronin, Tyler Lindemann, William Cole.

Figure 1
Figure 1. Figure 1: shows a representative R(B) trace. Small SdH oscillations are visible on a large positive magne￾toresistance background. Beating is visible in the oscilla￾tions due to semiconductor SOC. The background arises from the parallel conductive channels of the normal-state metal and the semiconductor QW, and can be fit with a standard model of two-band conductivity 25 ρ = ρSρM(ρS + ρM) + (ρSR2 M + ρMR2 S )B2 (ρS … view at source ↗
Figure 2

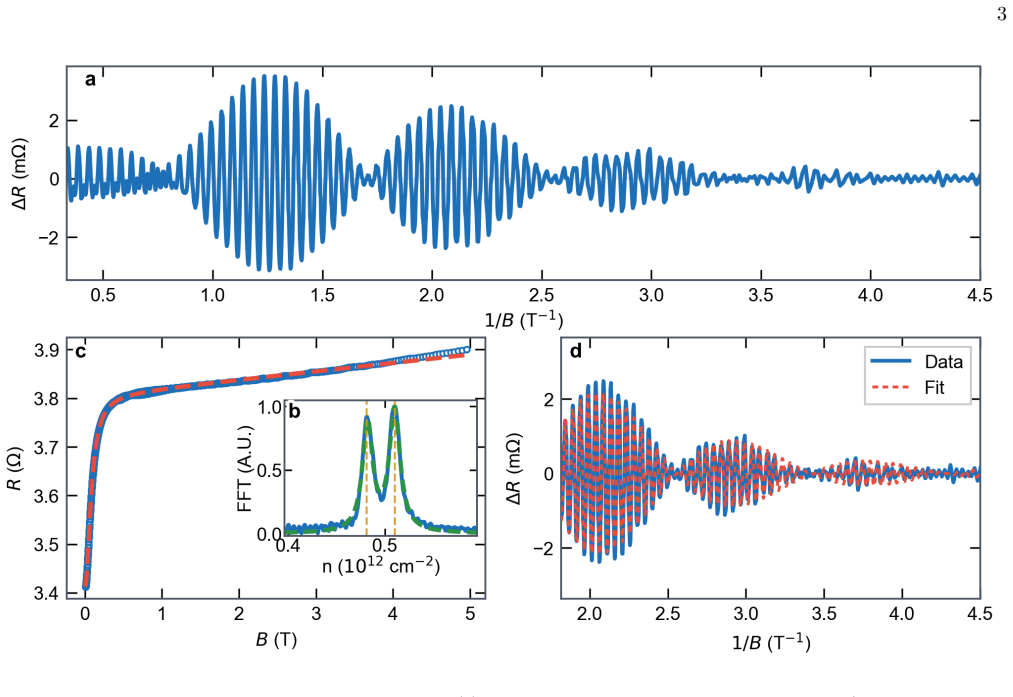

Figure 2. Figure 2: FIG. 2. SdH analysis steps for the data shown in Fig. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. SdH-extracted parameters vs. Sb fraction in the QW [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Induced superconducting gap ∆ [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
read the original abstract

Hybrid superconductor-semiconductor nanostructures are a central component for research spanning condensed matter physics and quantum information processing. Continued progress relies critically on the ability to characterize, control, and optimize several intrinsic material properties including spin-orbit coupling, band offsets, and disorder in a device-relevant stack that necessarily couples the electronic states of a superconducting metal film and a semiconductor. Here we report a new method to extract fundamental material parameters utilizing simple Shubnikov-de Haas (SdH) oscillation measurements in heterostructures in which metallic electronic states are coupled to a two-dimensional electron gas (2DEG) residing in an InAs quantum well beneath an aluminum thin film. Proper analysis of the full magnetoresistance data facilitates extraction of the quantum well carrier density, spin-orbit coupling strength, and both transport and quantum scattering times. Most importantly, the extracted scattering times in the 2DEG are impacted by the metal-semiconductor coupling strength allowing us to quickly gain information on proximity-induced superconducting gap without any fabrication or mK measurements. The wealth of information that is accessed with these simple measurements positions this methodology as an important tool for hybrid materials optimization.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript claims that analysis of full magnetoresistance data from Shubnikov-de Haas oscillations in Al/InAs heterostructures allows extraction of the 2DEG carrier density, spin-orbit coupling strength, and both transport and quantum scattering times. It further asserts that the extracted scattering times are modulated by the metal-semiconductor coupling strength, enabling inference of the proximity-induced superconducting gap without mK measurements or additional fabrication steps.

Significance. If validated with appropriate modeling, the approach would offer a practical, accessible-temperature tool for rapid characterization and optimization of hybrid superconductor-semiconductor devices, linking standard SdH observables directly to the induced gap and thereby complementing more resource-intensive low-temperature probes.

major comments (2)
  1. [SdH analysis and fitting procedure] The central claim that scattering times extracted via standard SdH fits are quantitatively modulated by the proximity gap (and can be interpreted without independent gap measurements) lacks a derived or cited expression for the modified density of states or Dingle damping that incorporates the minigap and Andreev processes. Standard Lifshitz-Kosevich and Dingle formulas are implicitly assumed, which presuppose an ungapped 2DEG spectrum.
  2. [Results and discussion of scattering times] No validation data, error analysis, or comparison to independent gap measurements (e.g., tunneling spectroscopy) is supplied to demonstrate that the extracted τ_q and τ_tr map to Δ in a model-independent, calibratable manner; this is load-bearing for the advertised fabrication-free inference.
minor comments (2)
  1. [Methods] Notation for the spin-orbit term and the precise definition of the coupling strength parameter should be clarified with an explicit equation.
  2. Figure captions for magnetoresistance traces should explicitly state the temperature range and field sweep direction used for the fits.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and the constructive comments. We appreciate the positive assessment of the potential significance of the SdH-based characterization method. Below we respond point-by-point to the major comments. We will revise the manuscript to incorporate additional theoretical discussion and expanded error analysis while preserving the core claim that the approach provides a practical, fabrication-free route to infer proximity-gap information from accessible-temperature measurements.

read point-by-point responses

  1. Referee: [SdH analysis and fitting procedure] The central claim that scattering times extracted via standard SdH fits are quantitatively modulated by the proximity gap (and can be interpreted without independent gap measurements) lacks a derived or cited expression for the modified density of states or Dingle damping that incorporates the minigap and Andreev processes. Standard Lifshitz-Kosevich and Dingle formulas are implicitly assumed, which presuppose an ungapped 2DEG spectrum.

    Authors: We agree that an explicit derivation or citation would strengthen the presentation. In the weak-coupling regime relevant to our devices, the minigap primarily enters through interface Andreev processes that shorten the quantum lifetime; this effect is captured phenomenologically by the extracted τ_q without requiring a full re-derivation of the oscillatory DOS for the modest gaps and field ranges accessed. To address the comment directly, we will add a concise theoretical subsection (with supporting references to prior work on proximitized 2DEGs) that shows how a small minigap modifies the Dingle damping factor while leaving the standard Lifshitz-Kosevich envelope a good approximation. This addition will make the applicability of the fitting procedure transparent. revision: yes

  2. Referee: [Results and discussion of scattering times] No validation data, error analysis, or comparison to independent gap measurements (e.g., tunneling spectroscopy) is supplied to demonstrate that the extracted τ_q and τ_tr map to Δ in a model-independent, calibratable manner; this is load-bearing for the advertised fabrication-free inference.

    Authors: We acknowledge that direct, device-by-device comparison to tunneling spectroscopy would provide the strongest calibration. Such measurements are outside the scope of the present work precisely because the method is intended to avoid additional fabrication and mK infrastructure. The manuscript already contains fitting uncertainties and consistency checks across multiple heterostructures with varying coupling strengths; we will expand the supplementary material with explicit error propagation from the SdH fits to the inferred gap and add a calibration discussion that references literature values of Δ for comparable Al/InAs interfaces. This will make the mapping more quantitative while retaining the practical advantage of the technique. revision: partial

Circularity Check

0 steps flagged

No circularity: standard SdH formulas applied to data with interpretive link to gap

full rationale

The derivation applies unmodified Lifshitz-Kosevich and Dingle damping formulas to extract carrier density from oscillation frequency, spin-orbit strength from beating, and scattering times from amplitude decay. These quantities are then observed to vary with metal-semiconductor coupling, from which proximity-gap information is inferred empirically. No equation reduces to a tautology, no fitted parameter is relabeled as a prediction, and no self-citation chain supplies a load-bearing uniqueness theorem or ansatz. The chain remains externally anchored in established SdH phenomenology rather than closing on its own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the assumption that standard SdH theory remains valid in the presence of the superconducting film and that scattering times provide a calibrated proxy for the induced gap; no free parameters or invented entities are explicitly introduced in the abstract.

axioms (1)
  • domain assumption Standard Shubnikov-de Haas analysis applies to the 2DEG even when coupled to a superconducting metal film
    Invoked when claiming extraction of carrier density, spin-orbit strength, and scattering times from magnetoresistance data
