Formation and Regulation of Calcium Sparks on a Nonlinear Spatial Network of Ryanodine Receptors

T0 review · 3 major / 5 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read A spatial-network model produces calcium sparks from RyR clusters acting as on-off switches.

desk verdict A competent stochastic spatial-network model of RyR clusters that cleanly separates CSQ buffering from CSQ-RyR binding, but the clamped-store setup leaves the central refractoriness claim under-supported. read the letter →

arxiv 2507.08258 v1 pith:J2FWSJ5B submitted 2025-07-11 q-bio.SC physics.bio-ph

Tian-Tian Li , Zhong-Xue Gao , Zuo-Ming Ding , Han-Yu Jiang , Jun He This is my paper
classification q-bio.SCphysics.bio-ph MSC 92C3792C42
keywords calciumsparksryanodinereceptorspatialnetworkmodelcalsequestrincalcium-inducedreleaserefractoryperiodstochasticsimulationcardiacmyocyte
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper argues that a stochastic spatial network of ryanodine receptors, built from experimentally measured irregular cluster geometries and a four-state model of calsequestrin regulation, can reproduce the two observed classes of calcium release: brief calcium quarks and sustained calcium sparks lasting about 20 ms. The central claim is that each RyR cluster acts as an on-off switch, so the same calcium-induced calcium release mechanism produces either a small short-lived event or a large spark depending on how many receptors are recruited. The authors further claim that spark termination is governed by the falling calcium gradient between the junctional SR and the subspace together with stochastic channel gating, and that CSQ shapes release in two separable ways: buffering lengthens the spark, while CSQ binding to the RyR complex creates the excess refractory period. If the model is right, it separates the buffering and regulatory roles of CSQ and shows how a spatially realistic receptor network can exhibit switch-like calcium signaling without added inactivation mechanisms.

What carries the argument

The machinery is a spatial network of RyR nodes whose pairwise diffusive coupling is an exponential adjacency matrix $A_{ij}=e^{-r_{ij}/r_0}/\tau_{RR}$ with $r_0=60$ nm and $\tau_{RR}\approx 0.01$ ms estimated from the calcium diffusion constant; cluster sizes follow an experimentally derived power-law distribution and the positions are generated by a self-avoiding random walk with the measured nearest-neighbor statistics. Each receptor has four states, closed/open and CSQ-unbound/bound, with opening rates fitted to a sigmoid of the subspace calcium concentration and CSQ binding rates that depend on luminal calcium. The subspace and junctional-SR calcium concentrations evolve under clamped myoplasmic and network-SR calcium, with a fast buffering approximation for CSQ; a fixed-time-step stochastic algorithm updates channel states and calcium concentrations together. This network geometry supplies the diffusive links through which calcium-induced calcium release recruits neighboring receptors, and the four-state scheme supplies the two separate CSQ actions that the paper then isolates by removing one effect at a time.

What would settle it

The cleanest test is a variant that keeps CSQ's calcium buffering but blocks CSQ-RyR binding: the model predicts long sparks with no excess refractory period, so observing a persistent refractory period in that variant would falsify the paper's assignment of refractoriness to the CSQ-bound state.

Watch

Extended reading notes

Core claim

The central discovery is that no cooperative coupling or inactivation term is needed to make a RyR cluster behave like a switch: with only calcium diffusion between receptors as the coupling, the model produces a bimodal distribution of release events, with calcium quarks under 10 ms involving few open channels and calcium sparks of roughly 20 ms in which about half of the cluster's receptors open. Cluster size sets the spark amplitude while the duration stays near 20 ms, and the properties of evoked sparks are largely independent of the LCC trigger type once a spark is initiated. Spark termination is not store depletion; the junctional SR calcium stabilizes near 500 µM and the reduced gradient, together with stochastic gating, closes the cluster, with CSQ binding at low luminal calcium further stabilizing closure. The paper's specific discovery about regulation is that removing the CSQ buffer shortens spark duration but leaves refractoriness intact, whereas removing the CSQ-bound receptor states removes the excess refractory period, so the two roles of CSQ are cleanly separated.

Load-bearing premise

The load-bearing premise is that calcium in the myoplasm and network SR can be held fixed at 0.1 and 1000 µM while only the subspace and junctional SR evolve, so mass conservation is irrelevant; if the reservoirs were allowed to fluctuate as they do in a beating myocyte, the balance between depletion and refilling could change both spark termination and the refractory period, a simplification the authors flag for future work.

Editorial extensions

If this is right

  • Below a recruitment threshold a RyR cluster emits only calcium quarks, while above it the same cluster fires a spark involving roughly half of its channels: the cluster is a digital switch.
  • Spark amplitude is set by cluster size, while spark duration stays near 20 ms across cluster sizes, trigger types, and RyR opening rates.
  • The excess refractory period after a spark is caused by CSQ binding to the RyR complex, not by slow refilling of the junctional SR, and the model reproduces the measured recovery curves.
  • Raising CSQ concentration prolongs spark duration through buffering: removing the buffer eliminates the prolongation, while removing the CSQ-bound states eliminates the excess refractoriness.
  • Dysregulated CSQ, through stuck binding or lost buffering, disrupts the cluster's on-off switching, and raising the SR calcium load only partially restores normal release patterns.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A direct test of the on-off switch claim would be to record from a single cluster with known super-resolution geometry and check that the peak-open-channel histogram is bimodal with a gap near one quarter of the cluster size, rather than unimodal.
  • The clamped-calcium simplification may be the main reason spark duration is so robust: in a beating myocyte, where bulk calcium rises and SR load cycles, the refractory period could be set by store refilling as well as CSQ binding, so the model's assignment of refractoriness to CSQ needs verification under cycling conditions.
  • The exponential coupling assumption implies that sparse, elongated clusters with large internal gaps should fire less reliably than compact clusters of the same size, a prediction that could be tested by comparing spark probability across clusters of different geometry from the same images.
  • A mutant CSQ that buffers calcium normally but cannot bind the RyR complex should preserve long sparks while shortening the refractory period, providing a clean experiment that distinguishes the two claimed roles.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper presents a stochastic spatial network model of ryanodine receptors (RyRs) on the junctional sarcoplasmic reticulum, with each RyR occupying one of four states (CSQ-unbound/open/closed and CSQ-bound/open/closed). Calcium dynamics in the subspace and JSR are described by diffusion-like coupling between RyRs, efflux to a clamped myoplasm, refilling from a clamped NSR reservoir, and rapid buffering including calsequestrin (CSQ). Through large ensembles of randomly generated cluster geometries, the authors simulate spontaneous and LCC-evoked calcium release events. They report a bimodal distribution of short-lived calcium quarks and longer-lasting calcium sparks, interpret RyR clusters as on-off switches, and study how spark duration and refractoriness depend on RyR transition rates, clamped calcium concentrations, CSQ concentration, and CSQ malfunction. The central conclusions are that CSQ's buffering action prolongs spark duration, while CSQ-RyR binding produces excess refractoriness beyond that explained by local JSR refilling.

Significance. If the claims hold, the model offers a computationally tractable way to incorporate experimentally observed irregular RyR cluster geometry into spark simulations, and it separates two putative roles of CSQ (buffering vs. RyR modulation) in a clean, mechanistic way. The paper is commendable for specifying all model equations and parameters, for using large sample sizes (thousands of cluster geometries and triggers in Section III), and for framing the central predictions in a falsifiable manner. The qualitative agreement with experiments on spark duration trends (Terentyev et al.) and on refractoriness (Brochet et al.) is a useful benchmark. The main limitation is that the clamped-NSR boundary condition may not allow the authors to distinguish CSQ-induced refractoriness from store-depletion refractoriness in a physiologically realistic setting.

major comments (3)
  1. [§IV.C, Eq. (13), Fig. 13] The claim that excess refractoriness is caused by CSQ-RyR binding rather than by slow JSR refilling is not established under the model's clamped-NSR condition. With [Ca2+]NSR fixed at 1000 µM and τ_refill = 5 ms, the JSR in Eq. (13) refills very rapidly after a spark, so the comparison curve [Ca2+]SS/100 µM in Fig. 13(j) necessarily shows fast recovery. In a real myocyte the NSR is finite, shared among many release units, and refilled by SERCA on a slower timescale, so local store depletion may persist much longer. The paper acknowledges in §V.C that the clamped setup is a simplified system, but the abstract and §IV.C state the CSQ-RyR interaction controls the refractory period as a general conclusion. A closed-loop calcium-cycling test (or at least a finite NSR compartment) is needed to separate CSQ-dependent refractoriness from store-refilling-dependent refractoriness; otherwise the attribution remains an untested load-bearing assumption.
  2. [§III.C, Fig. 6] The interpretation of RyR clusters as on-off switches relies on a clear bimodal separation between quarks and sparks, but the evidence for bimodality in Fig. 6 is partly asserted rather than quantified. The horizontal threshold lines are placed at NRyR/4 (or at Npeak=10 for multicluster cases), and the 2D histograms in Fig. 6(a-i) show broad continua for some cluster sizes, especially the 30-RyR and multicluster panels. Please report a formal separation measure (e.g., a two-component fit or a gap statistic between the quark and spark populations) and show that the bimodality is not an artifact of the chosen threshold. Without this, the central 'on-off switch' claim is less strongly supported than the text suggests.
  3. [§II.C, Eq. (1), Eq. (15)] The statement that the fast buffering approximation is acceptable 'because the calcium concentration is clamped, making mass conservation irrelevant' is imprecise and could affect the CSQ-related results. Only [Ca2+]myo and [Ca2+]NSR are clamped; [Ca2+]JSR and [Ca2+]SS are dynamic. The rapid buffering approximation in Eq. (15) treats CSQ as an instantaneous buffer without tracking total buffer-bound calcium, which may bias the time course of [Ca2+]JSR depletion and recovery that underlies the spark-duration and refractoriness analyses. Please clarify why neglecting buffer mass conservation does not distort the CSQ buffering effects reported in Figs. 12 and 13, or test the sensitivity of these conclusions to an explicit finite-buffer formulation.
minor comments (5)
  1. [Section IV title and text] The section heading 'REGULATION OF CLACIUM SP ARKS' contains typos ('CLACIUM', 'SP ARKS'); the same heading style appears with 'sprak' in the text. These should be corrected.
  2. [Fig. 7 caption] The caption begins 'Pannels (a), (b), and (c)' with a typo; it should read 'Panels'.
  3. [Fig. 11 caption] The caption says 'The line in (c) is restuls by Sato et al.'; 'restuls' should be 'results'.
  4. [Eq. (15)] The notation in Eq. (15) is unclear: the term 'KCBCSQn' mixes subscripts and variables. Please write it with explicit multiplication and clarify that KC is the half-saturation constant and BCSQ is the CSQ concentration.
  5. [References] Several references, e.g., Ref. 47 and Ref. 60, have inconsistent formatting ('Y . V' instead of 'Y. V', missing journal title in Ref. 60). A careful copyedit is needed.

Circularity Check

0 steps flagged · score 1.0 of 10

No significant circularity: spark bimodality and CSQ effects are emergent simulation outcomes, not fits to spark-level data; the acknowledged calcium clamp is a limitation, not a circular step.

full rationale

The paper's central results derive from a stochastic spatial-network simulation whose parameters are set by external experimental data, not by the spark-level quantities the paper claims to predict. Single-channel opening/closing rates are fitted to Cannell et al.'s rat and sheep RyR recordings (Eqs. 2-5), and the bimodal quark/spark distribution in Fig. 6 emerges from the network dynamics rather than being imposed on the model. CSQ behavior is likewise imported as external model structure from Restrepo et al. (binding states with tau_u = 125 ms, xi = 7.6) and from buffering theory (Eq. 15), and the paper distinguishes buffer versus binding contributions by explicit ablations (Fig. 12, Fig. 13), which is a valid attribution test rather than a tautology. The cluster-size distribution in Eq. (10) is a generator input based on previously published experimental imaging data; Fig. 4(b) merely confirms the random generator reproduces its input, and this check is not load-bearing for the spark or CSQ conclusions. The calcium-clamped NSR/myoplasm setup is accurately described by the authors as a simplification in Section V.C, and the concern that clamped NSR accelerates JSR refilling is a genuine robustness limitation for the refractoriness attribution, but it is an assumption about boundary conditions, not a circular derivation. Minor self-citations (Refs. 37, 38, 63) support model-form choices such as the exponential coupling kernel, but they are accompanied by independent citations and physical estimates, and they do not force the paper's central conclusions. Overall, no derivation step reduces by construction to its own input.

Assumptions & free parameters 10 free parameters · 6 assumptions · 0 invented entities

The central claims rest on a modest set of fitted single-channel rate parameters and several inherited CSQ parameters from Restrepo et al. The bimodal spark/quark behavior is not imposed by hand, but the clamped calcium condition, the exponential coupling kernel, and the four-state RyR state space are structural modeling choices that shape the results. No new physical entities are introduced.

free parameters (10)
  • rat sigmoid opening rate parameters (aO, K, n) = aO = 816.36 s^-1, K = 86.96 µM, n = 4
    Fitted to Cannell et al. single-channel data to produce the sigmoid form in Eq. 4; these values set RyR open probability.
  • rat constant closing rate kC = 1066.8 s^-1
    Fitted as a constant to Cannell et al. data; differs from the original power-law closing rate and directly controls spark duration.
  • sheep sigmoid opening rate parameters (aO, K, n) = aO = 1259.1 s^-1, K = 63.35 µM, n = 2
    Fitted to sheep single-channel data in Eq. 4.
  • sheep constant closing rate kC = 810.0 s^-1
    Fitted as a constant to sheep data; used in the sigmoid-fit scenario.
  • network range scale r0 = 60 nm
    Chosen as roughly twice the size of a RyR; sets the decay length of the adjacency matrix in Eq. 11.
  • network coupling time tau_RR = 0.01 ms
    Estimated from DCa = 200 µm^2/s via tau_RR = r0^2/(2 DCa); sets the overall interaction strength between RyRs.
  • cluster size distribution coefficients = 0.991, 0.66, 0.009, 0.017
    From the authors' previous work (Eq. 10), fitted to experimental cluster-size data; controls the mix of small and large clusters.
  • CSQ-bound opening rate reduction factor xi = 7.6
    Taken from Restrepo et al.; reduces the opening rate of CSQ-bound RyRs and is central to the excess refractoriness result.
  • CSQ binding and unbinding timescales (tau_b, tau_u) = tau_b = 5 ms, tau_u = 125 ms
    Taken from Restrepo et al.; set the kinetics of the CSQ-bound states.
  • CSQ polymerization sigmoid parameters (rho_inf, K, h) = rho_inf = 5e3, K = 1000 µM, h = 23
    Taken from Restrepo et al.; control how luminal calcium drives CSQ monomer concentration in the buffering factor.
assumptions (6)
  • domain assumption Clamped concentrations of myoplasmic and NSR calcium
    Section II sets [Ca2+]myo = 0.1 µM and [Ca2+]NSR = 1000 µM and keeps them fixed; this removes global calcium feedback and is load-bearing for the refractoriness conclusion.
  • domain assumption Exponential distance kernel for RyR-RyR coupling
    Eq. 11 uses A_ij = e^(-r_ij/r0)/tau_RR; the paper notes this is an upper bound for buffered diffusion and depends on r0 and tau_RR being realistic.
  • domain assumption Fast buffering approximation for CSQ and other buffers
    Section IIC adopts the rapid buffering approximation from Wagner and Keizer; it does not conserve mass, which the authors justify by the clamp, but this approximation affects local calcium dynamics.
  • domain assumption Four-state RyR model with CSQ-bound and CSQ-unbound conformations and no inactivation mechanism
    Section IIA: states Cu, Ou, Cb, Ob; the claim that switch behavior emerges 'without requiring inactivation mechanisms' depends on this chosen state space.
  • domain assumption Cluster generation algorithm reproduces experimental RyR geometry
    Section IIB uses a random walk with mean step 40 nm and SD 7.4 nm plus 30x30 nm lattice exclusion, assumed to match Jayasinghe et al.; the spatial network statistics are then compared to that same reference.
  • domain assumption LCC trigger represented as a constant calcium flux for a fixed duration
    Section IIIA models a single LCC release as constant 0.5 pA for 6.7 ms, derived from sparklet-spark coupling latency; this simplified trigger is used to produce evoked sparks.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Formation and Regulation of Calcium Sparks on a Nonlinear Spatial Network of Ryanodine Receptors." pith.science (2026). https://pith.science/paper/J2FWSJ5B

@misc{pith2026250708258,
  author       = {Pith},
  title        = {Pith review of: Formation and Regulation of Calcium Sparks on a Nonlinear Spatial Network of Ryanodine Receptors},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/J2FWSJ5B}},
  note         = {Machine review of arXiv:2507.08258}
}
read the original abstract

Accurate regulation of calcium release is essential for cellular signaling, with the spatial distribution of ryanodine receptors (RyRs) playing a critical role. In this study, we present a nonlinear spatial network model that simulates RyR spatial organization to investigate calcium release dynamics by integrating RyR behavior, calcium buffering, and calsequestrin (CSQ) regulation. The model successfully reproduces calcium sparks, shedding light on their initiation, duration, and termination mechanisms under clamped calcium conditions. Our simulations demonstrate that RyR clusters act as on-off switches for calcium release, producing short-lived calcium quarks and longer-lasting calcium sparks based on distinct activation patterns. Spark termination is governed by calcium gradients and stochastic RyR dynamics, with CSQ facilitating RyR closure and spark termination. We also uncover the dual role of CSQ as both a calcium buffer and a regulator of RyRs. Elevated CSQ levels prolong calcium release due to buffering effects, while CSQ-RyR interactions induce excessive refractoriness, a phenomenon linked to pathological conditions such as ventricular arrhythmias. Dysregulated CSQ function disrupts the on-off switching behavior of RyRs, impairing calcium release dynamics. These findings provide new insights into RyR-mediated calcium signaling, highlighting CSQ's pivotal role in maintaining calcium homeostasis and its implications for pathological conditions. This work advances the understanding of calcium spark regulation and underscores its significance for cardiomyocyte function.

Figures

Figures reproduced from arXiv: 2507.08258 by the authors.

Figure 1

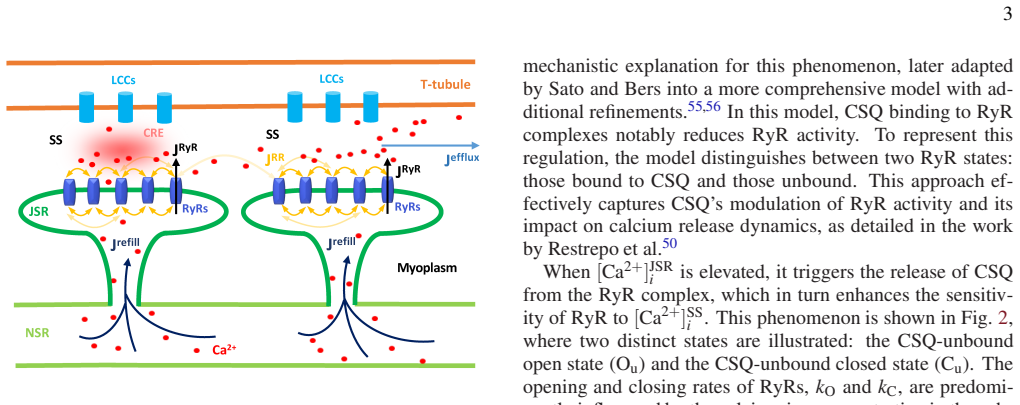

Figure 1. FIG. 1. Schematic representation of the calcium release mec [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. FIG. 2. Schematic representation of transitions of four pos [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. FIG. 3. Transition rates of RyR as a function of calcium conce [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figures from the paper (10 more)
Figure 4
Figure 4. Figure 4: FIG. 4. Randomly generated spatial network. (a) The spatial [PITH_FULL_IMAGE:figures/full_fig_p006_4.png]
Figure 5
Figure 5. Figure 5: FIG. 5. Temporal calcium release profile in a single cluster o [PITH_FULL_IMAGE:figures/full_fig_p009_5.png]
Figure 6
Figure 6. Figure 6: FIG. 6. 2D histograms representing the distribution of CREs [PITH_FULL_IMAGE:figures/full_fig_p009_6.png]
Figure 7
Figure 7. Figure 7: FIG. 7. 2D histograms representing the distribution of CREs [PITH_FULL_IMAGE:figures/full_fig_p010_7.png]
Figure 8
Figure 8. Figure 8: FIG. 8. 2D histograms representing the distribution of CREs [PITH_FULL_IMAGE:figures/full_fig_p011_8.png]
Figure 10
Figure 10. Figure 10: FIG. 10. 2D histogram representing the distribution of CREs [PITH_FULL_IMAGE:figures/full_fig_p011_10.png]
Figure 11
Figure 11. Figure 11: FIG. 11. Number of calcium sparks (a, d), peak number of open [PITH_FULL_IMAGE:figures/full_fig_p012_11.png]
Figure 12
Figure 12. Figure 12: FIG. 12. Variation of the duration of calcium sparks with CSQ [PITH_FULL_IMAGE:figures/full_fig_p012_12.png]
Figure 13

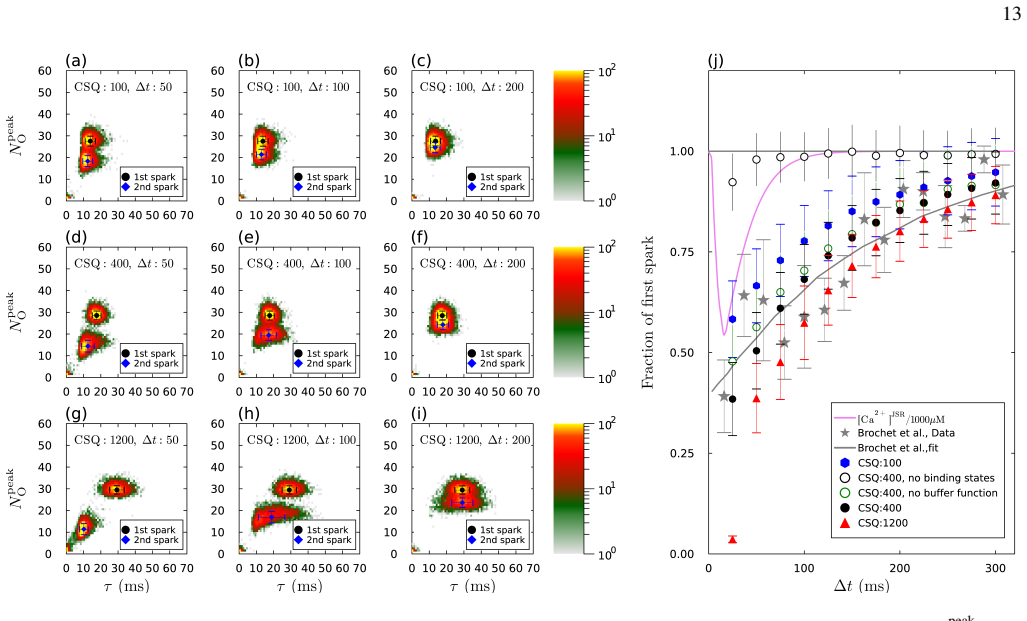

Figure 13. Figure 13: FIG. 13. Refractoriness of the calcium sparks with differen [PITH_FULL_IMAGE:figures/full_fig_p013_13.png]
Figure 14
Figure 14. Figure 14: FIG. 14. 2D histogram representing the distribution of CREs [PITH_FULL_IMAGE:figures/full_fig_p014_14.png]
