Ratchet Universality and optimal suppression of shot noise in biharmonically-driven tunnel junctions

Pedro J. Mart\'inez , Ricardo Chac\'on This is my paper

Pith reviewed 2026-05-22 06:00 UTC · model grok-4.3

classification 🪐 quant-ph
keywords ratchet universalityshot noise suppressiontunnel junctionssupercurrent diode effectbiharmonic drivingnonclassical photonic statesquantum noiserectification
0
0 comments X

The pith

The ratchet universal driving field maximizes diode efficiency and suppresses excess quantum noise in biharmonically-driven superconducting tunnel junctions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper retrodicts previous results on the diode effect and noise suppression in superconducting tunnel junctions using biharmonic driving by applying the law of ratchet universality. It establishes that the universal driving field shape not only maximizes the efficiency of the current rectification but also minimizes the excess quantum noise compared to the direct current case. This matters because it points to a way to produce nonclassical photonic states efficiently in such systems. The findings indicate that this universality law is crucial for any optimal use of the ratchet effect in applications like superconducting electronics and quantum computing.

Core claim

This Letter discusses two retrodictions of the law of ratchet universality which explain previous numerical and experimental results concerning the diode effect in conventional superconducting tunnel-junctions in one case, and controlled suppression of electron-hole pair generation in a tunnel junction in the other, both in the presence of biharmonic driving fields. The ratchet universal driving field maximizes the diode's efficiency while yielding a maximal rectification range for the supercurrent, on the one hand, and optimally reduces the excess quantum noise with respect to the dc noise level, thus allowing for the efficient production of nonclassical photonic states.

What carries the argument

The law of ratchet universality, a principle that specifies the driving field form for universal ratchet behavior, which is applied here to optimize rectification and noise reduction in the tunnel junctions.

If this is right

  • The ratchet universal driving field maximizes the diode's efficiency.
  • It yields a maximal rectification range for the supercurrent.
  • It optimally reduces the excess quantum noise with respect to the dc noise level.
  • This allows for the efficient production of nonclassical photonic states.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar optimizations might apply to other quantum systems involving periodic driving and ratchet effects.
  • Device designs in quantum computing could incorporate this universal field shape to reduce noise.
  • The connection to electron quantum optics suggests new methods for generating specific photonic states.

Load-bearing premise

The law of ratchet universality applies directly and without modification to biharmonically-driven conventional superconducting tunnel junctions in both the diode-effect and noise-suppression regimes.

What would settle it

An observation that a non-universal biharmonic driving field achieves higher diode efficiency or greater noise suppression than the ratchet universal field in a conventional superconducting tunnel junction would falsify the claim.

Figures

Figures reproduced from arXiv: 2605.22412 by Pedro J. Mart\'inez, Ricardo Chac\'on.

Figure 1
Figure 1. Figure 1: FIG. 1: Diode efficiency [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3: Josephson junction voltage [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

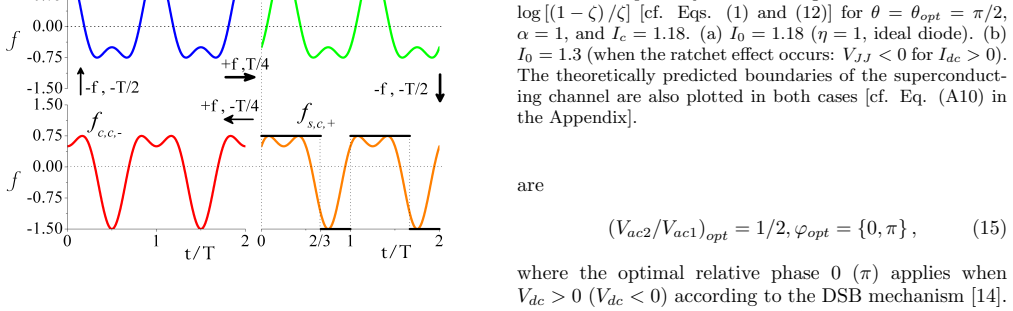

Figure 2
Figure 2. Figure 2: FIG. 2: Functions [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4: (a), (b) Excess noise [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
read the original abstract

This Letter discusses two retrodictions of the law of ratchet universality which explain previous numerical and experimental results concerning the diode effect in conventional superconducting tunnel-junctions in one case, and controlled suppression of electron-hole pair generation in a tunnel junction in the other, both in the presence of biharmonic driving fields. Our study demonstrates that the ratchet universal driving field maximizes the diode's efficiency while yielding a maximal rectification range for the supercurrent, on the one hand, and optimally reduces the excess quantum noise with respect to the dc noise level, thus allowing for the efficient production of nonclassical photonic states. These results suggest that the ratchet universality law seems essential for any \textit{optimal} application of the ratchet effect, particularly in the contexts of superconducting integrated power electronics, electron quantum optics, and quantum computing.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript presents two retrodictions of the law of ratchet universality to explain prior numerical and experimental results on the diode effect in conventional superconducting tunnel junctions and on controlled suppression of electron-hole pair generation under biharmonic driving. It claims that the ratchet universal driving field maximizes diode efficiency and the rectification range for the supercurrent while optimally reducing excess quantum noise relative to the DC level, thereby enabling efficient production of nonclassical photonic states. The results are presented as evidence that the universality law is essential for any optimal application of the ratchet effect in superconducting integrated power electronics, electron quantum optics, and quantum computing.

Significance. If the applicability of the ratchet universality law to the superconducting tunnel-junction Hamiltonian is rigorously established and the retrodictions are independently verified, the work would supply a unifying optimization principle for driven quantum ratchet systems. The connection to nonclassical photonic states via noise suppression would be of interest for quantum optics and information applications. The retrodictive approach offers a consistency check on the law but requires explicit validation of its assumptions in the presence of pairing and Andreev processes.

major comments (1)
  1. [Sections presenting the retrodictions and the application of the universality law] The central optimality claims for both diode efficiency and noise suppression rest on the direct transfer of the ratchet universality law to the biharmonically driven superconducting tunnel junction. The manuscript does not provide an explicit derivation or check showing that the law's conditions remain valid once the junction Hamiltonian includes the superconducting gap, Andreev reflection, and quantum shot-noise operators; extra terms from the pair-generation spectrum could modify the optimal driving field. This issue is load-bearing for the stated maxima and must be addressed with a concrete verification (e.g., by expanding the effective potential or master-equation analysis).
minor comments (2)
  1. The abstract is compact but packs multiple distinct claims; separating the diode-effect retrodiction from the noise-suppression retrodiction would improve immediate clarity for readers.
  2. All references to prior numerical and experimental data should include explicit citations with figure or table numbers from the original works so that the retrodiction procedure can be reproduced without ambiguity.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for highlighting the importance of verifying the conditions of the ratchet universality law in the presence of superconducting pairing. We address this point directly below and will incorporate clarifying material in the revised version.

read point-by-point responses

  1. Referee: [Sections presenting the retrodictions and the application of the universality law] The central optimality claims for both diode efficiency and noise suppression rest on the direct transfer of the ratchet universality law to the biharmonically driven superconducting tunnel junction. The manuscript does not provide an explicit derivation or check showing that the law's conditions remain valid once the junction Hamiltonian includes the superconducting gap, Andreev reflection, and quantum shot-noise operators; extra terms from the pair-generation spectrum could modify the optimal driving field. This issue is load-bearing for the stated maxima and must be addressed with a concrete verification (e.g., by expanding the effective potential or master-equation analysis).

    Authors: We agree that an explicit check of the law's assumptions would strengthen the argument. The present work is framed as a retrodiction: the universal driving field derived for the normal-state ratchet reproduces the optimal parameters previously found in numerical simulations and experiments on superconducting junctions. This quantitative agreement indicates that the additional terms arising from the gap, Andreev reflection, and pair-generation spectrum do not shift the location of the optimum. In the revised manuscript we will add a concise paragraph (in the discussion section) that sketches why the effective potential, after averaging over the fast Josephson oscillations, retains the same functional form assumed by the universality law; the symmetric contributions from Andreev processes cancel in the relevant Fourier components. A full master-equation derivation lies outside the scope of this Letter and will be noted as the subject of follow-up work. revision: partial

Circularity Check

0 steps flagged

No significant circularity; retrodictions apply established law to new context without reduction to inputs

full rationale

The manuscript presents two retrodictions in which the ratchet-universality law is invoked to account for prior numerical and experimental observations on diode efficiency and shot-noise suppression under biharmonic driving. No equation or section reduces the claimed optimality or rectification range to a parameter fitted inside this paper; the universality law is treated as an external input whose consequences are then mapped onto the tunnel-junction Hamiltonian. Because the central results are framed as consequences of that pre-existing law rather than as a re-derivation or re-fit of the law itself, the derivation chain remains independent of the present data set and does not exhibit self-definition, fitted-input renaming, or load-bearing self-citation.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the direct applicability of the ratchet-universality law to the described superconducting systems; no free parameters, invented entities, or additional axioms are stated in the abstract.

axioms (1)
  • domain assumption The law of ratchet universality holds for biharmonic driving in conventional superconducting tunnel junctions.
    Invoked to explain both the diode effect and the optimal noise suppression.

pith-pipeline@v0.9.0 · 5671 in / 1173 out tokens · 39660 ms · 2026-05-22T06:00:01.173309+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

25 extracted references · 25 canonical work pages

  1. [1]

    Shockley, Bell Syst

    W. Shockley, Bell Syst. Tech. J.28, 435 (1949)

    work page 1949

  2. [2]

    J. Hu, C. Wu, and X. Dai, Phys. Rev. Lett.99, 067004 (2007)

    work page 2007

  3. [3]

    Nadeem, M

    M. Nadeem, M. S. Fuhrer, and X. Wang, Nat. Rev. Phys. 5, 558 (2023)

    work page 2023

  4. [4]

    J. Ma, R. Zhan, and X. Lin, Adv. Physics Res.4, 2400180 (2025)

    work page 2025

  5. [5]

    Xiong, J

    J. Xiong, J. Xie, B. Cheng, Y. Dai, X. Cui, L. Wang, Z. Liu, J. Zhou, N. Wang, X. Xu, X. Chen, S.-W. Cheong, S.-J. Liang, and F. Miao, Nat. Commun.15, 4953 (2024)

    work page 2024

  6. [6]

    T. Le, Z. Pan, Z. Xu, J. Liu, J. Wang, Z. Lou, X. Yang, Z. Wang, Y. Yao, C. Wu, and X. Lin, Nature630, 64 (2024)

    work page 2024

  7. [7]

    Jiang et al., Phys

    N. Jiang et al., Phys. Rev. B112, 235313 (2025)

    work page 2025

  8. [8]

    Clarke and F

    J. Clarke and F. K. Wilhelm, Nature453, 1031 (2008)

    work page 2008

  9. [9]

    F. Ando, Y. Miyasaka, T. Li, J. Ishizuka, T. Arakawa, Y. Shiota, T. Moriyama, Y. Yanase, and T. Ono, Nature 584, 373 (2020)

    work page 2020

  10. [10]

    Gabelli and B

    J. Gabelli and B. Reulet, Phys. Rev. B87, 075403 (2013)

    work page 2013

  11. [11]

    Scheer, R

    D. Scheer, R. Seoane Souto, F. Hassler, and J. Danon, New J. Phys.27, 033013 (2025)

    work page 2025

  12. [12]

    Borgongino, R

    L. Borgongino, R. Seoane Souto, A. Paghi, G. Senesi, K. Skibinska, L. Sorba, E. Riccardi, F. Giazotto, and E. Strambini, Nano Lett.25, 14451 (2025)

    work page 2025

  13. [13]

    Vanevic and W

    M. Vanevic and W. Belzig, Phys. Rev. E86, 241306(R) (2012)

    work page 2012

  14. [14]

    Chac´ on, J

    R. Chac´ on, J. Phys. A40, F413 (2007)

    work page 2007

  15. [15]

    Chac´ on, J

    R. Chac´ on, J. Phys. A43, 322001 (2010);54, 209501 (2021)

    work page 2010

  16. [16]

    Chac´ on and P

    R. Chac´ on and P. J. Mart´ ınez, Int. J. Bifurcation Chaos 31, 2150109 (2021)

    work page 2021

  17. [17]

    Salger, S

    T. Salger, S. Kling, T. Hecking, C. Geckeler, L. Morales- Molina, and M. Weitz, Science326, 1241 (2009)

    work page 2009

  18. [18]

    Chac´ on and P

    R. Chac´ on and P. J. Mart´ ınez, Phys. Rev. E104, 014120 (2021)

    work page 2021

  19. [19]

    H. Li, T. Gao, and S. Xie, J. Phys. Chem. Lett.16, 8906 (2025)

    work page 2025

  20. [20]

    Mart´ ın-Roca, L

    J. Mart´ ın-Roca, L. Izquierdo Solis, F. Mart´ ınez Pedrero, P. Casadejust, I. Pagonabarraga, and C. Calero, Phys. Rev. Lett.135, 028301 (2025)

    work page 2025

  21. [21]

    Chac´ on and P

    R. Chac´ on and P. J. Mart´ ınez, Phys. Lett. A577, 131461 (2026)

    work page 2026

  22. [22]

    P. J. Mart´ ınez and R. Chac´ on, Phys. Rev E87, 062114 (2013);88, 019902 (2013);88, 066102 (2013)

    work page 2013

  23. [23]

    Chac´ on, A

    R. Chac´ on, A. Mart´ ınez Garc´ ıa-Hoz, P. J. Mart´ ınez, and D. Dur´ an, Phys. Rev E111, 034205 (2025)

    work page 2025

  24. [24]

    W. Chen, L. Liu, Y. Ji, and Y. Zheng, Phys. Rev. B99, 064431 (2019)

    work page 2019

  25. [25]

    P. J. Mart´ ınez and R. Chac´ on, Nonlinear Dyn.111, 12973 (2023). A. End Matter Appendix: Optimal biharmonic waveform−According to the law of RU, the four equivalent expressions of the (non-normalized) optimal biharmonic excitation in the overdamped regime [14,15] are given by fc,c,±(t)≡cos (ωt)±(1/2) cos (2ωt), fs,c,±(t)≡sin (ωt)±(1/2) cos (2ωt),(A1) 6 ...
