A Secure Cloud with Minimal Provider Trust

Amin Mosayyebzadeh , Gerardo Ravago , Apoorve Mohan , Ali Raza , Sahil Tikale , Nabil Schear , Trammell Hudson , Jason Hennessey
show 7 more authors
Naved Ansari Kyle Hogan Charles Munson Larry Rudolph Gene Cooperman Peter Desnoyers Orran Krieger
This is my paper

Pith reviewed 2026-05-24 21:37 UTC · model grok-4.3

classification 💻 cs.DC cs.CR
keywords bare metal cloudcloud securityattestationminimal provider trusttenant isolationsecure provisioning
0
0 comments X

The pith

Bolted architecture lets tenants isolate bare-metal servers and attest firmware before network access in clouds.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents Bolted as a bare metal cloud architecture designed to offer security-sensitive customers the same security level as private data centers. Tenants can allocate resources elastically while protected from other tenants through server isolation during provisioning. Communication is only enabled after the tenant attests the critical firmware and software. This allows tenants to manage their own security, price, and performance choices. A prototype implementation shows the approach scales with minimal overhead.

Core claim

Bolted is a new architecture for a bare metal cloud that provides security-sensitive customers the same level of security and control as in their own private data centers by isolating bare metal servers upon provisioning and only allowing communication once critical firmware and software are attested to the tenant.

What carries the argument

The provisioning mechanism that isolates a bare metal server to a tenant and enforces attestation of firmware and software prior to enabling communication with other servers.

If this is right

  • Tenants are protected from previous, current, and future tenants in the cloud.
  • Tenants control the tradeoffs between security, price, and performance rather than the provider.
  • The system achieves scalable end-to-end security with small overhead compared to less secure alternatives.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This model reduces the need for organizations to maintain separate private data centers for sensitive workloads.
  • It could influence how cloud providers design multi-tenant isolation mechanisms.
  • Extensions might include support for dynamic attestation during runtime.

Load-bearing premise

The cloud provider will correctly isolate the bare metal server initially and will not bypass or interfere with the attestation process afterward.

What would settle it

If it can be shown that the provider is able to allow communication between servers before attestation completes or bypass the isolation, the security claims would not hold.

Figures

Figures reproduced from arXiv: 1907.07627 by Ali Raza, Amin Mosayyebzadeh, Apoorve Mohan, Charles Munson, Gene Cooperman, Gerardo Ravago, Jason Hennessey, Kyle Hogan, Larry Rudolph, Nabil Schear, Naved Ansari, Orran Krieger, Peter Desnoyers, Sahil Tikale, Trammell Hudson.

Figure 1
Figure 1. Figure 1: Bolted’s architecture: Blue arrows show state [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

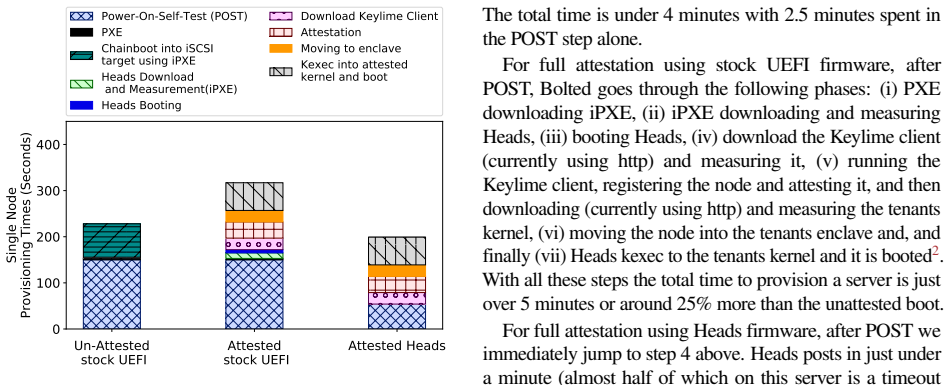

Figure 2. Figure 2: Performance with and without Bolted for systems [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

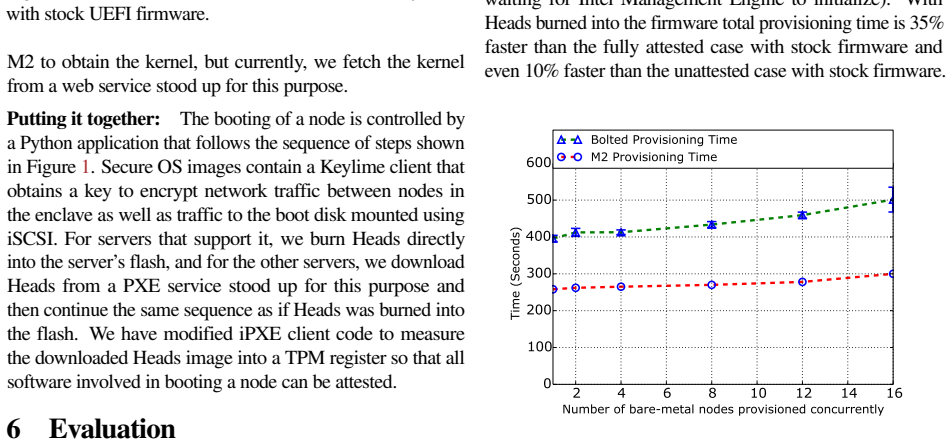

Figure 3. Figure 3: Scaling Results [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
read the original abstract

Bolted is a new architecture for a bare metal cloud with the goal of providing security-sensitive customers of a cloud the same level of security and control that they can obtain in their own private data centers. It allows tenants to elastically allocate secure resources within a cloud while being protected from other previous, current, and future tenants of the cloud. The provisioning of a new server to a tenant isolates a bare metal server, only allowing it to communicate with other tenant's servers once its critical firmware and software have been attested to the tenant. Tenants, rather than the provider, control the tradeoffs between security, price, and performance. A prototype demonstrates scalable end-to-end security with small overhead compared to a less secure alternative.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper proposes Bolted, an architecture for bare-metal clouds in which tenants elastically allocate isolated servers that are attested for firmware and software before being allowed to communicate with other tenant resources. The design aims to give tenants the same security and control as a private data center while letting them manage security-price-performance trade-offs; a prototype is reported to achieve scalable end-to-end security with modest overhead relative to a less-secure baseline.

Significance. If the security properties hold, the work would meaningfully reduce the trust placed in cloud providers for sensitive workloads and demonstrate a practical path for attested bare-metal multi-tenancy. The existence of a working prototype is a concrete strength that supports feasibility claims.

major comments (2)
  1. [Abstract, §3] Abstract and §3 (architecture description): the provisioning sequence states that the provider first isolates the bare-metal server and only afterward allows attestation by the tenant. Because isolation is a prerequisite for the subsequent attestation step, a provider that supplies a non-isolated server or one whose network configuration can be altered after hand-off can violate the claimed protection from other tenants before any tenant-controlled attestation occurs. This dependency appears load-bearing for the central 'minimal provider trust' claim.
  2. [§4] §4 (attestation and isolation mechanisms): no mechanism is described that would allow a tenant to verify that the initial network isolation was performed correctly by the provider, independent of the provider's firmware or hypervisor. Without such a check, the attestation of firmware and software cannot retroactively enforce isolation that was never established.
minor comments (1)
  1. [Abstract] The abstract refers to 'other tenant's servers' (possessive) where 'other tenants' servers' is intended; this should be corrected for clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments highlighting potential ambiguities in the trust model and verification steps. We address each major comment below and will revise the manuscript to improve clarity on these points.

read point-by-point responses

  1. Referee: [Abstract, §3] Abstract and §3 (architecture description): the provisioning sequence states that the provider first isolates the bare-metal server and only afterward allows attestation by the tenant. Because isolation is a prerequisite for the subsequent attestation step, a provider that supplies a non-isolated server or one whose network configuration can be altered after hand-off can violate the claimed protection from other tenants before any tenant-controlled attestation occurs. This dependency appears load-bearing for the central 'minimal provider trust' claim.

    Authors: We agree that the initial isolation step is performed by the provider and precedes tenant attestation; this sequence is required for practical allocation of bare-metal resources. The architecture's minimal-trust claim rests on the assumption that the provider correctly executes the documented isolation protocol at provisioning time, after which tenant-controlled attestation and ongoing monitoring limit further provider actions. We will revise §3 to explicitly enumerate the trust assumptions for the initial isolation step, including the hardware mechanisms used and the consequences if isolation is not performed as specified. revision: yes

  2. Referee: [§4] §4 (attestation and isolation mechanisms): no mechanism is described that would allow a tenant to verify that the initial network isolation was performed correctly by the provider, independent of the provider's firmware or hypervisor. Without such a check, the attestation of firmware and software cannot retroactively enforce isolation that was never established.

    Authors: The current manuscript does not describe an independent tenant-side verification of the provider's initial network isolation that operates outside the attested firmware and hypervisor. Attestation occurs after isolation and confirms the resulting system state, but it cannot retroactively prove that isolation was correctly established if the provider's configuration step was faulty. We will revise §4 to add an explicit discussion of this limitation in the trust model and, where possible, describe any hardware-level isolation primitives that could be attested as part of the firmware state. revision: yes

Circularity Check

0 steps flagged

Architectural proposal; no derivations or equations present

full rationale

The paper presents a system architecture (Bolted) for bare-metal cloud isolation and attestation. No equations, fitted parameters, predictions, or first-principles derivations appear in the provided abstract or description. The content is an engineering design proposal whose claims rest on the described mechanisms rather than any mathematical reduction to inputs. No self-citation chains, ansatzes, or renamings of known results are invoked in a load-bearing way. The architecture is therefore self-contained against the circularity criteria; the reader's score of 0.0 is confirmed.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review yields no visible free parameters, axioms, or invented entities; no technical details on modeling choices or new constructs are supplied.
