The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper introduces Neural Particle Automata, a way to train particle systems to self-organize without pinning cells to a grid. Each particle carries a continuous position and internal state; a small shared neural network reads local neighborhood information and updates both. The neighborhood information comes from smoothed particle hydrodynamics (SPH), which estimates densities and gradients from nearby particles without any fixed connectivity. The paper shows that this recipe makes classic cellular-automaton behaviors—growth, regeneration after damage, and distributed decision-making—work on free-moving particle sets in 2D and 3D, and that it scales thanks to custom GPU kernels. If right, self-organizing graphics and simulation primitives can be learned end-to-end instead of hand-designed.

What carries the argument

The load-bearing object is the SPH perception vector Z_i = [S_i, S̃_i, ∇S_i, ∇ρ_i]: the particle's own state, a kernel-smoothed neighbor state, a first-order gradient estimate (with moment-matrix bias correction in the forward pass but detached in backprop), and the density gradient. These are computed with fixed Poly6/Spiky kernels over an epsilon-neighborhood, giving permutation- and translation-invariant, local, sampling-robust features. The paper derives analytic backward formulas for every operator so the whole pipeline is differentiable, and implements the sums with hash-grid GPU kernels that avoid explicit adjacency lists.

What would settle it

Train NPA on a reaction-diffusion target that is known to require exact second-order diffusion, such as pattern selection driven by a specific Laplacian eigenvalue. If the learned rule cannot reproduce the pattern even with a large network and long training, while an explicit SPH Laplacian variant can, the operating point is falsified. A lighter check: measure whether test performance on fine textures plateaus at the SPH kernel scale, matching the paper's stated limitation.

Watch

Extended reading notes

Core claim

NPA claims that the perception/update separation of NCA transfers to continuous particle systems: replace grid convolutions by differentiable SPH operators, keep a shared learnable MLP, and the same self-organizing phenomena emerge, now on particles that move. The paper argues this is the missing Lagrangian counterpart to lattice-based NCA, and validates it by growing emoji and 3D shapes, synthesizing RGBA textures, and classifying point clouds through iterative local voting. It also demonstrates resilience to perturbation and graceful variation of particle count and support radius.

Load-bearing premise

The whole recipe assumes that the fixed SPH operators—smoothing, first-order gradient, and density gradient—capture all information a task needs; specifically that the difference between a particle's state and its smoothed neighborhood state adequately substitutes for a true Laplacian, an assumption the paper checks on only three task families.

Editorial extensions

If this is right

Self-organizing particle dynamics can be trained end-to-end with only image-level or task-level losses, without particle-level correspondences.
Learned rules inherit NCA's ability to recover from state erasure, cuts, and clumping during continued rollout.
The same trained rule generalizes to different particle counts and support radii, up to predicted rescaling factors.
Multiple independently trained rules can coexist and interact in one simulation, suggesting a building block for multi-agent particle systems.
Computation concentrates on occupied regions, making real-time interactive particle graphics feasible on modest hardware.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

A natural next test is whether the Laplacian proxy (S_i − S̃_i) ∝ ε² ΔS_i is expressive enough for phenomena requiring fourth-order or anisotropic diffusion; tasks like Turing-pattern selection or thin-plate bending could discriminate.
If fixed-kernel SPH suffices, NPA becomes a candidate differentiable engine for learned physics-like simulations beyond fluids—agents, crowds, deformable bodies—where the same local rule must infer hidden state from geometry.
The paper's 'persistent internal flows' hypothesis—that vortices act as distributed memory—is testable: remove or clamp the flow and see whether long-term stability degrades.
The reported hyperparameter sensitivity suggests a follow-up: derive or learn the perception normalization instead of hand-tuning log-scaling and gradient detachment.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

Short version: NPA is a genuine method contribution. The SPH-based perception, with carefully derived backward formulas and custom CUDA kernels, cleanly transplants NCA's local, shared-rule structure onto dynamic particle systems. The paper's central claim—that no prior framework combined NCA-style robustness with Lagrangian particles—is plausible, and the morphogenesis, texture, and classification results support it qualitatively.

What's actually new: making SPH operators differentiable and using them as perception in an NCA-style iterative update, with a few practical tricks (detached gradient correction, log-compression, stochastic update mask) that make training stable. The Appendix A derivations are standard but thorough. The interactive demo is a real asset.

Where the paper is soft: the quantitative support is a single number—98.42% on PointMNIST—with no baselines, no error bars, and no ablations of the key heuristics. No training code is released, so the method isn't independently reproducible yet. The regeneration evidence is partly circular: state-erasure robustness was explicitly trained with local zeroing perturbations, though the transfer to cuts and clumping (both unseen) is genuinely reassuring. The authors' own limitations section admits hyperparameter sensitivity and weak fine-detail capture, and those are consistent with what I'd expect from SPH smoothing.

One specific concern worth taking seriously: the perception vector omits an explicit SPH Laplacian, relying on (S_i - S_tilde_i) ~ eps^2 Delta S_i. That approximation is finite-epsilon and biased on irregular samples, and the paper never tests a task that genuinely requires second-order information (e.g., Turing patterns). So the expressivity claim—NPA generalizes NCA's expressivity—is not fully established. It doesn't sink the paper, but the authors should add an explicit test of Laplacian-type behavior.

Who should read this: anyone working on NCA, particle-based simulation, or self-organizing neural models. It's a solid method paper that deserves a serious referee; I'd send it to review, asking for quantitative baselines, ablations, and code release before acceptance.

Referee Report

4 major / 6 minor

Summary. The paper introduces Neural Particle Automata (NPA), a Lagrangian generalization of Neural Cellular Automata in which each cell is a particle with a continuous position and internal state, both updated by a shared, learnable neural rule. Grid-based perception is replaced by differentiable Smoothed Particle Hydrodynamics operators, implemented with custom CUDA kernels and hash-grid acceleration. The authors derive backward formulas for the SPH operators, report experiments on 2D/3D morphogenesis, particle-based texture synthesis, and self-classifying PointMNIST, and provide an interactive browser demo. The single quantitative result is 98.42% test accuracy on PointMNIST; the remaining evidence is largely qualitative, with additional analyses of robustness to discretization, regeneration under perturbations, hidden-state structure, and multi-species composition.

Significance. If the claims hold, NPA is a meaningful step toward trainable self-organizing particle systems, combining the robust, locally-updated rule structure of NCA with the flexibility of Lagrangian representations. The paper's strengths include careful analytic backward derivations in Appendix A, a matrix-free CUDA implementation, and a publicly available interactive demo. However, the empirical support for the central claims is currently thin: the only quantitative result has no baselines or error bars, the regeneration evidence is partly trained rather than emergent, and the asserted equivalence with NCA expressivity is not tested on any task requiring genuine second-order operators. The core idea is promising and the technical machinery is solid, but the load-bearing empirical and modeling assumptions need to be addressed before the paper's strongest claims can be accepted.

major comments (4)

[§4.3, Table 3] The only quantitative result in the paper is 98.42% test accuracy on PointMNIST. It is reported without error bars, without baselines (grid-based NCA, PointNet, GNNs, or any other point-cloud classifier), and without ablations. Moreover, this benchmark uses static particles, so it does not exercise the Lagrangian position dynamics that are the paper's main contribution. This single number cannot substantiate the abstract's claims of 'scalable end-to-end training' or of matching NCA expressivity. Please add repeated-run statistics, reference models, and a dynamic-particle benchmark with a quantitative metric (e.g., IoU for morphogenesis).
[§3.2.1, Eq. (4)] The perception vector Z_i omits an explicit SPH Laplacian, justified only by the informal relation (S_i − S̃_i) ∝ ε²ΔS_i. This is a finite-ε approximation whose error contains higher-order derivatives and is biased near boundaries and under irregular sampling. No experiment targets a phenomenon that requires a well-conditioned second-order operator (e.g., reaction–diffusion/Turing patterns, a canonical NCA benchmark), so the claim that NPA is a Lagrangian generalization with NCA-level expressivity is not directly tested. Please run a task whose existence depends on a genuine Laplacian, or compare against a variant with an explicit SPH Laplacian, and report whether the omitted operator changes behavior.
[§4.4] The regeneration experiments are partially circular. The text states that during training, whenever an element is sampled from the pool, a random particle's ε-neighborhood is zeroed. Thus state-erasure recovery is an in-distribution trained behavior, not an emergent self-correction property. The cut and clumping perturbations are unseen and more convincing, but they are only shown qualitatively. Please provide quantitative regeneration metrics (e.g., density/IoU over time after each perturbation) and an ablation that trains without the local zeroing perturbation, so the reader can see which behaviors actually emerge.
[§3.2.3] The training pipeline stops gradients with respect to positions in the SPH perception ('we stop gradients with respect to positions in the SPH perception, as shown in Figure 2'). This is a strong inductive bias: the adaptation network never receives gradient signal through the dependence of neighborhood geometry on x_i. Since dynamic particle behavior is central to the contribution, the paper should demonstrate that this detachment does not remove information essential for learning position updates. Please include an ablation (with vs. without detachment) or a gradient-flow analysis.

minor comments (6)

[§2.2, Table 1] The table assigns SPH operators all checkmarks, but the criteria (U, S, DY, LO, SC, UR) are not formally defined. Please define them or soften the claims; for example, SPH locality depends on compact support and is approximate under kernel truncation.
[§3.2.3, Eq. (9)] The log-compression constant η is introduced but its value is not reported in Table 3. Please report it.
[§4.1.1] The '60 emoji targets' are described without a source or preprocessing details. Please provide the dataset source and sample images.
[Appendix A] Sign conventions for r_ij appear inconsistent between Eqs. (14) and (24). Please verify and standardize the notation throughout the appendix.
[§4.3, Fig. 8] The term 'Max density over timestep' in Figure 8 is undefined. Please define it in the caption or text.
[§3.2.2] The term 'equivariance' is used for what appears to be a mix of invariance (permutation, translation) and equivariance (scale, density). Please clarify the terminology.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: NPA's derivation and experiments are self-contained, with only a disclosed, non-circular training augmentation for regeneration.

full rationale

The paper's core claim is architectural: SPH-based perception replaces grid convolutions in an NCA-style local update rule. The perception vector Z_i = [S_i, S_i_tilde, grad S_i, grad rho_i] is an explicit modeling choice, and the '(S_i − S_i_tilde) ∝ ε² ΔS_i' remark is presented as a heuristic for omitting an explicit SPH Laplacian; it is a stated approximation, not a result derived from the target claim. No fitted parameter is renamed as a prediction: morphogenesis and texture losses are direct rendering losses, and PointMNIST reports a held-out test accuracy (98.42%). The only potentially circular-looking evidence is the state-erasure regeneration test, but the paper explicitly discloses that this perturbation was used during training ('To encourage such regeneration in the 2D morphogenesis and texture settings, we apply a simple training-time disturbance'), and it validates the general regenerative claim on two unseen distortion types (cuts and clumping), which are independent. Self-citations (Pajouheshgar et al. 2024b, 2025; Kim and Park 2025) are contextual and non-load-bearing. The Limitations section concedes expressivity limits ('NPA struggle to capture fine geometric and texture details') and training sensitivity, which affect correctness risk but not circularity.

Assumptions & free parameters 6 free parameters · 5 assumptions · 0 invented entities

The paper introduces no new physical or mathematical entity; it combines existing SPH operators with NCA-style shared update rules. The main unconsumed inputs are the hand-chosen SPH hyperparameters, the fixed perception vector, and the ad-hoc stabilizers used to make training work.

free parameters (6)

SPH support radius ε = 0.1 (morphology/PointMNIST), 0.2 (textures)
Chosen per task in Table 3; defines the local neighborhood and enters every SPH operator.
Total particle mass normalization = 1
Masses are normalized so total mass is 1 (§3.2.2); a convention intended to make density features invariant to particle count.
Stochastic update probability p = 0.5
Inherited from NCA and used for all training (§3.2.1).
Log-compression constant η = small positive (exact value not stated)
Added in Eq. 9 for numerical stability of large gradient magnitudes.
3D Gaussian decoder constants (A, σ, o) = A=0.1, σ=0.02, o=0.15
Hand-set parameters converting particle states to Gaussian splatting attributes for 3D morphogenesis (§4.1.2).
Gradient-correction det threshold = 1e-3
Fallback threshold for moment-matrix inversion in Eq. 3; chosen by hand to improve training stability.

assumptions (5)

domain assumption SPH kernel-weighted sums approximate field values and derivatives on particle samples
The method treats learned state channels as continuous fields and uses Poly6/Spiky kernels (Eq. 1) for perception; accuracy depends on smoothness and sampling regularity, which are not guaranteed for learned states.
domain assumption Local ε-neighborhood interactions are sufficient for the target global behaviors
Adopted from NCA; perceptual vector Z_i (Eq. 4) only sees particles within ε, so global consensus and morphogenesis must emerge from purely local updates.
ad hoc to paper Detach/stop-gradient heuristics do not remove gradients essential to learning the objective
Eq. 3 detaches the corrected gradient in backprop, and §3.2.3 stops position gradients through SPH perception; the paper justifies these only empirically as stabilizers.
domain assumption Rendered image-based losses provide sufficient supervision for self-organization without particle correspondences
Morphogenesis and texture tasks supervise only Gaussian-splatting renders or VGG feature statistics (§4.1, §4.2); no per-particle target correspondence is used.
domain assumption SPH feature normalization and gradient rescaling make learned dynamics generalize over spatial scale and sampling density
Mass normalization and (ε/ε0) rescaling are described in §3.2.2, but for particle-count changes the paper admits 'we do not have a formal equivariance guarantee' (§4.4), so generalization is an empirical assumption.

how reviews work

0 comments

Cite this review

Pith. "Pith review of Neural Particle Automata: Learning Self-Organizing Particle Dynamics." pith.science (2026). https://pith.science/paper/JNARPOHC

@misc{pith2026260116096,
  author       = {Pith},
  title        = {Pith review of: Neural Particle Automata: Learning Self-Organizing Particle Dynamics},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/JNARPOHC}},
  note         = {Machine review of arXiv:2601.16096}
}

read the original abstract

We introduce Neural Particle Automata (NPA), a Lagrangian generalization of Neural Cellular Automata (NCA) from static lattices to dynamic particle systems. Unlike classical Eulerian NCA where cells are pinned to pixels or voxels, NPA model each cell as a particle with a continuous position and internal state, both updated by a shared, learnable neural rule. This particle-based formulation yields clear individuation of cells, allows heterogeneous dynamics, and concentrates computation only on regions where activity is present. At the same time, particle systems pose challenges: neighborhoods are dynamic, and a naive implementation of local interactions scale quadratically with the number of particles. We address these challenges by replacing grid-based neighborhood perception with differentiable Smoothed Particle Hydrodynamics (SPH) operators backed by memory-efficient, CUDA-accelerated kernels, enabling scalable end-to-end training. Across tasks including morphogenesis, point-cloud classification, and particle-based texture synthesis, we show that NPA retain key NCA behaviors such as robustness and self-regeneration, while enabling new behaviors specific to particle systems. Together, these results position NPA as a compact neural model for learning self-organizing particle dynamics.

Figures

Figures reproduced from arXiv: 2601.16096 by the authors.

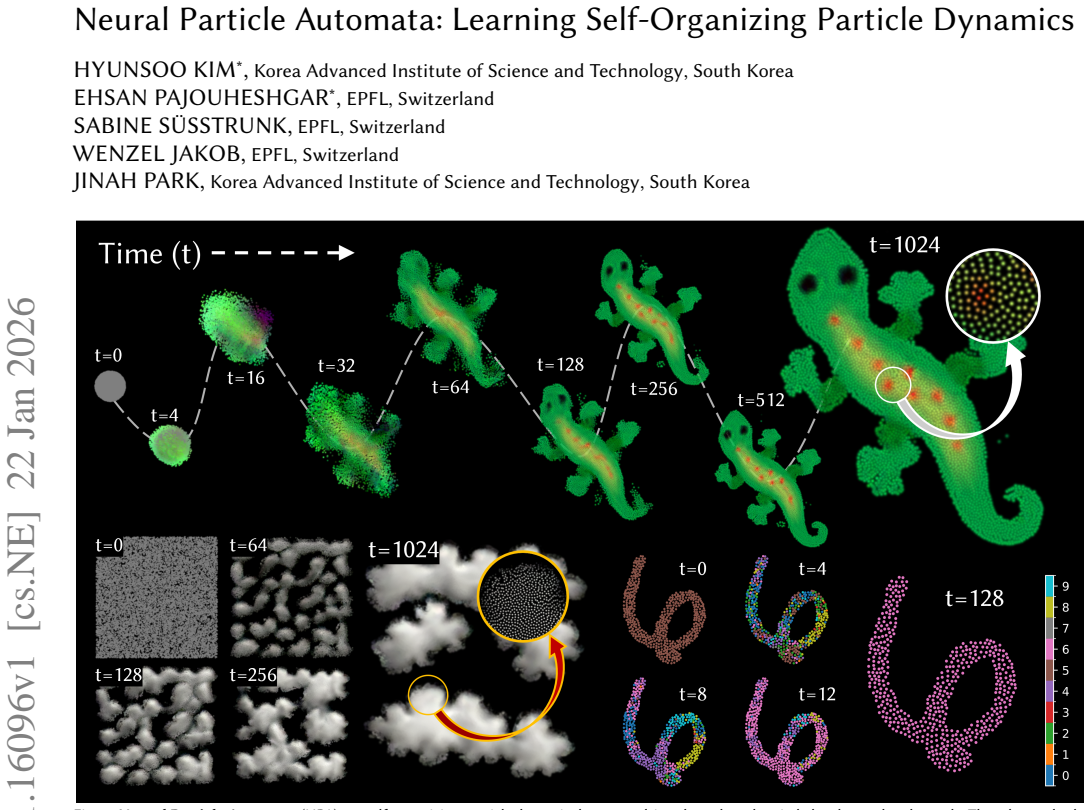

**Figure 1.** Neural Particle Automata (NPA) are self-organizing particle dynamical systems driven by a shared, strictly local neural update rule. Three learned rules are shown: (top) growing a morphology from an egg-like seed, (bottom left) RGBA texture formation from a uniform seed, and (bottom right) self-classifying particle digits; numbers denote update steps. Check out our interactive demo available at: https://selforg-npa.… view at source ↗

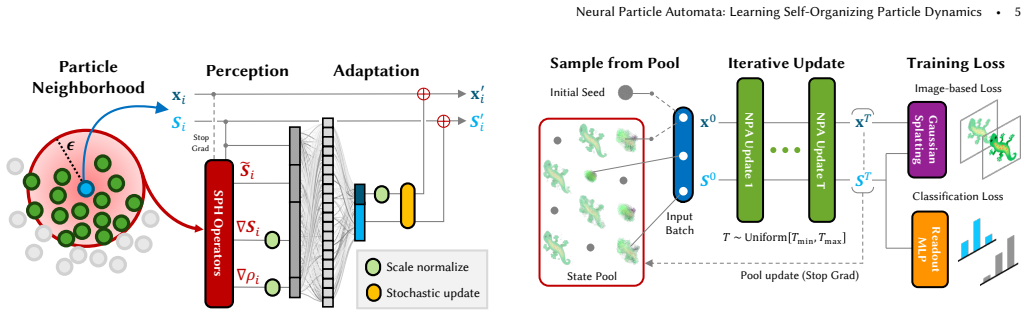

**Figure 3.** Training of Neural Particle Automata. scales. While we do not enforce rotational equivariance in this work, it can also be incorporated, for instance by using Vector Neurons [Deng et al. 2021] for gradient inputs in the adaptation stage. To generalize across different sampling densities—i.e., using more or fewer particles while keeping the support radius 𝜖 fixed—we normalize particle masses so that the total mass r… view at source ↗

**Figure 6.** Particle-based Texture Synthesis. From a uniform square seed, a learned NPA rule self-organizes dynamic particles into textures. T=0 T=2 T=4 T=6 T=8 T=10 T=12 T=16 T=128 [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗

Figures from the paper (6 more)

**Figure 7.** Figure 7: Self-classifying MNIST Points. A static point set representing MNIST digits iteratively exchanges local information until reaching a global consensus for classification [PITH_FULL_IMAGE:figures/full_fig_p010_7.png]

**Figure 8.** Figure 8: Internal state visualization of self-classifying Point MNIST. (Top) Evo [PITH_FULL_IMAGE:figures/full_fig_p011_8.png]

**Figure 12.** Figure 12: Hidden Channels. Internal states form a spatially structured representation, guiding the growth and helping with long-term stability [PITH_FULL_IMAGE:figures/full_fig_p011_12.png]

**Figure 13.** Figure 13: Persistent Internal Flows. Even after the target is reached, particles typically keep moving within the shape; the resulting vortex-like vector field indicates stable circulating trajectories under the learned dynamics. 𝒑 = 𝟎. 𝟎𝟏 𝒑 = 𝟎. 𝟎𝟓 𝒑 = 𝟎. 𝟐𝟓 𝒑 = 𝟎. 𝟓 𝒑 = 𝟎. 𝟗…

**Figure 14.** Figure 14: NPA remains stable for different stochastic update probabilities [PITH_FULL_IMAGE:figures/full_fig_p011_14.png]

**Figure 15.** Figure 15: Snapshot of the interactive web demo [PITH_FULL_IMAGE:figures/full_fig_p015_15.png]
