arxiv: 2605.20966 · v1 · pith:K7R3SADAnew · submitted 2026-05-20 · ❄️ cond-mat.supr-con

Multiple Superconducting Phases in Palladium Deuteride Induced by Nuclear-Spin Isotope Effect

Ryoma Kato , Ten-ichiro Yoshida , Riku Iimori , Masanobu Shiga , Yuji Inagaki , Takashi Kimura , Koichiro Ienaga , Tatsuya Kawae This is my paper

Pith reviewed 2026-05-21 01:51 UTC · model grok-4.3

classification ❄️ cond-mat.supr-con
keywords superconductivitypalladium deuteridenuclear spinisotope effectphase diagramresistivity anomaliesPdD_x
0
0 comments X

The pith

Palladium deuteride films show multiple distinct superconducting phases from deuterium nuclear spin, unlike palladium hydride.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines superconducting properties of high-quality palladium deuteride films. Resistivity drops sharply near 1.7 K marking the transition but stays finite until roughly 0.6 K. Temperature and magnetic field sweeps reveal multiple anomalies inside the superconducting region that point to separate phases. These anomalies never appear in comparable palladium hydride films, establishing a qualitative difference in the phase diagrams of the two materials.

Core claim

The temperature and magnetic-field dependences of the resistivity exhibit multiple anomalies within the superconducting state, revealing distinct superconducting phases. Such anomalies are absent in PdH_x films. These results demonstrate a clear qualitative difference between the superconducting phase diagrams of PdD_x and PdH_x, highlighting the role of nuclear-spin isotope effects.

What carries the argument

Resistivity anomalies observed inside the superconducting state that mark boundaries between distinct phases driven by the nuclear spin of deuterium.

If this is right

  • The superconducting phase diagram of PdD_x contains additional structure compared with PdH_x.
  • Nuclear spin of the deuterium isotope directly influences how many superconducting phases appear.
  • Isotope substitution can produce qualitative changes in superconducting behavior through nuclear spin.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Nuclear spin engineering might allow deliberate creation of multiple phases in other hydrogen-containing superconductors.
  • Specific-heat or magnetization measurements could provide independent confirmation of the phase boundaries.
  • The result raises the question of whether nuclei with nonzero spin produce similar effects in unrelated superconducting compounds.

Load-bearing premise

The resistivity anomalies come from distinct superconducting phases caused by the nuclear spin of deuterium rather than sample inhomogeneity, measurement artifacts, or other differences between the films.

What would settle it

Detection of the same multiple resistivity anomalies in high-quality palladium hydride films measured under identical conditions would show the effect is not due to deuterium nuclear spin.

Figures

Figures reproduced from arXiv: 2605.20966 by Koichiro Ienaga, Masanobu Shiga, Riku Iimori, Ryoma Kato, Takashi Kimura, Tatsuya Kawae, Ten-ichiro Yoshida, Yuji Inagaki.

Figure 1
Figure 1. Figure 1: FIG. 1: Temperature dependence of the resistivity in PdD [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

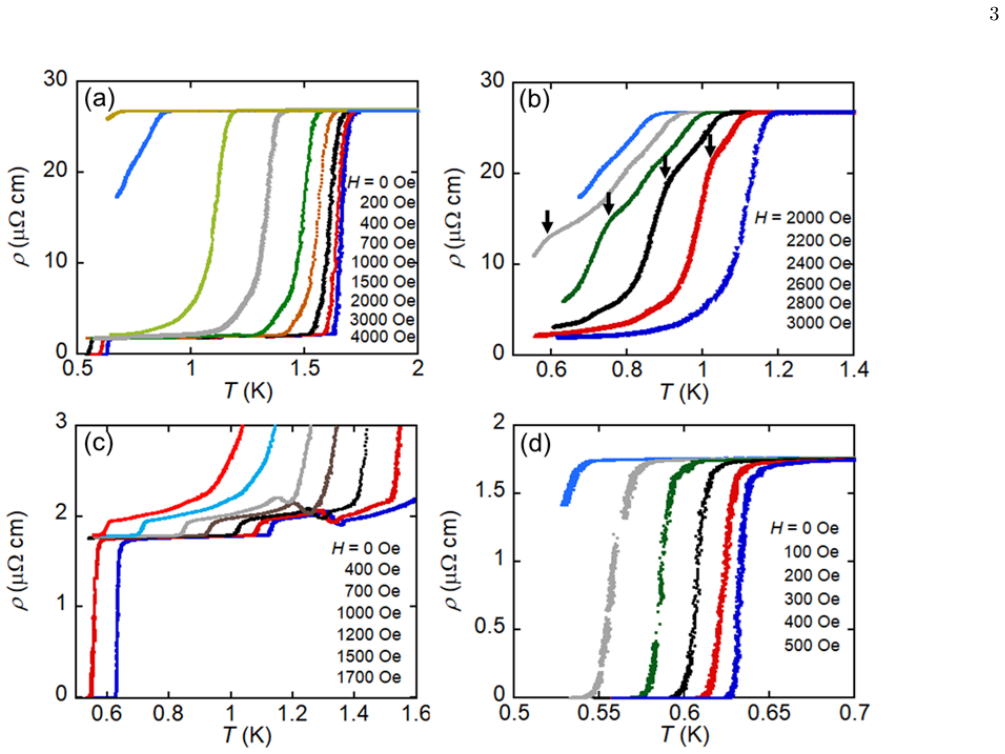

Figure 2. Figure 2: FIG. 2: (a) The overall features for magnetic field dependence of the resistivity in the PdD [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

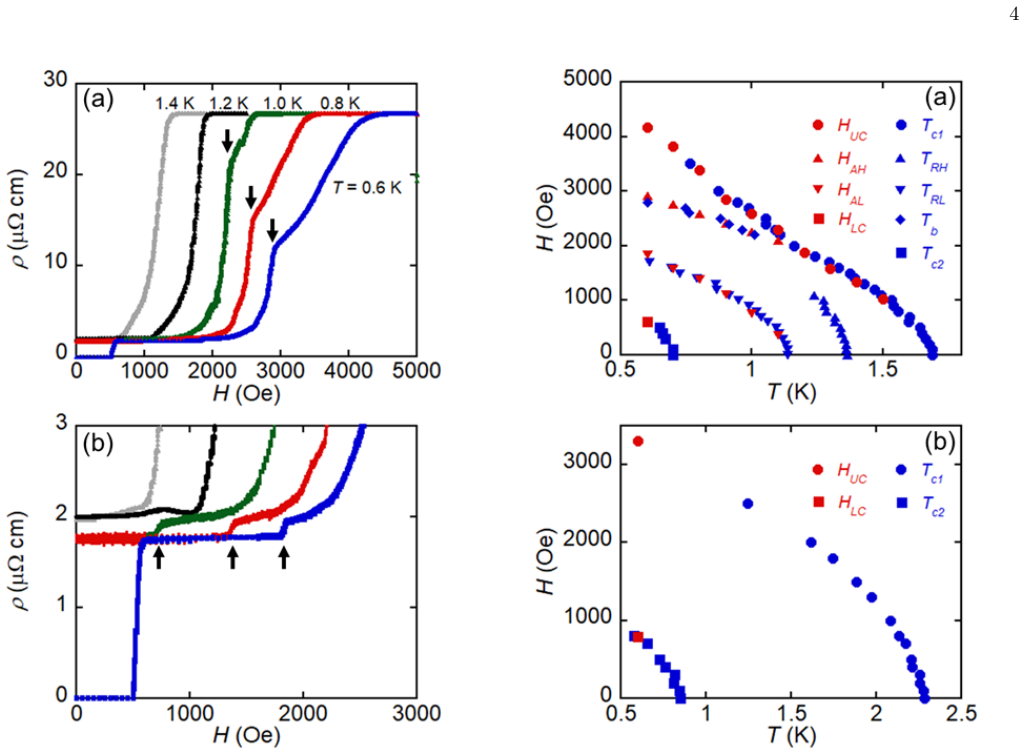

Figure 3. Figure 3: FIG. 3: (a) An overview on the magnetic-field dependence of [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
read the original abstract

We study the superconducting properties of high-quality PdD$_{x}$ films. The resistivity shows a sharp drop at $T$ $\sim$1.7 K, marking the superconducting transition. However, a finite resistivity persists and vanishes at $\sim$0.6 K. The temperature and magnetic-field dependences of the resistivity exhibit multiple anomalies within the superconducting state, revealing distinct superconducting phases. Such anomalies are absent in PdH$_{x}$ films. These results demonstrate a clear qualitative difference between the superconducting phase diagrams of PdD$_{x}$ and PdH$_{x}$, highlighting the role of nuclear-spin isotope effects.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports experimental resistivity measurements on high-quality PdD_x films showing a sharp superconducting transition near 1.7 K followed by a second drop to zero resistivity near 0.6 K, with multiple anomalies in the temperature and magnetic-field dependence of resistivity inside the superconducting state. These anomalies are stated to be absent in comparable PdH_x films, leading to the conclusion that nuclear-spin isotope effects produce multiple distinct superconducting phases in PdD_x.

Significance. If the resistivity anomalies are confirmed as bulk thermodynamic transitions driven by the nuclear spin of deuterium, the result would establish a novel nuclear-spin isotope effect in superconductivity and provide a qualitative distinction between the phase diagrams of PdD_x and PdH_x. The use of thin-film samples allows controlled comparison between isotopes, which is a methodological strength if sample-to-sample variations are adequately controlled.

major comments (2)
  1. [Abstract / Results] Abstract and results section: The central claim that multiple resistivity anomalies reveal distinct superconducting phases rests on the assumption that these features are intrinsic bulk transitions rather than signatures of inhomogeneity, filamentary paths, or contact effects. The manuscript provides no explicit controls such as spatial composition mapping, AC susceptibility, or specific-heat data at the anomaly temperatures to confirm bulk character, leaving the data compatible with uncontrolled differences in film microstructure or deuterium loading between PdD_x and PdH_x samples.
  2. [Experimental methods / Results] Comparison with PdH_x: The qualitative difference between PdD_x and PdH_x is presented as evidence for nuclear-spin effects, yet details on matching film thickness, substrate, deposition conditions, and post-loading characterization (e.g., x-ray diffraction or Rutherford backscattering for composition uniformity) are not reported. Without these, differences in anomaly structure could arise from isotope-dependent variations in sample quality rather than nuclear spin.
minor comments (2)
  1. [Figures] Figure captions should explicitly state the number of independent samples measured and whether error bars represent standard deviation across runs or within a single run.
  2. [Abstract / Methods] The abstract states 'high-quality' films without defining the metric (e.g., residual resistivity ratio); a brief definition in the methods would aid reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful and constructive review of our manuscript. We address each major comment below and have revised the manuscript to incorporate additional details and clarifications where possible.

read point-by-point responses

  1. Referee: [Abstract / Results] Abstract and results section: The central claim that multiple resistivity anomalies reveal distinct superconducting phases rests on the assumption that these features are intrinsic bulk transitions rather than signatures of inhomogeneity, filamentary paths, or contact effects. The manuscript provides no explicit controls such as spatial composition mapping, AC susceptibility, or specific-heat data at the anomaly temperatures to confirm bulk character, leaving the data compatible with uncontrolled differences in film microstructure or deuterium loading between PdD_x and PdH_x samples.

    Authors: We agree that additional evidence for the bulk character of the transitions would strengthen the interpretation. In the revised manuscript we have added AC susceptibility data acquired on the same PdD_x films, which display features at the same temperatures as the resistivity anomalies. We have also included Rutherford backscattering spectrometry maps confirming spatial uniformity of the deuterium concentration. Specific-heat measurements remain technically difficult for these thin films owing to the small heat capacity; we have therefore expanded the discussion section to explain why the reproducibility of the anomalies across multiple independent samples, their persistence in both temperature and field sweeps, and their complete absence in identically prepared PdH_x films make explanations based on filamentary paths or contact effects unlikely. The abstract and results have been updated to reflect these qualifications. revision: partial

  2. Referee: [Experimental methods / Results] Comparison with PdH_x: The qualitative difference between PdD_x and PdH_x is presented as evidence for nuclear-spin effects, yet details on matching film thickness, substrate, deposition conditions, and post-loading characterization (e.g., x-ray diffraction or Rutherford backscattering for composition uniformity) are not reported. Without these, differences in anomaly structure could arise from isotope-dependent variations in sample quality rather than nuclear spin.

    Authors: We have substantially expanded the experimental methods section to document that all PdD_x and PdH_x films were prepared on the same substrate type, with identical nominal thickness and under the same deposition and loading protocols. New figures present x-ray diffraction patterns and Rutherford backscattering spectra for representative films of both isotopes, demonstrating comparable crystallinity and compositional uniformity. These additions are intended to rule out sample-quality differences as the origin of the observed contrast in the phase diagrams. revision: yes

Circularity Check

0 steps flagged

No circularity: purely experimental report with direct data observations

full rationale

The manuscript reports resistivity measurements on PdD_x films showing a superconducting transition at ~1.7 K with a second drop at ~0.6 K and multiple anomalies in temperature and field dependence, contrasted with the absence of such features in PdH_x films. These observations are presented as direct experimental results without any derivation chain, first-principles calculations, fitted parameters renamed as predictions, or self-citations of uniqueness theorems. The central claim rests on comparative data between the two isotopes rather than any equation or ansatz that reduces to its own inputs by construction, rendering the report self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The report is observational and relies on standard experimental assumptions in superconductivity studies rather than new theoretical constructs or fitted parameters.

axioms (1)
  • domain assumption Resistivity drops and anomalies reliably indicate distinct superconducting phases when samples are high-quality and measurements are performed under controlled conditions.
    Implicit in the interpretation of the temperature and field dependences described in the abstract.

pith-pipeline@v0.9.0 · 5666 in / 1264 out tokens · 31592 ms · 2026-05-21T01:51:13.831405+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

30 extracted references · 30 canonical work pages

  1. [1]

    Enss and S

    C. Enss and S. Hunklinger,Low Temperature Physics (Springer, Berlin Heidelberg, New York 2005)

    work page 2005

  2. [2]

    Fukai,The Metal-Hydrogen System2nd Edition (Springer, Berlin, 2005)

    T. Fukai,The Metal-Hydrogen System2nd Edition (Springer, Berlin, 2005)

    work page 2005

  3. [3]

    R. R. Arons, H. G. Bohn, and H. L¨ utgemeier, Investiga- tion of the diffusion of hydrogen in palladium by means of spin-lattice relaxation in the rotating frame, Solid State Commun.14, 1203 (1974)

    work page 1974

  4. [4]

    Nelin and K

    G. Nelin and K. Sk¨ old, Diffusion of hydrogen in theβ- phase of pd-H studied by small energy transfer neutron scattering J. Phys. Chem. Solids36, 1175 (1975)

    work page 1975

  5. [5]

    Kondo, Diffusion of light interstitials in metals, Phys- ica125B, 279 (1984)

    J. Kondo, Diffusion of light interstitials in metals, Phys- ica125B, 279 (1984)

    work page 1984

  6. [6]

    Kondo, Diffusion of light interstitials in metals, Phys- ica126B, 377 (1984)

    J. Kondo, Diffusion of light interstitials in metals, Phys- ica126B, 377 (1984)

    work page 1984

  7. [7]

    V. G. Storchak and N. V. Prokof’ev, Quantum diffusion of muons and muonium atoms in solids, Rev. Mod. Phys. 70, 929 (1998), and references therein

    work page 1998

  8. [8]

    Kagan and N.V

    Yu. Kagan and N.V. Prokof’ev, Quantum diffusion and depolarization of muons in superconductors, Phys. Lett. A159, 289 (1991)

    work page 1991

  9. [9]

    Matsumoto and Y

    M. Matsumoto and Y. Ohashi, Quantum diffusion of muons interacting with superconducting electrons, I, J. Phys. Soc. Jpn.62, 2088 (1993)

    work page 2088

  10. [10]

    Ohashi and M

    Y. Ohashi and M. Matsumoto, Quantum diffusion of muons interacting with superconducting electrons, II, J. Phys. Soc. Jpn.62, 3532 (1993)

    work page 1993

  11. [11]

    Regelmann, L

    T. Regelmann, L. Schimmele, and A. Seege, Quantum diffusion of a light particle in the Meissner phase of a superconductor, Z. Phys. B93, 303 (1994)

    work page 1994

  12. [12]

    Regelmann, L

    T. Regelmann, L. Schimmele, and A. Seeger, The ro1e of one- and few-phonon processes in the quantum diffusion 6 of light particles in superconductors, Z. Phys. B95, 441 (1994)

    work page 1994

  13. [13]

    Regelmann, L

    T. Regelmann, L. Schimmele, and A. Seeger, Quantum diffusion of light particles in the vortex state of type-II su- perconductors, Hyperfine Interactions,105, 219 (1997)

    work page 1997

  14. [14]

    Skoskiewicz, Superconductivity in the palladium- hydrogen and palladium-nickel-hydrogen systems, Phys

    T. Skoskiewicz, Superconductivity in the palladium- hydrogen and palladium-nickel-hydrogen systems, Phys. Status Solidi A11, K123 (1972)

    work page 1972

  15. [15]

    Kawae, Y

    T. Kawae, Y. Inagaki, S. Wen, S. Hirota, D. Itou, and T. Kimura, Superconductivity in palladium hydride sys- tems, J. Phys. Soc. Jpn.89, 051004 (2020), and refer- ences therein

    work page 2020

  16. [16]

    R. W. Standley, M. Steinback, and C. B. Satterthwaite, Superconductivity in PdHx(D)x from 0.2 K to 4 K, Solid State Commun.31, 801 (1979)

    work page 1979

  17. [17]

    Inagaki, S

    Y. Inagaki, S. Wen, Y. Kawasaki, H. Takata, Y. Fu- rukawa, and T. Kawae, In situ magnetization mea- surement of superconducting Transition in PdH 0.82 and PdD0.79 prepared by low-temperature absorption, J. Phys. Soc. Jpn.87, 123701 (2018)

    work page 2018

  18. [18]

    R. Kato, R. Koga, K. Miyakawa, M. Shiga, Y. Inagaki, and T. Kawae, Superconducting properties of palladium hydride systems prepared by low-temperature absorp- tion, JPS Conf. Proc.38, 011033 (2023)

    work page 2023

  19. [19]

    R. Kato, T. Yoshida, R. Iimori, Tai Zizhou, M. Shiga, Y. Inagaki, T. Kimura, and T. Kawae, Resistivity mea- surements in palladium hydride film prepared by low- temperature hydrogen absorption method, J. Phys. Soc. Jpn.93, 024703 (2024)

    work page 2024

  20. [20]

    R. Kato, T. Yoshida, R. Iimori, Tai Zizhou, M. Shiga, Y. Inagaki, T. Kimura, and T. Kawae, New quantum state formed by highly concentrated protons in superconduct- ing palladium hydride, J. Phys. Soc. Jpn.95, 024706 (2026)

    work page 2026

  21. [21]

    Stritzker, High superconducting transition tempera- tures in the palladium- noble metal-hydrogen system, Z

    B. Stritzker, High superconducting transition tempera- tures in the palladium- noble metal-hydrogen system, Z. Physik268, 261 (1974)

    work page 1974

  22. [22]

    A. S. Oya and O. V. Lounasmaa, Nuclear magnetic order- ing in simple metals at positive and negative nanokelvin temperatures, Rev. Mod. Phys.69, 1 (1997)

    work page 1997

  23. [23]

    A. V. Balatsky, I. Vekhter, and Jian-Xin Zhu, Impurity- induced states in conventional and unconventional super- conductors, Rev. Mod. Phys.78, 373 (2006)

    work page 2006

  24. [24]

    J. A. Flores-Livas, L. Boeri, A. Sanna, G. Profeta, R. Arita, and M. Eremets, A perspective on conven- tional high-temperature superconductors at high pres- sure: Methods and materials, Phys. Rep.856, 1 (2020)

    work page 2020

  25. [25]

    G. R. Stewart, Unconventional superconductivity, Adv. Phys.66, 75 (2017)

    work page 2017

  26. [26]

    Hemmes, A

    H. Hemmes, A. Driessen, R. Griessen, and M. Gupta, Isotope effects and pressure dependence of theT c of su- perconducting stoichiometric PdH and PdD synthesized and measured in a diamond anvil cell, Phys. Rev. B39, 4110 (1989)

    work page 1989

  27. [27]

    A. E. Karakozov and E. G. Maksimov, Influence of an- harmonicity on superconductivity, Zh. Eksp. Teor. Fiz. 74, 681 (1978)

    work page 1978

  28. [28]

    J. M. Rowe, J. J. Rush, H. G. Smith, M. Mostoller and H. E. Flotow, Lattice dynamics of a single crystal of PdD0.63, Phys. Rev. Lett.33, 1297 (1974)

    work page 1974

  29. [29]

    J. M. Rowe, J. J. Rush, J. E. Schirber, and J. M. Mintz, Isotope Effects in the PdH System: Lattice Dynamics of PdT0.7, Phys. Rev. Lett.57, 2955 (1986)

    work page 1986

  30. [30]

    Errea, M

    I. Errea, M. Calandra, and F. Mauri, FirstpPrinciples theory of anharmonicity and the inverse isotope effect in superconducting palladium-hydride compounds, Phys. Rev. Lett.111, 177002 (2013)

    work page 2013
