On the Relationship Between Plasma and Tritium Fuel Cycle Through Matter Injection and Particle Exhaust

Matteo Moscheni; Samuele Meschini

REVIEW 3 major objections 2 minor 1 cited by

On the Relationship Between Plasma and Tritium Fuel Cycle Through Matter Injection and Particle Exhaust

T0 review · 3 major / 2 minor · reviewed 2026-06-29 · grok-4.3

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read Fuel puffing in detached plasmas exceeds core fuelling by an order of magnitude, forcing substantial tritium into the injected gas and invalidating standard tritium fuel cycle assumptions.

desk verdict The paper shows puffing for detachment exceeds core fueling by ~10x, so TFC models assuming core dominance need revision, and it quantifies two mitigation paths with a 10% power cost or higher contamination. read the letter →

arxiv 2606.28043 v1 pith:KK2J4I47 submitted 2026-06-26 physics.plasm-ph

Samuele Meschini , Matteo Moscheni This is my paper · ORCID

classification physics.plasm-ph

keywords tritiumfuelcyclepuffingdetachedplasmatokamakstellaratordirectinternalrecyclingcorefuelling

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper establishes that gas puffing rates needed to sustain detached operation are roughly ten times higher than the rate at which fuel actually reaches the core for fusion. This ratio, observed from present tokamaks through next-step stellarators, means that tritium must form a large fraction of the puffed gas rather than being confined to core injection. Standard tritium fuel cycle designs that rely on direct internal recycling therefore underestimate tritium throughput, inventory, and breeding demands. The work extends prior models to show that either deuterium-rich puffing or reduced puffing with stronger impurity seeding can restore feasible tritium requirements, at the cost of modest fusion power or higher core contamination. Joint optimisation of core plasma, edge plasma, and tritium cycle is presented as unavoidable.

What carries the argument

The measured or modelled ratio of total fuel puffing rate to core fuelling rate in detached plasmas, when inserted into tritium fuel cycle models that previously treated core fuelling as dominant.

What would settle it

Direct measurement, in a reactor-relevant detached plasma with realistic impurity seeding and pumping, of whether the total injected fuel rate is still an order of magnitude above the core fuelling rate needed for the target fusion power.

Watch

Extended reading notes

Core claim

Puffing exceeds core fuelling by about an order of magnitude in detached conditions; therefore tritium must be a substantial component of the puffed fuel. This renders the near-50:50 D:T assumption of direct internal recycling self-defeating and makes tritium inventory, doubling time, required breeding ratio, and pump sizing critical design drivers.

Load-bearing premise

The puffing-to-core-fuelling ratio observed in current devices will remain roughly the same under the impurity mixes, pumping, and detached conditions expected in a reactor.

Editorial extensions

If this is right

Tritium inventory and throughput rise sharply once puffing is included, affecting breeding ratio and pump sizing.
D-rich, T-lean puffing can meet realistic tritium cycle limits at the cost of about 10 percent lower fusion power.
Reduced puffing combined with stronger impurity seeding maintains detachment while lowering tritium demands, at the expense of higher core contamination.
Combined use of both strategies allows scenarios that minimise tritium inventory and throughput while balancing power and contamination.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

Reactor design frameworks that optimise plasma performance first and then size the tritium cycle afterward will systematically understate tritium requirements.
The trade-off between edge radiation, core purity, and tritium throughput may set an upper limit on achievable fusion gain that is tighter than core-only calculations suggest.
Experimental campaigns on existing devices could test whether impurity-seeded detachment can be sustained at the lower puff rates needed to ease tritium cycle constraints.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Desk Editor's Note

read the letter

The main takeaway is that current TFC designs built around direct internal recycling and 50:50 D:T assumptions will face much higher tritium throughput once realistic puffing rates are included. Expanding the Moscheni et al. puffing database and feeding it into the Meschini et al. TFC framework produces concrete numbers on inventory, breeding ratio, and pump sizing that were previously underestimated.

The work does a solid job making the mismatch explicit and then testing two practical fixes: shifting to D-rich puffing at the cost of roughly 10% fusion power, or keeping near-50:50 puffing but cutting the rate with stronger impurity seeding. These trade-offs are new quantitative explorations rather than hand-waving.

The soft spot is that the order-of-magnitude ratio itself rests on the prior modeling papers without fresh error bars or independent verification in this manuscript. The extrapolation to reactor-relevant detached plasmas with the assumed impurity mixes and pumping schemes could shift if SOL transport or detachment front behavior changes, which would soften the claimed TFC impact. Heavy reliance on two overlapping-author references also means the inconsistency is more of an application than a fully standalone result.

This paper is aimed at people doing integrated reactor design who care about tritium self-sufficiency and edge-plasma constraints. A reader already working on TFC or detachment modeling will find the mitigation scenarios useful to check against their own codes.

It deserves peer review so the database expansion and the reactor extrapolation can be stress-tested by specialists.

Referee Report

3 major / 2 minor

Summary. The paper claims that expanding the fuel-puffing database of Moscheni et al. (2026) shows puffing rates exceed core fuelling by roughly an order of magnitude from present tokamaks to next-step stellarators; this contradicts TFC models (extended from Meschini et al. 2023) that assume core fuelling dominates. The resulting need for substantial tritium in the puff stream undermines the 50:50 D:T assumption of direct internal recycling, inflating tritium inventory, doubling time, breeding ratio and pump sizing. Two mitigation paths are assessed: D-rich/T-lean puffing at ~10% fusion-power cost, or reduced puffing plus stronger impurity seeding; their combination is said to allow acceptable TFC parameters.

Significance. If the reported puffing-to-core ratio and its extrapolation to reactor-relevant detached regimes prove robust, the work correctly identifies an under-appreciated coupling between edge-plasma operation and TFC architecture that has been treated separately in prior design studies. The explicit quantification of the resulting TFC penalties and the two concrete mitigation strategies supply a falsifiable starting point for integrated modelling.

major comments (3)

[Abstract, §3] Abstract and §3 (database expansion): the central claim that puffing exceeds core fuelling by a factor of ~10 rests on an expanded version of the Moscheni et al. (2026) database, yet the manuscript provides neither the additional data points, the fitting procedure, nor error bars on the ratio; without these the load-bearing numerical factor cannot be independently assessed.
[§4] §4 (TFC extension): the 10% fusion-power penalty quoted for D-rich puffing is obtained by extending the Meschini et al. (2023) model, but the manuscript does not report the modified equations, the updated parameter values, or the sensitivity of the penalty to the assumed impurity mix and pumping scheme.
[§5] §5 (reactor extrapolation): the assertion that the observed ratio persists under reactor-relevant detached conditions with the impurity seeding and pumping schemes of the TFC model is stated without a dedicated sensitivity study; changes in SOL transport or detachment-front location could alter the ratio and thereby weaken the inconsistency claim.

minor comments (2)

[§3] Notation for the puffing-to-core ratio is introduced without an explicit equation number; adding Eq. (X) would improve traceability.
[Figures 2–4] Figure captions should state the device set and the exact definition of “core fuelling” used in each panel.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the detailed and constructive report. The comments correctly identify gaps in the presentation of supporting data and analyses. We address each major comment below and will incorporate revisions to strengthen the manuscript.

read point-by-point responses

Referee: [Abstract, §3] Abstract and §3 (database expansion): the central claim that puffing exceeds core fuelling by a factor of ~10 rests on an expanded version of the Moscheni et al. (2026) database, yet the manuscript provides neither the additional data points, the fitting procedure, nor error bars on the ratio; without these the load-bearing numerical factor cannot be independently assessed.

Authors: We agree that the expanded Moscheni et al. (2026) database, the fitting procedure establishing the ~10x ratio, and error bars are not provided in the current manuscript. This limits independent assessment of the central numerical claim. In the revised version we will add the additional data points (tabulated or plotted), describe the fitting procedure used to quantify the puffing-to-core ratio across the database, and report error bars derived from data scatter and measurement uncertainties. revision: yes
Referee: [§4] §4 (TFC extension): the 10% fusion-power penalty quoted for D-rich puffing is obtained by extending the Meschini et al. (2023) model, but the manuscript does not report the modified equations, the updated parameter values, or the sensitivity of the penalty to the assumed impurity mix and pumping scheme.

Authors: We acknowledge that the model extension details are missing. The 10% fusion-power penalty is obtained from the extended Meschini et al. (2023) TFC model, yet the modified equations, specific parameter values for the notional plant, and sensitivity to impurity mix or pumping scheme are not reported. In revision we will include the updated equations, the parameter set used, and a sensitivity study showing how the penalty varies with impurity mix and pumping assumptions. revision: yes
Referee: [§5] §5 (reactor extrapolation): the assertion that the observed ratio persists under reactor-relevant detached conditions with the impurity seeding and pumping schemes of the TFC model is stated without a dedicated sensitivity study; changes in SOL transport or detachment-front location could alter the ratio and thereby weaken the inconsistency claim.

Authors: The extrapolation relies on the database spanning detached operation from present tokamaks to next-step stellarators, but we agree that a dedicated sensitivity study on SOL transport and detachment-front location is absent. While the existing database already samples a range of detached conditions, to address the concern we will add a sensitivity analysis in the revised manuscript exploring the impact of plausible variations in SOL transport and detachment location on the puffing-to-core ratio. revision: yes

Circularity Check

1 steps flagged · score 4.0 of 10

Central quantitative claim and TFC extension rely on self-citations to overlapping authors' prior modeling

self citation load bearing [Abstract]
"Moscheni et al. (2026 Nucl. Fusion 66 026008) investigated fuel puffing rates in detached operation. Expanding that database, puffing is shown to exceed core fuelling by about an order of magnitude, from present-day tokamaks to next-step stellarators. [...] Mitigation is assessed by extending the models of Meschini et al. (2023 Nucl. Fusion 63 126005)."

The load-bearing quantitative premise (order-of-magnitude puffing excess) and the TFC analysis framework are justified solely by citations to prior publications whose authors overlap with the present paper. The inconsistency between plasma scenarios and TFC requirements therefore inherits modeling assumptions from those self-cited works rather than resting on independent external data or a new derivation within this manuscript.

full rationale

The paper's key result (puffing exceeds core fuelling by ~10x) is obtained by expanding a database from the authors' own 2026 work, while mitigation strategies extend their 2023 TFC model. This makes the inconsistency identification load-bearing on self-citations. However, the paper performs new synthesis and proposes mitigations with independent analytical content rather than reducing any derivation to the inputs by construction. No self-definitional, fitted-prediction, or ansatz patterns are exhibited. The self-citation is therefore noted but does not force the result or eliminate independent value, consistent with a moderate score.

Assumptions & free parameters 0 free parameters · 0 assumptions · 0 invented entities

No explicit free parameters, axioms, or invented entities are stated in the abstract; the work inherits modeling assumptions from the two cited prior papers without enumerating them here.

how reviews work

0 comments

Cite this review

Pith. "Pith review of On the Relationship Between Plasma and Tritium Fuel Cycle Through Matter Injection and Particle Exhaust." pith.science (2026). https://pith.science/paper/KK2J4I47

@misc{pith2026260628043,
  author       = {Pith},
  title        = {Pith review of: On the Relationship Between Plasma and Tritium Fuel Cycle Through Matter Injection and Particle Exhaust},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/KK2J4I47}},
  note         = {Machine review of arXiv:2606.28043}
}

read the original abstract

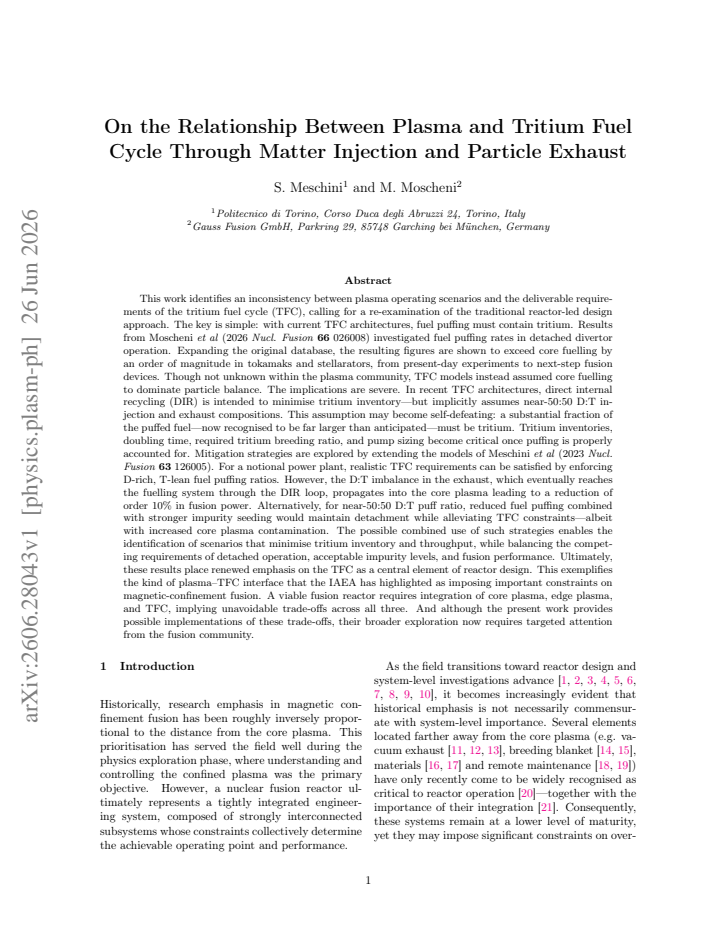

This work identifies an inconsistency between plasma operating scenarios and tritium fuel cycle (TFC) requirements, calling for a re-examination of the traditional reactor-led design approach. The key point is simple: in current TFC architectures, fuel puffing must contain tritium. Moscheni et al. (2026 Nucl. Fusion 66 026008) investigated fuel puffing rates in detached operation. Expanding that database, puffing is shown to exceed core fuelling by about an order of magnitude, from present-day tokamaks to next-step stellarators. Though not unknown in the plasma community, TFC models instead assumed core fuelling to dominate. The implications are severe. In recent TFC architectures, direct internal recycling (DIR) is intended to minimise tritium inventory, but assumes near-50:50 D:T composition. This assumption may become self-defeating: a substantial fraction of the puffed fuel must be tritium. Tritium inventory, doubling time, required breeding ratio, and pump sizing therefore become critical once puffing is properly accounted for. Mitigation is assessed by extending the models of Meschini et al. (2023 Nucl. Fusion 63 126005). For a notional plant, realistic TFC requirements can be met with D-rich, T-lean puffing, at the cost of about 10% lower fusion power. Alternatively, for near-50:50 D:T puffing, reduced fuel puffing with stronger impurity seeding can maintain detachment while alleviating TFC constraints, albeit with higher core contamination. Combined use of these strategies enables scenarios that minimise tritium inventory and throughput while balancing competing requirements. Ultimately, these results place renewed emphasis on the TFC as a central element of reactor design. A viable fusion reactor requires joint optimisation of core plasma, edge plasma, and TFC, implying unavoidable trade-offs across all three.

Figures

Figures reproduced from arXiv: 2606.28043 by the authors.

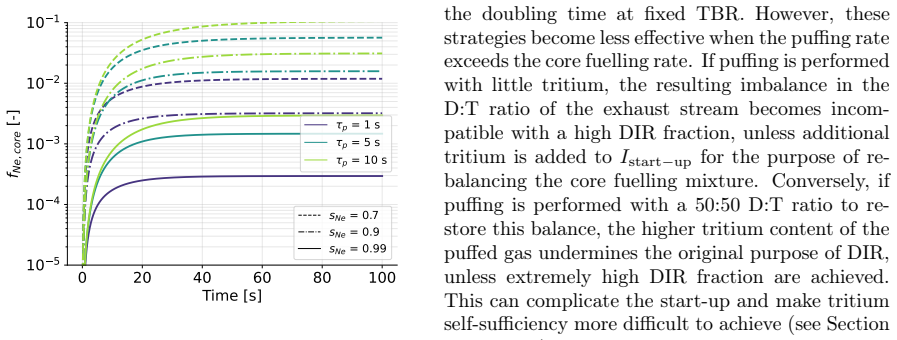

**Figure 1.** Neon fraction in the core plasma due to imperfect separation, as a function of the particle confinement time τp and the separation sharpness SNe, for fDIR = 0.9, τDIR = 10 s, Γ core Ne = 5 × 1020 at s−1 , ne = 1020 m−3 . realistic gas puffing levels are included, however, the difference can be substantial. As the authors of [156] point out, the design proposed is not a point design but gives order of magnitudes est… view at source ↗

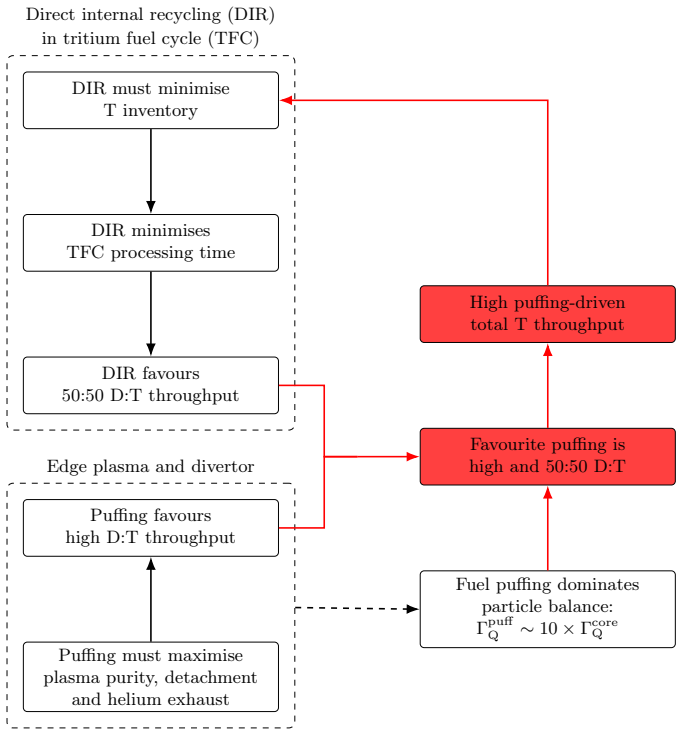

**Figure 2.** The conundrum arising from compartmentalised optimisation of plasma operation and the tritium fuel cycle (TFC). In red the specific criticality highlighted in the present work. quantities. The resulting, newly-compiled database is available at [161] and summarised in table 1. Overall 354 entries span 25 machines, corresponding to the subset of devices for which core plasma data could be consistently assembled. It i… view at source ↗

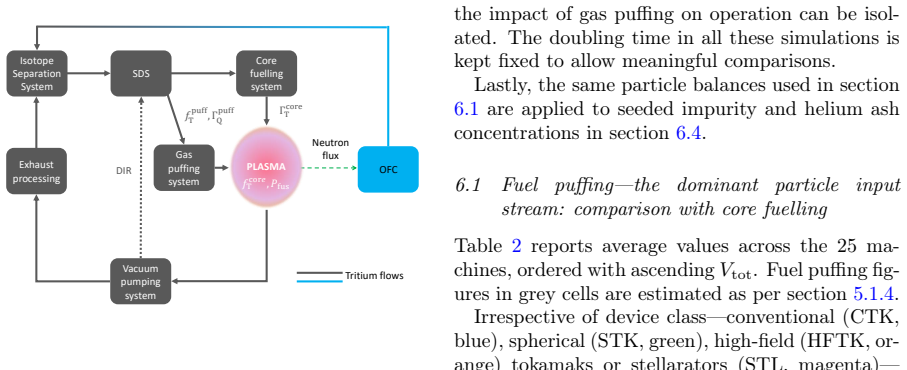

**Figure 3.** Simplified layout of the fuel cycle model. The outer fuel cycle components have been collapsed in a single block. The storage and delivery system (SDS) provides tritium for both the gas puffing and the core fuelling system. of (18) for Γ core T , and the fusion power is adjusted according to the resulting f core T (t → ∞). 6 Results The results are organised around the particlebalance hierarchy that determines the … view at source ↗

Figures from the paper (9 more)

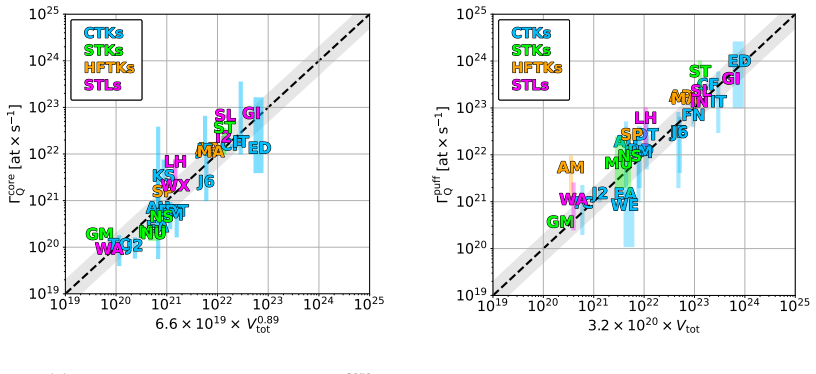

**Figure 4.** Figure 4: (a) Regression of core fuelling rate Γ core Q as a function of total volume Vtot. Data are taken from the newly-compiled database [161]. (b) Regression of fuel puffing rate Γ puff Q as a function of Vtot, with data taken from the original database [130] of [44]. This s…

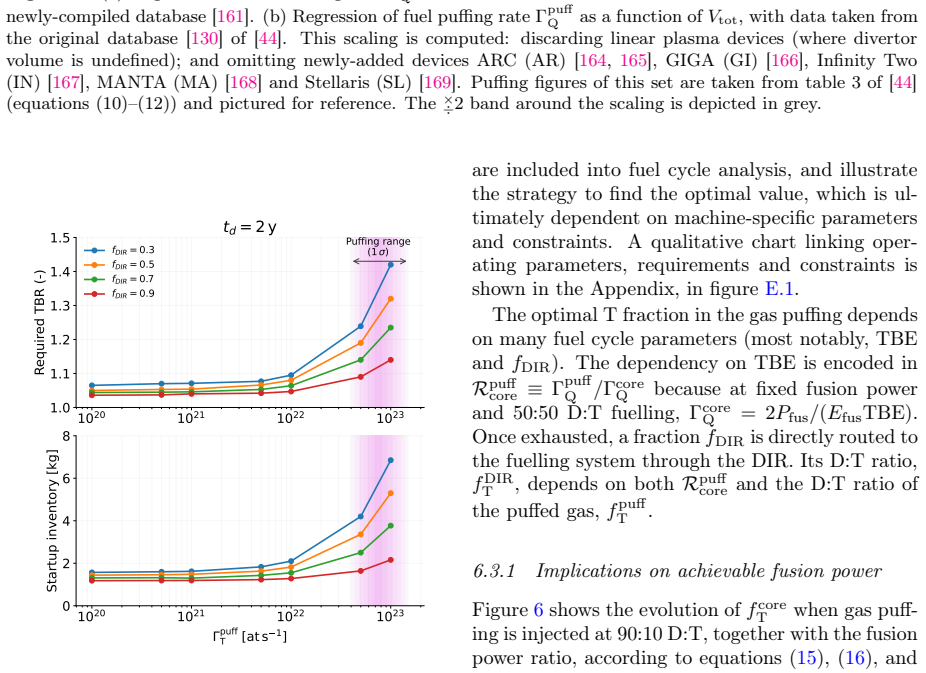

**Figure 5.** Figure 5: Required TBR and start-up inventory to achieve a doubling time of 2 years as a function of the tritium puff rate. Pfus = 525 MW, corresponding to Γ core T = 9.3×1021 at s−1 . Puffing is performed with 50:50 D:T, that is, Γ puff T = Γpuff Q /2. The puffing range for FPP…

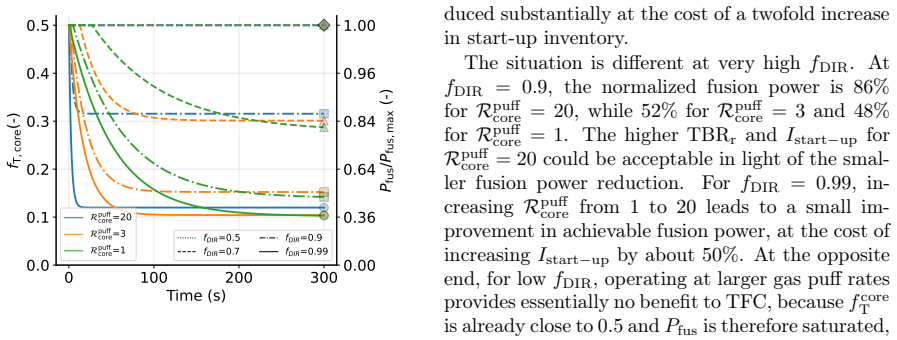

**Figure 6.** Figure 6: Evolution of the tritium core fraction as a function of Rpuff core and DIR fraction. Core fuelling is initially performed with 50:50 D:T, while gas puffing with fixed 90:10 D:T. The linestyle encodes the DIR fraction, while the color the ratio between puff rate and fu…

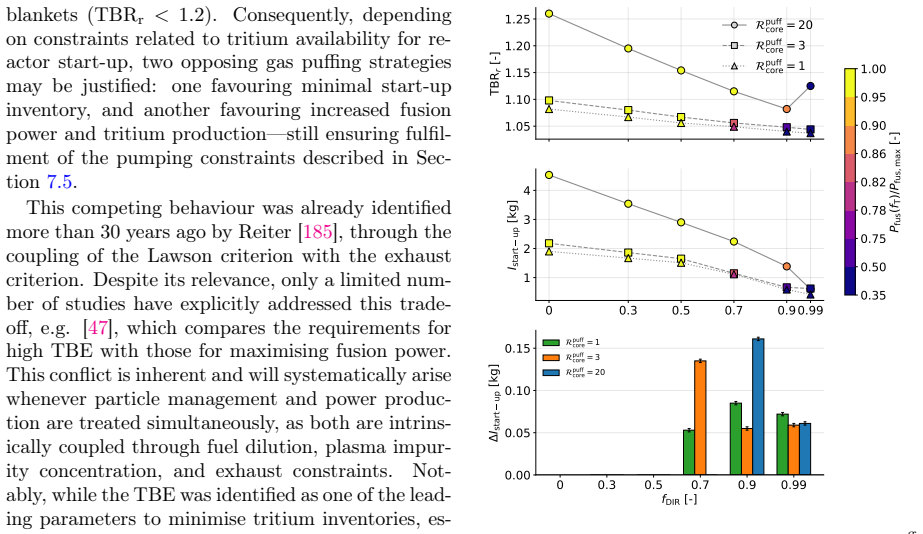

**Figure 7.** Figure 7: Top: TBRr and Istart−up for different Rpuff core and fDIR. Both f core T and the normalised fusion power depends on Rpuff core per equations (16) and (17). Gas puffing is performed with 90:10 D:T. Bottom: increase in Istart−up to rebalance the core fuelling mixture. 1…

**Figure 8.** Figure 8: Top: TBRr and Istart−up for different Rpuff core and fDIR. Both f core T and the normalised fusion power depends on Rpuff core per equations (16) and (17). Gas puffing is performed with 75:25 D:T. Bottom: increase in Istart−up to rebalance the core fuelling mixture. 2…

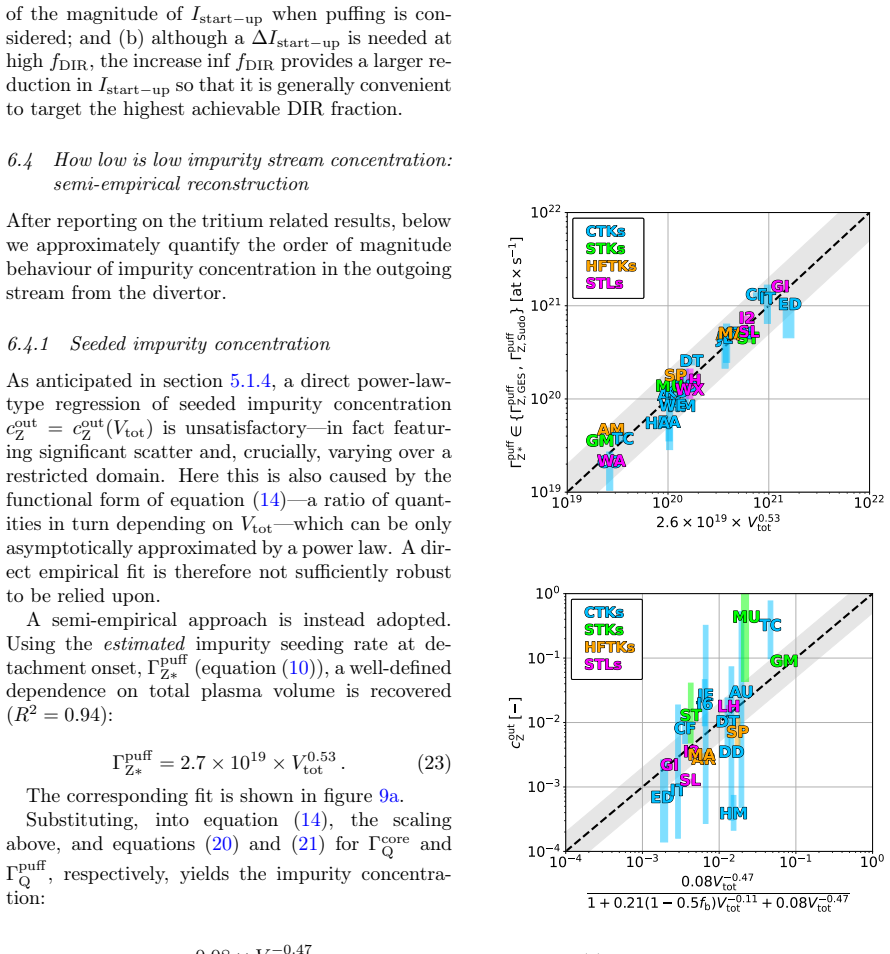

**Figure 9.** Figure 9: (a) Regression of impurity seeding rate Γ puff Z∗ = {Γ puff Z,GES, Γ puff Z,Sudo} as a function of total volume Vtot (R 2 = 0.94). The rate Γ puff Z∗ is computed from equations (11) and (13) of [44]. (b) Comparison between the actual impurity concentration in the outs…

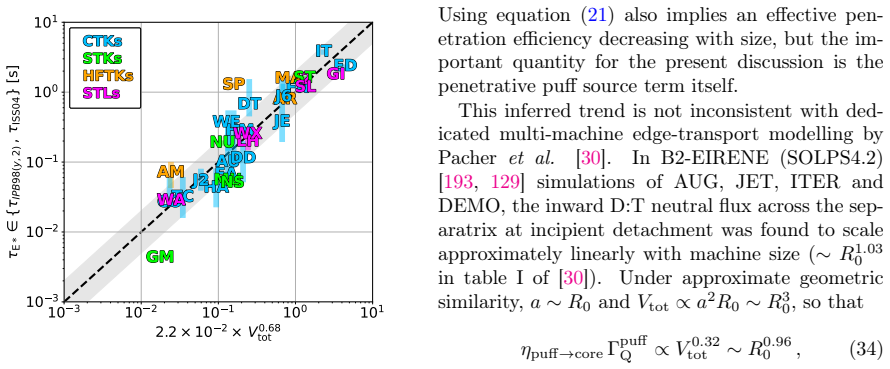

**Figure 10.** Figure 10: Regression of effective energy confinement time τE∗ estimated from τIPB98(y,2) in tokamaks [191] and from τISS04 for stellarators [192], as a function of Vtot. Additionally, the exponent remains consistent with figures 11a–11c of [160]. Using the fact that the effecti…

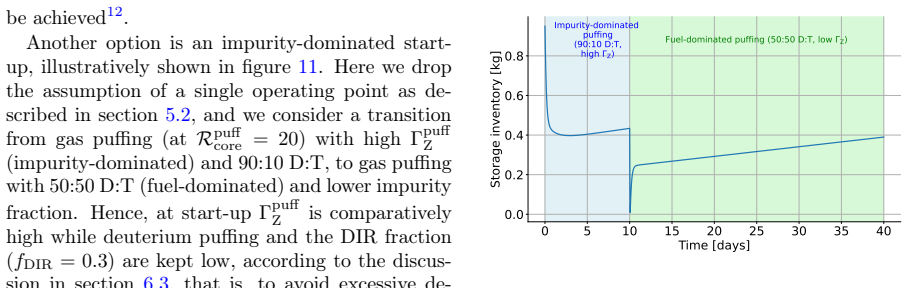

**Figure 11.** Figure 11: Illustrative staged-operation strategy. An initial impurity-dominated detached phase with reduced tritium puffing demand allows partial saturation of fuel cycle inventories. After this transient, the reactor can switch to a more fuel-dominated D:T puffing with a subst…

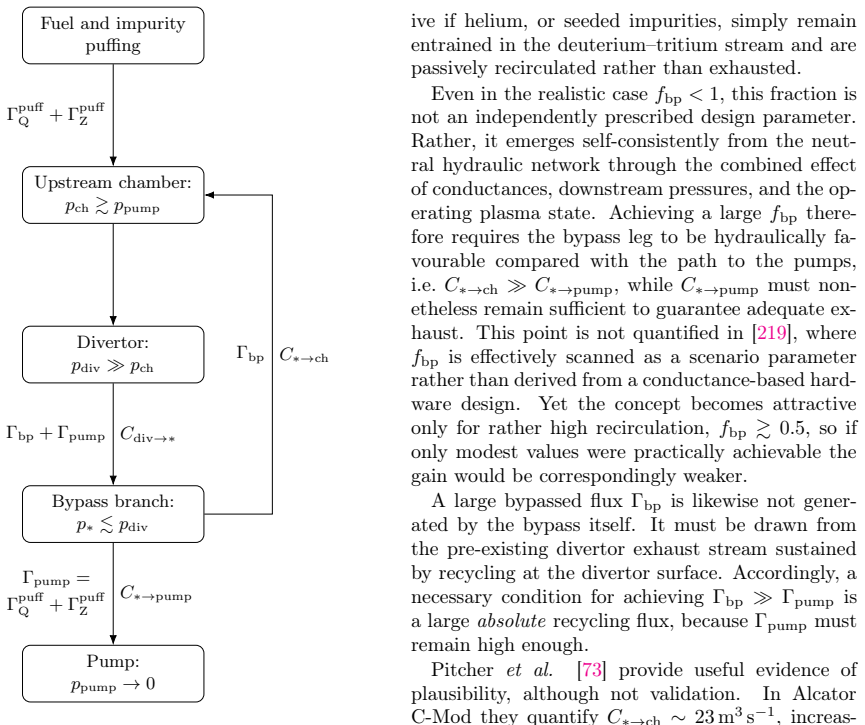

**Figure 12.** Figure 12: Simplified hydraulic network for a pumpbypass loop alike [217, 218, 73, 119], as devised by Igitkhanov et al. [219] to favour the tritium fuel cycle. Only fuel puffing and impurity seeding are included for the sake of simplicity. puffing by passive internal recircul…

Discussion (0). Continue with ORCID to comment.

Forward citations

Cited by 1 Pith paper

Reviewed papers in the Pith corpus that reference this work. Sorted by Pith novelty score. Full citation record

Harnessing Toroidal Neutral Flows to Enhance Divertor Particle Exhaust
physics.plasm-ph 2026-06 unverdicted novelty 6.0 of 10

Toroidally oriented pump inlets reduce back-flow by up to 20% (deuterium) and 33% (helium) and enhance partial pressures by factors of 1.78 and 2.00 in DSMC simulations of plasma-imprinted neutral winds.

Reference graph

Works this paper leans on

275 extracted references · 115 canonical work pages · cited by 1 Pith paper
