Unstructured-mesh CFD meets end-to-end differentiability
Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →
JAX-FVM is a differentiable, entropy-stable finite volume solver for 2D compressible Euler/Navier-Stokes equations on unstructured meshes, built in JAX.
T0 review reviewed 2026-07-09 challenge →
load-bearing objection Open-source differentiable FVM for compressible Euler/NS on unstructured meshes in JAX — real gap-filler, but entropy-stability claim is not established for the second-order scheme as implemented. the 2 major comments →
JAX-FVM: A differentiable, entropy-stable finite volume solver on unstructured meshes for compressible flows
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
Core claim
The central object is the differentiable finite-volume residual on unstructured meshes, implemented entirely in JAX. The key technical insight is that forward-mode automatic differentiation (jax.jvp) can replace two traditionally hand-derived quantities: the entropy-variable-to-conservative-variable Jacobian in the dissipation term of the Tadmor/Ismail-Roe flux, and the Jacobian-vector products needed for matrix-free implicit time integration (Newton, SDIRK2). This means the entropy-stable discretization and the implicit solvers are formed exactly by AD rather than by analytical derivation, which simplifies implementation and ensures consistency. The unstructured mesh operators—cell-to-cell邻
What carries the argument
The differentiable finite-volume residual on unstructured meshes, where forward-mode AD (jax.jvp) replaces hand-derived Jacobians in both the entropy-variable dissipation and implicit solvers, and reverse-mode AD exposes end-to-end gradients for optimization.
Load-bearing premise
The paper assumes that the JAX vmap-based implementation of unstructured mesh operators overcomes the irregular memory access patterns that make unstructured meshes hostile to GPU execution. If this approach is not sufficiently efficient on accelerators, the tool may be too slow for practical large-scale use.
What would settle it
Benchmark the GPU throughput of JAX-FVM on unstructured meshes against a structured-grid differentiable solver (e.g., JAX-CFD) at equivalent resolution; if the unstructured implementation is orders of magnitude slower due to irregular memory access, the practical utility claim is undermined.
If this is right
- PDE-constrained optimization and inverse design on complex geometries with strong shocks become accessible to gradient-based methods without hand-coded adjoints, since the solver is differentiable by construction.
- Hybrid physics/ML models—such as learned turbulence closures or data-driven discretizations—can be trained end-to-end through an unstructured-mesh compressible solver, which was not previously possible in a single open tool.
- The entropy-stability property, which guarantees a discrete entropy inequality and robustness for strong shocks, is now coupled with differentiability, enabling gradient-based design optimization that respects nonlinear stability constraints.
- The matrix-free implicit time integrators formed by AD Jacobian-vector products could serve as a template for other PDE solvers seeking to avoid the implementation burden of hand-derived Jacobians.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript presents JAX-FVM, an open-source finite volume solver for the 2D compressible Euler and Navier-Stokes equations on unstructured triangular meshes, implemented entirely in JAX. The solver features an entropy-conservative Tadmor/Ismail-Roe two-point flux with entropy-variable dissipation, second-order MUSCL reconstruction in primitive variables, and both explicit and matrix-free implicit time integrators whose Jacobian actions are obtained via automatic differentiation. The paper describes the governing equations, discretisation, software architecture, and presents a Mach 3 forward-facing step example. The combination of unstructured-mesh compressible FVM with end-to-end differentiability addresses a genuine gap in the differentiable CFD ecosystem.
Significance. The paper ships a publicly available, reproducible code repository (https://github.com/guigzair/jax_fvm), which is a significant strength for a software-description paper. The use of forward-mode AD (jax.jvp) to compute entropy-variable Jacobian actions in the dissipation operator and in the matrix-free implicit solver is an elegant design choice that leverages differentiability internally, not just as a user-facing feature. The scope of verification cases listed (nineteen 2D Riemann configurations, double Mach reflection, Kelvin-Helmholtz, Taylor-Green, isentropic vortex problems) is broad. However, the paper presents only one qualitative result (Figure 1) and no quantitative verification, which substantially limits the ability to assess whether the implemented scheme achieves its stated properties.
major comments (2)
- §2, point 2; §4.3–4.4: The entropy-stability claim is not established for the second-order scheme as implemented. The Ismail-Roe two-point flux (§4.4, Eq. 9) is entropy-conservative when evaluated on cell-averaged states. However, the second-order scheme reconstructs primitive variables (ρ, u, v, p) via MUSCL (§4.3, Eq. 7), and the flux in Eq. 9 is evaluated at these reconstructed left/right face states. The entropy-conservation property of the Ismail-Roe flux does not automatically extend to reconstructed states; preserving entropy stability at second order generally requires reconstruction in entropy variables (cf. Fisher & Carpenter 2013; Ranocha 2018) or an equivalent comparison principle. The paper does not address this gap: it neither proves that primitive-variable MUSCL preserves the discrete entropy inequality nor presents quantitative entropy diagnostics. Since entropy stability

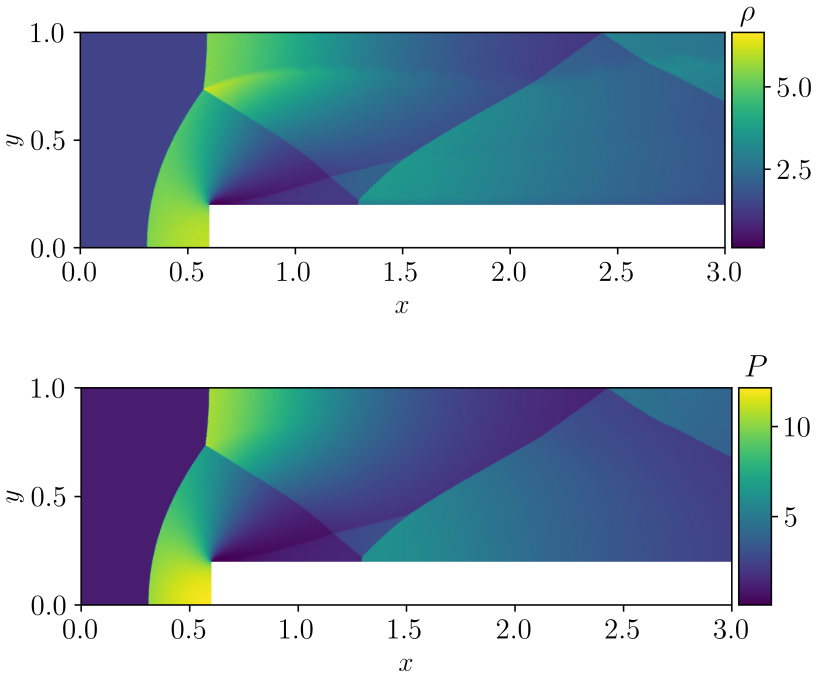

- §9: The only verification shown is the Mach 3 forward-facing step (Figure 1), presented qualitatively. No quantitative convergence study, error analysis, or entropy conservation/stability diagnostic is provided, despite §7 mentioning a suite of diagnostics (total entropy, kinetic energy, enstrophy). For a paper whose central claims include both entropy stability and second-order accuracy, at least one quantitative verification — e.g., a grid convergence study on a smooth problem, or a time history of total entropy on a shock problem — is needed to substantiate the central claims.
minor comments (7)
- §4.4, Eq. (9): The definition of λ_max = c/M + |u·n| is unusual. Typically the spectral radius is |u·n| + c (where c is the sound speed). If c is already non-dimensionalised by the reference Mach number, this should be clarified; otherwise the dissipation scaling may be incorrect.
- §4.3: The viscous flux gradient formula is presented without an equation number and the notation is difficult to parse (the bar over ∇w_ij is not clearly distinguished from the face-averaged quantity). Consider assigning an equation number and clarifying the notation.
- §6: The SDIRK2 coefficient is written as 'x = 1 − 1/√2'; the variable name 'x' is unconventional for a Butcher tableau coefficient. Consider using γ or α.
- §7: The diagnostics suite (total entropy, kinetic energy, enstrophy, palinstrophy, vorticity, Mach number) is mentioned but no results from any of these are shown in the paper. Including at least one diagnostic plot would strengthen the verification.
- §8, Listing 1: The time-step loop recompiles the JIT function on every iteration because the static mesh argument is passed as a positional argument to jax.jit inside the loop. This is likely a performance issue; the compiled function should be created once outside the loop.
- §1: The phrase 'hostile to the SIMD/SIMT execution model' is informal; consider 'irregular memory access patterns complicate efficient vectorisation on accelerators'.
- References: Fisher & Carpenter (2013) and Ranocha (2018) are relevant to the entropy-variable reconstruction question and should be cited in the context of §4.3–4.4.
Simulated Author's Rebuttal
We thank the referee for a careful and constructive report. Both major comments identify genuine gaps in the current manuscript that we will address in revision. On the entropy-stability claim at second order, the referee is correct that primitive-variable MUSCL reconstruction does not automatically preserve the discrete entropy inequality established by the Ismail-Roe flux at first order; we will revise the manuscript to state precisely what is and is not proven, add the relevant literature, and include quantitative entropy diagnostics. On verification, we agree that a single qualitative figure is insufficient to substantiate the paper's central claims; we will add quantitative results including a grid convergence study and entropy time histories.
read point-by-point responses
-
Referee: §2, point 2; §4.3–4.4: The entropy-stability claim is not established for the second-order scheme as implemented. The Ismail-Roe two-point flux is entropy-conservative when evaluated on cell-averaged states, but the second-order scheme reconstructs primitive variables via MUSCL and evaluates the flux at reconstructed left/right face states. The entropy-conservation property does not automatically extend to reconstructed states; preserving entropy stability at second order generally requires reconstruction in entropy variables (Fisher & Carpenter 2013; Ranocha 2018) or an equivalent comparison principle. The paper neither proves that primitive-variable MUSCL preserves the discrete entropy inequality nor presents quantitative entropy diagnostics.
Authors: The referee is correct on the substance. The entropy-conservation property of the Ismail-Roe two-point flux is established for cell-averaged states; it does not automatically extend to second-order MUSCL reconstruction in primitive variables. We will make the following changes. (1) We will revise the entropy-stability claim throughout the manuscript to distinguish clearly between the first-order scheme (for which the semi-discrete entropy inequality follows from the Tadmor/Ismail-Roe theory and entropy-variable dissipation) and the second-order scheme (for which we do not currently have a proof). (2) We will add a discussion of the gap, citing Fisher & Carpenter (2013) and Ranocha (2018), and noting that entropy-variable reconstruction or an equivalent comparison principle would be needed to extend the proof. (3) We will add quantitative entropy diagnostics — specifically, time histories of total entropy (sum of eta_i * |C_i|) for shock-containing problems — so that the reader can assess the sign and magnitude of entropy production empirically. We will not claim that the second-order scheme is provably entropy-stable; the revised text will state that the first-order baseline is entropy-stable and that the second-order extension is entropy-stable in practice as verified by diagnostics, but not formally proven. revision: yes
-
Referee: §9: The only verification shown is the Mach 3 forward-facing step (Figure 1), presented qualitatively. No quantitative convergence study, error analysis, or entropy conservation/stability diagnostic is provided, despite §7 mentioning a suite of diagnostics. For a paper whose central claims include both entropy stability and second-order accuracy, at least one quantitative verification is needed.
Authors: We agree. The revised manuscript will include: (1) a grid convergence study on a smooth problem (the isentropic vortex), reporting L1 and L2 errors and observed convergence rates for both first- and second-order schemes on a sequence of refined unstructured meshes; (2) time histories of total entropy for the forward-facing step and at least one 2D Riemann configuration, showing that entropy is non-increasing (with dissipation) or conserved (without dissipation) as appropriate; and (3) for the Taylor-Green vortex, time histories of kinetic energy and enstrophy. These will be presented as new figures with quantitative data. We will also retain the qualitative forward-facing step result as a shock-capturing demonstration. revision: yes
Circularity Check
No circularity found; derivation chain rests on external citations and is independently verifiable via code
full rationale
This is a software/methods paper, not a derivation paper, and its central claims are independently verifiable through the open code repository. The entropy-stability claim (§2 point 2, §4.4 Eq. 9) rests on external citations: Tadmor (1987, 2003) for the entropy-conservative flux framework and Ismail and Roe (2009) for the specific affordable flux form. The dissipation term in Eq. 9 uses entropy-variable jumps whose Jacobian action is computed by AD (jax.jvp) — this is a computational technique, not a circular definition. The two self-citations (de Romémont et al., 2025, 2026) appear only in the introduction as examples of data-driven discretisation work and are not load-bearing for any claim of JAX-FVM's properties. No parameter is fitted and then 'predicted.' No uniqueness theorem from the authors is invoked. The skeptic's concern about whether second-order MUSCL in primitive variables preserves the discrete entropy inequality is a correctness risk, not a circularity: the paper does not define its output in terms of its input, nor does it rename a fit as a prediction. The derivation chain (governing equations → semi-discrete FVM → MUSCL reconstruction → entropy-conservative flux + dissipation) follows standard, externally cited methodology without self-referential reduction.
Axiom & Free-Parameter Ledger
free parameters (3)
- alpha
- K
- CFL
axioms (3)
- standard math Tadmor's entropy-conservative flux theory
- standard math Ismail-Roe affordable entropy-consistent Euler flux
- standard math Venkatakrishnan limiter formulation
Cite this review
Pith. "Pith review of JAX-FVM: A differentiable, entropy-stable finite volume solver on unstructured meshes for compressible flows." pith.science (2026). https://pith.science/paper/KLNVSM6H
@misc{pith2026260707385,
author = {Pith},
title = {Pith review of: JAX-FVM: A differentiable, entropy-stable finite volume solver on unstructured meshes for compressible flows},
year = {2026},
howpublished = {\url{https://pith.science/paper/KLNVSM6H}},
note = {Machine review of arXiv:2607.07385}
}
read the original abstract
We present JAX-FVM, an open-source, fully differentiable finite volume method (FVM) for the two-dimensional compressible Euler and Navier-Stokes equations on unstructured triangular meshes. The solver is written entirely in JAX, so that every operation : mesh connectivity, flux evaluation, slope limiting, and time integration is just-in-time compiled, vectorised, and end-to-end differentiable through automatic differentiation (AD), and runs transparently on CPU or GPU. On the numerical side, JAX-FVM is built around an entropy-conservative Tadmor/Ismail-Roe two-point flux supplemented with entropy-variable Rusanov or Roe dissipation, second-order MUSCL reconstruction of primitive variables with least-squares gradients and Venkatakrishnan limiting, and a family of explicit (RK2-4) and matrix-free implicit (Newton, SDIRK2) time integrators whose Jacobian actions are obtained by AD. The combination of an unstructured-mesh compressible FVM with end-to-end differentiability fills a gap left by existing differentiable CFD frameworks, which are almost exclusively restricted to structured grids or spectral discretisations. We describe the governing equations, the discretisation, the software architecture, and a set of standard verification cases. The code is openly available at https://github.com/guigzair/jax_fvm.
