Voltage control of DC networks: robustness for unknown ZIP-loads

Michele Cucuzzella , Krishna Chaitanya Kosaraju , Jacquelien M. A. Scherpen This is my paper

Pith reviewed 2026-05-24 17:04 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords DC networksZIP loadspassivity-based controlvoltage controldecentralized controlmixed potential functionrobustnessnonlinear loads
0
0 comments X

The pith

DC networks with unknown ZIP loads admit a passivity property for any positive voltage reference, enabling robust decentralized voltage control.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a passivity-based control method for DC power networks containing ZIP loads, which are nonlinear loads formed by unknown constant impedance, current and power components in parallel. A storage function is constructed from the mixed potential function of Brayton and Moser to produce a passivity property whose output port variable is the time derivative of voltage. This property is shown to hold for every positive voltage reference and every possible ZIP-load combination, removing the restrictive conditions on load parameters or references required by earlier results. A decentralized controller is then derived from the passivity property that regulates voltage without needing to know the specific load values. The result matters for power networks where load composition is uncertain or time-varying.

Core claim

We propose a novel passifying input and a storage function based on the mixed potential function introduced by Brayton and Moser, leading to a novel passivity property with output port-variable equal to the first time derivative of the voltage. Differently from the existing results in the literature, where restrictive (sufficient) conditions on Z, P and the voltage reference are assumed to be satisfied, we establish a passivity property for every positive voltage reference and every type of load. Consequently, we develop a new decentralized passivity-based control scheme that is robust with respect to the uncertainty affecting the ZIP-loads.

What carries the argument

Mixed potential function of Brayton and Moser, used to construct a storage function that yields passivity with the time derivative of voltage as the output port variable.

If this is right

  • The passivity property holds without any restrictive conditions on the values of Z, I or P or on the voltage reference beyond positivity.
  • A decentralized controller can be implemented that regulates voltage without knowledge of the load parameters.
  • The same storage function and input apply uniformly to networks containing any mixture of constant-impedance, constant-current and constant-power loads.
  • Voltage regulation remains guaranteed under load uncertainty because the passivity property does not depend on the specific load coefficients.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The uniform passivity property may allow the same controller gains to be used across networks whose loads change type over time without retuning.
  • The construction could be tested on laboratory-scale DC microgrids with programmable loads to check whether voltage regulation occurs within predicted bounds when load parameters vary.
  • Similar storage-function arguments might be examined for networks that combine DC and AC sections, though that extension lies outside the present scope.

Load-bearing premise

The mixed potential function of Brayton and Moser can be used to construct a storage function yielding the desired passivity property with the time derivative of voltage as the output port variable, for arbitrary positive voltage references and any ZIP-load combination.

What would settle it

A concrete counter-example consisting of one positive voltage reference together with specific positive Z, I and P values for which the proposed storage function fails to satisfy the passivity dissipation inequality.

Figures

Figures reproduced from arXiv: 1907.09973 by Jacquelien M. A. Scherpen, Krishna Chaitanya Kosaraju, Michele Cucuzzella.

Figure 1
Figure 1. Figure 1: Electrical scheme of DGU i and transmission line k. Remark 1 (Novelty of (5)). Note that the particular struc￾ture of υ that we propose in (6d) generates a family of BM descriptions (5) different from the ones presented for in￾stance in [32, 33]. The proposed structure plays indeed a major role in establishing the (novel) passivity property for DC networks including unknown ZIP-loads (see Theorem 2 in Subs… view at source ↗
Figure 2

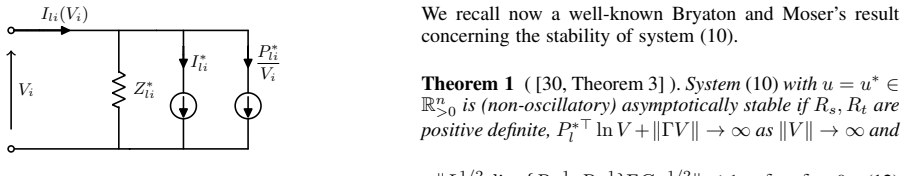

Figure 2. Figure 2: ZIP-load i. Accordingly, in the presence of a ZIP-load, Ili(Vi) in (7) is given by Ili(Vi) := Z ∗−1 li Vi + I ∗ li + V −1 i P ∗ li. (9) The symbols used in (7)–(9) are described in [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

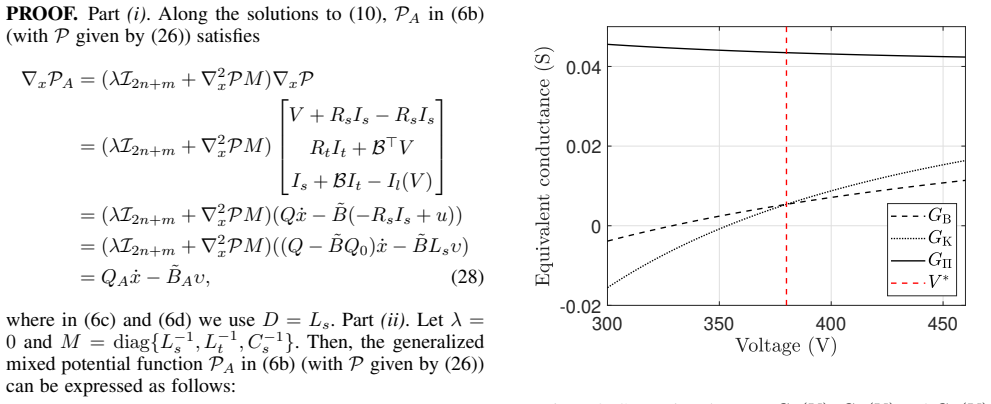

Figure 3. Figure 3: Comparison between GB(V ), GK(V ) and GΠ(V ). For the sake of exposition, consider as illustrative example a ZP-load with Z ∗−1 l = 0.04 S, P ∗ l = 5 × 103 W and nom￾inal voltage V ∗ = 380 V [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4

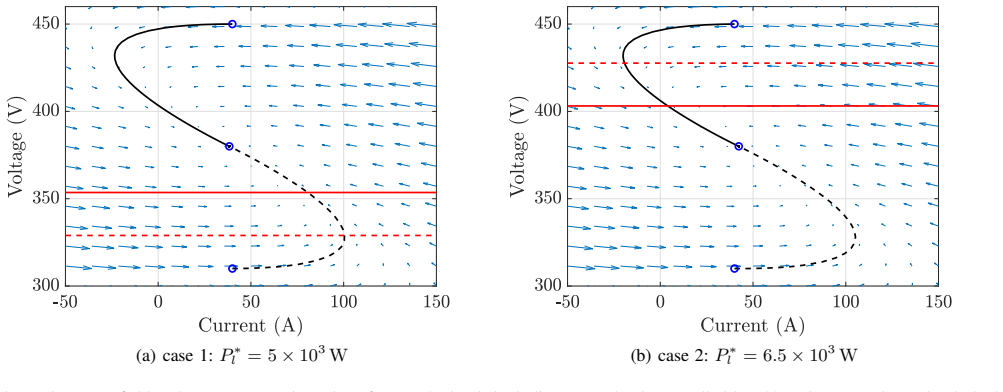

Figure 4. Figure 4: Vector field and state-space trajectories of an RLC circuit including a ZIP-load, controlled by (39). The areas above the dashed [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗
Figure 5

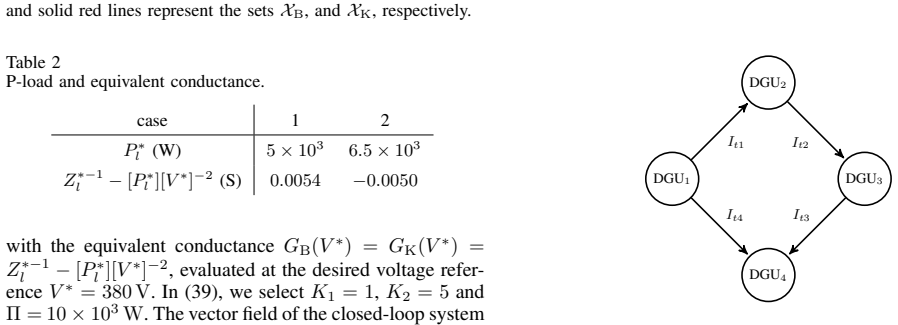

Figure 5. Figure 5: Scheme of the considered DC power network with four [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Scenario 1. From the top: time evolution of the gener [PITH_FULL_IMAGE:figures/full_fig_p011_6.png] view at source ↗
Figure 7

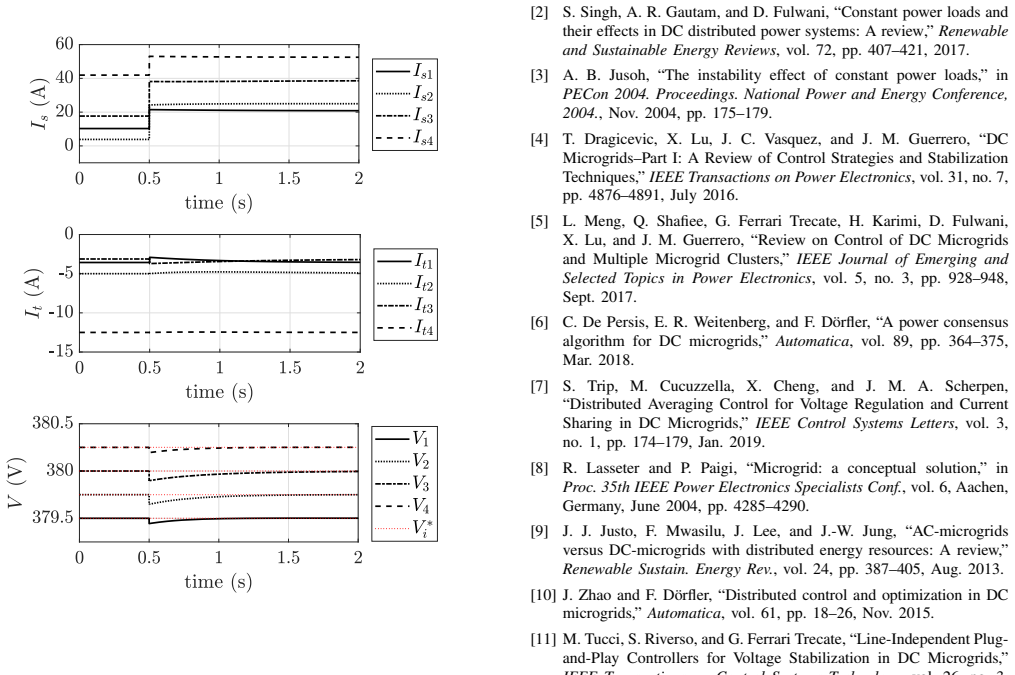

Figure 7. Figure 7: Scenario 2. From the top: time evolution of the gener [PITH_FULL_IMAGE:figures/full_fig_p012_7.png] view at source ↗
read the original abstract

In this paper we propose a new passivity-based control technique for DC power networks comprising the so-called ZIP-loads, i.e., nonlinear loads with the parallel combination of unknown constant impedance (Z), current (I) and power (P) components. More precisely, we propose a novel passifying input and a storage function based on the so-called mixed potential function introduced by Brayton and Moser, leading to a novel passivity property with output port-variable equal to the first time derivative of the voltage. Differently from the existing results in the literature, where restrictive (sufficient) conditions on Z, P and the voltage reference are assumed to be satisfied, we establish a passivity property for every positive voltage reference and every type of load. Consequently, we develop a new decentralized passivity-based control scheme that is robust with respect to the uncertainty affecting the ZIP-loads.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes a novel passivity-based control scheme for DC networks with unknown ZIP-loads. It constructs a storage function from the Brayton-Moser mixed potential to establish a passivity property (with output port variable equal to the time derivative of voltage) that holds for every positive voltage reference and every combination of Z, I, and P loads, without the restrictive conditions required in prior work. This passivity property is then used to derive a decentralized controller that is robust to load uncertainties.

Significance. If the central claim is established rigorously, the result would be significant: it removes sufficient conditions on load parameters and voltage references that limit applicability in existing passivity-based DC network control literature, offering a more general robustness guarantee for practical systems with uncertain nonlinear loads. The explicit use of the mixed-potential function to obtain the desired port variable is a technical contribution worth noting if the construction is shown to be valid without hidden restrictions.

major comments (2)
  1. [Section III] The storage function construction (Section III, around the definition following Eq. (8) and the subsequent dissipation inequality): the claim that the mixed-potential-based storage function yields a valid passivity property for arbitrary ZIP parameters (including large P) and any v* > 0 rests on positive (semi)definiteness and radial unboundedness. However, the 1/v dependence from constant-power terms can violate these properties near v = 0 for sufficiently large P, even when the reference is positive. An explicit proof or counter-example check for the full range of admissible (Z, I, P) is required to support the 'every type of load' assertion; without it the robustness claim for the subsequent decentralized controller is not yet load-bearing.
  2. [Section III] Proposition 1 (or the main passivity theorem in Section III): the derivation of the dissipation inequality with output equal to dv/dt appears to rely on the specific form of the mixed potential; it is unclear whether the resulting storage function remains independent of the target controller or reduces to a choice that implicitly restricts the load set. A parameter-free verification or explicit bounds on P that preserve definiteness should be supplied.
minor comments (2)
  1. [Section II] Notation for the ZIP parameters (Z, I, P) and the network incidence matrix should be introduced with explicit dimensions and sign conventions in Section II to avoid ambiguity when reading the storage function.
  2. [Section II] Figure 1 (network diagram) would benefit from labeling the port variables explicitly to match the passivity definition used later.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thorough review and insightful comments, which help strengthen the presentation of our results. We address each major comment below and will revise the manuscript accordingly to provide the requested explicit verifications.

read point-by-point responses

  1. Referee: [Section III] The storage function construction (Section III, around the definition following Eq. (8) and the subsequent dissipation inequality): the claim that the mixed-potential-based storage function yields a valid passivity property for arbitrary ZIP parameters (including large P) and any v* > 0 rests on positive (semi)definiteness and radial unboundedness. However, the 1/v dependence from constant-power terms can violate these properties near v = 0 for sufficiently large P, even when the reference is positive. An explicit proof or counter-example check for the full range of admissible (Z, I, P) is required to support the 'every type of load' assertion; without it the robustness claim for the subsequent decentralized controller is not yet load-bearing.

    Authors: The Brayton-Moser mixed potential yields a storage function whose positive-definiteness and radial unboundedness on the positive orthant (v > 0) hold independently of the magnitudes of Z, I, and P. The contribution of constant-power loads appears as a term of the form P(v/v* - 1 - log(v/v*)), whose Hessian is positive definite for all v > 0 and any real P; the 1/v terms are exactly canceled in the time derivative when forming the dissipation inequality, leaving a non-positive remainder that does not depend on P. Direct verification of these properties (provided in the proof of the main theorem) therefore covers the entire admissible load set without additional restrictions. We will add an explicit lemma stating the definiteness conditions and confirming they are parameter-free. revision: yes

  2. Referee: [Section III] Proposition 1 (or the main passivity theorem in Section III): the derivation of the dissipation inequality with output equal to dv/dt appears to rely on the specific form of the mixed potential; it is unclear whether the resulting storage function remains independent of the target controller or reduces to a choice that implicitly restricts the load set. A parameter-free verification or explicit bounds on P that preserve definiteness should be supplied.

    Authors: The storage function is obtained solely from the open-loop network and ZIP-load dynamics via the mixed potential and is therefore independent of any subsequent controller. The dissipation inequality is derived by direct differentiation along the system trajectories; after cancellation of the power-balance terms, the resulting expression is non-positive for arbitrary Z, I, P and any v* > 0. No implicit restriction on the load set occurs. We will supply a parameter-free verification by rewriting the key steps without reference to specific controller gains and by stating the definiteness bounds explicitly. revision: yes

Circularity Check

0 steps flagged

No circularity: storage function constructed from established mixed-potential function to prove passivity property

full rationale

The derivation applies the known Brayton-Moser mixed potential (an external, pre-existing concept) to build a storage function whose time derivative yields the desired dissipation inequality with output equal to voltage derivative. This is a standard constructive technique in passivity-based control and does not reduce the target passivity statement to a definition, a fitted parameter, or a self-citation chain. No equations in the provided text exhibit a self-definitional loop or a prediction that is forced by construction; the claim of validity for arbitrary positive references and all ZIP combinations is presented as an independent mathematical assertion that can be checked against the network dynamics.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The approach rests on standard passivity theory and the Brayton-Moser mixed potential function from prior literature, with no free parameters, new entities, or ad-hoc axioms stated in the abstract.

axioms (2)
  • domain assumption The system is a DC power network comprising ZIP-loads.
    Explicitly stated as the setting for the control problem.
  • domain assumption A storage function can be constructed from the mixed potential function to establish the claimed passivity property.
    Central technical step invoked to obtain the new passivity property.

pith-pipeline@v0.9.0 · 5690 in / 1257 out tokens · 23354 ms · 2026-05-24T17:04:28.156354+00:00 · methodology
