ff-bifbox: A scalable, open-source toolbox for bifurcation analysis of nonlinear PDEs

Christopher M. Douglas , Pierre Jolivet This is my paper

Pith reviewed 2026-05-18 13:41 UTC · model grok-4.3

classification 🧮 math.NA cs.NAmath-phmath.MP
keywords bifurcation analysisnonlinear PDEsfinite element methodadaptive mesh refinementstability analysisnumerical continuationdistributed computingopen-source software
0
0 comments X

The pith

ff-bifbox enables branch tracing, stability analysis, and resolvent computations for large nonlinear PDEs on adaptive meshes in 2D and 3D.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents ff-bifbox, an open-source toolbox that performs numerical branch tracing, stability and bifurcation detection, resolvent analysis, and time integration for time-dependent nonlinear PDEs. It handles these tasks on adaptively refined meshes in two and three spatial dimensions by combining FreeFEM finite-element discretization with PETSc distributed linear algebra. This capability addresses the practical difficulty of studying complex dynamics in systems with many degrees of freedom and changing resolution needs. The authors demonstrate the toolbox on a three-dimensional Brusselator system, a three-dimensional plate buckling problem, and a two-dimensional compressible Navier-Stokes system, reproducing known results and adding new observations for each case.

Core claim

ff-bifbox is a scalable toolbox for bifurcation analysis of nonlinear PDEs that performs numerical continuation, stability and bifurcation detection, resolvent analysis, and time integration on adaptively refined meshes in 2D and 3D using FreeFEM spatial discretization and PETSc for distributed linear algebra operations.

What carries the argument

ff-bifbox, which integrates FreeFEM finite-element discretization on adaptive meshes with PETSc distributed solvers to form and manipulate operators for branch tracing and eigenvalue-based stability analysis.

If this is right

  • Three-dimensional systems previously limited by computational cost become accessible for systematic stability and bifurcation studies.
  • Reproducible code for the Brusselator, plate buckling, and Navier-Stokes examples allows direct verification and extension of published results.
  • Resolvent analysis can be performed alongside continuation for the same large-scale discretizations.
  • Adaptive mesh refinement during continuation supports problems where spatial features evolve with the bifurcation parameter.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same integration pattern could be adapted to other finite-element libraries or mesh adaptation strategies beyond FreeFEM.
  • Extending the toolbox to include automatic differentiation for Jacobian-free methods would reduce memory demands on very large problems.
  • Coupling the framework to uncertainty quantification routines would allow bifurcation analysis under parameter variation.

Load-bearing premise

The combination of FreeFEM adaptive-mesh discretization and PETSc distributed solvers yields operators and eigenvalue information accurate enough to identify true bifurcation points without dominant numerical artifacts for the demonstrated problem classes.

What would settle it

Running ff-bifbox on a nonlinear PDE with a known analytical bifurcation value and checking whether the computed critical parameter lies within the expected numerical tolerance of the exact value.

Figures

Figures reproduced from arXiv: 2509.18429 by Christopher M. Douglas, Pierre Jolivet.

Figure 1
Figure 1. Figure 1: Bifurcation diagram showing the oscillation period [PITH_FULL_IMAGE:figures/full_fig_p011_1.png] view at source ↗
Figure 2

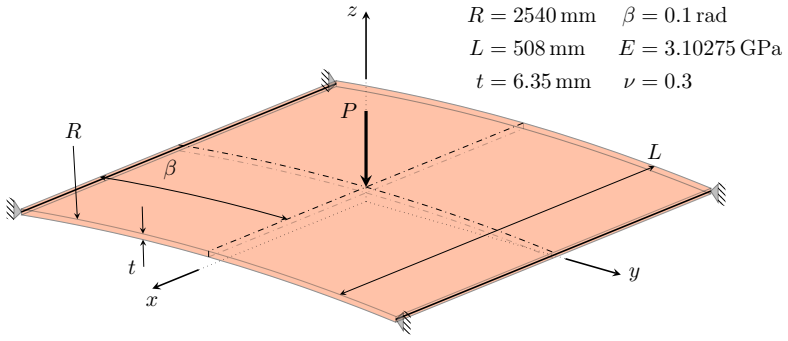

Figure 2. Figure 2: Schematic of the benchmark problem for the hinged cylindrical section under point loading [PITH_FULL_IMAGE:figures/full_fig_p012_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Bifurcation diagram showing the z-deflection of the center of the plate under parametric variations in P and isometric visualizations of the z-deflection for the three stable solutions at P = 170 N. Linearly stable and unstable solutions are indicated by thick and thin lines, respectively. Saddle–node and symmetry breaking bifurcations are indicated on the diagram by circle and square symbols, respectively… view at source ↗
Figure 4

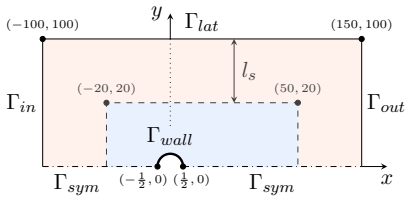

Figure 4. Figure 4: Illustration (not to scale) of the flow configuration over the circular cylinder. The blue [PITH_FULL_IMAGE:figures/full_fig_p014_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Bifurcation diagrams of c¯d and St versus Re and M a, Re–M a stability map, and flow visualization summarizing the dynamics of the 2-D compressible flow past a circular cylinder. The projections of the Hopf bifurcation curve associated with time-periodic vortex shedding are plotted in black, with the gray shaded portion of the stability map indicating linear instability of the steady state. The two-tone di… view at source ↗
read the original abstract

Nonlinear PDEs give rise to complex dynamics that are often difficult to analyze in state space due to their relatively large numbers of degrees of freedom, ill-conditioned operators, and changing spatial and parameter resolution requirements. This work introduces ff-bifbox: a new open-source toolbox for performing numerical branch tracing, stability/bifurcation analysis, resolvent analysis, and time integration of large, time-dependent nonlinear PDEs discretized on adaptively refined meshes in two and three spatial dimensions. Spatial discretization is handled using finite elements in FreeFEM, with the discretized operators manipulated in a distributed framework via PETSc. Following a summary of the underlying theory and numerics, results from three examples are presented to validate the implementation and demonstrate its capabilities. The considered examples, which are provided with runnable ff-bifbox code, include: a 3-D Brusselator system, a 3-D plate buckling system, and a 2-D compressible Navier--Stokes system. In addition to reproducing results from prior studies, novel results are presented for each system.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces ff-bifbox, an open-source toolbox for bifurcation analysis of nonlinear PDEs. It combines FreeFEM finite-element discretization on adaptively refined meshes in two and three spatial dimensions with PETSc distributed linear algebra to enable numerical branch tracing, stability/bifurcation analysis, resolvent analysis, and time integration. The work summarizes the underlying theory and numerics, then demonstrates the toolbox on three examples (3-D Brusselator, 3-D plate buckling, 2-D compressible Navier-Stokes) that reproduce prior results and report novel findings, with runnable code provided for each.

Significance. If the numerical accuracy claims hold, the toolbox offers a practical, scalable, and open-source platform for bifurcation studies on large-scale time-dependent nonlinear PDEs that were previously limited by mesh size and solver scalability. The explicit provision of runnable code for the examples and the focus on adaptive 3-D meshes constitute concrete strengths that support reproducibility and broader adoption in the field.

major comments (2)
  1. [Numerical Examples] Numerical Examples section (3-D Brusselator and 3-D plate buckling): no mesh-convergence studies or comparisons of reported bifurcation values under alternative refinement criteria are presented. Because adaptive refinement changes the discrete spectrum during continuation, this omission leaves open the possibility that identified bifurcation points and stability changes are sensitive to the particular adaptive strategy rather than reflecting the underlying PDE.
  2. [Implementation and Validation] Implementation and Validation subsection: the description of how the PETSc eigensolvers are applied to the FreeFEM operators for stability and bifurcation detection lacks explicit error analysis or verification that the combined discretization and solver pipeline produces eigenvalue information free of dominant numerical artifacts at the reported parameter values.
minor comments (2)
  1. [Abstract] The abstract states that novel results are obtained but does not indicate which specific quantities (e.g., critical Reynolds number, buckling load) constitute the novel contributions.
  2. [Theory and Numerics] Notation for the resolvent operator in the theory summary should be cross-referenced to the subsequent numerical implementation to avoid ambiguity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for the positive assessment of ff-bifbox's potential as a scalable open-source platform. We address each major comment below and describe the revisions we will make to strengthen the numerical validation aspects of the work.

read point-by-point responses

  1. Referee: [Numerical Examples] Numerical Examples section (3-D Brusselator and 3-D plate buckling): no mesh-convergence studies or comparisons of reported bifurcation values under alternative refinement criteria are presented. Because adaptive refinement changes the discrete spectrum during continuation, this omission leaves open the possibility that identified bifurcation points and stability changes are sensitive to the particular adaptive strategy rather than reflecting the underlying PDE.

    Authors: We agree that explicit mesh-convergence studies and comparisons under alternative refinement criteria would strengthen confidence that the reported bifurcation points reflect the underlying PDE rather than the adaptive strategy. The manuscript relies on standard a posteriori error estimators in FreeFEM for mesh adaptation and notes consistency with prior literature results, but does not present systematic comparisons of bifurcation values across different tolerances or indicators. In the revised version we will add a dedicated discussion, including limited mesh-convergence data for the 3-D examples where computationally feasible, together with an assessment of observed sensitivity in the discrete spectrum. revision: yes

  2. Referee: [Implementation and Validation] Implementation and Validation subsection: the description of how the PETSc eigensolvers are applied to the FreeFEM operators for stability and bifurcation detection lacks explicit error analysis or verification that the combined discretization and solver pipeline produces eigenvalue information free of dominant numerical artifacts at the reported parameter values.

    Authors: We acknowledge that the current description of the FreeFEM–PETSc interface for eigensolver application would benefit from more explicit error analysis and verification steps. The manuscript outlines the assembly of distributed operators and the use of PETSc eigensolvers but does not include detailed residual monitoring or artifact checks at the reported parameter values. In the revision we will expand the Implementation and Validation subsection to document the specific solver tolerances, residual norms for computed eigenpairs, and verification procedures (including cross-checks against known cases and parameter-sensitivity tests) to confirm that dominant numerical artifacts are controlled. revision: yes

Circularity Check

0 steps flagged

Software implementation paper with external validation shows no circularity

full rationale

The paper describes a toolbox (ff-bifbox) that combines FreeFEM discretization with PETSc solvers for bifurcation analysis, branch tracing, and related tasks on adaptive meshes. Validation consists of reproducing results from prior independent studies on the Brusselator, plate buckling, and Navier-Stokes systems, plus demonstration of novel results. No mathematical derivation, parameter fitting, or first-principles prediction is claimed that reduces to the inputs by construction; the central claims concern software capabilities and numerical reproducibility against external benchmarks rather than self-referential definitions or self-citation chains.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The contribution rests on the established reliability of finite-element discretization and distributed linear-algebra libraries rather than on new free parameters or postulated entities.

axioms (2)
  • domain assumption Finite-element methods on adaptively refined meshes produce sufficiently accurate spatial discretizations for the nonlinear operators arising in the target PDEs.
    Invoked by the choice of FreeFEM for spatial discretization of the 2-D and 3-D systems.
  • domain assumption PETSc distributed solvers and eigenvalue routines remain stable and accurate for the large, possibly ill-conditioned systems generated by the adaptive discretizations.
    Required for the manipulation of discretized operators and for stability/bifurcation computations.
