Pith's one-line read The paper argues that predicting the operator's hand motion and decoupling the digital twin's display and control loops can neutralize end-to-end latency, cutting trajectory error from 0.0712 m to 0.0101 m.

desk verdict Real prototype and a plausible architecture, but the evaluation as written is not trustworthy: impossible percentage, inverted reward weights, a baseline beating the method in its own table, and an unverified load-bearing prediction claim. read the letter →

arxiv 2508.20664 v1 pith:KPWHHMTM submitted 2025-08-28 cs.RO cs.AIcs.GR

Kan Chen , Zhen Meng , Xiangmin Xu , Jiaming Yang , Emma Li , Philip G. Zhao This is my paper · ORCID

classification cs.ROcs.AIcs.GR

keywords task-orientedcommunicationindustrialmetaversedigitaltwinhuman-in-the-loopmodel-agnosticmeta-learninglatencycompensationteleoperationedgecomputing

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper tries to establish that the end-to-end latency of industrial metaverse teleoperation can be neutralized by treating it as a prediction problem instead of a network problem. The framework predicts the operator's hand motion and feeds those predicted poses into two parallel paths: preemptive control of the physical robotic arm and proactive rendering of its digital twin, with the twin deliberately split into separate visual-display and control functions. A reinforcement-learning agent dynamically chooses how far ahead to predict in each path, and a two-stage meta-learning scheme (HITL-MAML) pretrains that horizon policy on recorded trajectories before adapting it online to a live operator. In the prototype, trajectory-following error drops from 0.0712 m to 0.0101 m, and a NeRF-based 3D inspection scene reaches PSNR 22.11, SSIM 0.8729, LPIPS 0.1298. If these results hold, the design is a template for keeping remote high-precision manipulation usable under real communication delays.

What carries the argument

The load-bearing mechanism is the prediction-horizon policy. At each time slot an agent receives the operator's normalized pose plus the measured end-to-end delays of the control loop (Tr) and the visual loop (Tv), and outputs two prediction lengths Hr and Hv. Those lengths tell the ARMA motion predictor how far ahead to look; the predicted poses are consumed by two parallel paths—preemptive joint control of the real robot and proactive rendering of the virtual twin—so that commands and frames arrive at their destination already referencing the future. The second essential piece is the two-stage HITL-MAML training: offline MAML pretraining on recorded circle/triangle/star/square trajectories

What would settle it

Collect held-out operator traces for the four drawing shapes, fit the same ARMA predictor, and measure prediction RMSE at 127 ms and 252 ms (the measured E2E delays in Table II). If at those horizons the prediction error exceeds the no-prediction motion-to-photon error for the same delays, then proactive rendering and preemptive control inject more error than they remove, and the reported 0.0101 m RMSE would not generalize.

Watch

Extended reading notes

Core claim

The central claim is that a task-oriented cross-system design—where the digital twin is decoupled into two virtual functions, one for visual display and one for robotic control, and where both are driven by predicted operator poses—can eliminate the effects of end-to-end delay in real-time human-robot interaction. Rather than trying to minimize latency in each subsystem, the system predicts the operator's pose with an ARMA model and chooses two prediction horizons, Hr and Hv, through a meta-reinforcement-learning policy that observes the operator's pose history and the measured E2E delays of both loops. The policy is first pretrained offline across four trajectory tasks using MAML, then adap

Load-bearing premise

The entire latency-compensation benefit rests on the empirical premise that a low-order ARMA model can predict a live operator's hand motion with RMSE below 1 cm over horizons up to 1000 ms, with error growing only slowly with horizon; the paper asserts this from Fig. 6 without releasing the traces, error distributions, or ARMA orders.

Editorial extensions

If this is right

If correct, delay compensation becomes a task-level control problem: the system can tolerate communication delays as long as the motion predictor is accurate and the horizon policy picks compensating lengths.
Decoupling the digital twin's rendering loop from its control loop lets the edge server run physics updates at 240 Hz while streaming display frames at 60 fps, which is how the prototype meets both spatial-precision and visual-fidelity requirements at once.
Because the horizon policy is meta-learned, the same offline pretraining transfers across trajectory shapes and adapts online to an individual operator's style within roughly 80 episodes.
In the inspection task, better control precision under a fixed time budget produces measurably better 3D reconstruction metrics, so communication latency degrades not only the teleoperation itself but the final task artifact.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

A testable extension is to swap the ARMA predictor for a learned sequence model and re-run the same two-loop framework; since the paper presents the framework as predictor-agnostic, this would reveal whether the remaining error comes from the predictor or from the horizon policy.
The delay injections are Gaussian with 10 ms standard deviation; adversarial or bursty delay traces would stress the M/M/1/2* packet-discard discipline, where a stale packet could be worse than no prediction, and the horizon policy might need to learn to predict zero.
The paper leaves implicit that the same architecture—predict the human's motion, run two parallel loops, meta-learn the horizon—should transfer to other human-in-the-loop cyber-physical systems such as surgical teleoperation, remote driving, or telepresence maintenance.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

Quick take: this is a genuine systems integration paper—ARMA-based prediction, MAML/PPO horizon selection, a decoupled digital twin for rendering versus control, and a real UR3e + Touch haptic prototype with NeRF-based inspection. The delta over their prior work is the HITL online adaptation and the dual-function decoupling, and those are legitimate extensions. The prototype description is detailed enough to reimplement, which earns real credit.

The reported numbers, though, do not hold as stated. Three concrete problems. First, 'RMSE decrease by 249.39%' is impossible; a decrease cannot exceed 100%. They likely meant something like 'RMSE is 7x lower,' but as written it is wrong. Second, Table I lists weighting coefficients ω1–ω4 = -1. If the reward in Eq. 20 is a weighted sum of RMSEs with negative weights, the DRL agent would be maximizing error. Either the table is wrong or the training objective is inverted. Third, Table IV shows the RS baseline beating HITL-MAML on PSNR (22.49 vs 22.11) and LPIPS (0.1295 vs 0.1298) under the fixed-photographing-number condition. That contradicts the claim that HITL-MAML consistently achieves higher representation fidelity.

The bigger issue is the load-bearing prediction claim. Section V-B states ARMA achieves <0.01 m RMSE for all horizons up to 1000 ms, but Figure 6 is unreadable and the paper gives no ARMA orders, no coefficient estimation procedure, no per-horizon errors, and no trace data. At the measured E2E delays in Table II (127–252 ms), even 2–3 cm of prediction error would make proactive compensation inject more error than it removes. This is not a minor gap; the entire 0.0712→0.0101 m reduction depends on it.

There is also the evaluation circularity: the DRL reward is the same RMSE metric used for evaluation, and the evaluation reuses the same four drawing shapes used for offline pretraining. A held-out generalization test—new shape, new operator, new task—would be needed to support the generalizability claims.

None of this means the architecture is wrong. It is plausible, and the prototype is real. But the paper needs corrections, code/data release, and a genuine cross-task experiment before its claims can be trusted. I would send it to review—the integration work deserves referee time—but I would expect heavy revision and likely a rerun of the evaluation.

Referee Report

3 major / 8 minor

Summary. The paper proposes a task-oriented, edge-assisted cross-system framework for real-time human-robot interaction in an industrial Metaverse. A digital twin is decoupled into a visual-feedback function and a robotic-control function, and an ARMA predictor is used to forecast operator motion. A DRL agent trained with a two-stage MAML procedure (HITL-MAML) dynamically selects the prediction horizons for proactive rendering and preemptive control. The system is validated on a prototype with a haptic device, Isaac Sim, and a UR3e arm. The reported results are a reduction in weighted RMSE from 0.0712 m to 0.0101 m in a drawing-control task and PSNR 22.11 / SSIM 0.8729 / LPIPS 0.1298 in a 3D scene-representation task. The central claim is that the proposed cross-system design with HITL-MAML improves spatial precision and visual fidelity under realistic latency conditions.

Significance. If properly supported, the paper would make a useful contribution by jointly addressing prediction, communication, control, and rendering in a human-in-the-loop industrial metaverse setting, and by providing a working testbed. The construction of the prototype and the measurement of end-to-end delays under emulated network conditions are genuine strengths, as is the comparison against three baselines. However, the evaluation currently has load-bearing gaps: the prediction-accuracy claim rests on an unreadable figure and no model details; the main RMSE results are obtained on the same four shapes used for offline pretraining; and the 3D reconstruction table contradicts the paper's own claim of consistency. The framework is plausible, but the evidence as presented does not yet establish the paper's strong quantitative claims.

major comments (3)

[Section V-B, Fig. 6] The claim that the ARMA predictor achieves 'less than 0.01m RMSE when the prediction horizon is less than 1000 ms' is load-bearing and currently unsupported. Fig. 6 is unreadable in the submitted PDF (it appears as raw glyph paths rather than a plot), and the text gives no ARMA orders (p,q), no coefficient estimation procedure, no per-horizon error table, and no underlying trace data. Since the predicted poses enter the control and rendering loops (Eqs. 3, 6, and 10) and the DRL agent selects horizons based on this predictor, the headline reduction from 0.0712 m to 0.0101 m depends on prediction accuracy at the operating delays measured in Table II (roughly 127 to 252 ms). The authors should provide a readable figure, a table of RMSE versus horizon with error bars, and ideally release the operator-motion traces or a similarly detailed validation at the exact E2E delays reported.
[Sections IV-B and V-C] The evaluation of the trajectory-tracking task is confounded with the training data. Section IV-B states that 150 repetitions of each of the four shapes (circle, triangle, pentagram, square) were collected for pretraining, and Section V-C then reports RMSE on exactly those four shapes. No held-out shape, no novel operator, and no different task distribution is used to test the generalizability claim of HITL-MAML. Furthermore, the DRL reward in Eq. (20) is the sum of ev and er, which are exactly the weighted RMSE metrics defined in Eqs. (16)-(17) and used for evaluation. This means the reported 'improvement' is, to a large extent, the agent minimizing its own training objective on the training-domain trajectories. The authors should evaluate on held-out shapes or operators, or otherwise demonstrate that the improvement generalizes beyond the in-sample objective.
[Section V-D, Table IV] The text states that 'our method consistently achieved higher representation fidelity' compared with the baselines, but Table IV contradicts this under the Fixed Photographing Number condition: RS achieves higher PSNR (22.49 vs. 22.11) and lower LPIPS (0.1295 vs. 0.1298) than HITL-MAML. The claim of consistent superiority is therefore false as written. The authors should either correct the claim, provide statistical significance tests or confidence intervals, or explain why a fixed image budget changes the ranking. As presented, the 3D scene-representation advantage of the proposed method is not established.

minor comments (8)

[Section V-C.1] 'The RMSE decrease by 249.39%, 132.79%, and 61.13%' is impossible: a decrease cannot exceed 100%. If the intended statistic is a relative reduction from the baseline, the values should be (baseline - proposed)/baseline × 100, which for the reported WP (0.0712) and proposed (0.0096) values would be about 86.5%, not 249.39%. Please restate with a clear formula and correct numbers.
[Table I] The weighting coefficients ω1..ω4 are listed as -1. Since the reward in Eq. (20) is ev + er, negative weights make the reward a negative RMSE, which is a sensible reward for maximization. However, the text calls them 'weighting coefficients' without explaining the sign. Please clarify that the reward is negative weighted RMSE or change the notation so that the sign is explicit.
[Figure 6] The figure is unreadable in the PDF; the axes and legend appear as garbled glyph paths. Replace it with a high-resolution vector graphic, and also provide a table of RMSE values at selected horizons (e.g., 50, 100, 127, 144, 236, 252 ms).
[Section II-C.1, Eq. (4)] The ARMA model is central to the framework, but no orders or coefficient estimation method are given. Please report the values of p, q, and the fitting procedure used for the four trajectories, or state that they are chosen by a standard criterion (e.g., AIC).
[Eq. (27)] The constraints (27b) and (27c) use Hv and Hr both as the variable and as the maximum horizon. Rename the maxima to, e.g., H_v^max and H_r^max, to avoid ambiguity.
[Section II-C.2, Eq. (14)] The phrase 'where ˙t represents the differentiation of t' is unhelpful; define τ_i(t) as the joint position error and clarify the integration variable.
[References] Reference [43] (Dell monitor) points to the 3D Systems haptics-devices URL, not the monitor datasheet. Please correct the URL.
[General] The header on page 1 reads 'AUGEST 2025'; should be 'AUGUST 2025'. Also, the sentence in Section V-B ('It is intuitively that...') needs grammatical revision.

Circularity Check

1 steps flagged · score 5.0 of 10

Reported RMSE improvements are the in-sample training objective: the reward (Eq. 20) is exactly the evaluation metric (Eqs. 16-17), and the evaluation uses the same four shapes on which the model was trained.

self definitional [Section III-A (Instantaneous Reward), Eq. (20); Section II-D, Eqs. (16)-(17); Section V-C, Fig. 8 and Table III]
"r(st, at) = ev(t) + er(t), where er(t) is the RMSE for the real-world robotic control and ev(t) is the RMSE for the visual feedback. ... ev = ω1 · RMSEp(˜pi, ˜pv) + ω2 · RMSEo(˜pi, ˜pv) ... er = ω3 · RMSEp(˜pi, ˜pr) + ω4 · RMSEo(˜pi, ˜pr) ... We collected real-time interaction data from four trajectory-following tasks ... shapes including circle, triangle, pentagram, and square."

The task-KPI RMSE (Eqs. 16-17) is used verbatim as the reward (Eq. 20), so the policy is optimized to minimize exactly the metric later reported as performance. Section V-C then reports the converged reward, 'an average RMSE of 0.0101 m,' and Table III gives per-shape RMSEs on the same four shapes used for MAML pretraining and HITL online adaptation. By construction, an agent trained to minimize a metric will score well when evaluated on that same metric and on the training distribution. The claimed 'generalizability' is therefore not tested by held-out shapes, operators, or horizons; the reported improvement is the in-sample training objective, not an independent prediction.

full rationale

The main circularity is the closed loop between the optimization objective and the evaluation metric: the reward function (Eq. 20) is defined as the weighted RMSE of Eqs. (16)-(17), and the paper's headline trajectory-tracking result is that same RMSE measured on the same four shapes used for training. This makes the reported 0.0712-to-0.0101 reduction partly a restatement of the optimization target at convergence, rather than an independent generalization result. The ARMA prediction-accuracy claim (Section V-B, Fig. 6) is load-bearing but not circular; it is an evidence gap because no ARMA orders, coefficient-estimation procedure, or per-horizon error data are given. Self-citations exist (e.g., [6], [32], [34]) but are not used as a uniqueness theorem or to import a central premise, so they do not add circularity. The 3D scene representation evaluation is not circular: PSNR/SSIM/LPIPS are external visual-quality metrics not used as the training reward, although the control policy that collects images is still trained with the RMSE reward. Overall, the central numerical claim partially reduces to its own training objective, warranting a moderate circularity score.

Assumptions & free parameters 7 free parameters · 4 assumptions · 0 invented entities

The central claim rests on fitted predictor and controller parameters, several of which are unreported or inconsistently signed, on faithfulness of the digital twin simulation, and on an implicit equivalence between pretraining and evaluation tasks. No new physical entities are introduced.

free parameters (7)

ARMA coefficients c, phi_a, theta_b and orders (p,q) (Eq. 4) = not reported
The predictor is fitted to operator motion data; exact values and orders are not given.
RMPFlow gains kp, kd and robust threshold theta_th (Eqs. 7-8) = not reported
Control-law gains chosen by the authors; values are absent from the paper.
PID gains Kp, Ki, Kd (Eq. 14) = not reported
Real-world robot controller gains are not specified.
Error weighting coefficients omega_1..omega_4 (Eqs. 16-17) = -1 (Table I)
Listed as -1 in Table I, inconsistent with a positive error metric; the sign is unexplained and would invert the reward (20).
Maximum prediction horizon H = 1000 ms
Chosen in Table I; defines the action space for the DRL agent.
Communication delay simulation parameters mu_c, sigma_c = 50 ms or 100 ms mean, 10 ms std (normal)
Experiment conditions chosen by the authors; reported performance depends on them.
MAML/PPO hyperparameters (alpha, beta, clip, gamma, lambda) = alpha=1e-3, beta=1e-5, clip=0.2, etc.
Table I; chosen values affect convergence and final RMSE.

assumptions (4)

domain assumption Operator motion can be modeled as a low-order ARMA process, with prediction error below 1 cm for horizons up to 1000 ms.
This is central to the claimed benefit, asserted in Section V-B based on Fig. 6, but no error distribution or long-horizon analysis is given.
domain assumption The digital twin and Isaac Sim simulation faithfully mirror the real UR3e robot and environment so that predicted commands can be executed without additional correction.
Assumed in Sections II-C and IV; small pose discrepancies would invalidate the RMSE measurements.
ad hoc to paper The M/M/1/2* queue model with packet discarding is an adequate abstraction of the system latency.
Invoked in Section II-B but never used in derivations or results; no queueing analysis connects it to the horizon policy.
domain assumption MAML pretraining on the four drawing tasks transfers to the same tasks during online HITL adaptation; no held-out task tests generalization.
The paper claims generalizability (Section I-B) but evaluates on the same task set used for pretraining (Section IV-B vs V-C).

how reviews work

0 comments

Cite this review

Pith. "Pith review of Task-Oriented Edge-Assisted Cross-System Design for Real-Time Human-Robot Interaction in Industrial Metaverse." pith.science (2026). https://pith.science/paper/KPWHHMTM

@misc{pith2026250820664,
  author       = {Pith},
  title        = {Pith review of: Task-Oriented Edge-Assisted Cross-System Design for Real-Time Human-Robot Interaction in Industrial Metaverse},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/KPWHHMTM}},
  note         = {Machine review of arXiv:2508.20664}
}

read the original abstract

Real-time human-device interaction in industrial Metaverse faces challenges such as high computational load, limited bandwidth, and strict latency. This paper proposes a task-oriented edge-assisted cross-system framework using digital twins (DTs) to enable responsive interactions. By predicting operator motions, the system supports: 1) proactive Metaverse rendering for visual feedback, and 2) preemptive control of remote devices. The DTs are decoupled into two virtual functions-visual display and robotic control-optimizing both performance and adaptability. To enhance generalizability, we introduce the Human-In-The-Loop Model-Agnostic Meta-Learning (HITL-MAML) algorithm, which dynamically adjusts prediction horizons. Evaluation on two tasks demonstrates the framework's effectiveness: in a Trajectory-Based Drawing Control task, it reduces weighted RMSE from 0.0712 m to 0.0101 m; in a real-time 3D scene representation task for nuclear decommissioning, it achieves a PSNR of 22.11, SSIM of 0.8729, and LPIPS of 0.1298. These results show the framework's capability to ensure spatial precision and visual fidelity in real-time, high-risk industrial environments.

Figures

Figures reproduced from arXiv: 2508.20664 by the authors.

**Figure 2.** Illustration of the information flow. and the visual feedback rendering of the DT, and (2) to minimize the latency between the operator’s control inputs and the actions of the real-world robotic arm in the real-world environment. B. Information Flow As shown in [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

**Figure 3.** Illustration of proposed HITL online training architecture. [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗

Figures from the paper (6 more)

**Figure 4.** Figure 4: Illustration of our prototype design. 1) Upper left: A Touch Haptic [PITH_FULL_IMAGE:figures/full_fig_p008_4.png]

**Figure 5.** Figure 5: Illustration of four real-time interaction drawing shapes, i.e., penta [PITH_FULL_IMAGE:figures/full_fig_p009_5.png]

**Figure 6.** Figure 6: Evaluation of prediction model. on high-precision 3D visualization and inspection of reactor tiles in nuclear decommissioning. For evaluation, we use fullscale 3D-printed replicas of reactor tiles. Expert operators remotely control the robotic arm along predefined pat…

**Figure 8.** Figure 8: Evaluation of Proposed HITL-MAML. HITL-MAML RS OD WP Fixed Photographing Number – 10 HITL-MAML RS OD WP Fixed Task Time – 20 s [PITH_FULL_IMAGE:figures/full_fig_p011_8.png]

**Figure 9.** Figure 9: Evaluation of Performance for Industrial Task: Proposed algorithm [PITH_FULL_IMAGE:figures/full_fig_p011_9.png]

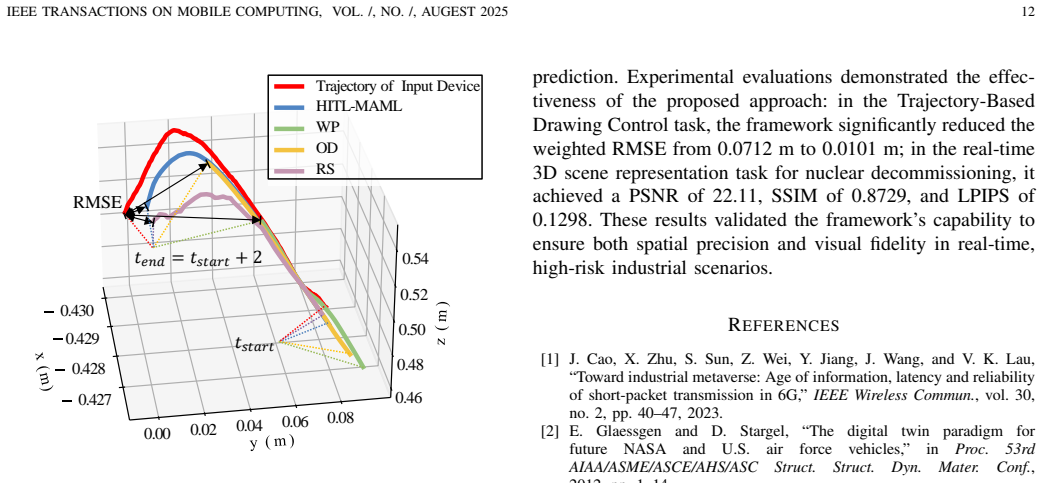

**Figure 11.** Figure 11: Demonstration of the trajectories of the end effector. [PITH_FULL_IMAGE:figures/full_fig_p012_11.png]
