Sparse2Act: Learning Action-Aligned Sparse 3D Representations for Cross-Domain Robot Manipulation
Pith reviewed 2026-06-27 09:16 UTC · model grok-4.3
The pith
Robot actions supply geometric supervision that lets sparse 3D encoders transfer across manipulation domains and policy designs.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim

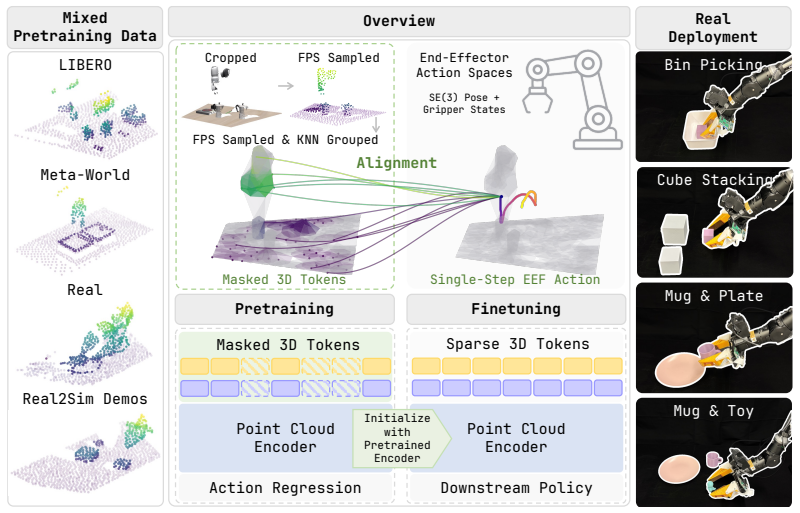

Sparse2Act trains masked sparse 3D tokens to organize features around workspace motions given by end-effector actions, creating encoder initializations that downstream policies can adopt without changing their own architectures or action parameterizations.
What carries the argument

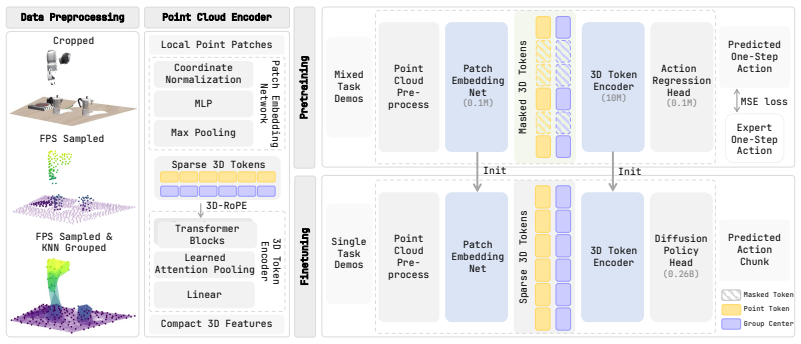

The masked action-alignment objective that uses end-effector actions as geometric supervision for sparse point cloud features.
If this is right
- The pretrained encoder can be plugged into policies with different architectures and action spaces, including joint-space commands.

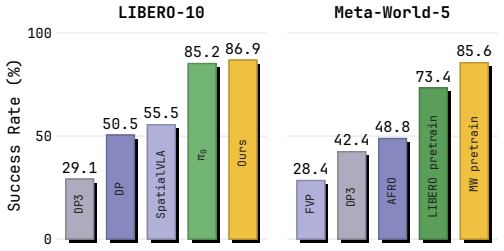

- The method reaches 86.9 percent average success on the LIBERO-10 benchmark after 500 fine-tuning steps.
- The same encoder supports transfer from LIBERO to Meta-World-5, reaching 73.4 percent average success.

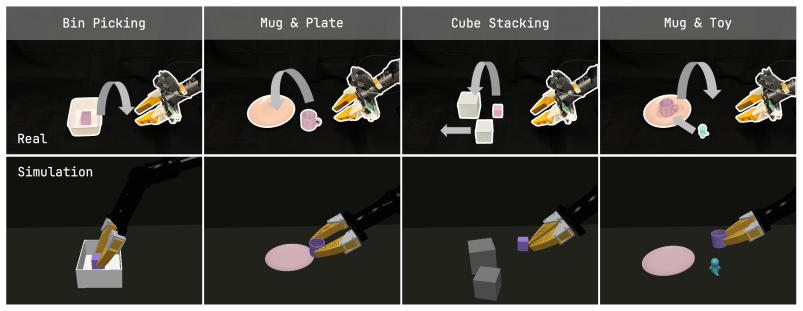

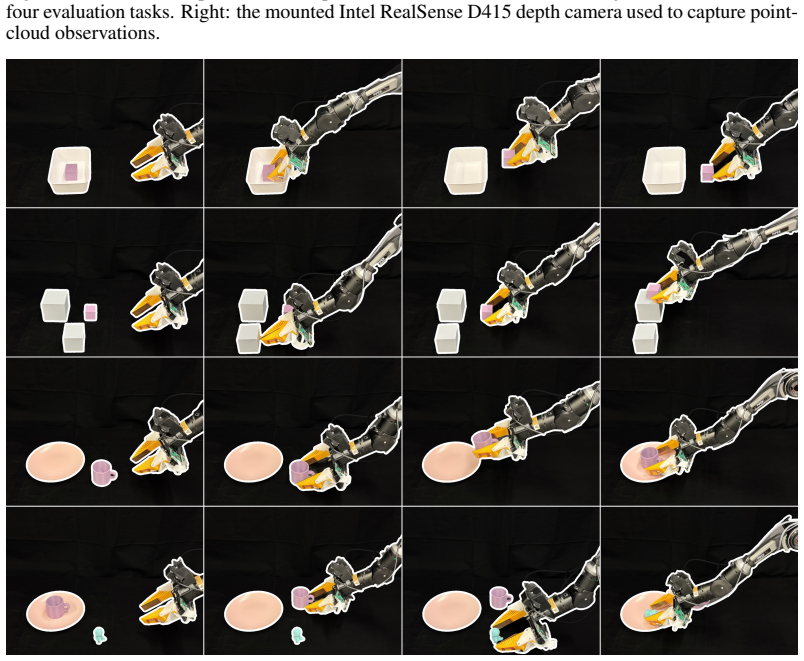

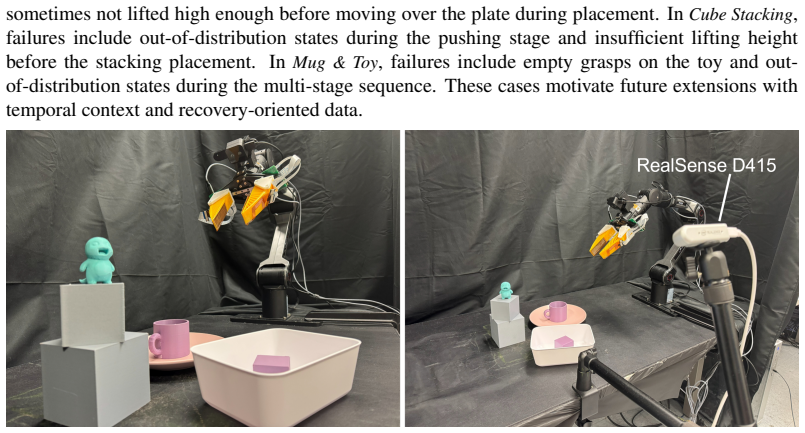

- Simulation pretraining followed by limited real-data fine-tuning yields 72.5 percent average success across four real-world tasks.
Where Pith is reading between the lines
- Action data collected for one set of tasks could bootstrap 3D representations useful for unrelated manipulation problems.
- The approach may reduce the volume of task-specific 3D data needed when moving to new robot hardware.
- Testing the encoder on scenes with multiple interacting objects or deformable items would reveal the limits of the geometric supervision.
Load-bearing premise
The masked action-alignment pretraining signal produces encoder features whose utility is largely independent of the downstream policy architecture and action parameterization.
What would settle it
A direct comparison showing that a randomly initialized encoder matches or exceeds the pretrained one's performance on cross-domain tasks after identical fine-tuning would falsify the claim.
Figures

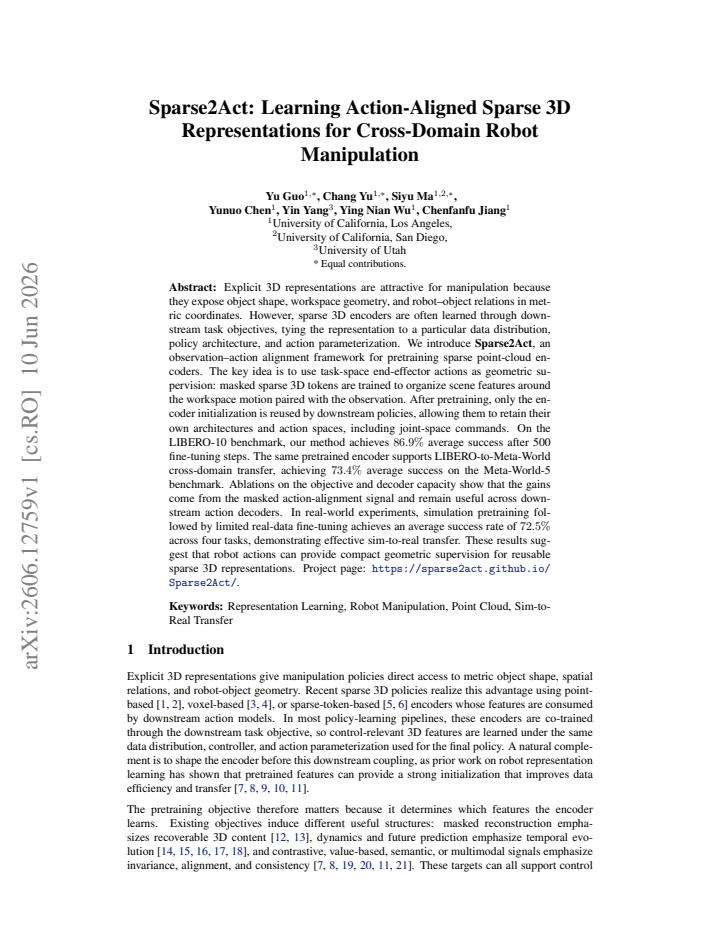

read the original abstract
Explicit 3D representations are attractive for manipulation because they expose object shape, workspace geometry, and robot-object relations in metric coordinates. However, sparse 3D encoders are often learned through downstream task objectives, tying the representation to a particular data distribution, policy architecture, and action parameterization. We introduce Sparse2Act, an observation-action alignment framework for pretraining sparse point-cloud encoders. The key idea is to use task-space end-effector actions as geometric supervision: masked sparse 3D tokens are trained to organize scene features around the workspace motion paired with the observation. After pretraining, only the encoder initialization is reused by downstream policies, allowing them to retain their own architectures and action spaces, including joint-space commands. On the LIBERO-10 benchmark, our method achieves 86.9% average success after 500 fine-tuning steps. The same pretrained encoder supports LIBERO-to-Meta-World cross-domain transfer, achieving 73.4% average success on the Meta-World-5 benchmark. Ablations on the objective and decoder capacity show that the gains come from the masked action-alignment signal and remain useful across downstream action decoders. In real-world experiments, simulation pretraining followed by limited real-data fine-tuning achieves an average success rate of 72.5% across four tasks, demonstrating effective sim-to-real transfer. These results suggest that robot actions can provide compact geometric supervision for reusable sparse 3D representations.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper introduces Sparse2Act, an observation-action alignment framework for pretraining sparse point-cloud encoders. Task-space end-effector actions serve as geometric supervision via a masked action-alignment objective on sparse 3D tokens. After pretraining, only the encoder is reused to initialize downstream policies that retain their own architectures and action spaces. Reported results include 86.9% average success on LIBERO-10 after 500 fine-tuning steps, 73.4% average success on Meta-World-5 for LIBERO-to-Meta-World cross-domain transfer, and 72.5% average success in sim-to-real transfer across four real-world tasks. Ablations attribute performance gains to the action-alignment signal rather than decoder capacity.
Significance. If the central empirical claims hold after verification, the work would demonstrate that end-effector actions can supply compact geometric supervision for reusable sparse 3D representations that transfer across domains and support varied downstream action parameterizations. This flexibility is a practical strength for manipulation research. The reported cross-domain and sim-to-real numbers, together with ablations isolating the pretraining signal, would position the method as a useful pretraining approach for point-cloud encoders.
major comments (3)
- [Abstract] Abstract: the reported success rates (86.9% LIBERO-10, 73.4% Meta-World-5, 72.5% sim-to-real) and ablation claims are presented without implementation equations, training details, error bars, number of runs, or dataset statistics, rendering the central performance claims unverifiable from the supplied information.
- [Method] Method section (presumed §3): the masked action-alignment objective is described at a high level but the precise loss formulation, masking strategy, and how action tokens are paired with observations are not supplied, which is load-bearing for reproducing the claimed geometric supervision effect.

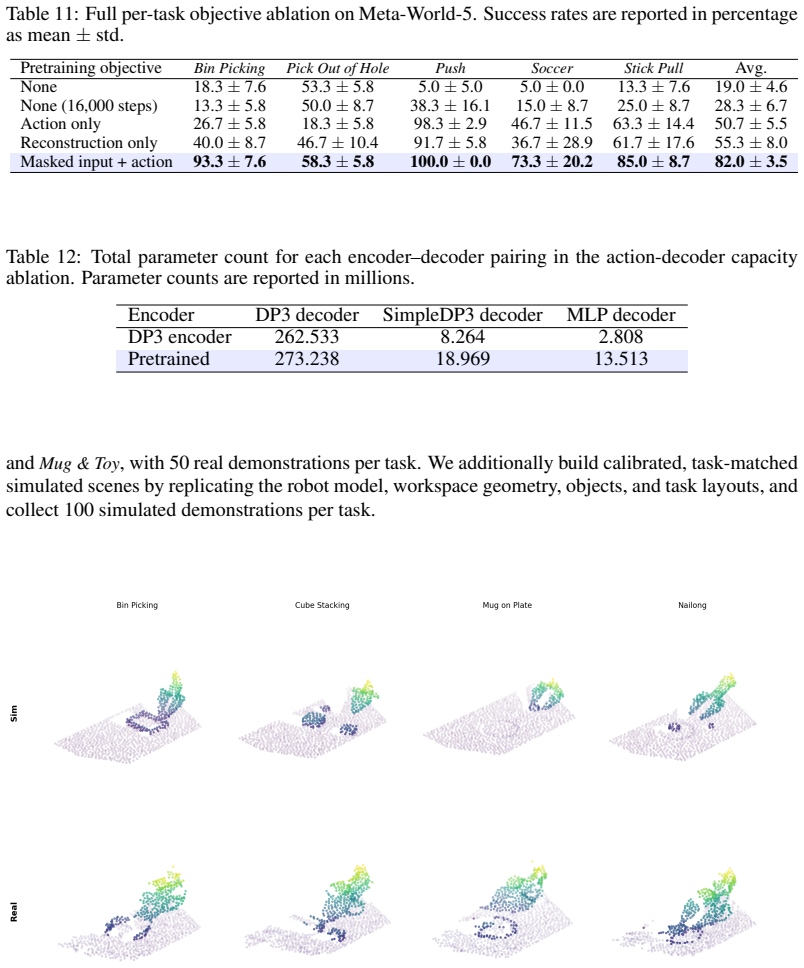

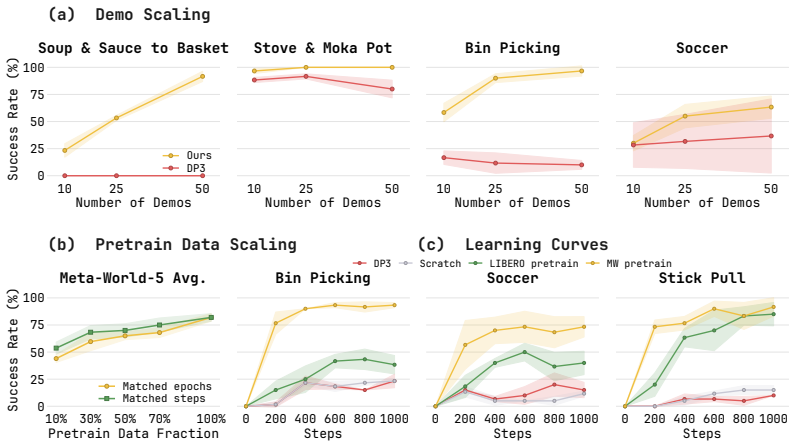

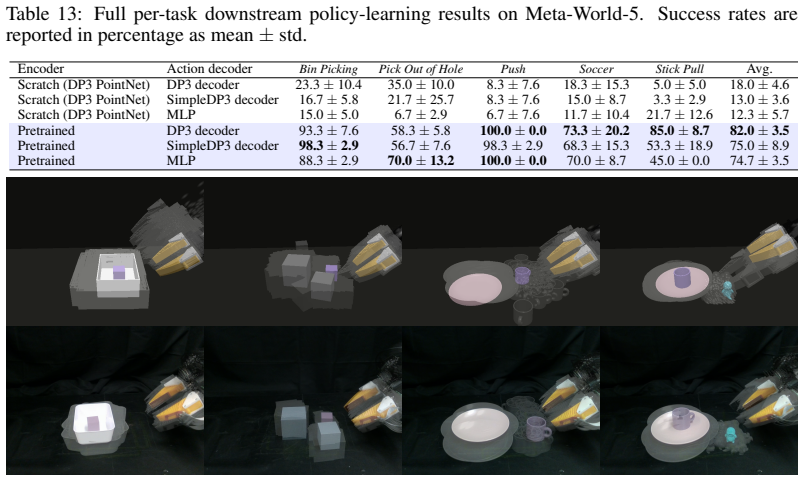

- [Experiments] Experiments (§4): the ablation attributing gains specifically to the action-alignment signal (rather than decoder capacity) lacks the quantitative breakdown or controls needed to confirm that the downstream policy architecture independence holds across the tested action spaces.
minor comments (2)
- [Abstract] The abstract and introduction would benefit from a brief statement of the precise input representation (e.g., point-cloud density or token count) to clarify the sparsity level.
- [Experiments] Figure captions for the real-world experiments should explicitly state the number of trials per task and any failure modes observed.
Simulated Author's Rebuttal
We thank the referee for the constructive feedback. We address each major comment below and will revise the manuscript to improve reproducibility and detail where the points are valid.
read point-by-point responses
-
Referee: [Abstract] Abstract: the reported success rates (86.9% LIBERO-10, 73.4% Meta-World-5, 72.5% sim-to-real) and ablation claims are presented without implementation equations, training details, error bars, number of runs, or dataset statistics, rendering the central performance claims unverifiable from the supplied information.
Authors: We agree the abstract would benefit from greater self-containment. In revision we will add error bars, number of evaluation runs, and brief training/dataset statistics to the abstract (or a footnote) while retaining the high-level claims; implementation equations remain in the method section but will be explicitly referenced. revision: yes
-
Referee: [Method] Method section (presumed §3): the masked action-alignment objective is described at a high level but the precise loss formulation, masking strategy, and how action tokens are paired with observations are not supplied, which is load-bearing for reproducing the claimed geometric supervision effect.
Authors: The comment is correct; the current description is high-level. We will expand the method section with the exact loss equation, the token masking ratio and schedule, and the precise pairing procedure between action tokens and sparse 3D observations to enable full reproduction. revision: yes
-
Referee: [Experiments] Experiments (§4): the ablation attributing gains specifically to the action-alignment signal (rather than decoder capacity) lacks the quantitative breakdown or controls needed to confirm that the downstream policy architecture independence holds across the tested action spaces.
Authors: We accept that additional quantitative controls are needed. The revised experiments section will include expanded ablation tables that report success rates for multiple downstream action parameterizations (joint vs. task space) and decoder capacities, with explicit controls isolating the pretraining signal. revision: yes
Circularity Check
No significant circularity
full rationale
The paper's central contribution is an empirical pretraining framework (masked action-alignment on sparse 3D tokens using end-effector actions) whose downstream utility is demonstrated via reported success rates on LIBERO-10, Meta-World transfer, ablations, and sim-to-real experiments. No equations, fitted parameters, or predictions are presented that reduce by construction to the training inputs; the claimed reusability across policy architectures follows from the stated separation of encoder pretraining from downstream fine-tuning rather than from any self-definitional or self-citation reduction. The derivation chain is therefore self-contained against external benchmarks.
