arxiv: 2601.18696 · v4 · pith:KZCSZS3Onew · submitted 2026-01-26 · 💻 cs.LG

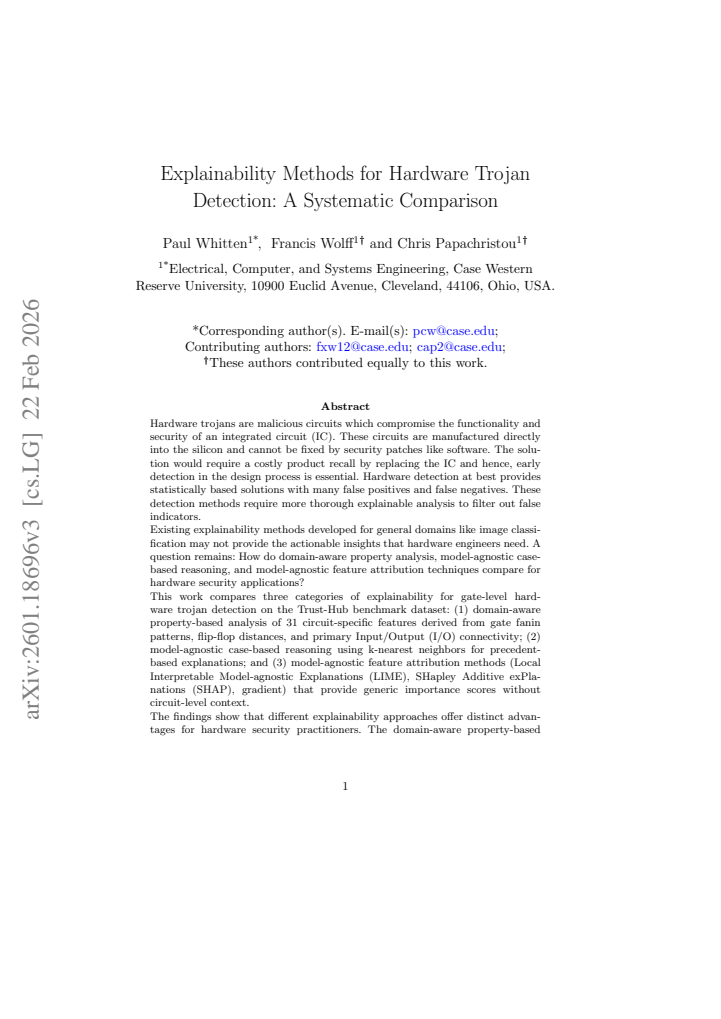

Explainability Methods for Hardware Trojan Detection: A Systematic Comparison

Paul Whitten , Francis Wolff , Chris Papachristou This is my paper

Pith reviewed 2026-05-21 14:12 UTC · model grok-4.3

classification 💻 cs.LG
keywords explainabilityhardware trojan detectionmachine learningfeature attributioncircuit analysisTrust-Hubgate-level securityLIME SHAP
0
0 comments X

The pith

Existing explainability methods from general domains do not provide the actionable insights hardware engineers need for Trojan detection.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper systematically compares three categories of explainability methods for detecting hardware Trojans in integrated circuits. It evaluates domain-aware property analysis using 31 circuit-specific features, case-based reasoning with k-nearest neighbors, and feature attribution techniques like LIME, SHAP, and gradients. The goal is to identify which approaches deliver the circuit-level context necessary to filter false positives and negatives in security analysis. A reader would care because undetected Trojans lead to unpatchable compromises in hardware, requiring expensive recalls. The comparison on the Trust-Hub benchmark highlights differences in how well each method supports hardware security applications.

Core claim

The central claim is that a comparison of domain-aware property-based analysis of 31 circuit-specific features derived from gate fanin patterns, flip-flop distances, and primary I/O connectivity, model-agnostic case-based reasoning using k-nearest neighbors, and model-agnostic feature attribution methods such as LIME, SHAP, and gradient on the Trust-Hub benchmark dataset is required to determine their relative effectiveness in providing actionable insights for hardware Trojan detection.

What carries the argument

The systematic comparison of domain-aware property analysis, case-based reasoning, and feature attribution techniques applied to gate-level circuit features for hardware Trojan detection.

Load-bearing premise

The 31 circuit-specific features derived from gate fanin patterns, flip-flop distances, and primary I/O connectivity, when used with the Trust-Hub benchmark, will enable a meaningful comparison that reveals differences in actionable insights for hardware security applications.

What would settle it

A concrete falsifier would be if all three explainability categories produce equivalent levels of actionable insights for hardware engineers when applied to the same set of circuits from the Trust-Hub benchmark, showing no advantage for domain-aware methods.

read the original abstract

Hardware trojans are malicious circuits which compromise the functionality and security of an integrated circuit (IC). These circuits are manufactured directly into the silicon and cannot be fixed by security patches like software. The solution would require a costly product recall by replacing the IC and hence, early detection in the design process is essential. Hardware detection at best provides statistically based solutions with many false positives and false negatives. These detection methods require more thorough explainable analysis to filter out false indicators. Existing explainability methods developed for general domains like image classification may not provide the actionable insights that hardware engineers need. A question remains: How do domain-aware property analysis, model-agnostic case-based reasoning, and model-agnostic feature attribution techniques compare for hardware security applications? This work compares three categories of explainability for gate-level hardware trojan detection on the Trust-Hub benchmark dataset: (1) domain-aware property-based analysis of 31 circuit-specific features derived from gate fanin patterns, flip-flop distances, and primary Input/Output (I/O) connectivity; (2) model-agnostic case-based reasoning using k-nearest neighbors for precedent-based explanations; and (3) model-agnostic feature attribution methods (Local Interpretable Model-agnostic Explanations (LIME), SHapley Additive exPlanations (SHAP), gradient) that provide generic importance scores without circuit-level context.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper conducts a systematic comparison of explainability methods for gate-level hardware Trojan detection on the Trust-Hub benchmark. It evaluates three categories: (1) domain-aware property-based analysis using 31 circuit-specific features derived from gate fanin patterns, flip-flop distances, and primary I/O connectivity; (2) model-agnostic case-based reasoning via k-nearest neighbors; and (3) model-agnostic feature attribution techniques including LIME, SHAP, and gradient-based methods. The central question addressed is whether general-domain explainability approaches deliver actionable insights for hardware engineers to filter false positives, or whether domain-specific methods are required.

Significance. If the comparison successfully quantifies differences in actionability (e.g., via metrics for false-positive filtering or Trojan localization), the work could guide development of hardware-security-tailored XAI tools and reduce reliance on statistically noisy detection methods. The direct empirical comparison on an external, standard benchmark (Trust-Hub) with no free parameters or circular definitions is a methodological strength that supports reproducibility and falsifiability of the claims.

major comments (1)
  1. [Abstract and methodology description of domain-aware analysis] The central claim that domain-aware analysis of the 31 features will reveal superior actionable insights for hardware engineers rests on the untested assumption that these features (gate fanin patterns, flip-flop distances, primary I/O connectivity) possess sufficient Trojan-localization power and that Trust-Hub instances exhibit diverse false-positive regimes. No proxy metric for actionability (e.g., engineer-rated usefulness or post-explanation Trojan-gate recall) is indicated, which is load-bearing for the comparative conclusion.
minor comments (1)
  1. [Abstract] The abstract would benefit from a brief statement of the key quantitative outcomes or metrics used to compare the three explainability categories.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback on our systematic comparison of explainability methods for hardware Trojan detection. We address the major comment point by point below and outline the revisions we will make to strengthen the manuscript.

read point-by-point responses

  1. Referee: [Abstract and methodology description of domain-aware analysis] The central claim that domain-aware analysis of the 31 features will reveal superior actionable insights for hardware engineers rests on the untested assumption that these features (gate fanin patterns, flip-flop distances, primary I/O connectivity) possess sufficient Trojan-localization power and that Trust-Hub instances exhibit diverse false-positive regimes. No proxy metric for actionability (e.g., engineer-rated usefulness or post-explanation Trojan-gate recall) is indicated, which is load-bearing for the comparative conclusion.

    Authors: We appreciate this observation regarding the need for explicit evaluation of actionability. The 31 features were selected from established hardware security literature precisely because they target structural properties known to correlate with Trojan insertions, such as atypical gate fan-in, distances to sequential elements, and primary I/O connectivity patterns. Trust-Hub serves as the de facto standard benchmark and contains a range of Trojan implementations across different designs, which inherently includes varied false-positive behaviors in detection models. Our comparison quantifies differences in the insights produced by each explainability category on this benchmark. To directly address the concern about untested assumptions, we will add a new subsection in the revised manuscript that introduces a proxy metric for actionability: specifically, the post-explanation recall of Trojan gates when explanations are used to filter or localize suspicious regions. This will provide a quantitative basis for comparing how well each method supports false-positive reduction. revision: partial

Circularity Check

0 steps flagged

Empirical comparison on external benchmark with no derivation chain

full rationale

The paper conducts a systematic empirical comparison of three categories of explainability methods (domain-aware property analysis of 31 circuit features, k-NN case-based reasoning, and LIME/SHAP/gradient attribution) applied to gate-level hardware Trojan detection on the Trust-Hub benchmark. No equations, predictions, or first-principles derivations are present that could reduce to inputs by construction. The work uses an external public benchmark and standard techniques without self-citation load-bearing, fitted-input predictions, or ansatz smuggling. The central claim rests on observable differences in the comparison results rather than any self-referential definition.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract provides no explicit free parameters, axioms, or invented entities; the approach relies on standard machine learning explainability tools and a public benchmark dataset without additional postulates.

pith-pipeline@v0.9.0 · 5779 in / 1077 out tokens · 47348 ms · 2026-05-21T14:12:45.627209+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
