Entanglement distribution: To herald or not to herald

Jeffrey H. Shapiro , Clark Embleton , J. Gabriel Richardson This is my paper

Pith reviewed 2026-05-15 14:57 UTC · model grok-4.3

classification 🪐 quant-ph
keywords entanglement distributionheralding efficiencySPDC sourcesspectral islandsquantum memoriesZALMSagnac sourceunheralded operation
0
0 comments X

The pith

Unheralded operation exceeds the entanglement distribution rates of both ZALM and signal-path erasure systems for heralding efficiencies of 90% or lower when using equal numbers of spectral islands and quantum memories per pump pulse.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper compares the per-pump-pulse entanglement distribution rates of three SPDC-based systems that use phase-matched spectral islands: zero-added-loss multiplexing with idler heralding, a Sagnac source with signal-path erasure heralding, and an unheralded Sagnac source. It finds that when each system deploys the same number of islands and assigns an equal number of quantum memories to every pump pulse, the unheralded system produces the highest rate while ZALM beats the erasure approach, provided heralding efficiency stays at or below 90 percent. A reader cares because entanglement distribution rate directly limits the speed of building quantum networks, and the result highlights a practical trade-off between rate performance and the extra hardware that heralding requires. The analysis notes that these rate rankings must be weighed against differing equipment burdens, such as the need for perfectly matched Sagnac sources in ZALM.

Core claim

When all three systems employ N_I spectral islands and allocate N_M = N_I quantum memories to each pump pulse, ZALM's entanglement distribution rate exceeds that of the signal-path erasure source for heralding efficiencies of 90 percent or lower, yet both heralded rates remain inferior to the rate achieved by the unheralded Sagnac SPDC source.

What carries the argument

Rate comparison of islands-based SPDC entanglement sources under fixed allocation of N_I spectral islands and N_M = N_I quantum memories per pump pulse, distinguishing idler-heralded ZALM, signal-path erasure heralding, and unheralded operation.

If this is right

  • ZALM outperforms signal-path erasure at heralding efficiencies of 90 percent or lower under equal island and memory allocation.
  • Unheralded operation delivers the highest entanglement distribution rate among the three systems when the allocation condition holds.
  • Both heralded approaches lose their rate advantage if they cannot achieve high heralding efficiencies.
  • ZALM imposes the additional hardware requirement of a pair of perfectly matched Sagnac sources, unlike the signal-path erasure approach.
  • The rate comparisons must be balanced against the differing equipment demands of each architecture.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Quantum-network designers may prefer unheralded sources in early deployments where heralding hardware remains inefficient or costly.
  • Raising heralding efficiency above 90 percent could reverse the ranking and favor heralded systems for their ability to reduce timing jitter.
  • Varying the memory-to-island ratio beyond the equal-allocation case would reveal whether the crossover point shifts and could guide hardware optimization.
  • The same rate model could be extended to assess repeater chains where memory allocation per link becomes the dominant constraint.

Load-bearing premise

The number of quantum memories equals the number of spectral islands and can be allocated equally and fairly to each pump pulse across all three systems while treating heralding efficiency as an independent parameter.

What would settle it

Measure the actual per-pump-pulse entanglement distribution rates of the three systems in a laboratory setup that uses identical N_I islands and N_M = N_I memories per pulse at a heralding efficiency of 80 percent and compare the observed ordering to the model's prediction.

Figures

Figures reproduced from arXiv: 2603.06423 by Clark Embleton, Jeffrey H. Shapiro, J. Gabriel Richardson.

Figure 1
Figure 1. Figure 1: FIG. 1. Schematic of a Sagnac-configured SPDC source [23] of signal-idler biphotons suitable for use with [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

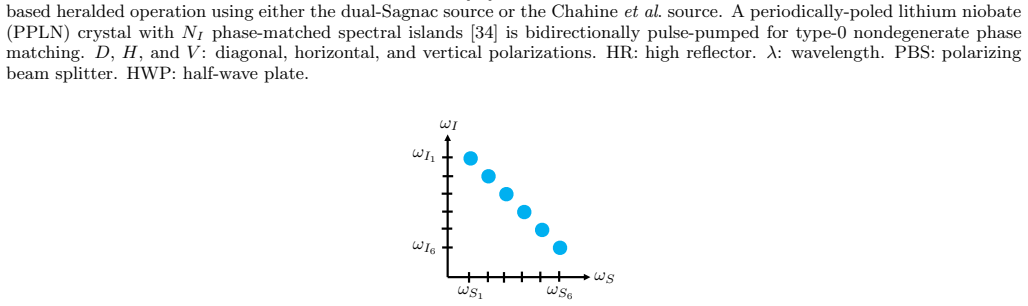

Figure 2
Figure 2. Figure 2: FIG. 2. Sketch of the frequency-domain wave function for a biphoton produced by 6 identical, spectrally-factorable phase [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Schematic of islands-based ZALM’s partial Bell-state measurement for heralding polarization-entangled photon pairs. [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

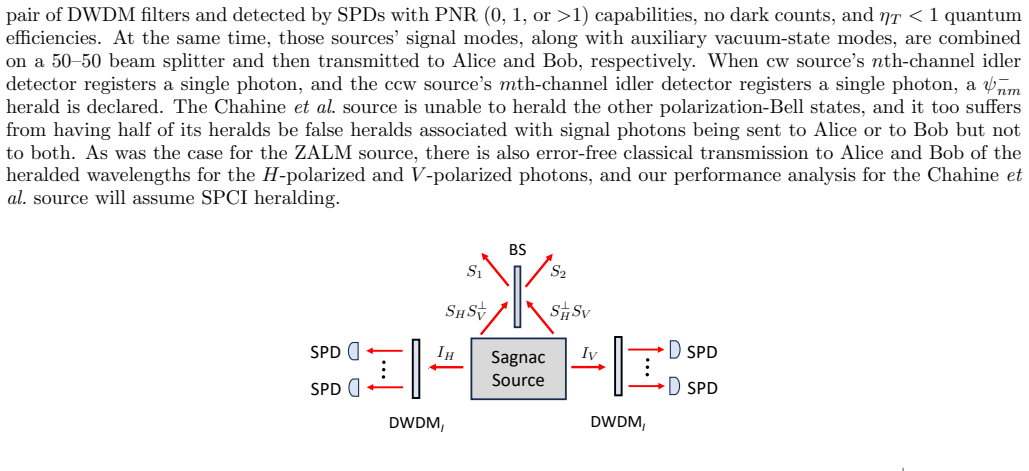

Figure 4
Figure 4. Figure 4: FIG. 4. Schematic of Chahine [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. Schematic of islands-based source for unheralded distribution of polarization-entangled photon pairs. A periodically [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. Notional architecture of an [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗

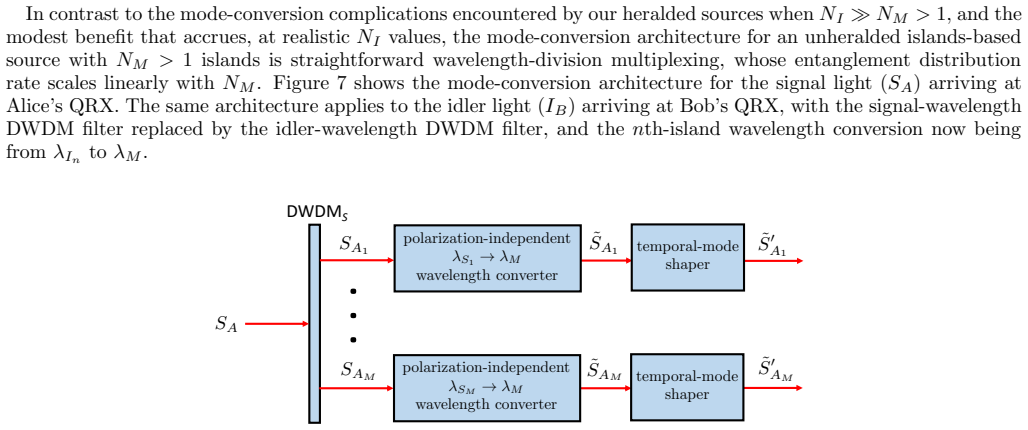

Figure 7
Figure 7. Figure 7: FIG. 7. Wavelength-division multiplexed architecture of Alice’s QRX for an [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8. Plots, versus the average number of signal-idler photon pairs per SPDC per pump pulse (G-1), of the [PITH_FULL_IMAGE:figures/full_fig_p015_8.png] view at source ↗

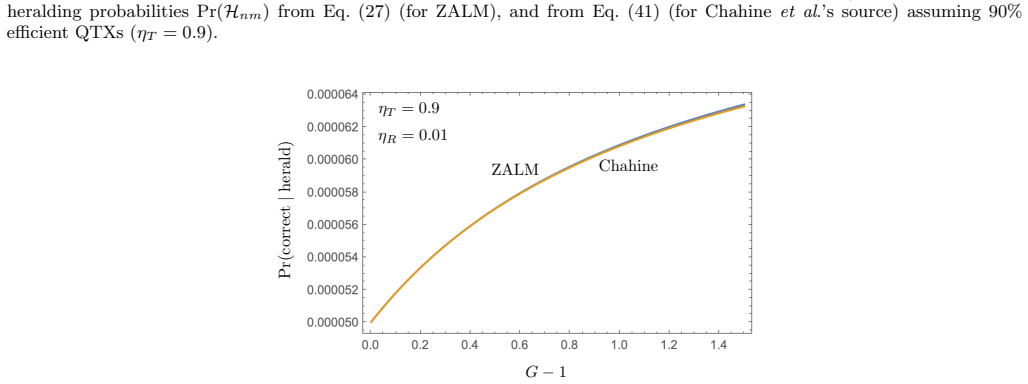

Figure 9
Figure 9. Figure 9: FIG. 9. Plots, versus the average number of signal-idler photon pairs per SPDC per pump pulse (G-1), of Pr(correct [PITH_FULL_IMAGE:figures/full_fig_p015_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: FIG. 10. Plots, versus the average number of signal-idler photon pairs per SPDC per pump pulse ( [PITH_FULL_IMAGE:figures/full_fig_p016_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: FIG. 11. Plots, versus the average number of signal-idler photon pairs per SPDC per pump pulse ( [PITH_FULL_IMAGE:figures/full_fig_p016_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: FIG. 12. Plots, versus the average number of signal-idler photon pairs per SPDC per pump pulse ( [PITH_FULL_IMAGE:figures/full_fig_p017_12.png] view at source ↗

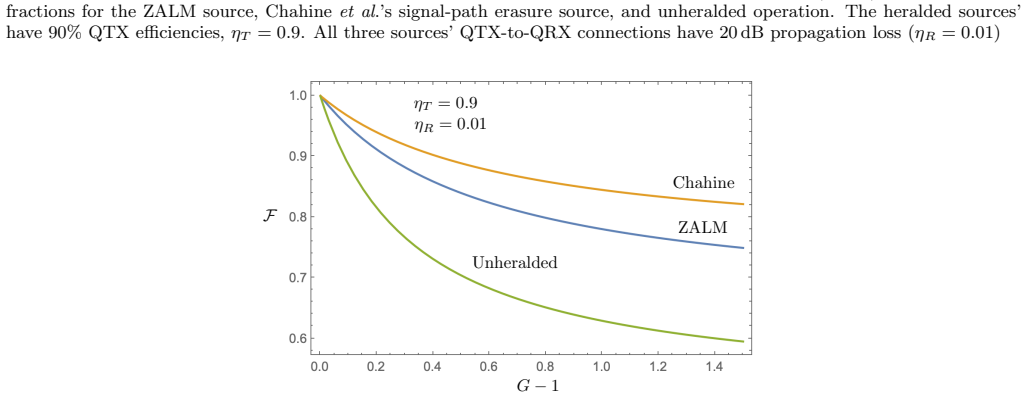

Figure 13
Figure 13. Figure 13: FIG. 13. Plots, versus the average number of signal-idler photon pairs per SPDC per pump pulse ( [PITH_FULL_IMAGE:figures/full_fig_p017_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: FIG. 14. Plots of the entanglement distribution rates, [PITH_FULL_IMAGE:figures/full_fig_p018_14.png] view at source ↗

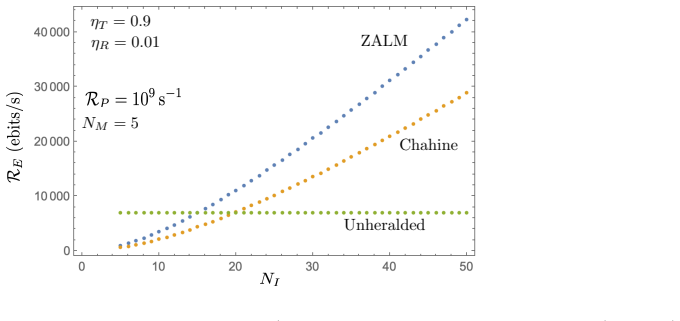

Figure 15
Figure 15. Figure 15: FIG. 15. Plots of the entanglement distribution rates, [PITH_FULL_IMAGE:figures/full_fig_p019_15.png] view at source ↗

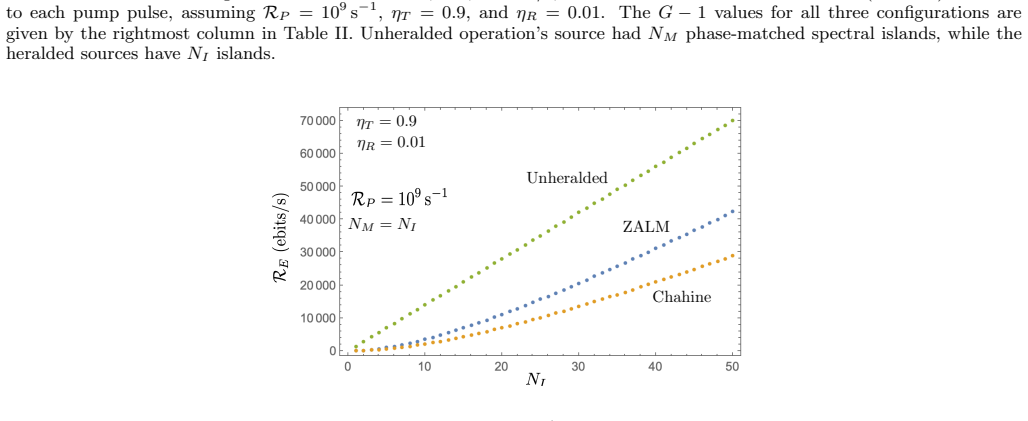

Figure 16
Figure 16. Figure 16: FIG. 16. Plots of the entanglement distribution rates, [PITH_FULL_IMAGE:figures/full_fig_p019_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: FIG. 17. Plots of the entanglement distribution rates, [PITH_FULL_IMAGE:figures/full_fig_p020_17.png] view at source ↗
Figure 18
Figure 18. Figure 18: FIG. 18. Normalized plots of Pr(loadable) versus [PITH_FULL_IMAGE:figures/full_fig_p022_18.png] view at source ↗

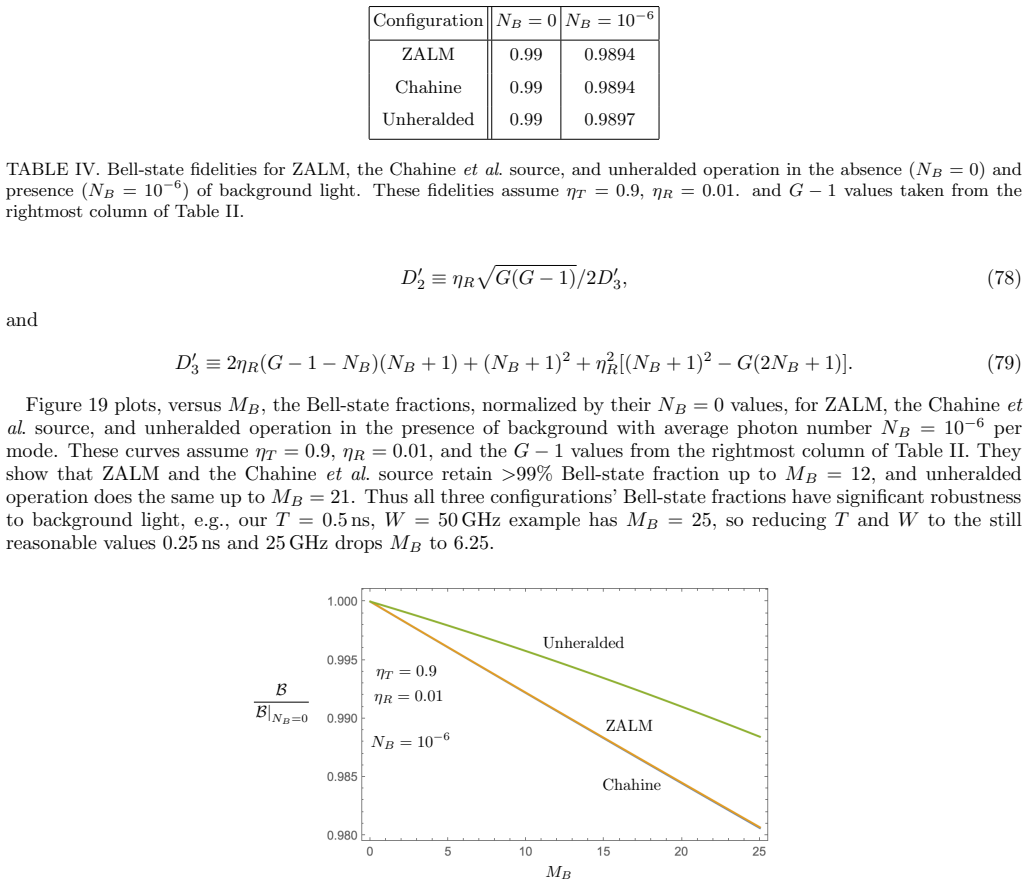

Figure 19
Figure 19. Figure 19: plots, versus MB, the Bell-state fractions, normalized by their NB = 0 values, for ZALM, the Chahine et al. source, and unheralded operation in the presence of background with average photon number NB = 10−6 per mode. These curves assume ηT = 0.9, ηR = 0.01, and the G − 1 values from the rightmost column of Table II. They show that ZALM and the Chahine et al. source retain >99% Bell-state fraction up to M… view at source ↗
Figure 20
Figure 20. Figure 20: FIG. 20. Alternative architecture for [PITH_FULL_IMAGE:figures/full_fig_p024_20.png] view at source ↗
read the original abstract

High-rate, high-fidelity entanglement distribution is essential for the creation of a quantum internet, and spontaneous parametric downconverters (SPDCs) are, at present, the preferred sources of entangled signal-idler photon pairs for transmission to Alice and Bob's quantum nodes. SPDCs using phase-matched spectral islands are especially attractive, in this regard, because they provide wavelength-division multiplexed signal-idler pairs with single-mode temporal behavior. This paper compares the entanglement distribution rates of three islands-based systems. Two use idler detections for heralding: islands-based zero-added-loss multiplexing (ZALM), and an islands-based Sagnac SPDC source with signal-path erasure. The third employs an unheralded Sagnac SPDC source. For 90% or lower heralding efficiencies, ZALM's per-pump-pulse entanglement distribution rate exceeds that of the signal-path erasure source, and both rates are inferior to unheralded operation's when all three systems employ $N_I$ spectral islands and allocate $N_M = N_I$ quantum memories to each pump pulse. These behaviors, however, must be weighed against the three systems' differing equipment requirements, e.g., ZALM requires a pair of perfectly-matched Sagnac sources, which is a significant burden not incurred by the signal-path erasure approach, and both heralded systems will suffer, in comparison with unheralded operation, if they cannot realize high heralding efficiencies.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript compares per-pump-pulse entanglement distribution rates for three spectral-island SPDC systems: zero-added-loss multiplexing (ZALM), Sagnac source with signal-path erasure heralding, and unheralded Sagnac operation. It concludes that for heralding efficiencies ≤90%, ZALM exceeds signal-path erasure while both are inferior to unheralded operation when all systems use N_I islands and allocate N_M = N_I memories per pulse; these rate orderings must be weighed against differing hardware requirements such as ZALM needing a pair of perfectly matched Sagnac sources.

Significance. If the rate ordering is substantiated by explicit derivations, the work supplies concrete guidance on when unheralded operation can outperform heralded schemes in multiplexed entanglement distribution, clarifying hardware-rate trade-offs relevant to quantum-network source design.

major comments (2)
  1. [Abstract] Abstract: the central rate-ordering claim (ZALM > signal-path erasure > unheralded for η_h ≤ 90 %) is stated without the underlying rate expressions, numerical methods, or error analysis, so the ordering cannot be verified from the supplied text.
  2. [Modeling assumptions] Modeling section (implicit in rate comparisons): the assumption that N_M = N_I memories can be allocated identically across all three systems treats heralding efficiency as independent of timing jitter, storage constraints, or correlated losses; if these correlations exist they invalidate the per-pulse rate expressions used to obtain the low-η_h ordering.
minor comments (1)
  1. [Abstract] Clarify the precise definition of 'perfectly-matched' Sagnac sources required for ZALM and whether this matching imposes additional loss or phase-stability penalties not present in the signal-path erasure approach.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful review and constructive feedback on our manuscript. We address each major comment below and have revised the manuscript to improve clarity and address the concerns raised.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central rate-ordering claim (ZALM > signal-path erasure > unheralded for η_h ≤ 90 %) is stated without the underlying rate expressions, numerical methods, or error analysis, so the ordering cannot be verified from the supplied text.

    Authors: The rate expressions for the entanglement distribution rates of the three systems are derived in closed form in Section III, where we explicitly compare the per-pump-pulse rates under the assumptions of N_I spectral islands and N_M = N_I memories. The ordering for η_h ≤ 90% follows directly from these expressions without requiring numerical methods or error analysis beyond the deterministic model. We have revised the abstract to include a brief reference to the rate expressions in Section III and the direct comparison method used to establish the ordering. revision: yes

  2. Referee: [Modeling assumptions] Modeling section (implicit in rate comparisons): the assumption that N_M = N_I memories can be allocated identically across all three systems treats heralding efficiency as independent of timing jitter, storage constraints, or correlated losses; if these correlations exist they invalidate the per-pulse rate expressions used to obtain the low-η_h ordering.

    Authors: The model treats η_h as an independent input parameter to enable a fair comparison of the multiplexing approaches under identical memory allocation per pulse. We agree that real-world effects such as timing jitter or correlated losses could modify the effective rates. In the revised manuscript we have added a clarifying paragraph in the discussion section acknowledging this modeling assumption and noting that the reported ordering holds specifically under the stated conditions of independent per-pulse operation; a full treatment of correlations would require an extended model beyond the scope of the current per-pulse analysis. revision: partial

Circularity Check

0 steps flagged

No circularity: rates derived from standard formulas with explicit parameters

full rationale

The paper applies standard quantum-optical rate expressions for SPDC pair generation, heralding, and memory allocation to three systems (ZALM, signal-path erasure, unheralded), all using the same N_I islands and N_M = N_I memories per pump pulse. The ordering claim for η_h ≤ 90% follows directly from algebraic comparison of these per-pulse rate formulas, treating heralding efficiency as an independent input parameter. No parameters are fitted to data within the paper, no result is renamed or self-defined, and no load-bearing step reduces to a self-citation or prior ansatz by the same authors. The derivation chain is self-contained against the stated assumptions.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

Claims rest on standard quantum optics models for SPDC pair generation, detection, and memory storage; no new entities are introduced and parameters such as heralding efficiency are treated as external inputs rather than fitted constants.

free parameters (2)
  • heralding efficiency
    Treated as a variable input parameter whose value determines the rate ordering; not derived or fitted within the paper.
  • N_I
    Number of spectral islands, used as a free scaling parameter set equal to the number of memories.
axioms (2)
  • standard math Standard phase-matching and single-mode temporal behavior for spectral-island SPDC sources
    Invoked to justify the use of wavelength-division multiplexed pairs with predictable statistics.
  • domain assumption Independent allocation of N_M = N_I quantum memories per pump pulse across compared systems
    Central to the fair-comparison framing but not derived from first principles.
