arxiv: 2509.13045 · v4 · pith:L63R3Q2Jnew · submitted 2025-09-16 · ❄️ cond-mat.mtrl-sci · physics.atom-ph

Structural effects of boron doping in diamond crystals for gamma-ray light-source applications: Insights from molecular dynamics simulations

Matthew D. Dickers , Felipe Fantuzzi , Nigel J. Mason , Gennady B. Sushko , Andrei V. Korol , Andrey V. Solov'yov This is my paper

Pith reviewed 2026-05-21 21:52 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci physics.atom-ph
keywords boron-doped diamondmolecular dynamicslattice constantVegard's Lawgamma-ray light sourcesinter-planar distanceMPCVD growth
0
0 comments X

The pith

Boron doping stretches diamond's lattice constant and inter-planar distances linearly, deviating from Vegard's Law by more than earlier models predict.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper uses molecular dynamics to model how adding boron atoms to diamond changes its atomic spacing over concentrations from zero to five percent. It reports straight-line increases in both the overall lattice constant and the distances between specific crystal planes. A sympathetic reader would care because these distortions must stay small enough to preserve the channelling of gamma rays in future crystal-based light sources. The simulations incorporate refinements meant to match real microwave-plasma growth conditions and validate the resulting crystals through internal statistics.

Core claim

Molecular dynamics simulations of periodic C1-xBx systems at 300 K reveal linear growth of the lattice constant and of the (110) and (100) inter-planar distances with rising boron concentration up to 5 percent; the observed deviation from Vegard's Law exceeds values reported in prior theoretical work and is ascribed to the higher structural quality achieved by modeling conditions close to microwave plasma chemical vapour deposition growth.

What carries the argument

Atomistic molecular dynamics simulations of periodic boron-doped diamond supercells that track lattice expansion and inter-planar spacing under MPCVD-like preparation conditions.

If this is right

  • Designers of periodically bent crystal structures can use the reported linear relations to set doping levels that keep gamma-ray channelling efficient.
  • The larger deviation from Vegard's Law implies that boron-doped diamond maintains usable crystallinity at concentrations previously thought too distorting.
  • Refined simulation protocols can now generate input structures for further modeling of radiation hardness in gamma-ray source components.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same linear scaling could be tested in other diamond-based devices that require precise lattice matching, such as high-power electronics.
  • If the quality advantage holds in experiment, boron doping becomes a more reliable knob for tuning diamond without sacrificing the mechanical properties needed for high-energy beam applications.
  • Extending the simulations to include explicit radiation-damage cascades would show whether the observed structural trends survive under operating conditions.

Load-bearing premise

The simulated crystals accurately represent the structural quality and defect levels of real microwave plasma chemical vapour deposition grown boron-doped diamond.

What would settle it

Direct X-ray diffraction measurement of the lattice constant and inter-planar spacings in actual 5 percent boron-doped diamond crystals grown by MPCVD, compared against the simulated linear trends.

Figures

Figures reproduced from arXiv: 2509.13045 by Andrei V. Korol, Andrey V. Solov'yov, Felipe Fantuzzi, Gennady B. Sushko, Matthew D. Dickers, Nigel J. Mason.

Figure 1

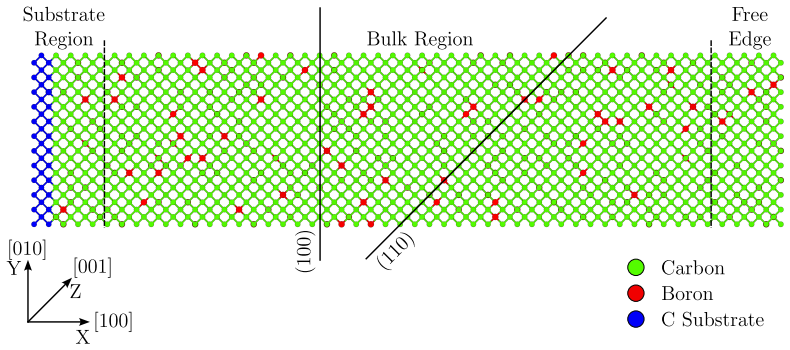

Figure 1. Figure 1: Representative diagram of the crystal configuration used in the simulations. [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗
Figure 2

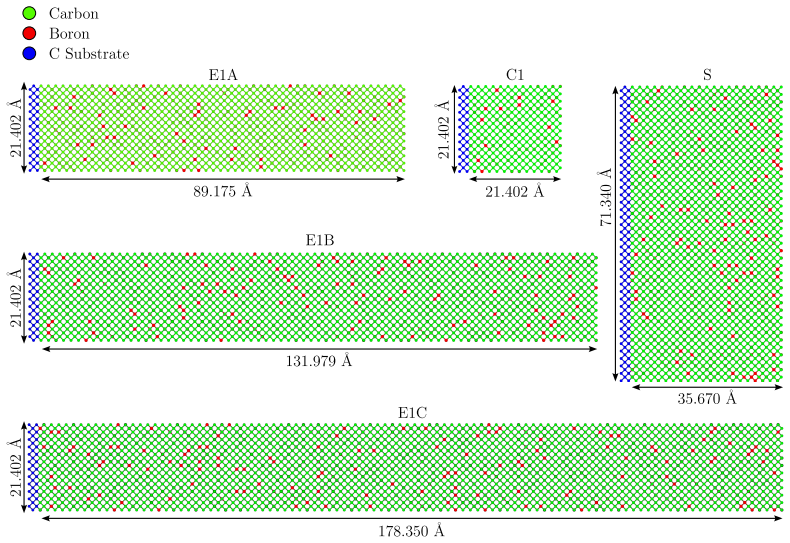

Figure 2. Figure 2: Representative diagrams of selected crystal structures used in this study, in [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗
Figure 3

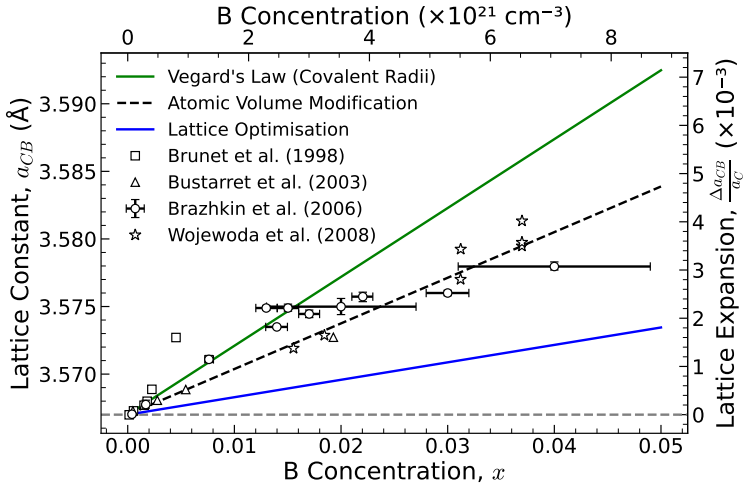

Figure 3. Figure 3: Compilation of literature data showing the lattice constant [PITH_FULL_IMAGE:figures/full_fig_p014_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Plots of the lattice constant aCB as a function of boron dopant concentration. Panel (a) shows this for each crystal size listed in [PITH_FULL_IMAGE:figures/full_fig_p016_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Heatmaps showing the average fraction of B [PITH_FULL_IMAGE:figures/full_fig_p017_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Plots of the (1 0 0) inter-planar distance [PITH_FULL_IMAGE:figures/full_fig_p021_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Inter-planar distance as a function of boron dopant concentration for the E3- [PITH_FULL_IMAGE:figures/full_fig_p022_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Calculated values of the (1 1 0) (a) and (1 0 0) (b) inter-planar distances for all crystal sizes listed in [PITH_FULL_IMAGE:figures/full_fig_p023_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Plot of the calculated dopant concentration averaged across all simulations of a [PITH_FULL_IMAGE:figures/full_fig_p026_9.png] view at source ↗
Figure 10

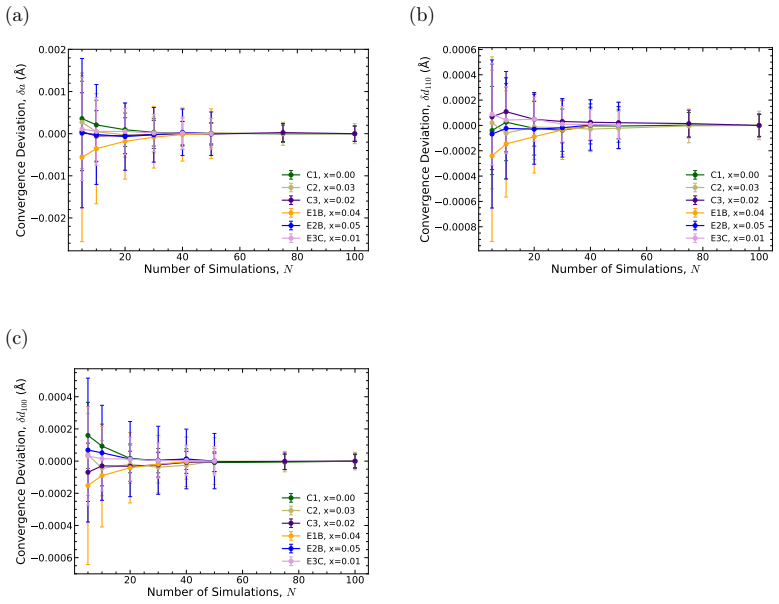

Figure 10. Figure 10: Plots showing the convergence deviation (Equation (8)) of the lattice constant [PITH_FULL_IMAGE:figures/full_fig_p028_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Plot of the average B [PITH_FULL_IMAGE:figures/full_fig_p029_11.png] view at source ↗
read the original abstract

Boron-doped diamond crystals (BDD, C$_{1-x}$B$_{x}$) exhibit exceptional mechanical strength, electronic tunability, and resistance to radiation damage. This makes them promising materials for use in gamma-ray crystal-based light sources. To better understand and quantify the structural distortions introduced by doping, which are critical for maintaining channelling efficiency, we perform atomistic-level molecular dynamics simulations on periodic C$_{1-x}$B$_{x}$ systems of various sizes. These simulations allow the influence of boron concentration on the lattice constant and the (110) and (100) inter-planar distances to be evaluated over the concentration range from pure diamond (0%) to 5% boron at room temperature (300 K). Linear relationships between both lattice constant and inter-planar distance with increasing dopant concentration are observed, with a deviation from Vegard's Law. This deviation is larger than that reported by other theoretical and computational studies; however, this may be attributed to an enhanced crystal quality over these studies, a vital aspect when considering gamma-ray crystal light source design. The methodology presented here incorporates several refinements to closely reflect the conditions of microwave plasma chemical vapour deposition (MPCVD) crystal growth. Validation of the methodology is provided through a comprehensive statistical analysis of the structure of our generated crystals. These results enable reliable atomistic modelling of doped diamond crystals and support their use in the design and fabrication of periodically bent structures for next-generation gamma-ray light source technologies.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript uses molecular dynamics simulations of periodic C_{1-x}B_x diamond systems (0–5% boron) at 300 K to quantify doping-induced changes in lattice constant and (110)/(100) inter-planar distances. Linear trends are reported, together with a deviation from Vegard's law that exceeds values in prior theoretical studies; the authors attribute the larger deviation to superior crystal quality achieved by refinements that better match MPCVD growth conditions. Validation rests on internal statistical metrics (defect counts, radial distribution functions) of the generated structures.

Significance. If the structural trends and quality attribution hold, the work supplies atomistic guidance for maintaining channelling efficiency in boron-doped diamond crystals intended for gamma-ray light sources. The MPCVD-oriented simulation protocol and statistical validation of generated structures constitute clear strengths that could support reproducible modelling of periodically bent doped-diamond devices.

major comments (3)
  1. [Abstract] Abstract: the statement that the observed larger deviation from Vegard's law 'may be attributed to an enhanced crystal quality' is not supported by any direct numerical comparison of computed lattice constants or (110)/(100) spacings against experimental XRD values for MPCVD-grown BDD at 0–5% boron; without such benchmarking the attribution remains an untested interpretation.
  2. [Results/Discussion] Results/Discussion: the claim that internal statistical analysis (defect counts, RDFs) demonstrates that the simulated crystals accurately represent real MPCVD BDD quality is load-bearing for the central interpretation, yet no quantitative comparison is provided to defect metrics or lattice-expansion data reported in prior simulations or experiments at comparable concentrations.
  3. [Methods] Methods: the interatomic potential and its specific parameterisation for boron–carbon interactions are not described in sufficient detail to allow assessment of whether the reported linear trends and Vegard's deviation are robust or potential-dependent.
minor comments (2)
  1. [Figures] Figure captions should explicitly state the system sizes, number of independent trajectories, and how error bars (if present) were obtained from the MD statistics.
  2. [Results] Add a short table comparing the present lattice constants at selected boron fractions with the closest available experimental and prior computational values.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their detailed and constructive review of our manuscript. We address each major comment below and have revised the manuscript accordingly to improve clarity and support for our claims.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the statement that the observed larger deviation from Vegard's law 'may be attributed to an enhanced crystal quality' is not supported by any direct numerical comparison of computed lattice constants or (110)/(100) spacings against experimental XRD values for MPCVD-grown BDD at 0–5% boron; without such benchmarking the attribution remains an untested interpretation.

    Authors: We agree that a direct numerical comparison to experimental XRD data would strengthen the attribution. Comprehensive experimental lattice-expansion measurements for high-quality MPCVD-grown BDD in the narrow 0–5% range are limited in the literature, which is why our interpretation relies on the simulation protocol being tuned to MPCVD conditions and on internal quality metrics. In the revised manuscript we will rephrase the abstract to present the attribution as a reasoned interpretation supported by our protocol and metrics rather than a definitive claim, and we will add a short discussion paragraph referencing available experimental and prior theoretical lattice constants at comparable concentrations. revision: partial

  2. Referee: [Results/Discussion] Results/Discussion: the claim that internal statistical analysis (defect counts, RDFs) demonstrates that the simulated crystals accurately represent real MPCVD BDD quality is load-bearing for the central interpretation, yet no quantitative comparison is provided to defect metrics or lattice-expansion data reported in prior simulations or experiments at comparable concentrations.

    Authors: We accept that quantitative comparisons to prior work would make the validation more robust. The revised Results/Discussion section will include explicit numerical comparisons of our defect densities and RDF peak widths to values reported in earlier simulation studies and to experimental defect or strain data for BDD at 0–5% boron. These additions will directly support the claim that our refined protocol yields higher crystal quality. revision: yes

  3. Referee: [Methods] Methods: the interatomic potential and its specific parameterisation for boron–carbon interactions are not described in sufficient detail to allow assessment of whether the reported linear trends and Vegard's deviation are robust or potential-dependent.

    Authors: We thank the referee for this observation. The Methods section will be expanded to specify the exact interatomic potential employed, the source reference, the functional form and all adjustable parameters used for B–C interactions, and any cross-validation performed against known diamond and boron-carbide properties. This will enable readers to evaluate the robustness of the reported trends. revision: yes

Circularity Check

0 steps flagged

No circularity in MD-derived lattice parameters; results are direct simulation outputs.

full rationale

The paper computes lattice constants and (110)/(100) inter-planar distances via molecular dynamics trajectories on periodic C1-xBx supercells at 300 K. These quantities are extracted directly from the equilibrated atomic configurations rather than from any equation that reduces to a fitted parameter or self-referential definition. The noted larger deviation from Vegard's law is an observational outcome compared to prior studies, with the attribution to 'enhanced crystal quality' offered as an interpretive remark supported by internal metrics (defect counts, radial distribution functions). No self-citation chain, imported uniqueness theorem, or ansatz smuggling is load-bearing for the structural claims. The methodology is self-contained against the simulation benchmarks and statistical validation described.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The work rests on standard assumptions of classical molecular dynamics for covalent materials and the representativeness of the generated periodic cells to experimental MPCVD crystals.

free parameters (1)
  • Boron concentration sampling points
    Discrete concentrations from 0% to 5% chosen for the study; specific values not derived from first principles.
axioms (1)
  • domain assumption The chosen interatomic potential accurately reproduces boron-carbon bonding and lattice distortions in diamond at room temperature.
    Invoked implicitly when running the MD simulations on C1-xBx systems.
