CardioMorphNet: Cardiac Motion Prediction Using a Shape-Guided Bayesian Recurrent Deep Network

T0 review · 4 major / 6 minor · reviewed 2026-08-05 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read CardioMorphNet claims cardiac motion is learned more accurately by recursively registering segmentation maps than by matching image intensities, and reports superior shape-registration metrics and lower DVF uncertainty on a large population

desk verdict Plausible shape-guided registration method, but the headline comparison is biased: the model trains on the same automated masks it is then scored against. read the letter →

arxiv 2508.20734 v2 pith:LEK6Y37G submitted 2025-08-28 cs.CV

Reza Akbari Movahed , Abuzar Rezaee , Arezoo Zakeri , Colin Berry , Edmond S. L. Ho , Ali Gooya This is my paper · ORCID
classification cs.CV
keywords BayesianModellingCardiacMotionEstimationDeformableImageRegistrationCineCMRRecurrentVariationalAutoencoderShape-GuidedUncertaintyQuantificationPopulationMRI
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

CardioMorphNet aims to show that cardiac motion can be estimated more accurately by registering anatomical segmentation maps than by matching image intensities. The authors build a recurrent Bayesian network in which a segmentation network proposes the current frame's heart shape and a deformable registration network proposes a displacement field from two consecutive SAX volumes and a recurrent latent variable; the prior warps the previous shape with that field. The variational loss derived from the model's ELBO contains supervised cross-entropy at the two annotated frames (end-diastole and end-systole) and semi-supervised cross-entropy between the proposed and warped shapes at every other frame, with no intensity-based registration term. On a large population cardiac-MRI cohort, the paper reports that this approach yields higher Dice and Jaccard scores, lower surface distances, and lower DVF uncertainty inside the heart than several intensity-based and joint segmentation-registration baselines. If correct, the work shows that anatomy-level supervision can replace pixel-level appearance matching for motion tracking and can provide per-voxel uncertainty from an explicit posterior covariance.

What carries the argument

The load-bearing machinery is a recurrent variational autoencoder with two posterior networks and one warping prior. SegNet computes q(Mt|It), the per-voxel distribution over cardiac labels for the current frame; DeformNet computes q(Dt|It, It−1, Zt), a Gaussian displacement field with mean and covariance sigma-squared-I plus V-transpose-V; and the prior p(Mt|Mt−1, Dt) is implemented by warping the previous segmentation map with the current DVF. A ConvLSTM hidden state carries spatio-temporal context into the latent variable Zt. The ELBO loss combines a supervised and semi-supervised shape cross-entropy term that replaces intensity similarity, KL divergences for the displacement field and th

What would settle it

On a held-out set with expert manual contours (or a digital phantom with known ground-truth deformation), compare CardioMorphNet's warped masks and DVFs against independent ground truth rather than the automated tool's masks. If its advantage over intensity-based baselines disappears, the claim that shape-guided mask registration yields superior cardiac motion estimation is refuted.

Watch

Extended reading notes

Core claim

The central claim, stated on the paper's own terms, is that a recurrent variational Bayesian framework can learn cardiac motion by recursively registering segmentation maps, and doing so is enough to beat methods that optimize intensity-based image similarity. In the proposed generative model, the joint probability of the sequence factorizes so that the current mask depends on the previous mask and the current displacement field; the posterior estimates masks, displacement fields, and latent variables from the current and previous SAX volumes and a recurrent hidden state. Minimizing the resulting ELBO loss aligns the warped previous mask with the current segmentation at every time step, supe

Load-bearing premise

The automated tool that supplies the end-diastolic and end-systolic masks is accurate enough to serve as both training labels and the evaluation standard; if those masks are biased, the reported scores mainly measure agreement with the tool, not true cardiac motion.

Editorial extensions

If this is right

  • DVFs are trained by mask overlap across the whole cardiac cycle, so only the ED and ES frames need manual or automated labels; intermediate frames are held together by recursive shape consistency.
  • The framework produces per-voxel DVF uncertainty directly from the learned covariance, without dropout or test-time augmentation.
  • On the reported cohort, shape-guided registration gives higher DSC/JAC and lower HD95/MSD than intensity-based and joint registration baselines in the LV, LV myocardium, and RV.
  • The DVF uncertainty in the cardiac region is lower than in DragNet and SegMorph, which the paper interprets as higher confidence in the estimated heart motion.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The evaluation uses the same automated contour tool for training supervision and for scoring; a reader should treat the reported accuracy as agreement with that tool's segmentations. An expert-annotation or synthetic-deformation benchmark would test whether the shape-guided loss truly captures cardiac motion rather than fitting the tool's contours.
  • The abstract asserts more accurate clinical-index estimation, but the body reports only mask-overlap, uncertainty, and diffeomorphism evaluations; that assertion lacks a demonstrated result in the presented text.
  • The recursive mask-registration loss is not cardiac-specific in principle; the same two-frame-supervision scheme could transfer to other organs or imaging modalities where reliable contours exist at two timepoints and intensity matching is unreliable.
  • Because the model uses only short-axis volumes and discrete masks, through-plane motion and rotation that do not change mask overlap may be under-constrained; combining with long-axis views or mesh/tagging evidence would be a natural stress test.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 6 minor

Summary. The paper proposes CardioMorphNet, a recurrent Bayesian deep network for 3D cardiac motion estimation from cine short-axis CMR sequences. The model combines a recurrent variational autoencoder, a segmentation network (SegNet), and a registration network (DeformNet). It estimates segmentation masks, DVFs, and latent variables jointly, with a loss derived from an ELBO plus a bending-energy regularizer. The key design feature is that registration is guided by warping segmentation maps rather than by an intensity-based image similarity loss. The method is evaluated on UK Biobank data, comparing mask overlap (DSC, JAC, HD95, MSD) with VoxelMorph, DragNet, SegMorph, JMS, SyN, and LCC-Demons, and also reports uncertainty maps and an ablation study.

Significance. If the claims are substantiated, the paper makes a useful contribution by demonstrating that shape-guided, recurrent Bayesian registration can produce accurate cardiac DVFs with explicit uncertainty estimates, without intensity-based similarity losses. The code is made available, and the method is compared against several strong baselines. The uncertainty maps are a valuable addition over deterministic registration methods. However, the evaluation currently has a serious circularity issue: the same automated masks are used both as training supervision at ED/ES and as the evaluation target, and the abstract claims M&M validation that does not appear in the experiments. These issues must be resolved before the central claim of superior performance can be accepted.

major comments (4)
  1. [§4.1, §4.3, Eq. (7), Table 2] The evaluation is circular with respect to the supervision. Section 4.1 states that ED/ES time steps and ground-truth masks are obtained with the automated tool of [54]. These same masks are used in Eq. (7) as supervised training labels for the warped masks, and in Table 2 as the evaluation target for DSC/JAC/HD95/MSD. CardioMorphNet is therefore explicitly trained to maximize the evaluation metric, while the comparison methods (VoxelMorph, DragNet, SegMorph, etc.) are not trained with this mask-overlap supervision. The reported improvements may reflect optimization alignment rather than genuine motion-estimation accuracy. The paper provides no independent check, such as manual expert contours, an alternative motion benchmark, or M&M results. This is the load-bearing weakness of the paper; please add an independent evaluation or retrain baselines with the same mask supervision.
  2. [§3.2, Eqs. (3)–(6)] The claim that the loss is 'derived' from the Bayesian formulation is not supported by the derivation. The factorization in Eq. (3) is simplified to Eq. (4) by strong conditional-independence assumptions that are neither justified nor derived. Then the ELBO in Eq. (6) introduces hand-set weights λ1, λ2, λ3, and ρ, with values chosen empirically (Section 3.2). These ad hoc weights mean the objective is not a pure variational bound but a weighted sum of terms. This weakens the paper's central methodological claim. Please provide the full ELBO derivation, state the exact independence assumptions, and clarify how the λ weights are justified.
  3. [§3.3, Eq. (8)] The semi-supervised shape loss is self-referential. Lsemi-shape minimizes the cross-entropy between Ψ, the SegNet posterior q(Mt|It), and θ, the warped previous mask p(Mt|Mt−1, Dt). At non-ED/ES frames, Ψ is the model's own output and is also being optimized. Therefore the DVF is trained against a moving target produced by the same network, which can trivially reduce this term by making SegNet copy its own predictions. This is not a fixed supervisory signal. Please clarify whether Ψ is detached or fixed, and discuss the implications for the registration objective.
  4. [Abstract, §4] The abstract states that the method is 'Validated on the UK Biobank and M&M datasets', but the experiments in Section 4 only report UK Biobank. There is no M&M dataset description, preprocessing, results table, or analysis anywhere in the paper. Either add the M&M experiments or remove the claim from the abstract. This is a factual inconsistency in the headline claim.
minor comments (6)
  1. [§4.3] The text states that a paired t-test was employed, but no p-values or confidence intervals are reported in Table 2 or the surrounding text. Please report statistical significance for the main comparisons.
  2. [§4.1] Since the automated tool of [54] is used for ground-truth masks, it would be helpful to report the tool's segmentation accuracy (e.g., Dice vs. manual contours) on the UK Biobank subset used here.
  3. [§5] There are typos: 'DrageNet' should be 'DragNet', and 'SegMorh' should be 'SegMorph'.
  4. [Eq. (9)] In Eq. (9), the notation Tr(CDj) is unclear because CD is a voxel-wise 3×3 covariance, not a matrix. Please define the trace operation on this tensor.
  5. [Table 3] The column header 'NoDeformNet' is confusing; it appears to mean that DeformNet is always enabled. Consider renaming to 'DeformNet' with ✓/✗ like the other columns.
  6. [§4.4] The uncertainty maps in Figure 6 use a color scale but no numerical colorbar; adding one would make the visualization more interpretable.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the ELBO-based loss is a genuine variational derivation, evaluation uses a held-out split, and the mask-supervised training/evaluation overlap is a standard supervised design rather than a definitional reduction.

full rationale

CardioMorphNet's derivation chain is self-contained. The variational bound (Eqs. 5–11) follows algebraically from the stated generative and posterior factorisations in Eqs. (1)–(4) and Table 1; no term is defined as the quantity it is claimed to predict. The central quantitative claim is evaluated on a held-out 10% test split of UK Biobank (Section 4.1), with DSC/JAC/HD95/MSD computed between warped and ground-truth masks at ED/ES. The fact that L_sup-shape (Eq. 7) supervises the same ED/ES masks used for evaluation is a standard supervised-training/evaluation design, not a definitional equivalence: cross-entropy is not identical to the reported overlap/surface metrics, and the test subjects are unseen during training. The semi-supervised term (Eq. 8) does use SegNet's own q(Mt|It) as a target for the warped mask, which creates a self-supervised consistency objective rather than a hidden identity; the paper explicitly acknowledges that segmentation errors can propagate into registration (Section 5, 'Another restriction is the segmentation error of the segmentation component in the proposed framework, which may affect cardiac shape registration'). No load-bearing self-citation or imported uniqueness theorem appears: [49] and [51] are baseline methods from overlapping authors and are compared empirically, not used to rule out alternatives. The automated-mask source [54] is an external tool, and while sharing a label source between training and evaluation and giving unequal mask supervision to baselines is a legitimate fairness/benchmark concern, it does not make the reported results equivalent to the paper's inputs by construction. Separately, the abstract mentions M&M validation and clinical-index assessment that are not reported in the experiments, but missing support is a correctness concern, not a circularity step.

Assumptions & free parameters 4 free parameters · 5 assumptions · 0 invented entities

The central claim rests on the reliability of automated segmentation as both training signal and evaluation target, on the unproved factorization of the Bayesian posterior, and on several hand-set hyperparameters (lambda's, rho, L, T=6). No new physical entities are introduced.

free parameters (4)
  • Loss weights lambda_1, lambda_2, lambda_3 = 1e-4, 2e-4, 0.3
    Set empirically to achieve best performance (Section 3.2); tune the relative strength of DVF KL, Z KL, and reconstruction terms.
  • Bending energy weight rho = not specified
    Appears in L = L_ELBO + rho * L_smooth (Eq. 5), but its value is never reported.
  • Latent dimension L = not specified
    Used in Eqs. (10) and (11) for Z_t factorization, but no value or sensitivity analysis is given.
  • Downsampled sequence length T = 6 frames
    The original 50-frame SAX sequences are downsampled to 6 frames to reduce computational load (Section 4.1); this choice affects how much motion is preserved in training.
assumptions (5)
  • domain assumption Automated tool [54] masks are reliable ground truth.
    Used to supervise ED/ES shape loss and to compute all evaluation metrics (Section 4.1, Eq. 7); no independent human-expert validation is reported.
  • ad hoc to paper Conditional independence assumptions in Eqs. (2) and (4).
    The paper assumes p(Mt|Mt-1,Dt), p(It|Zt), p(Dt|ht-1), p(Zt|ht-1) and q(Mt|It), q(Dt|It,It-1,Zt), q(Zt|It,ht-1), but does not justify dropping dependencies such as M<t, D<t, I<t from the posterior.
  • domain assumption Mask overlap is a sufficient proxy for cardiac motion.
    Evaluation uses only DSC, JAC, HD95, and MSD between warped and ground-truth masks; no DVF or motion landmark ground truth is used.
  • domain assumption Cyclic cardiac sequence assumption.
    Assumes M_-1 = M_T-1 and I_-1 = I_T-1 (Section 3.1), i.e., the 6-frame downsampled cardiac cycle ends where it begins; if not true, the t=0 warping step is ill-posed.
  • ad hoc to paper Gaussian prior and posterior forms.
    Chooses N(D;0,I), N(Z;...), and covariance C_D = sigma^2 I + V^T V for tractability, not derived from data.

how reviews work

0 comments
Cite this review

Pith. "Pith review of CardioMorphNet: Cardiac Motion Prediction Using a Shape-Guided Bayesian Recurrent Deep Network." pith.science (2026). https://pith.science/paper/LEK6Y37G

@misc{pith2026250820734,
  author       = {Pith},
  title        = {Pith review of: CardioMorphNet: Cardiac Motion Prediction Using a Shape-Guided Bayesian Recurrent Deep Network},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/LEK6Y37G}},
  note         = {Machine review of arXiv:2508.20734}
}
read the original abstract

Accurate cardiac motion estimation from cine cardiac magnetic resonance (CMR) images is vital for assessing cardiac function and detecting its abnormalities. Existing methods often struggle to accurately capture heart motion because they rely on intensity-based image registration similarity losses that may overlook cardiac anatomical regions. To address this, we propose CardioMorphNet, a recurrent Bayesian deep learning framework for 3D cardiac shape-guided deformable registration using short-axis (SAX) CMR images. It employs a recurrent variational autoencoder to model spatio-temporal dependencies across the cardiac cycle, along with two posterior models for bi-ventricular segmentation and motion estimation. The derived loss function from the Bayesian formulation guides the framework to focus on anatomical regions by recursively registering segmentation maps without using intensity-based image registration similarity loss, while leveraging sequential SAX volumes and spatio-temporal features. The Bayesian modelling also enables the computation of uncertainty maps for the estimated motion fields. Validated on the UK Biobank and M&M datasets by comparing warped mask shapes with ground-truth masks, CardioMorphNet demonstrates superior performance in cardiac motion estimation, outperforming state-of-the-art methods. Uncertainty assessment shows that it also yields lower uncertainty values for estimated motion fields in the cardiac region compared with other probabilistic-based cardiac registration methods, indicating higher confidence in its predictions. In addition, the clinical indices extraction assessment shows that CardioMorphNet estimates the clinical indices more accurately than other approaches.

Figures

Figures reproduced from arXiv: 2508.20734 by the authors.

Figure 1

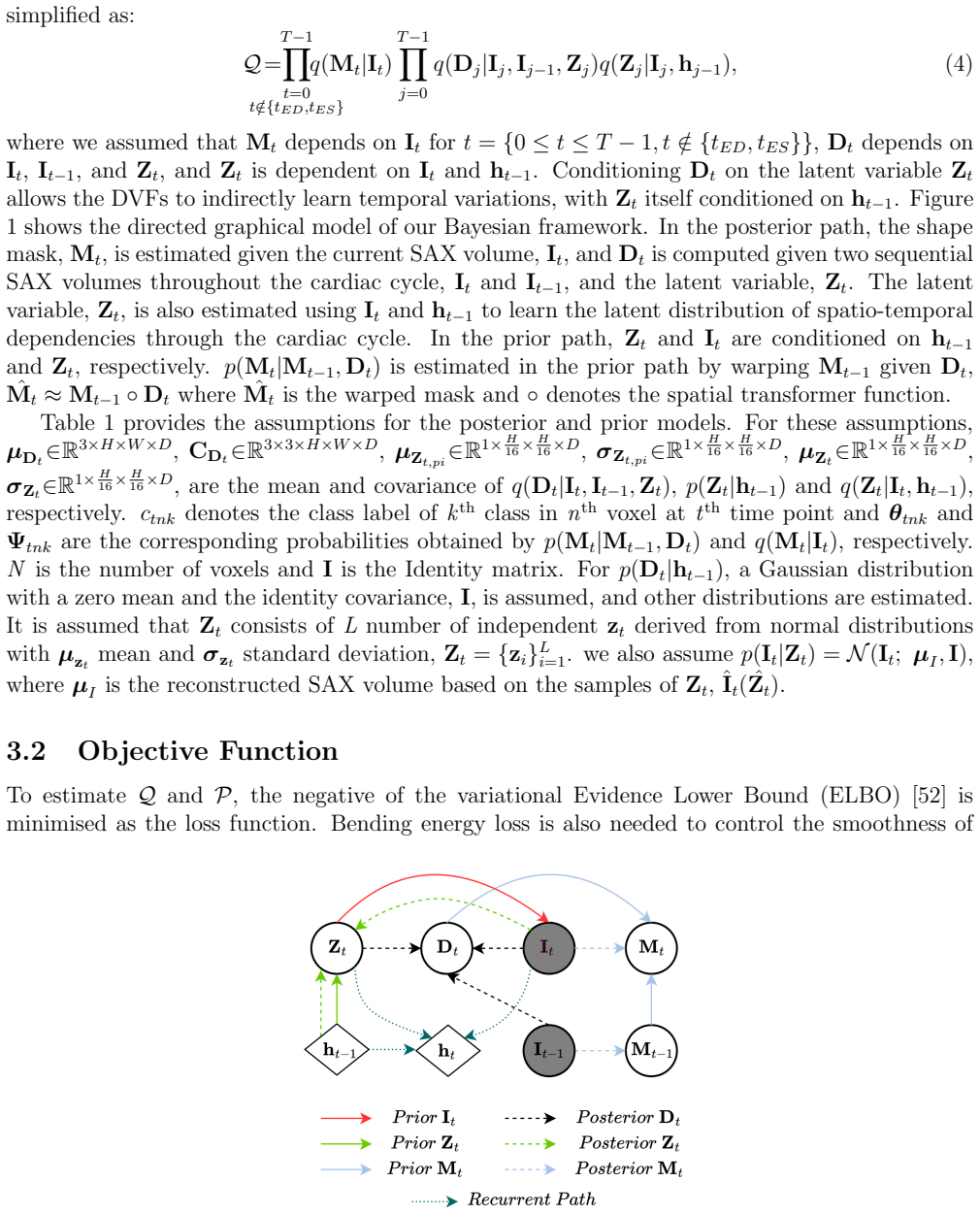

Figure 1. The directed graphical diagram of the model at time step [PITH_FULL_IMAGE:figures/full_fig_p007_1.png] view at source ↗
Figure 2
Figure 2. illustrates the main block diagram of the proposed cardiac shape registration framework. As depicted in [PITH_FULL_IMAGE:figures/full_fig_p009_2.png] view at source ↗
Figure 3
Figure 3. The deep learning architecture of CardioMorphNet consists of (a) RVAE, (b) DefromNet, and (c) SegNet. The upper number of each layer denotes the output height and width of the feature map, and the lower one represents the number of channels. The stride in the depth direction is set to one for all layers. 10 [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗
Figures from the paper (5 more)
Figure 4
Figure 4. Figure 4: A sample registration result. DVFs and Jacobians are visualised using colour-wheel [PITH_FULL_IMAGE:figures/full_fig_p013_4.png]
Figure 5
Figure 5. Figure 5: As demonstrated, CardioMorphNet achieves the highest median DSC with the narrowest [PITH_FULL_IMAGE:figures/full_fig_p014_5.png]
Figure 5
Figure 5. Figure 5: The distribution of the obtained DSC(%) values for cardiac shape registration by our [PITH_FULL_IMAGE:figures/full_fig_p015_5.png]
Figure 6
Figure 6. Figure 6: DVF uncertainty maps obtained by the presented framework, SegMorph, and DragNet. [PITH_FULL_IMAGE:figures/full_fig_p016_6.png]
Figure 7
Figure 7. Figure 7: The boxplots of the uncertainty values inside the cardiac region in ED and ES time [PITH_FULL_IMAGE:figures/full_fig_p016_7.png]

Discussion (0). Continue with ORCID to comment.
