Latent Residual-Closure Fourier Neural Operator for Robust Multi-Field Solving in Particle-in-Cell Simulations

Pith reviewed 2026-06-26 22:06 UTC · model grok-4.3

classification ⚛️ physics.comp-ph physics.plasm-ph
keywords particle-in-cellFourier neural operatorsurrogate field solverplasma simulationresidual closurelatent autoencoderclosed-loop integrationmulti-field solving
0
0 comments X

The pith

LRC-FNO maintains physical consistency in PIC field solving when used as an initial guess with 20 iterative corrections over times nearly twice the training horizon.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that PIC field solves can be reframed as a two-level residual-closure task in which an autoencoder compresses particle-deposited sources and paired Fourier Neural Operators handle dominant response plus unresolved residuals. This decomposition lets the resulting LRC-FNO act as both a fast surrogate and a high-quality starting point for traditional iterative solvers. In closed-loop tests on Landau damping, two-stream instability, and scrape-off layer cases, the approach preserves charge-to-potential mapping, mode evolution, and particle-field energy exchange far better than pure regression. The central payoff is reliable extrapolation in multi-step integration without immediate loss of source structures.

Core claim

By extracting compact latent source representations with an autoencoder, recovering lost residuals via a Latent Closure Refiner, and applying a Coarse-FNO Solver together with a Residual-Closure FNO, LRC-FNO produces field predictions that, when supplied as an initial guess with 20 iterative corrections, sustain charge and current density structures in extrapolated closed-loop PIC runs over a time range close to twice the training horizon.

What carries the argument

Two-level residual-closure formulation that separates source compression by autoencoder from source-to-field mapping by Coarse-FNO and Residual-Closure FNO.

If this is right

  • In 1D linear Landau damping and 2D two-stream instability, charge-to-potential mapping, potential-mode evolution, and particle-field energy exchange remain intact during closed-loop runs.
  • In the 2D scrape-off layer case, single-step relative L2 errors reach 0.0447 for self-consistent potential and 0.0251 for magnetic vector potential.
  • When paired with 20 iterative corrections, the surrogate supports stable multi-step integration over a time span approaching twice the training horizon while preserving source structures.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same decomposition could be tested on other particle-mesh problems where source-to-field consistency is the bottleneck.
  • Reducing the required correction count below 20 would further lower per-step cost in long runs.
  • The hybrid neural-plus-iterative pattern may generalize to other kinetic models that alternate particle pushing with field solves.

Load-bearing premise

The latent representations plus residual corrections retain enough unresolved source detail to keep charge-to-potential mapping and energy exchange consistent across multiple closed-loop steps.

What would settle it

A closed-loop PIC integration that uses the LRC-FNO initial guess with 20 corrections and shows clear loss of charge or current density structure before reaching roughly twice the training time horizon would falsify the consistency claim.

Figures

Figures reproduced from arXiv: 2606.17733 by Jianhua Lyu, Linlin Zhong.

Figure 1

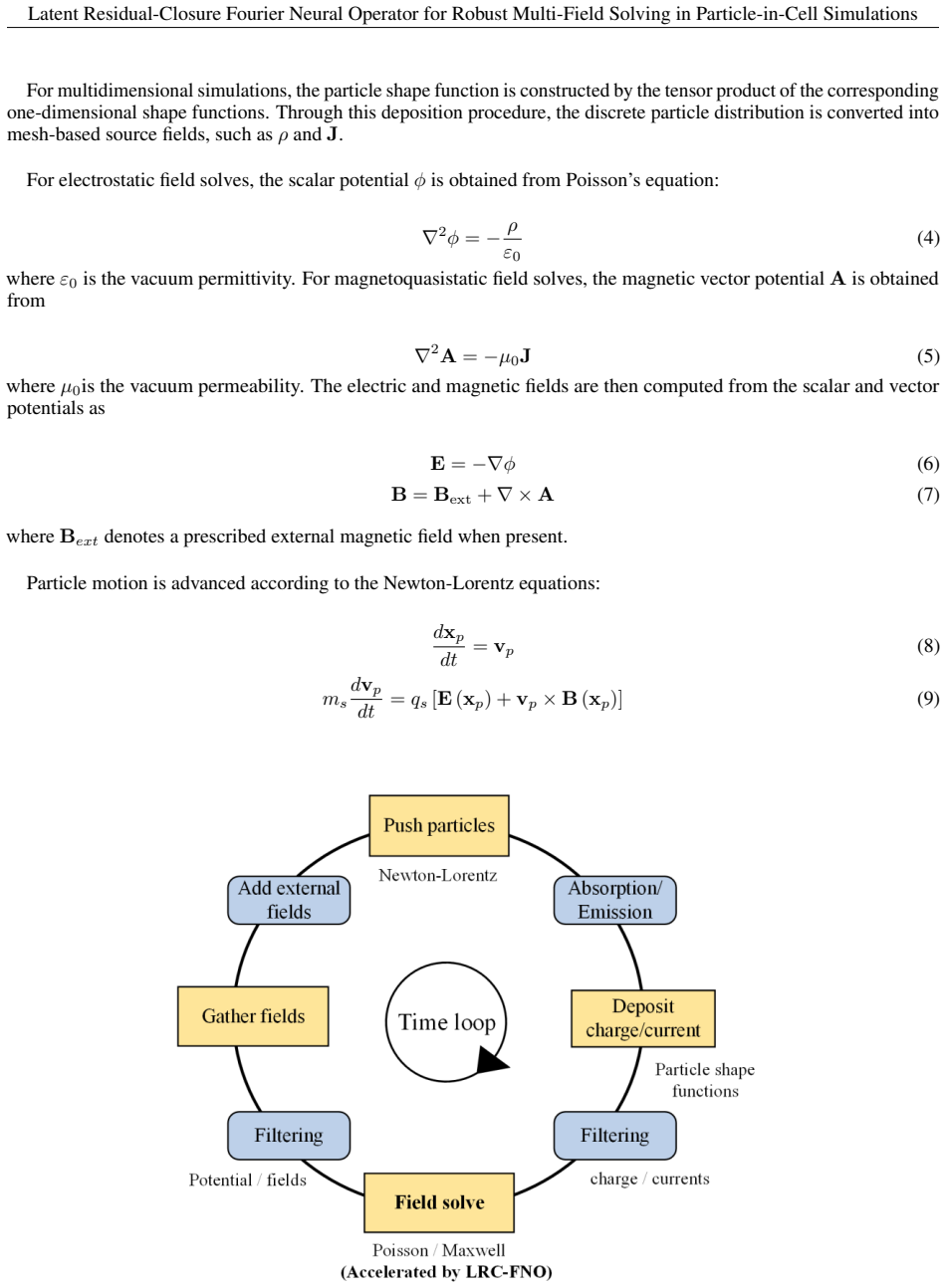

Figure 1. Figure 1: Schematic of the particle-in-cell cycle. [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

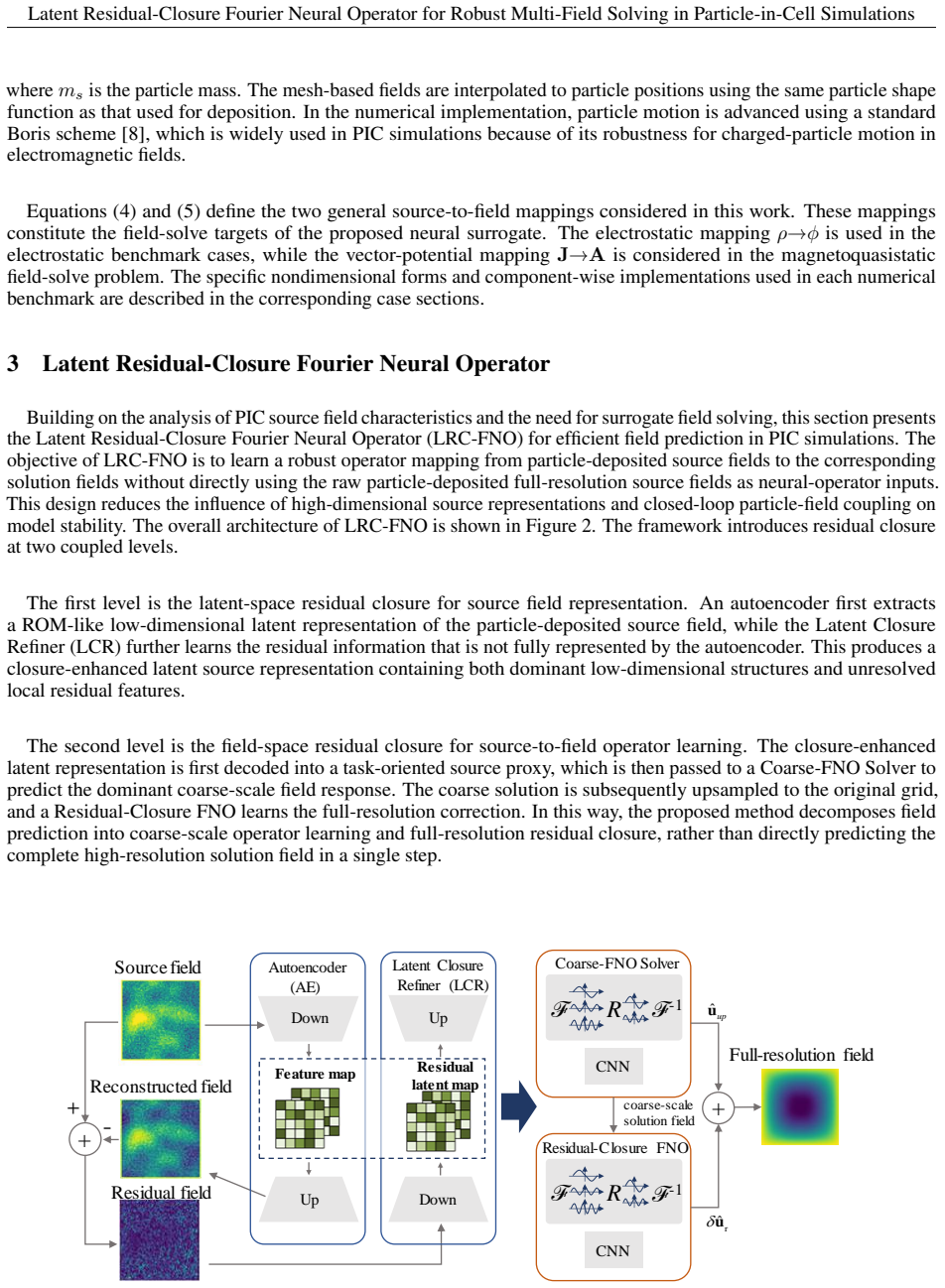

Figure 2. Figure 2: Overall architecture of LRC-FNO with latent-space and field-space residual closures. [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

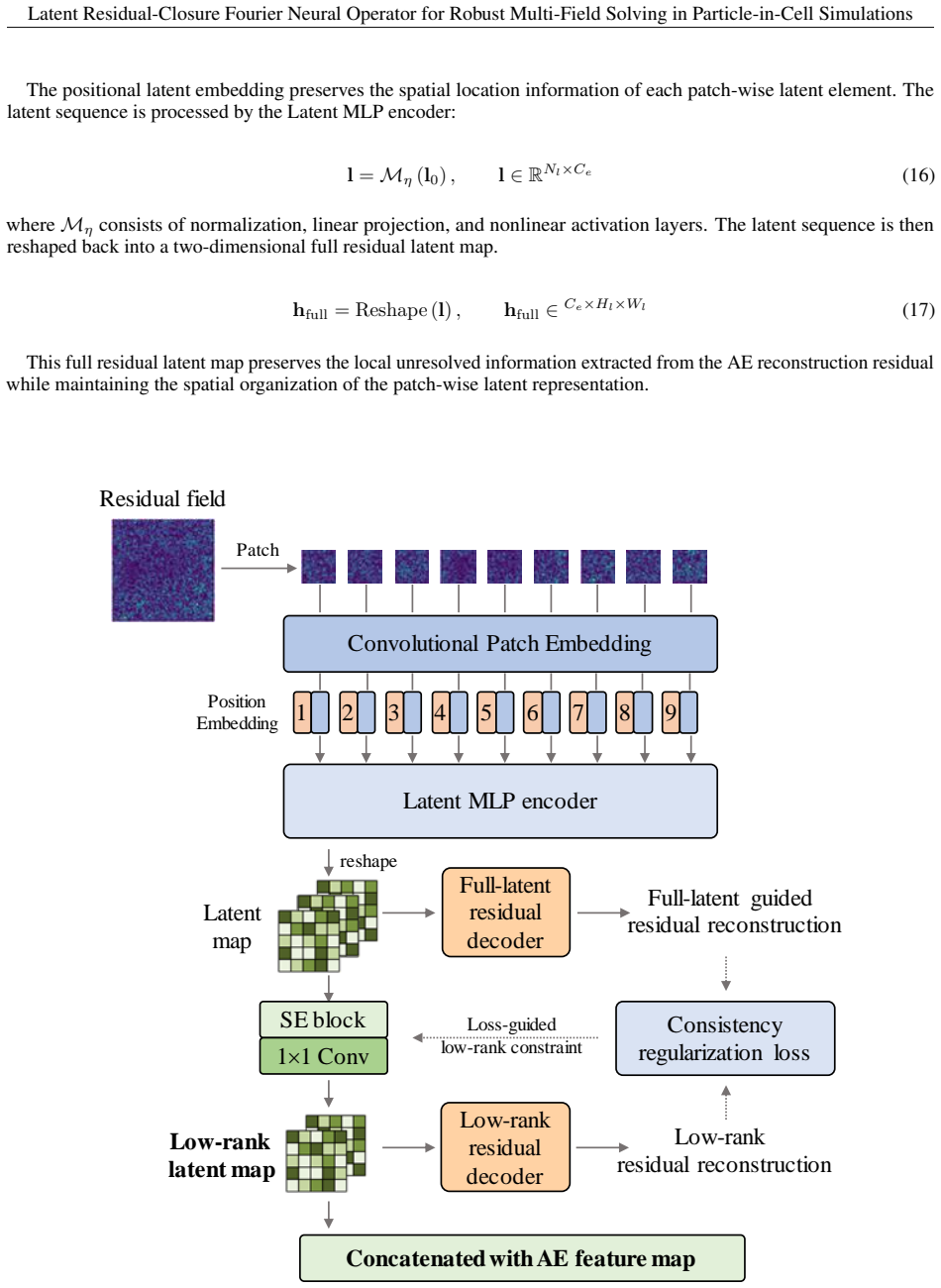

Figure 3. Figure 3: Overall architecture of LRC-FNO with latent-space and field-space residual closures. [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4

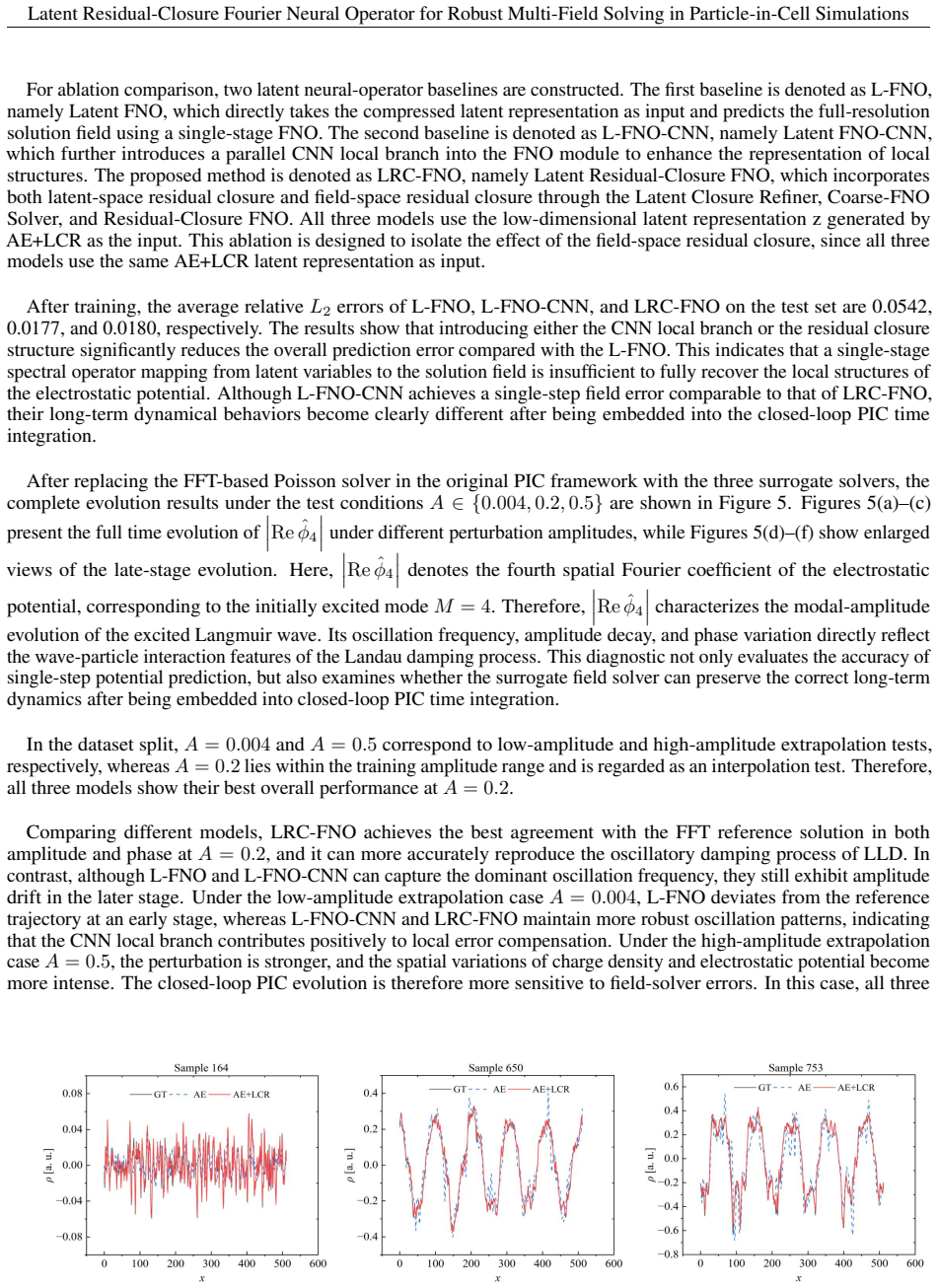

Figure 4. Figure 4: Comparison of charge density reconstruction by AE and AE+LCR in the 1D LLD benchmark. [PITH_FULL_IMAGE:figures/full_fig_p012_4.png] view at source ↗
Figure 5

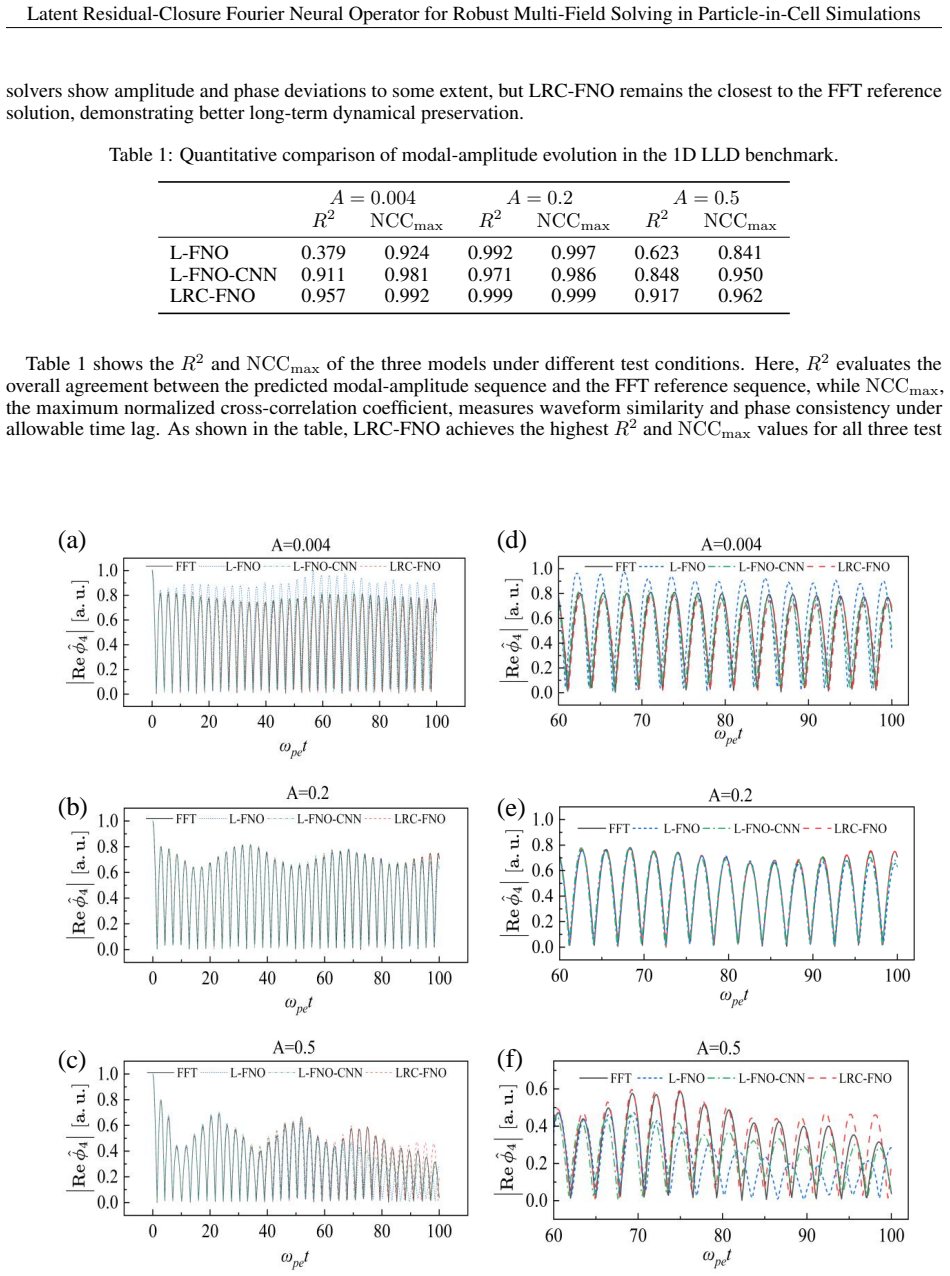

Figure 5. Figure 5: Comparison of the fourth electrostatic potential Fourier mode evolution using FFT and surrogate field solvers [PITH_FULL_IMAGE:figures/full_fig_p013_5.png] view at source ↗
Figure 6

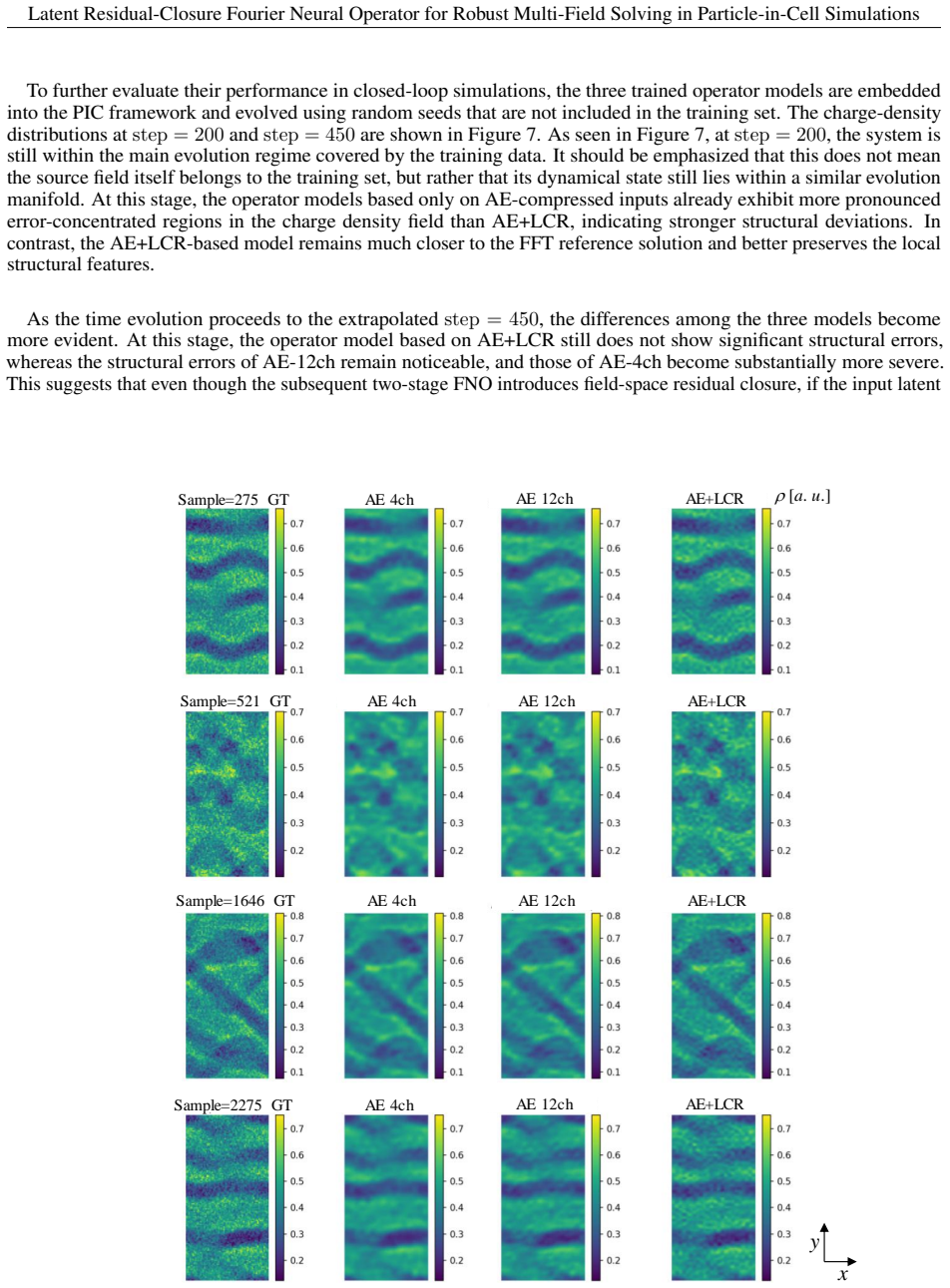

Figure 6. Figure 6: Comparison of charge density reconstruction using AE-4ch, AE-12ch, and AE+LCR in the 2D TSI benchmark. [PITH_FULL_IMAGE:figures/full_fig_p015_6.png] view at source ↗
Figure 7

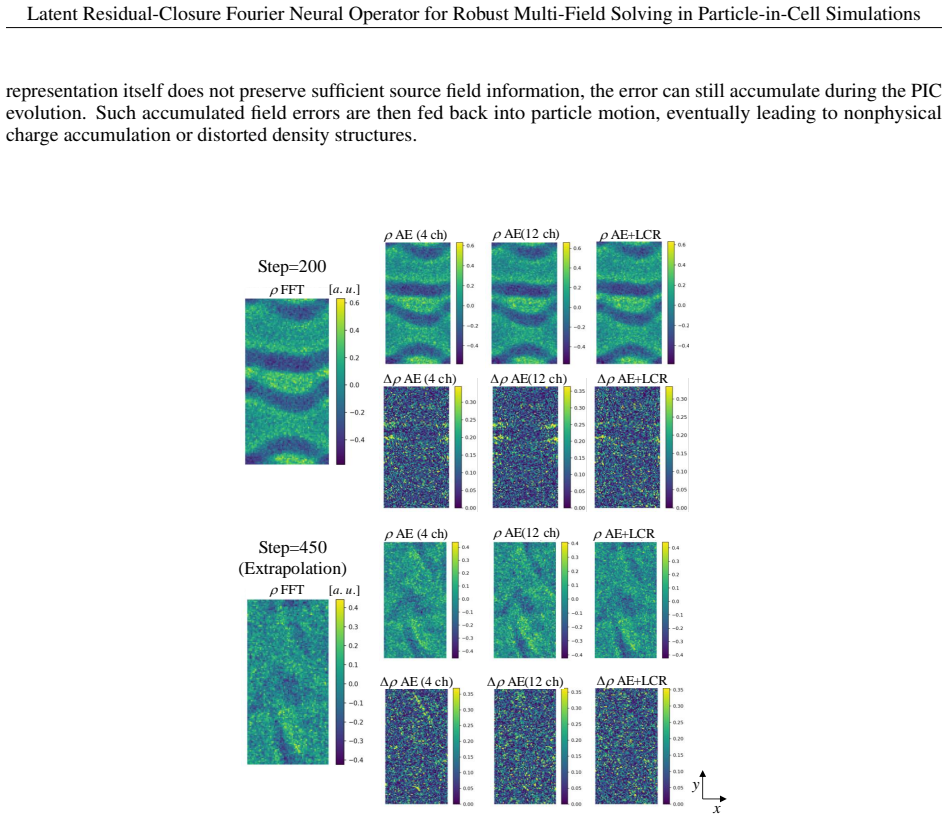

Figure 7. Figure 7: Charge density distributions and errors in closed-loop 2D TSI simulations using different latent representations. [PITH_FULL_IMAGE:figures/full_fig_p016_7.png] view at source ↗
Figure 8

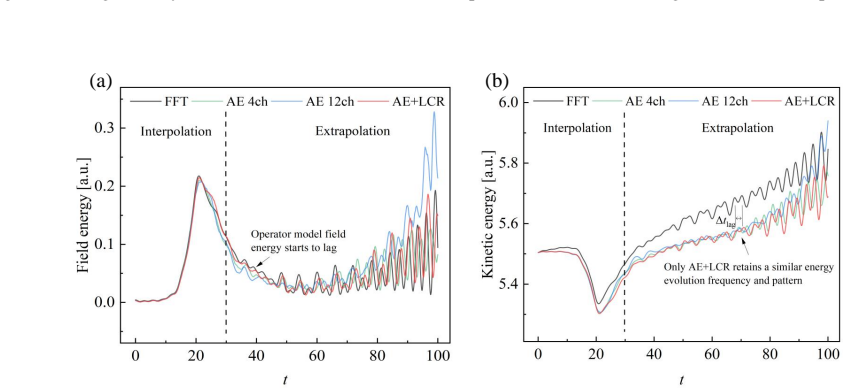

Figure 8. Figure 8: Comparison of field-energy and kinetic-energy evolution using different latent representations in closed-loop [PITH_FULL_IMAGE:figures/full_fig_p016_8.png] view at source ↗
Figure 9

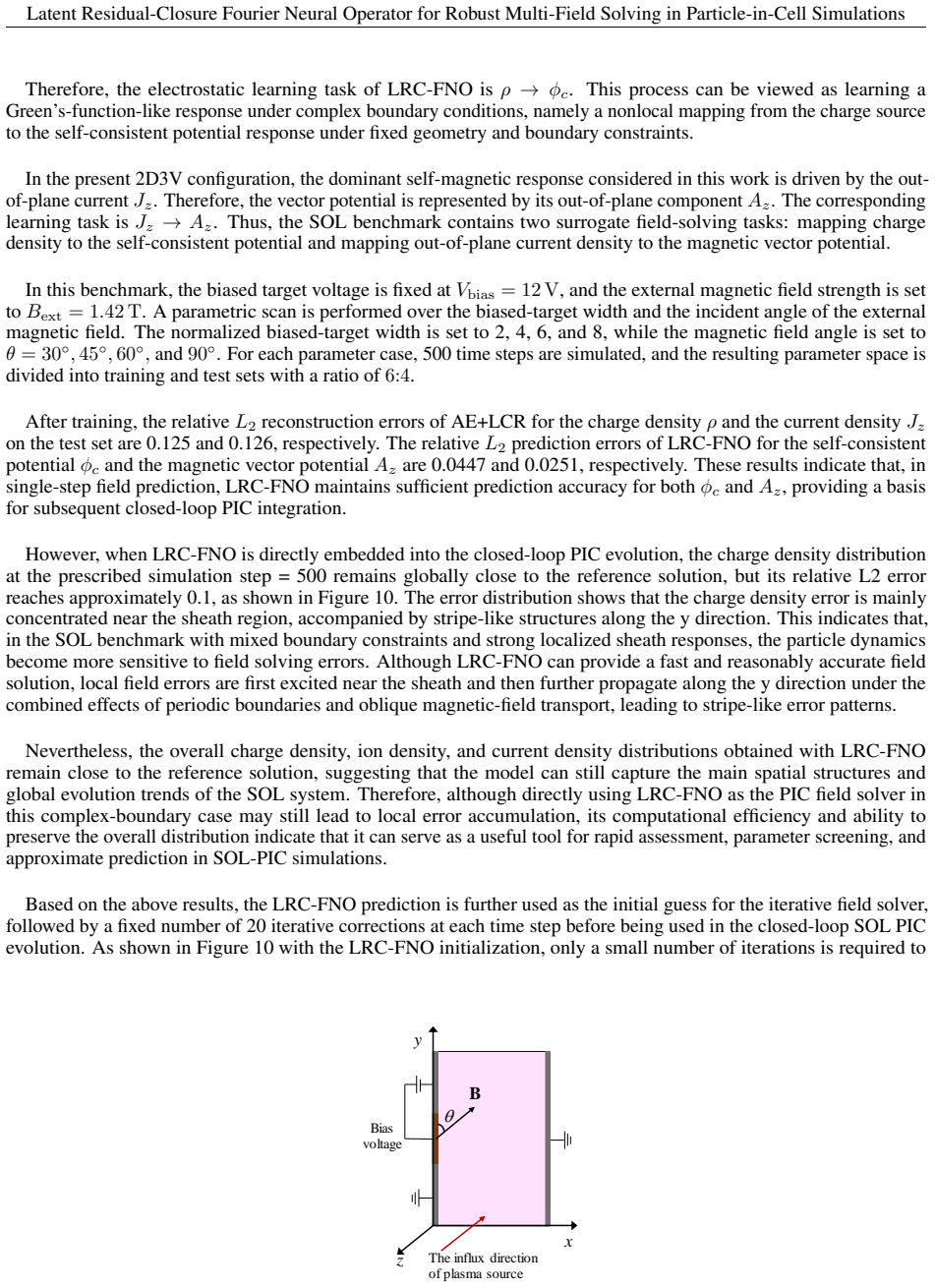

Figure 9. Figure 9: Schematic of the 2D SOL model with boundary conditions and oblique magnetic field. [PITH_FULL_IMAGE:figures/full_fig_p018_9.png] view at source ↗
Figure 10

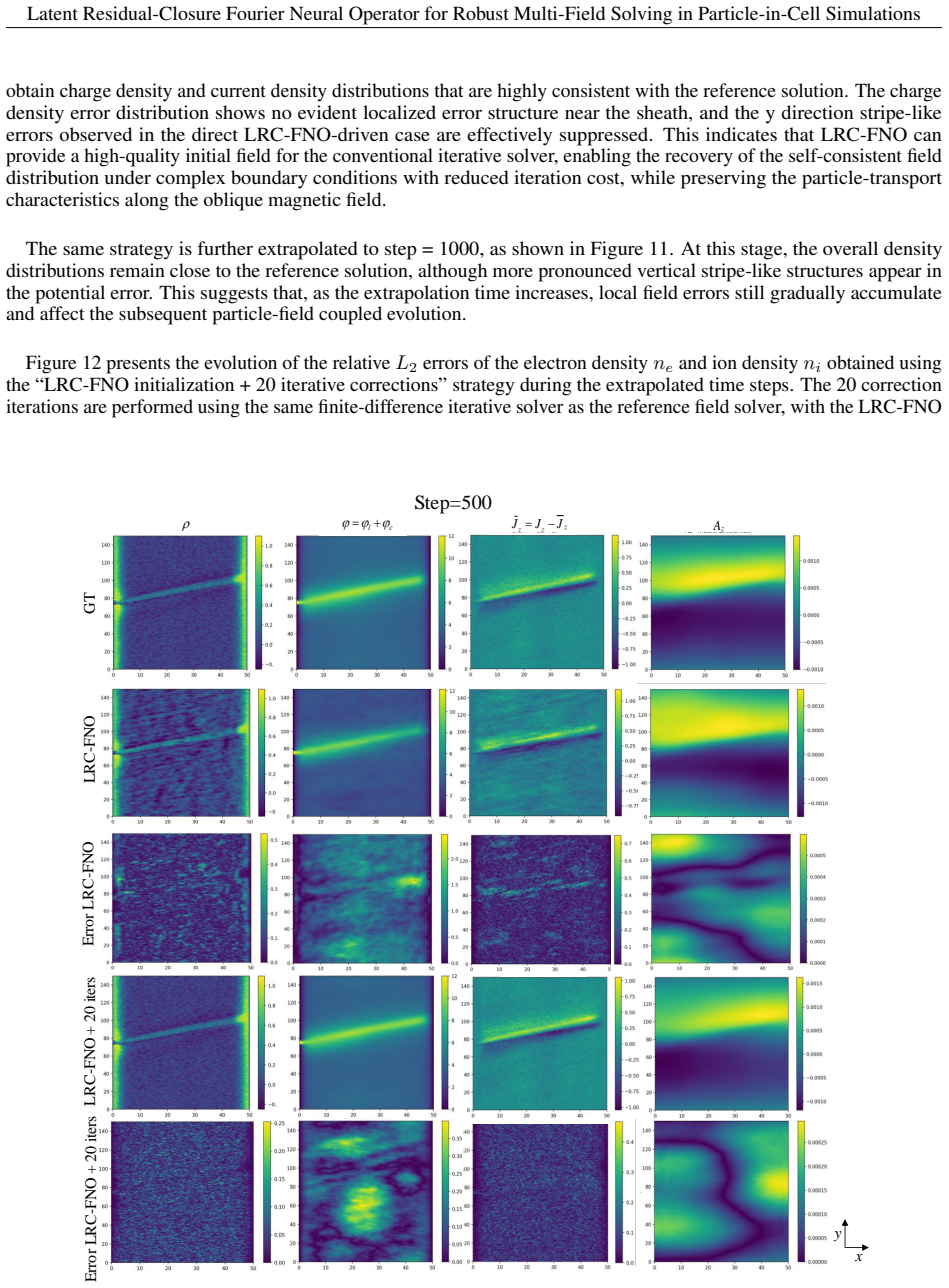

Figure 10. Figure 10: Multi-field distributions and errors at step = 500 in the SOL-PIC benchmark using direct LRC-FNO and [PITH_FULL_IMAGE:figures/full_fig_p019_10.png] view at source ↗
Figure 11

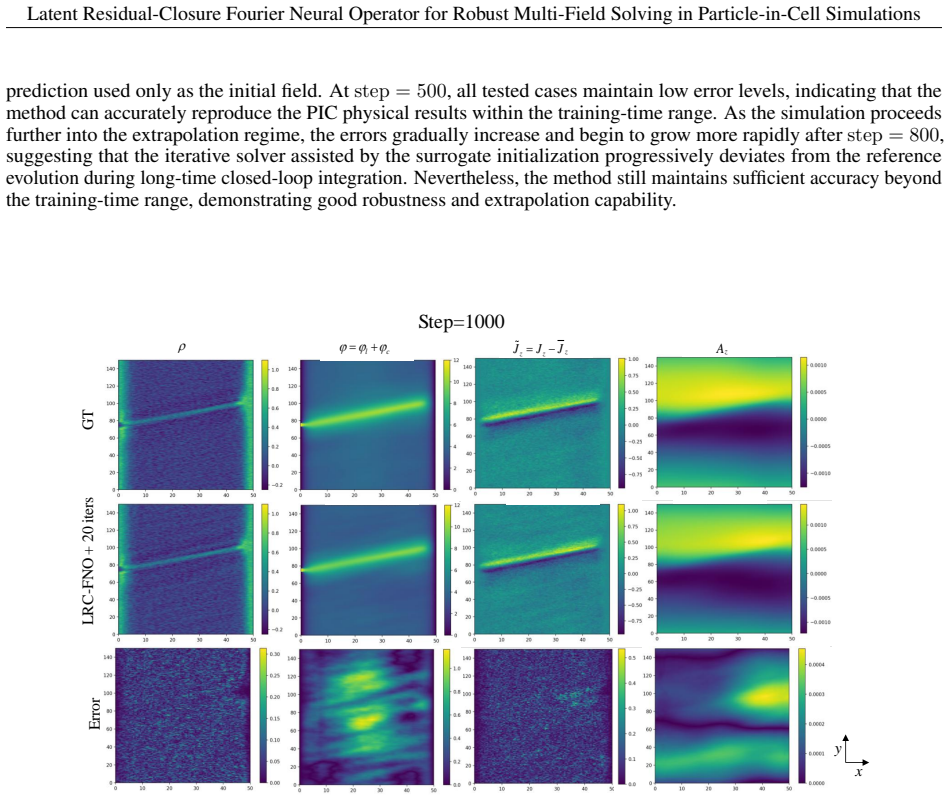

Figure 11. Figure 11: Multi-field distributions and errors at step = 1000 in the SOL-PIC benchmark using LRC-FNO-assisted [PITH_FULL_IMAGE:figures/full_fig_p020_11.png] view at source ↗
Figure 12

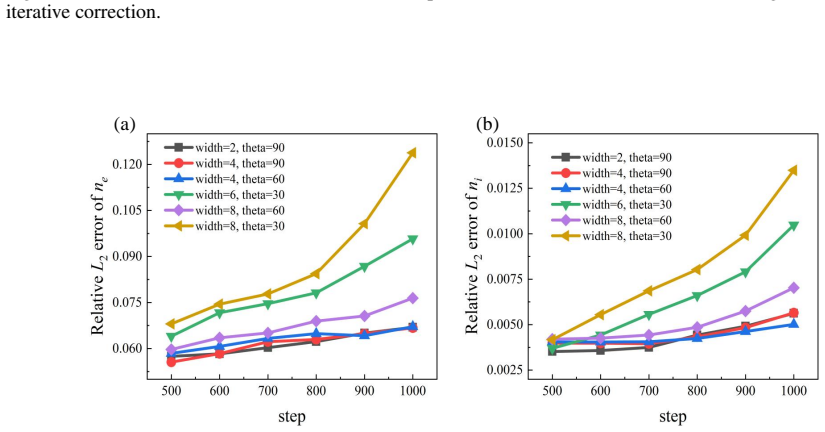

Figure 12. Figure 12: Evolution of relative L2 errors of electron and ion densities in extrapolated SOL-PIC simulations using [PITH_FULL_IMAGE:figures/full_fig_p020_12.png] view at source ↗
read the original abstract

Particle-in-cell (PIC) simulations are widely used for kinetic plasma modeling in energy applications, but their efficiency is often limited by repeated field solves on dense meshes. This work proposes a Latent Residual-Closure Fourier Neural Operator (LRC-FNO) for robust surrogate multi-field solving in PIC simulations. Rather than treating field prediction as a purely data-driven regression task, LRC-FNO formulates PIC field solving as a two-level residual-closure problem involving source compression and source-to-field operator mapping. An autoencoder extracts compact representations of particle-deposited source fields, while a Latent Closure Refiner recovers unresolved residual structures lost during compression. A Coarse-FNO Solver captures the dominant field response, and a Residual-Closure FNO restores full-resolution corrections. The method is tested on three benchmarks with increasing complexity: 1D linear Landau damping (LLD), 2D two-stream instability (TSI), and a 2D scrape-off layer (SOL) fusion plasma model. In LLD and TSI, LRC-FNO better preserves charge-to-potential mapping, potential-mode evolution, residual charge structures, and particle-field energy exchange during closed-loop PIC integration. In the SOL case, LRC-FNO achieves relative L2 errors of 0.0447 for the self-consistent potential and 0.0251 for the magnetic vector potential in single-step prediction. More importantly, when used as a neural initial guess with 20 iterative corrections, LRC-FNO maintains strong physical consistency in extrapolated closed-loop simulations, preserving charge and current density structures over a time range close to twice the training horizon. These results demonstrate that LRC-FNO can serve as both a fast surrogate field solver and a high-quality initialization strategy for iterative PIC field solvers.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript proposes the Latent Residual-Closure Fourier Neural Operator (LRC-FNO) architecture for surrogate multi-field solving in particle-in-cell (PIC) simulations. It frames the problem as a two-level residual-closure task: an autoencoder compresses particle-deposited source fields, a Latent Closure Refiner recovers unresolved residuals, a Coarse-FNO Solver captures dominant responses, and a Residual-Closure FNO supplies full-resolution corrections. Evaluated on 1D linear Landau damping (LLD), 2D two-stream instability (TSI), and 2D scrape-off layer (SOL) benchmarks, the work reports improved preservation of charge-to-potential mapping, potential-mode evolution, residual charge structures, and particle-field energy exchange in closed-loop integration. For the SOL case it gives relative L2 errors of 0.0447 (self-consistent potential) and 0.0251 (magnetic vector potential) in single-step prediction; when used as an initial guess followed by 20 iterative corrections, it maintains physical consistency over a time horizon approximately twice the training length.

Significance. If the central claims on closed-loop consistency hold after rigorous verification, the work would provide a practical route to accelerating PIC field solves while retaining physical fidelity, with the initialization strategy offering immediate utility for existing iterative solvers in fusion-plasma modeling. The two-level residual-closure formulation and the progression across benchmarks of increasing dimensionality are constructive elements. However, the absence of quantitative diagnostics on compression loss and error growth currently limits the assessed impact.

major comments (3)
  1. [Abstract] Abstract (SOL benchmark paragraph): the reported single-step L2 errors (0.0447/0.0251) are presented without accompanying error bars, data-exclusion criteria, or cross-validation statistics; because these numbers underpin the claim of accurate multi-field prediction, their statistical support must be supplied.
  2. [Abstract] Abstract (closed-loop integration paragraph) and method description: the claim that LRC-FNO “maintains strong physical consistency” when supplying an initial guess for 20 iterative corrections rests on the assumption that the autoencoder latent space plus Latent Closure Refiner retain sufficient unresolved source structures; no quantitative diagnostics are given on (a) fraction of source energy or Fourier content lost to compression or (b) error-growth rates of charge/current density when the neural guess is inserted inside the closed loop. These diagnostics are load-bearing for distinguishing architecture-driven consistency from correction-driven consistency.
  3. [Results (LLD/TSI)] Results sections on LLD/TSI closed-loop tests: the statements that LRC-FNO “better preserves charge-to-potential mapping, potential-mode evolution, residual charge structures, and particle-field energy exchange” are not accompanied by tabulated metrics or growth-rate comparisons against the training horizon; without such numbers the extrapolation claim to ~2× training horizon cannot be evaluated.
minor comments (2)
  1. [Method] Notation for the two-level residual-closure formulation should be introduced with explicit equations rather than descriptive paragraphs only.
  2. [Results (SOL)] The manuscript should clarify whether the 20 iterative corrections are performed with the same traditional solver used in the baseline or with a modified procedure.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. We address each major point below and will revise the manuscript accordingly to strengthen the statistical and diagnostic support for our claims.

read point-by-point responses
  1. Referee: [Abstract] Abstract (SOL benchmark paragraph): the reported single-step L2 errors (0.0447/0.0251) are presented without accompanying error bars, data-exclusion criteria, or cross-validation statistics; because these numbers underpin the claim of accurate multi-field prediction, their statistical support must be supplied.

    Authors: We agree that the reported L2 errors require statistical context. In the revised manuscript we will add error bars computed from an ensemble of independent training runs with varied random seeds, explicitly state the data-exclusion criteria, and report the cross-validation procedure used to obtain the quoted values. revision: yes

  2. Referee: [Abstract] Abstract (closed-loop integration paragraph) and method description: the claim that LRC-FNO “maintains strong physical consistency” when supplying an initial guess for 20 iterative corrections rests on the assumption that the autoencoder latent space plus Latent Closure Refiner retain sufficient unresolved source structures; no quantitative diagnostics are given on (a) fraction of source energy or Fourier content lost to compression or (b) error-growth rates of charge/current density when the neural guess is inserted inside the closed loop. These diagnostics are load-bearing for distinguishing architecture-driven consistency from correction-driven consistency.

    Authors: We accept that additional quantitative diagnostics are needed to separate architecture-driven from correction-driven consistency. The revised manuscript will include (a) the retained fraction of source energy and Fourier content after latent compression and (b) explicit error-growth curves for charge and current density when the neural initial guess is used inside the closed-loop solver. These will be presented for the SOL benchmark and, where feasible, for LLD/TSI as well. revision: yes

  3. Referee: [Results (LLD/TSI)] Results sections on LLD/TSI closed-loop tests: the statements that LRC-FNO “better preserves charge-to-potential mapping, potential-mode evolution, residual charge structures, and particle-field energy exchange” are not accompanied by tabulated metrics or growth-rate comparisons against the training horizon; without such numbers the extrapolation claim to ~2× training horizon cannot be evaluated.

    Authors: We agree that tabulated quantitative metrics are required for rigorous evaluation. The revised results sections will contain tables reporting the relevant metrics (charge-to-potential correlation, dominant-mode amplitudes, residual charge norms, and particle-field energy exchange) together with growth-rate comparisons referenced to the training horizon, thereby supporting the stated extrapolation to approximately twice the training length. revision: yes

Circularity Check

0 steps flagged

No significant circularity; empirical architecture evaluation is self-contained

full rationale

The paper introduces LRC-FNO as a composite neural architecture (autoencoder + Latent Closure Refiner + Coarse-FNO + Residual-Closure FNO) for surrogate PIC field solving and reports its performance via L2 errors and closed-loop consistency metrics on LLD, TSI, and SOL benchmarks. No derivation chain, uniqueness theorem, or first-principles reduction is claimed; the method is defined by its components and evaluated directly against simulation data without any step that renames a fit as a prediction or reduces outputs to inputs by construction. Self-citations are absent from the provided text, and the central claims rest on independent numerical tests rather than tautological mappings.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review supplies no information on free parameters, axioms, or invented entities; all fields left empty.

pith-pipeline@v0.9.1-grok · 5858 in / 1004 out tokens · 25252 ms · 2026-06-26T22:06:55.246611+00:00 · methodology
