ArchEval: Measuring AI Agents as Computer Architects

Chenyu Wang , Zishen Wan , Jeffrey Ma , Shvetank Prakash , Zhenting Qi , Haebin Do , Andy Cheng , Arya Tschand
show 3 more authors
Jiahe Shi Yilun Du Vijay Janapa Reddi
This is my paper
classification cs.AR
keywords computer architectureLLM agentsdesign-space explorationsimulator benchmarksperformance predictionArchEvalagent evaluationhardware design
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

ArchEval asks whether language-model agents can do the work of computer architects: read workloads, choose mechanisms, drive simulators, predict performance before measurement, and stay inside hard constraints. It poses twenty design problems spanning CPU cores, memory, accelerators, distributed training, and compute-in-memory, each under three support levels—from a prepared optimization loop with repeated feedback, through raw simulator source the agent must turn into experiments, to static evidence only with no runnable feedback before submission. With the full harness, all four tested agents reach or beat the challenge baselines and improve real designs. When that support is removed, only one configuration stays above baseline, and even that system ranks candidate designs correctly before measurement only about fifteen percent of the time. The paper therefore frames today’s agents as useful optimization assistants inside human-built workflows, not as stand-alone architects, and names the missing skills: simulator-tool use, calibrated prediction, pre-feedback judgment, and useful mechanism discovery.

Core claim

With a prepared harness and repeated simulator feedback, current LLM agents already improve real architecture designs across diverse simulators and meet or exceed challenge baselines; once that support is stripped away, most fall below baseline, and even the strongest configuration reaches only about 1.21× geomean baseline-normalized performance with a 15% performance-modeling pass rate—so today’s agents function as optimization assistants rather than autonomous architects.

What carries the argument

The L1/L2/L3 support ladder: the same architecture task under full harness with repeated verifier feedback (L1), simulator source the agent must assemble into experiments (L2), and static workload evidence with no runnable feedback before submission (L3). Paired with baseline-normalized verifier scores and full trajectory logs, the ladder separates assisted search from simulator-tool use and pre-feedback design judgment.

Load-bearing premise

The general map of “current agents as architects” rests on a single-seed evaluation of twenty intentionally lightweight, budget-bounded challenges with mixed-strength baselines and some process labels produced by one of the agents under test.

What would settle it

A multi-seed re-run in which several independent agent configurations, without the L1 harness, consistently beat the same baselines with calibrated predictions (performance-modeling pass rate well above 15%) across the twenty challenges—or L1 gains vanishing once stronger baselines or longer industrial-scale verifiers replace the lightweight ones.

Watch this falsifier — get emailed when new claim-graph text bears on it.

If this is right

  • Near-term use of agents should keep them inside prepared verifier-simulator loops rather than unsupervised early-stage design.
  • Progress should be measured on simulator-tool use, calibrated prediction, and pre-feedback judgment, not final score alone.
  • Workload analyses should be audited against whether they actually change the submitted design.
  • Resource limits work when stated in program-checkable form and enforced by the verifier; feasibility is not design quality.
  • Next agents need mechanism discovery that survives workload, constraint, and simulator checks, not only recombination of known policies.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same support ladder could diagnose agents in other slow-to-measure design fields, such as chip floorplanning or network-protocol design.
  • Decomposing workload analysis, surrogate modeling, and constraint checking into specialist modules may close the L3 gap faster than scaling one monolith.
  • If performance-modeling pass rates remain near 15%, autonomous architecture research will stay gated by human-built oracles for a long time.
  • As the suite becomes public, held-out or newly contributed challenges will be needed to keep the capability map free of contamination.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

4 major / 6 minor

Summary. ArchEval proposes a simulator-grounded benchmark and platform for evaluating LLM agents as computer architects. It defines 20 design challenges across CPU, system, memory, accelerator, and CIM domains, backed by eight simulators behind a common connector. Each challenge is run under three support levels—L1 full harness with repeated verifier feedback, L2 simulator-source container without a prepared loop, and L3 agent-only with no runnable feedback—while scoring baseline-normalized performance and recording full trajectories. Evaluating four agent configurations, the paper reports that all agents reach or exceed baselines under L1, but performance collapses without support: only GPT-5.5 + Codex remains above baseline at L3 (1.21× geomean, 65% win rate), with a 15% performance-modeling pass rate. The authors conclude that current agents are useful optimization assistants rather than autonomous architects, and identify missing capabilities in simulator-tool use, calibrated prediction, pre-feedback judgment, and mechanism discovery.

Significance. If the empirical pattern holds, this is a substantial contribution to both computer architecture and agent evaluation. Architecture has long measured artifacts (SPEC, MLPerf, etc.) rather than the designer; ArchEval makes the design process itself measurable under controlled experimental support. The L1/L2/L3 protocol is a clean methodological idea: it holds the task and verifier fixed while removing harness and feedback, separating assisted DSE from tool assembly and pre-feedback judgment. The multi-simulator platform (isolation, typed outcomes, baseline normalization, trajectory logging) is serious systems work and is reusable community infrastructure. Strengths include external, simulator-backed scoring; hard-failure typing; concrete case studies (AllReduce DSE, MNSIM L2 sweep, 256 B metadata budget, ASTRA-sim workload-follow); and an unusually candid limitations section. The paper’s main value is as a capability map and diagnostic platform, not as a final leaderboard.

major comments (4)
  1. [§5.1, Table 10] §5.1 and Table 10: the central “sharp boundary” claim (all agents ≥ baseline at L1; only GPT-5.5 + Codex above baseline at L3) rests on one run per agent–challenge–setting. With n=1, geomean/win-rate differences cannot be distinguished from run-to-run variance, especially on stochastic agent systems. §8.3 acknowledges this as preliminary, but the abstract and §6 still generalize to “current agents.” At minimum, report multi-seed results for a subset of challenges (or bootstrap/confidence intervals), or reframe all suite-level claims as a single-seed snapshot of specific configurations rather than a general capability map.
  2. [§5.1, §5.4] §5.1: agent configurations confound model capability with harness infrastructure—GPT-5.5 uses the Codex CLI backend, while the other three use MiniSWE. L2 tool-use analysis (§5.4, Table 12) even excludes GPT-5.5 because its shell/file actions are not recorded in the MiniSWE stream. The L1→L3 collapse and “assistant vs. architect” framing may therefore be harness-specific. Either evaluate at least one shared harness across models, or systematically qualify every cross-agent comparison as configuration-level rather than model-level (the paper sometimes does this, but not consistently in the abstract and findings).
  3. [§6.1, §6.4] §6.1 (Tables 15–16) and §6.4 (Table 20): workload-grounding, design-following, and novelty labels are produced by Gemma 4 31B, which is itself one of the four evaluated agents. This creates a circularity risk for process claims (an evaluated system judging peers and, in part, itself). Primary verifier scores remain external and non-circular, but Findings 1 and 5 depend on these labels. Use an independent judge model (or human audit on a sample) and report inter-rater agreement; until then, treat those findings as provisional relative signals, as §8.3 already half-suggests.
  4. [§3.2, Appendix A] §3.2 and Appendix A: baselines are of mixed provenance and strength (LRU, stock bimodal, hand-written references, one published Gibbon design). Beating a weak baseline is not the same as architectural competence. The paper reports win rate and hard failures, which helps, but does not quantify baseline strength (e.g., gap to a known strong human or published design where available). For the L3 “below baseline” narrative especially, a short baseline-strength audit would make the assistant-vs-architect claim more robust.
minor comments (6)
  1. [Table 5] Table 5 marks ArchEval L1 as lacking workload analysis and performance prediction; this is protocol coverage, not agent inability, but the table can be misread as capability results. Clarify the caption that checkmarks are “exposed by the protocol,” not “demonstrated by agents.”
  2. [Figure 5, Table 10] Figure 5(c) L3/L1 retained geomean is useful; add absolute hard-failure counts beside win rates in Table 10 so readers can see whether L3 losses are invalid submissions or valid-but-weak designs (partially addressed in §5.5 text).
  3. [§5.5, Table 13] The performance-modeling pass criterion (Kendall τ ≥ 0.6, executable design-sensitive model, ≥3 measured candidates) is a free parameter. Briefly justify the 0.6 threshold or show sensitivity at nearby cutoffs.
  4. [§6.4, Table 20] Novelty criterion (“beyond recombining ≤3 known policies”) is reasonable but underspecified for hybrid designs; a short appendix example of borderline cases would help reproducibility of Table 20.
  5. [§5.1] Several model names (GPT-5.5, Gemini 3.5 Flash, Gemma 4 31B) will date quickly; pin exact API/model identifiers and dates in §5.1 for reproducibility.
  6. [Appendix C] Appendix trajectory excerpts are valuable; consider moving one fully annotated L1 vs L3 pair into the main body to illustrate the protocol for readers who skip the appendix.

Circularity Check

1 steps flagged

Main L1–L3 performance claims rest on independent simulator verifiers and baselines; only minor non-load-bearing circularity in using an evaluated agent (Gemma 4 31B) as trajectory judge for auxiliary process labels.

specific steps
  1. other [Section 6.1 / Table 15; also Tables 16, 20 and Section 8.3]
    "Grounded and Guides design are labeled by Gemma 4 31B. ... In this version, the trajectory rubric uses Gemma 4 31B for semantic questions such as workload grounding, originality, and artifact-rationale consistency, so those judgments should be treated as relative signals that require further calibration."

    Process diagnostics that support Findings 1 (workload analyses often ungrounded or unused) and 5 (little genuine mechanism novelty) are produced by Gemma 4 31B, which is itself one of the four agents under evaluation. For that agent the labels are therefore partly self-referential, and the judge may share architectural or training biases with the systems being scored. The paper acknowledges the need for further calibration; the labels remain non-load-bearing because the primary L1/L2/L3 performance numbers and the assistant-vs-architect framing rest on independent simulator verifiers, not on these semantic judgments.

full rationale

ArchEval is an empirical benchmark paper, not a first-principles derivation. Its central claims (all agents ≥ baseline under L1 full harness; only GPT-5.5 + Codex remains above baseline at L3 with 1.21× geomean / 65% win rate and 15% performance-modeling pass rate) are produced by isolated canonical verifier simulators that score submitted artifacts against per-challenge baselines via typed outcomes (SIM_OK, BUILD_FAIL, etc.) and baseline-normalized metrics. Those measurements do not reduce to the paper’s own inputs by construction, nor do they rely on fitted parameters renamed as predictions or on uniqueness theorems imported from the authors. The sole residual circularity is auxiliary: Gemma 4 31B (itself one of the four evaluated agent configurations) supplies the semantic labels for workload grounding, design-following, and novelty that support Findings 1 and 5 and Tables 15–16/20. The paper itself flags these as “relative signals that require further calibration” (Section 8.3). Because the labels are not load-bearing for the headline geomean/win-rate results, the circularity is minor and non-central, corresponding to score 2 rather than 0 or higher.

Axiom & Free-Parameter Ledger

3 free parameters · 4 axioms · 3 invented entities

ArchEval is an empirical systems/benchmark paper. Its claims rest on domain conventions of simulator-grounded architecture evaluation, a constructed challenge suite and baselines, and operational definitions of agent capability—not on free physical constants or new physical entities. The load-bearing modeling choices are the L1/L2/L3 support ladder, baseline-normalized scoring, and the trajectory rubric.

free parameters (3)
  • performance-modeling pass threshold (Kendall τ ≥ 0.6 plus executable design-sensitive model and ≥3 measured candidates) = τ ≥ 0.6
    The 15% pass-rate headline depends on this hand-chosen agreement threshold and gate structure (Table 13 / Section 5.5).
  • per-challenge verifier-attempt caps and runtime budgets = challenge-specific (e.g., 10/1/1 or 5/5/1)
    Caps such as L1/L2/L3 attempt limits and ~2-hour verifier budgets shape which designs can be explored and which challenges enter the suite (Appendix A, Section 4.3).
  • novelty criterion (beyond recombining ≤3 known policies with parameter tuning) = ≤3 known policies
    The novelty finding is defined by this audit rule on six code-authoring challenges (Table 20).
axioms (4)
  • domain assumption Simulator-backed, baseline-normalized metrics are a valid proxy for architecture design quality within each challenge.
    Stated throughout Sections 1 and 3; architecture quality is measured by ChampSim/gem5/etc. rather than silicon.
  • ad hoc to paper Holding the task fixed while removing prepared harness and simulator feedback isolates architect-relevant capabilities (assisted DSE, tool use, pre-feedback judgment).
    Core methodological claim of the L1/L2/L3 protocol (Section 3.3, Table 4).
  • domain assumption Lightweight challenges with bounded runtimes still require real architecture decisions rather than toy puzzles.
    Explicit design choice in Section 3.2; needed to make agent evaluation practical.
  • domain assumption Complete agent configurations (model + harness) are the right unit of comparison, not base models alone.
    Section 5.1; GPT-5.5 uses Codex while others use MiniSWE.
invented entities (3)
  • ArchEval L1/L2/L3 evaluation settings independent evidence
    purpose: Vary experimental support while keeping task, workload, verifier, and baseline fixed.
    Central invented protocol construct; not a physical entity, but the paper’s main measurement device.
  • Architecture-agent capability map (prediction, optimization, generation) with trajectory rubric dimensions no independent evidence
    purpose: Interpret final scores in terms of workload analysis, tool use, performance judgment, constraints, and integrity.
    Organizing framework in Section 2 and Table 6; operationalized by process labels.
  • Connector-mediated multi-simulator verifier platform independent evidence
    purpose: Present heterogeneous simulators through a uniform agent tool interface with isolation and logging.
    Platform contribution in Section 4; engineering entity enabling the benchmark.

pith-pipeline@v1.1.0-grok45 · 42165 in / 3579 out tokens · 31474 ms · 2026-07-12T01:15:45.725695+00:00 · methodology

0 comments
read the original abstract

Computer architecture has long used benchmarks to make progress measurable. LLM agents create a different measurement problem: success is not merely writing code or tuning parameters. The agent must interpret workloads, choose mechanisms, use simulators, predict performance, satisfy hard constraints, and decide which feasible design is worth evaluating. This paper introduces ArchEval, a benchmark and platform for evaluating LLM agents on computer architecture design and optimization. It contains 20 challenges across CPU core mechanisms, system architecture, memory systems, accelerators, and compute-in-memory, backed by eight simulators. Each challenge is posed under three settings: L1 full harness, with repeated simulator feedback; L2 simulator-code container, where simulator source is available but the agent must assemble its own workflow; and L3 agent-only, with no runnable feedback before submission. Each run reports baseline-normalized verifier performance and records the full trajectory, connecting results to workload analysis, simulator-tool use, prediction, constraint handling, and artifact integrity. Initial results show a sharp boundary in current agents. With L1 support, all four evaluated agents reach or exceed baseline and improve real designs across diverse simulators. Removing support exposes weaknesses: many agents fail to turn simulator source into useful experiments, and L3 predictions often disagree with verifier results. In L3, only GPT-5.5 + Codex remains above baseline, reaching 1.21x geomean performance and a 65% win rate; the other three fall below baseline. Even GPT-5.5 + Codex has only a 15% performance-modeling pass rate. ArchEval frames today's agents as useful optimization assistants rather than autonomous architects, and identifies capabilities needed next: simulator-tool use, calibrated prediction, pre-feedback judgment, and useful mechanism discovery.

Figures

Figures reproduced from arXiv: 2607.03601 by Andy Cheng, Arya Tschand, Chenyu Wang, Haebin Do, Jeffrey Ma, Jiahe Shi, Shvetank Prakash, Vijay Janapa Reddi, Yilun Du, Zhenting Qi, Zishen Wan.

Figure 1
Figure 1. Figure 1: ArchEval evaluates LLM agents as computer archi [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: ArchEval evaluates agents through a controlled architecture-design workflow. [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: One task, three evaluation settings. A worked example: the same cache replacement task is posed under L1 to L3 using the same agent. What changes is the prompt’s requirement, the experimental support available to the agent (L2 gets simulator source; L3 gets only static workload evidence), and how verifier feedback is used. L1 can iterate on repeated measurements; L2 and L3 stop at the first valid verifier … view at source ↗
Figure 4
Figure 4. Figure 4: Challenge-suite composition. Distribution of the 20 final challenges by architecture domain. changes across evaluation settings and distinguish performance failures from simulator-tool, constraint, and shortcut failures. 5 Experiments In this section we discuss early evaluation results from ArchEval. We first describe the experimental setup (Section 5.1), then report the main results across the three evalu… view at source ↗
Figure 5

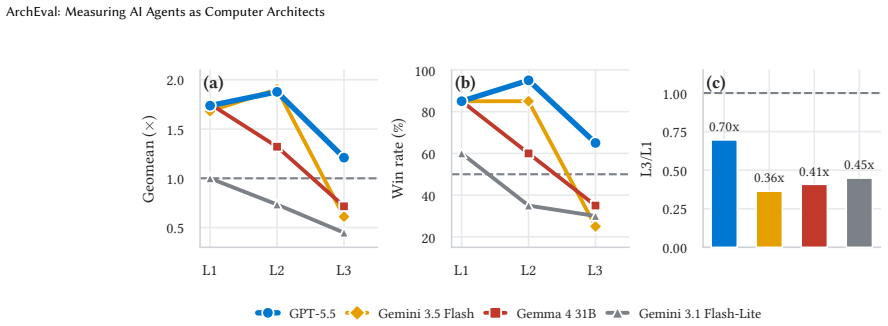

Figure 5. Figure 5: Performance drops most sharply when agents lose simulator feedback. [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: L1 agents improve with repeated verifier-simulator [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗
