Information Terra: A Narrative-Anchored Semantic-First Projection of Document Embeddings

Brian Keith-Norambuena , Fausto German , Chris North This is my paper

Pith reviewed 2026-07-01 01:46 UTC · model grok-4.3

classification 💻 cs.HC cs.CLcs.IR
keywords document embeddingsnarrative projectionsemantic visualizationglobe metaphorstoryline extractionnarrative coherence graphCuban protests corpus
0
0 comments X

The pith

Document embeddings are projected onto a globe whose poles are two user-chosen endpoint documents, with latitude encoding narrative progress along their geodesic.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a projection method that places a corpus of documents on an Earth-like globe. The two poles are selected by the user as endpoint documents, and the great-circle geodesic between them serves as the prime meridian. Latitude then encodes how far along the narrative one has progressed, while longitude captures thematic deviation from that line. This allows for a readable storyline via a constrained narrative trail and uses the globe metaphor for interactive exploration like rotation. The method is demonstrated on a corpus of 540 articles about Cuban protests, tracing events from Obama's 2016 visit to 2021 international aid.

Core claim

Information Terra is a narrative-anchored semantic-first projection that places a document corpus on an Earth-like globe whose poles are two user-chosen endpoint documents and whose prime meridian is the great-circle geodesic between them on the embedding hypersphere so latitude encodes narrative progress and longitude thematic deviation. Land features are recovered from document density via kernel density estimation and labeled by theme. A narrative trail built from the underlying narrative coherence graph, and constrained to be monotone in geodesic progress, provides a readable storyline. The projection's axes are semantically grounded in the user's chosen narrative endpoints, and the glob

What carries the argument

Narrative-anchored globe projection on the embedding hypersphere with user-chosen endpoints as poles and the great-circle geodesic as prime meridian.

If this is right

  • The projection allows rotation and antipodal reading of documents due to the globe metaphor.
  • A narrative trail constrained to remain monotone in geodesic progress supplies a readable storyline.
  • Land features on the globe are recovered from document density via kernel density estimation and labeled by theme.
  • The method was shown to trace a storyline across the 540-article Cuban protests corpus from Obama's 2016 visit to 2021 international aid.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same anchoring approach could be tested on other corpora such as scientific papers to surface research timelines.
  • Interactive tools built around the globe could let multiple users select different endpoint pairs to compare alternative narratives in the same collection.
  • Changes in the underlying embedding model might require checking whether the new geodesic still produces a monotone trail that matches known event order.

Load-bearing premise

The embedding space permits a meaningful great-circle geodesic between the two user-chosen endpoint documents that aligns with narrative progress.

What would settle it

In the Cuban protests corpus, the monotone-constrained narrative trail fails to follow the documented progression from the 2016 visit through to the 2021 aid events without backward jumps or gaps.

Figures

Figures reproduced from arXiv: 2606.30824 by Brian Keith-Norambuena, Chris North, Fausto German.

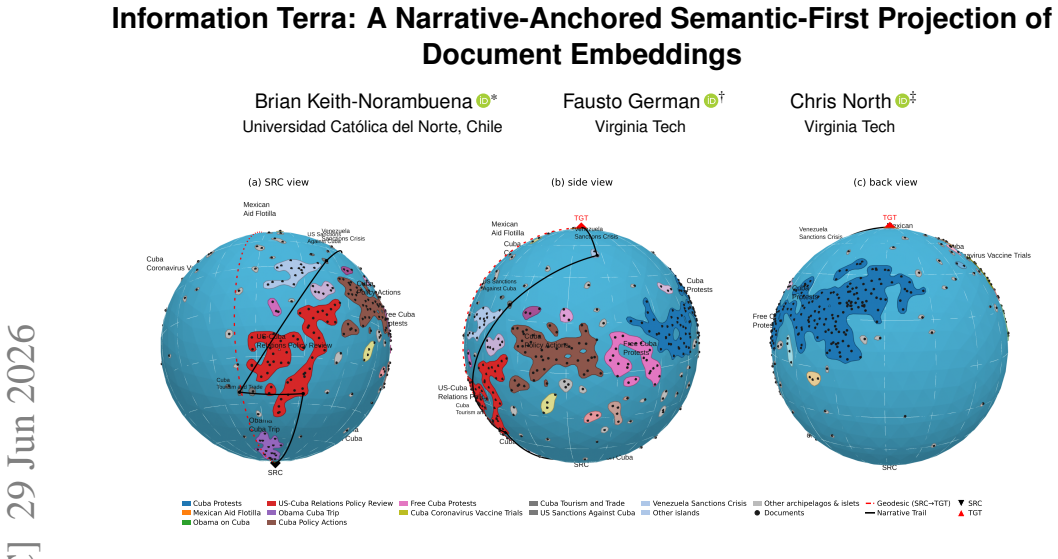

Figure 1
Figure 1. Figure 1: Information Terra. Reference narrative from Obama’s comments on Cuba (source event, south pole) to the 2021 Mexican aid flotilla (target event, north pole) on a 540-article Cuba-U.S. corpus, rendered as a globe seen from three angles: (a) tilted to show the storyline from its start, (b) a side view surfacing continents away from the prime meridian, (c) a back view with the storyline on the far hemisphere. … view at source ↗

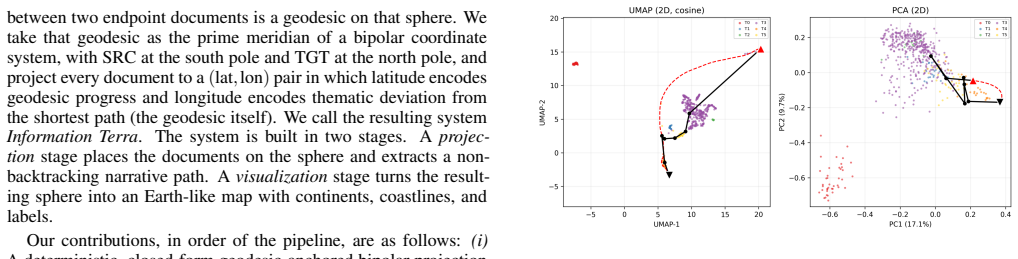

Figure 2
Figure 2. Figure 2: Why the globe helps. Flat UMAP [18] (left) and PCA (right) of the same Cuba-U.S. corpus, with the SLERP geodesic (red dashed) and unconstrained MCP (black) overlaid. The axes are chosen by topology (UMAP’s neighborhood graph) or variance (PCA’s principal components), not by the intended narrative struc￾ture; as a result the geodesic loops outside the document cloud in both cases. These layouts come from va… view at source ↗

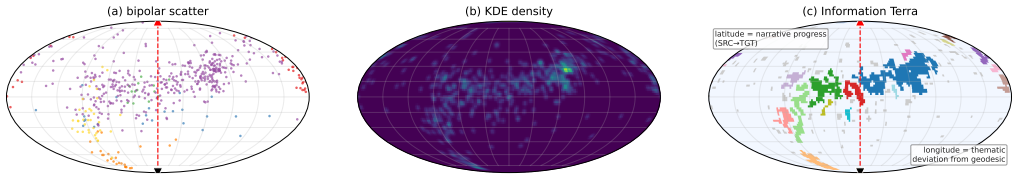

Figure 3
Figure 3. Figure 3: Pipeline of the Information Terra construction (Mollweide unfoldings of the reference sphere).Projection stage: (a) documents in bipolar (lat,lon) coordinates, colored by HDBSCAN topic; SRC/TGT are the south/north poles and the red dashed line is the SLERP geodesic at lon = 0. Visualization stage: (b) Gaussian KDE on the sphere with bandwidth σ = 0.7× median nearest-neighbor distance; color encodes density… view at source ↗

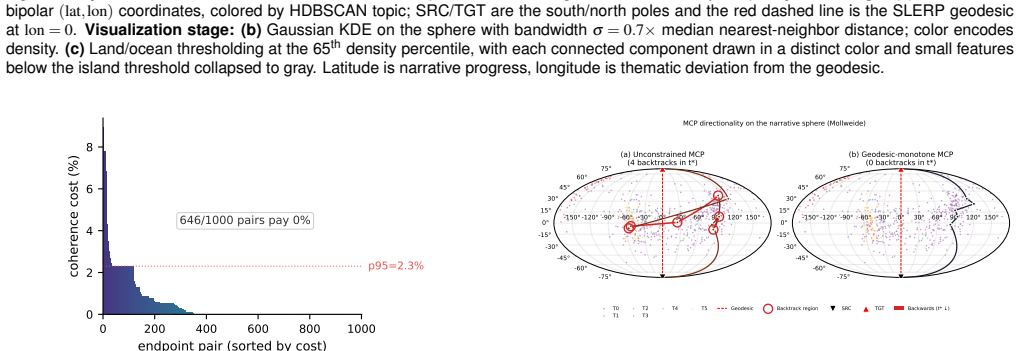

Figure 5
Figure 5. Figure 5: Geodesic directionality constraint. Mollweide unfold￾ing of the narrative sphere with a representative example (endpoints 166 and 338). (a) the unconstrained MCP backtracks in latitude four times (red segments; circled nodes mark the violated regions); (b) the geodesic-monotone variant advances the narrative at every step, at a 0.5% relative cost in minimum edge coherence (0.863 → 0.859) [PITH_FULL_IMAGE:… view at source ↗

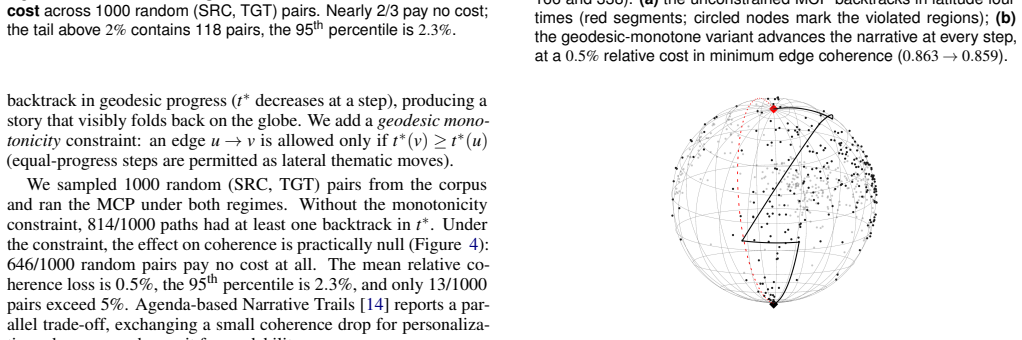

Figure 6
Figure 6. Figure 6: Projection separable from visualization. Same (lat,lon) output as [PITH_FULL_IMAGE:figures/full_fig_p003_6.png] view at source ↗
read the original abstract

We introduce Information Terra, a narrative-anchored semantic-first projection that places a document corpus on an Earth-like globe whose poles are two user-chosen endpoint documents and whose prime meridian is the great-circle geodesic between them on the embedding hypersphere -- so latitude encodes narrative progress and longitude thematic deviation. Land features are recovered from document density via kernel density estimation and labeled by theme. A narrative trail built from the underlying narrative coherence graph, and constrained to be monotone in geodesic progress, provides a readable storyline. The projection's axes are semantically grounded in the user's chosen narrative endpoints, and the globe metaphor affords rotation and antipodal reading. We demonstrate the method on a 540-article Cuban Protests corpus, showing a storyline from Obama's 2016 visit to the 2021 International Aid during the protests.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces Information Terra, a narrative-anchored projection that embeds a document corpus on an Earth-like globe with user-chosen endpoint documents as poles and the great-circle geodesic on the embedding hypersphere as prime meridian, so that latitude encodes narrative progress and longitude encodes thematic deviation. Land features are derived via kernel density estimation on document density and labeled by theme; a narrative trail is extracted from a coherence graph and constrained to remain monotone along the geodesic. The globe metaphor is claimed to support rotation and antipodal reading. The method is demonstrated qualitatively on a 540-article Cuban Protests corpus, tracing a storyline from Obama's 2016 visit to 2021 international aid.

Significance. If the core geometric assumption holds and can be validated, the approach would supply an interpretable, user-controllable visualization for narrative analysis of document collections that leverages familiar geographic metaphors and semantic grounding in chosen endpoints. The absence of any equations, quantitative metrics, error analysis, or baseline comparisons in the current manuscript, however, leaves the practical utility and novelty unestablished.

major comments (2)
  1. [Abstract / Demonstration] Abstract and demonstration: the central claim requires that the great-circle geodesic between the two user-chosen endpoints on the embedding hypersphere aligns with narrative progress (latitude), yet no argument, embedding-property analysis, or quantitative check (e.g., Spearman correlation of geodesic position with temporal order or human narrative ratings, independent of the monotone constraint) is supplied; the single qualitative Cuban corpus example therefore cannot confirm the alignment.
  2. [Method description] Method description: no equations or pseudocode are given for the projection itself, the geodesic computation, the kernel density estimation used for land features, or the precise monotone constraint applied to the narrative coherence graph, rendering the method non-reproducible and preventing assessment of whether the claimed properties follow from the construction.
minor comments (2)
  1. The construction of the 'narrative coherence graph' (nodes, edges, and coherence metric) is referenced but never defined or sourced to prior work.
  2. No details are provided on how the globe is rendered, how rotation is implemented in the interface, or how antipodal reading is supported.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive report. We address each major comment below and will revise the manuscript to incorporate the suggested improvements for rigor and reproducibility.

read point-by-point responses

  1. Referee: [Abstract / Demonstration] Abstract and demonstration: the central claim requires that the great-circle geodesic between the two user-chosen endpoints on the embedding hypersphere aligns with narrative progress (latitude), yet no argument, embedding-property analysis, or quantitative check (e.g., Spearman correlation of geodesic position with temporal order or human narrative ratings, independent of the monotone constraint) is supplied; the single qualitative Cuban corpus example therefore cannot confirm the alignment.

    Authors: We acknowledge that the manuscript relies on a qualitative demonstration and does not supply an independent quantitative validation of the alignment between geodesic position and narrative progress. The projection is constructed by design with user-selected narrative endpoints as poles, making the geodesic the narrative axis; however, we agree that an explicit argument or metric would strengthen the central claim. In revision we will add a Spearman rank correlation between geodesic latitude and document timestamps within the Cuban protests corpus, together with a short discussion of embedding-space properties that motivate the choice. revision: yes

  2. Referee: [Method description] Method description: no equations or pseudocode are given for the projection itself, the geodesic computation, the kernel density estimation used for land features, or the precise monotone constraint applied to the narrative coherence graph, rendering the method non-reproducible and preventing assessment of whether the claimed properties follow from the construction.

    Authors: The referee is correct that the absence of formal specifications prevents reproducibility. The original manuscript emphasized the conceptual framework and qualitative results. We will add the mathematical definitions for the hyperspherical projection, great-circle geodesic, kernel density estimation for land features, and the precise monotone constraint on the coherence graph, either in the main text or as an appendix. revision: yes

Circularity Check

0 steps flagged

No circularity: projection defined constructively by user endpoints and standard operations

full rationale

The method is presented as a user-anchored visualization technique whose axes are set by explicit choices (endpoint documents as poles, geodesic as meridian) and standard operations (hypersphere geometry, KDE, monotone graph constraint). No equations, fitted parameters, or self-citations are shown that reduce any claimed result back to the inputs by construction. The Cuban corpus example is an application of the defined procedure rather than a derivation that loops. The central claim remains a definitional projection method, self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Review is based solely on the abstract; no free parameters, axioms, or invented entities are specified in the provided text.

pith-pipeline@v0.9.1-grok · 5670 in / 1175 out tokens · 30786 ms · 2026-07-01T01:46:53.023277+00:00 · methodology
