Mesophase Formation Stabilizes High-Purity Magic-Sized Clusters

Douglas R. Nevers , Curtis B. Williamson , Benjamin H. Savitzky , Ido Hadar , Uri Banin , Lena F. Kourkoutis , Tobias Hanrath , Richard D. Robinson This is my paper

Pith reviewed 2026-05-25 15:10 UTC · model grok-4.3

classification ⚛️ physics.app-ph cond-mat.mes-hall
keywords magic-sized clustersmesophasehigh-concentration synthesisnanoparticle growthsurfactant assemblyin-situ X-ray scatteringcluster stabilization
0
0 comments X

The pith

High-concentration synthesis produces high-purity magic-sized clusters stabilized by a self-assembled mesophase.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that magic-sized clusters can be made at greater than 99.9 percent purity when the reaction is run at 1000 mM precursor concentration. At this high concentration a large hexagonal organic-inorganic mesophase appears and holds the clusters at fixed size, blocking the usual conversion into larger nanoparticles. At 500 mM the same mesophase forms but later breaks down, allowing nanoparticles to grow at the expense of the clusters. Below 200 mM or with high acid-to-metal ratios, nanoparticles form instead of stable clusters. The work therefore proposes that mesophase assembly supplies an independent route to cluster stability that does not rely on closed-shell atomic packing alone.

Core claim

High precursor concentrations (1000 mM) drive formation of a stable hexagonal organic-inorganic mesophase greater than 100 nm in grain size that arrests magic-sized cluster growth, yielding products greater than 99.9 percent pure and resistant to typical dissolution or nanoparticle conversion; at intermediate concentrations the mesophase is transient and nanoparticles appear, while at low concentrations nanoparticles dominate.

What carries the argument

The hexagonal organic-inorganic mesophase greater than 100 nm in grain size that forms at high concentration and arrests further growth of the clusters.

If this is right

  • MSCs synthesized at 1000 mM reach greater than 99.9 percent purity and resist growth or dissolution.
  • At 500 mM the mesophase forms but later collapses, permitting nanoparticle growth.
  • Below 200 mM or above 16 acid-to-metal ratio, nanoparticle formation overtakes MSC formation.
  • Anisotropic clusters can be stabilized through fibrous mesophase assemblies in addition to closed-shell packing.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same concentration-driven mesophase route might be tested in other surfactant-mediated cluster or nanocrystal systems to improve size uniformity.
  • Designing reactions to favor mesophase formation could offer a general handle for controlling cluster versus nanoparticle outcomes without changing ligand chemistry.
  • In-situ scattering comparisons across concentrations provide a practical way to map when mesophase stability coincides with cluster purity.

Load-bearing premise

The mesophase itself is what stops the clusters from growing rather than simply appearing at the same time as the stable clusters.

What would settle it

In-situ X-ray scattering at 1000 mM that shows the clusters remain stable after the mesophase is removed or prevented from forming would falsify the causal claim.

Figures

Figures reproduced from arXiv: 1906.10997 by Benjamin H. Savitzky, Curtis B. Williamson, Douglas R. Nevers, Ido Hadar, Lena F. Kourkoutis, Richard D. Robinson, Tobias Hanrath, Uri Banin.

Figure 1

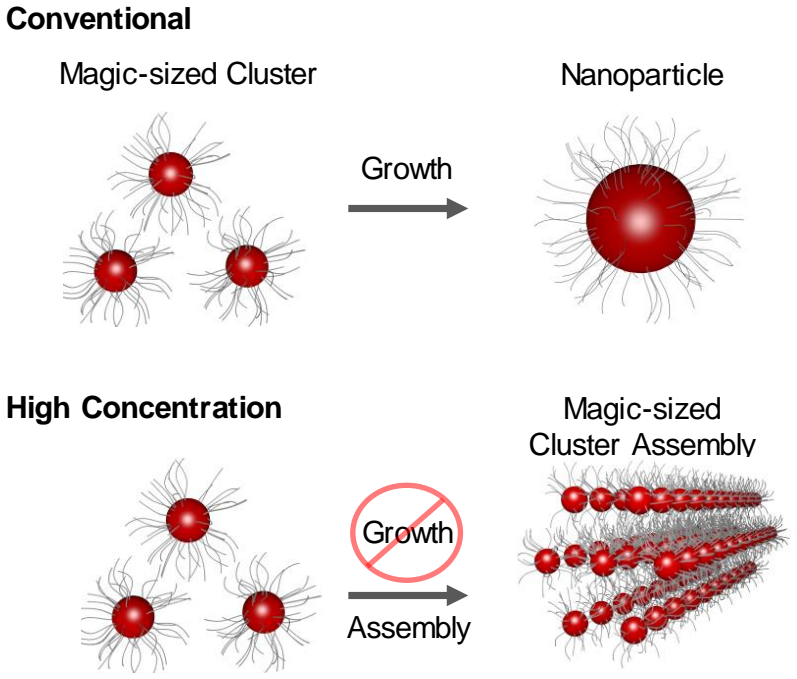

Figure 1. Figure 1: Synthesis Pathways. (a) Schematic illustrating the fundamental differences in reaction pathways between conventional (100 mM) synthesis and high concentration (1000 mM) synthesis. For conventional synthesis, nuclea￾tion and growth occur simultaneously; in contrast, at high concentrations, the synthesis stops after the MSC for￾mation/nucleation because of the formation of a MSC assembly. Nanoparticle High C… view at source ↗
read the original abstract

Magic-sized clusters (MSCs) are renowned for their identical size and closed-shell stability that inhibit conventional nanoparticle (NP) growth processes. Though MSCs have been of increasing interest, understanding the reaction pathways toward their nucleation and stabilization is an outstanding issue. In this work, we demonstrate that high concentration synthesis (1000 mM) promotes a well-defined reaction pathway to form high-purity MSCs (greater than 99.9 percent). The MSCs are resistant to typical growth and dissolution processes. Based on insights from in-situ X-ray scattering analysis, we attribute this stability to the accompanying production of a large, hexagonal organic-inorganic mesophase (greater than 100 nm grain size) that arrests growth of the MSCs and prevents NP growth. At intermediate concentrations (500 mM), the MSC mesophase forms, but is unstable, resulting in NP growth at the expense of the assemblies. These results provide an alternate explanation for the high stability of MSCs. Whereas the conventional mantra has been that the stability of MSCs derives from the precise arrangement of the inorganic structures (i.e., closed-shell atomic packing), we demonstrate that anisotropic clusters can also be stabilized by self-forming fibrous mesophase assemblies. At lower concentration (less than 200 mM or greater than 16 acid-to-metal), MSCs are further destabilized and NPs formation dominates that of MSCs. Overall, the high concentration approach intensifies and showcases inherent concentration-dependent surfactant phase behavior that is not accessible in conventional (i.e., dilute) conditions. This work provides not only a robust method to synthesize, stabilize, and study identical MSC products, but also uncovers an underappreciated stabilizing interaction between surfactants and clusters.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript claims that high-concentration (1000 mM) synthesis produces high-purity (>99.9%) magic-sized clusters (MSCs) that resist growth and dissolution. In-situ X-ray scattering shows this occurs alongside formation of a large (>100 nm grain size) hexagonal organic-inorganic mesophase that arrests MSC growth and prevents nanoparticle formation. At 500 mM the mesophase is unstable and NPs grow at MSC expense; below 200 mM or above 16 acid-to-metal ratio, no mesophase forms and NPs dominate. The work presents this mesophase stabilization as an alternative to conventional closed-shell atomic packing arguments.

Significance. If the mechanistic attribution holds, the result supplies a scalable route to high-purity MSCs and demonstrates that surfactant mesophase formation can stabilize anisotropic clusters, an under-appreciated interaction in colloidal synthesis. The concentration-series design with in-situ scattering provides direct phase information not available in dilute conventional protocols.

major comments (2)
  1. [Abstract and in-situ X-ray scattering analysis] Abstract and in-situ X-ray scattering analysis: the attribution that the mesophase 'arrests growth of the MSCs and prevents NP growth' rests on concentration correlations (1000 mM: stable MSCs + mesophase; 500 mM: unstable mesophase + NP growth; <200 mM: no mesophase + NPs). No experiments are reported that isolate mesophase presence from the high-concentration surfactant environment (e.g., addition of pre-formed mesophase to dilute MSC reactions or selective disruption of the mesophase at fixed concentration). This correlative evidence is load-bearing for the central stabilization claim.
  2. [Abstract] Abstract: the stated >99.9% MSC purity is a quantitative claim central to the 'high-purity' title and abstract, yet the metric (scattering intensity ratios, size-distribution fitting, or other) and its uncertainty are not specified. Without this, the strength of the concentration-dependent purity improvement cannot be evaluated.
minor comments (1)
  1. [Abstract] Abstract: repeated use of spelled-out 'greater than' for numerical comparisons reduces readability; standard inequality symbols would improve clarity.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the constructive comments on our manuscript. We respond point-by-point below. Where the evidence is correlative we have added appropriate caveats; the purity metric has been specified explicitly in the revision.

read point-by-point responses

  1. Referee: [Abstract and in-situ X-ray scattering analysis] Abstract and in-situ X-ray scattering analysis: the attribution that the mesophase 'arrests growth of the MSCs and prevents NP growth' rests on concentration correlations (1000 mM: stable MSCs + mesophase; 500 mM: unstable mesophase + NP growth; <200 mM: no mesophase + NPs). No experiments are reported that isolate mesophase presence from the high-concentration surfactant environment (e.g., addition of pre-formed mesophase to dilute MSC reactions or selective disruption of the mesophase at fixed concentration). This correlative evidence is load-bearing for the central stabilization claim.

    Authors: We agree that the central claim rests on concentration-dependent correlations supplemented by in-situ X-ray scattering that shows temporal coincidence between mesophase appearance and MSC stability. No isolating experiments (pre-formed mesophase addition or selective disruption at fixed concentration) were performed. In the revised text we have softened the language in the abstract and discussion to 'the data are consistent with mesophase-mediated arrest' and have added a paragraph outlining the correlative nature together with suggested future isolating experiments. The in-situ time series at 1000 mM and 500 mM still provide direct phase information unavailable in conventional dilute protocols. revision: partial

  2. Referee: [Abstract] Abstract: the stated >99.9% MSC purity is a quantitative claim central to the 'high-purity' title and abstract, yet the metric (scattering intensity ratios, size-distribution fitting, or other) and its uncertainty are not specified. Without this, the strength of the concentration-dependent purity improvement cannot be evaluated.

    Authors: We have revised the abstract and added a methods paragraph specifying that >99.9 % purity is obtained from the ratio of integrated MSC Bragg peak intensity to the integrated intensity of any larger-particle scattering feature (or background) in SAXS, with the 0.1 % upper bound set by the noise floor of the detector. Uncertainty is estimated from three replicate syntheses at each concentration; the revised text now reports both the metric and the replicate standard deviation. revision: yes

standing simulated objections not resolved
  • No isolating experiments (addition of pre-formed mesophase to dilute reactions or selective mesophase disruption at fixed concentration) were performed; such data cannot be supplied without new experimental work.

Circularity Check

0 steps flagged

No circularity; experimental observations are independent

full rationale

The paper reports an experimental study that varies precursor concentration (1000 mM, 500 mM, <200 mM) and records outcomes via in-situ X-ray scattering. The attribution of MSC stability to mesophase formation rests on observed correlations across these conditions, not on any equations, fitted parameters, or derivations. No self-definitional steps, predictions that reduce to inputs by construction, or load-bearing self-citations appear in the provided text. The central claim is therefore self-contained against external benchmarks of concentration-dependent phase behavior.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The work is experimental and relies on standard assumptions of colloidal synthesis and X-ray interpretation; no new mathematical axioms or postulated particles are introduced.

free parameters (1)
  • synthesis concentration thresholds (1000 mM, 500 mM, <200 mM)
    Experimental conditions chosen to access different mesophase stability regimes.
axioms (1)
  • domain assumption In-situ X-ray scattering reliably reports the presence and grain size of the organic-inorganic mesophase.
    Invoked when attributing stability to the mesophase observed at high concentration.
