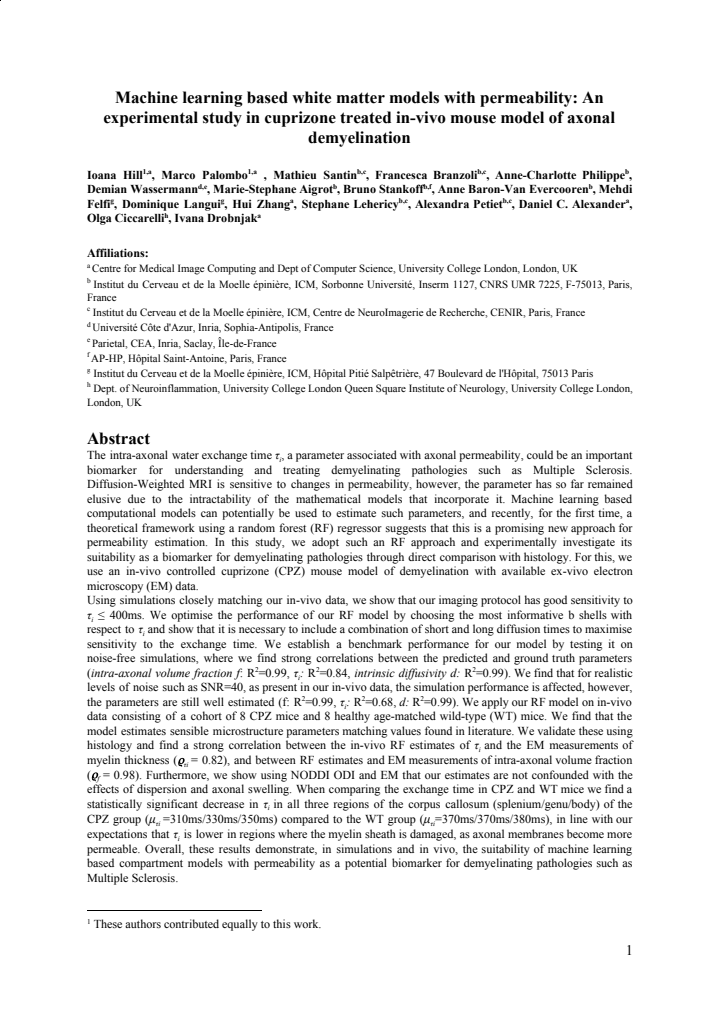

Machine learning based white matter models with permeability: An experimental study in cuprizone treated in-vivo mouse model of axonal demyelination

Alexandra Petiet; Anne Baron-Van Evercooren; Anne-Charlotte Philippe; Bruno Stankoff; Daniel C. Alexander; Demian Wassermann; Dominique Langui; Francesca Branzoli; Hui Zhang; Ioana Hill

arxiv: 1907.02324 · v1 · pith:M2BTV6DLnew · submitted 2019-07-04 · ⚛️ physics.med-ph · q-bio.NC

Machine learning based white matter models with permeability: An experimental study in cuprizone treated in-vivo mouse model of axonal demyelination

Ioana Hill , Marco Palombo , Mathieu Santin , Francesca Branzoli , Anne-Charlotte Philippe , Demian Wassermann , Marie-Stephane Aigrot , Bruno Stankoff

show 9 more authors

Anne Baron-Van Evercooren Mehdi Felfi Dominique Langui Hui Zhang Stephane Lehericy Alexandra Petiet Daniel C. Alexander Olga Ciccarelli Ivana Drobnjak

This is my paper

Pith reviewed 2026-05-25 02:30 UTC · model grok-4.3

classification ⚛️ physics.med-ph q-bio.NC

keywords diffusion MRIpermeabilitydemyelinationcuprizone mouse modelrandom forestmyelin thicknessintra-axonal volume fractionexchange time

0 comments

The pith

A random forest trained only on simulations estimates intra-axonal exchange time from diffusion MRI and matches electron-microscopy myelin thickness.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tests whether machine learning can recover the intra-axonal water exchange time τi, a permeability parameter, from diffusion-weighted MRI in living mice. A random forest is trained exclusively on signals simulated from compartment models that include permeability, then applied to in-vivo scans of cuprizone-treated and wild-type mice. The resulting τi values correlate at 0.82 with electron-microscopy measures of myelin thickness and at 0.98 with intra-axonal volume fraction; τi is also statistically lower in the demyelinated corpus callosum. A sympathetic reader would care because τi could become a non-invasive marker of myelin damage in diseases such as multiple sclerosis.

Core claim

The random forest, trained solely on noise-free and noisy simulated diffusion signals from permeable compartment models, yields in-vivo estimates of τi that correlate strongly with ex-vivo electron-microscopy myelin thickness (ρ_τi = 0.82) and intra-axonal volume fraction (ρ_f = 0.98) across eight cuprizone and eight wild-type mice; the same estimates show a statistically significant reduction in the corpus callosum of cuprizone mice relative to wild-type controls.

What carries the argument

Random forest regressor trained on simulated diffusion MRI signals from compartment models that incorporate intra-axonal exchange time τi.

If this is right

τi becomes measurable non-invasively in living tissue.
The parameter distinguishes regions with intact versus damaged myelin sheaths.
The approach supplies a direct histological validation route for permeability-sensitive MRI models.
Cuprizone-induced demyelination produces a detectable drop in τi that aligns with expected biology.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

If the simulation-to-in-vivo transfer holds in other species, the same model could be tested in human multiple-sclerosis cohorts.
Adding multi-shell or multi-direction data might further stabilize the estimates against partial-volume effects.
The framework could be retrained on simulations that include additional pathologies to test specificity for demyelination versus other tissue changes.

Load-bearing premise

The random forest trained only on simulated compartment-model data will generalize without large bias to the noise, unmodeled effects, and tissue variation present in real in-vivo cuprizone scans.

What would settle it

Apply the same random forest to a fresh cohort of cuprizone and wild-type mice, obtain new electron-microscopy myelin-thickness maps from the identical animals, and test whether the correlation between estimated τi and measured myelin thickness falls below statistical significance.

read the original abstract

The intra-axonal water exchange time {\tau}i, a parameter associated with axonal permeability, could be an important biomarker for understanding demyelinating pathologies such as Multiple Sclerosis. Diffusion-Weighted MRI is sensitive to changes in permeability, however, the parameter has remained elusive due to the intractability of the mathematical models that incorporate it. Machine learning based computational models can potentially be used to estimate such parameters, and recently, a theoretical framework using a random forest (RF) suggests this is a promising approach. In this study, we adopt such an RF approach and experimentally investigate its suitability as a biomarker for demyelinating pathologies through direct comparison with histology. For this, we use an in-vivo cuprizone (CPZ) mouse model of demyelination with available ex-vivo electron microscopy (EM) data. We test our model on noise-free simulations and find very strong correlations between the predicted and ground truth parameters. For realistic noise levels as in our in-vivo data, the performance is affected, however, the parameters are still well estimated. We apply our RF model on in-vivo data from 8 CPZ and 8 wild-type (WT) mice and validate the RF estimates using histology. We find a strong correlation between the in-vivo RF estimates of {\tau}i and the EM measurements of myelin thickness ({\rho_\tau}i = 0.82), and between RF estimates and EM measurements of intra-axonal volume fraction ({\rho_f} = 0.98). When comparing {\tau}i in CPZ and WT mice we find a statistically significant decrease in the corpus callosum of the CPZ compared to the WT mice, in line with our expectations that {\tau}i is lower in regions where the myelin sheath is damaged. Overall, these results demonstrate the suitability of machine learning compartment models with permeability as a potential biomarker for demyelinating pathologies.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper validates a simulation-trained random forest for axonal permeability estimation in cuprizone mice against EM histology and reports strong correlations with myelin thickness.

read the letter

The main takeaway is that this work moves a prior simulation-only random forest framework into an in-vivo cuprizone mouse model of demyelination and checks the resulting tau_i and intra-axonal fraction estimates directly against electron microscopy measurements. They report rho_tau_i = 0.82 with myelin thickness and rho_f = 0.98 with intra-axonal volume fraction, plus a statistically significant drop in tau_i in the corpus callosum of CPZ versus wild-type mice. That histology match is the concrete new element and the part that gives the biomarker claim its weight. The group difference also lines up with the expected biology of damaged myelin increasing permeability. The paper does a reasonable job showing that the RF outputs track independent tissue measures rather than just fitting noise in simulations. The soft spot is the generalization step. The regressor is trained exclusively on signals from a fixed two-compartment exchange model plus Rician noise, yet real mouse brain data include orientation dispersion, partial-volume effects, myelin water, and acquisition imperfections that were not injected into the training distribution. The abstract notes that performance drops at realistic noise levels but remains usable on held-out simulations; it does not describe ablations that add those extra mismatches and then re-measure the downstream histology correlations. Without that check, it remains possible that the reported rho values reflect any feature that co-varies with demyelination rather than faithful recovery of tau_i. Methods details on training/validation splits and hyperparameter handling are also absent from the abstract, which limits how firmly one can judge overfitting risk. This paper is for groups working on dMRI biomarkers for multiple sclerosis who need to see whether ML compartment models survive contact with real animal histology. It deserves a serious referee because the validation is external and the result is new, even if additional robustness tests would tighten the central claim.

Referee Report

2 major / 1 minor

Summary. The paper trains a random forest regressor on simulated dMRI signals from a two-compartment exchange model (with Rician noise) to estimate intra-axonal exchange time τi and volume fraction f. It applies the model to in-vivo cuprizone and wild-type mouse brain data, reporting correlations of the estimates with independent ex-vivo EM measurements of myelin thickness (ρ_τi = 0.82) and intra-axonal volume fraction (ρ_f = 0.98), plus a statistically significant τi decrease in the corpus callosum of CPZ mice.

Significance. If the simulation-to-in-vivo generalization is shown to be robust, the work supplies direct histological validation that ML-derived permeability parameters track myelin damage in a controlled demyelination model. The use of independent EM data as ground truth is a clear strength and moves the approach beyond purely simulation-based accuracy metrics.

major comments (2)

[Methods] Methods (RF training and simulation protocol): The model is trained only on signals from the fixed two-compartment exchange model plus Rician noise matched to in-vivo SNR. No ablation is reported that adds realistic deviations (orientation dispersion, myelin-water T2 differences, or partial-volume CSF) and then re-measures the downstream histology correlations ρ_τi = 0.82 and ρ_f = 0.98. This step is load-bearing for the claim that the in-vivo estimates recover true permeability rather than incidental covariation.
[Abstract] Abstract and Results (model specification): No information is given on the train/validation split sizes, hyperparameter search, number of trees, or feature-importance diagnostics for the random forest. Without these details it is impossible to judge the risk that the reported simulation accuracy or the in-vivo histology correlations arise from overfitting to the particular simulation distribution.

minor comments (1)

[Results] Figure legends and text should explicitly state whether the reported ρ values are Pearson or Spearman correlations and whether they are computed across animals or across voxels.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive report. The two major comments identify areas where additional information and analysis would strengthen the manuscript. We address each point below and commit to revisions that improve clarity and robustness without altering the core claims.

read point-by-point responses

Referee: [Methods] Methods (RF training and simulation protocol): The model is trained only on signals from the fixed two-compartment exchange model plus Rician noise matched to in-vivo SNR. No ablation is reported that adds realistic deviations (orientation dispersion, myelin-water T2 differences, or partial-volume CSF) and then re-measures the downstream histology correlations ρ_τi = 0.82 and ρ_f = 0.98. This step is load-bearing for the claim that the in-vivo estimates recover true permeability rather than incidental covariation.

Authors: We agree that explicit ablation experiments incorporating additional mismatches (orientation dispersion, myelin-water T2 effects, partial-volume CSF) would provide further evidence of robustness. At the same time, the in-vivo application itself constitutes a strong test of generalization: the RF was trained exclusively on the idealized two-compartment model, yet the resulting τi and f estimates still achieve high correlations with independent EM histology (ρ_τi = 0.82, ρ_f = 0.98) in real tissue that necessarily contains the very deviations listed. This empirical validation on held-out biological data supports that the learned mapping captures permeability-related signal features rather than simulation-specific artifacts. To directly address the concern, the revised Methods section will include a new ablation subsection that adds the listed effects to the training distribution and reports the resulting changes in the histology correlations. revision: yes
Referee: [Abstract] Abstract and Results (model specification): No information is given on the train/validation split sizes, hyperparameter search, number of trees, or feature-importance diagnostics for the random forest. Without these details it is impossible to judge the risk that the reported simulation accuracy or the in-vivo histology correlations arise from overfitting to the particular simulation distribution.

Authors: The referee correctly notes that these implementation details are not reported. While the Methods section describes the overall RF approach and simulation protocol, it lacks the specific numbers required for full reproducibility and overfitting assessment. In the revised manuscript we will expand the Methods (and, where space permits, the Abstract) to include: (i) train/validation split sizes, (ii) the hyperparameter search procedure and final values, (iii) the number of trees, and (iv) feature-importance rankings. These additions will allow readers to evaluate the risk of overfitting to the simulation distribution. revision: yes

Circularity Check

0 steps flagged

No circularity: external EM validation is independent of simulation-trained RF

full rationale

The paper trains a random forest regressor exclusively on signals generated from a two-compartment exchange model (with Rician noise) and then applies the trained model to in-vivo mouse dMRI data. The load-bearing claims are the reported correlations (ρ_τi = 0.82 with myelin thickness, ρ_f = 0.98 with intra-axonal volume fraction) and the statistically significant group difference between CPZ and WT mice. These quantities are obtained by direct comparison with ex-vivo electron-microscopy measurements that lie outside the training distribution and are not recoverable from the simulation inputs by construction. No self-definitional loop, fitted-input-renamed-as-prediction, or load-bearing self-citation chain appears in the derivation; the histology step supplies an external benchmark.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The approach rests on standard multi-compartment diffusion models and the assumption that simulations adequately represent in-vivo signals; no new free parameters, axioms, or invented entities are introduced beyond the random-forest regressor itself.
