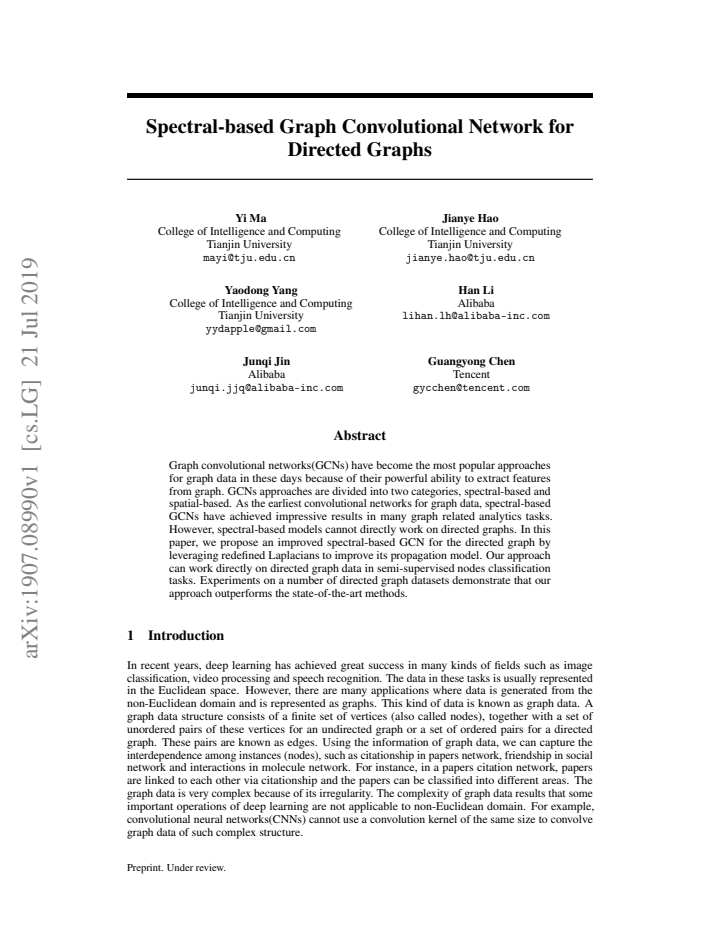

Spectral-based Graph Convolutional Network for Directed Graphs

Yi Ma , Jianye Hao , Yaodong Yang , Han Li , Junqi Jin , Guangyong Chen This is my paper

Pith reviewed 2026-05-24 18:36 UTC · model grok-4.3

classification 💻 cs.LG cs.SIstat.ML
keywords spectral graph convolutional networksdirected graphsgraph Laplaciansnode classificationsemi-supervised learninggraph neural networkspropagation model
0
0 comments X

The pith

Redefined Laplacians allow spectral-based graph convolutional networks to operate directly on directed graphs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper seeks to adapt spectral graph convolutional networks, which rely on the graph Laplacian for convolution and have so far been limited to undirected graphs, so that they can process directed graphs without first converting edges to bidirectional form. The central move is to redefine the Laplacians that define the spectral filters, thereby changing the propagation rule to respect one-way edge directions. A reader would care because many practical networks carry asymmetric relations, such as citations or hyperlinks, and losing that directionality through symmetrization can degrade performance in tasks like node classification. The authors report that the resulting model achieves higher accuracy than prior directed-graph methods on several benchmark datasets while remaining inside the spectral framework.

Core claim

By redefining the Laplacians used to construct the spectral filters, the propagation model of a graph convolutional network can be made to accept directed graphs as input and to extract features that reflect edge orientation, yielding improved results on semi-supervised node classification tasks compared with existing approaches.

What carries the argument

Redefined Laplacians that modify the spectral convolution operator to incorporate directional information from the adjacency structure.

If this is right

  • Spectral GCNs become applicable to directed graphs without requiring edge symmetrization.
  • The propagation step now encodes asymmetric neighbor influence during feature aggregation.
  • The same spectral machinery can be used for semi-supervised classification on directed data while retaining frequency-domain interpretation.
  • Performance advantages appear consistently across multiple directed-graph benchmarks.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar Laplacian redefinitions could be tested on other spectral techniques such as graph Fourier transforms or polynomial filters.
  • The approach may improve modeling of directed information flow in citation or social networks where direction indicates causality or authority.
  • One could examine whether the redefined operators remain positive semi-definite or require additional normalization steps on graphs with strong directionality.

Load-bearing premise

Redefining the Laplacians produces a valid spectral convolution operator that captures directional information without introducing artifacts or losing the benefits of the original spectral framework.

What would settle it

On a standard directed-graph dataset, the redefined-Laplacian model produces lower node-classification accuracy than both the undirected conversion baseline and a strong spatial-based directed GCN.

Figures

Figures reproduced from arXiv: 1907.08990 by Guangyong Chen, Han Li, Jianye Hao, Junqi Jin, Yaodong Yang, Yi Ma.

Figure 1

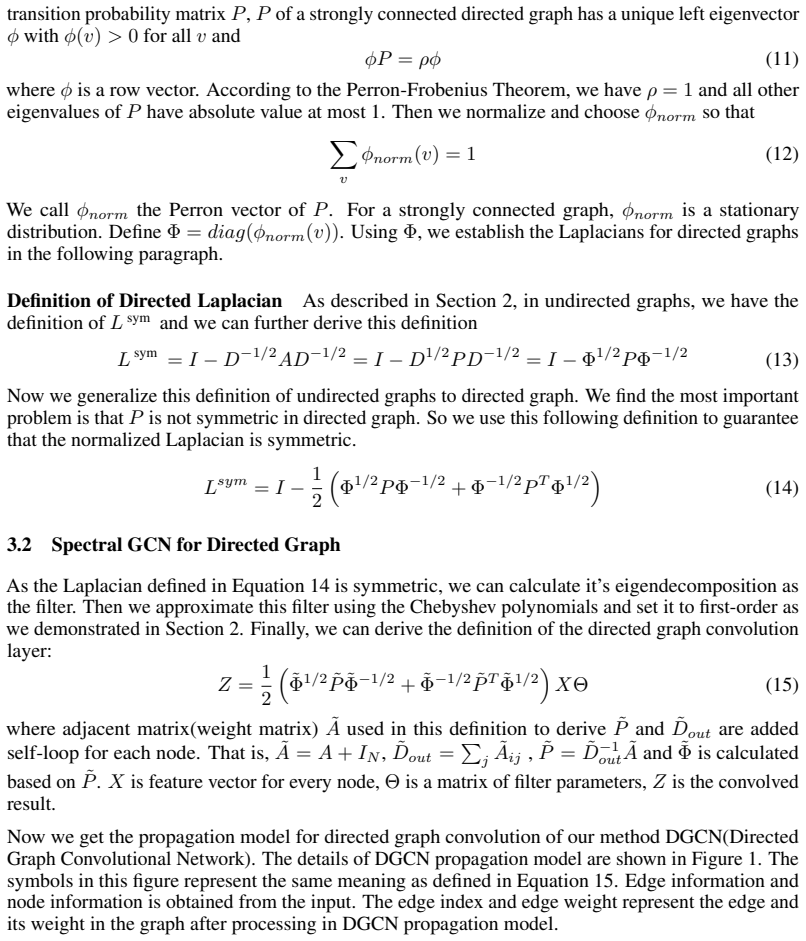

Figure 1. Figure 1: Details of DGCN propagation model. 5 [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2

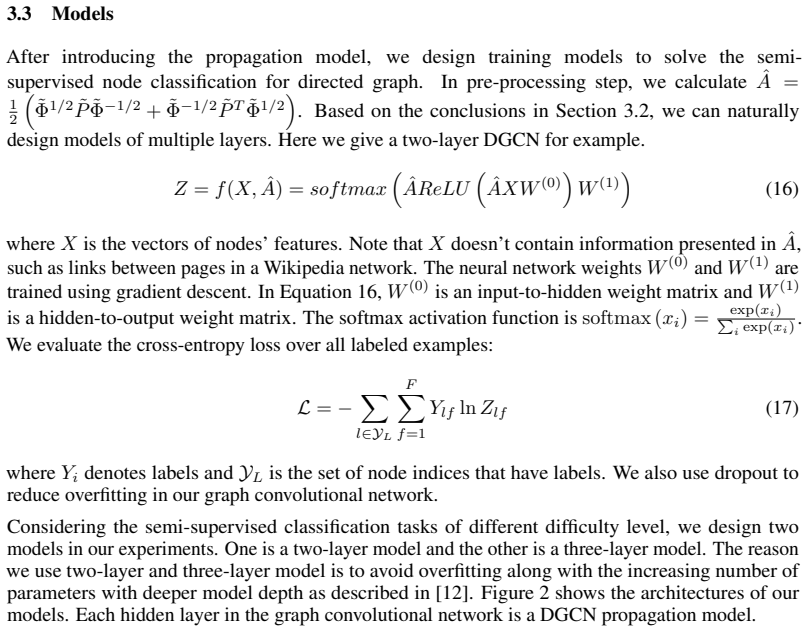

Figure 2. Figure 2: Architectures of our models. 4 Experiments We test our models in the semi-supervised nodes classification tasks on four different datasets. All the datasets in our experiments can be obtained from open sources. These datasets have different graph structures and belong to different kinds of networks(citation networks, hyperlink networks and email networks). It guarantees that the assessments based on these … view at source ↗
read the original abstract

Graph convolutional networks(GCNs) have become the most popular approaches for graph data in these days because of their powerful ability to extract features from graph. GCNs approaches are divided into two categories, spectral-based and spatial-based. As the earliest convolutional networks for graph data, spectral-based GCNs have achieved impressive results in many graph related analytics tasks. However, spectral-based models cannot directly work on directed graphs. In this paper, we propose an improved spectral-based GCN for the directed graph by leveraging redefined Laplacians to improve its propagation model. Our approach can work directly on directed graph data in semi-supervised nodes classification tasks. Experiments on a number of directed graph datasets demonstrate that our approach outperforms the state-of-the-art methods.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The paper claims to introduce an improved spectral-based GCN for directed graphs by redefining the Laplacians to enhance the propagation model. This allows the method to operate directly on directed graph data for semi-supervised node classification tasks, with experiments on multiple directed graph datasets reported to show outperformance over state-of-the-art methods.

Significance. If the redefinition yields a valid real spectral basis that incorporates directional information while preserving the properties needed for convolution (real eigenvalues, orthogonal eigenvectors), the result would meaningfully extend spectral GCNs to asymmetric graphs common in applications such as citation networks and web graphs. No machine-checked proofs or parameter-free derivations are described.

major comments (1)
  1. [Abstract] Abstract: the central claim that redefining the Laplacians produces an improved propagation model for directed graphs is unsupported by any explicit matrix definition, eigenvalue analysis, or proof that the resulting operator L' admits a real orthogonal Fourier basis U such that the convolution U g(Λ) U^T X remains well-defined and real-valued on asymmetric adjacency matrices. This is load-bearing for the assertion that the approach extends the spectral framework without artifacts.

Simulated Author's Rebuttal

1 responses · 0 unresolved

Thank you for the constructive review and recommendation for major revision. We address the major comment below and will revise the manuscript to strengthen the presentation of our claims.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim that redefining the Laplacians produces an improved propagation model for directed graphs is unsupported by any explicit matrix definition, eigenvalue analysis, or proof that the resulting operator L' admits a real orthogonal Fourier basis U such that the convolution U g(Λ) U^T X remains well-defined and real-valued on asymmetric adjacency matrices. This is load-bearing for the assertion that the approach extends the spectral framework without artifacts.

    Authors: We agree that the abstract is too concise and does not include the requested explicit matrix definition, eigenvalue analysis, or proof. The manuscript introduces redefined Laplacians to enable direct application to directed graphs, but a detailed supporting analysis of the real orthogonal Fourier basis for the resulting operator is not provided. We will revise the manuscript to add this analysis (including the explicit form of L' and verification that it yields real eigenvalues and orthogonal eigenvectors) in the main text, and we will update the abstract to briefly reference the matrix definition and the well-defined real-valued convolution. revision: yes

Circularity Check

0 steps flagged

No circularity: method is a direct proposal of redefined operators

full rationale

The paper defines new Laplacian forms for directed graphs and inserts them into the standard spectral convolution pipeline. This is an explicit construction, not a reduction of any claimed result back to its own fitted parameters or self-citations. No equation is shown to equal its input by definition, and the experimental claims rest on external datasets rather than internal consistency alone. The derivation chain therefore remains self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available; no specific free parameters, axioms, or invented entities can be identified from the provided text.

pith-pipeline@v0.9.0 · 5663 in / 1218 out tokens · 41564 ms · 2026-05-24T18:36:10.721877+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

25 extracted references · 25 canonical work pages · 3 internal anchors

  1. [1]

    Cora citation network dataset – KONECT, April 2017

    work page 2017

  2. [2]

    Adamic and Natalie Glance

    Lada A. Adamic and Natalie Glance. The political blogosphere and the 2004 u.s. election: Divided they blog. In Proceedings of the 3rd International Workshop on Link Discovery, LinkKDD ’05, pages 36–43, New York, NY , USA, 2005. ACM

    work page 2004

  3. [3]

    Spectral networks and locally connected networks on graphs

    Joan Bruna, Wojciech Zaremba, Arthur Szlam, and Yann LeCun. Spectral networks and locally connected networks on graphs. In International Conference on Learning Representations (ICLR), 2014

    work page 2014

  4. [4]

    Laplacians and the cheeger inequality for directed graphs

    Fan Chung. Laplacians and the cheeger inequality for directed graphs. Annals of Combinatorics, 9(1):1–19, 2005

    work page 2005

  5. [5]

    Spectral graph theory

    Fan RK Chung and Fan Chung Graham. Spectral graph theory. Number 92. American Mathematical Soc., 1997

    work page 1997

  6. [6]

    De Cao and T

    Nicola De Cao and Thomas Kipf. Molgan: An implicit generative model for small molecular graphs. arXiv preprint arXiv:1805.11973, 2018

    work page arXiv 2018

  7. [7]

    Convolutional neural networks on graphs with fast localized spectral filtering

    Michaël Defferrard, Xavier Bresson, and Pierre Vandergheynst. Convolutional neural networks on graphs with fast localized spectral filtering. InAdvances in neural information processing systems, pages 3844– 3852, 2016

    work page 2016

  8. [8]

    Fast Graph Representation Learning with PyTorch Geometric

    Matthias Fey and Jan Eric Lenssen. Fast graph representation learning with pytorch geometric. arXiv preprint arXiv:1903.02428, 2019

    work page internal anchor Pith review Pith/arXiv arXiv 1903

  9. [9]

    The evolution of Wikipedia’s norm network

    Bradi Heaberlin and Simon DeDeo. The evolution of Wikipedia’s norm network. Future Internet, 8(2):14, 2016

    work page 2016

  10. [10]

    Deep Convolutional Networks on Graph-Structured Data

    Mikael Henaff, Joan Bruna, and Yann LeCun. Deep convolutional networks on graph-structured data. arXiv preprint arXiv:1506.05163, 2015

    work page internal anchor Pith review Pith/arXiv arXiv 2015

  11. [11]

    Matrix analysis

    Roger A Horn and Charles R Johnson. Matrix analysis. Cambridge university press, 2012

    work page 2012

  12. [12]

    T. N. Kipf and M. Welling. Semi-supervised classification with graph convolutional networks. In Proceedings of the International Conference on Learning Representations, 2017

    work page 2017

  13. [13]

    Variational Graph Auto-Encoders

    Thomas N Kipf and Max Welling. Variational graph auto-encoders. arXiv preprint arXiv:1611.07308, 2016

    work page internal anchor Pith review Pith/arXiv arXiv 2016

  14. [14]

    SNAP Datasets: Stanford large network dataset collection

    Jure Leskovec and Andrej Krevl. SNAP Datasets: Stanford large network dataset collection. http: //snap.stanford.edu/data, June 2014

    work page 2014

  15. [15]

    Cayleynets: Graph convolutional neural networks with complex rational spectral filters

    Ron Levie, Federico Monti, Xavier Bresson, and Michael M Bronstein. Cayleynets: Graph convolutional neural networks with complex rational spectral filters. IEEE Transactions on Signal Processing, 67(1):97– 109, 2017

    work page 2017

  16. [16]

    Adaptive graph convolutional neural networks

    Ruoyu Li, Sheng Wang, Feiyun Zhu, and Junzhou Huang. Adaptive graph convolutional neural networks. In Thirty-Second AAAI Conference on Artificial Intelligence, 2018. 9

    work page 2018

  17. [17]

    Weisfeiler and leman go neural: Higher-order graph neural networks

    Christopher Morris, Martin Ritzert, Matthias Fey, William L Hamilton, Jan Eric Lenssen, Gaurav Rattan, and Martin Grohe. Weisfeiler and leman go neural: Higher-order graph neural networks. arXiv preprint arXiv:1810.02244, 2018

    work page arXiv 2018

  18. [18]

    Evolvegcn: Evolving graph convolutional networks for dynamic graphs

    Aldo Pareja, Giacomo Domeniconi, Jie Chen, Tengfei Ma, Toyotaro Suzumura, Hiroki Kanezashi, Tim Kaler, and Charles E Leisersen. Evolvegcn: Evolving graph convolutional networks for dynamic graphs. arXiv preprint arXiv:1902.10191, 2019

    work page arXiv 1902

  19. [19]

    Graph attention networks

    Petar Veliˇckovi´c, Guillem Cucurull, Arantxa Casanova, Adriana Romero, Pietro Lio, and Yoshua Bengio. Graph attention networks. In Proceedings of the International Conference on Learning Representations, 2017

    work page 2017

  20. [20]

    Mgae: Marginalized graph autoencoder for graph clustering

    Chun Wang, Shirui Pan, Guodong Long, Xingquan Zhu, and Jing Jiang. Mgae: Marginalized graph autoencoder for graph clustering. In Proceedings of the 2017 ACM on Conference on Information and Knowledge Management, pages 889–898. ACM, 2017

    work page 2017

  21. [21]

    Convolution theorem — Wikipedia, the free encyclopedia, 2019

    Wikipedia contributors. Convolution theorem — Wikipedia, the free encyclopedia, 2019. [Online; accessed 14-May-2019]

    work page 2019

  22. [22]

    A comprehensive survey on graph neural networks

    Zonghan Wu, Shirui Pan, Fengwen Chen, Guodong Long, Chengqi Zhang, and Philip S Yu. A comprehen- sive survey on graph neural networks. arXiv preprint arXiv:1901.00596, 2019

    work page arXiv 1901

  23. [23]

    C. Dyer R. Pascanu Y . Li, O. Vinyals and P. Battaglia. Learning deep generative models of graphs. In Proceedings of the International Conference on Machine Learning, 2018

    work page 2018

  24. [24]

    Shahabi Y

    C. Shahabi Y . Li, R. Yu and Y . Liu. Diffusion convolutional recurrent neural network: Data-driven traffic forecasting. In Proceedings of International Conference on Learning Representations, 2018

    work page 2018

  25. [25]

    Gaan: Gated attention networks for learning on large and spatiotemporal graphs

    Jiani Zhang, Xingjian Shi, Junyuan Xie, Hao Ma, Irwin King, and Dit-Yan Yeung. Gaan: Gated attention networks for learning on large and spatiotemporal graphs. In Proceedings of the Uncertainty in Artificial Intelligence, 2018. 10

    work page 2018
