Constrained Diffusion Models for Synthesizing Representative Power Flow Datasets

T0 review · 3 major / 5 minor · reviewed 2026-08-07 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read Adding a physics-based guidance term to diffusion sampling yields synthetic power-flow datasets that are both more feasible and closer to the ground-truth distribution than unguided diffusion.

desk verdict A useful empirical contribution to constrained diffusion for power flow data, with a proof that does not stand up to scrutiny as written. read the letter →

arxiv 2506.11281 v2 pith:M4M3S5CR submitted 2025-06-12 cs.LG cs.SYeess.SY

Milad Hoseinpour , Vladimir Dvorkin This is my paper
classification cs.LGcs.SYeess.SY
keywords diffusionmodelspowerflowsyntheticdatagenerationgradientguidanceconstraintfeasibilitymanifoldlearningACoptimalphysics-informedmachine
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper argues that a diffusion model can generate synthetic power-flow datasets that are both statistically representative of real operating records and feasible under AC power-flow constraints, provided sampling is steered by a gradient-guidance term built from the constraint residual. The central claim is that this guidance moves each denoised estimate along the clean data manifold toward the constraint-satisfying set instead of distorting the learned distribution. If true, system operators could release physics-consistent synthetic grid data for downstream machine-learning tasks without exposing raw operational records. Experiments on three IEEE benchmark systems show that guided sampling reduces active and reactive power mismatches and lowers the Wasserstein distance to the ground-truth dataset.

What carries the argument

The central object is the manifold-constrained gradient guidance term: at each reverse step the sampler estimates the clean sample by denoising, then corrects it by descending the squared AC power-flow residual along $\nabla_{x_t} R_H(\hat{x}_{0|t})$, scaled by a step size $\lambda_t$. The enabling identity is Theorem 1: under the local-affine approximation of the clean data manifold, this gradient is tangential to the manifold, so no explicit tangent-space projection is needed. Two implementation devices carry the practical gains: variable decoupling, which splits the state into $(p,\theta)$ and $(q,v)$ and trains two smaller denoisers after the pattern of fast-decoupled power flow, and min-max normalization with chain-rule gradient rescaling so the guidance step acts consistently across variables of different physical scale.

What would settle it

Compute, on a benchmark grid, both the raw gradient correction $\nabla_{x_t} R_H(\hat{x}_{0|t})$ and the explicitly Riemannian projected gradient $\mathrm{Proj}_{T_{\hat{x}_{0|t}}\mathcal{M}}\nabla_{x_t} R_H(\hat{x}_{0|t})$; if repeated sampling shows they lead to materially different distributions, Theorem 1's tangential-gradient conclusion is violated. A complementary test: increase $\lambda_t$ until power-balance mismatches vanish and check whether the Wasserstein distance to ground truth grows relative to unguided sampling, which would falsify the claim that feasibility gains come without statistical loss.

Watch

Extended reading notes

Core claim

The paper's core discovery is that a one-step correction $\hat{x}'_{0|t} = \hat{x}_{0|t} - \lambda_t \nabla_{x_t} R_H(\hat{x}_{0|t})$, applied to the diffusion denoiser's clean estimate with $R_H(x)=\|H(x)\|_2^2$ the AC power-flow residual, drives synthetic samples toward the intersection of the constraint set and the clean data manifold. Theorem 1 asserts that under a local affine-subspace assumption the gradient of the residual already lies in the tangent space of the manifold, so the projection step of Riemannian gradient descent is unnecessary. In the reported experiments, guided sampling yields near-zero power-balance mismatches at most buses and also reduces the Wasserstein distance between synthetic and ground-truth datasets, so feasibility and statistical representativeness improve together. Models trained on guided synthetic data also give smaller power-flow mismatches in a downstream warm-start prediction task than models trained on unguided synthetic data.

Load-bearing premise

The no-projection argument rests on assuming that the denoiser's clean estimate lies exactly on the manifold of physically valid power-flow states and behaves locally as an orthogonal projection onto that manifold; the statistical-similarity results also assume that AC-OPF solutions generated from uniformly perturbed loads stand in for real operational data.

Editorial extensions

If this is right

  • Synthetic datasets inherit the statistical properties of the training records, including multi-modal joint distributions, while satisfying AC power-flow balance constraints at most buses.
  • Gradient guidance lowers the type-1 Wasserstein distance between synthetic and ground-truth datasets relative to unguided diffusion across the PJM 5-bus, IEEE 24-bus, and IEEE 118-bus systems.
  • Neural networks trained on guided synthetic data produce smaller active and reactive power mismatches in a downstream power-flow warm-start task than those trained on unguided data.
  • Variable decoupling between $(p,\theta)$ and $(q,v)$ allows training and sampling with two smaller denoisers, improving scalability without sacrificing the reported gains.
  • System operators can use the framework to publish physics-consistent synthetic power-flow data for ML applications without revealing raw operational records.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The representativeness claims are measured against a ground truth built by AC-OPF on uniformly perturbed loads, so the natural next test is whether the same statistical-similarity and feasibility gains survive on genuine historical utility records.
  • The guidance recipe should transfer to any domain where a smooth residual function defines physical feasibility and a diffusion model learns the feasible states, such as gas or water network flow, as long as the tangential-gradient property holds.
  • A direct stress test would be to replace the single gradient step with several projected-gradient iterations per reverse step, checking whether residuals can be pushed toward machine precision without degrading statistical similarity.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper proposes a diffusion-model framework for generating synthetic AC power flow datasets that are both statistically similar to a given historical dataset and feasible with respect to the AC power flow equations. The key methodological contribution is a gradient guidance term added during reverse diffusion sampling, based on the residual of the power flow equations, which is claimed to steer samples toward the intersection of the feasible set and the clean data manifold without projection. The authors also introduce a variable decoupling strategy inspired by fast decoupled power flow and a min-max normalization scheme. Experiments on IEEE 5-, 24-, and 118-bus systems show that guided sampling reduces power mismatch and yields slightly lower Wasserstein distances than unguided sampling, and that models trained on guided samples produce better power-flow warm starts.

Significance. If the method works as claimed, it addresses a real need for privacy-preserving, physics-consistent synthetic grid data for downstream ML applications. The paper is commendable for shipping a concrete implementation with algorithms, a public code repository, and experiments across three benchmark systems, including a downstream utility test. The empirical comparison (guided vs. unguided) is consistent, and the improvement in feasibility is clearly demonstrated. However, the theoretical guarantee that guidance does not push samples off the learned distribution is not proven as stated, and several claims about statistical similarity are confounded by the feasibility effect. The central practical contribution is defensible, but the formal overclaim needs to be repaired or carefully repositioned.

major comments (3)
  1. [Sec. IV, Theorem 1, Eqs. (18)-(23)] The proof of Theorem 1 is not valid for a trained denoising network. The assumption imported from Proposition 2 of [40] is that Q is an orthogonal projection onto the clean data manifold, i.e., Q(x_t) ∈ M and JQ = JQ^T = JQ^2. For a trained diffusion model, Q(x_t) is the Tweedie posterior mean E[x_0 | x_t], which is not idempotent and does not satisfy the projection property at finite noise levels. Moreover, Eq. (18) computes the gradient with respect to the noisy input x_t, while the update (23) modifies the clean estimate \hat{x}_0; these two gradients can be identified only through JQ, and that identification is exactly what the projection assumption supplies. Consequently, the theorem does not establish that the guidance direction is tangential to M, and the claimed guarantee that the final sample 'remains on the clean data manifold' is unsupported. The authors should either prove the result under weaker assumptions or clearly label the no-projection guidance as a heuristic approximation and remove the phrase 'formally prove' from Contribution 2.
  2. [Sec. IV, after Eq. (23), and Fig. 3b] The statement that a tangential guidance step keeps \hat{x}'_{0|t} on the clean data manifold is incorrect for a curved manifold. Even if ∇ R_H(\hat{x}_{0|t}) lies in the tangent space T_{\hat{x}_{0|t}} M, the update \hat{x}' = \hat{x} - λ_t ∇ R_H is taken in the ambient Euclidean space; for a nonlinear manifold this update leaves the manifold at second order in λ_t. The local affine subspace assumption in Theorem 1 cannot justify the global conclusion drawn in the text. The paper should restrict the claim to a first-order differential statement or add a retraction/projection step that explicitly keeps the updated sample on M.
  3. [Sec. VI-B, Table I and subsequent discussion] The conclusion that 'constraint enforcement enhances the statistical similarity' is confounded by the fact that the ground truth lies exactly on the feasible set. Any reduction in constraint violations will mechanically reduce the Wasserstein distance to the ground truth, because the guided samples are moved closer to the feasible set where all ground-truth points reside. The small W1 improvements are therefore expected and do not by themselves demonstrate that guidance improves distributional fidelity beyond the feasibility effect. Please provide an evaluation that isolates distributional similarity, such as conditional distributions or standardized moments of selected variables, to support the claim.
minor comments (5)
  1. [References, [21]] Reference [21] cites 'Domain-constrained diffusion models to synthesize tabular data: A case study in power systems' with the same arXiv number as the present manuscript (2506.11281); if this is a different paper, the arXiv identifier is likely incorrect, and if it is the same paper, the title is inconsistent. Please correct the reference.
  2. [Sec. V-A] The variable decoupling trains two independent denoisers for (p, θ) and (q, v), implicitly assuming conditional independence between these groups; this may reduce the ability to capture cross-group correlations. Please discuss the impact or provide a quantitative comparison against a jointly trained model on at least one test case.
  3. [Algorithms 3 and 5] The output variable \tilde{x}_0 is never explicitly assigned in either algorithm; the algorithms should state that the return value is the denoised sample at t = 0.
  4. [Sec. VI-A] The ground-truth dataset is generated from uniform load perturbations and AC-OPF solutions; the abstract and conclusion claim that the model synthesizes data from 'real-world power grids,' but the experiments use benchmark systems with a synthetic ground truth. Please state this limitation more explicitly.
  5. [Sec. IV, Eq. (23)] The guidance scale λ_t is a free hyperparameter, and no tuning procedure is given beyond the values reported in the figures and tables. A brief sensitivity analysis or a heuristic for choosing λ_t would improve reproducibility.

Circularity Check

1 steps flagged · score 2.0 of 10

No significant circularity: feasibility gains are the designed objective and the comparison is against an external unconstrained baseline; the only self-referential item is a minor citation to the paper's own arXiv ID.

  1. other [Section I (Related Work) and References, item [21]]
    "“statistical consistency alone cannot guarantee adherence to physical grid constraints [21].” Reference [21] reads: “M. Hoseinpour and V . Dvorkin, ‘Domain-constrained diffusion models to synthesize tabular data: A case study in power systems,’ arXiv preprint arXiv:2506.11281, 2025.”"

    The citation’s arXiv identifier is identical to this manuscript’s identifier (2506.11281), so the paper supports a motivating premise by citing itself under a different title. The premise—that statistical matching alone does not enforce physics—is independently demonstrated by the paper’s own unconstrained-diffusion baseline, and the method’s evaluation does not depend on this citation. It is therefore a minor self-referential citation rather than a load-bearing circular step.

full rationale

The central claim is the design of a physical-constraint guidance term in diffusion sampling, benchmarked against unconstrained diffusion. The guidance term explicitly performs gradient descent on the AC power flow residual ∥H∥², so the observed feasibility improvement is the intended effect of the algorithm rather than an independent prediction; that is by-design optimization, not circularity. Statistical-similarity improvement is evaluated by Wasserstein distance against ground truth generated by AC-OPF; because the ground truth lies on the constraint set, moving samples toward the constraint set reasonably reduces W1, but the paper does not fit any parameter to the W1 metric and the comparison to the unconstrained baseline remains a valid external benchmark. Theorem 1's no-projection conclusion rests on Proposition 2 of Chung et al. [40], namely that the denoising map Q behaves locally as an orthogonal projection onto the data manifold. That is an imported external assumption, not a self-citation, and it is not an equation-level reduction of the paper's own definitions; whether trained denoisers actually satisfy it is a correctness/validity concern, not circularity. The only genuinely self-referential item is reference [21], which cites the current manuscript's own arXiv ID under a different title to support a motivating premise; this has no effect on the numerical comparisons and is therefore scored as one minor, non-load-bearing self-citation.

Assumptions & free parameters 1 free parameters · 5 assumptions · 0 invented entities

The method introduces no new physical entities. Its main load-bearing imports are the manifold projection heuristic from Chung et al. and the synthetic ground truth from AC-OPF, plus the tuned guidance scale lambda.

free parameters (1)
  • guidance scale lambda_t = 1e-2 (5-bus), 1e-4 (24-bus), 5e-4 (118-bus)
    A hyperparameter that controls the strength of the constraint-guidance step. It is tuned per test case to balance feasibility against distribution distortion, with no stated selection rule or sensitivity analysis.
assumptions (5)
  • domain assumption The denoiser's clean estimate Q(x_t) locally behaves as an orthogonal projection onto the clean data manifold, with JQ = JQ^T = JQ^2 (Proposition 2 of [40]).
    Used in Theorem 1, eqs. (19)-(20), to conclude the residual gradient is tangent and projection is unnecessary. This is a heuristic property of diffusion posterior sampling, not a proven fact for arbitrary trained denoisers.
  • domain assumption The clean data manifold is locally well approximated by an affine subspace around each estimate.
    Stated before Theorem 1 as the condition for eq. (15); it is the premise that lets the paper drop the Riemannian projection operator.
  • domain assumption Ground truth datasets generated by uniform load perturbations around nominal values and AC-OPF solutions are representative of real-world power flow records.
    Section VI-A states real-world data are unavailable; all statistical-similarity numbers are relative to this synthetic ground truth, so transfer to real operations is assumed.
  • domain assumption Active power is strongly correlated with voltage angles and reactive power with voltage magnitudes, justifying the fast decoupled variable split.
    Section V-A uses this classical power systems observation to train two separate denoisers, implicitly assuming the cross-couplings are negligible for the generative task.
  • domain assumption The AC power flow equations in eqs. (8)-(9) are the correct physical model for the data generation task.
    Used as the constraint set H(x)=0 for the guidance and as the evaluation metric; this is a standard model in the power systems literature.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Constrained Diffusion Models for Synthesizing Representative Power Flow Datasets." pith.science (2026). https://pith.science/paper/M4M3S5CR

@misc{pith2026250611281,
  author       = {Pith},
  title        = {Pith review of: Constrained Diffusion Models for Synthesizing Representative Power Flow Datasets},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/M4M3S5CR}},
  note         = {Machine review of arXiv:2506.11281}
}
read the original abstract

High-quality power flow datasets are essential for training machine learning models in power systems. However, security and privacy concerns restrict access to real-world data, making statistically accurate and physically consistent synthetic datasets a viable alternative. We develop a diffusion model for generating synthetic power flow datasets from real-world power grids that both replicate the statistical properties of the real-world data and ensure AC power flow feasibility. To enforce the constraints, we incorporate gradient guidance based on the power flow constraints to steer diffusion sampling toward feasible samples. For computational efficiency, we further leverage insights from the fast decoupled power flow method and propose a variable decoupling strategy for the training and sampling of the diffusion model. These solutions lead to a physics-informed diffusion model, generating power flow datasets that outperform those from the standard diffusion in terms of feasibility and statistical similarity, as shown in experiments across IEEE benchmark systems.

Figures

Figures reproduced from arXiv: 2506.11281 by the authors.

Figure 1
Figure 1. A high-level view of the diffusion model for synthesizing power [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

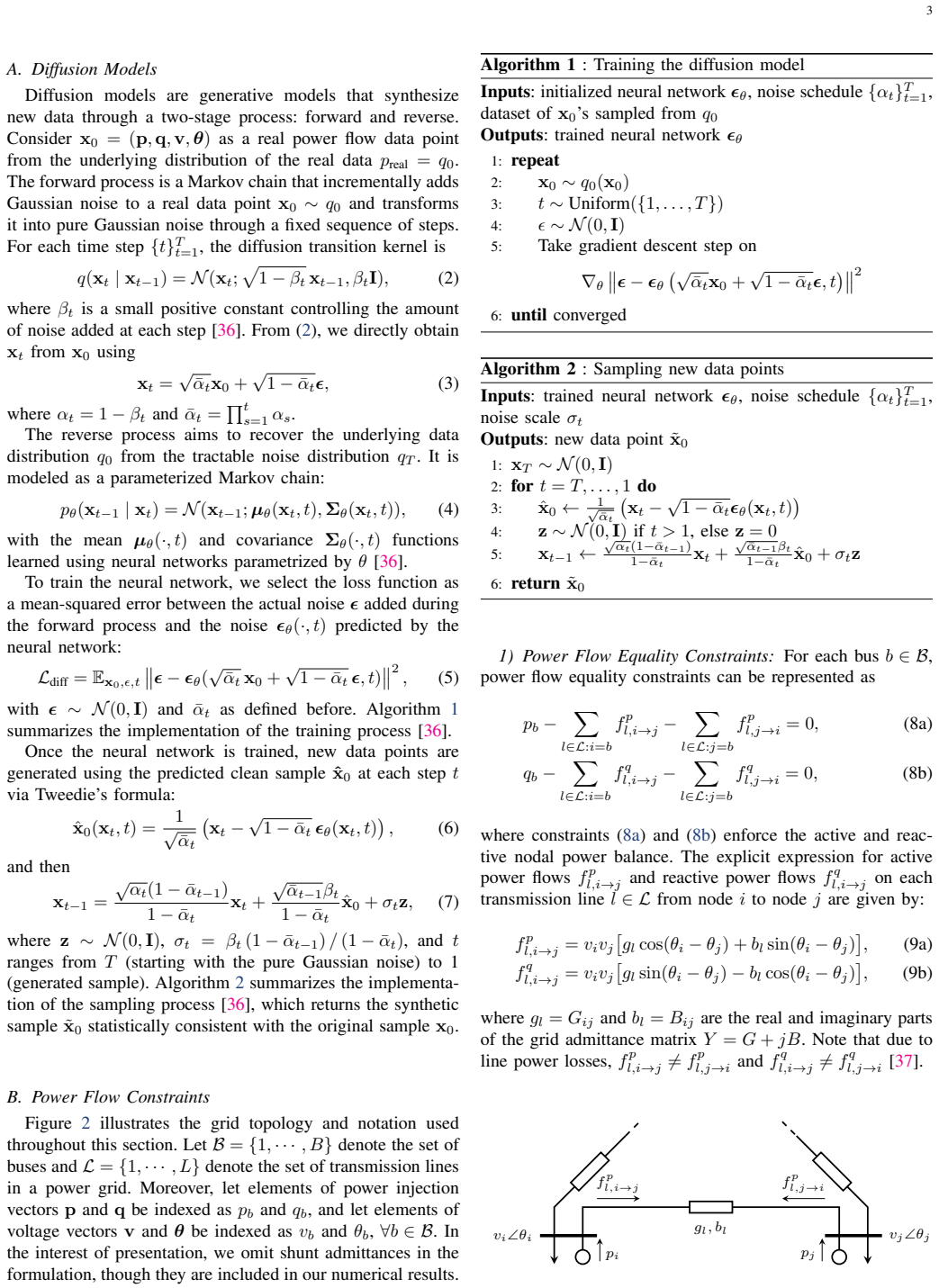

Figure 2
Figure 2. illustrates the grid topology and notation used throughout this section. Let B = {1, · · · , B} denote the set of buses and L = {1, · · · , L} denote the set of transmission lines in a power grid. Moreover, let elements of power injection vectors p and q be indexed as pb and qb, and let elements of voltage vectors v and θ be indexed as vb and θb, ∀b ∈ B. In the interest of presentation, we omit shunt admittances in … view at source ↗
Figure 3
Figure 3. Schematic overview of the geometry of sampling (a) without guidance and (b) with manifold-constrained gradient guidance. In sampling without [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (4 more)
Figure 4
Figure 4. Figure 4: Histograms of the ground truth versus synthetic power flow data points for active power injections (first row), reactive power injections (second row), [PITH_FULL_IMAGE:figures/full_fig_p007_4.png]
Figure 5
Figure 5. Figure 5: 2D scatter plots with density estimates of the active and reactive power injection (top row), and voltage magnitude and phase angle (bottom row) at [PITH_FULL_IMAGE:figures/full_fig_p008_5.png]
Figure 6
Figure 6. Figure 6: Histograms of violation magnitudes for the active (top row) and reactive (bottom row) power balance constraints in the PJM 5-bus system, comparing [PITH_FULL_IMAGE:figures/full_fig_p009_6.png]
Figure 7
Figure 7. Figure 7: Comparison of per-bus (a) mean (MW) and (b) variance (MW2 ) of the active power mismatches, and (c) mean (MVar) and (d) variance (MVar2 ) of the reactive power mismatches for the synthesized data on the IEEE 118-bus system under constrained and unconstrained sampling (…
