Diff$^2$I2P: Differentiable Image-to-Point Cloud Registration with Diffusion Prior

T0 review · 3 major / 7 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read A diffusion prior distilled into cross-modal features lifts image-to-point-cloud registration recall on 7-Scenes from 75.8% to 83.0%.

desk verdict A clever training-time diffusion distillation for I2P registration, but inconsistent metric thresholds between text and supplement must be fixed before the headline numbers are trusted. read the letter →

arxiv 2507.06651 v1 pith:MHQUVFQD submitted 2025-07-09 cs.CV

Juncheng Mu , Chengwei Ren , Weixiang Zhang , Liang Pan , Xiao-Ping Zhang , Yue Gao This is my paper
classification cs.CV
keywords image-to-pointcloudregistrationcross-modalcorrespondencescoredistillationsamplingdiffusionpriordeformabletuningdifferentiablePnPmodalitygap
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper argues that the persistent accuracy gap in image-to-point-cloud registration comes from the modality gap between 2D texture and 3D geometry, and that a pretrained depth-conditioned diffusion model can supply a training signal that closes it. To use that signal, the authors make the whole registration pipeline differentiable end to end: a Deformable Correspondence Tuning module estimates point offsets so gradients can pass through correspondence formation, and a differentiable PnP solver carries them to the transformation. A new Control-Side Score Distillation loss then scores the predicted transformation by how well the projected depth map conditions the pretrained diffusion model, so badly aligned pairs pay a high loss. Trained this way, the feature backbones learn cross-modal features that match more reliably, and at inference the diffusion model is discarded, so runtime and memory stay at the level of the non-diffusion baseline.

What carries the argument

The load-bearing pieces are two. Control-Side Score Distillation (CSD) is a score-distillation objective that evaluates a predicted transformation by feeding the projected, densified depth map as the control condition to a pretrained depth-conditioned latent diffusion model; the residual between predicted and sampled noise, masked to the overlapping region, is backpropagated into the registration network with the size-matched Jacobian treated as the identity. Deformable Correspondence Tuning (DCT) is the differentiable bridge around non-differentiable top-k matching: a shared MLP takes the concatenated point and pixel features plus their coordinates and predicts 3D offsets, and the adjusted correspondences are passed to BPnP, a differentiable PnP solver whose gradients come from the implicit function theorem. Together they make the whole training loop differentiable and give the diffusion prior a channel through which to guide feature learning.

What would settle it

Train Diff2I2P identically but replace the CSD noise residual with a random target, for example the score model's output for an unrelated image-depth pair; if registration recall stays near 83.0% the diffusion prior is not the source of the gain, whereas if it collapses the CSD signal is carrying the improvement.

Watch

Extended reading notes

Core claim

The central claim is that score distillation from a depth-conditioned diffusion model can be turned into a direct, fully differentiable supervision for image-to-point-cloud registration. The paper introduces Control-Side Score Distillation (CSD), which treats a well-aligned image-depth pair as one that the pretrained ControlNet can denoise cleanly: the predicted transform projects the point cloud to a depth map, the depth map conditions the diffusion model on the input image, and the noise-prediction residual becomes a loss on the transformation. Because the top-k correspondence step and PnP-RANSAC would block gradients, the paper adds a Deformable Correspondence Tuning (DCT) module that predicts 3D point offsets from concatenated image-point features, and replaces RANSAC with the differentiable BPnP solver. With this path, the CSD gradient flows back into the feature backbones, so the diffusion prior is distilled into the cross-modal features themselves rather than used at inference. The paper reports that this formulation beats 2D3D-MATR on 7-Scenes by 7.2 percentage points in registration recall and sets a new high on RGB-D Scenes V2, while discarding the diffusion model at test time.

Load-bearing premise

Two premises share the load: that treating the size-matched Jacobian in the CSD gradient as the identity still yields a useful optimization direction, and that gradients flowing through the DCT offsets and BPnP are sufficient to update the feature backbones.

Editorial extensions

If this is right

  • If CSD is doing the work claimed, a pretrained cross-modal diffusion model can supervise registration without a ground-truth transformation loss, avoiding the gradient explosions the paper says a direct MSE on transformations produces.
  • The diffusion model is only a training-time teacher: at inference the same backbones run with speed and memory equal to the 2D3D-MATR baseline, so the method inherits accuracy gains without paying diffusion inference cost.
  • The DCT module gives a template for making other non-differentiable matching stages trainable: predict coordinate offsets with an MLP and let a differentiable solver carry the gradient.
  • Better cross-modal features should transfer across scenes because the network is scene-agnostic; the KITTI results in the supplementary material suggest the gain is not confined to indoor RGB-D benchmarks.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • Editorial extension: the CSD gradient is an approximation with a dropped Jacobian, so its success may depend on the pretrained diffusion model being a good scorer of alignment; a weaker or domain-mismatched diffusion prior could erode the gain.
  • Editorial extension: because CSD supervises the transformation rather than the correspondences directly, it should in principle reward any global alignment that makes the depth conditioning coherent, which could help in low-overlap or repetitive-texture scenes where pointwise matching is ambiguous.
  • Editorial extension: a testable extension would be to swap the depth-conditioned diffusion model for a different conditional generator (for example, a semantic or surface-normal condition) and see whether registration recall tracks conditioning quality; if it does, CSD is a general distillation mechanism, not a depth-specific trick.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 7 minor

Summary. The paper proposes Diff2I2P, an image-to-point cloud registration method that combines a coarse-to-fine matching pipeline (based on 2D3D-MATR) with a Deformable Correspondence Tuning (DCT) module and a differentiable BPnP solver, and trains the network with a Control-Side Score Distillation (CSD) loss derived from a pretrained depth-conditioned diffusion model. The core claims are that CSD provides a training signal bridging the image/point modality gap, that the whole pipeline is fully differentiable, and that the method outperforms state-of-the-art I2P registration baselines, in particular raising registration recall on 7-Scenes from 75.8% (2D3D-MATR) to 83.0% while keeping inference time comparable. The paper includes experiments on 7-Scenes, RGB-D Scenes V2, and KITTI, plus ablations and comparisons with FreeReg.

Significance. Should the empirical results hold, the paper makes a useful practical contribution: it shows how a large pretrained diffusion model can be used as a training-time supervisor for cross-modal feature learning, with no diffusion-model overhead at inference (0.074 s vs 0.072 s for 2D3D-MATR in Table 4). The reported 7.2-point improvement in registration recall on 7-Scenes is substantial, and the evaluations on multiple benchmarks, the KITTI extension, and the noise-robustness experiments in the supplementary material strengthen the empirical case. The method is clearly described and the architecture figures are helpful. However, the evaluation-protocol inconsistency and the overclaim of full differentiability currently limit confidence; the paper's central empirical claim is plausible but not yet fully verified.

major comments (3)
  1. [Section 4.1 and Supplementary Section A, Eqs. (11)-(12)] The same metrics are defined with conflicting thresholds in the main text and the supplementary. The main text states that Inlier Ratio (IR) counts correspondences within 5 cm and that Feature Matching Recall (FMR) uses an inlier-ratio threshold of 10%, while the supplementary defines tau1 = 10 cm and tau2 = 5%. Because IR and FMR are reported in Tables 1, 2, and 3 and in the supplementary comparisons, and because no evaluation code is released, a reader cannot determine which protocol generated the tables. If the two threshold sets were applied inconsistently, the claimed consistent improvements in IR/FMR could be artifacts of metric mismatch. The headline RR threshold (10 cm) is consistent, so the 7.2-point RR gain is not directly invalidated, but the supporting evidence must be pinned down before the empirical claims can be accepted.
  2. [Section 3.2 and Abstract] The paper advertises a 'fully differentiable' framework in the title and abstract, but Section 3.2 describes obtaining initial correspondences by 'selecting the point-pixel pairs with topk similarity.' The top-k selection is a hard, non-differentiable operation; gradients to the feature backbones flow only through the DCT offset prediction and the BPnP solver, not through the correspondence selection itself. The mapping from backbone parameters to the loss is therefore piecewise differentiable at best. Please replace 'fully differentiable' with a precise description such as 'end-to-end trainable via a differentiable correspondence refinement path,' and state explicitly whether any gradient signal reaches the matching scores used for the top-k selection.
  3. [Section 4.4, Table 3 (c) vs (e)] The CSD loss contributes only +1.7 RR (81.3 to 83.0), +0.2 IR, and +0.5 FMR over the no-CSD configuration, while the paper credits the diffusion prior with bridging the modality gap. Because the DCT module cannot be ablated during training, the 7.2-point RR gain over 2D3D-MATR is not isolated to the diffusion prior; it may be largely due to DCT and differentiable end-to-end training. Please provide an ablation that separates the effect of the diffusion prior, for example by replacing CSD with a stabilized geometric loss, and report variance or multiple seeds so that the +1.7 RR is shown to be significant.
minor comments (7)
  1. [Abstract and Section 4.2] The phrase 'consistently outperforms' is too strong in view of Table 1: on Stairs the proposed method has FMR 55.4 vs 58.1 for 2D3D-MATR, and IR ties at 18.1. Please qualify the claim, for example as 'outperforms on the mean and on most scenes.'
  2. [Various] There are several typographical errors: 'takle' in Section 3.1, 'sorely' in Section 1, 'leanrning' in Section 3.4, and 'RreeReg' in Supplementary Section C.3.
  3. [Table 3] The checkmark notation in Table 3 is ambiguous without a caption explaining each column and row; please add explicit column labels and row descriptions so that the reader can map each row to the loss configuration described in the text.
  4. [Equation (9)] Equation (9) uses Delta P_i for the offset while the text and Equation (2) use Delta p_i; please unify the notation.
  5. [Equation (8)] Equation (8) introduces x in the gradient expression without defining it; it should be the image latent z used in Equation (5).
  6. [Supplementary Section A] The text around Equation (11) swaps the roles of I and P, referring to 'the 3D point set I and the image pixel set P,' which conflicts with the main text notation where I is the image and P is the point cloud; please fix.
  7. [Equation (7)] The omission of the size-matched Jacobian is justified only by the statement that 'our implementation finds that this omission leads to an effective optimization.' Since this approximation is central to the CSD gradient, a small quantitative comparison or convergence analysis would strengthen the derivation.

Circularity Check

0 steps flagged · score 0.0 of 10

No circular derivation: the CSD prior is external, the losses are supervised by public ground truth, and the flagged IR/FMR threshold conflict is a reporting issue rather than a circular step.

full rationale

The paper's central training signal, the CSD gradient in Eq. (8), is computed from the noise residual of a pretrained depth-conditioned diffusion model (ControlNet/Stable Diffusion), whose weights are external to this paper; the gradient is not defined in terms of the paper's own outputs, and no fitted parameter of the method is embedded in the diffusion prior. The metric learning loss Lm follows the published 2D3D-MATR formulation with external ground-truth correspondences, and the offset loss Lo in Eq. (9) is supervised by the ground-truth transformation; neither reduces to the reported registration recall numbers by construction. The registration metrics (RR, IR, FMR) are evaluated against public benchmarks (7-Scenes, RGB-D Scenes V2, KITTI) with published baselines, so the headline 83.0% versus 75.8% RR gain is an externally comparable empirical claim. The only self-referential elements are ablations comparing loss configurations, which is standard practice and not circular. I do flag, for correctness rather than circularity, that Section 4.1 defines IR with a 5 cm threshold and FMR with a 10% inlier-ratio threshold, while supplementary Eqs. (11) and (12) define tau1 = 10 cm and tau2 = 5%; this inconsistency must be resolved before the reported IR/FMR numbers can be reproduced, but it does not make the derivation circular. No load-bearing self-citation or ansatz-smuggling-via-citation was found.

Assumptions & free parameters 5 free parameters · 4 assumptions · 0 invented entities

The central claim rests on several hand-chosen hyperparameters (loss weights, densification kernels, topk count) and on two unvalidated modeling assumptions: the identity approximation of the CSD Jacobian and the sufficiency of DCT-only gradients. No new physical entities are introduced.

free parameters (5)
  • loss weights alpha, beta, gamma
    Combination weights for metric loss Lm, offset loss Lo, and CSD loss LCSD in Sec. 3.4; chosen by hand, not swept or justified.
  • offset regularization coefficient mu
    Regularization strength in Eq. (10), hand-chosen.
  • depth densification morphology parameters = kernel 7x7, thresholds 0.1 and 15.0, blur kernels 5
    Dilation, erosion, and blur sizes in Supplementary D.2, chosen to make sparse depth usable by ControlNet; these affect the CSD loss landscape.
  • topk correspondence count
    Number of initial point-pixel pairs selected in Section 3.2; threshold not given.
  • CSD timestep distribution
    Timestep t is sampled according to SDS, but schedule and weighting function w(t) are not specified for this application.
assumptions (4)
  • ad hoc to paper Omitted size-matched Jacobian can be treated as identity without corrupting optimization (Eq. 7).
    The paper states 'Our implementation finds that this omission leads to an effective optimization', an empirical assertion without theoretical support.
  • domain assumption Pretrained depth-conditioned ControlNet generalizes to synthetic densified depth maps produced by morphology operations.
    The CSD loss assumes the diffusion model's noise prediction responds sensibly to the projected and densified depth D from Eq. (4), which may differ from its training distribution.
  • ad hoc to paper Top-k correspondence selection can be left non-differentiable while DCT offsets still provide sufficient gradient signal to backbones.
    The 'fully differentiable' pipeline (Sec. 3.2) relies on this, but no gradient flows through the selection step itself.
  • domain assumption Overlap mask m excludes empty regions without introducing bias into the distillation loss.
    Eq. (5) masks out empty depth regions; this assumes those regions carry no useful alignment information.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Diff$^2$I2P: Differentiable Image-to-Point Cloud Registration with Diffusion Prior." pith.science (2026). https://pith.science/paper/MHQUVFQD

@misc{pith2026250706651,
  author       = {Pith},
  title        = {Pith review of: Diff$^2$I2P: Differentiable Image-to-Point Cloud Registration with Diffusion Prior},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/MHQUVFQD}},
  note         = {Machine review of arXiv:2507.06651}
}
abstract

Learning cross-modal correspondences is essential for image-to-point cloud (I2P) registration. Existing methods achieve this mostly by utilizing metric learning to enforce feature alignment across modalities, disregarding the inherent modality gap between image and point data. Consequently, this paradigm struggles to ensure accurate cross-modal correspondences. To this end, inspired by the cross-modal generation success of recent large diffusion models, we propose Diff$^2$I2P, a fully Differentiable I2P registration framework, leveraging a novel and effective Diffusion prior for bridging the modality gap. Specifically, we propose a Control-Side Score Distillation (CSD) technique to distill knowledge from a depth-conditioned diffusion model to directly optimize the predicted transformation. However, the gradients on the transformation fail to backpropagate onto the cross-modal features due to the non-differentiability of correspondence retrieval and PnP solver. To this end, we further propose a Deformable Correspondence Tuning (DCT) module to estimate the correspondences in a differentiable way, followed by the transformation estimation using a differentiable PnP solver. With these two designs, the Diffusion model serves as a strong prior to guide the cross-modal feature learning of image and point cloud for forming robust correspondences, which significantly improves the registration. Extensive experimental results demonstrate that Diff$^2$I2P consistently outperforms SoTA I2P registration methods, achieving over 7% improvement in registration recall on the 7-Scenes benchmark.

Figures

Figures reproduced from arXiv: 2507.06651 by the authors.

Figure 1
Figure 1. Our proposed Control-Side Score Distillation (CSD) effectively promotes the learning of cross-modal features by intro￾ducing a novel Diffusion prior to bridging the modality gap. To illustrate this, we select a query point from the chair leg in the point cloud, where the features are primarily geometry-dominated and challenging for the image backbone to capture effectively. Its ground-truth corresponding pixel is ma… view at source ↗
Figure 2
Figure 2. The illustration of CSD leveraging diffusion prior to [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Pipeline of Diff2 I2P. We construct a fully differentiable pipeline for cross-modal registration. Given the input image and point cloud, we first perform feature matching to obtain the initial correspondences. Next, the Deformable Correspondence Tuning module takes their features as input and predicts point cloud coordinate offsets, ensuring the differentiability meanwhile refining the correspondences. Subsequently,… view at source ↗
Figures from the paper (8 more)
Figure 4
Figure 4. Figure 4: Illustration of Control-Side Score Distillation. We employ a depth-conditioned Diffusion model [ [PITH_FULL_IMAGE:figures/full_fig_p005_4.png]
Figure 5
Figure 5. Figure 5: Qualitative results on the 7-Scenes dataset. The red lines indicate erroneous correspondences (3D distance greater than 5 cm), [PITH_FULL_IMAGE:figures/full_fig_p007_5.png]
Figure 6
Figure 6. Figure 6: Illustration of the DCT for refining correspondences. (a) [PITH_FULL_IMAGE:figures/full_fig_p008_6.png]
Figure 7

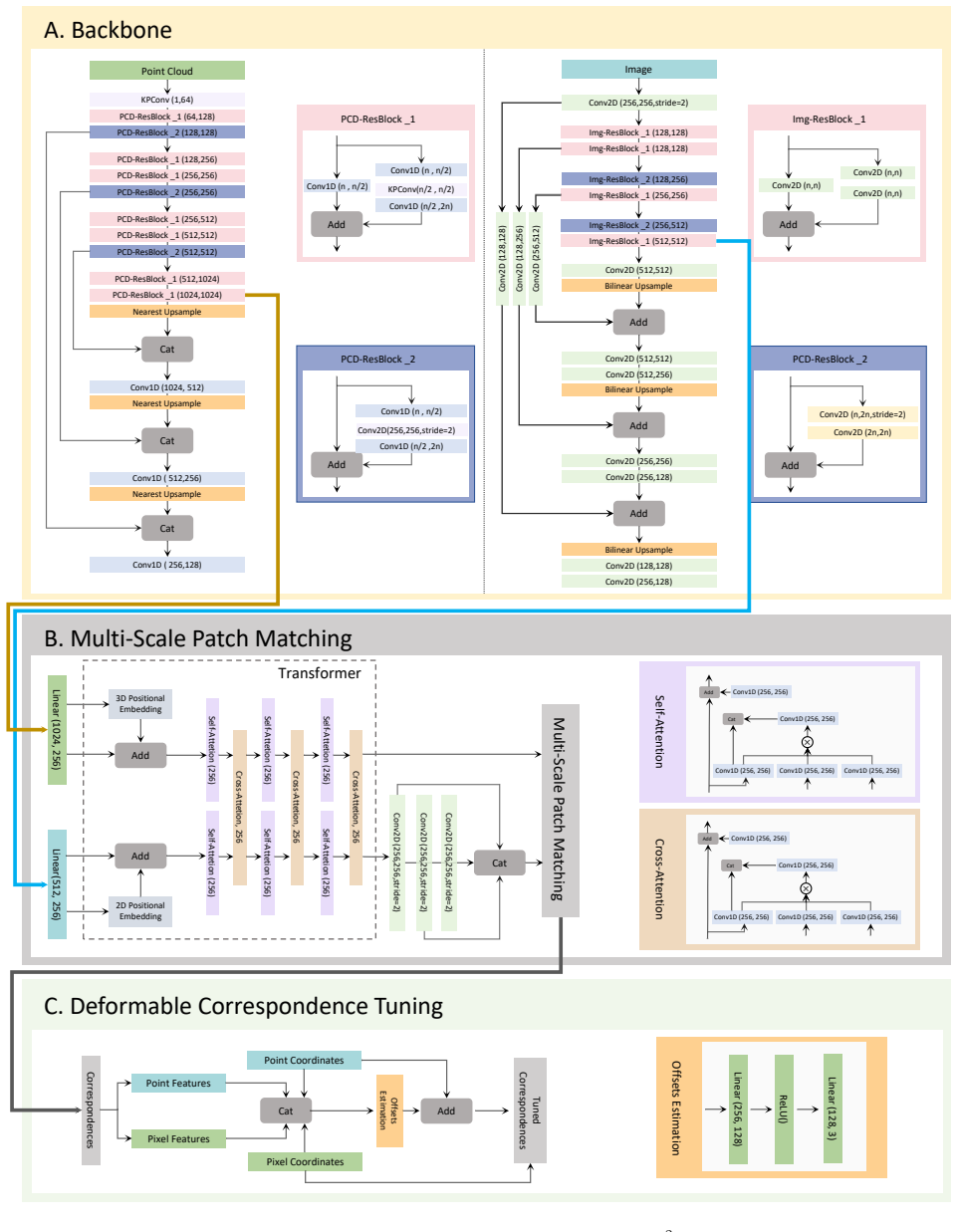

Figure 7. Figure 7: The network architecture of our proposed Diff2 [PITH_FULL_IMAGE:figures/full_fig_p015_7.png]
Figure 9

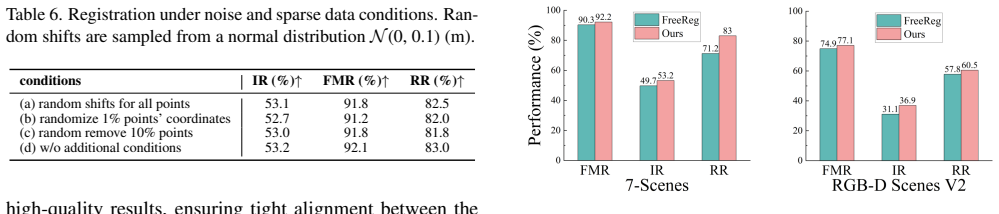

Figure 9. Figure 9: Detailed comparison with FreeReg [PITH_FULL_IMAGE:figures/full_fig_p016_9.png]
Figure 8
Figure 8. Figure 8: Detailed comparison with Diff-Reg. E.5. Detailed comparison with FreeReg Owing to space constraints, we present a simple comparison with FreeReg in the main paper. Additional detailed results on 7-Scenes and RGB-D Scenes V2 are provided in [PITH_FULL_IMAGE:figures/ful…
Figure 10
Figure 10. Figure 10: Correspondence visualizations on 7-scenes [PITH_FULL_IMAGE:figures/full_fig_p017_10.png]
Figure 11
Figure 11. Figure 11: Correspondence visualizations on RGB-D Scenes V2. [PITH_FULL_IMAGE:figures/full_fig_p018_11.png]
