Neural Networks, Hypersurfaces, and Radon Transforms

Gustavo K. Rohde; Soheil Kolouri; Xuwang Yin

arxiv: 1907.02220 · v1 · pith:MLZM6ID7new · submitted 2019-07-04 · 📊 stat.ML · cs.LG

Neural Networks, Hypersurfaces, and Radon Transforms

Soheil Kolouri , Xuwang Yin , Gustavo K. Rohde This is my paper

Pith reviewed 2026-05-25 09:30 UTC · model grok-4.3

classification 📊 stat.ML cs.LG

keywords neural networksRadon transformhypersurfacesintegral geometryprobability distributionsactivation functionsadversarial examplespooling

0 comments

The pith

Neural network nodes produce output distributions that are nonlinear projections of input data along hypersurfaces defined by level sets.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper treats neural networks as operators acting on probability distributions of observed data and shows that each node's output distribution equals a nonlinear projection along hypersurfaces given by the level sets of the preceding layer. This supplies an integral-geometric reading that directly links network computations to the Radon transform. A sympathetic reader would care because the same geometric mechanism then accounts for the roles of nonlinearity, activation functions, pooling, and the sensitivity that produces adversarial examples. The interpretation therefore replaces separate empirical observations with one consistent picture of how layered transformations act on data distributions.

Core claim

By analyzing the properties of neural networks as operators on probability distributions for observed data, the distribution of outputs for any node in a neural network can be interpreted as a nonlinear projection along hypersurfaces defined by level surfaces over the input data space. Connections between integration along hypersurfaces, Radon transforms, and neural networks therefore provide an integral-geometric mathematical interpretation of neural networks.

What carries the argument

Neural networks viewed as successive operators on probability distributions that induce nonlinear Radon-like projections along level-set hypersurfaces.

If this is right

Nonlinearity in networks follows directly from the geometry of successive hypersurface projections.
Pooling operations correspond to integration over families of level-set hypersurfaces.
Activation functions determine the specific family of hypersurfaces used for each projection step.
Adversarial examples arise when small input changes move data across the defining level surfaces and thereby alter the projected output distribution.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same geometric lens could be applied to convolutional or recurrent architectures by defining the appropriate level surfaces on their input spaces.
Reconstruction techniques from integral geometry might be used to recover input distributions from observed node activations.
Choosing different families of hypersurfaces at design time could yield new network layers with prescribed geometric properties.

Load-bearing premise

The layered nonlinear transformations preserve the integral-geometric projection properties of the Radon transform without extra constraints or approximations that would invalidate the hypersurface interpretation.

What would settle it

An explicit computation for a two-layer network with known activation whose output distribution fails to equal the nonlinear projection along the level surfaces determined by the first layer.

Figures

Figures reproduced from arXiv: 1907.02220 by Gustavo K. Rohde, Soheil Kolouri, Xuwang Yin.

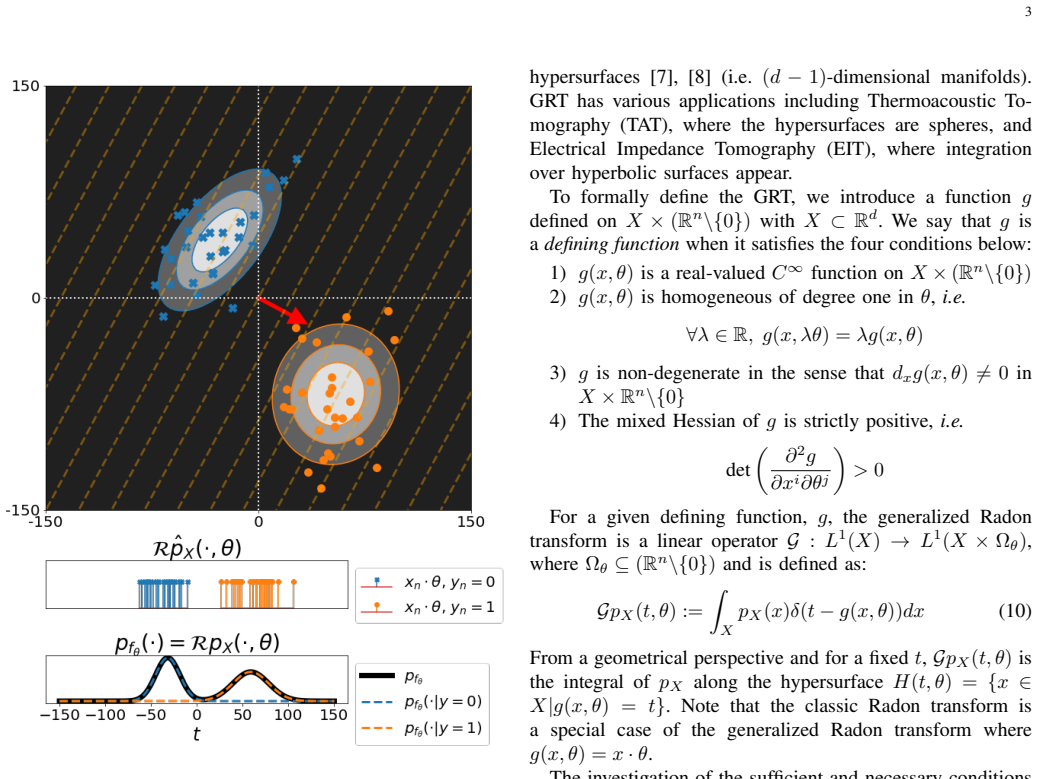

**Figure 2.** Figure 2: The linear classifier slices the distribution of the data [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

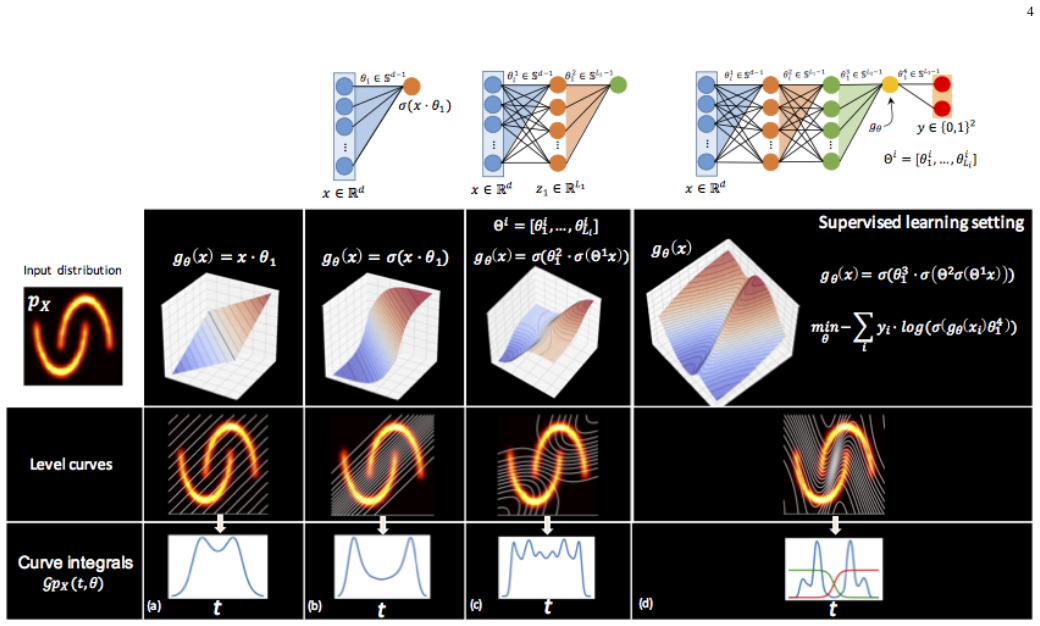

**Figure 3.** Figure 3: Curve integrals for the half-moon dataset for a random linear projection, which is equivalent to a slice of linear Radon transform (a), for one layer [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

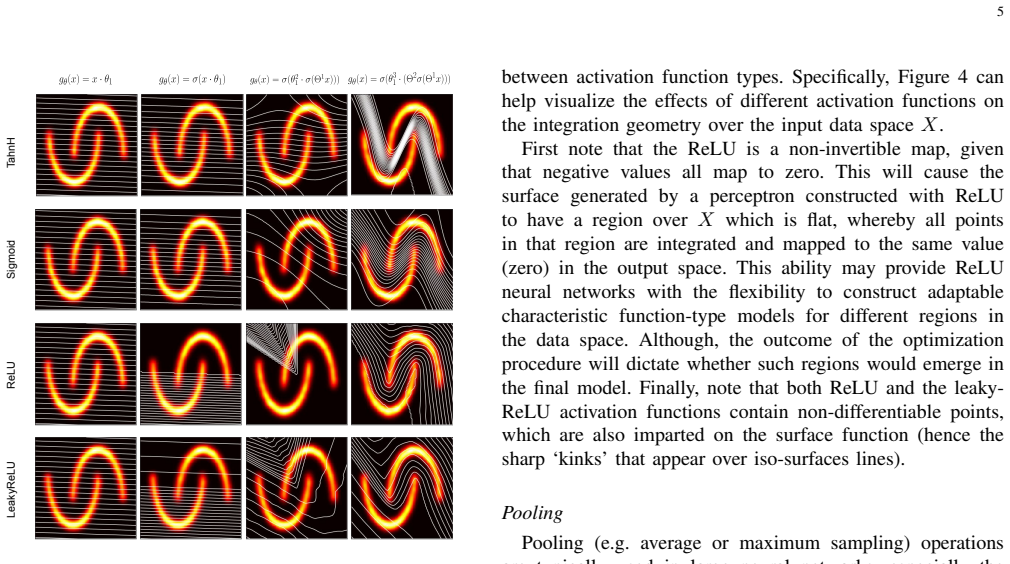

**Figure 4.** Figure 4: Level curves of nodes introduced by different activation functions. [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

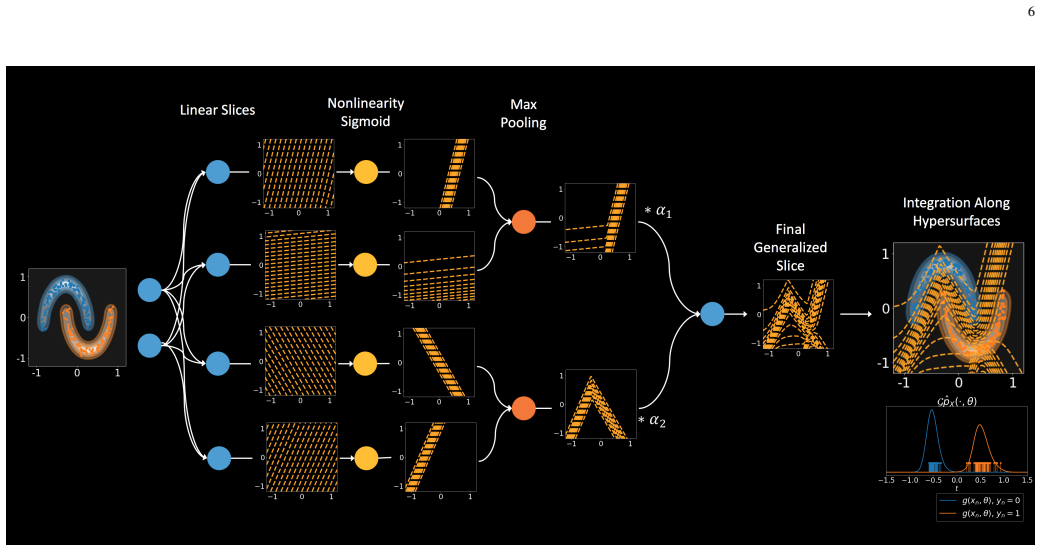

**Figure 5.** Figure 5: Demonstration of max pooling operation. The level surfaces corresponding to perceptron outputs for a given input sample [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗

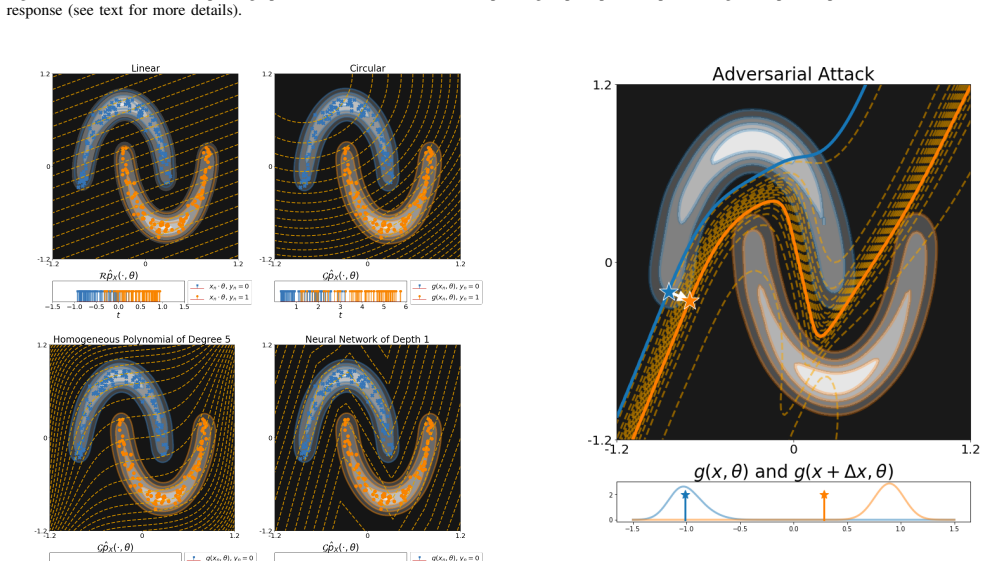

**Figure 7.** Figure 7: Adversarial perturbations lead to a shift between hypersurfaces. [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗

read the original abstract

Connections between integration along hypersufaces, Radon transforms, and neural networks are exploited to highlight an integral geometric mathematical interpretation of neural networks. By analyzing the properties of neural networks as operators on probability distributions for observed data, we show that the distribution of outputs for any node in a neural network can be interpreted as a nonlinear projection along hypersurfaces defined by level surfaces over the input data space. We utilize these descriptions to provide new interpretation for phenomena such as nonlinearity, pooling, activation functions, and adversarial examples in neural network-based learning problems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper frames each NN node's output distribution as a nonlinear Radon projection along input level-set hypersurfaces, but the claim rests on unstated preservation of integral geometry through affine-plus-nonlinear layers.

read the letter

The main takeaway is that the authors treat neural nets as operators on input distributions and conclude that any node's output distribution equals a nonlinear projection along hypersurfaces. This is the explicit new link they draw to the Radon transform. They then apply the same view to explain nonlinearity, pooling, activations, and adversarial examples. That framing is not just a restatement of prior work in the abstract, so the geometric angle is fresh. The paper does a clean job laying out the operator perspective without obvious self-reference or invented entities. The abstract is short and direct about the claim. The soft spot is exactly the one the stress-test note raises: the layered composition of linear maps and pointwise nonlinearities must inherit the projection property in a controlled way, yet the abstract supplies no conditions on the activations or depth that would guarantee this. Without those conditions or a derivation showing how the property survives the composition, the interpretation risks becoming an analogy whose validity is not yet verified. The reader's low soundness score follows directly from the abstract-only review; if the full manuscript contains the missing steps and any checks, that would change the picture. This is for readers already interested in integral geometry or interpretability of networks, not for someone needing new algorithms or tight bounds. A serious editor should send it to referees because the central claim is distinct enough to warrant checking the derivations, even if heavy revision is likely needed on the preservation argument.

Referee Report

2 major / 1 minor

Summary. The paper claims that neural networks admit an integral-geometric interpretation via the Radon transform: by viewing NNs as operators on input probability distributions, the output distribution at any node is a nonlinear projection along hypersurfaces given by the level sets of the input data. This framing is used to reinterpret nonlinearity, pooling, activation functions, and adversarial examples.

Significance. A rigorous connection between Radon-transform geometry and the forward pass of a neural network would supply a new analytic language for NN behavior and could inform robustness analysis. The manuscript does not supply machine-checked proofs or reproducible code, but the conceptual link, if made precise, would be a substantive contribution to the theoretical understanding of deep networks.

major comments (2)

[§3] §3 (NNs as operators on distributions): the central claim that the composition of affine layers and pointwise nonlinear activations inherits the integral-geometric projection property of the (linear) Radon transform is asserted without stating the necessary conditions on the activation functions or depth that would guarantee preservation of the hypersurface-projection structure. The argument therefore reduces to an analogy whose validity is not verified.
[§4] §4 (reinterpretation of adversarial examples): the explanation that adversarial perturbations correspond to changes in the nonlinear projection measure is not accompanied by a quantitative relation between the perturbation norm and the Radon-measure distortion; without this link the geometric account does not yet yield a testable prediction or bound.

minor comments (1)

[Abstract] Abstract: 'hypersufaces' is a typographical error and should read 'hypersurfaces'.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. Below we respond point-by-point to the major remarks, indicating where the manuscript will be revised for clarity while preserving the scope of the geometric interpretation.

read point-by-point responses

Referee: [§3] §3 (NNs as operators on distributions): the central claim that the composition of affine layers and pointwise nonlinear activations inherits the integral-geometric projection property of the (linear) Radon transform is asserted without stating the necessary conditions on the activation functions or depth that would guarantee preservation of the hypersurface-projection structure. The argument therefore reduces to an analogy whose validity is not verified.

Authors: The projection property for affine layers follows directly from the definition of the Radon transform. For pointwise activations the output distribution is the push-forward of the input measure under a measurable map; the level sets remain hypersurfaces and the integral-geometric structure is preserved for any measurable activation. Depth does not alter this because the property composes. We will revise §3 to state these minimal assumptions explicitly, thereby removing any appearance that the claim rests on an unverified analogy. revision: partial
Referee: [§4] §4 (reinterpretation of adversarial examples): the explanation that adversarial perturbations correspond to changes in the nonlinear projection measure is not accompanied by a quantitative relation between the perturbation norm and the Radon-measure distortion; without this link the geometric account does not yet yield a testable prediction or bound.

Authors: The section supplies a qualitative geometric reading of adversarial examples as distortions of the nonlinear projection measure. No explicit quantitative relation between perturbation norm and Radon-measure distortion is derived, as that would require additional analytic machinery beyond the conceptual framework developed here. We will add a brief remark acknowledging this limitation and identifying the derivation of such bounds as an open direction. revision: partial

Circularity Check

0 steps flagged

No significant circularity; derivation rests on external Radon transform properties

full rationale

The paper's central claim interprets NN node output distributions as nonlinear projections along input level-set hypersurfaces by invoking standard properties of the Radon transform applied to probability distributions. No equations or steps in the provided abstract reduce a prediction or uniqueness result to a fitted parameter, self-citation chain, or definitional tautology; the interpretation is framed as a direct consequence of integral geometry applied to the network's operator structure on distributions. The derivation chain therefore remains self-contained against external mathematical benchmarks and does not collapse by construction to its own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

Abstract-only review; no explicit free parameters, axioms, or invented entities are stated. The interpretation implicitly relies on standard properties of the Radon transform and the modeling of NN layers as distribution operators.

axioms (2)

domain assumption Neural networks act as operators on probability distributions of observed data
Explicitly invoked in the abstract as the starting point for the hypersurface analysis.
domain assumption Level surfaces of the input data define hypersurfaces compatible with Radon transform projections
Core premise required for the nonlinear projection interpretation to hold.

pith-pipeline@v0.9.0 · 5615 in / 1161 out tokens · 27474 ms · 2026-05-25T09:30:02.021426+00:00 · methodology
