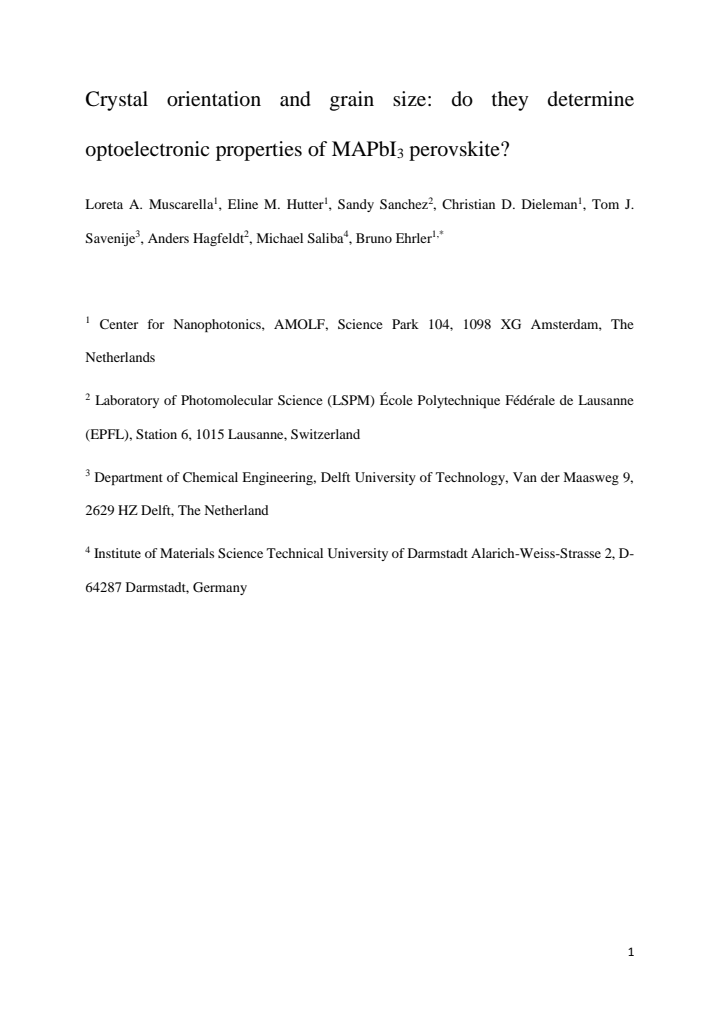

Crystal orientation and grain size: do they determine optoelectronic properties of MAPbI3 perovskite?
Pith reviewed 2026-05-24 20:10 UTC · model grok-4.3
The pith
Crystal orientation and grain size do not determine optoelectronic properties of MAPbI3 perovskite films.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
FIRA films exhibit spherulitic growth with large highly oriented grains along (112) and (400) planes, in contrast to the smaller randomly oriented grains in antisolvent films. Local photoluminescence variations arise from light outcoupling and self-absorption rather than orientation. Overall photoluminescence, charge carrier mobilities and lifetimes remain comparable between the two film types, showing no measurable effect from crystal orientation or grain size.
What carries the argument
Electron back-scattered diffraction (EBSD) to determine grain size and crystallographic orientation, paired with local photoluminescence imaging and time-resolved microwave conductivity (TRMC) to quantify optoelectronic response.
If this is right
- Optoelectronic quality in MAPbI3 is not necessarily tied to the size or orientation of crystalline domains.
- Fabrication methods can be selected without regard to achieving large oriented grains.
- Perovskite film production requirements are more relaxed than the grain-engineering approach would suggest.
Where Pith is reading between the lines
- Defect density, surface passivation or composition uniformity likely exert stronger control over optoelectronic behavior than grain morphology.
- Process choices could prioritize throughput or cost over grain control without performance loss.
- The same decoupling may appear in other halide perovskite compositions or device architectures.
Load-bearing premise
The two film types differ mainly in grain size and orientation while other factors such as defect density stay similar enough that any property difference would be caused by the grains.
What would settle it
A controlled comparison in which FIRA and antisolvent films show clearly different carrier mobilities or lifetimes after all non-grain variables are matched would falsify the central claim.
read the original abstract
It is thought that growing large, oriented grains of perovskite can lead to more efficient devices. We study MAPbI3 films fabricated via Flash Infrared Annealing (FIRA) consisting of highly oriented, large grains. Domains observed in the SEM are often misidentified with crystallographic grains, but SEM images don't provide diffraction information. We measure the grain size, crystal structure and grain orientation using Electron Back-Scattered Diffraction (EBSD) and we study how these affect the optoelectronic properties as characterized by local photoluminescence (PL) and time-resolved microwave conductivity measurements (TRMC). We find a spherulitic growth yielding large (tens of micron), highly oriented grains along the (112) and (400) planes in contrast to randomly oriented, smaller (400 nm) grains observed in films fabricated via conventional antisolvent (AS) dripping. We observe a local enhancement and shift of the photoluminescence emission at different regions of the FIRA clusters, but these can be explained with a combination of light-outcoupling and self-absorption. We observe no effect of crystal orientation on the optoelectronic properties. Additionally, despite a substantial difference in grain size between our FIRA sample and a conventional AS sample, we find similar photoluminescence and charge carrier mobilities and lifetime for the two films. These findings show that the optoelectronic quality is not necessarily related to the orientation and size of crystalline domains in perovskite films indicating that fabrication requirements may be more relaxed for perovskites.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript compares MAPbI3 perovskite films fabricated by Flash Infrared Annealing (FIRA), yielding large (tens of microns), highly (112)/(400)-oriented grains, against conventional antisolvent (AS) films with smaller (~400 nm), randomly oriented grains. Using EBSD for grain size/orientation, local PL for emission properties, and TRMC for mobility/lifetime, the authors report no orientation dependence on optoelectronics and similar PL, mobility, and lifetime despite the grain-size difference, concluding that optoelectronic quality is not necessarily tied to crystalline domain size or orientation.
Significance. If the central claim holds, the result indicates that large-scale efforts to engineer grain size and orientation may not be required for high optoelectronic performance in perovskites, potentially relaxing fabrication constraints for devices. The use of multiple orthogonal techniques (EBSD, spatially resolved PL, TRMC) applied to explicitly compared samples, together with a physical (optical) explanation for local PL variations rather than grain attribution, strengthens the experimental foundation.
major comments (1)
- [Results and discussion of TRMC and PL measurements] The claim of no grain-size/orientation effect on optoelectronic properties (abstract; TRMC/PL comparison) is load-bearing on the assumption that FIRA and AS films differ only in the measured structural parameters. EBSD confirms orientation and size differences, but the manuscript provides no direct data (e.g., XPS stoichiometry, defect-related sub-gap absorption, or thickness uniformity) showing that defect density, composition, and surface passivation are matched to the precision of the TRMC mobility and lifetime measurements. Without this, similarity cannot be unambiguously attributed to grain independence.
minor comments (1)
- [Introduction] The description of spherulitic growth and domain misidentification in SEM would benefit from an additional reference to prior EBSD studies on perovskites for context.
Simulated Author's Rebuttal
We appreciate the referee's thorough review and the opportunity to clarify our findings. Below we respond to the major comment.
read point-by-point responses
-
Referee: [Results and discussion of TRMC and PL measurements] The claim of no grain-size/orientation effect on optoelectronic properties (abstract; TRMC/PL comparison) is load-bearing on the assumption that FIRA and AS films differ only in the measured structural parameters. EBSD confirms orientation and size differences, but the manuscript provides no direct data (e.g., XPS stoichiometry, defect-related sub-gap absorption, or thickness uniformity) showing that defect density, composition, and surface passivation are matched to the precision of the TRMC mobility and lifetime measurements. Without this, similarity cannot be unambiguously attributed to grain independence.
Authors: We thank the referee for highlighting this important point. The manuscript indeed does not include XPS, sub-gap absorption, or explicit thickness uniformity data to confirm that the films are identical in composition and defect density. We agree that such measurements would provide additional confidence in attributing the similar TRMC and PL results exclusively to the lack of dependence on grain size and orientation. However, both samples are MAPbI3 films prepared using the same starting materials, and the TRMC and spatially-resolved PL directly measure the relevant optoelectronic properties. The fact that these properties are comparable, while EBSD shows clear differences in grain size and orientation, supports the conclusion that optoelectronic performance is not necessarily determined by these structural features. Any significant differences in defect density or passivation would be expected to affect the measured carrier lifetimes and mobilities, which are similar within experimental uncertainty. We can add a sentence in the discussion section acknowledging this caveat in the revised version. revision: partial
Circularity Check
No circularity: purely experimental comparison with no derivations or predictions
full rationale
The paper reports direct experimental measurements (EBSD for grain size/orientation, local PL, TRMC for mobility/lifetime) comparing FIRA and AS films. No equations, fitted parameters, predictions, or derivation chains appear in the text. Claims of 'no effect of crystal orientation' and 'similar photoluminescence and charge carrier mobilities' are observational conclusions from instrument data, not reductions of any model to its inputs. Self-citations, if present, are not load-bearing for any claimed derivation. The work is self-contained against external benchmarks.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption EBSD provides accurate crystallographic orientation information for MAPbI3 grains without significant indexing errors from surface damage or beam effects.
- domain assumption TRMC mobility and lifetime values are comparable across samples when measured under identical conditions.
