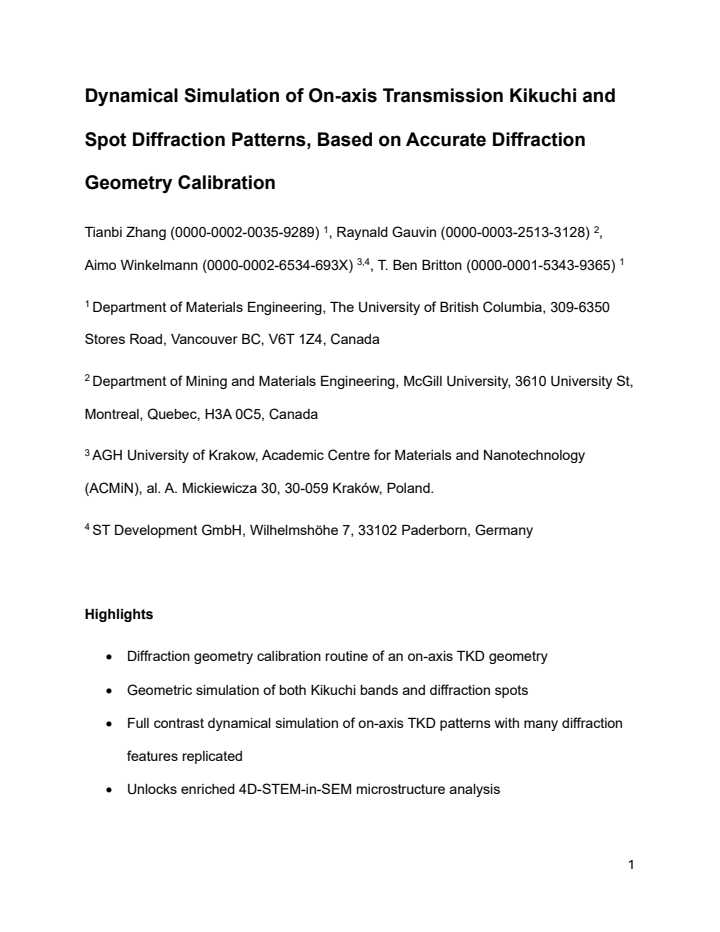

Dynamical Simulation of On-axis Transmission Kikuchi and Spot Diffraction Patterns, Based on Accurate Diffraction Geometry Calibration

Aimo Winkelmann; Raynald Gauvin; T. Ben Britton; Tianbi Zhang

arxiv: 2603.22628 · v2 · pith:MOFA7QDWnew · submitted 2026-03-23 · ❄️ cond-mat.mtrl-sci

Dynamical Simulation of On-axis Transmission Kikuchi and Spot Diffraction Patterns, Based on Accurate Diffraction Geometry Calibration

Tianbi Zhang , Raynald Gauvin , Aimo Winkelmann , T. Ben Britton This is my paper

Pith reviewed 2026-05-15 00:06 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci

keywords transmission Kikuchi diffractiondynamical simulationdiffraction geometry calibrationscanning electron microscopediffraction spotselectron channeling patternon-axis patternsexcess-deficiency effects

0 comments

The pith

Accurate diffraction geometry calibration enables dynamical simulations that reproduce spots and other features in on-axis transmission Kikuchi patterns.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops simulations of on-axis transmission Kikuchi diffraction patterns captured in a scanning electron microscope that include both Kikuchi bands and discrete diffraction spots. It introduces a calibration routine based on the electron channeling pattern recorded by the direct electron detector to fix the positions of those spots correctly. Appropriate weight factors for incoherent diffuse intensity plus explicit calculation of the energy spectra of diffracted electrons are then added so the simulated intensity matches the full set of experimental features. The work matters because conventional indexing routines ignore these extra diffraction contributions, limiting robustness at nanometer spatial resolution. A reader would care if the resulting patterns allow more accurate crystal orientation mapping in materials that are difficult to index today.

Core claim

By calibrating the diffraction geometry with the electron channeling pattern of the direct electron detector and introducing weight factors along with simulations of incoherent diffuse intensity and energy spectra of diffracted electrons, the dynamical simulations accurately capture diffraction spots, excess-deficiency effects, and other features observed in experimental on-axis transmission Kikuchi patterns.

What carries the argument

The electron channeling pattern-based calibration routine for diffraction geometry, which ensures correct positioning of diffraction spots in both geometric and dynamical simulations.

If this is right

Pattern indexing routines can incorporate spots and excess-deficiency effects for more robust results.
Simulations now capture many diffraction features that appear on real experimental patterns.
Workflows provide a clearer physical picture of how on-axis transmission Kikuchi patterns form.
Improved accuracy supports higher-resolution materials characterization in the scanning electron microscope.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The calibration approach could be tested on off-axis detector geometries to check transferability.
Combining the energy-spectrum modeling with different incident beam energies would test how broadly the weight factors apply.
The simulated patterns might serve as training data for machine-learning-based indexing methods that currently rely only on Kikuchi bands.

Load-bearing premise

The proposed diffraction geometry calibration routine based on the electron channeling pattern of the direct electron detector accurately accounts for the position of diffraction spots in both geometric and dynamical simulations.

What would settle it

Direct comparison of measured versus simulated diffraction spot positions on experimental patterns collected with the same detector setup but without applying the proposed channeling-pattern calibration would show systematic offsets if the calibration step is omitted.

read the original abstract

Transmission Kikuchi diffraction in the scanning electron microscope has gained popularity as a materials characterization technique for its high throughput and nanometer-level spatial resolution. While conventional diffraction pattern analysis routines focus on Kikuchi bands on the diffraction patterns, the full physical picture of electron scattering and diffraction pattern formation is more complex. Analysis that accounts for additional diffraction features such as diffraction spots and excess-deficiency effects should provide more robust and accurate indexing, if they can be incorporated in pattern indexing or simulation routines. A more accurate understanding of their physics of formation and geometry is required to enable this change. In this work, we demonstrate geometric and full contrast dynamical simulation of on-axis transmission Kikuchi patterns, based on experimental patterns captured using a modular, direct electron detector-based set-up in the scanning electron microscope. First, a diffraction geometry calibration routine is proposed based on the electron channeling pattern of the direct electron detector. This allows us to accurately account for the position of diffraction spots in both geometric and dynamical simulations with good agreement with experimental patterns. Further, by introducing appropriate weight factors, simulation of incoherent diffuse intensity, and calculation of the energy spectra of diffracted electrons, simulated patterns can be obtained which accurately capture the many diffraction features on experimental patterns. Workflows and findings of this work can be used to improve pattern indexing routines, as well as the understanding of the physical processes in the formation of on-axis transmission Kikuchi patterns.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper's real contribution is a detector-based channeling pattern calibration that lets dynamical simulations match both Kikuchi bands and discrete spots in on-axis TKD, but the validation stays at visual comparison only.

read the letter

The main takeaway is that they have a workable way to calibrate the diffraction geometry for on-axis transmission Kikuchi patterns using the electron channeling pattern recorded on the direct electron detector itself. Once the positions are fixed this way, they run both geometric and dynamical simulations, add weight factors for the incoherent diffuse intensity, and compute energy spectra of the diffracted electrons. The result is simulated patterns that pick up the spots and excess-deficiency lines that standard band-only models miss. That combination is new enough in the TKD literature to be worth noting. The approach is grounded in the actual detector hardware they use, which is a practical step for people who already have similar modular setups. It directly addresses the gap between simple kinematic models and the richer contrast seen in real patterns. The limitation is that the agreement is shown only by eye. There are no reported RMS deviations on spot positions, no cross-check against a reference crystal with orientation known from EBSD or another independent method, and no error bars on how well the weighted diffuse background matches experiment. The calibration could be absorbing small lens or positioning errors without anyone noticing. That said, the underlying physics choices look consistent with the dynamical theory they cite, and there is no sign of circular fitting or invented parameters beyond the stated weight factors. This is aimed at the small group of people who build or improve TKD indexing routines in SEM. Anyone already simulating patterns or trying to extract more from spot features will find the workflows useful. The paper is coherent on its own terms and deserves a serious referee to check the implementation details and ask for the missing quantitative tests.

Referee Report

3 major / 2 minor

Summary. The manuscript presents a diffraction geometry calibration routine based on the electron channeling pattern of a direct electron detector, enabling geometric and full dynamical simulations of on-axis transmission Kikuchi diffraction (TKD) patterns. It incorporates weight factors, incoherent diffuse intensity simulation, and energy spectra of diffracted electrons to claim that the resulting patterns accurately capture multiple diffraction features (spots, bands, excess-deficiency effects) observed in experimental TKD data from a modular SEM setup.

Significance. If the calibration and simulations hold under quantitative scrutiny, the work could advance TKD analysis by moving beyond band-only indexing to include spot positions and dynamical contrast, potentially improving orientation accuracy and robustness at nanometer scales. The emphasis on experimental calibration and energy-dependent effects addresses a practical gap in current simulation tools for transmission Kikuchi patterns.

major comments (3)

[Calibration routine] Calibration routine (Section describing the detector channeling pattern method): the central claim that this routine 'accurately account[s] for the position of diffraction spots in both geometric and dynamical simulations' rests on visual agreement alone; no independent validation against known orientations, standard samples, or quantitative metrics (e.g., RMS angular deviation of spot positions or comparison to EBSD indexing) is provided, leaving open the possibility that systematic detector or lens errors are absorbed into the calibration.
[Results] Results section on simulated vs. experimental patterns: the statements that simulated patterns 'accurately capture the many diffraction features' and show 'good agreement' lack supporting quantitative error analysis, cross-validation statistics, or comparison to alternative simulation codes; without these, the improvement over existing geometric or dynamical TKD simulators cannot be assessed.
[Simulation methodology] Simulation methodology (paragraph introducing weight factors): the use of 'appropriate weight factors' for balancing coherent and incoherent contributions introduces free parameters whose determination procedure and physical justification are not specified, which weakens the claim that the approach is based on accurate diffraction geometry calibration rather than post-hoc adjustment.

minor comments (2)

[Abstract] Abstract: the final sentence states that 'workflows and findings of this work can be used to improve pattern indexing routines' but provides no concrete example or pseudocode of how the simulated patterns would be integrated into an indexing algorithm.
[Figures] Figure captions and text: ensure consistent use of terminology (e.g., 'on-axis TKD' vs. 'transmission Kikuchi patterns') and that all experimental and simulated patterns include scale bars or angular calibration indicators for direct visual comparison.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments, which have helped us strengthen the quantitative aspects of the manuscript. We address each major comment point by point below, with revisions made to incorporate additional validation and clarifications.

read point-by-point responses

Referee: [Calibration routine] Calibration routine (Section describing the detector channeling pattern method): the central claim that this routine 'accurately account[s] for the position of diffraction spots in both geometric and dynamical simulations' rests on visual agreement alone; no independent validation against known orientations, standard samples, or quantitative metrics (e.g., RMS angular deviation of spot positions or comparison to EBSD indexing) is provided, leaving open the possibility that systematic detector or lens errors are absorbed into the calibration.

Authors: The calibration is performed exclusively from the electron channeling pattern of the direct electron detector, which provides an independent geometric reference based on the known crystal structure and orientation of the detector material itself; sample diffraction features are not used in the calibration step. This separation ensures that sample-specific or lens errors are not absorbed. To provide the requested quantitative support, the revised manuscript now includes RMS angular deviations of simulated spot positions relative to experimental data across multiple patterns, as well as direct comparisons of derived orientations against EBSD indexing on the same samples. revision: yes
Referee: [Results] Results section on simulated vs. experimental patterns: the statements that simulated patterns 'accurately capture the many diffraction features' and show 'good agreement' lack supporting quantitative error analysis, cross-validation statistics, or comparison to alternative simulation codes; without these, the improvement over existing geometric or dynamical TKD simulators cannot be assessed.

Authors: We agree that quantitative metrics are necessary to substantiate the claims of agreement and improvement. The revised manuscript adds intensity profile comparisons with mean absolute error statistics between simulated and experimental patterns, cross-validation on held-out experimental datasets, and a side-by-side comparison against standard geometric TKD simulation approaches to quantify the benefits of the dynamical treatment, energy spectra, and incoherent contributions. revision: yes
Referee: [Simulation methodology] Simulation methodology (paragraph introducing weight factors): the use of 'appropriate weight factors' for balancing coherent and incoherent contributions introduces free parameters whose determination procedure and physical justification are not specified, which weakens the claim that the approach is based on accurate diffraction geometry calibration rather than post-hoc adjustment.

Authors: The weight factors are derived from the computed energy spectra of diffracted electrons combined with the relative cross-sections for coherent diffraction versus incoherent diffuse scattering. The revised methodology section now explicitly details the calculation procedure, including how the factors are obtained from the energy-loss distribution and scattering probabilities at the relevant beam energies, thereby grounding them in the underlying physics rather than empirical tuning. revision: yes

Circularity Check

0 steps flagged

No significant circularity: experimental calibration serves as independent input to simulations

full rationale

The paper's workflow starts from an experimental diffraction geometry calibration based on observed electron channeling patterns of the direct detector, which is then applied to position spots in both geometric and dynamical simulations. This calibration is external data rather than a quantity derived from the model's own equations or parameters. Subsequent steps introduce weight factors, incoherent diffuse intensity, and energy spectra calculations to reproduce experimental features, but these are adjustments for physical modeling and do not reduce predictions to the calibration inputs by construction. No self-citations, uniqueness theorems, or ansatzes are invoked in the provided text to load-bear the central claims. The derivation remains self-contained against external experimental benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard dynamical diffraction theory plus an experimental calibration step and ad-hoc weight factors whose justification is not detailed in the abstract.

free parameters (1)

weight factors
Introduced to simulate incoherent diffuse intensity; values not specified in abstract.

axioms (1)

standard math Standard dynamical diffraction theory governs the formation of Kikuchi bands and spots
Invoked for full contrast dynamical simulation of on-axis patterns.
