Spectro Capture: A Software System for Automated Small-Observatory Spectroscopy

Paul Luckas This is my paper

Pith reviewed 2026-05-20 02:29 UTC · model grok-4.3

classification 🌌 astro-ph.IM astro-ph.SR
keywords spectroscopy automationsmall observatoryunattended observingfibre-fed spectroscopysoftware controltarget acquisitioncalibration sequencing
0
0 comments X

The pith

Integrating target acquisition, guiding, scheduling and calibration in one software system makes reliable unattended spectroscopy practical at small observatories.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Spectro Capture is a Python-based software system that automates the full sequence of fibre-fed spectroscopy at small observatories. It combines target selection, telescope slewing, guide star acquisition, fibre position restoration, calibration, and science exposure control into a single coordinated workflow. Logs from Shenton Park Observatory covering January to May 2026 record 339 successful completions out of 345 attempted science target blocks during unattended batch runs, for a 98.3 percent success rate. The results show that reliable multi-target spectroscopic observing can proceed without constant human attendance when all operational steps are managed together as a software problem.

Core claim

The paper establishes that reliable unattended spectroscopy is practical at a small observatory when target acquisition, guiding, scheduling and calibration control are treated as an integrated software problem, as shown by the 98.3 percent completion rate achieved across five months of primary batch runs at Shenton Park Observatory.

What carries the argument

Spectro Capture, the Python software that unifies target selection, slewing, guide star acquisition, fibre position restoration, calibration sequencing and science exposures into one observing workflow.

If this is right

  • Small observatories can execute multi-target spectroscopic campaigns without on-site staff during the run.
  • Treating acquisition, guiding and calibration as linked software tasks reduces interruptions that arise from separate manual or disconnected controls.
  • Unattended batch operation becomes feasible for extended periods once the full workflow is automated.
  • The approach supports more efficient scheduling of limited telescope resources at educational and amateur facilities.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same integrated control pattern could apply to automated photometry or other small-telescope programs beyond spectroscopy.
  • Deployment at additional observatories would reveal how sensitive the success rate is to local weather statistics and hardware variations.
  • Wider use might expand the number of sites able to contribute to time-domain spectroscopic surveys.

Load-bearing premise

The 98.3 percent completion rate recorded at one specific small observatory will hold at other sites and under future conditions without major drops caused by weather, hardware differences or target biases.

What would settle it

Logs from a second small observatory running the same system that show a completion rate well below 90 percent over a comparable period.

Figures

Figures reproduced from arXiv: 2605.19459 by Paul Luckas.

Figure 1

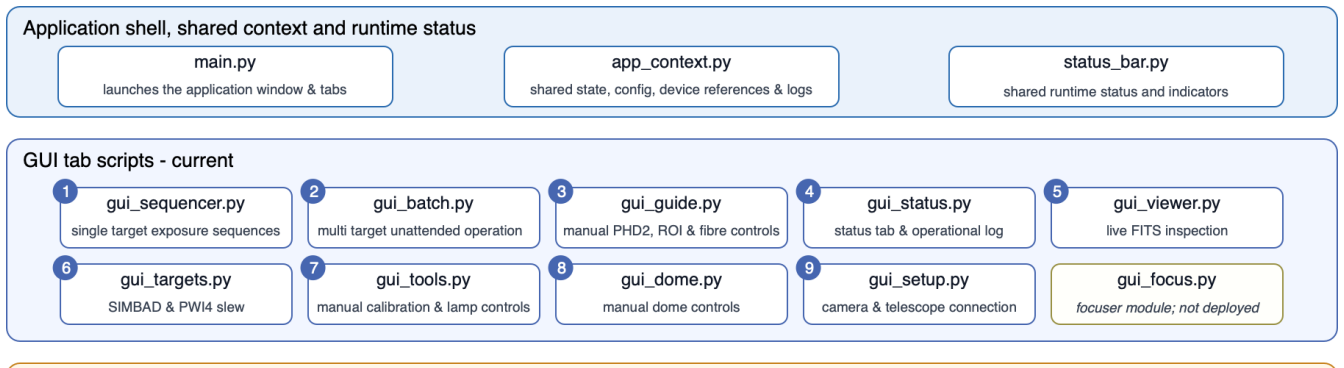

Figure 1. Figure 1: Script architecture of the Spectro Capture application. 5 [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Automated acquisition and guiding workflow. 8 [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: The Batch Runner workflow. camera temperature and related run status. These indicators are not a separate control layer; they mirror state reported by the underlying camera, telescope, dome and lamp control routines so that the observer can see at a glance whether the system is ready, active or in an unsafe state. Logging is also handled through the shared application context. General status messages are s… view at source ↗
Figure 4

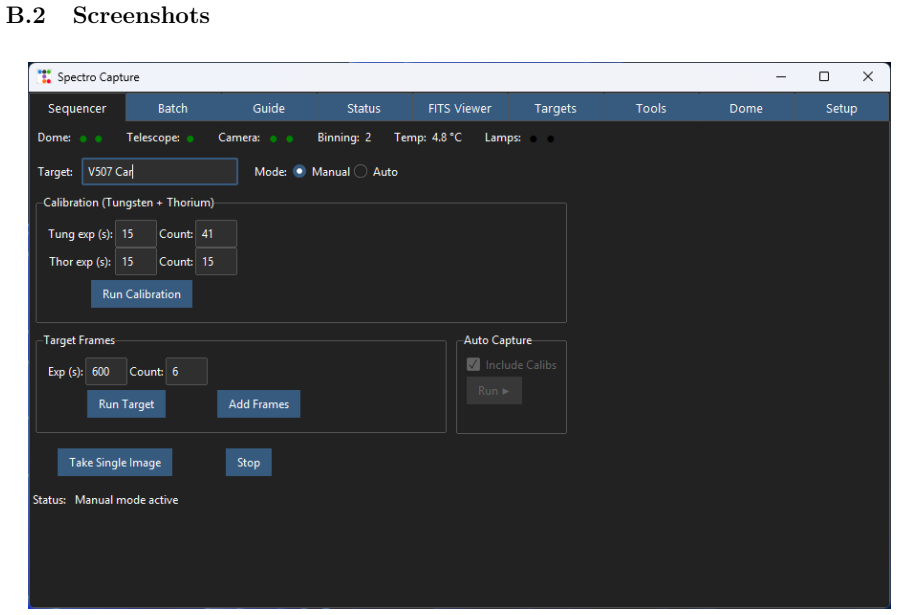

Figure 4. Figure 4: The Sequencer tab contains calibration controls and legacy single target capture modes [PITH_FULL_IMAGE:figures/full_fig_p017_4.png] view at source ↗
Figure 5

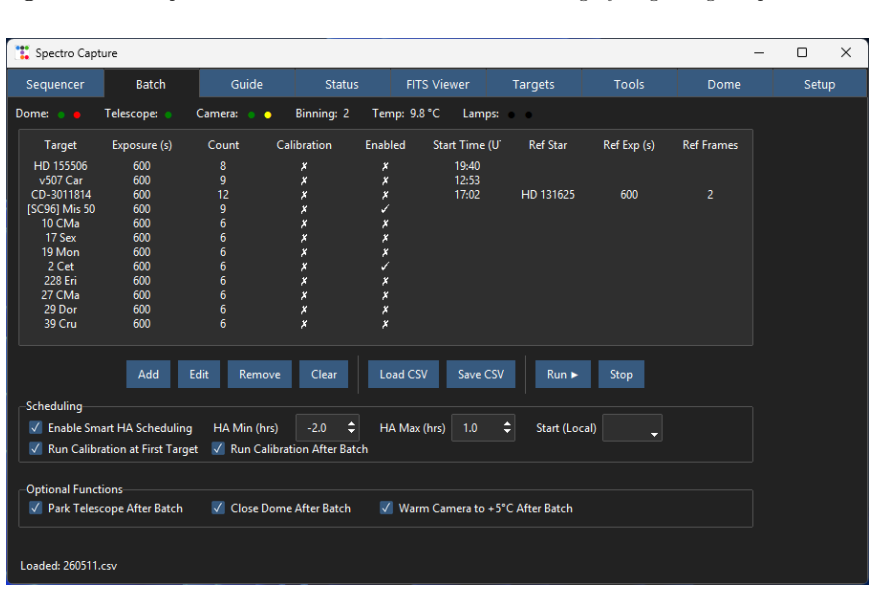

Figure 5. Figure 5: The Batch Runner tab: The main observing interface for timed and scheduled targets. 17 [PITH_FULL_IMAGE:figures/full_fig_p017_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: The Guide tab: Access to PHD2 controls, configuration and live guide information [PITH_FULL_IMAGE:figures/full_fig_p018_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: The Status tab provides live status information which is saved to a nightly disk log. 18 [PITH_FULL_IMAGE:figures/full_fig_p018_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: The live FITS viewer with maximum ADU readout [PITH_FULL_IMAGE:figures/full_fig_p019_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: The Targets tab provides optional target lookup and control. 19 [PITH_FULL_IMAGE:figures/full_fig_p019_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: The Tools tab: Access to bias and dark frame acquisition and manual lamp control [PITH_FULL_IMAGE:figures/full_fig_p020_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Hardware setup and system configuration. 20 [PITH_FULL_IMAGE:figures/full_fig_p020_11.png] view at source ↗
read the original abstract

Spectro Capture is a Python-based software system developed to automate small- observatory fibre-fed spectroscopy. The system integrates target selection, telescope slewing, guide star acquisition, fibre position restoration, calibration and science exposure sequencing within a single observing workflow. The paper describes the design and operational behaviour of the system at Shenton Park Observatory, where it has been used for unattended multi-target spectroscopic observing. Log analysis from January to May 2026 shows that the system completed 339 of 345 attempted science target blocks in primary unattended batch runs, corresponding to a completion rate of 98.3%. The results demonstrate that reliable unattended spectroscopy is practical at a small observatory when target acquisition, guiding, scheduling and calibration control are treated as an integrated software problem.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The manuscript introduces Spectro Capture, a Python-based software system designed to automate fibre-fed spectroscopy for small observatories. The system combines target selection, telescope control, guide star acquisition, fibre position restoration, calibration, and science exposure sequencing into a unified workflow. Operational logs from January to May 2026 at Shenton Park Observatory indicate that 339 out of 345 attempted science target blocks were successfully completed in unattended mode, yielding a 98.3% success rate. The authors conclude that this demonstrates the practicality of reliable unattended spectroscopy at small observatories through integrated software management of acquisition, guiding, scheduling, and calibration.

Significance. Should the reported performance be robust and generalizable, the work would be significant for advancing automation in small-scale astronomical facilities, potentially allowing more efficient use of telescope time with reduced human intervention. A key strength is the grounding in real-world log data from actual observations rather than purely theoretical or simulated performance. This empirical approach provides concrete evidence for the efficacy of the integrated approach, which is valuable in the instrumentation and methods community.

major comments (2)
  1. [Log analysis section] The performance metric of 339/345 blocks completed (98.3%) is central to the paper's claim, yet the manuscript does not specify how 'blocks' were defined, what constituted a failure (e.g., acquisition failure, guiding loss, or weather-related abort), or if any post-hoc selection of logs occurred. This lack of detail undermines the ability to fully assess the soundness of the reported completion rate.
  2. [Conclusions or discussion of results] The assertion that the results show practicality 'at a small observatory' when using integrated software is load-bearing for the paper's contribution, but it is based solely on data from one observatory (Shenton Park) during a five-month period in 2026. No comparison to manual observing at the same site or results from other small observatories is provided, leaving open the possibility that site-specific factors contribute substantially to the high rate.
minor comments (3)
  1. [Abstract] The abstract could more explicitly state the telescope aperture or typical seeing conditions at Shenton Park to help readers contextualize the 98.3% rate.
  2. [Methods or software description] Some technical details on the fibre position restoration algorithm or the scheduling logic would benefit from additional pseudocode or flowcharts for clarity.
  3. Check for consistency in terminology, such as 'unattended batch runs' versus 'primary unattended batch runs'.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments, which have helped us improve the clarity and robustness of our manuscript on the Spectro Capture system. We address each major comment below and indicate the revisions we will make.

read point-by-point responses

  1. Referee: [Log analysis section] The performance metric of 339/345 blocks completed (98.3%) is central to the paper's claim, yet the manuscript does not specify how 'blocks' were defined, what constituted a failure (e.g., acquisition failure, guiding loss, or weather-related abort), or if any post-hoc selection of logs occurred. This lack of detail undermines the ability to fully assess the soundness of the reported completion rate.

    Authors: We agree that additional detail is required to substantiate the performance metric. In the revised manuscript, we will add a dedicated paragraph in the log analysis section defining a 'science target block' as the complete automated sequence encompassing target selection, telescope slewing, guide star acquisition, fibre position restoration, calibration exposures, and the science exposure itself. A failure is defined as any block where the sequence was terminated before completion of the science exposure, with specific causes including acquisition failures, loss of guiding, or weather-related aborts as logged by the system. We explicitly state that the analysis encompasses all 345 attempted blocks from the January to May 2026 period with no post-hoc filtering or selection applied. This revision will allow readers to better evaluate the reported 98.3% completion rate. revision: yes

  2. Referee: [Conclusions or discussion of results] The assertion that the results show practicality 'at a small observatory' when using integrated software is load-bearing for the paper's contribution, but it is based solely on data from one observatory (Shenton Park) during a five-month period in 2026. No comparison to manual observing at the same site or results from other small observatories is provided, leaving open the possibility that site-specific factors contribute substantially to the high rate.

    Authors: We recognize that the results are derived from a single site and observational campaign, which limits direct claims of broad generalizability. However, the manuscript's focus is on demonstrating the feasibility of reliable unattended spectroscopy through integrated software control rather than claiming universality across all small observatories. We will revise the conclusions and add a paragraph in the discussion to acknowledge potential site-specific influences, such as the particular weather conditions and hardware setup at Shenton Park Observatory, while highlighting how the software's unified management of the workflow mitigates common failure modes. Although we lack comparative data from manual observations at the same site or deployments at other facilities, we will suggest this as an avenue for future validation studies. revision: partial

Circularity Check

0 steps flagged

Empirical performance report with no circular derivation

full rationale

The paper describes a Python software system for automated spectroscopy and supports its central claim solely through direct log analysis of 339/345 completed blocks (98.3% rate) at one observatory. No equations, fitted parameters, predictions, or self-citations appear in the provided text. The demonstration rests on observed operational data rather than any self-referential reduction, making the derivation self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The central claim rests on the assumption that the logged success rate reflects genuine unattended performance and that the system can be transferred to other small observatories. No free parameters, axioms, or invented entities are introduced in the abstract.
