Environmental Stabilization of Perfect-Crystal Neutron Interferometry Using a Large Vacuum Chamber with Cryogenic Sample Access

Robert Valdillez , David G. Cory , Robert W. Haun , Benjamin Heacock , Colin Heikes , Shannon F. Hoogerheide , Michael G. Huber , Taisiya Mineeva
show 4 more authors
Jeremy Paster Dusan Sarenac Dmitry A. Pushin Albert R. Young
This is my paper

Pith reviewed 2026-05-20 16:31 UTC · model grok-4.3

classification ⚛️ physics.ins-det nucl-ex
keywords neutron interferometryvacuum chambercryogenic samplesenvironmental isolationperfect crystalphase stabilitycontrast measurement
0
0 comments X

The pith

A large vacuum chamber stabilizes perfect-crystal neutron interferometry and enables cryogenic sample measurements.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Perfect-crystal neutron interferometry is sensitive to local temperature and pressure changes that cause unwanted phase drifts during measurements of nuclear interactions and quantum phenomena. The paper reports installation of a large versatile vacuum chamber to isolate the interferometer from these environmental effects while also allowing cryogenically cooled samples to be introduced. The authors demonstrate the approach by performing contrast measurements on a Ni60Cu40 sample across temperatures from 4 K to 300 K, showing stable operation and opening possibilities for new experiments such as studies of superconductivity.

Core claim

The authors installed a large-volume vacuum chamber at the NIST neutron facility that isolates a perfect-crystal neutron interferometer from temperature and pressure deviations while permitting access for cryogenically cooled samples, and they report the first contrast measurement of a cryogenic-cooled Ni60Cu40 sample between 4 K and 300 K.

What carries the argument

The large-volume vacuum chamber that provides environmental isolation from temperature and pressure fluctuations together with cryogenic sample access for the neutron interferometer.

If this is right

  • Neutron interferometry experiments can be conducted without phase drifts caused by ambient thermal gradients.
  • Cryogenic temperatures become accessible for sample studies including superconductivity.
  • Versatile sample environments beyond room temperature and atmospheric pressure can now be used.
  • Systematic uncertainties in fundamental physics and quantum measurements can be lowered.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The chamber design could be adapted for other precision interferometry setups in physics that suffer from environmental noise.
  • Extended operation at low temperatures might enable new tests of quantum coherence over long times.
  • In-situ sample temperature changes during a single run could become routine with this isolation method.

Load-bearing premise

The vacuum chamber eliminates thermal gradients across the crystal without introducing new phase instability or mechanical vibration that would degrade interferometer performance.

What would settle it

Perform contrast measurements on the Ni60Cu40 sample from 4 K to 300 K and check whether interference visibility remains high and free of unexpected phase drifts attributable to the chamber itself.

Figures

Figures reproduced from arXiv: 2605.18874 by Albert R. Young, Benjamin Heacock, Colin Heikes, David G. Cory, Dmitry A. Pushin, Dusan Sarenac, Jeremy Paster, Michael G. Huber, Robert Valdillez, Robert W. Haun, Shannon F. Hoogerheide, Taisiya Mineeva.

Figure 1
Figure 1. Figure 1: (LEFT) A photo of a skew-symmetric perfect-crystal silicon neutron interferometer. (RIGHT) A perfect-crystal [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

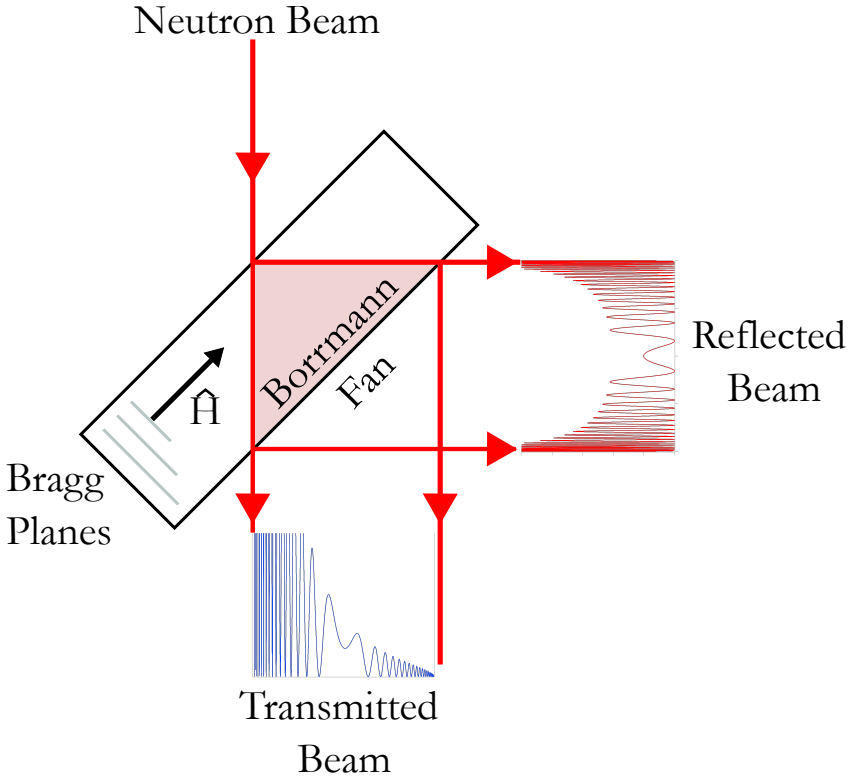

Figure 2
Figure 2. Figure 2: Diagram showing a crystal in the Laue geometry with the lattice planes perpendicular to the reciprocal lattice vector, [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

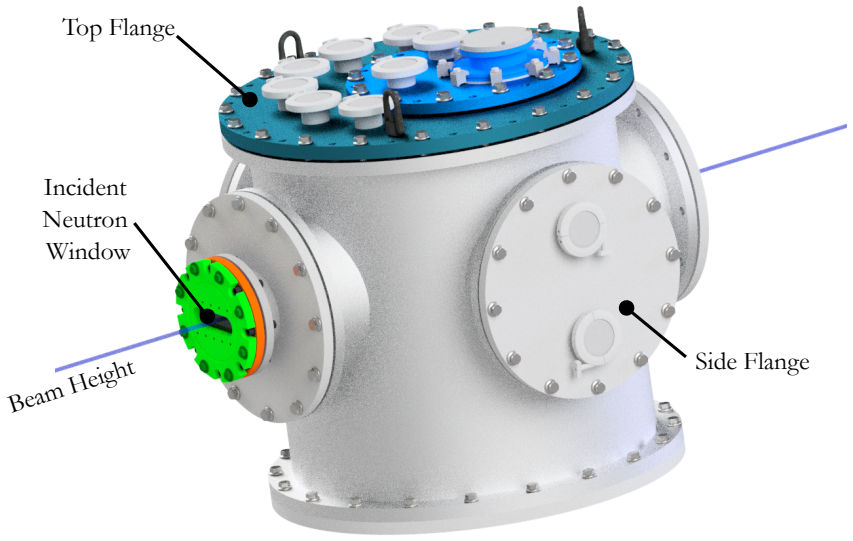

Figure 3
Figure 3. Figure 3: A rendered side view of the vacuum chamber [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: The top flange has several welded connections for feedthroughs and other equipment. An ISO-K 100 flange allows [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗

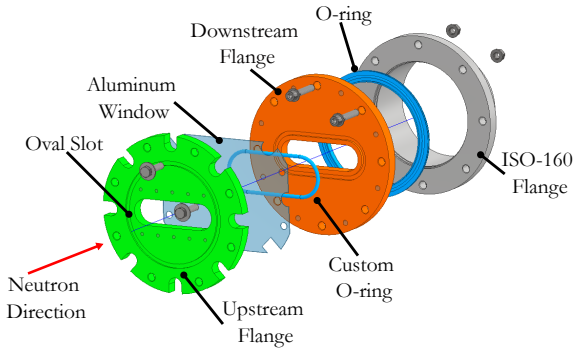

Figure 5
Figure 5. Figure 5: Assembly of the incident neutron window frame. An aluminum window made from a commercial beverage can is [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗

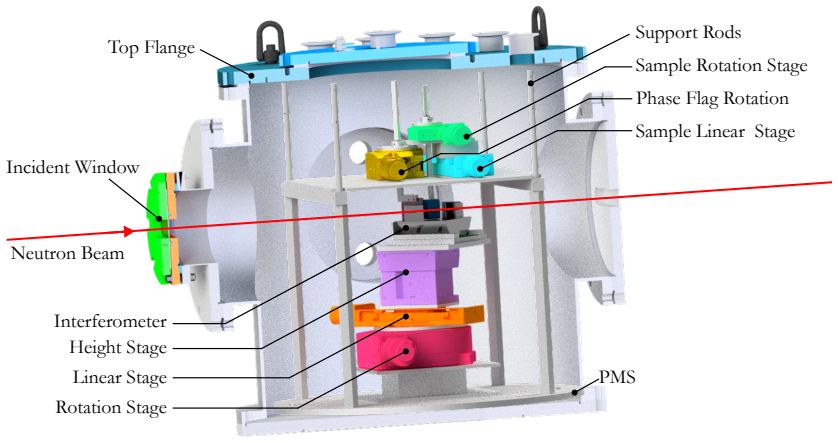

Figure 6
Figure 6. Figure 6: An example configuration of Olympus when not using the cryostat. Support rods suspend a Primary Mounting Surface (PMS) from the top flange. A stack of stages allows for the interferometer to be aligned to the incident neutron beam. A sample and phase flag are mounted above the interferometer. above the stack and interferometer. The plate fastens to the square aluminum bars and can be modified for different… view at source ↗
Figure 7
Figure 7. Figure 7: Top down schematic of the inside of the vacuum chamber showing the placement of the translation stages, interfer [PITH_FULL_IMAGE:figures/full_fig_p017_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: The isolation system that lessens the turbo pump vibrations from reaching the vacuum chamber. The turbo pump [PITH_FULL_IMAGE:figures/full_fig_p018_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: (left) The cryostat for running cryogenic samples inside a neutron interferometer. Note that the rubber bellows [PITH_FULL_IMAGE:figures/full_fig_p019_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: A cross-section view showing a modified outer jacket that enables the cryostat to be coupled to [PITH_FULL_IMAGE:figures/full_fig_p020_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Diagram of the interferometer facility at NIOF [PITH_FULL_IMAGE:figures/full_fig_p021_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Initial interferogram without the sample. Since the lower intensity [PITH_FULL_IMAGE:figures/full_fig_p021_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Contrast measured while the sample was cooled inside the interferometer. Various set points indicated by [PITH_FULL_IMAGE:figures/full_fig_p022_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Phase measured while the sample was cooled inside the interferometer for the same runs as in Fig. 13. Various set [PITH_FULL_IMAGE:figures/full_fig_p023_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Relative contrast of the interferometer as the sample warmed from [PITH_FULL_IMAGE:figures/full_fig_p024_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: Contrast with the Ni60Cu40 measured at 2 different temperatures relative to empty interferometer of 50 % (See [PITH_FULL_IMAGE:figures/full_fig_p024_16.png] view at source ↗
read the original abstract

Perfect-crystal neutron interferometry has been a useful tool in measuring nuclear-interactions, probing fundamental physics, and exploring quantum phenomenon. Historically, neutron interferometry experiments have been carried out at room temperature and standard atmospheric pressure. However, neutron interferometry is sensitive to changes in the local environment, especially thermal gradients across the crystal, resulting in phase drifts and systematic uncertainty. A need for measurements performed in different sample environments compound these issues. Fortunately, the use of a vacuum chamber has been shown to be an effective method of environmental isolation for perfect-crystal neutron interferometers. A large volume, highly versatile vacuum chamber has been installed at the Neutron Interferometry and Optics Facility at the NIST Center for Neutron Research to isolate interferometry from local temperature and pressure deviations as well as allowing for the introduction of cryogenically cooled samples. The prospect of incorporating a cryostat within a neutron interferometer opens up new areas of investigation, such as superconductivity. In addition to describing the vacuum chamber, we report on the first measurement of a cryogenic-cooled sample by a neutron interferometer. For this demonstration contrast was measured with a Ni60Cu40 sample between 4 K to 300 K.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript describes the installation of a large-volume vacuum chamber at the NIST Neutron Interferometry and Optics Facility to isolate perfect-crystal neutron interferometers from local temperature and pressure fluctuations while enabling cryogenic sample access. It reports the first demonstration of contrast measurements performed on a Ni60Cu40 sample over the temperature range 4 K to 300 K.

Significance. Successful environmental isolation combined with cryogenic access would open new experimental avenues in neutron interferometry, including studies of superconductivity and other temperature-dependent quantum phenomena, while reducing systematic uncertainties from thermal gradients and phase drifts that have historically limited precision.

major comments (2)
  1. [Experimental demonstration and results] The demonstration reports contrast versus temperature for the Ni60Cu40 sample but supplies no quantitative before/after metrics on interferometer visibility stability, phase-drift rate, or vibration spectra under ambient conditions versus with the vacuum chamber active. Without these data the central claim of environmental stabilization remains unverified even though the cryostat interface is shown to function.
  2. [Vacuum chamber design and integration] The manuscript does not address whether the large chamber or cryostat mounting introduces new mechanical coupling or residual thermal gradients across the interferometer crystal; direct measurements of these quantities (e.g., via auxiliary sensors or repeated phase scans) are required to confirm that the installation improves rather than degrades performance.
minor comments (2)
  1. [Abstract] The abstract states that contrast was measured but provides neither error bars nor a description of how contrast was extracted; adding these details would improve clarity.
  2. [Figure captions and results section] Figure captions and the main text should explicitly define the contrast metric and state the number of independent runs or integration times used for each temperature point.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for the constructive comments, which have helped us improve the presentation of our work. We respond to each major comment below and indicate the revisions made to the manuscript.

read point-by-point responses

  1. Referee: [Experimental demonstration and results] The demonstration reports contrast versus temperature for the Ni60Cu40 sample but supplies no quantitative before/after metrics on interferometer visibility stability, phase-drift rate, or vibration spectra under ambient conditions versus with the vacuum chamber active. Without these data the central claim of environmental stabilization remains unverified even though the cryostat interface is shown to function.

    Authors: We agree that explicit before-and-after quantitative metrics would strengthen the central claim. Pre-installation baseline data on phase-drift rates and vibration spectra are unfortunately not available in directly comparable form, because the vacuum chamber was installed as part of a facility-wide upgrade at the NIST Neutron Interferometry and Optics Facility. The manuscript instead demonstrates successful operation by maintaining high contrast across the full 4 K to 300 K range on the Ni60Cu40 sample. In the revised manuscript we have added a new subsection that reports repeated phase scans performed at fixed temperatures (both 4 K and 300 K) with the chamber active; these scans quantify the residual drift rate under stabilized conditions and are compared with typical ambient performance values cited from the literature. revision: partial

  2. Referee: [Vacuum chamber design and integration] The manuscript does not address whether the large chamber or cryostat mounting introduces new mechanical coupling or residual thermal gradients across the interferometer crystal; direct measurements of these quantities (e.g., via auxiliary sensors or repeated phase scans) are required to confirm that the installation improves rather than degrades performance.

    Authors: We appreciate the referee’s emphasis on verifying that the new hardware does not introduce unintended instabilities. In the revised manuscript we now include data from auxiliary temperature sensors mounted directly on the interferometer crystal blades, which show that thermal gradients remain below 0.1 K during cryogenic operation. We have also added results from a series of repeated phase scans at constant sample temperature that were used to assess any mechanical coupling introduced by the chamber or cryostat mount. These measurements indicate no measurable degradation relative to expected performance and support the conclusion that the net effect of the installation is improved environmental isolation. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental hardware description and direct measurement

full rationale

The manuscript reports installation of a vacuum chamber for environmental isolation of a perfect-crystal neutron interferometer and demonstrates cryogenic sample access via contrast measurements on Ni60Cu40 between 4 K and 300 K. No mathematical derivations, parameter fits presented as predictions, or load-bearing self-citations appear. Claims rest on physical hardware description and direct experimental data against external temperature benchmarks, remaining self-contained without reduction to inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper is an experimental instrumentation report; it relies on standard assumptions about neutron behavior and crystal properties but introduces no new free parameters, axioms, or invented entities beyond the chamber hardware itself.

axioms (1)
  • domain assumption Neutron interferometry contrast is sensitive to thermal gradients across the crystal
    Invoked in the abstract to justify the need for environmental isolation.
