Adaptively Distilled ControlNet: Accelerated Training and Superior Sampling for Medical Image Synthesis
T0 review · 5 major / 8 minor · reviewed 2026-08-06 · deepseek-v4-flash
Pith's one-line read A mask-only diffusion model, trained by distillation from a mask-image teacher, generates synthetic medical images that improve downstream segmentation beyond real-data baselines.
desk verdict A coherent, useful incremental contribution to mask-conditioned medical image synthesis, but the central causal claim about mask-lesion alignment is asserted, not measured. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The load-bearing mechanism is a dual-branch teacher-student architecture sharing a frozen VAE encoder and a forward noise process. The teacher branch conditions on both the mask and the real image, while the student conditions on the mask only; the student's predicted noise is regularized toward the teacher's via a stop-gradient distillation loss. An adaptive weight matrix, derived from the lesion-background pixel ratio, upweights the distillation loss in lesion regions. During sampling only the student runs, so generation proceeds at ControlNet speed using arbitrary masks.
What would settle it
Compute the Dice coefficient (or IoU) between each input mask and the binarized lesion region of the corresponding generated image for both Adaptively Distilled ControlNet and ControlNet on KiTS19 and Polyps. If alignment is not significantly higher for the proposed method, the paper's claimed causal link between the adaptive distillation loss, alignment, and segmentation gains is unsupported.
Extended reading notes
Core claim
The central claim is that distilling a mask-image-conditioned ControlNet teacher into a mask-only student, with a spatially adaptive loss that upweights lesion regions, yields synthetic medical images whose mask-lesion alignment is good enough to improve downstream segmentation models. On KiTS19, TransUNet trained with the synthetic plus real data improves mDice by 2.4% and mIoU by 4.2% over the real-data baseline; on Polyps, SANet improves mDice by 2.6% and mIoU by 3.5%. The paper attributes these improvements to the adaptive distillation loss, which is shown in an ablation to outperform both the standard distillation loss and the no-distillation baseline.
Load-bearing premise
The paper assumes that the downstream segmentation improvements are caused by better mask-lesion alignment, but it never directly measures alignment; the gains could come from other differences in the synthetic image distribution, such as texture or shape.
Editorial extensions
If this is right
- If the method is correct, segmentation models can be trained with synthetic images generated purely from masks, without needing real patient images at sampling time, which preserves privacy.
- The task-agnostic design suggests the same training recipe transfers to other modalities beyond CT and endoscopy, such as MRI or X-ray, without architecture changes.
- Because only the student model runs at inference, the approach keeps ControlNet's sampling speed, making it usable in compute-limited settings.
- The ablation indicates that the adaptive distillation loss is the component responsible for the gains, so removing it should revert the improvements.
Reading between the lines
- One could directly test the paper's causal story by computing the Dice or IoU between input masks and generated lesion regions; if alignment is not higher than ControlNet's, the attribution to mask-lesion alignment would need revision.
- The adaptive weight, defined by a simple lesion-background ratio, could be extended to multi-class masks or to weighting by lesion size, and could be evaluated on datasets with more extreme class imbalance.
- A promising follow-up would be to add a perceptual or adversarial loss to narrow the small FID gap to ControlNet while keeping the alignment benefit, which the paper itself does not do.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. This paper proposes Adaptively Distilled ControlNet, a mask-conditioned diffusion framework for medical image synthesis. A teacher branch conditioned on image-mask pairs (cmix = ci + cm) distills into a mask-only student branch through an adaptive loss LAda that reweights the teacher-student noise-prediction discrepancy according to lesion-background pixel ratios; at inference only the student runs. Experiments on KiTS19 and Polyps compare FID/CLIP-I and downstream segmentation performance, reporting improved mDice/mIoU over real-data and ControlNet-augmented training. The paper also claims accelerated training convergence and superior lesion-mask alignment, but the latter is never directly measured.
Significance. If the reported segmentation gains are reproducible, the framework is practically useful: it moves the heavy image-conditioned teacher to training time only, keeping sampling privacy-preserving and at ControlNet speed, and it shows consistent downstream gains across two modalities and four segmentation architectures. The adaptive weighting is derived from mask statistics rather than tuned to the outcome metric, and downstream evaluation is on held-out data, so the core comparison is not circular. The availability of code is a further strength. However, the headline interpretive claims—superior alignment and accelerated training—are currently supported only by qualitative or indirect evidence, FID is slightly worse than the ControlNet baseline, and no variance estimates are reported; these gaps materially limit the strength of the conclusions.
major comments (5)
- [Section 3.2, Eq. (7)] The central claim that the adaptive distillation objective yields superior mask-lesion alignment is not established by the derivation. Since the teacher condition is cmix = ci + cm (Eq. 3), the teacher's target depends on the specific real image paired with the mask; for a fixed mask the student is trained to match a distribution of teacher noise predictions under an L2 loss with a stop-gradient. The optimal student prediction is then the conditional mean of the teacher predictions, which can smooth or blur lesion boundaries rather than sharpen them. The paper does not provide any direct measurement of alignment, such as IoU or boundary F1 between the generated lesion and the conditioning mask, so the alignment superiority remains an unvalidated assumption rather than a consequence of Eq. (7). Please add a direct alignment metric and, if possible, an experiment that isolates alignment from other distributional changes.
- [Section 4.4, Table 1] The causal interpretation of the downstream gains is not supported by the reported image-quality metrics. Table 1 shows that the proposed method's FID is slightly worse than ControlNet on both datasets (66.587 vs. 65.609 on Polyps; 70.786 vs. 69.240 on KiTS19), and CLIP-I measures global semantic similarity rather than spatial mask fidelity. The observation in Sec. 4.4 that there is no consistency between image quality and segmentation performance is an indirect argument, not a measurement of lesion-mask alignment. Please report direct alignment statistics or a controlled experiment (for example, training segmentation models on synthetic-only data with identical masks and sample counts across generators) before attributing the improvements to alignment.
- [Tables 2-4] All segmentation and ablation results are reported as single runs without error bars, multiple seeds, or significance tests. Improvements of 1-3% mDice can be within run-to-run variance for segmentation models, especially for nnUNet with five-fold cross-validation; the absence of variance estimates makes it impossible to assess whether the reported differences are meaningful. Please provide mean and standard deviation over at least three independent training runs for the main comparisons and the ablation, or include statistical significance tests.

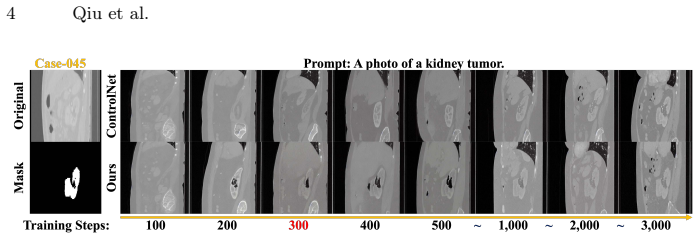

- [Section 4.2, 4.3, Fig. 2] The 'accelerated training' claim is supported only by the qualitative statement in Sec. 4.3 that the student fits the data within about 300 steps, illustrated in Fig. 2. No quantitative training curves, iterations-to-target-FID, or wall-clock comparisons against ControlNet are provided. Please add quantitative convergence or timing measurements to substantiate this headline claim.
- [Section 5, Table 4] The ablation of the adaptive distillation loss is conducted only on KiTS19; no corresponding ablation is reported for the Polyps dataset. Since the paper claims effectiveness across two distinct modalities and the adaptive loss is the key proposed component, the contribution of LAda to the RGB/endoscopy setting is unverified. Please add the same ablation on Polyps or justify its omission.
minor comments (8)
- [Abstract] The phrase 'predicted noise alignment in parameter space' is inaccurate, because Eq. (7) aligns predicted noise values in latent space rather than model parameters; please rephrase.
- [Section 4.2] The input resolution appears as '3842', which is likely a typo for 384x384; please correct it.
- [Section 4.4] The statement that FID 'overfits with limited data' is not substantiated by the cited reference or an analysis; please either provide evidence or soften the claim.
- [Figure 2] The axes are unlabeled, which makes the claimed convergence speed impossible to interpret quantitatively; please add axis labels and units.
- [Section 4.2] The use of 5% prompt dropout and classifier-free guidance implies text prompts, but the exact prompts used for the two datasets are not specified; please provide them.
- [Section 1] The term 'field distillation framework' is undefined and nonstandard; please use standard terminology or define the term.
- [Table 4] The settings 'w/(Standard)' and 'w/(Adaptive)' are not defined in the text; please clarify how the standard distillation loss differs from the adaptive one.
- [Tables 2-3] The comparison set is limited to SinGAN, ArSDM, T2I-Adapter, and ControlNet; given that the manuscript cites more recent synthesis methods, please add one or two recent baselines to support the 'state-of-the-art' claim.
Circularity Check
No material circularity: the teacher-student distillation objective, adaptive weights, and downstream evaluation are self-contained. The one self-citation ([18]) is a supporting reference, not a load-bearing reduction.
full rationale
The central derivation is a distillation loop defined by the paper's own equations: the teacher is conditioned on the fused mask-image features cmix = ci + cm (Eq. 3), the student is conditioned only on the mask, and LAda (Eq. 7) aligns student noise predictions to a stop-gradient teacher using weights wAda computed from mask pixel statistics (Eq. 6). No outcome metric, such as downstream mDice/mIoU, appears in the training objective or in the definition of wAda. The downstream segmentation experiments are evaluated on held-out, non-overlapping test cases (KiTS19: 10 non-overlapping cases; Polyps: five public test datasets not used for generation training), so the reported gains are not fitted inputs. The paper's claim that improved mask-lesion alignment drives segmentation gains is an interpretation supported indirectly in Sec. 4.4 ('there is no consistency between image quality and segmentation performance, indirectly highlighting that our method's superior mask-lesion alignment is key'), and Table 1 shows FID slightly worse than ControlNet. This is an empirical gap or causal-attribution risk, but not a circular reduction: alignment superiority is not defined as the segmentation metric nor fed back into training. The only self-citation appears in Sec. 1, where [18] is cited for the general statement that 'conditional inputs act as implicit regularizers to ensure stable optimization and enhanced image quality.' That citation is not load-bearing, because the method's equations, ablations, and external comparisons stand independently, and [18] is a separate peer-reviewed paper with its own evaluation. Thus no circular step is present; the self-citation is minor and non-load-bearing, yielding a score of 2.
Assumptions & free parameters
free parameters (7)
- Learning rate =
1e-5
- Weight decay =
1e-2
- Training iterations =
3000
- Classifier-free guidance scale =
9
- DDIM steps =
50
- Prompt dropout probability =
0.05
- Loss weight for LAda =
1 (implicit)
assumptions (4)
- standard math Standard diffusion model training objective (Eq. 1) produces a valid denoising network.
- domain assumption Downstream segmentation performance is a valid proxy for synthetic image utility.
- domain assumption The teacher's image-conditioned noise prediction is a meaningful target for the mask-only student.
- domain assumption CLIP-I is a valid semantic similarity metric for medical images.
Cite this review
Pith. "Pith review of Adaptively Distilled ControlNet: Accelerated Training and Superior Sampling for Medical Image Synthesis." pith.science (2026). https://pith.science/paper/N7DTEJ3G
@misc{pith2026250723652,
author = {Pith},
title = {Pith review of: Adaptively Distilled ControlNet: Accelerated Training and Superior Sampling for Medical Image Synthesis},
year = {2026},
howpublished = {\url{https://pith.science/paper/N7DTEJ3G}},
note = {Machine review of arXiv:2507.23652}
}
read the original abstract
Medical image annotation is constrained by privacy concerns and labor-intensive labeling, significantly limiting the performance and generalization of segmentation models. While mask-controllable diffusion models excel in synthesis, they struggle with precise lesion-mask alignment. We propose \textbf{Adaptively Distilled ControlNet}, a task-agnostic framework that accelerates training and optimization through dual-model distillation. Specifically, during training, a teacher model, conditioned on mask-image pairs, regularizes a mask-only student model via predicted noise alignment in parameter space, further enhanced by adaptive regularization based on lesion-background ratios. During sampling, only the student model is used, enabling privacy-preserving medical image generation. Comprehensive evaluations on two distinct medical datasets demonstrate state-of-the-art performance: TransUNet improves mDice/mIoU by 2.4%/4.2% on KiTS19, while SANet achieves 2.6%/3.5% gains on Polyps, highlighting its effectiveness and superiority. Code is available at GitHub.
