An Item Recommendation Approach by Fusing Images based on Neural Networks

Weibin Lin , Lin Li This is my paper

Pith reviewed 2026-05-25 09:34 UTC · model grok-4.3

classification 💻 cs.IR cs.LG
keywords item recommendationneural collaborative filteringimage fusionconvolutional neural networkmatrix factorizationmulti-layer perceptronvisual featuresRMSE
0
0 comments X

The pith

Incorporating visual features from images into a neural recommendation model improves prediction accuracy.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The authors introduce MF-VMLP, a model that extracts visual features from item images using a pre-trained convolutional neural network and fuses them with user and item latent factors using a multi-layer perceptron. This fusion is combined with matrix factorization to make preference predictions. The approach aims to account for how an item's appearance influences user choices beyond ratings alone. Experiments on an Amazon dataset show that this method reduces root-mean-square error compared to models without visual information. If correct, it means recommendation systems can leverage image data to make more accurate suggestions for items where looks matter.

Core claim

The paper presents MF-VMLP, which obtains visual representations via a pre-trained CNN, uses an MLP to learn nonlinear interactions between latent vectors and visual vectors, and combines MF and MLP for collaborative filtering. Experiments on Amazon's public dataset using RMSE demonstrate that the model boosts recommendation performance.

What carries the argument

MF-VMLP model that fuses CNN-extracted visual features with matrix factorization and multi-layer perceptron for nonlinear combination.

If this is right

  • Visual characteristics of items can be used to predict user preferences.
  • The combination of MF and MLP achieves collaborative filtering that incorporates images.
  • The model shows improved performance on real-world data as measured by lower RMSE.
  • Item images provide additional information not captured by ratings or text alone.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • For product categories like fashion or home goods, visual data may be particularly valuable for recommendations.
  • The method could be extended by training the CNN on domain-specific images rather than using a pre-trained general model.
  • Similar fusion techniques might apply to other data types such as video or audio for items.

Load-bearing premise

The visual features from the pre-trained CNN capture meaningful item characteristics that influence user preferences in a way that can be combined with latent factors.

What would settle it

If adding the visual features to the model on the Amazon dataset does not result in a lower RMSE value than the version without images.

Figures

Figures reproduced from arXiv: 1907.02203 by Lin Li, Weibin Lin.

Figure 1

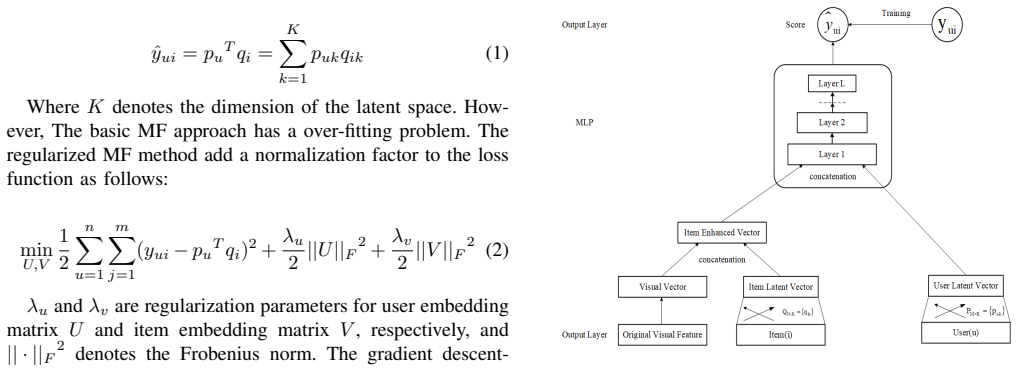

Figure 1. Figure 1: VMLP model input of user and item into low-dimensional embedding. The same as VMF, we need to reduce the dimensional of original image features. To address this issue, we propose to add hidden layers on the concatenated vector. In order to integrate the latent vectors of items and image vector, we concatenate these vectors into item enhanced factor. However, to learn and predict users’ preferences for item… view at source ↗
Figure 2

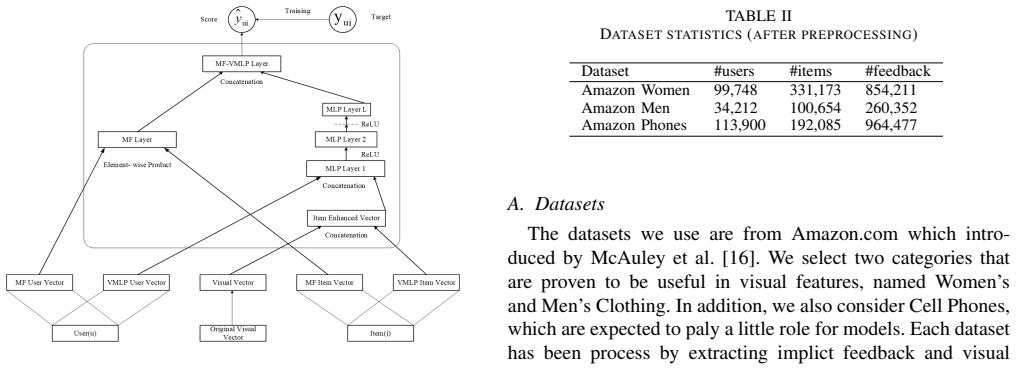

Figure 2. Figure 2: MF-VMLP model VMLP based on NCF framework, so as to learn the user-item interactions better. There are two possible ways to solve the issue. Firstly, one of the easiest ways to work is to share the same input and embedding layers between them, and then combine the outputs of their interaction functions. However, the performance of the fused model might be limited by sharing embedding layers. Once sharing e… view at source ↗
Figure 3

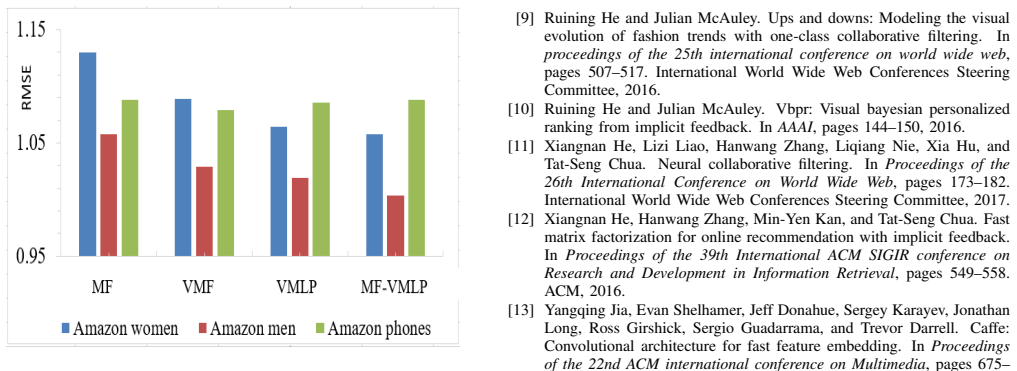

Figure 3. Figure 3: Experimental comparison consider that the functional items are not much different in appearance, such as phones, which play a little role on the model. More importantly, neural networks have a large impact on the models. E. Conclusion And Future Work The recommendation system combined with deep learning has become a hot research topic at present. With the rapid development of deep learning, image informati… view at source ↗
read the original abstract

There are rich formats of information in the network, such as rating, text, image, and so on, which represent different aspects of user preferences. In the field of recommendation, how to use those data effectively has become a difficult subject. With the rapid development of neural network, researching on multi-modal method for recommendation has become one of the major directions. In the existing recommender systems, numerical rating, item description and review are main information to be considered by researchers. However, the characteristics of the item may affect the user's preferences, which are rarely used for recommendation models. In this work, we propose a novel model to incorporate visual factors into predictors of people's preferences, namely MF-VMLP, based on the recent developments of neural collaborative filtering (NCF). Firstly, we get visual presentation via a pre-trained convolutional neural network (CNN) model. To obtain the nonlinearities interaction of latent vectors and visual vectors, we propose to leverage a multi-layer perceptron (MLP) to learn. Moreover, the combination of MF and MLP has achieved collaborative filtering recommendation between users and items. Our experiments conduct Amazon's public dataset for experimental validation and root-mean-square error (RMSE) as evaluation metrics. To some extent, experimental result on a real-world data set demonstrates that our model can boost the recommendation performance.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper proposes MF-VMLP, a neural collaborative filtering model extending NCF by extracting visual features from items via a pre-trained CNN and fusing them with user/item latent factors through an MLP to capture nonlinear interactions; it reports RMSE results on an Amazon public dataset and claims that incorporating these visual factors boosts recommendation performance.

Significance. If the performance gains are shown to hold under standard controls, the work would contribute evidence that pre-trained visual embeddings can be usefully combined with latent factors in multimodal recommendation, extending the NCF framework to image data.

major comments (3)
  1. [§4] §4 (Experiments): The reported RMSE improvement is presented without any baseline comparisons (e.g., standard MF, NCF, or other multimodal models), dataset statistics, train/test split details, or negative sampling protocol, making it impossible to verify whether the claimed boost is attributable to visual fusion rather than architecture or evaluation choices.
  2. [§4] §4 (Experiments): No ablation isolating the visual component (e.g., MF-VMLP vs. MF+MLP without images) is provided, so the central claim that visual features from the CNN meaningfully affect user preferences cannot be assessed.
  3. [§3] §3 (Model): The exact dimensions of the visual vectors, MLP layer widths/depths, loss function, and optimization procedure for fusing visual and latent vectors are not specified, leaving the implementation of the claimed nonlinear interaction underspecified.
minor comments (2)
  1. [Abstract] Abstract contains grammatical issues (e.g., 'get visual presentation via' should read 'obtain visual representations using'; 'conduct Amazon's public dataset' should read 'conduct experiments on Amazon's public dataset').
  2. [§3] Notation for latent factors and visual vectors is introduced without consistent symbols or a clear diagram of the fusion architecture.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive feedback. We agree that the experimental section and model description require additional details for reproducibility and to substantiate the claims. We will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [§4] §4 (Experiments): The reported RMSE improvement is presented without any baseline comparisons (e.g., standard MF, NCF, or other multimodal models), dataset statistics, train/test split details, or negative sampling protocol, making it impossible to verify whether the claimed boost is attributable to visual fusion rather than architecture or evaluation choices.

    Authors: We acknowledge that the current experimental reporting lacks these essential details. In the revised manuscript we will add baseline comparisons against standard MF, the original NCF, and at least one other multimodal model; report dataset statistics (users, items, ratings); specify the train/test split procedure; and describe the negative sampling protocol. These additions will allow readers to assess whether gains are due to visual fusion. revision: yes

  2. Referee: [§4] §4 (Experiments): No ablation isolating the visual component (e.g., MF-VMLP vs. MF+MLP without images) is provided, so the central claim that visual features from the CNN meaningfully affect user preferences cannot be assessed.

    Authors: We agree an ablation is required to isolate the visual component. We will add results comparing the full MF-VMLP model against an MF+MLP variant that omits the CNN-derived visual vectors, thereby demonstrating the contribution of the visual features. revision: yes

  3. Referee: [§3] §3 (Model): The exact dimensions of the visual vectors, MLP layer widths/depths, loss function, and optimization procedure for fusing visual and latent vectors are not specified, leaving the implementation of the claimed nonlinear interaction underspecified.

    Authors: We will expand Section 3 to specify the visual vector dimension produced by the pre-trained CNN, the exact widths and depths of the MLP layers, the loss function employed, and the optimization procedure used to fuse the visual and latent vectors. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical model proposal with independent validation

full rationale

The paper proposes MF-VMLP by extracting visual features via pre-trained CNN then combining latent factors with MLP on top of matrix factorization. The performance claim rests on RMSE measured on Amazon dataset experiments. No equations, derivations, or predictions are presented that reduce to fitted inputs by construction. No self-citations, uniqueness theorems, or ansatzes appear in the provided text. The result is an empirical demonstration on external real-world data and is therefore self-contained.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 0 invented entities

The claim rests on the domain assumption that visual item features are predictive of preference and on standard neural-network training assumptions; no new entities are postulated.

free parameters (2)
  • latent factor dimension
    Embedding size for users and items, chosen during model design
  • MLP layer widths and depths
    Architecture parameters selected to model interactions between latent and visual vectors
axioms (1)
  • domain assumption Visual characteristics of items influence user preferences independently of numerical ratings
    Invoked in the abstract as the reason for adding image data

pith-pipeline@v0.9.0 · 5758 in / 1202 out tokens · 47725 ms · 2026-05-25T09:34:01.772441+00:00 · methodology
