Site Preferences and "Coloring Problem" in Cu-doped BiMn₇O₁₂ Quadruple Perovskite

Cheng Peng , Mingyu Xu , Yang Zhang , Ismail El Baggari , Jie Li , Weiwei Xie This is my paper

Pith reviewed 2026-06-27 08:40 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords quadruple perovskiteCu dopingsite preferencesingle-crystal XRDpair distribution functionfirst-principles calculationsmagnetic irreversibilitylocal structural disorder
0
0 comments X

The pith

Single-crystal refinements place Cu at octahedral Mn sites in lightly doped BiMn7O12, while first-principles calculations place it at square-planar sites.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines how small amounts of copper substitute into the quadruple perovskite BiMn7O12. Single-crystal X-ray refinements show extra electron density at the octahedral manganese sites, which the authors interpret as copper occupying those positions instead of the square-planar sites normally favored by Cu2+. Pair-distribution-function data indicate growing local disorder as copper content rises, and magnetic measurements show suppression of low-temperature transitions. Density-functional calculations, however, predict the opposite site preference. The central tension is therefore between experimental indications of octahedral occupation and theoretical preference for square-planar sites in a frustrated lattice.

Core claim

In Cu-doped BiMn7O12 (x = 0.05–0.15), single-crystal refinements reveal enhanced electron density at the octahedral B sites of the MnO6 network, indicating preferential Cu occupation there rather than at the expected square-planar A' sites. First-principles calculations instead favor square-planar occupation. The discrepancy points to strong competition among local bonding preferences, short-range disorder, and metastability within the monoclinic I2/m framework that progressively approaches pseudo-cubic symmetry with added copper.

What carries the argument

Site occupancy refinement from single-crystal X-ray diffraction, which maps electron density onto the octahedral Mn B positions versus the square-planar A' positions and is contrasted with DFT total-energy rankings of the two configurations.

If this is right

  • The average monoclinic distortion decreases and the lattice metric approaches cubic symmetry with rising Cu content.
  • Local structural coherence drops and medium-range order weakens even while the long-range quadruple-perovskite framework persists.
  • Two magnetic anomalies near 100–120 K and 50–60 K are progressively suppressed, together with reduced field-induced magnetization.
  • Metastability and short-range disorder become dominant factors controlling site choice in this highly frustrated system.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If octahedral Cu occupation is real, the usual crystal-chemical rules for Cu2+ square-planar preference may need revision when strong geometric frustration is present.
  • The observed competition suggests that synthesis conditions or slight off-stoichiometry could be used to toggle between the two site preferences in related quadruple perovskites.
  • Magnetic irreversibility and unsaturated moments may arise from the same local disorder that affects site occupancy, linking structural and magnetic degrees of freedom more tightly than average-structure models imply.

Load-bearing premise

That the extra electron density seen in the refinements comes from copper atoms rather than from vacancies, defects, or the increasing local disorder already noted in the PDF analysis.

What would settle it

A direct local probe such as Cu K-edge EXAFS or element-specific STEM mapping that either confirms or rules out significant copper occupation on the octahedral B sites.

Figures

Figures reproduced from arXiv: 2606.12711 by Cheng Peng, Ismail El Baggari, Jie Li, Mingyu Xu, Weiwei Xie, Yang Zhang.

Figure 2

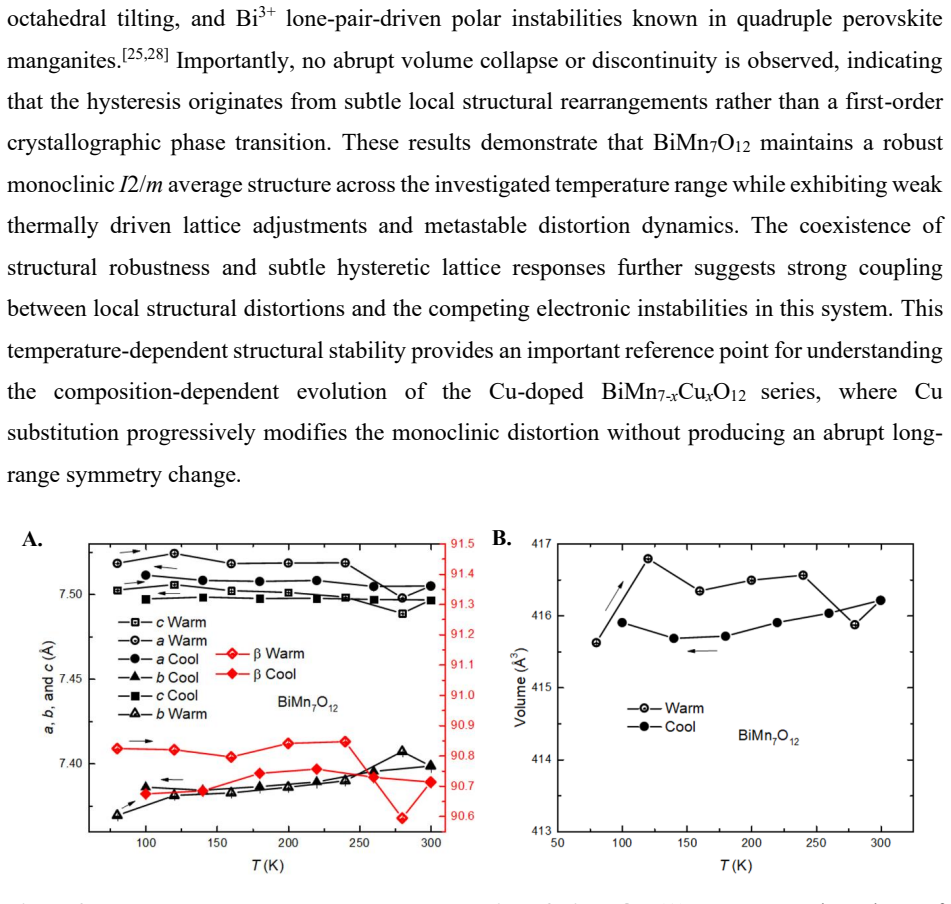

Figure 2. Figure 2: Temperature-dependent structural evolution of BiMn7O12 (A) Temperature dependence of the lattice parameters (a, b, c), together with the monoclinic angle , measured during warming and cooling cycles. The lattice parameters exhibit subtle anisotropic thermal evolution while preserving the monoclinic I2/m structure over the investigated temperature range. (B) Temperature dependence of the unit-cell volume o… view at source ↗
Figure 3

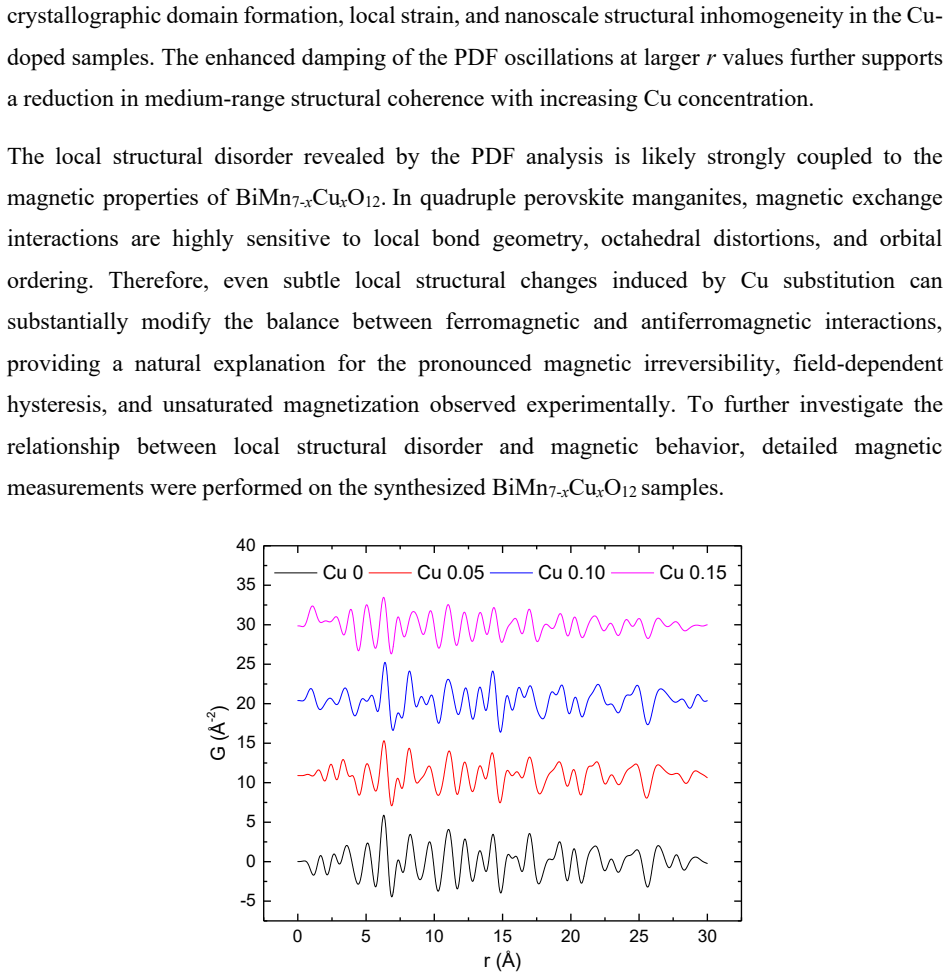

Figure 3. Figure 3: Pair distribution function G(r) of BiMn7-xCuxO12 at different Cu concentrations. The overall similarity in peak positions indicates that the local quadruple-perovskite framework is largely preserved upon Cu substitution, while subtle changes in peak intensity and damping reflect local disorder and modified Mn/Cu-O bonding environments. The local structural disorder suggested by the SCXRD refinements and PD… view at source ↗
Figure 4

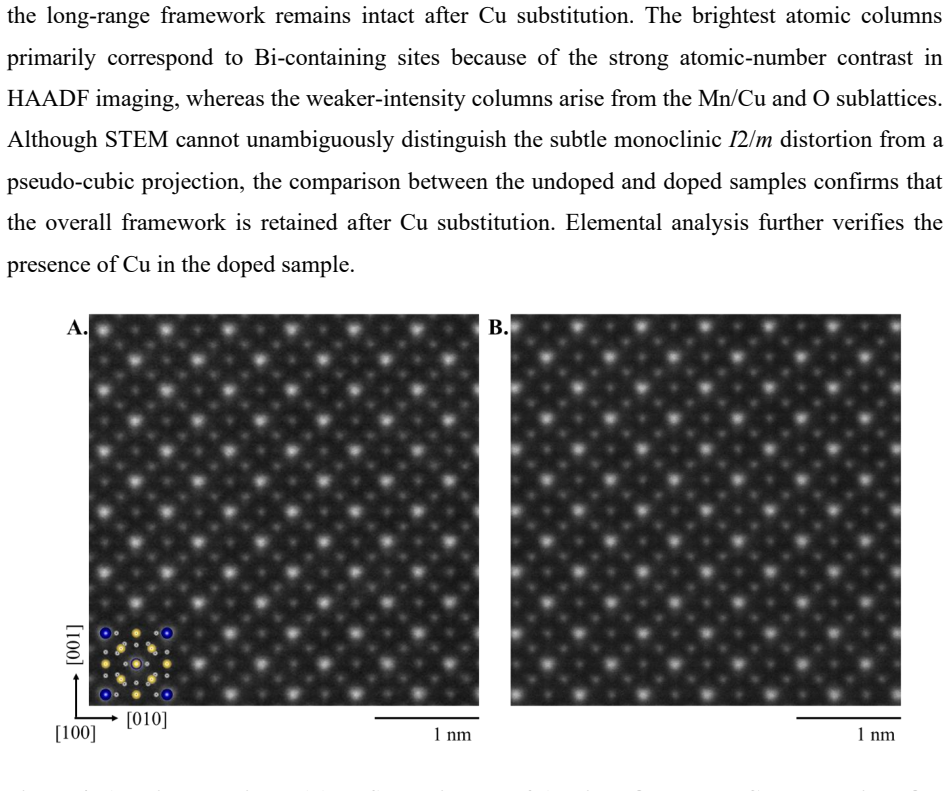

Figure 4. Figure 4: Atomic-resolution HAADF-STEM images of A. BiMn7O12 and B. Cu-doped BiMn7O12. Bright atomic columns correspond primarily to Bi-containing sites (Dark Blue) due to the strong atomic￾number contrast in HAADF imaging, while weaker-intensity columns arise from Mn/Cu (Light Orange) and O (Grey Circle) sublattices [PITH_FULL_IMAGE:figures/full_fig_p016_4.png] view at source ↗
read the original abstract

Lightly Cu-doped BiMn$_7$O$_{12}$ (x = 0.05, 0.10, and 0.15) was investigated using high-pressure synthesis, single-crystal X-ray diffraction, pair distribution function (PDF) analysis, STEM, magnetic measurements, and first-principles calculations. All compositions retain an average monoclinic $I$2/$m$ structure, while Cu substitution progressively suppresses the monoclinic distortion and drives the lattice toward a pseudo-cubic metric symmetry. PDF analysis reveals increasing local structural disorder and reduced medium-range coherence with increasing Cu concentration, despite preservation of the overall quadruple-perovskite framework. Single-crystal refinements indicate enhanced electron density at the octahedral Mn B sites, suggesting preferential Cu occupation within the MnO$_6$ network rather than the conventional square-planar sites expected for Cu$^{2+}$. Magnetic measurements reveal two characteristic anomalies near $T_1$ ~ 100-120 K and $T_2$ ~ 50-60 K, together with pronounced magnetic irreversibility, field-dependent hysteresis, and unsaturated magnetization. Increasing Cu concentration progressively suppresses the low-temperature magnetic state and weakens the field-induced moment. First-principles calculations favor Cu occupation at the square-planar sites, contrasting with the experimental refinements and highlighting strong competitions among local bonding, short-range disorder, and metastability in this highly frustrated quadruple perovskite system.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript examines lightly Cu-doped BiMn7O12 (x = 0.05, 0.10, 0.15) synthesized under high pressure. Single-crystal X-ray diffraction refinements, PDF analysis, STEM, magnetic measurements, and first-principles calculations are used to show retention of the average I2/m monoclinic structure with progressive suppression of the monoclinic distortion toward pseudo-cubic symmetry. PDF reveals increasing local disorder and loss of medium-range coherence. Single-crystal refinements report enhanced electron density at the octahedral Mn B sites, interpreted as preferential Cu occupation in the MnO6 network rather than conventional square-planar A' sites. DFT calculations instead favor square-planar occupation. Magnetic data show anomalies near 100-120 K and 50-60 K that are suppressed with increasing Cu, along with irreversibility and unsaturated magnetization.

Significance. If the reported experimental-theoretical contrast is robust, the work illustrates competitions among local bonding preferences, short-range disorder, and metastability in a highly frustrated quadruple perovskite, with potential implications for understanding site selectivity and magnetic behavior in related doped systems.

major comments (1)
  1. [single-crystal refinements and PDF analysis] The central experimental claim (enhanced electron density at octahedral Mn B sites indicating Cu preference over square-planar A' sites) rests on single-crystal refinements whose interpretation is not shown to be robust against the increasing local structural disorder reported in the PDF analysis. Alternative contributions to the observed density (e.g., vacancies, partial Mn displacements, or disorder-induced smearing) are not explicitly tested or quantified, yet this mapping is load-bearing for the headline contrast with the DFT results favoring square-planar sites.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for identifying a key point regarding the robustness of our experimental interpretation. We address the major comment below and outline revisions to strengthen the presentation.

read point-by-point responses

  1. Referee: The central experimental claim (enhanced electron density at octahedral Mn B sites indicating Cu preference over square-planar A' sites) rests on single-crystal refinements whose interpretation is not shown to be robust against the increasing local structural disorder reported in the PDF analysis. Alternative contributions to the observed density (e.g., vacancies, partial Mn displacements, or disorder-induced smearing) are not explicitly tested or quantified, yet this mapping is load-bearing for the headline contrast with the DFT results favoring square-planar sites.

    Authors: We agree that the PDF results document increasing local disorder with Cu content, which could in principle influence the average-structure refinements. The single-crystal data were refined against the long-range I2/m model, yielding statistically significant electron-density enhancements at the B sites that exceed the nominal Mn scattering and are reproducible across crystals. Vacancies are expected to be minimal under the high-pressure synthesis conditions used, and any Mn displacements are already parameterized via the refined anisotropic displacement tensors. Nevertheless, we acknowledge that explicit model comparisons were not presented. In the revised manuscript we will add a new subsection that (i) reports additional refinements with constrained mixed Mn/Cu occupancies at B sites versus A' sites, (ii) quantifies the effect of introducing artificial smearing or partial vacancies on the refined densities, and (iii) discusses why the observed residuals and bond-valence sums continue to favor the B-site Cu model. These additions will make the experimental–DFT contrast more transparent without altering the central conclusions. revision: yes

Circularity Check

0 steps flagged

No significant circularity; independent experimental refinements and first-principles calculations

full rationale

The paper derives its central claims from two independent sources: single-crystal X-ray diffraction refinements (yielding electron density maps at Mn B sites) and separate first-principles calculations (favoring square-planar occupation). Neither reduces to a self-defined parameter, a fitted input renamed as prediction, nor a load-bearing self-citation chain. PDF analysis of disorder is reported as an additional observation rather than an input that forces the occupancy interpretation. The reported contrast between experiment and theory is presented as evidence of physical competition, not a tautology. This is the normal case of a self-contained paper with no circular steps.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Based solely on the abstract, the work relies on standard crystallographic assumptions about structure retention and refinement validity without introducing new free parameters or entities.

axioms (1)
  • domain assumption All compositions retain an average monoclinic I2/m structure
    Stated directly in the abstract as the preserved framework for refinements.
