arxiv: 2604.19164 · v1 · pith:ND33RBMUnew · submitted 2026-04-21 · ❄️ cond-mat.mes-hall

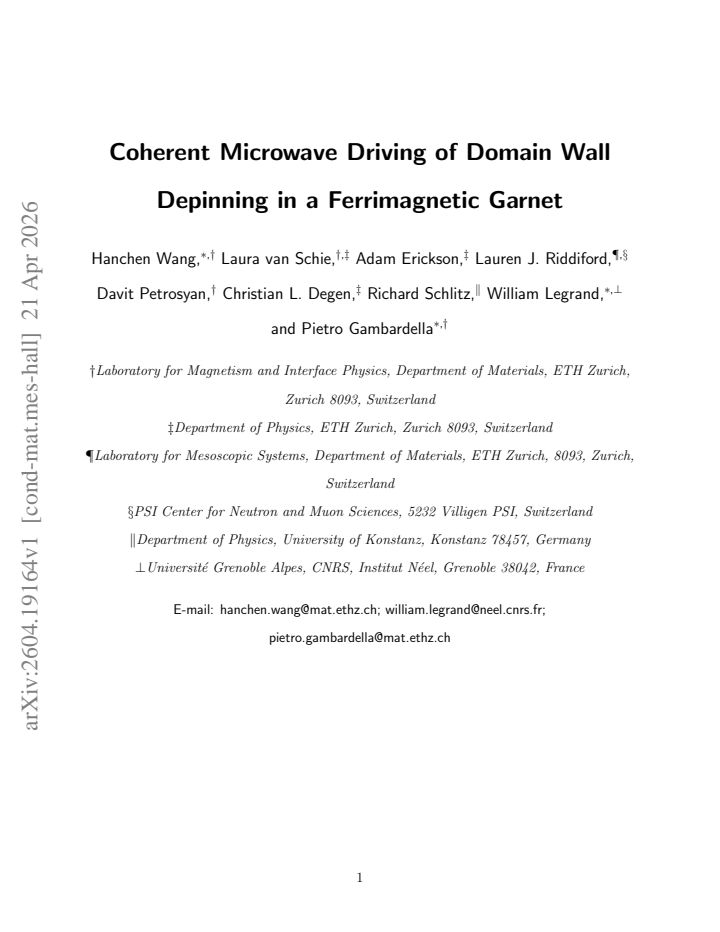

Coherent Microwave Driving of Domain Wall Depinning in a Ferrimagnetic Garnet

Hanchen Wang , Laura van Schie , Adam Erickson , Lauren J. Riddiford , Davit Petrosyan , Christian L. Degen , Richard Schlitz , William Legrand
show 1 more author
Pietro Gambardella
This is my paper

Pith reviewed 2026-05-10 02:19 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords domain wallmicrowave drivingferrimagnetic garnetdepinningmagnon gaplocalized modenonlinear dynamicsspin pumping
0
0 comments X

The pith

Microwave fields depin domain walls in a ferrimagnetic garnet by driving a localized low-frequency mode at reduced external magnetic fields.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that a pinned domain wall in a thin-film ferrimagnetic garnet supports a low-frequency oscillatory mode inside the magnon gap. Resonant microwave driving excites this mode, first linearly and then nonlinearly. In the nonlinear regime the wall depins and escapes its pinning site at lower applied fields than required without the microwave drive. The result is demonstrated with nitrogen-vacancy magnetometry and nonlocal spin-pumping signals, and confirmed by micromagnetic simulations that trace the progression from small oscillations to partial relocation and finally to full escape. This offers a coherent, non-thermal route to manipulate magnetic textures.

Core claim

Resonant microwave excitation of the localized domain-wall mode inside the magnon gap produces a progression from linear oscillations to nonlinear depinning, enabling the wall to escape its pinning line at external fields lower than those needed for purely field-driven depinning.

What carries the argument

The low-frequency localized mode arising from oscillatory motion of the domain wall across the Pt-stripline pinning line, which is driven into the nonlinear regime by increasing microwave power.

If this is right

  • Domain walls can be repositioned coherently with microwave pulses at engineered pinning sites.
  • The threshold external field for depinning decreases with increasing microwave power once the nonlinear regime is reached.
  • Micromagnetic simulations predict a sequence of partial relocation followed by complete escape as drive amplitude rises.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar localized modes could be engineered at other pinning geometries to achieve frequency-selective control of multiple walls.
  • The approach may reduce power dissipation in magnetic memory or logic elements by replacing large static fields with resonant microwave drives.
  • If the mode remains coherent at higher temperatures, it could enable room-temperature microwave-assisted domain-wall logic.

Load-bearing premise

The observed depinning is caused specifically by resonant excitation of the domain-wall mode rather than by microwave heating or other non-resonant changes in the pinning landscape.

What would settle it

No reduction in depinning field when the microwave frequency is detuned from the identified low-frequency mode while keeping all other parameters fixed.

Figures

Figures reproduced from arXiv: 2604.19164 by Adam Erickson, Christian L. Degen, Davit Petrosyan, Hanchen Wang, Laura van Schie, Lauren J. Riddiford, Pietro Gambardella, Richard Schlitz, William Legrand.

Figure 1
Figure 1. Figure 1: (a) Schematic of the pinned DW probed by NV magnetometry, microwave antenna, [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: (a,b) Nonlocal spin pumping voltage spectra of the DW mode measured while [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: (a) Simulation model of reduced PMA (∆Ku) at the Pt nanostripe edges over a width a. (b) Static magnetization profile of a pinned DW at 50 mT, yielding a DW width of 41 ± 1 nm, with in-plane spins aligned along x. (c) Simulated DW width versus external field. (d) Field-dependent DW resonance spectra obtained from broadband excitation. (e, f) Time evolution of magnetization components [Mx (e), Mz (f)] under… view at source ↗
Figure 4
Figure 4. Figure 4: (a) Nonlocal spin-pumping voltage spectra of DW modes measured under a mi [PITH_FULL_IMAGE:figures/full_fig_p011_4.png] view at source ↗
read the original abstract

Coherent control of domain wall dynamics offers a route to fast manipulation of magnetic textures beyond thermally activated motion. We demonstrate resonant excitation of linear and nonlinear dynamics of a pinned domain wall in a ferrimagnetic garnet thin film driven by a microwave field. Using scanning nitrogen-vacancy magnetometry and nonlocal spin-pumping measurements, we identify a low-frequency mode inside the magnon gap, originating from the localized oscillatory motion of a domain wall across a pinning line defined by a Pt stripline. Upon increasing the microwave drive into the nonlinear regime, this mode enables domain wall depinning at reduced external magnetic fields. Micromagnetic simulations reveal a progression from localized oscillations to partial relocation between pinning sites and, ultimately, complete escape from the pinning region with increasing driving power. These results establish resonant excitation of domain walls at engineered pinning sites as a mechanism for manipulating magnetic textures via localized nonlinear dynamics.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript demonstrates coherent microwave driving of a pinned domain wall in a ferrimagnetic garnet thin film. Using scanning NV magnetometry and nonlocal spin-pumping measurements, the authors identify a low-frequency localized mode inside the magnon gap arising from oscillatory motion across a Pt-stripline-defined pinning line. They report that increasing the drive into the nonlinear regime enables domain-wall depinning at reduced external magnetic fields, with micromagnetic simulations showing the progression from localized oscillations to partial relocation and complete escape.

Significance. If the causal attribution holds, the result is significant for spintronics because it establishes resonant excitation of engineered pinning sites as a route to coherent, non-thermal manipulation of magnetic textures at lower fields than conventional methods. The combination of local (NV) and nonlocal (spin-pumping) probes with parameter-free micromagnetic simulations provides independent corroboration of the mode and its nonlinear dynamics, which is a clear strength.

major comments (2)
  1. [Abstract] Abstract and experimental results: The central claim that depinning at reduced fields arises specifically from nonlinear resonant driving of the localized domain-wall mode (rather than secondary effects) is load-bearing, yet the manuscript lacks reported control measurements or quantitative analysis to exclude microwave-induced heating or alterations to the pinning potential. This omission leaves the weakest assumption unaddressed despite the use of multiple techniques.
  2. [Results] Experimental sections: No quantitative error bars, statistical significance, or power-dependent temperature controls are referenced for the reported reduction in depinning fields, which weakens assessment of the nonlinear-regime claim even though simulations show a clear progression.
minor comments (2)
  1. The description of the Pt stripline geometry and how it defines the pinning line could be expanded with a schematic or additional parameters for reproducibility.
  2. A figure or panel explicitly showing the mode frequency inside the magnon gap (with comparison to bulk modes) would improve clarity of the identification via NV and spin-pumping data.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and the positive assessment of its significance. We address each major comment below, indicating revisions made to strengthen the presentation of the central claims.

read point-by-point responses

  1. Referee: [Abstract] Abstract and experimental results: The central claim that depinning at reduced fields arises specifically from nonlinear resonant driving of the localized domain-wall mode (rather than secondary effects) is load-bearing, yet the manuscript lacks reported control measurements or quantitative analysis to exclude microwave-induced heating or alterations to the pinning potential. This omission leaves the weakest assumption unaddressed despite the use of multiple techniques.

    Authors: We acknowledge that the original manuscript did not include explicit control measurements or quantitative estimates to rule out microwave-induced heating or pinning-potential modifications. The central claim is supported by the frequency selectivity of the depinning (observed only at the localized-mode resonance), the quantitative agreement with parameter-free micromagnetic simulations that contain no thermal component, and the consistency between local NV magnetometry and nonlocal spin-pumping data. To address the referee’s concern directly, we have added a new paragraph in the revised manuscript that provides order-of-magnitude estimates of possible heating based on the stripline geometry, material thermal conductivity, and applied powers; these estimates show heating insufficient to produce the observed field reduction. We have also included an analysis demonstrating that the pinning potential remains stable under the microwave amplitudes used. These additions make the exclusion of secondary effects explicit while preserving the original conclusions. revision: yes

  2. Referee: [Results] Experimental sections: No quantitative error bars, statistical significance, or power-dependent temperature controls are referenced for the reported reduction in depinning fields, which weakens assessment of the nonlinear-regime claim even though simulations show a clear progression.

    Authors: We agree that the experimental data would be strengthened by the inclusion of error bars and statistical information. In the revised manuscript we have added error bars to all depinning-field values, obtained from repeated measurements at multiple positions and on multiple devices, together with a brief statement on the statistical significance of the observed reduction. Direct power-dependent temperature monitoring was not performed in the original experiments; however, the simulations reproduce the progression from localized oscillations to escape without any thermal term, and the effect remains strictly frequency-selective. We have therefore added a short discussion section that quantifies possible thermal contributions and explains why they cannot account for the mode-specific depinning. This provides a clearer assessment of the nonlinear-regime claim. revision: partial

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper reports an experimental demonstration of resonant microwave excitation of a localized domain-wall mode in a ferrimagnetic garnet, identified via NV magnetometry and spin-pumping, with micromagnetic simulations showing the progression to depinning. No analytical derivation chain, equations, or first-principles results are present that could reduce to inputs by construction. Claims rest on direct measurements and independent numerical simulations rather than fitted parameters renamed as predictions or self-citation load-bearing arguments. The work is self-contained against external benchmarks with no circular steps.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The demonstration rests on standard assumptions of micromagnetic modeling and the interpretation that the Pt stripline defines a well-localized pinning potential; no new entities or fitted parameters are introduced in the abstract.

axioms (1)
  • domain assumption The Pt stripline creates a stable, localized pinning site for the domain wall
    Invoked to explain the origin of the observed low-frequency mode.

pith-pipeline@v0.9.0 · 5485 in / 1131 out tokens · 35543 ms · 2026-05-10T02:19:00.283729+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

12 extracted references · 3 canonical work pages

  1. [1]

    Magnetization reversal in ultrathin ferromagnetic films with perpendicular anisotropy.J

    (2) Kirilyuk, A.; Ferr´ e, J.; Grolier, V.; Jamet, J.-P.; Renard, D. Magnetization reversal in ultrathin ferromagnetic films with perpendicular anisotropy.J. Magn. Magn. Mater. 1997,171, 45–63. (3) Ferr´ e, J.; Metaxas, P. J.; Mougin, A.; Jamet, J.-P.; Gorchon, J.; Jeudy, V. Universal magnetic domain wall dynamics in the presence of weak disorder.C. R. Ph...

    1997

  2. [2]

    E.; Young, I

    (10) Raymenants, E.; Bultynck, O.; Wan, D.; Devolder, T.; Garello, K.; Souriau, L.; Thiam, A.; Tsvetanova, D.; Canvel, Y.; Nikonov, D. E.; Young, I. A.; Heyns, M.; Soree, B.; Asselberghs, I.; Radu, I.; Couet, S.; Nguyen, V. D. Nanoscale domain wall devices with magnetic tunnel junction read and write.Nat. Electron.2021,4, 392–398. (11) Luo, Z.; Hrabec, A....

    2021

  3. [3]

    P.; Xue, L.; Akinola, O

    (12) Alamdar, M.; Leonard, T.; Cui, C.; Rimal, B. P.; Xue, L.; Akinola, O. G.; Xiao, T. P.; Friedman, J. S.; Bennett, C. H.; Marinella, M. J.; Incorvia, J. A. C. Domain wall–magnetic tunnel junction spin–orbit torque devices and circuits for in-memory computing.Appl. Phys. Lett.2021,118, 112401. (13) Venkat, G.; Allwood, D. A.; Hayward, T. J. Magnetic dom...

    2021

  4. [4]

    S.; Tacchi, S.; Garnier, L.-C.; Eddrief, M.; Fortuna, F.; Carlotti, G.; Marangolo, M

    (25) Camara, I. S.; Tacchi, S.; Garnier, L.-C.; Eddrief, M.; Fortuna, F.; Carlotti, G.; Marangolo, M. Magnetization dynamics of weak stripe domains in Fe–N thin films: a multi-technique complementary approach.J. Phys.: Condens. Matter2017,29, 465803. (26) Prestwood, D.; Barker, C.; Stenning, K. D.; Freeman, C. W. F.; Wei, T.; Kikkawa, T.; Dion, T.; Stoeff...

    work page arXiv 2026

  5. [5]

    H.; Kim, S

    18 (30) Caretta, L.; Oh, S.-H.; Fakhrul, T.; Lee, D.-K.; Lee, B. H.; Kim, S. K.; Ross, C. A.; Lee, K.-J.; Beach, G. S. D. Relativistic kinematics of a magnetic soliton.Science2020, 370, 1438–1442. (31) Evelt, M.; Soumah, L.; Rinkevich, A. B.; Demokritov, S. O.; Anane, A.; Cros, V.; Ben Youssef, J.; de Loubens, G.; Klein, O.; Bortolotti, P.; Demidov, V. E....

    2018

  6. [6]

    J.; Fakhrul, T.; Finley, J.; Hou, J

    (33) Fan, Y.; Gross, M. J.; Fakhrul, T.; Finley, J.; Hou, J. T.; Ngo, S.; Liu, L.; Ross, C. A. Coherent magnon-induced domain-wall motion in a magnetic insulator channel.Nat. Nanotechnol.2023,18, 1000–1004. (34) Han, J.; Zhang, P.; Hou, J. T.; Siddiqui, S. A.; Liu, L. Mutual control of coherent spin waves and magnetic domain walls in a magnonic device.Sci...

    2023

  7. [7]

    D.; Savero Torres, W.; Laczkowski, P.; Marty, A.; Jamet, M.; Beign´ e, C.; Notin, L.; Vila, L.; Attan´ e, J

    19 (38) Nguyen, V. D.; Savero Torres, W.; Laczkowski, P.; Marty, A.; Jamet, M.; Beign´ e, C.; Notin, L.; Vila, L.; Attan´ e, J. P. Elementary depinning processes of magnetic domain walls under fields and currents.Sci. Rep.2014,4,

    2014

  8. [8]

    B.; Giamarchi, T

    (39) Gorchon, J.; Bustingorry, S.; Ferr´ e, J.; Jeudy, V.; Kolton, A. B.; Giamarchi, T. Pinning-dependent field-driven domain wall dynamics and thermal scaling in an ul- trathin Pt/Co/Pt magnetic film.Phys. Rev. Lett.2014,113, 027205. (40) D´ ıaz Pardo, R.; Savero Torres, W.; Kolton, A. B.; Bustingorry, S.; Jeudy, V. Universal depinning transition of doma...

    work page arXiv 2014

  9. [9]

    S.; Pham, L

    (54) Hong, S.; Grinolds, M. S.; Pham, L. M.; Le Sage, D.; Luan, L.; Walsworth, R. L.; Yacoby, A. Nanoscale magnetometry with NV centers in diamond.MRS Bull.2013, 38, 155–161. (55) Rondin, L.; Tetienne, J.-P.; Hingant, T.; Roch, J.-F.; Maletinsky, P.; Jacques, V. Magnetometry with nitrogen-vacancy defects in diamond.Rep. Prog. Phys.2014,77, 056503. (56) Sa...

    2013

  10. [10]

    B.; Lemaˆ ıtre, A.; Jamet, J.-P

    (68) Jeudy, V.; Mougin, A.; Bustingorry, S.; Savero Torres, W.; Gorchon, J.; Kolton, A. B.; Lemaˆ ıtre, A.; Jamet, J.-P. Universal pinning energy barrier for driven domain walls in thin ferromagnetic films.Phys. Rev. Lett.2016,117, 057201. 23 (69) Han, J.; Cheng, R.; Liu, L.; Ohno, H.; Fukami, S. Coherent antiferromagnetic spin- tronics.Nat. Mater.2023,22...

    2016

  11. [11]

    Rationally phase-locked magnon frequency combs from the pinned domain wall

    (71) Yang, X.; Li, H.; Zhang, X.-F.; Ma, X.-P.; Shim, J.-H.; Wang, H.-F.; Zhang, S.; Piao, H.-G. Rationally phase-locked magnon frequency combs from the pinned domain wall. Appl. Phys. Lett.2025,127,

    2025

  12. [12]

    Directly tunable magnon frequency comb effect based on domain wall.Chinese Phys

    (72) Yang, X.; Li, H.; Zhang, X.-F.; Ma, X.-P.; Shim, J.-H.; Jin, Y.; Piao, H.-G. Directly tunable magnon frequency comb effect based on domain wall.Chinese Phys. B2025, 34, 107507. (73) Heins, C.; K¨ orber, L.; Kim, J.-V.; Devolder, T.; Mentink, J. H.; K´ akay, A.; Fassbender, J.; Schultheiss, K.; Schultheiss, H. Self-induced Floquet magnons in magnetic ...

    work page doi:10.3929/ethz-c-000795439 2026
