TRIPP: A General Purpose Data Pipeline for Astronomical Image Processing
T0 review · 6 major / 4 minor · reviewed 2026-08-10 · deepseek-v4-flash
Pith's one-line read The TRIPP pipeline analyzes 6-megapixel astronomical images in under 3 seconds and matches published photometry of the supernova SN2023ixf.
desk verdict Useful pipeline paper, but the calibration equations are internally swapped and the SN2023ixf validation is not checkable as written. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument

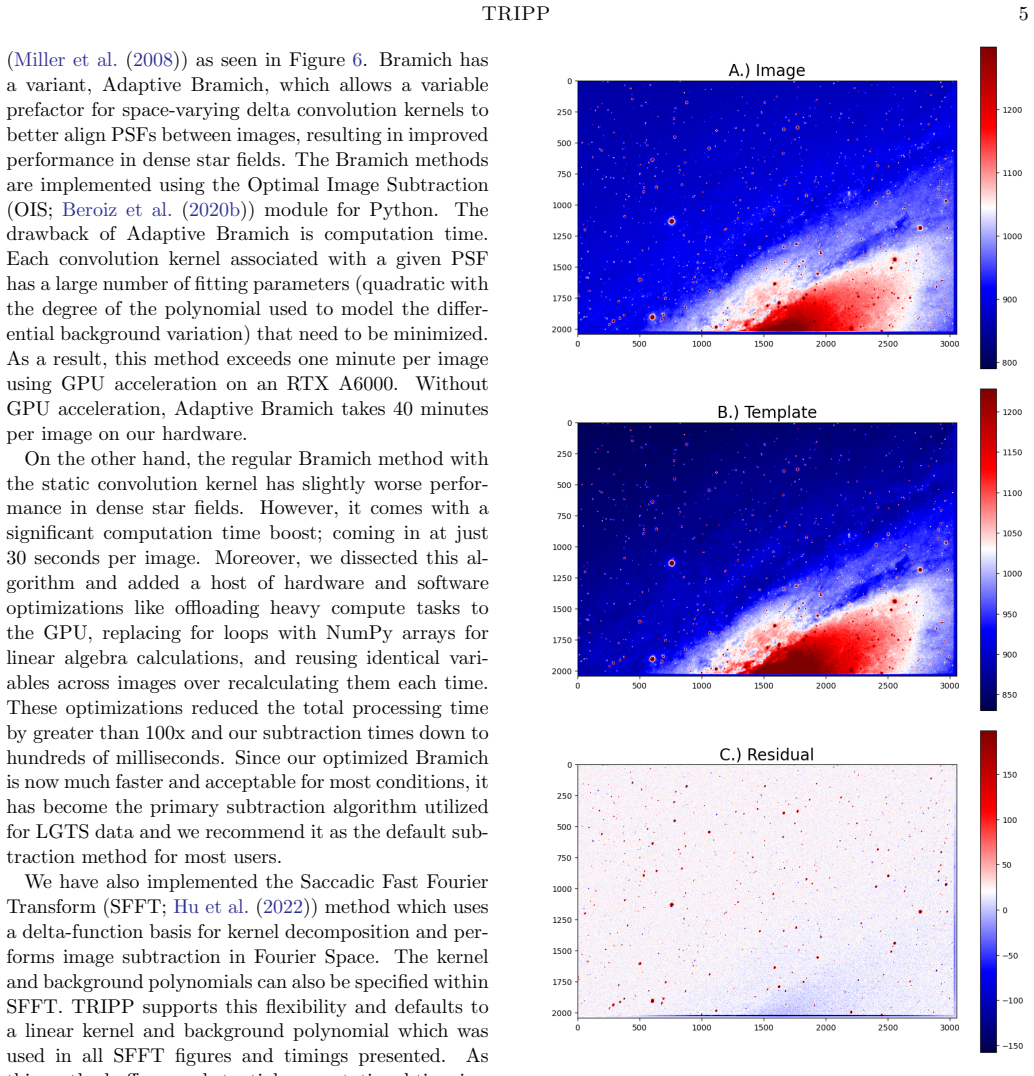

The load-bearing mechanism is the optimized Bramich kernel-subtraction routine: a convolution kernel is fit by least squares to match the PSF of each science image to the median template, the residual image is searched for sources, and a linear Orthogonal Distance Regression (ODR) between SDSS reference magnitudes and TRIPP instrumental magnitudes calibrates each frame. The ODR assumes equal error variance between the two catalogs (δ = 1), which yields the closed-form calibration coefficients. The speedup that makes the paper's real-time claim possible comes from GPU offloading and array-vectorized linear algebra applied to the Bramich kernel fit.
What would settle it
Compare TRIPP's calibrated magnitudes for a field of SDSS reference stars against a second independent catalog; a systematic residual trend with brightness would falsify the equal-variance ODR assumption.
Extended reading notes
Core claim
TRIPP's core discovery is that the standard Bramich image-subtraction algorithm, which typically takes about 30 seconds per image, can be optimized by offloading convolution to a GPU, vectorizing linear algebra with NumPy, and reusing kernel variables across frames, bringing subtraction time down to roughly 300 milliseconds. With this optimization the full pipeline—read, align, subtract, extract, write—runs in 2.19 ± 0.66 seconds per 6-megapixel frame. The paper further claims that the pipeline's light curves for SN2023ixf in the SDSS-r' band match the magnitudes reported by Hosseinzadeh et al. (2023) and Teja et al. (2023), and that its median-template-plus-SEP extraction can identify transient candidates in dense fields like M31, with a machine-learning YOLO-based extractor reaching a preliminary F1 of 0.72 compared to 0.38 for threshold-based SEP extraction.
Load-bearing premise
The calibration step treats the photometric errors of SDSS and TRIPP as equally uncertain (δ = 1); if the true error ratio is not unity, every calibrated magnitude—and therefore the SN2023ixf validation—shifts systematically.
Editorial extensions
If this is right
- Difference imaging can be run at sub-second per-frame speeds on consumer GPU hardware, making real-time transient alerting feasible for small-aperture survey networks like LCOGT.
- Because the pipeline is modular and open-source, the same alignment, template, subtraction, and calibration steps can be adapted to other telescopes and filters.

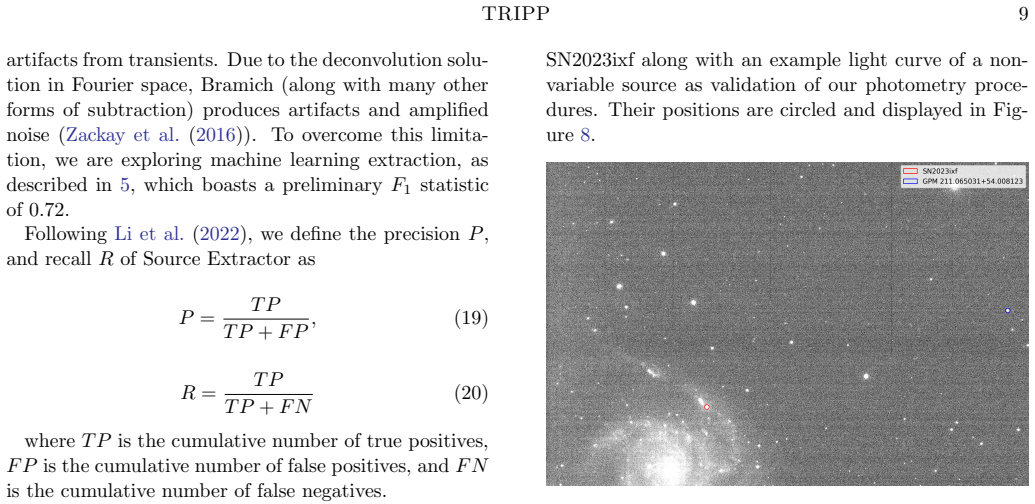

- The photometric validation on SN2023ixf indicates that aperture photometry calibrated against SDSS is sufficient to recover a supernova light curve to a few tenths of a magnitude.
- The YOLO-based extraction, once refined, could replace SEP and cut false positives by orders of magnitude, improving transient recall at the cost of some sensitivity.
- TRIPP's detection of optical SETI transients in LGTS data suggests the same hardware and pipeline can be used to search for laser technosignatures toward M31 and the Magellanic Clouds.
Reading between the lines
- If the equal-variance assumption in the ODR calibration is relaxed, the same machinery could be applied to heterogeneous catalogs where quoted errors differ; the bias from 'unclean' SDSS stars could be quantified by re-running with the clean flag enforced.
- The reported sub-3-second timing is hardware-specific; scaling the same optimization to the multi-gigapixel focal planes of next-generation synoptic surveys would likely require hierarchical or tiled processing, but the order-of-magnitude speedup suggests real-time sifting of difference images is within reach.
- The F1 discrepancy between threshold-based extraction (0.38) and ML extraction (0.72) implies a precision-recall tradeoff; an operational pipeline might run both in parallel, using ML to triage alerts and SEP to recover missed faint candidates.
- TRIPP's modular design means its calibration and variability-flagging steps could be reused for any time-domain survey, with the main barrier being the availability of overlapping SDSS reference stars.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper presents TRIPP, a Python pipeline for transient and variable source detection that combines difference imaging, aperture photometry, and light-curve analysis. It is tested on LGTS images from Las Cumbres Observatory 0.4 m telescopes and on SN2023ixf, with validation against published photometry. The paper also reports timing measurements for six-megapixel images, detection performance on simulated images using the F1 statistic, and preliminary results for a YOLO-based machine-learning extraction method.
Significance. If the reported performance holds, TRIPP would be a useful open-source tool for time-domain astronomy and optical SETI, with a demonstrated combination of sub-3-second processing (for the optimized Bramich path) and externally validated photometry. Strengths of the paper include validation against external data (published SN2023ixf photometry and simulated images with known transients), concrete timing measurements, a clear comparison of subtraction methods, and a stated plan to release the code under an MIT license. However, the photometric validation is currently uncheckable because of an internal inconsistency in the calibration equations and the absence of quantitative residuals, and the detection-performance summary is internally contradictory.
major comments (6)
- [§3.5, Eqs. (10)–(12)] The calibration equations are internally inconsistent. Equation (10) defines M = β0 mi + β1, making β0 the slope and β1 the intercept, while Eq. (11) gives β1 as the ODR slope and Eq. (12) gives β0 as the intercept. Since no code or data artifact is provided, a reader cannot determine which convention was actually used to produce Figure 10, and the central photometric validation is therefore uncheckable. Please fix the notation and make the implementation (or a minimal test case) available.
- [§4.3] The statement that the TRIPP magnitudes of SN2023ixf match those of Hosseinzadeh et al. (2023) and Teja et al. (2023) is not quantitatively supported. No residual statistics, per-epoch offsets, RMS, or comparison figures are given; the only quantitative statement is the 10 mmag systematic error in the Figure 10 caption, which is not derived anywhere in the text. Report the residuals between TRIPP and the published light curves (e.g., mean offset and scatter) and define how the 10 mmag systematic error was estimated.
- [§4.2, Table 2 and §6] There is an internal contradiction in the reported detection performance: the F1 score at 5 μ_bkg is 0.38 in Section 4.2 and Table 2, but 0.19 in the Conclusion. One of these values is wrong, and the discrepancy changes the characterization of the pipeline's transient detection capability. Correct the value and ensure the conclusion matches the results table.
- [§3.6, Eq. (17)] Equation (17), χ2_dof = χ2_dof, is a tautology; it should be χ2_dof = χ2/(n−1). This equation is load-bearing because the variability threshold χ2_dof > 25 and the assertion in Section 4.3 that a non-variable source has χ2_dof = 2.23 depend directly on the correct normalization of χ2_dof. Correct the equation and re-check the quoted χ2_dof values.
- [§3.5 and §3.4] The calibration assumes equal error variance between SDSS and TRIPP photometry (δ = 1) and uses an orthogonal distance regression, but no justification or sensitivity test for this assumption is provided. If the true variance ratio differs from 1, the calibrated magnitudes and hence the SN2023ixf comparison would be biased. In addition, the relaxation of the SDSS 'clean' photometry flag is adopted without quantifying how many reference stars are affected or what systematic offsets this choice can introduce. Provide a sensitivity analysis of the calibration to δ and to the 'clean' flag choice.
- [§6 and Table 1] The claim that 'TRIPP achieves reliable <3 second image analysis for 6 megapixel images' is not supported for all pipeline configurations presented in Table 1: only the NumPy and optimized Bramich paths meet the sub-3-second average, while SFFT averages 6 s and Adaptive Bramich averages 74 s. Moreover, the stated timings explicitly exclude light-curve creation, which is proportional to the number of transient candidates. Please state the claim as applying to the optimized Bramich default configuration and clearly define the end-to-end real-time analysis path.
minor comments (4)
- [§6] The conclusion contains the unresolved placeholder '(RECITE)' instead of the references to Hosseinzadeh et al. (2023) and Teja et al. (2023); these citations should be inserted.
- [Figure 10 caption] The statement that 'TRIPP's systematic error is 10 mmag' is not derived anywhere in the text; please provide the calculation or a reference to where it is defined.
- [Table 1] The Write row for NumPy lists '0.38 ± 0.16' without units, whereas other rows include 's'; this formatting inconsistency should be fixed.
- [§3.6, Eq. (13)] The weighted average magnitude Mavg is defined using instrumental magnitudes m_i, while Section 4.3 uses it to characterize variability of a calibrated source; please clarify whether the variability statistic uses instrumental or calibrated magnitudes and justify that choice.
Circularity Check
No significant circularity: TRIPP's photometry and timing claims are validated against independent published photometry and simulated images, not against quantities fitted by the pipeline itself.
full rationale
The central derivation chain is self-contained. Section 3.5 calibrates TRIPP instrumental magnitudes using SDSS DR17 reference stars via an orthogonal distance regression, and the resulting coefficients are applied to SN2023ixf. The light curve is then compared in Section 4.3 with externally published photometry by Hosseinzadeh et al. (2023) and Teja et al. (2023). No parameter of the calibration is fitted to those published magnitudes, so the reported agreement is not forced by construction. The rapid-analysis claim in Table 1 is a direct benchmark measurement on the authors' hardware, and the F1 extraction results in Section 4.2 use simulated images with known injected transients, again independent of the pipeline's fitted outputs. The self-references to Thomas et al. (2025) and Lubin (2016) motivate the SETI use case but are not used as evidence for the photometric or timing claims, so they are not load-bearing in a circular sense. The inconsistency between Equation (10) and Equations (11)-(12) is a genuine correctness and reproducibility concern, as are the missing code artifact and the lack of quantitative residuals in the SN2023ixf comparison, but these are not circularity: they do not make the comparison reduce to its own input. The pipeline is validated against external benchmarks, so no circular step is exhibited.
Assumptions & free parameters
free parameters (5)
- Source extraction threshold =
5 µ_bkg (default)
- Variability detection threshold =
χ2_dof > 25
- Reference star magnitude threshold =
magnitude 15 (typical)
- Background annulus offsets =
5 pixels (inner and outer)
- SDSS clean photometry flag =
disabled (all stars allowed)
assumptions (5)
- ad hoc to paper Equal error variance between SDSS and TRIPP photometry (δ = 1) in the ODR calibration.
- domain assumption SDSS DR17 magnitudes are accurate absolute references.
- domain assumption BANZAI preprocessing provides correct WCS and calibrated images.
- domain assumption The median-combined template represents the static sky.
- standard math Standard error propagation formulas for aperture photometry.
Cite this review
Pith. "Pith review of TRIPP: A General Purpose Data Pipeline for Astronomical Image Processing." pith.science (2026). https://pith.science/paper/NEKB6BPJ
@misc{pith2026250118142,
author = {Pith},
title = {Pith review of: TRIPP: A General Purpose Data Pipeline for Astronomical Image Processing},
year = {2026},
howpublished = {\url{https://pith.science/paper/NEKB6BPJ}},
note = {Machine review of arXiv:2501.18142}
}
read the original abstract
We present the TRansient Image Processing Pipeline (TRIPP), a transient and variable source detection pipeline that employs both difference imaging and light curve analysis techniques for astronomical data. Additionally, we demonstrate TRIPP's rapid analysis capability by detecting transient candidates in near-real time. TRIPP was tested using image data of the supernova SN2023ixf and from the Local Galactic Transient Survey (LGTS, Thomas et al. (2025)) collected by the Las Cumbres Observatory's (LCO) network of 0.4 m telescopes. To verify the methods employed by TRIPP, we compare our results to published findings on the photometry of SN2023ixf. Additionally, we report the ability of TRIPP to detect transient signals from optical Search for Extra Terrestrial Intelligence (SETI) sources.
