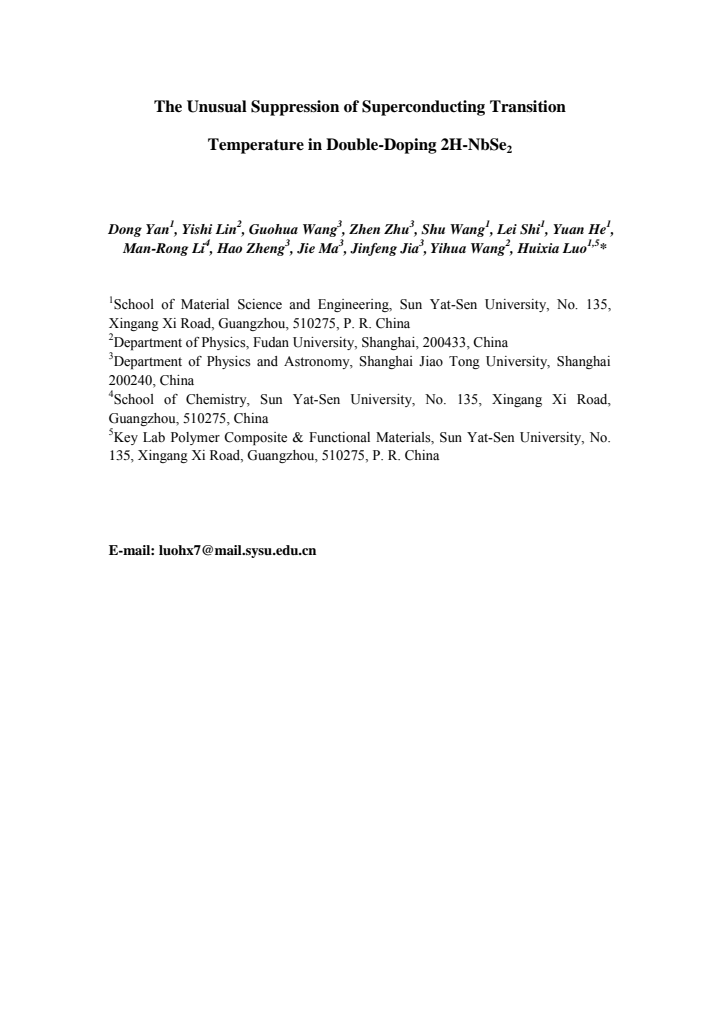

The Unusual Suppression of Superconducting Transition Temperature in Double-Doping 2H-NbSe₂

Dong Yan , Yishi Lin , Guohua Wang , Zhen Zhu , Shu Wang , Lei Shi , Yuan He , Man-Rong Li
show 5 more authors
Hao Zheng Jie Ma Jinfeng Jia Yihua Wang Huixia Luo
This is my paper

Pith reviewed 2026-05-25 09:53 UTC · model grok-4.3

classification ❄️ cond-mat.supr-con
keywords superconductivitytransition metal dichalcogenidesNbSe2doping effectscharge density wavephase diagram
0
0 comments X

The pith

Double doping of 2H-NbSe2 with Cu and S lowers Tc to a stable 2 K plateau at high doping levels.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines how simultaneous Cu intercalation and S substitution affect superconductivity in 2H-NbSe2, a material that normally shows a superconducting transition at 7.3 K alongside a charge-density-wave transition at 33 K. Systematic measurements show that Tc falls steadily as the amounts of Cu and S increase, but then levels off near 2 K once doping reaches higher values. This plateau contrasts with the faster Tc suppression seen when Nb and Se are substituted together in a related compound. The authors map the resulting superconducting phase diagram against single-ion doping cases to probe links between Fermi-surface nesting and the superconducting state.

Core claim

In CuxNbSe2-ySy, Tc decreases with rising Cu and S content but remains constant near 2 K once x and y become large; this saturation is absent in the comparison system CuxNb1-xSe2-ySy, where Tc drops more rapidly, and the authors present the contrasting superconducting phase diagrams for the two double-doping routes.

What carries the argument

The combined Cu intercalation plus S-for-Se substitution that produces CuxNbSe2-ySy and its measured Tc versus doping behavior.

If this is right

  • Tc reaches a doping-independent value near 2 K once both intercalant and substituent concentrations are high.
  • The double-doping route produces a superconducting phase diagram distinct from those obtained by single-ion substitution.
  • Simultaneous Nb-site and Se-site substitution suppresses Tc substantially faster than the Cu-intercalation plus S-substitution route.
  • The plateau occurs in a regime where the material remains a layered TMD yet exhibits an uncommonly flat Tc(x,y) dependence.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The stabilized 2 K state may reflect a doping-driven alteration of nesting conditions that leaves a residual pairing channel intact.
  • Comparison of the two double-doping schemes suggests that the location of the dopant (intercalant versus substitutional) controls how quickly the Fermi surface is detuned from the superconducting instability.
  • If the plateau survives in cleaner samples, it could mark a new low-temperature regime whose microscopic order parameter differs from the pristine 7.3 K superconductor.

Load-bearing premise

The observed Tc values and their plateau arise from intrinsic electronic or Fermi-surface changes rather than from sample inhomogeneity or disorder introduced by the doping process.

What would settle it

A measurement showing that Tc continues to fall below 2 K or exhibits a sharp drop at still higher Cu and S concentrations, or that structural phase changes coincide exactly with the reported plateau.

Figures

Figures reproduced from arXiv: 1907.01776 by Dong Yan, Guohua Wang, Hao Zheng, Huixia Luo, Jie Ma, Jinfeng Jia, Lei Shi, Man-Rong Li, Shu Wang, Yihua Wang, Yishi Lin, Yuan He, Zhen Zhu.

Figure 1

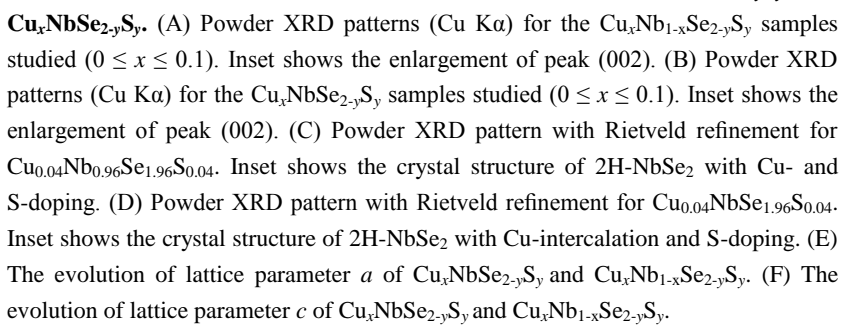

Figure 1. Figure 1: Structural and chemical characterization of Cu [PITH_FULL_IMAGE:figures/full_fig_p015_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Transport characterization of the normal states and superconducting [PITH_FULL_IMAGE:figures/full_fig_p015_2.png] view at source ↗
Figure 4

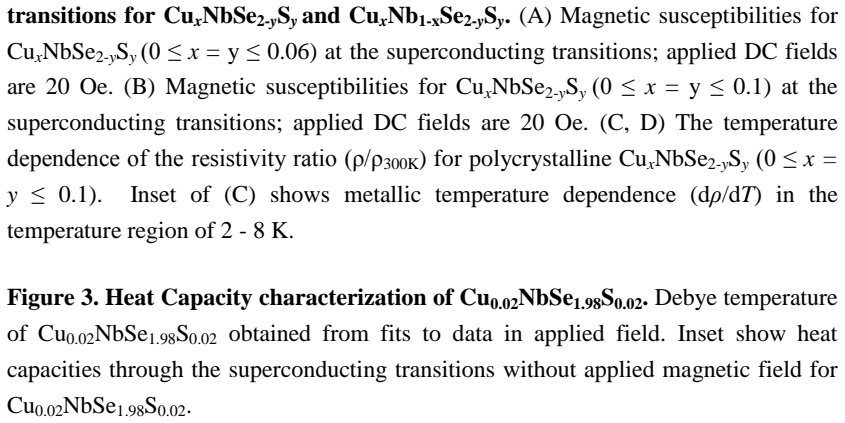

Figure 4. Figure 4: Characterization of the critical fields of Cu [PITH_FULL_IMAGE:figures/full_fig_p015_4.png] view at source ↗
Figure 6
Figure 6. Figure 6: The superconducting phase diagram for 2H-CuxNbSe2-ySy and 2H-CuxNb1-xSe2-ySy compared to those of 2H-CuxNbSe2, 2H-NbSe2-xSx, and 2H-FexNbSe2(Refs.16, 24, 28) [PITH_FULL_IMAGE:figures/full_fig_p015_6.png] view at source ↗
Figure 1
Figure 1. Figure 1 [PITH_FULL_IMAGE:figures/full_fig_p016_1.png] view at source ↗
Figure 3
Figure 3. Figure 3 [PITH_FULL_IMAGE:figures/full_fig_p018_3.png] view at source ↗
Figure 4
Figure 4. Figure 4 [PITH_FULL_IMAGE:figures/full_fig_p019_4.png] view at source ↗
Figure 6
Figure 6. Figure 6 [PITH_FULL_IMAGE:figures/full_fig_p020_6.png] view at source ↗
read the original abstract

2H-NbSe2 is one of the most widely researched transition metal dichalcogenide (TMD) superconductors, which undergoes charge-density wave (CDW) transition at TCDW about 33 K and superconducting transition at Tc of 7.3 K. To explore the relation between its superconductivity and Fermi surface nesting, we combined S substitution with Cu intercalation in 2H-NbSe2 to make CuxNbSe2-ySy. Upon systematic substitution of S and intercalation of Cu ions into 2H-NbSe2, we found that when the Cu and S contents increases, the Tc decreases in CuxNbSe2-ySy. While at higher x and y values, Tc keeps a constant value near 2 K, which is not commonly observed for a layered TMD. For comparison, we found the simultaneous substitution of Nb by Cu and Se by S in CuxNb1-xSe2-ySy lowered the Tc substantially faster. We construct a superconducting phase diagrams for our double-doping compounds in contrast with the related single-ions doping systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports experimental results on double-doped 2H-NbSe2 via Cu intercalation (x) and S substitution (y) in CuxNbSe2-ySy. Tc decreases with rising x and y but plateaus near 2 K at higher doping levels; this behavior is contrasted with faster Tc suppression in CuxNb1-xSe2-ySy and with single-ion doping systems, and superconducting phase diagrams are constructed for the double-doped compounds.

Significance. If the reported Tc plateau is intrinsic, the result would be notable for layered TMD superconductors because a doping-independent low-Tc regime is uncommon and could illuminate the interplay between CDW order, Fermi-surface nesting, and superconductivity. The phase-diagram comparison with single-doping cases provides a falsifiable, standard framework for assessing the double-doping effect.

major comments (2)
  1. [Results / phase-diagram section] Results on resistivity and Tc extraction (likely the section presenting the phase diagram and Tc vs. x,y data): the central claim of an unusual plateau at ~2 K requires explicit reporting of transition widths, multiple-sample statistics, and error bars; without these, it remains unclear whether the constant value reflects intrinsic electronic changes or extrinsic factors such as inhomogeneity.
  2. [Experimental methods] Experimental / characterization section: no mention of EDX homogeneity maps, XRD peak widths, or specific-heat confirmation for the high-x,y compositions where the plateau occurs; such data are load-bearing for ruling out the weakest assumption (extrinsic effects) and for establishing that the plateau is not an artifact of sample selection or structural phase changes.
minor comments (2)
  1. Notation inconsistency: the title uses 2H-NbSe₂ while the abstract and text employ CuxNbSe2-ySy; ensure uniform chemical formula and subscript formatting throughout.
  2. [Abstract] The abstract states 'Tc keeps a constant value near 2 K, which is not commonly observed'; a brief literature citation or quantitative comparison to other TMD plateaus would strengthen this phrasing.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the constructive comments on our manuscript. We address each major point below and indicate where revisions will be made to strengthen the presentation of the Tc plateau.

read point-by-point responses

  1. Referee: [Results / phase-diagram section] Results on resistivity and Tc extraction (likely the section presenting the phase diagram and Tc vs. x,y data): the central claim of an unusual plateau at ~2 K requires explicit reporting of transition widths, multiple-sample statistics, and error bars; without these, it remains unclear whether the constant value reflects intrinsic electronic changes or extrinsic factors such as inhomogeneity.

    Authors: We agree that these details are necessary to support the claim of an intrinsic plateau. In the revised manuscript we will add error bars to the Tc values shown in the phase diagrams, report the transition widths (defined as the temperature span between 10% and 90% of the normal-state resistivity) for representative high-x,y samples, and state the number of independently prepared samples measured for each composition to demonstrate reproducibility. These additions will help address concerns about possible inhomogeneity. revision: yes

  2. Referee: [Experimental methods] Experimental / characterization section: no mention of EDX homogeneity maps, XRD peak widths, or specific-heat confirmation for the high-x,y compositions where the plateau occurs; such data are load-bearing for ruling out the weakest assumption (extrinsic effects) and for establishing that the plateau is not an artifact of sample selection or structural phase changes.

    Authors: We will add EDX composition maps and quantitative XRD peak-width analysis for the high-x and high-y samples in a revised experimental section to document homogeneity and the absence of structural phase changes. Specific-heat data were not collected on these compositions; our study relied on transport measurements and comparison with single-doping cases. The observed plateau is reproducible across multiple transport runs, but we acknowledge that calorimetric confirmation would further strengthen the intrinsic interpretation. revision: partial

standing simulated objections not resolved
  • Specific-heat confirmation for the high-x,y compositions

Circularity Check

0 steps flagged

No significant circularity; experimental measurements only

full rationale

The manuscript reports synthesis of CuxNbSe2-ySy, resistivity and magnetization measurements of Tc, and construction of phase diagrams contrasting double-doping versus single-ion doping. No equations, fitted parameters, or theoretical derivations are presented that reduce any claimed result to a quantity defined by the authors' own inputs. The central observation (Tc decrease followed by plateau near 2 K) is a direct experimental finding, not a prediction derived from a model or self-citation chain. Self-citations, if present, are not load-bearing for the reported data.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is an experimental materials paper. No free parameters, mathematical axioms, or new postulated entities are introduced; the central claim rests on standard assumptions of uniform doping and accurate composition measurement.
