RolloutPipe: Overlapping Pipelined Rollout and Training in Disaggregated On-Policy LLM Reinforcement Learning

Rongjian Chen , Jianmin Hu , Kejiang Ye , Minxian Xu This is my paper

Pith reviewed 2026-06-26 02:53 UTC · model grok-4.3

classification 💻 cs.DC cs.LG
keywords disaggregated RLVRon-policy reinforcement learningpipelined rollout trainingLLM post-trainingcomplete group pipeliningGRPO
0
0 comments X

The pith

RolloutPipe pipelines complete rollout groups to the trainer as soon as they form, allowing training to begin before the full rollout finishes while keeping the data on-policy.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that in disaggregated on-policy RLVR systems, rollout generation and policy training on separate GPU pools can be overlapped by moving each finished complete group to training immediately. It introduces complete-group pipelining that dispatches groups FIFO as soon as they materialize and frontier-group dispatch that prioritizes admission of the next needed groups on the rollout side. This overlap shortens the time from rollout start to training completion and reduces trainer idle time compared with systems that wait for the entire rollout. The design claims to preserve on-policy correctness because only fully generated groups enter training and later groups continue under the current policy weights.

Core claim

RolloutPipe turns the fixed-weight rollout into a complete-group pipeline where trainable groups move to the trainer while later groups are still being generated, achieved through complete-group pipelining that dispatches each trainable complete group to the trainer as soon as group materialization finishes and frontier-group dispatch that admits requests for the frontier groups needed to form the next training batch first.

What carries the argument

complete-group pipelining (CGP) together with frontier-group dispatch (FGD), which together move finished groups to training while rollout continues and keep the trainer supplied with on-policy batches

If this is right

  • Training GPUs begin useful work while later rollout groups are still being generated under the current policy.
  • The trainer waiting ratio drops because groups arrive steadily rather than in one large batch after rollout ends.
  • The overall rollout-to-train-end latency decreases by the measured 30.7 to 42.3 percent range on the tested models and benchmarks.
  • On-policy properties hold because only fully materialized groups enter the training batch and all groups in a batch share the same policy weights.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same CGP and FGD logic could be applied to other group-based on-policy algorithms beyond GRPO if the group size remains fixed.
  • If rollout variance across groups is high, FGD admission ordering may need additional tuning to keep batch arrival times stable.
  • Extending the pipeline to allow partial overlap within a single group would require new mechanisms to restore on-policy guarantees.

Load-bearing premise

Dispatching each complete group as soon as it finishes preserves on-policy correctness without bias from timing differences or partial data.

What would settle it

A direct comparison of the final policy weights or per-group advantage statistics produced by RolloutPipe versus a non-pipelined baseline on the same prompt set and random seeds would show whether any systematic shift appears.

Figures

Figures reproduced from arXiv: 2606.26997 by Jianmin Hu, Kejiang Ye, Minxian Xu, Rongjian Chen.

Figure 1

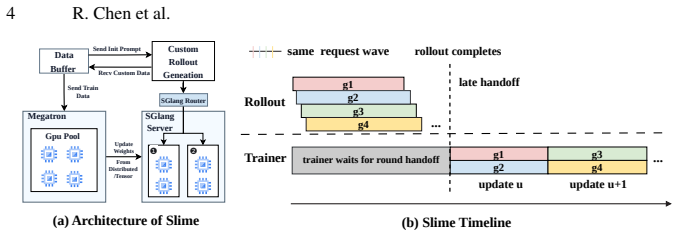

Figure 1. Figure 1: (a) Slime’s disaggregated architecture. (b) Serial rollout-then-train mode: early-completed groups wait outside the trainer FIFO, leaving it idle. 2.2 Unordered Completion and Frontier-Group Supply Even with complete groups entering the training side earlier, pipeline utilization remains entirely dependent on the SGLang server schedule in [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: RolloutPipe system architecture. The two insertion points are FGD (serving-admission path, between rollout worker and SGLang router) and CGP (complete-group handoff path, after group materialization). The weight-refresh path (dashed) runs after the trainer drains all logical updates of the current rollout [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Two illustrative RolloutPipe timelines. (a) CGP delivers each group to the trainer FIFO as soon as it materializes, so the first U-group dispatch occurs before the rollout completes. (b) CGP+FGD applies frontier-first admission, making the first dispatch arrive earlier. 3.2 Training-Side Complete-Group Pipelining GRPO removes the learned critic and normalizes rewards group-wise. For K responses under the s… view at source ↗
Figure 4

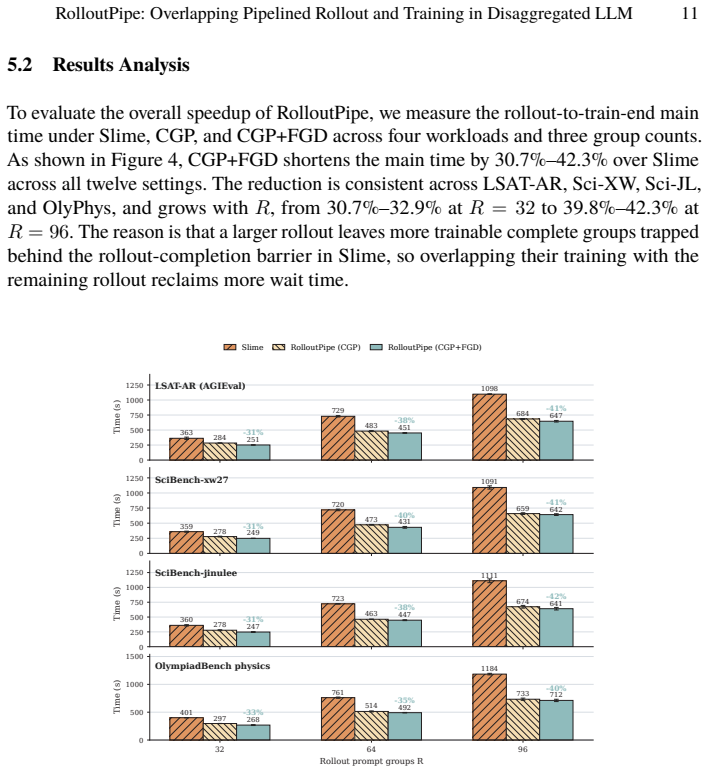

Figure 4. Figure 4: Rollout-to-train-end time. Each bar shows four-round mean with error bars indicating sample standard deviation, and orange numbers show the percentage CGP+FGD shortens over Slime. To validate that CGP is the dominant source of the reduction, we decompose the total gain into the CGP and FGD shares. As shown in [PITH_FULL_IMAGE:figures/full_fig_p011_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Response length and trainer waiting ratio across workloads. Each point is the four-round mean, and the response-length row uses a local zoom. Columns correspond to workloads, and R is the number of rollout prompt groups. To ensure that pipelining overlaps training with rollout rather than changing workload, we compare trainer compute time and response length at the same R [PITH_FULL_IMAGE:figures/full_fig… view at source ↗
read the original abstract

Large language model (LLM) post-training for reasoning increasingly relies on reinforcement learning with verifiable rewards (RLVR), where models learn from ground-truth feedback on mathematical, logical, and scientific tasks. To enable flexible resource allocation and support heterogeneous training setups, modern RLVR systems adopt disaggregated architectures that decouple rollout generation and policy training across independent GPU pools. However, existing synchronous on-policy GRPO (Group Relative Policy Optimization) RLVR systems finish an entire rollout before starting training, leaving the trainer GPU pool idle while rollout is still ongoing. Asynchronous RL pipelines overlap the two stages, but at the cost of training on stale data. To address these challenges, we propose RolloutPipe, a post-training framework for disaggregated RLVR systems, which turns the fixed-weight rollout into a complete-group pipeline where trainable groups move to the trainer while later groups are still being generated. RolloutPipe achieves this through two techniques including complete-group pipelining (CGP) and frontier-group dispatch (FGD). CGP dispatches each trainable complete group to the trainer FIFO as soon as group materialization finishes, and FGD is an admission policy on the Rollout node that first admits requests for the frontier groups needed to form the next training batch, so that trainer-ready groups arrive earlier and more steadily. The design starts training before the rollout completes while maintaining on-policy correctness. Evaluated on Qwen3-1.7B across four reasoning and science benchmarks and twelve rollout settings, RolloutPipe shortens the rollout-to-train-end time by 30.7%-42.3%, and lowers the trainer waiting ratio by 37%-76% compared to Slime, a state-of-the-art rollout and training system.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces RolloutPipe for disaggregated on-policy GRPO-based RLVR systems. It uses complete-group pipelining (CGP) to dispatch finished groups to the trainer FIFO as soon as they materialize and frontier-group dispatch (FGD) to prioritize admission of groups needed for the next training batch. The central claim is that this overlap shortens rollout-to-train-end time by 30.7%-42.3% and reduces trainer waiting ratio by 37%-76% versus Slime while preserving exact on-policy correctness, demonstrated on Qwen3-1.7B across four benchmarks and twelve rollout settings.

Significance. If the on-policy invariance holds, the work would meaningfully improve GPU utilization in disaggregated RLVR pipelines without requiring changes to the underlying GRPO objective or introducing staleness. The evaluation across multiple benchmarks and rollout configurations provides concrete empirical grounding; the absence of machine-checked invariants or open reproducible code for the dispatch logic is a missed opportunity to strengthen the contribution.

major comments (2)
  1. [§3] §3 (CGP and FGD description): the manuscript asserts that dispatching complete groups FIFO via CGP and admitting frontier groups first via FGD yields data whose distribution and gradient statistics are identical to the synchronous non-pipelined case, yet supplies neither an invariant, a proof sketch, nor an ablation that compares per-group reward statistics, batch composition, or final policy gradient norms between the pipelined and baseline executions. This is load-bearing for the central on-policy claim.
  2. [§5] §5 (experimental results): the reported 30.7%-42.3% and 37%-76% improvements are presented without error bars, number of random seeds, or explicit data-exclusion rules; given that the performance numbers rest on the correctness guarantee in §3, the lack of statistical characterization weakens the ability to assess whether the gains are robust.
minor comments (2)
  1. Notation for group materialization time and trainer admission queue is introduced without a compact diagram or pseudocode listing the exact FIFO and priority rules; a small figure would improve clarity.
  2. The comparison baseline (Slime) is described only at a high level; a short table contrasting the two systems on synchronization points and dispatch policy would help readers replicate the experimental setup.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. We respond to each major comment below.

read point-by-point responses

  1. Referee: [§3] §3 (CGP and FGD description): the manuscript asserts that dispatching complete groups FIFO via CGP and admitting frontier groups first via FGD yields data whose distribution and gradient statistics are identical to the synchronous non-pipelined case, yet supplies neither an invariant, a proof sketch, nor an ablation that compares per-group reward statistics, batch composition, or final policy gradient norms between the pipelined and baseline executions. This is load-bearing for the central on-policy claim.

    Authors: CGP dispatches every completed group in the exact order it finishes, and FGD only reorders admission requests so that the groups required for the immediate next training batch become ready earlier; neither mechanism alters group membership, internal token sequences, or reward labels. Consequently the sequence of training batches and their per-group statistics are identical to the synchronous baseline by construction. We agree that an explicit invariant and a short proof sketch would make this argument clearer and will add both in the revision. revision: yes

  2. Referee: [§5] §5 (experimental results): the reported 30.7%-42.3% and 37%-76% improvements are presented without error bars, number of random seeds, or explicit data-exclusion rules; given that the performance numbers rest on the correctness guarantee in §3, the lack of statistical characterization weakens the ability to assess whether the gains are robust.

    Authors: We accept that the current presentation lacks statistical characterization. In the revised manuscript we will repeat each configuration with multiple random seeds, report means and standard deviations, and document the exact data-collection and exclusion criteria. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical systems design with external baseline

full rationale

The paper describes an engineering pipeline (CGP + FGD) for overlapping rollout and training in disaggregated RLVR, evaluated by wall-clock metrics against the external Slime system. No equations, fitted parameters, or self-citations are used to derive the on-policy guarantee; the claim is presented as a design invariant whose correctness is left to empirical validation rather than reduced to prior self-work or tautological definitions. The contribution is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The paper relies on standard assumptions about disaggregated GPU pools and on-policy RL requirements but introduces no new free parameters, axioms beyond domain conventions, or invented entities.

axioms (2)
  • domain assumption Disaggregated architectures decouple rollout generation and policy training across independent GPU pools.
    Invoked in the abstract as the setup that modern RLVR systems adopt.
  • domain assumption On-policy correctness must be preserved when overlapping rollout and training.
    Central to the claim that the design starts training before rollout completes while maintaining on-policy correctness.
