Floating Displacement-Force Conversion Mechanism as a Robotic Mechanism
Pith reviewed 2026-05-24 18:25 UTC · model grok-4.3
The pith
Aligning a linear system and its inverse characteristic spring in series converts displacement into force with theoretically zero operation force.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Aligning a linear system and its inverse characteristic spring in series enables a mechanism to convert displacement into force generated by a spring with theoretically zero operation force. To verify the proposed principle, the authors realized a prototype model of inverse characteristic linear spring with an uncircular pulley. Experiments showed that the generating force of a linear spring can be controlled by a small and steady operation force.
What carries the argument
The inverse characteristic linear spring realized with an uncircular pulley, which produces a balancing force to cancel the linear spring's force.
If this is right
- The generating force of a linear spring can be controlled by a small and steady operation force.
- This principle extends the balancing concept from magnetic units to linear systems.
- Robotic mechanisms can achieve attachment and detachment tasks with operation force smaller than the internal forces.
- Displacement can be converted to force output without substantial input effort.
Where Pith is reading between the lines
- If the inverse spring can be made precisely, it could reduce energy use in force-control robots.
- Similar balancing might apply to other nonlinear systems beyond springs.
- Manufacturing tolerances would determine if the zero-force ideal is achievable in practice.
Load-bearing premise
An inverse-characteristic linear spring can be realized in practice such that its force exactly cancels the linear spring's force curve over the working range without friction or errors that would require substantial operation force.
What would settle it
If the prototype experiment with the uncircular pulley shows the operation force is not small and steady but varies or requires significant effort due to imperfect cancellation, the central claim would be falsified.
read the original abstract

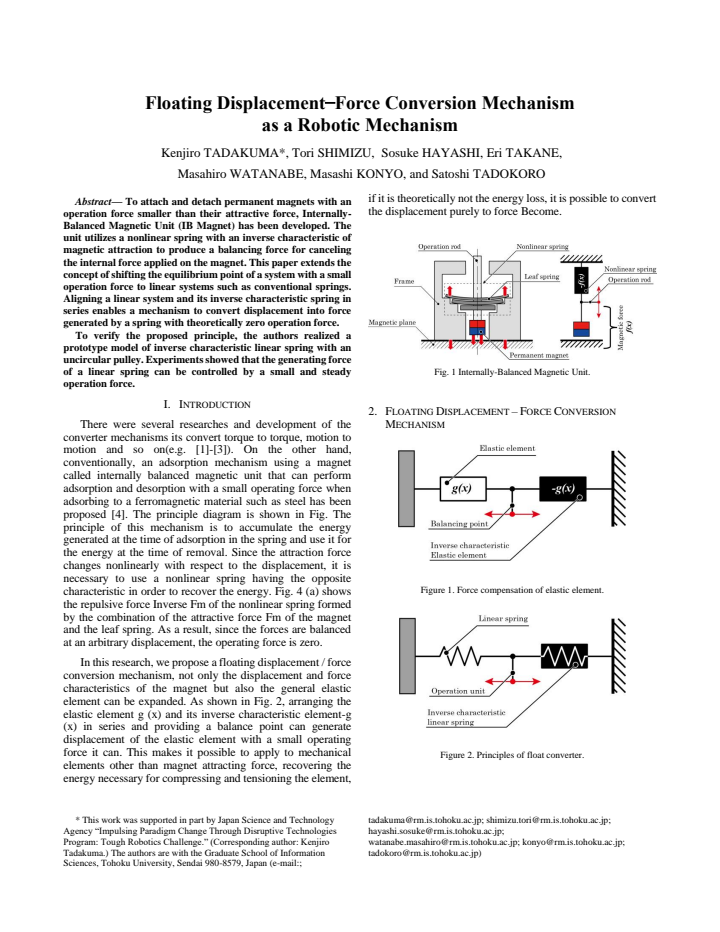

To attach and detach permanent magnets with an operation force smaller than their attractive force, Internally-Balanced Magnetic Unit (IB Magnet) has been developed. The unit utilizes a nonlinear spring with an inverse characteristic of magnetic attraction to produce a balancing force for canceling the internal force applied on the magnet. This paper extends the concept of shifting the equilibrium point of a system with a small operation force to linear systems such as conventional springs. Aligning a linear system and its inverse characteristic spring in series enables a mechanism to convert displacement into force generated by a spring with theoretically zero operation force. To verify the proposed principle, the authors realized a prototype model of inverse characteristic linear spring with an uncircular pulley. Experiments showed that the generating force of a linear spring can be controlled by a small and steady operation force.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes extending the Internally-Balanced Magnetic Unit concept to linear systems by placing a conventional linear spring in series with an inverse-characteristic spring realized via an uncircular pulley. This 'floating' series arrangement is claimed to allow the output force of the linear spring to be controlled by a theoretically zero operation force at the floating connection point. A prototype is constructed, and the abstract states that experiments demonstrated control of the linear spring force via a 'small and steady' operation force.
Significance. If the zero-operation-force principle can be shown to hold with quantitative validation, the mechanism could enable low-effort actuation or balancing in robotic grippers, magnetic attachment systems, or variable-stiffness devices. The work provides a concrete mechanical realization (uncircular pulley) and a prototype, which are positive steps toward falsifiable claims, but the current lack of measured force curves or error metrics limits its immediate significance.
major comments (2)
- [Abstract] Abstract (and any Experiments section): the central claim of 'theoretically zero operation force' is load-bearing, yet the reported experiments only describe a 'small and steady' force without quantitative data, force-vs-displacement curves for the isolated inverse element versus the ideal 1/kx target, error analysis, or comparison to a direct-drive baseline. This leaves the practical cancellation unverified at the level required to support the theoretical claim.
- [Mechanism description] Mechanism realization (uncircular pulley description): the assumption that the pulley radius function exactly cancels the linear spring across the working range without residual net force from cable routing, friction, or manufacturing tolerance is not accompanied by an explicit error-propagation analysis or measured deviation from the ideal inverse characteristic; any deviation directly undermines the zero-force result.
minor comments (1)
- Notation for the inverse characteristic (e.g., force function of the uncircular pulley) should be defined explicitly with an equation number for reproducibility.
Simulated Author's Rebuttal
We thank the referee for the constructive comments. Below we respond point by point to the major comments and indicate planned revisions.
read point-by-point responses
-
Referee: [Abstract] Abstract (and any Experiments section): the central claim of 'theoretically zero operation force' is load-bearing, yet the reported experiments only describe a 'small and steady' force without quantitative data, force-vs-displacement curves for the isolated inverse element versus the ideal 1/kx target, error analysis, or comparison to a direct-drive baseline. This leaves the practical cancellation unverified at the level required to support the theoretical claim.
Authors: We agree that the experiments as reported provide only a qualitative description of a 'small and steady' force and do not include the quantitative force-displacement curves, error metrics, or baseline comparisons requested. The central theoretical claim follows from the ideal series arrangement of a linear spring and its inverse-characteristic counterpart, which produces zero net force at the floating connection point by construction. The prototype was intended as a proof-of-concept realization of the inverse element via uncircular pulley rather than a full quantitative validation. In the revised manuscript we will add measured force data for the inverse element, comparison against the ideal 1/kx target, and an error analysis to better substantiate the practical closeness to the theoretical zero-force result. revision: yes
-
Referee: [Mechanism description] Mechanism realization (uncircular pulley description): the assumption that the pulley radius function exactly cancels the linear spring across the working range without residual net force from cable routing, friction, or manufacturing tolerance is not accompanied by an explicit error-propagation analysis or measured deviation from the ideal inverse characteristic; any deviation directly undermines the zero-force result.
Authors: The pulley radius function is obtained from the exact force-balance equation that inverts the linear spring characteristic, so that the ideal model yields zero residual force at the floating point across the designed range. We acknowledge that the current manuscript does not provide an explicit propagation of errors arising from friction, cable routing, or manufacturing tolerances, nor measured deviations from the ideal inverse curve. These practical factors can indeed produce a small residual force. In the revision we will add a dedicated discussion of these error sources together with an analysis of their expected magnitude based on the prototype geometry. revision: yes
Circularity Check
No circularity: linear-system extension uses independent mechanical design
full rationale
The paper's core derivation—placing a linear spring in series with a purpose-designed inverse-characteristic element realized by an uncircular pulley—follows directly from statics and the geometric definition of the pulley radius function needed to produce the opposing force curve. No equation or result is shown to reduce to a fitted parameter, a self-citation, or a prior ansatz by construction. The motivating reference to the authors' earlier IB Magnet work supplies only the analogy for extending the balancing idea; the linear case equations and prototype are self-contained and externally verifiable by measuring the isolated pulley-generated force curve against the target 1/kx characteristic. Experiments report approximate (small and steady) rather than exact zero force, consistent with an engineering approximation rather than a tautology.
Axiom & Free-Parameter Ledger
free parameters (1)
- uncircular pulley profile parameters
axioms (1)
- standard math Two springs placed in series produce a net force equal to the difference of their individual forces at the junction point.
