Fast and Reliable Gradients for Deformables Across Frictional Contact Regimes

Ziqiu Zeng , Gang Yang , Zhenhao Huang , Bingyang Zhou , Yulin Li , Jason Pho , Siyuan Luo , Fan Shi This is my paper

Pith reviewed 2026-05-21 11:29 UTC · model grok-4.3

classification 💻 cs.GR
keywords differentiable simulationfrictional contactdeformable bodiesgradient computationfinite element methodGPU accelerationcontact mechanicsinverse problems
0
0 comments X

The pith

Enforcing strict Markovian dynamics on a position-velocity manifold yields consistent gradients for frictional contact in deformable simulations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper aims to show that a differentiable simulator can compute reliable gradients for objects that deform and slide under friction by keeping the underlying dynamics strictly Markovian on a combined position and velocity state. It pairs this with a preconditioner aligned to the object's mass distribution and a softened Fischer-Burmeister function to handle contact forces smoothly, plus a commutation condition that removes singularities in the material model. If these elements work together, optimization routines for inverse problems such as material identification and motion control can run without the gradient vanishing or distorting that appears in many current methods. The result would be more accurate parameter fitting from real-world data and more stable control policies for tasks involving cloth, soft robots, and dexterous handling.

Core claim

The central claim is that a unified GPU-accelerated differentiable simulator establishes mathematical consistency for gradients across frictional contact regimes through long-horizon consistency that enforces strict Markovian dynamics on the coupled position-velocity manifold, unified contact stability achieved with a mass-aligned preconditioner and soft Fischer-Burmeister operator, and resolution of FEM singularities by a derived within-block commutation condition.

What carries the argument

The coupled position-velocity manifold under strict Markovian dynamics, together with the mass-aligned preconditioner and soft Fischer-Burmeister operator.

If this is right

  • Optimization for physical system identification succeeds in contact-rich scenes without gradient distortion.
  • Inverse dynamics control for dexterous manipulation produces low-noise trajectories.
  • Cloth folding simulations maintain gradient fidelity over extended sequences.
  • The sim-to-real gap narrows for deformable objects subject to friction.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same stability properties could support gradient-based design loops for soft mechanisms that experience repeated sliding contacts.
  • Scaling the approach to multi-body systems with many contacts would test whether the preconditioner remains effective without extra parameter adjustment.
  • Embedding the simulator inside a learned policy network might yield controllers that generalize across varying friction coefficients.

Load-bearing premise

The assumption that combining strict Markovian dynamics on the position-velocity manifold with the mass-aligned preconditioner and soft Fischer-Burmeister operator will produce mathematically consistent non-collapsing gradients across all frictional contact regimes without introducing new artifacts.

What would settle it

Measure gradient norms over hundreds of time steps in a long-horizon cloth-folding or grasping sequence; if the norms stay bounded away from zero and downstream optimization converges without manual retuning, the claim holds, while sudden collapse or stagnation would contradict it.

Figures

Figures reproduced from arXiv: 2603.16478 by Bingyang Zhou, Fan Shi, Gang Yang, Jason Pho, Siyuan Luo, Yulin Li, Zhenhao Huang, Ziqiu Zeng.

Figure 1

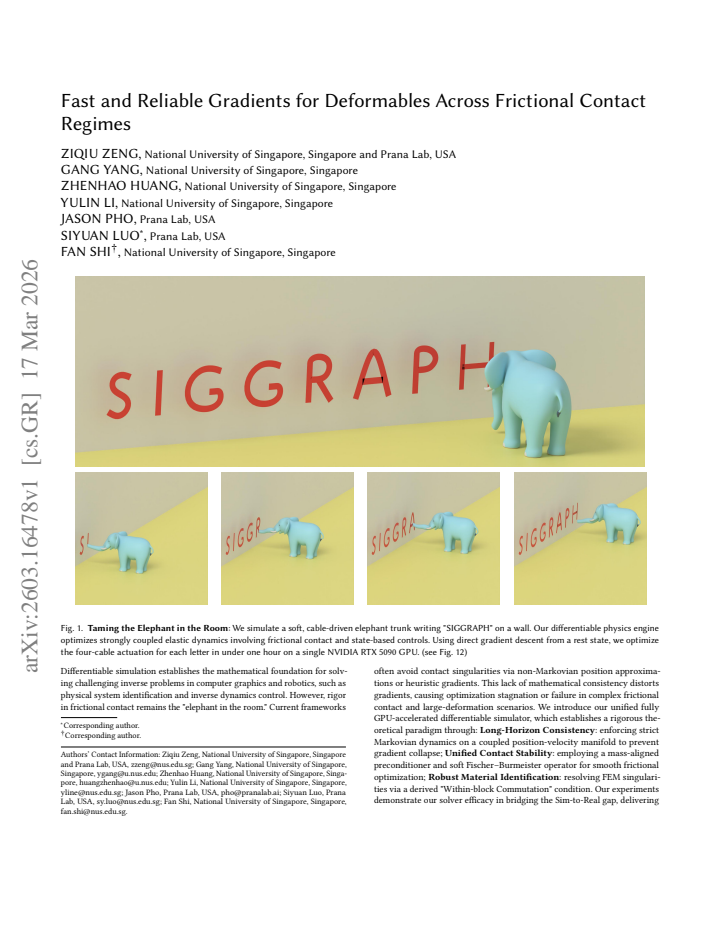

Figure 1. Figure 1: Taming the Elephant in the Room: We simulate a soft, cable-driven elephant trunk writing "SIGGRAPH" on a wall. Our differentiable physics engine optimizes strongly coupled elastic dynamics involving frictional contact and state-based controls. Using direct gradient descent from a rest state, we optimize the four-cable actuation for each letter in under one hour on a single NVIDIA RTX 5090 GPU. (see [PITH_… view at source ↗
Figure 2
Figure 2. Figure 2: Differentiation graph: gradients are obtained by implicitly differen [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 4
Figure 4. Figure 4: Starting from zero applied force, we optimize a horizontal force to pull [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 3
Figure 3. Figure 3: The smoothed Fischer-Burmeister function transforms a hard com [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 5
Figure 5. Figure 5: Starting from an initial guess of 𝐸 = 1 × 105 and 𝜈 = 0.2 (left), we perform system identification on a curtain undergoing gravity-induced deformation. Owing to the accuracy and robustness of the proposed gradi￾ents, the optimizer is able to simultaneously recover both parameters and converges to values close to the ground truth (𝐸 = 1 × 104 , 𝜈 = 0.3, right). be symmetric positive definite nor well-condit… view at source ↗
Figure 6
Figure 6. Figure 6: Gradient-based of stiffness (top) and Poisson’s ratio (down) in [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Experimental validation before (top row) and after (bottom row) identification across five different physical scenarios. The top row shows the simulation using initial guesses, while the bottom row utilizes the identified parameters, achieving perfect alignment with the target (pink). The columns from left to right correspond to the identification of: (1) bending constraint, (2) wind force, (3) friction fa… view at source ↗
Figure 8
Figure 8. Figure 8: We launch an elastic rubberduck horizontally onto a frictionless surface, involving frictionless contact dynamics. The optimization objective is the [PITH_FULL_IMAGE:figures/full_fig_p010_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Two-parameter system identification under Neo-Hookean hy￾perelasticity. We jointly optimize Young’s modulus 𝐸 and Poisson’s ratio 𝜈 for the hanging-curtain setup. Top: analytical gradients closely match finite-difference references throughout the run, including the coupled tran￾sition around the rapid descent phase. Bottom: the loss (logarithmic scale) decreases smoothly as (𝐸, 𝜈 ) converge to their target… view at source ↗
Figure 10
Figure 10. Figure 10: Gradient unit tests for elasticity and contact. Each panel reports a gradient-based identification task: (a) stiffness, (b) wind force, (c) bending coefficient, (d) Poisson’s ratio, (e) friction factor, (f ) lifting force, (g) pulling force, and initial-velocity identification (h) without friction and (i) with friction. In each panel, the top subplot compares analytical gradients with finite-difference re… view at source ↗
Figure 11
Figure 11. Figure 11: Convergence comparison of different adjoint solvers and preconditioners. We report relative residual error versus iteration count (left) and wall [PITH_FULL_IMAGE:figures/full_fig_p015_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Optimization-based tracking using a 4-cable elastic trunk. We dis [PITH_FULL_IMAGE:figures/full_fig_p016_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Gradient-based control of a cable-driven soft gripper for object [PITH_FULL_IMAGE:figures/full_fig_p016_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Friction behavior at time step 0 (left) and 3000 (right): blue block [PITH_FULL_IMAGE:figures/full_fig_p018_14.png] view at source ↗
read the original abstract

Differentiable simulation establishes the mathematical foundation for solving challenging inverse problems in computer graphics and robotics, such as physical system identification and inverse dynamics control. However, rigor in frictional contact remains the "elephant in the room." Current frameworks often avoid contact singularities via non-Markovian position approximations or heuristic gradients. This lack of mathematical consistency distorts gradients, causing optimization stagnation or failure in complex frictional contact and large-deformation scenarios. We introduce our unified fully GPU-accelerated differentiable simulator, which establishes a rigorous theoretical paradigm through: Long-Horizon Consistency: enforcing strict Markovian dynamics on a coupled position-velocity manifold to prevent gradient collapse; Unified Contact Stability: employing a mass-aligned preconditioner and soft Fischer--Burmeister operator for smooth frictional optimization; Robust Material Identification: resolving FEM singularities via a derived "Within-block Commutation" condition. Our experiments demonstrate our solver efficacy in bridging the Sim-to-Real gap, delivering precise, low-noise gradients in contact-rich tasks like dexterous manipulation and cloth folding. By mitigating the gradient instability issues common in conventional approaches, our framework significantly enhances the fidelity of physical system identification and control.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript introduces a unified fully GPU-accelerated differentiable simulator for deformable objects with frictional contacts. It establishes a theoretical paradigm via three components: Long-Horizon Consistency through strict Markovian dynamics on a coupled position-velocity manifold to avoid gradient collapse; Unified Contact Stability via a mass-aligned preconditioner and soft Fischer-Burmeister operator for smooth optimization; and Robust Material Identification by resolving FEM singularities with a derived Within-block Commutation condition. Experiments demonstrate efficacy in contact-rich tasks including dexterous manipulation and cloth folding, with claims of precise low-noise gradients that bridge the Sim-to-Real gap.

Significance. If the central claims hold, the work would meaningfully advance differentiable simulation for inverse problems in computer graphics and robotics by providing a mathematically consistent treatment of frictional contact singularities. The GPU implementation and focus on non-collapsing gradients across regimes could improve reliability in system identification and control tasks.

major comments (1)
  1. The weakest assumption—that the combination of strict Markovian dynamics on the position-velocity manifold, mass-aligned preconditioner, and soft Fischer-Burmeister operator yields mathematically consistent non-collapsing gradients across all frictional regimes without new artifacts or post-hoc tuning—requires explicit derivation and error analysis to confirm it is load-bearing and independent of prior heuristics.
minor comments (2)
  1. Abstract: the description of the soft Fischer-Burmeister operator would benefit from a short parenthetical clarification or reference for readers unfamiliar with the variant.
  2. Experiments section: quantitative metrics (e.g., gradient noise norms or optimization success rates versus baselines) should be added to substantiate the 'precise, low-noise' claim.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their constructive and detailed review. We address the single major comment below and have revised the manuscript to strengthen the theoretical presentation as suggested.

read point-by-point responses

  1. Referee: The weakest assumption—that the combination of strict Markovian dynamics on the position-velocity manifold, mass-aligned preconditioner, and soft Fischer-Burmeister operator yields mathematically consistent non-collapsing gradients across all frictional regimes without new artifacts or post-hoc tuning—requires explicit derivation and error analysis to confirm it is load-bearing and independent of prior heuristics.

    Authors: We thank the referee for identifying this as the central theoretical claim requiring further substantiation. The manuscript derives Long-Horizon Consistency from the strict Markovian structure on the coupled position-velocity manifold (Section 3.1), shows that the mass-aligned preconditioner removes inertial-contact misalignment that otherwise produces singular Jacobians, and establishes that the soft Fischer-Burmeister operator yields a differentiable complementarity condition whose Jacobian remains well-conditioned. These steps are presented as a unified argument that the combination prevents gradient collapse without additional heuristics. Nevertheless, we acknowledge that the current exposition would benefit from a more self-contained derivation and quantitative error analysis. In the revision we will add a dedicated subsection (and appendix) that (i) provides an explicit chain-rule derivation of the composite gradient operator, (ii) derives an a-priori bound on the deviation from ideal non-singular behavior across the stick-slip and separation regimes, and (iii) includes numerical verification on a set of controlled contact problems demonstrating that no new artifacts appear and that the method does not rely on post-hoc parameter tuning. This material will make the load-bearing character of the three components explicit. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation presented as independent

full rationale

The provided abstract and context introduce three main contributions—strict Markovian dynamics on a position-velocity manifold, a mass-aligned preconditioner with soft Fischer-Burmeister operator, and a derived Within-block Commutation condition—without any equations, fitted parameters, or self-citations visible in the text. Claims of 'derived' conditions and 'enforcing' dynamics are stated at a high level with no reduction to inputs by construction or load-bearing self-citation chains. The framework is described as establishing a rigorous paradigm through these elements, but absent explicit derivations or prior-author uniqueness theorems in the given material, the central claims remain self-contained and do not collapse to tautological fits or renamings.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available, so no concrete free parameters, axioms, or invented entities can be extracted. The approach appears to rest on standard domain assumptions of differentiable contact mechanics and GPU-accelerated FEM without additional detail.
