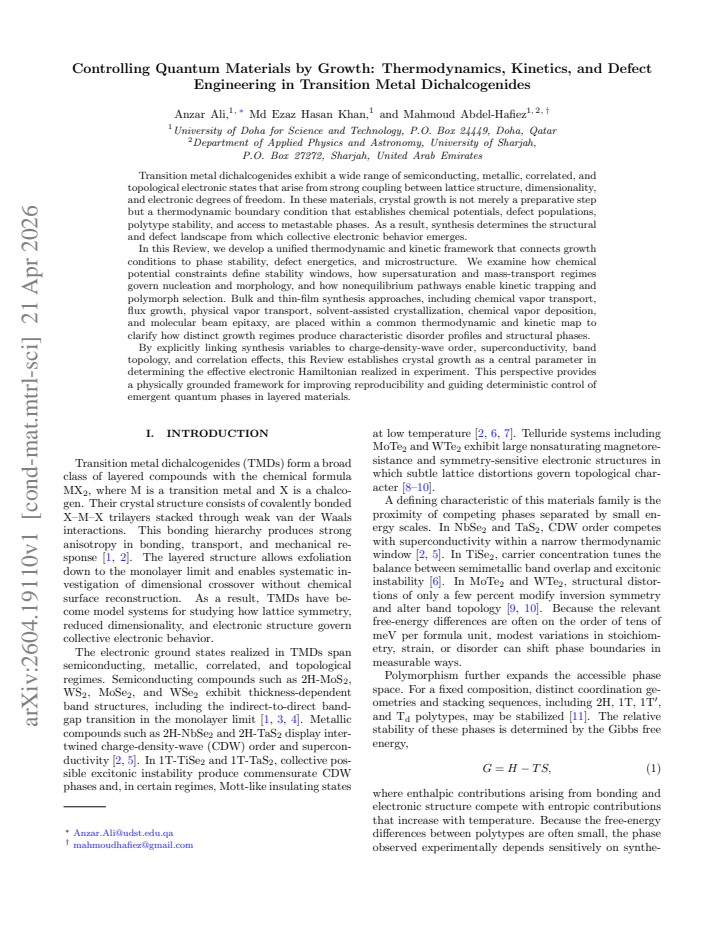

Controlling Quantum Materials by Growth: Thermodynamics, Kinetics, and Defect Engineering in Transition Metal Dichalcogenides

Anzar Ali , Md Ezaz Hasan Khan , Mahmoud Abdel-Hafiez This is my paper

Pith reviewed 2026-05-10 02:50 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci cond-mat.str-el
keywords transition metal dichalcogenidescrystal growththermodynamicskineticsdefect engineeringphase stabilityquantum phasesthin films
0
0 comments X

The pith

Crystal growth establishes the defect and phase landscape that sets the electronic states realized in transition metal dichalcogenides.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This review argues that crystal growth functions as a thermodynamic boundary condition in transition metal dichalcogenides rather than a mere preparation step. It develops a unified framework of thermodynamic and kinetic principles to connect growth variables such as chemical potentials, supersaturation, and mass transport to phase stability, defect populations, polytype selection, and resulting microstructures. The central point is that these growth-determined features directly shape collective electronic behaviors including charge-density waves, superconductivity, band topology, and correlation effects. A reader would care because the framework places bulk and thin-film methods on a common map, showing how distinct synthesis regimes produce characteristic disorder profiles and thereby control the effective electronic Hamiltonian.

Core claim

Synthesis determines the structural and defect landscape from which collective electronic behavior emerges, establishing crystal growth as a central parameter in determining the effective electronic Hamiltonian realized in experiment.

What carries the argument

A unified thermodynamic and kinetic framework that maps growth conditions to phase stability, defect energetics, and microstructure across bulk and thin-film methods.

If this is right

  • Chemical potential constraints during growth define stability windows for polytypes and metastable phases with distinct electronic properties.
  • Supersaturation and mass-transport regimes determine nucleation, morphology, and the resulting defect populations that influence charge-density-wave order and superconductivity.
  • Nonequilibrium pathways enable kinetic trapping of specific polymorphs whose band topology or correlation effects differ from equilibrium phases.
  • Linking synthesis variables explicitly to emergent phenomena provides a route to improved reproducibility in quantum material experiments.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Models of electronic structure in these materials would need to treat growth-derived defect densities as input parameters instead of assuming ideal lattices.
  • Device fabrication sequences could incorporate real-time monitoring of growth parameters to target specific quantum phases rather than relying on post-growth tuning.
  • The same framework might extend to predict how growth controls emergent behavior in other layered van der Waals systems beyond dichalcogenides.

Load-bearing premise

Thermodynamic and kinetic principles apply uniformly across synthesis methods to predict electronic states without needing extra material-specific microscopic details or post-growth characterization.

What would settle it

If two samples grown under nominally identical chemical potential and supersaturation conditions but by different methods exhibit measurably different defect densities or electronic transition temperatures, the direct mapping from growth regime to electronic Hamiltonian would fail.

Figures

Figures reproduced from arXiv: 2604.19110 by Anzar Ali, Mahmoud Abdel-Hafiez, Md Ezaz Hasan Khan.

Figure 1
Figure 1. Figure 1: FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

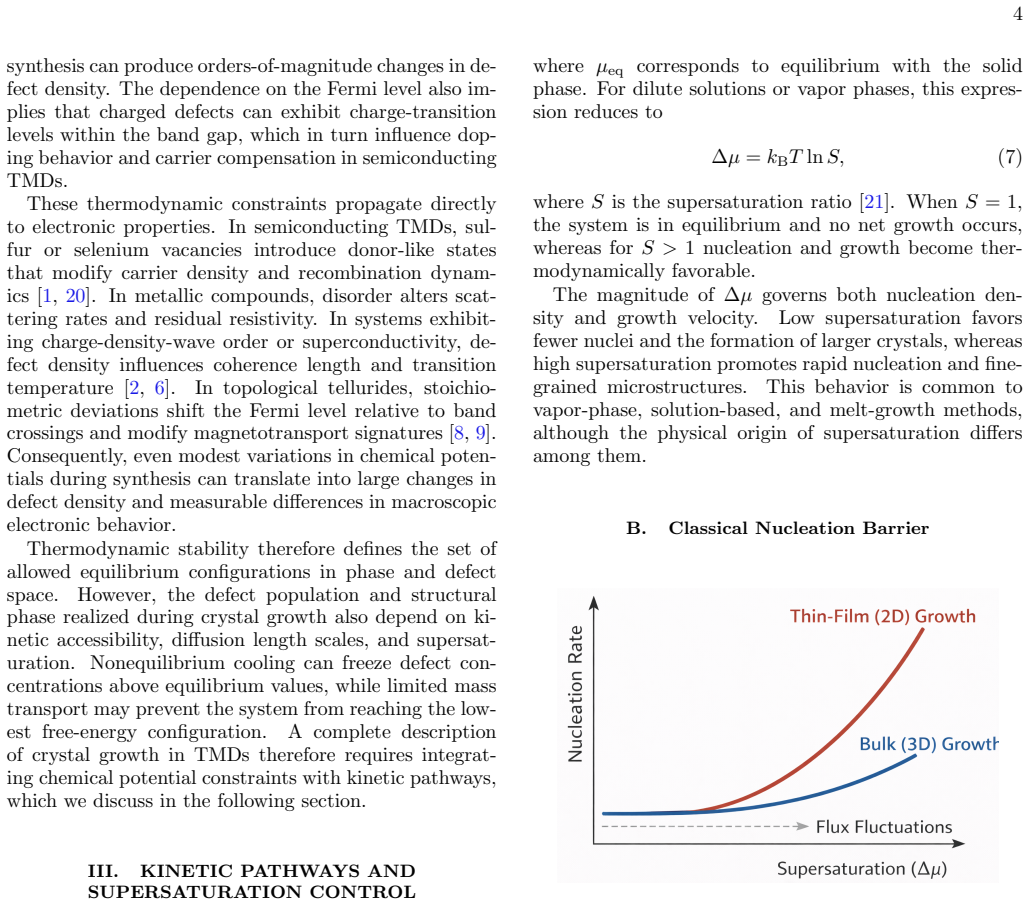

Figure 2. Figure 2: FIG. 2. Schematic comparison of nucleation rate as a func [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

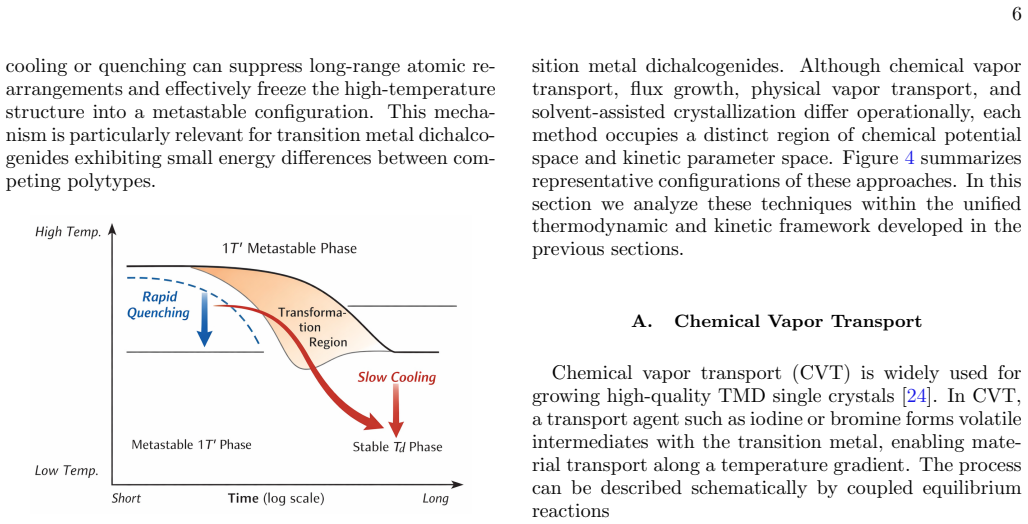

Figure 3. Figure 3: FIG. 3. Schematic time–temperature–transformation (TTT) [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4

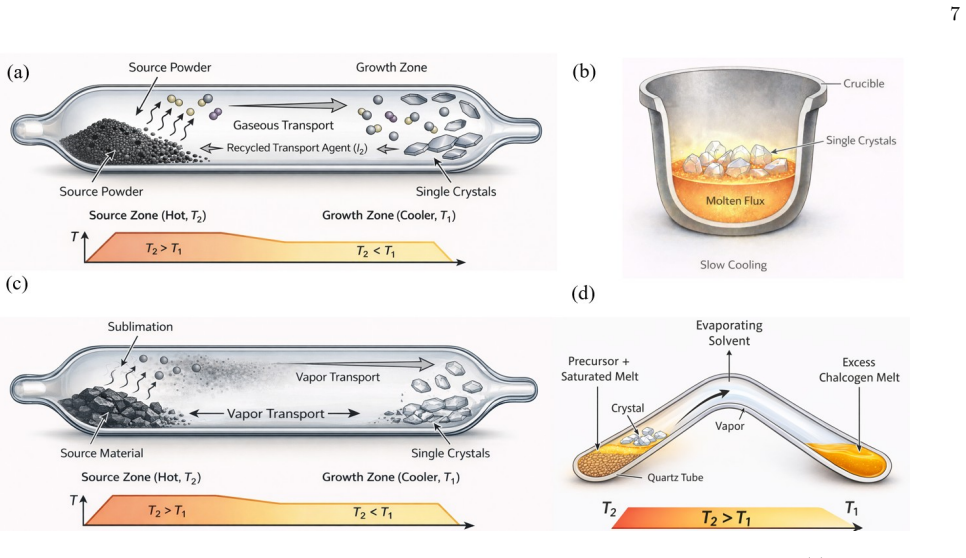

Figure 4. Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5

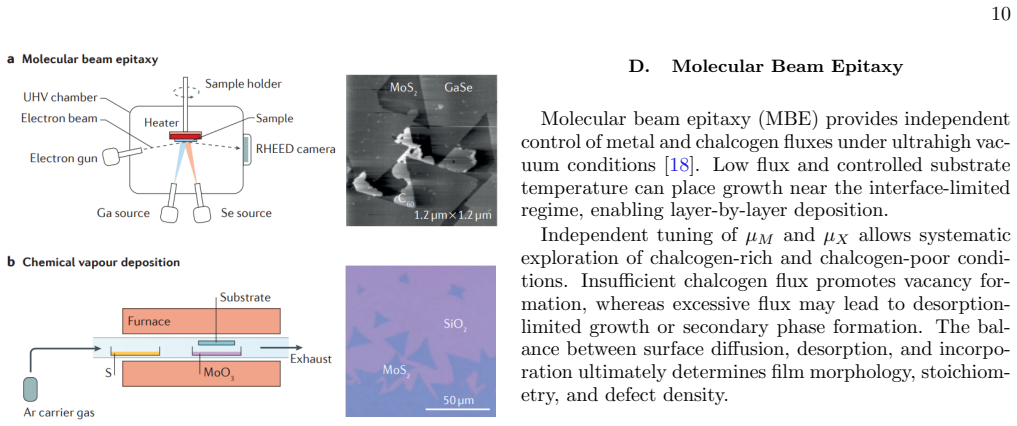

Figure 5. Figure 5: FIG. 5 [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
Figure 6

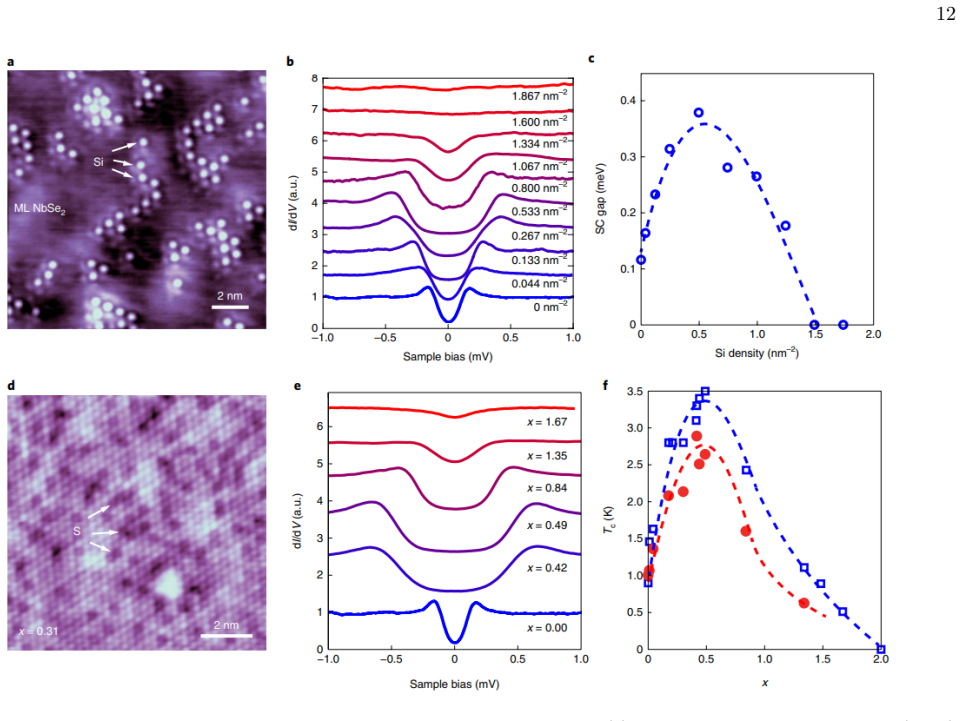

Figure 6. Figure 6: FIG. 6 [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗
Figure 7

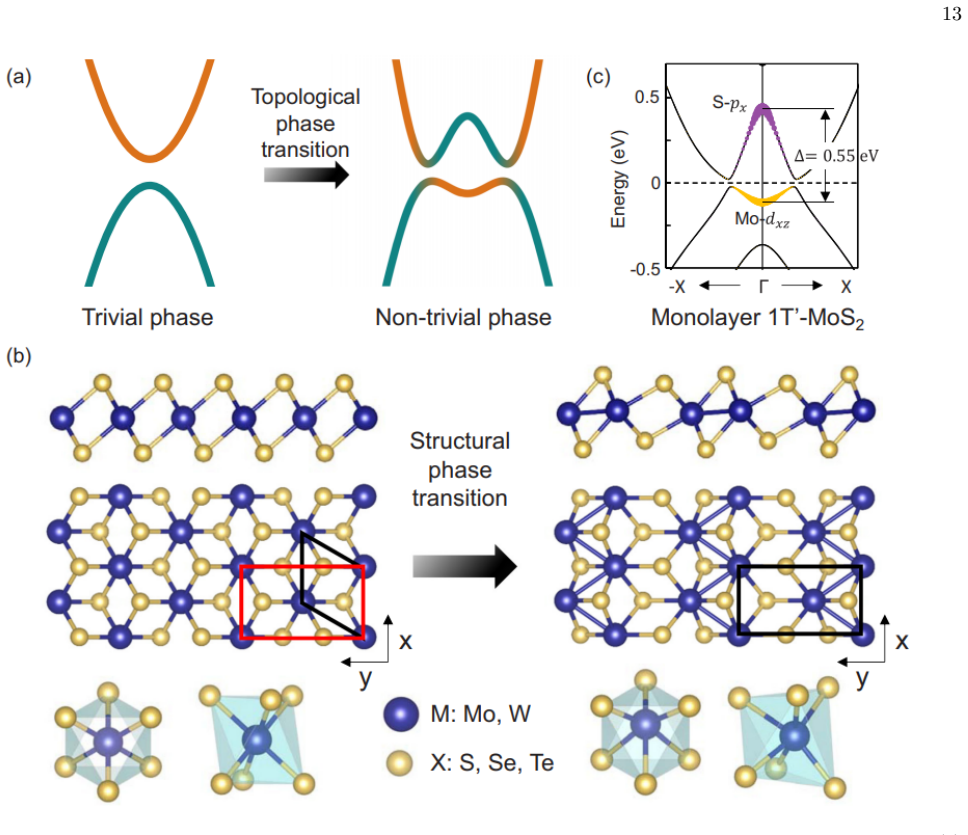

Figure 7. Figure 7: FIG. 7 [PITH_FULL_IMAGE:figures/full_fig_p013_7.png] view at source ↗
Figure 8

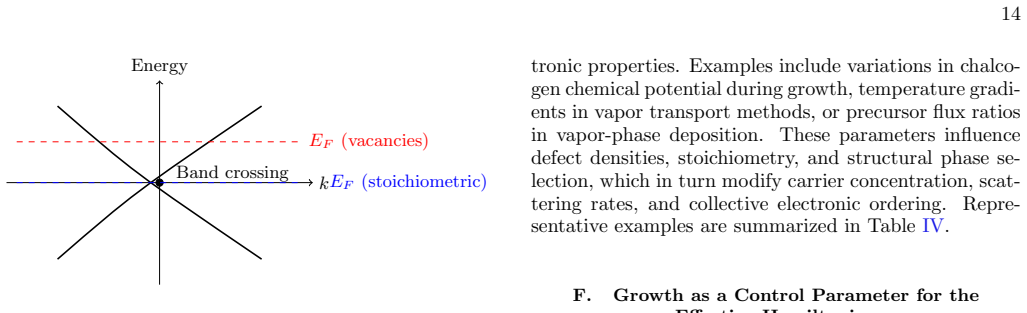

Figure 8. Figure 8: FIG. 8. Schematic illustration of Fermi-level shifts induced [PITH_FULL_IMAGE:figures/full_fig_p014_8.png] view at source ↗
