Trading Off Computation with Transmission in Status Update Systems

Peng Zou , Omur Ozel , Suresh Subramaniam This is my paper

Pith reviewed 2026-05-25 11:30 UTC · model grok-4.3

classification 💻 cs.IT cs.NImath.IT
keywords age of informationstatus updatestandem queuesedge computingcomputation-transmission tradeoffstationary distributionpeak age of informationM/GI/1/1 queue
0
0 comments X

The pith

Tandem queues with dependent service times yield closed-form expressions for average age of information and peak age of information.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper models an edge computing setup where status updates undergo pre-processing at a source before transmission to a server, capturing the tradeoff via two queues whose mean service times are linked by a deterministic monotonic function. The first queue is M/GI/1/1 and the second is GI/M/1/2*, both non-preemptive, with stationary distribution analysis performed to derive explicit formulas for the long-run average AoI and average peak AoI. A sympathetic reader cares because these formulas quantify how allocating effort between computation and transmission affects information freshness in systems that must deliver timely updates. The analysis shows that the tandem structure and the service-time dependence together produce a concrete tradeoff surface between the two AoI metrics.

Core claim

For the tandem system consisting of an M/GI/1/1 queue followed by a GI/M/1/2* queue whose mean service times are related by a deterministic monotonic function, stationary distribution analysis produces closed-form expressions for both the average age of information and the average peak age of information; numerical evaluation of these expressions confirms the existence of a tradeoff generated by the tandem structure and the service-time dependence.

What carries the argument

The tandem non-preemptive queue pair (M/GI/1/1 followed by GI/M/1/2*) whose mean service times are linked by a deterministic monotonic function, together with the stationary distribution analysis that converts this linkage into explicit AoI formulas.

If this is right

  • The average AoI and peak AoI can each be written as explicit functions of the monotonic dependence parameter.
  • Numerical minimization of either metric over the dependence parameter identifies an optimal operating point between computation and transmission.
  • The tandem structure causes average AoI and peak AoI to respond differently to changes in the dependence parameter.
  • The closed forms remain valid for any monotonic function relating the two mean service times.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same stationary-distribution technique could be applied to multi-hop status-update paths that also contain computation stages.
  • Relaxing the deterministic monotonic dependence to a stochastic one would require a different analysis but could still be compared against the closed forms derived here.
  • The tradeoff surface obtained from the expressions supplies a benchmark for heuristic policies that adapt computation effort on the fly.

Load-bearing premise

The mean service times of the computation queue and the transmission queue are connected by a deterministic monotonic function.

What would settle it

Simulations of the two-queue system that use a monotonic deterministic mapping between the two mean service times produce average AoI values that deviate from the derived closed-form expressions.

Figures

Figures reproduced from arXiv: 1907.00928 by Omur Ozel, Peng Zou, Suresh Subramaniam.

Figure 1

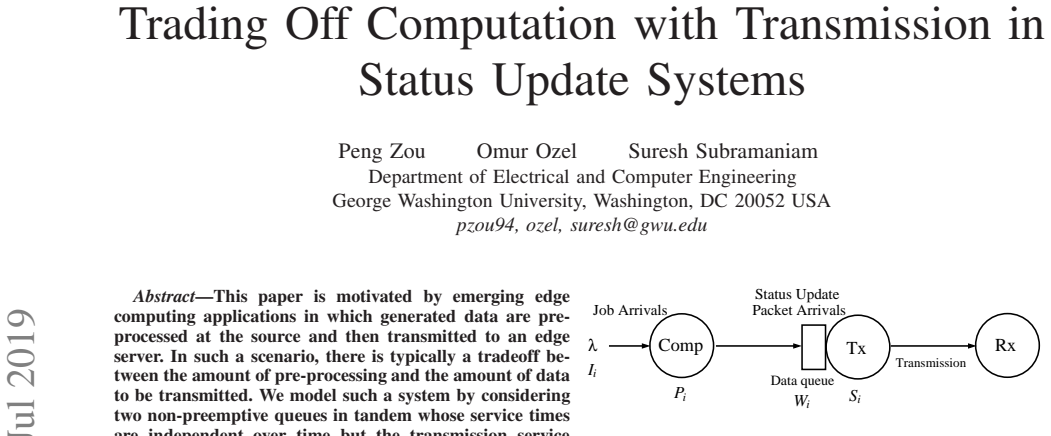

Figure 1. Figure 1: System model with status update packets arriving to a single server transmission queue from the output of a computation server queue in tandem. [27], [28] consider AoI analysis with tandem computing and communication queues. In this paper, we consider a status update system composed of tandem queues where a computation-type first queue determines status update packets to be sent to a remote monitoring rece… view at source ↗
Figure 2

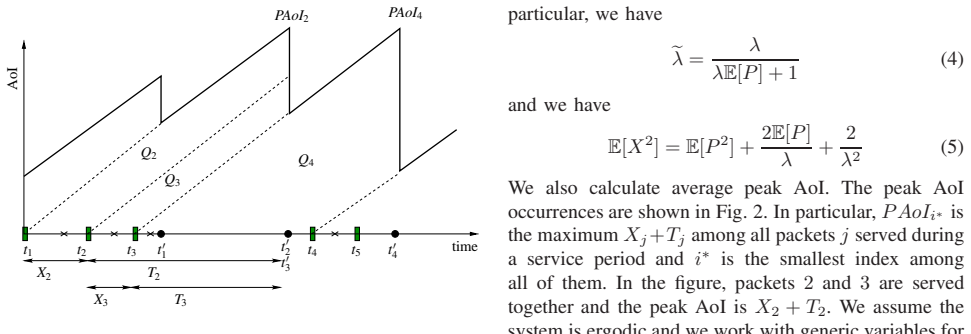

Figure 2. Figure 2: AoI evolution for the equivalent tandem queue model with M/GI/1/1 following GI/M/1/2*. the service time for packet i in the second queue. The instantaneous AoI is the difference of current time and the time stamp of the packet at the receiver: ∆(t) = t − u(t) (2) where u(t) is the time stamp of the latest packet at the receiver at time t. We express u(t) = ti ∗ where i ∗ = max{i : t ′ i ≤ t}. We provide a … view at source ↗
Figure 3
Figure 3. Figure 3: Average AoI with respect to E[P] for fixed λ = 0.4, B0 = 15 and α = 0.1. transmission time is expected to be bounded due to diminishing returns. Its smoothness makes it suitable for use as an approximation for many potential non-smooth variations of it. We let the expected processing time to be selected from the interval Pmin ≤ E[P] ≤ Pmax. We take Pmin = 1 and Pmax = 10 in the rest. We use Gamma distribut… view at source ↗
Figure 5
Figure 5. Figure 5: Average and average peak AoI with respect to k for fixed λ = 0.4, B0 = 15 and α = 0.1. 26.7 26.8 26.9 27 27.1 27.2 27.3 27.4 27.5 22.6 22.8 23 23.2 23.4 23.6 23.8 k=6 k=10 k=20 [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: , we plot the optimal tradeoff obtained by solving the weighted optimization in (18) for differing service time variances. In particular, for each k determining the service time variance, we solve (18) for all possible ω1 and ω2 and plot all possible operating points as tuples of average AoI and average peak AoI. This characterizes the optimal tradeoff between average AoI and average peak AoI. We observe t… view at source ↗
Figure 7
Figure 7. Figure 7: Optimal average AoI and optimal E[P] with respect to α for various k and fixed λ = 0.4 and B0 = 15. mission queue with arrivals coming from the computa￾tion queue. Moreover, there is a functional dependence between the mean service times of the first and the second queues. We obtain closed form expressions for average peak AoI and average AoI in this system. Our expressions provide explicit relations among… view at source ↗
read the original abstract

This paper is motivated by emerging edge computing applications in which generated data are pre-processed at the source and then transmitted to an edge server. In such a scenario, there is typically a tradeoff between the amount of pre-processing and the amount of data to be transmitted. We model such a system by considering two non-preemptive queues in tandem whose service times are independent over time but the transmission service time is dependent on the computation service time in mean value. The first queue is in M/GI/1/1 form with a single server, memoryless exponential arrivals, general independent service and no extra buffer to save incoming status update packets. The second queue is in GI/M/1/2* form with a single server receiving packets from the first queue, memoryless service and a single data buffer to save incoming packets. Additionally, mean service times of the first and second queues are dependent through a deterministic monotonic function. We perform stationary distribution analysis in this system and obtain closed form expressions for average age of information (AoI) and average peak AoI. Our numerical results illustrate the analytical findings and highlight the tradeoff between average AoI and average peak AoI generated by the tandem nature of the queueing system with dependent service times.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The paper models status update systems in edge computing via a tandem queue: an M/GI/1/1 computation queue followed by a GI/M/1/2* transmission queue, with mean service times linked by a deterministic monotonic function to capture the computation-transmission tradeoff. Stationary distribution analysis yields closed-form expressions for average AoI and average peak AoI; numerical results illustrate the resulting tradeoff.

Significance. If the derivations hold, the closed-form AoI expressions constitute a useful analytical contribution to the AoI literature by extending standard tandem-queue models to include mean-dependent service times without introducing state-dependent rates. This enables direct optimization of the tradeoff parameter rather than relying exclusively on simulation.

minor comments (3)
  1. [§II] §II (Model): the precise definition of the monotonic function relating the two mean service times and the range of admissible parameters should be stated explicitly, as it parameterizes all subsequent expressions.
  2. The notation 'GI/M/1/2*' for the second queue is non-standard; a footnote or sentence clarifying the buffer semantics and the '*' would improve readability.
  3. [Numerical Results] Numerical results: the specific functional forms chosen for the monotonic link (e.g., linear, exponential) and the numerical values of the free parameters should be listed in a table for reproducibility.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the careful reading and positive assessment of our contribution. The recommendation for minor revision is noted. No specific major comments were raised in the report.

Circularity Check

0 steps flagged

No significant circularity; derivation is standard stationary analysis

full rationale

The paper models a tandem queue (M/GI/1/1 followed by GI/M/1/2*) with independent realizations but means linked by a fixed monotonic function, then applies standard balance-equation methods to obtain closed-form AoI expressions. This is a direct, self-contained queueing-theoretic derivation with no reduction of outputs to fitted inputs, no self-definitional steps, and no load-bearing self-citations. The monotonic link parameterizes the tradeoff but does not create state-dependent rates that would invalidate the stationary analysis or force the result by construction.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The model rests on standard queueing assumptions plus the specific dependence between service means; full paper would likely introduce the explicit form of the monotonic function as a modeling choice.

free parameters (1)
  • monotonic function relating mean service times
    Deterministic monotonic mapping between computation and transmission mean service times is introduced to capture the tradeoff; its specific form is a modeling parameter.
axioms (1)
  • domain assumption Stationary distribution exists for the described tandem non-preemptive queues
    Invoked to obtain closed-form AoI expressions.
