Photon Efficiency of High-Dimensional Quantum Key Distribution

Vera Uzunova , Marcin Jarzyna This is my paper

Pith reviewed 2026-05-21 05:00 UTC · model grok-4.3

classification 🪐 quant-ph
keywords quantum key distributionhigh-dimensional encodingentanglement-based protocolssatellite quantum communicationsphoton efficiencysecret key ratebackground radiation
0
0 comments X

The pith

High-dimensional encoding in entanglement-based QKD reaches optimal efficiency at finite photon pair production rates.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper studies entanglement-based quantum key distribution under the low signal power and background radiation conditions typical of satellite links. The authors optimize both the entangled photon pair production probability and the number of qubits encoded on each pair to approach the theoretical information limit. They demonstrate that peak efficiency occurs at a moderate, finite pair production rate rather than in the vanishing-intensity limit used by conventional schemes. Multiqubit encoding per pair increases the achievable secret key rate by as much as an order of magnitude compared with single-qubit approaches.

Core claim

In entanglement-based QKD protocols under realistic satellite conditions with low signal power and background radiation, the theoretical information limit for efficiency is achieved by optimizing source intensity and the number of encoded qubits per photon pair. The optimal efficiency occurs at a finite entangled photon pair production probability, unlike conventional schemes that peak at vanishing signal strength. Multiqubit encoding enhances the secret key rate by up to an order of magnitude over single-qubit schemes.

What carries the argument

Optimization over source intensity (entangled photon pair production probability) and the number of encoded qubits per pair, applied to the theoretical information limit of entanglement-based QKD efficiency in the presence of background radiation.

If this is right

  • Secret key rates improve when source intensity is set to a finite optimal value instead of being minimized.
  • High-dimensional encoding delivers up to tenfold gains in the low-power regimes typical of satellite links.
  • Practical systems must balance pair production rate against noise and detection constraints to approach the theoretical limit.
  • Current single-qubit implementations leave substantial performance on the table under realistic satellite conditions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar intensity optimizations may improve efficiency in other quantum communication tasks that rely on weak entangled sources.
  • Satellite demonstrations could directly test the predicted optimum by sweeping source intensity while monitoring key rate.
  • Further gains might be possible if encodings beyond simple multiqubit states become experimentally feasible.

Load-bearing premise

The analysis assumes that standard models of entanglement-based QKD protocols with background radiation and low received signal power accurately allow optimization over source intensity and encoded qubit number to reach the theoretical information limit without unaccounted losses or errors.

What would settle it

Measure secret key rate as a function of photon pair production probability for several encoded-qubit numbers and check whether the maximum occurs at a clearly non-zero finite value rather than continuing to rise as the probability approaches zero.

Figures

Figures reproduced from arXiv: 2605.21018 by Marcin Jarzyna, Vera Uzunova.

Figure 1

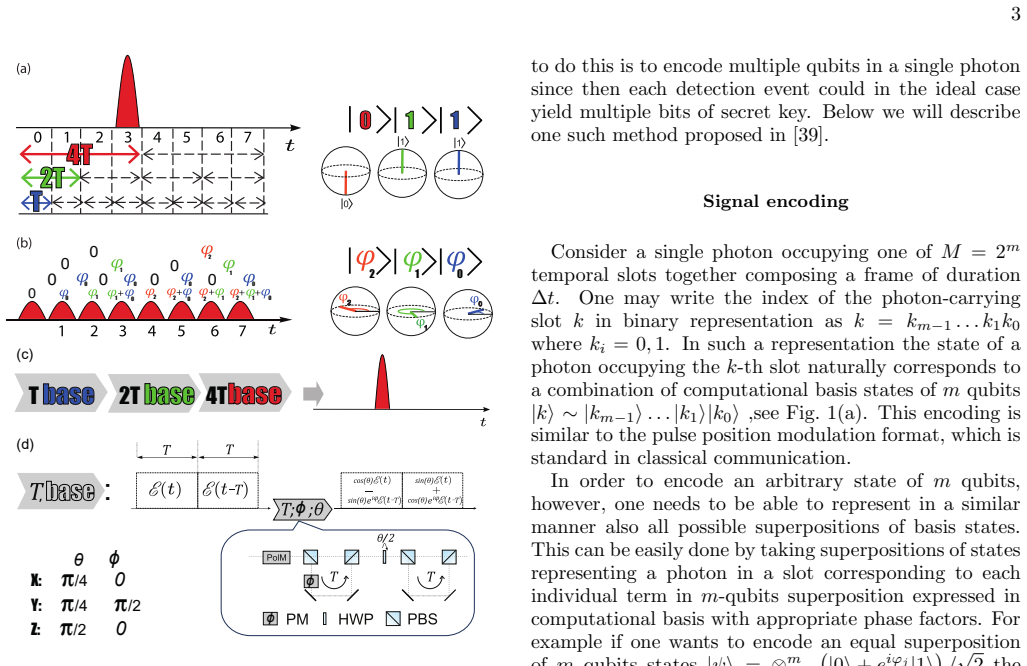

Figure 1. Figure 1: FIG. 1. Encoding of multiple logical qubits into a single [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Optimal PKE (a), the corresponding the pair-production probability (b) and (c) coding order, as functions of the [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Optimal photon key efficiency (PKE) (a, d), the corresponding quantum bit error rate (QBER) (b, e), and the optimal [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Photon key efficiency for asymmetric four-state [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
read the original abstract

We investigate entanglement-based quantum key distribution protocols, with particular emphasis on their efficiency under realistic conditions of satellite quantum communications, where performance is limited by the low power of a received signal and background radiation. We focus on scenarios where each photon pair is used to encode multiple qubits in order to optimally utilize the weak signal. By optimizing over the source intensity and the number of encoded qubits we study the theoretical information limit for the QKD efficiency. We show that the optimal efficiency is attained for finite entangled photons pair production probability which is in contrast to conventional communication efficiency maximized in the limit of vanishing signal strength. The multiqubit encoding can enhance the secret key rate by up to an order of magnitude compared to single-qubit schemes.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper analyzes entanglement-based high-dimensional QKD protocols for satellite communications limited by low received signal power and background radiation. It optimizes over the entangled photon pair production probability p and the number of encoded qubits d to reach the theoretical information limit, claiming that optimal efficiency occurs at finite p (in contrast to the conventional vanishing-signal limit) and that multiqubit encoding can enhance the secret key rate by up to an order of magnitude relative to single-qubit schemes.

Significance. If the central optimization holds under realistic satellite conditions, the result would be significant for protocol design: it identifies a non-intuitive operating regime at finite source intensity and quantifies substantial rate gains from high-dimensional encoding. The explicit contrast with conventional low-intensity limits and the focus on photon efficiency are strengths that could guide experimental satellite QKD implementations.

major comments (2)
  1. [§3.2] §3.2 (Channel and loss model): The optimization treats the transmission efficiency η as independent of d. In satellite links, higher-dimensional encodings (OAM, time-bin, etc.) typically experience d-dependent losses from diffraction, turbulence, and mode mismatch at the receiver; this would lower the signal-to-background ratio for larger d and could move the reported optimum away from finite p or reduce the claimed order-of-magnitude gain. This assumption is load-bearing for both the finite-p result and the efficiency comparison.
  2. [§4] §4 (Optimization and key-rate results): The derivation of the optimal finite p and the quantitative rate enhancement lacks an explicit sensitivity analysis to η(d) variations or to background-radiation parameters. Without this, it is unclear whether the reported maximum remains robust once realistic d-dependent losses are included.
minor comments (2)
  1. [Abstract and §2] Notation for the number of encoded qubits (d) and pair-production probability (p) should be introduced consistently in the abstract and §2 to aid readability.
  2. [Figure captions] Figure captions for the efficiency-vs-p plots should explicitly state the fixed background-radiation and detector-efficiency values used.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments, which help clarify the scope and robustness of our results for satellite QKD applications. We address the two major comments point by point below, indicating planned revisions where appropriate.

read point-by-point responses

  1. Referee: [§3.2] §3.2 (Channel and loss model): The optimization treats the transmission efficiency η as independent of d. In satellite links, higher-dimensional encodings (OAM, time-bin, etc.) typically experience d-dependent losses from diffraction, turbulence, and mode mismatch at the receiver; this would lower the signal-to-background ratio for larger d and could move the reported optimum away from finite p or reduce the claimed order-of-magnitude gain. This assumption is load-bearing for both the finite-p result and the efficiency comparison.

    Authors: We acknowledge that d-dependent losses can arise in certain encodings such as OAM due to diffraction and turbulence. Our model deliberately assumes d-independent η to isolate the fundamental information-theoretic benefit of high-dimensional encoding in the photon-starved regime with background noise. This assumption is standard in theoretical QKD analyses and holds exactly for time-bin encodings, where losses are largely dimension-independent. For OAM, the results represent an upper bound. In the revised manuscript we will add a dedicated paragraph in §3.2 explicitly stating the assumption, justifying it for the encodings considered, and noting that realistic d-dependent losses would reduce but not eliminate the reported gains. revision: partial

  2. Referee: [§4] §4 (Optimization and key-rate results): The derivation of the optimal finite p and the quantitative rate enhancement lacks an explicit sensitivity analysis to η(d) variations or to background-radiation parameters. Without this, it is unclear whether the reported maximum remains robust once realistic d-dependent losses are included.

    Authors: We agree that an explicit sensitivity analysis strengthens the claims. In the revised version we will add a new subsection (or appendix) that introduces a simple phenomenological model η(d) = η₀ / d^α (with α varied from 0 to 0.5) and recomputes the optimal p and secret-key rate for representative background rates. Preliminary internal calculations show that the finite-p optimum persists for moderate α, although the peak gain relative to d=2 is reduced from ~10× to 4–7×. The background-radiation parameter will also be swept to confirm robustness of the qualitative conclusions. revision: yes

Circularity Check

0 steps flagged

Theoretical optimization of high-dimensional QKD efficiency is self-contained with no circular reductions

full rationale

The paper derives its central result—an optimum at finite pair-production probability p, with order-of-magnitude gain from multiqubit encoding—by optimizing the secret-key rate expression over source intensity and dimension d within standard entanglement-based QKD models that include background radiation and channel loss. This optimization is performed directly on the information-theoretic rate formula; the location of the maximum is an output of the model rather than an input, and the contrast to the conventional vanishing-signal limit follows from the same rate expression without requiring fitted parameters or self-referential definitions. No load-bearing self-citations, ansatzes smuggled via prior work, or renaming of known results appear in the derivation chain. The analysis therefore remains independent of its own outputs.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The paper relies on standard quantum optics and channel models for satellite links; optimizations over intensity and dimension count as free parameters, with no new entities introduced.

free parameters (2)
  • entangled photon pair production probability
    Optimized to locate the efficiency maximum under realistic noise
  • number of encoded qubits
    Varied to study multiqubit encoding gains
axioms (2)
  • domain assumption Satellite quantum links are limited by low received signal power and background radiation
    Sets the realistic conditions for the efficiency study
  • domain assumption Entanglement-based protocols support encoding multiple qubits per photon pair
    Enables the high-dimensional approach
