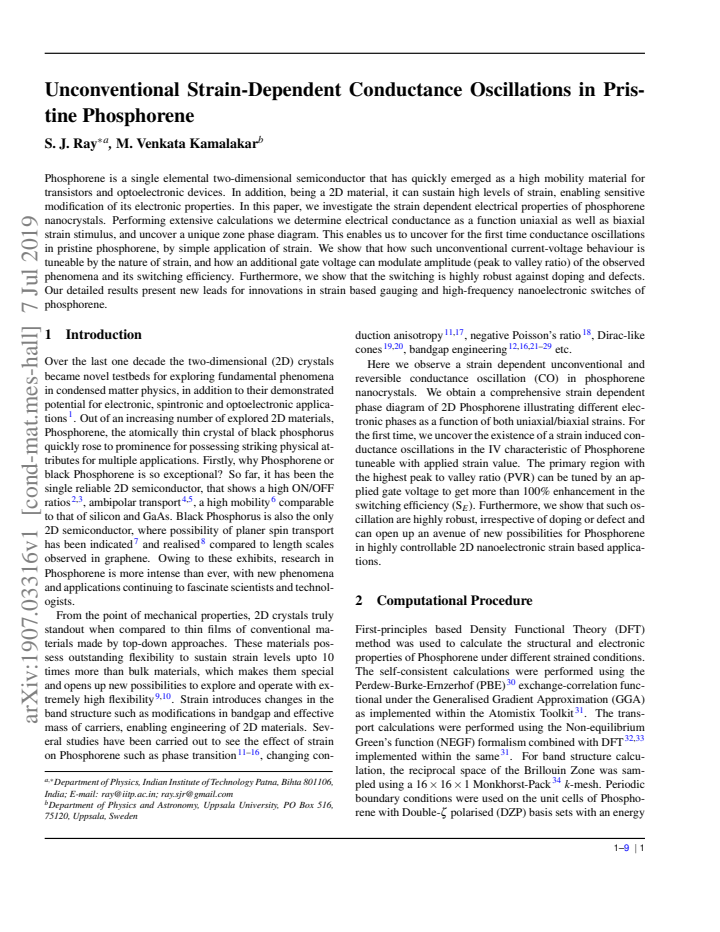

Unconventional Strain-Dependent Conductance Oscillations in Pristine Phosphorene
Pith reviewed 2026-05-25 01:19 UTC · model grok-4.3
The pith
Strain applied to pristine phosphorene produces conductance oscillations tunable by strain type and gate voltage.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The central claim is that simple application of uniaxial and biaxial strain to pristine phosphorene nanocrystals produces conductance oscillations that form a unique zone phase diagram; the oscillations are tunable by the nature of the strain, their amplitude and switching efficiency can be modulated by gate voltage, and the switching remains robust against doping and defects.
What carries the argument
The zone phase diagram obtained from extensive calculations of electrical conductance as a function of uniaxial and biaxial strain, which maps the regions where oscillatory transport occurs.
If this is right
- Strain can serve as a control knob for high-frequency nanoelectronic switches based on phosphorene.
- Gate voltage provides an additional handle to adjust peak-to-valley ratio and switching efficiency.
- The observed switching remains functional even in the presence of doping or defects.
- Uniaxial versus biaxial strain offers distinct tuning routes for the same oscillatory behavior.
- Strain-based gauging becomes possible through the strain-dependent conductance response.
Where Pith is reading between the lines
- Similar strain-induced oscillations could be searched for in other puckered two-dimensional materials whose band structures respond strongly to deformation.
- Device architectures that combine mechanical flexing with electrostatic gating may achieve low-power switching without chemical modification.
- The robustness to defects suggests the effect could persist in large-area or polycrystalline samples suitable for flexible electronics.
- Mapping the phase diagram experimentally would test whether the calculated boundaries between oscillatory and non-oscillatory regimes match real transport data.
Load-bearing premise
The computational model used to calculate conductance under strain accurately reproduces the real electronic band structure and transport without numerical artifacts that could create false oscillations.
What would settle it
Experimental current-voltage curves measured on strained, defect-free phosphorene samples that show no periodic oscillations in conductance as strain magnitude or direction is varied.
read the original abstract
Phosphorene is a single elemental two-dimensional semiconductor that has quickly emerged as a high mobility material for transistors and optoelectronic devices. In addition, being a 2D material, it can sustain high levels of strain, enabling sensitive modification of its electronic properties. In this paper, we investigate the strain dependent electrical properties of phosphorene nanocrystals. Performing extensive calculations we determine electrical conductance as a function uniaxial as well as biaxial strain stimulus, and uncover a unique zone phase diagram. This enables us to uncover for the first time conductance oscillations in pristine phopshorene, by simple application of strain. We show that how such unconventional current-voltage behaviour is tuneable by the nature of strain, and how an additional gate voltage can modulate amplitude (peak to valley ratio) of the observed phenomena and its switching efficiency. Furthermore, we show that the switching is highly robust against doping and defects. Our detailed results present new leads for innovations in strain based gauging and high-frequency nanoelectronic switches of phosphorene.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript reports extensive calculations of electrical conductance in pristine phosphorene nanocrystals under uniaxial and biaxial strain. It claims to uncover conductance oscillations for the first time in the pristine material, presents a zone phase diagram, demonstrates tunability of the oscillations by strain type and gate voltage (including amplitude modulation and switching efficiency), and shows that the switching remains robust against doping and defects, with suggested applications in strain-based gauging and high-frequency nanoelectronic switches.
Significance. If the computational results hold without artifacts, the identification of strain-induced conductance oscillations in pristine phosphorene would represent a notable advance in 2D materials transport, offering a defect-free route to oscillatory I-V behavior with practical robustness. The phase diagram and gate-voltage modulation add value for device design concepts.
major comments (2)
- [Methods] Methods section: no details are provided on the DFT functional, k-point sampling density, supercell dimensions for the nanocrystals, strain implementation (e.g., how lattice vectors are scaled and relaxed), or the transport solver (Landauer, NEGF, or otherwise). These omissions are load-bearing because the central claim of physical oscillations rests on the absence of numerical periodicities or interference artifacts in the conductance data.
- [Results] Results section on conductance vs. strain: the reported oscillations lack any validation against known unstrained phosphorene band gap or mobility values, or against smaller strain increments, leaving open whether the periodicity arises from the physical band-structure response or from the discrete strain sampling and supercell choice.
minor comments (2)
- [Abstract] Abstract: typo 'phopshorene' instead of 'phosphorene'.
- [Abstract] Abstract: awkward phrasing 'We show that how such unconventional' should be edited for grammar.
Simulated Author's Rebuttal
We thank the referee for their detailed and constructive report. We address each major comment below and will revise the manuscript accordingly to improve clarity and reproducibility.
read point-by-point responses
-
Referee: [Methods] Methods section: no details are provided on the DFT functional, k-point sampling density, supercell dimensions for the nanocrystals, strain implementation (e.g., how lattice vectors are scaled and relaxed), or the transport solver (Landauer, NEGF, or otherwise). These omissions are load-bearing because the central claim of physical oscillations rests on the absence of numerical periodicities or interference artifacts in the conductance data.
Authors: We agree that the Methods section requires expansion for full reproducibility and to address concerns about possible numerical artifacts. In the revised manuscript we will add explicit details on the DFT functional (PBE with van der Waals corrections), k-point sampling density, supercell sizes employed for the nanocrystals, the precise procedure for applying uniaxial and biaxial strain (including lattice-vector scaling and subsequent ionic relaxation), and the transport formalism (NEGF within the Landauer–Büttiker approach using the specified code package). These additions will allow independent verification that the reported oscillations are physical rather than numerical. revision: yes
-
Referee: [Results] Results section on conductance vs. strain: the reported oscillations lack any validation against known unstrained phosphorene band gap or mobility values, or against smaller strain increments, leaving open whether the periodicity arises from the physical band-structure response or from the discrete strain sampling and supercell choice.
Authors: We accept that additional validation is warranted. The revised manuscript will include direct comparisons of the computed unstrained band gap and carrier mobility against established literature values for phosphorene. We will also present conductance data obtained with finer strain increments (e.g., 0.1 % steps) to demonstrate that the observed periodicity persists and is not an artifact of discrete sampling. Convergence with respect to supercell size will be discussed to confirm that the oscillations originate from strain-induced modifications of the band structure rather than finite-size effects. revision: yes
Circularity Check
No significant circularity identified
full rationale
The paper reports computational results from extensive calculations of conductance in phosphorene nanocrystals under uniaxial and biaxial strain, claiming discovery of oscillations tunable by strain type and gate voltage. No load-bearing equations, parameter fits, self-citations, or ansatzes are described in the provided abstract or summary that reduce any prediction to its own inputs by construction. The central claim rests on numerical simulation of electronic band structure and transport, which is self-contained against external benchmarks and does not invoke uniqueness theorems or prior author work as justification for the result itself.
