Modeling Coincident Peak Pricing in Electricity Markets: Challenges and Peak Shaving Effectiveness

Qian Zhang , Sadie Zhao , Lucy Diao , Conleigh Byers , Yiling Chen , Derya Cansever , Le Xie This is my paper

Pith reviewed 2026-05-19 21:17 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords coincident peak pricingpeak shavingload shiftinggame theoryelectricity marketsERCOTbest-response dynamicsfictitious play
0
0 comments X

The pith

Fictitious-play dynamics in a game model of coincident peak pricing reliably reduce system peaks, while best-response dynamics can increase them under tight capacity.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper builds a behavioral game-theoretic framework to model how electricity consumers shift their loads in response to coincident peak pricing, a method used to allocate capacity costs based on usage at peak times. It compares two ways consumers might update their decisions: best-response dynamics, reacting to current conditions, and fictitious-play dynamics, based on historical averages. Simulations using ERCOT peak-day data show that fictitious play consistently lowers overall system peaks, whereas best response leads to more variable results and can actually raise peaks when capacity is limited. The analysis also finds that allowing finer adjustments in load and using certain price signals to avoid herding behavior improves outcomes, while the total number of participants matters less if total flexibility stays the same. These insights matter for designing electricity markets that encourage peak shaving without unintended consequences.

Core claim

Using a nonlinear cost-allocation model coupled with day-ahead and real-time decision processes, the paper establishes that fictitious-play dynamics reliably reduce system peaks in coincident peak pricing, in contrast to best-response dynamics which are more variable and can increase peaks under tight-capacity conditions. Finer action resolution improves peak shaving, participant numbers are neutral at fixed aggregate flexibility, and smoothed or diverse signals outperform herding-inducing ones.

What carries the argument

A behavioral game-theoretic framework coupling a nonlinear cost-allocation model with one-shot day-ahead and sequential real-time decision processes under best-response and fictitious-play update rules.

If this is right

  • Finer action resolution improves peak shaving.
  • The number of participants is largely neutral when aggregate flexibility is fixed.
  • Smoothed information signals enhance coordination and reduce peaks.
  • Response-aware or diverse signals improve peak shaving compared to those causing herding.
  • System operators can enhance outcomes by broadcasting smoothed CP signals and setting minimum controllable-capacity thresholds.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The relative advantage of fictitious-play over best-response may extend to other cost-allocation mechanisms in networked resource markets.
  • Real deployments could combine CP pricing with granular control technologies to test whether the simulated gains in peak reduction materialize.
  • Signal design choices might interact with other demand-response programs, potentially multiplying or diluting the coordination benefits identified here.

Load-bearing premise

Real consumers update their load-shifting decisions according to the modeled best-response or fictitious-play dynamics rather than other behavioral patterns.

What would settle it

Field observations from an ISO like ERCOT showing increased peaks after consumers respond in a best-response manner during tight-capacity periods would challenge the reliability of FPD over BRD.

Figures

Figures reproduced from arXiv: 2605.16794 by Conleigh Byers, Derya Cansever, Le Xie, Lucy Diao, Qian Zhang, Sadie Zhao, Yiling Chen.

Figure 1

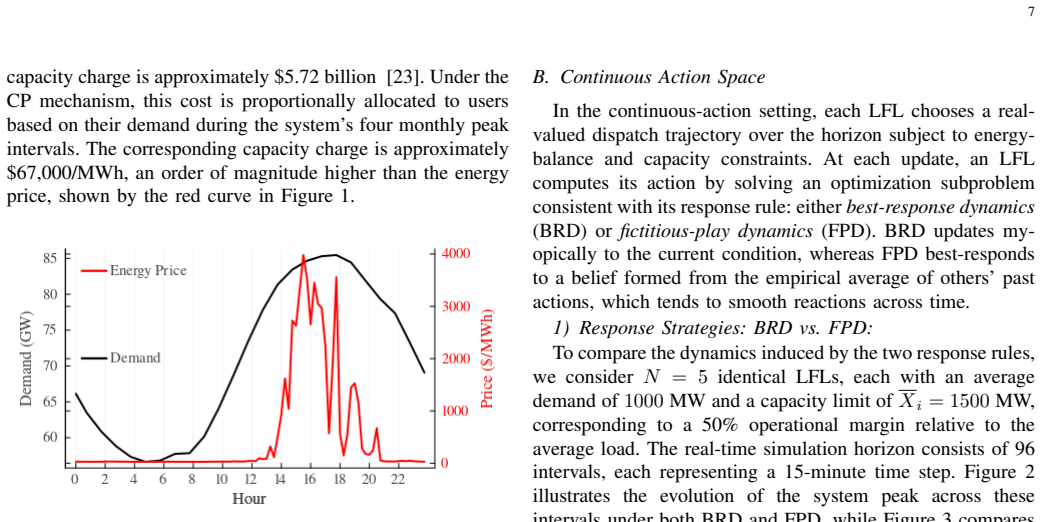

Figure 1. Figure 1: The energy price (red) and demand baseline (black) [PITH_FULL_IMAGE:figures/full_fig_p007_1.png] view at source ↗
Figure 2

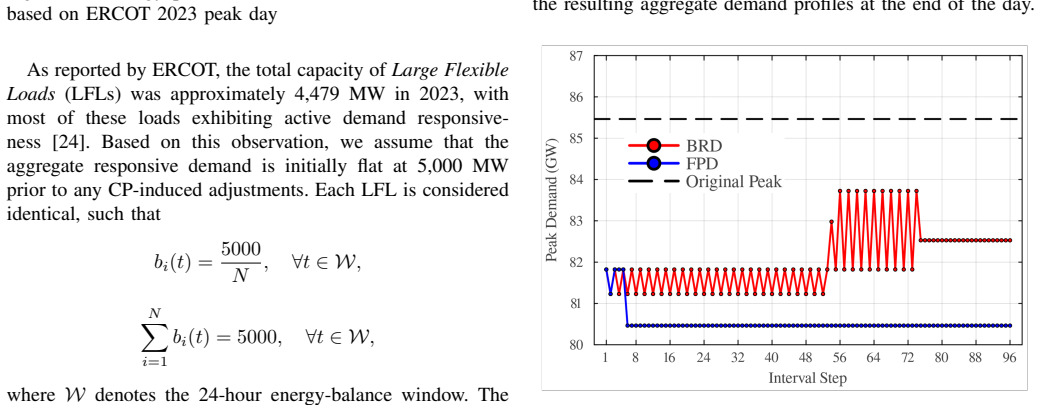

Figure 2. Figure 2: Evolution of the system peak under BRD and FPD [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3

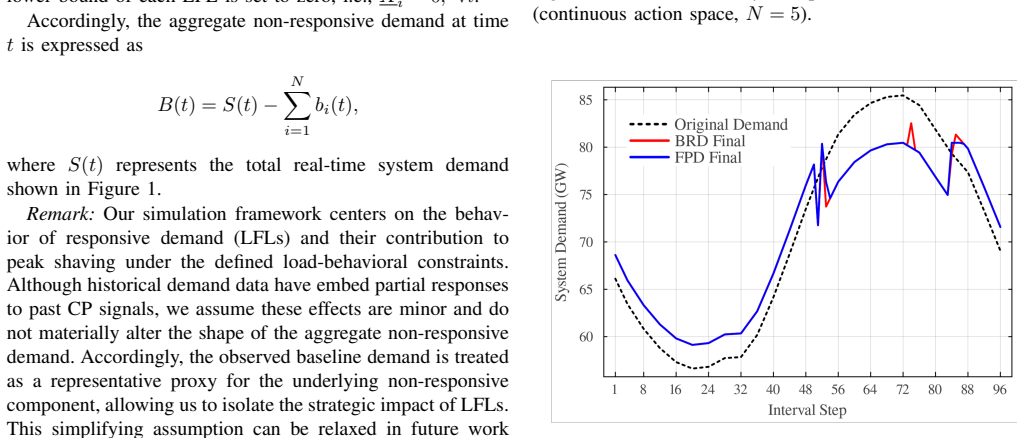

Figure 3. Figure 3: Final demand curves under BRD and FPD (continuous [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 5
Figure 5. Figure 5: Final peak reduction versus the number of players for [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 4
Figure 4. Figure 4: BRD peak dynamics under different flexibility levels [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 6
Figure 6. Figure 6: Fine-grained action library for a single agent: [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Peak dynamics under coarse (dotted) and fine (solid) [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8

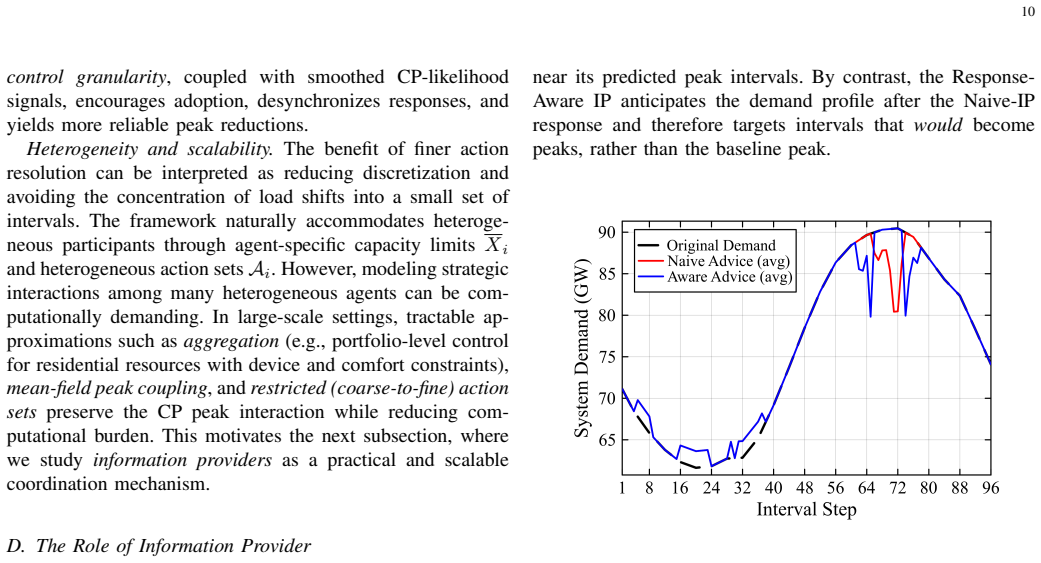

Figure 8. Figure 8: System demand profiles under Naive (red solid) vs. [PITH_FULL_IMAGE:figures/full_fig_p010_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Peak reduction sensitivity to population awareness level [PITH_FULL_IMAGE:figures/full_fig_p010_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: The peak reduction under different numbers of players [PITH_FULL_IMAGE:figures/full_fig_p011_10.png] view at source ↗
read the original abstract

Coincident Peak (CP) pricing is widely used in U.S. electricity markets to allocate capacity and transmission costs. This paper develops a behavioral game-theoretic framework for CP-driven load shifting that couples a nonlinear cost-allocation model with day-ahead (one-shot) and real-time (sequential-learning) decision processes. We examine two update rules, namely best-response dynamics (BRD) and fictitious-play dynamics (FPD), across continuous and finite action spaces to quantify how flexibility, action resolution, and participation influence peak outcomes. Using ERCOT peak-day data, we find that FPD reliably reduces system peaks, whereas BRD is more variable and can increase peaks under tight-capacity conditions. Finer action resolution improves peak shaving, while the number of participants is largely neutral when aggregate flexibility is fixed. Meanwhile, information-provider signals can induce herding, whereas response-aware or diverse signals improve peak shaving. These results highlight both the potential and limits of CP pricing: smoothing information and enabling granular control are as important as the amount of available flexibility. The framework offers practical guidance for system operators and consumers: For ISOs, broadcasting smoothed CP signals and setting minimum controllable-capacity thresholds enhance coordination. For consumers, greater flexibility and finer control resolution improve both cost savings and peak-shaving performance.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper develops a behavioral game-theoretic framework coupling a nonlinear coincident-peak cost-allocation model with best-response dynamics (BRD) and fictitious-play dynamics (FPD) for day-ahead and real-time load-shifting decisions. Simulations on ERCOT peak-day data are used to compare peak-shaving performance under varying flexibility, action resolution, participation, and signal designs, concluding that FPD reliably reduces peaks while BRD is more variable and can increase peaks under tight capacity.

Significance. If the modeled update rules capture actual consumer behavior, the results provide concrete guidance on CP pricing design, particularly the value of smoothed signals and granular control. The distinction between BRD and FPD and the use of real ERCOT data are strengths that could inform ISO practice, though the findings remain conditional on the behavioral assumptions.

major comments (2)
  1. [§4 (Numerical Experiments and ERCOT Case Study)] The central empirical-style claim (FPD reliably reduces peaks while BRD can increase them under tight capacity) is obtained from forward simulations that assume consumers follow exactly the BRD or FPD update rules described in the framework. No calibration to observed ERCOT consumer responses, no sensitivity analysis to alternative behavioral rules (myopic thresholds, delayed response), and no validation against actual load data are reported, rendering the peak-shaving distinction sensitive to this untested modeling choice.
  2. [§3.2 (Real-time Sequential Learning Dynamics)] The nonlinear cost-allocation model and its coupling to the iterative dynamics are load-bearing for all reported outcomes, yet the manuscript provides insufficient detail on convergence criteria, step-size selection, and how equilibria are identified in the continuous versus finite action spaces.
minor comments (2)
  1. [§4.3 (Results)] Simulation results lack error bars, confidence intervals, or sensitivity tables with respect to the aggregate-flexibility parameter, making it difficult to judge robustness of the reported peak reductions.
  2. [Abstract] The abstract states that 'the number of participants is largely neutral when aggregate flexibility is fixed,' but the corresponding figure or table is not referenced, and the precise definition of 'neutral' (e.g., change in peak < X %) is not given.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the detailed and constructive comments. The feedback highlights important aspects of the behavioral assumptions and technical details in our framework. We address each major comment below, clarifying the scope of our simulation study and outlining specific revisions to improve clarity and transparency.

read point-by-point responses

  1. Referee: [§4 (Numerical Experiments and ERCOT Case Study)] The central empirical-style claim (FPD reliably reduces peaks while BRD can increase them under tight capacity) is obtained from forward simulations that assume consumers follow exactly the BRD or FPD update rules described in the framework. No calibration to observed ERCOT consumer responses, no sensitivity analysis to alternative behavioral rules (myopic thresholds, delayed response), and no validation against actual load data are reported, rendering the peak-shaving distinction sensitive to this untested modeling choice.

    Authors: We agree that the reported outcomes are conditional on the specific behavioral update rules (BRD and FPD) and that the study does not include empirical calibration or validation against observed ERCOT consumer responses. Our framework is a behavioral game-theoretic exploration designed to illustrate how different learning dynamics can affect peak-shaving outcomes under CP pricing, rather than a predictive model of actual consumer behavior. The contrast between FPD and BRD is intended to demonstrate the sensitivity of results to behavioral assumptions, which itself provides guidance on the risks of assuming myopic best-response behavior in practice. In the revision, we will add a dedicated limitations subsection in the discussion that explicitly acknowledges the untested nature of the dynamics, the absence of calibration to real load-shifting data, and the value of future empirical work. We will also incorporate limited sensitivity checks to alternative rules (e.g., simple myopic threshold responses) within the existing simulation setup. Full calibration and validation against disaggregated ERCOT consumer data is not feasible in this revision, as it would require proprietary individual-level response datasets. revision: partial

  2. Referee: [§3.2 (Real-time Sequential Learning Dynamics)] The nonlinear cost-allocation model and its coupling to the iterative dynamics are load-bearing for all reported outcomes, yet the manuscript provides insufficient detail on convergence criteria, step-size selection, and how equilibria are identified in the continuous versus finite action spaces.

    Authors: We thank the referee for pointing out the need for greater implementation detail. In the revised manuscript we will expand §3.2 with explicit statements of the convergence criteria (e.g., strategy change below a numerical tolerance), the step-size rules used for both continuous and discrete updates, and the precise procedures for locating equilibria: fixed-point iteration for the continuous case and exhaustive best-response mapping for the finite-action case. We will also include pseudocode and additional equations clarifying the coupling between the nonlinear cost-allocation function and the iterative dynamics. revision: yes

standing simulated objections not resolved
  • Full calibration to observed ERCOT consumer responses and validation against actual load-shifting data, which would require access to proprietary disaggregated consumer datasets not available for this study.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper constructs a game-theoretic model coupling a nonlinear CP cost-allocation function with explicitly defined behavioral update rules (best-response dynamics and fictitious-play dynamics) and then runs forward simulations on external ERCOT peak-day data. Peak-shaving outcomes are generated by iterating these stated dynamics rather than fitting any parameters to reproduce target peak values or deriving results tautologically from the inputs. No self-citations, uniqueness theorems, or ansatzes are invoked as load-bearing steps in the provided text, and the central empirical-style claims rest on the simulation outputs under the openly stated behavioral assumptions. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claims rest on behavioral assumptions about how agents update strategies and on the accuracy of the nonlinear cost-allocation model; these are not derived from first principles but selected as modeling choices.

free parameters (1)
  • aggregate flexibility
    Fixed in analyses to isolate effects of participation and resolution; value not specified in abstract.
axioms (1)
  • domain assumption Consumers follow best-response or fictitious-play update rules in day-ahead and real-time decisions
    Invoked to define the sequential decision processes in the framework.

pith-pipeline@v0.9.0 · 5776 in / 1331 out tokens · 62452 ms · 2026-05-19T21:17:12.161853+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
