Time-driven Survival Analysis from FDG-PET/CT in Non-Small Cell Lung Cancer

Ashish Chauhan; Elin Lundstr\"om; H{\aa}kan Ahlstr\"om; Joel Kullberg; Johan \"Ofverstedt; Sambit Tarai; Therese Sj\"oholm; Veronica Sanchez Rodriguez

arxiv: 2604.06885 · v1 · pith:PDHGYEHQnew · submitted 2026-04-08 · 💻 cs.CV

Time-driven Survival Analysis from FDG-PET/CT in Non-Small Cell Lung Cancer

Sambit Tarai , Ashish Chauhan , Elin Lundstr\"om , Johan \"Ofverstedt , Therese Sj\"oholm , Veronica Sanchez Rodriguez , H{\aa}kan Ahlstr\"om , Joel Kullberg This is my paper

Pith reviewed 2026-05-10 18:52 UTC · model grok-4.3

classification 💻 cs.CV

keywords survival predictionFDG-PET/CTnon-small cell lung cancerdeep learningtime-driven modeloverall survivalrisk stratificationmultimodal fusion

0 comments

The pith

A model that adds a time-horizon input to FDG-PET/CT image embeddings predicts overall survival more accurately in non-small cell lung cancer.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a deep learning approach that processes FDG-PET/CT images to extract features and then combines those features with a numerical time value in days to estimate the probability a patient will survive up to that time point. This setup is tested on a cohort of patients with non-small cell lung cancer, where it shows better results than a version that uses only the images to predict survival at fixed future dates. The time-aware version improves the area under the curve metric by 4.3 percent on a separate test group. Adding data from clinical records and other patient details further boosts performance when combined with the image predictions. Such time-specific forecasts could help guide decisions on treatment intensity and monitoring schedules for individual patients.

Core claim

The authors show that a ResNet-50 network extracts embeddings from tissue-wise FDG-PET/CT projections, which are then fused with a scalar time horizon to parameterize overall survival as a function of time, resulting in an AUC improvement of 4.3% over a baseline model that predicts survival only at preset intervals without the explicit time input.

What carries the argument

the regression head that fuses ResNet-50 image embeddings with a scalar time-horizon input to output survival probabilities as a continuous function of days

Load-bearing premise

The follow-up durations and censoring patterns in the U-CAN dataset are representative enough that the explicit time input does not overfit to this cohort alone.

What would settle it

Retraining and testing on an external NSCLC cohort with markedly different follow-up lengths and censoring rates, then checking whether the 4.3% AUC advantage over the image-only baseline disappears.

Figures

Figures reproduced from arXiv: 2604.06885 by Ashish Chauhan, Elin Lundstr\"om, H{\aa}kan Ahlstr\"om, Joel Kullberg, Johan \"Ofverstedt, Sambit Tarai, Therese Sj\"oholm, Veronica Sanchez Rodriguez.

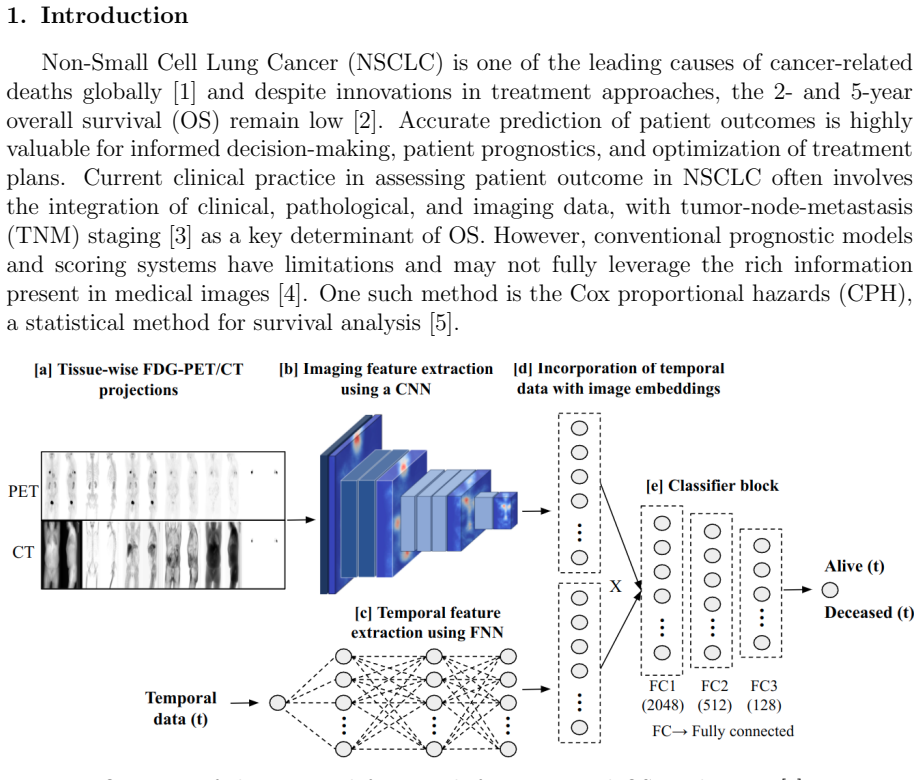

**Figure 1.** Figure 1: Overview of the proposed framework for automated OS prediction: [a] generation of tissue-wise PET/CT projections, [b] imaging feature extraction using a CNN, [c] temporal feature extraction using a FNN, [d] incorporation of temporal data with image embeddings, [e] classification of OS status for a given time. Whole-body 18F-fluorodeoxyglucose-positron emission tomography/computed tomography (FDG-PET/CT) is… view at source ↗

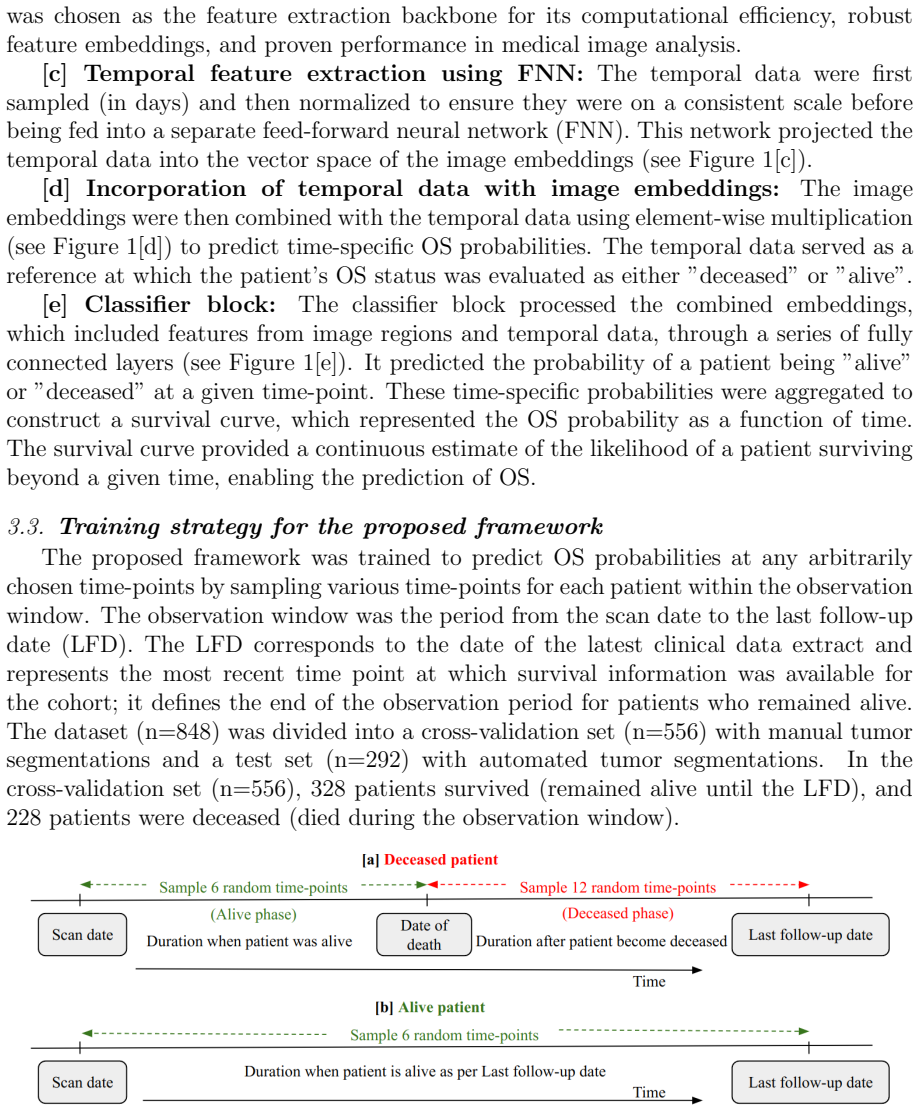

**Figure 2.** Figure 2: Data sampling strategy used during training of the proposed framework. [a] For deceased [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

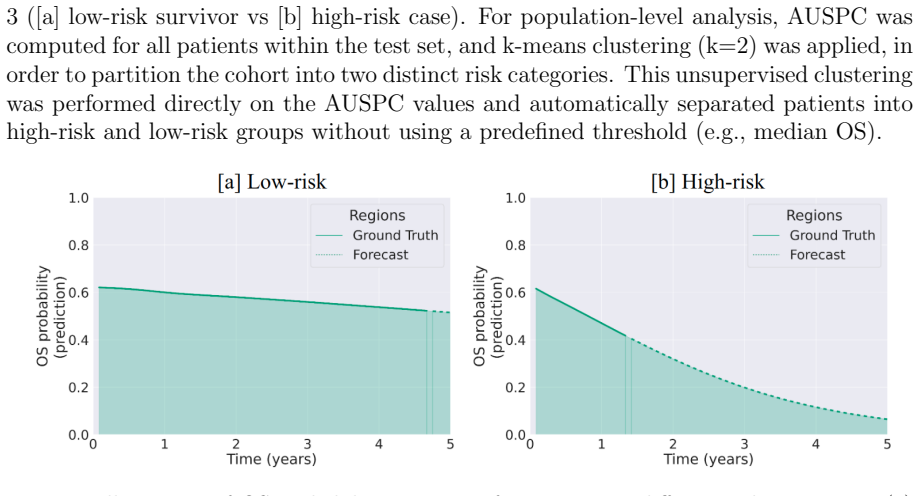

**Figure 3.** Figure 3: Illustration of OS probability over time for patients in different risk categories: (a) Low-risk patient: OS probability remains high and stable (high AUSPC). (b) High-risk patient: OS probability drops quickly (low AUSPC). Risk stratification was additionally performed within each T-stage category (T1, T2, T3, T4) using the cross-validation cohort, because it was larger than the test set and it provided s… view at source ↗

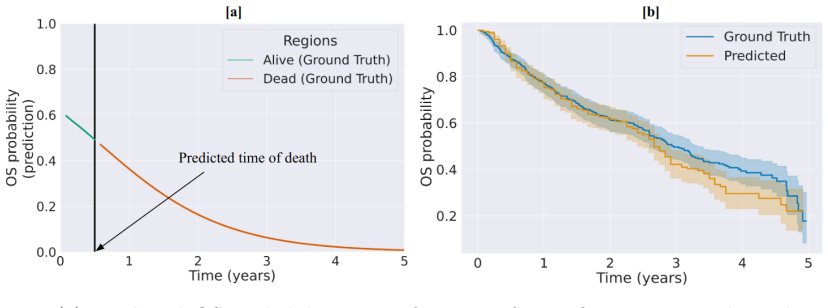

**Figure 4.** Figure 4: (a) Predicted OS probabilities as a function of time for a patient where the green line represents the alive phase (GT), the red segment represents the deceased phase (GT), and the intersection of the black line with the x-axis indicates the predicted time of death. (b) Kaplan-Meier curve illustrating GT vs predicted OS probabilities on the test set [PITH_FULL_IMAGE:figures/full_fig_p010_4.png] view at source ↗

**Figure 5.** Figure 5: Kaplan–Meier curve illustrating risk stratification of NSCLC patients in the test set, based on model-predicted survival probabilities, dividing them into high-risk (n=40) and low-risk (n=252) groups [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗

**Figure 6.** Figure 6: Kaplan–Meier curves illustrating risk stratification of NSCLC patients within each T-stage in the cross-validation set using the proposed method: (a) T1 (high-risk = 15; low-risk = 165), (b) T2 (high-risk = 26; low-risk = 89), (c) T3 (high-risk = 22; low-risk = 51), and (d) T4 (high-risk = 37; low-risk = 57), based on model-predicted survival probabilities. Our results demonstrated that training separate n… view at source ↗

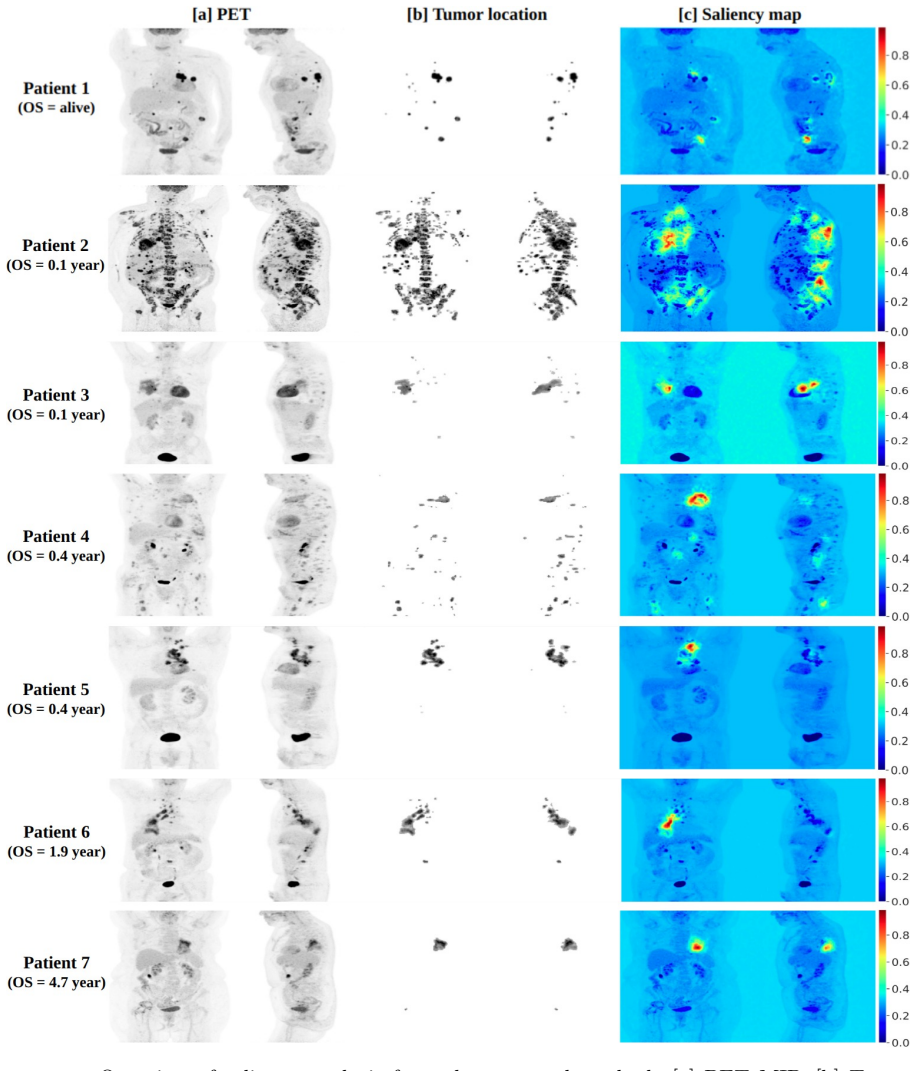

**Figure 7.** Figure 7: Overview of saliency analysis from the proposed method: [a] PET MIP, [b] Tumor location, [c] Heatmap highlighting regions influencing the neural network’s decision. network, trained on multiple time-points, to effectively model the OS probability as a function of time with improved generalization on unseen time-points. The proposed method also better captured temporal dependencies in survival prediction co… view at source ↗

read the original abstract

Purpose: Automated medical image-based prediction of clinical outcomes, such as overall survival (OS), has great potential in improving patient prognostics and personalized treatment planning. We developed a deep regression framework using tissue-wise FDG-PET/CT projections as input, along with a temporal input representing a scalar time horizon (in days) to predict OS in patients with Non-Small Cell Lung Cancer (NSCLC). Methods: The proposed framework employed a ResNet-50 backbone to process input images and generate corresponding image embeddings. The embeddings were then combined with temporal data to produce OS probabilities as a function of time, effectively parameterizing the predictions based on time. The overall framework was developed using the U-CAN cohort (n = 556) and evaluated by comparing with a baseline method on the test set (n = 292). The baseline utilized the ResNet-50 architecture, processing only the images as input and providing OS predictions at pre-specified intervals, such as 2- or 5-year. Results: The incorporation of temporal data with image embeddings demonstrated an advantage in predicting OS, outperforming the baseline method with an improvement in AUC of 4.3%. The proposed model using clinical + IDP features achieved strong performance, and an ensemble of imaging and clinical + IDP models achieved the best overall performance (0.788), highlighting the complementary value of multimodal inputs. The proposed method also enabled risk stratification of patients into distinct categories (high vs low risk). Heat maps from the saliency analysis highlighted tumor regions as key structures for the prediction. Conclusion: Our method provided an automated framework for predicting OS as a function of time and demonstrates the potential of combining imaging and tabular data for improved survival prediction.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Adding a time scalar to PET/CT embeddings yields a 4.3% AUC gain on U-CAN NSCLC data, but the gain likely reflects cohort-specific follow-up patterns more than generalizable time-dependent survival modeling.

read the letter

The paper's core move is feeding a scalar time horizon into a ResNet-50 embedding pipeline so the model outputs survival probability conditioned on both image and t. On the held-out U-CAN split this produces a 4.3% AUC improvement over an image-only baseline that predicts at fixed 2- or 5-year marks, and the imaging-plus-clinical ensemble reaches 0.788. They also show saliency maps that highlight tumor regions and demonstrate risk stratification into high- and low-risk groups. Those are the concrete results that are actually reported. The approach is a direct, incremental extension of existing time-to-event networks rather than a new architecture or loss derivation, but the application to FDG-PET/CT in NSCLC is new enough to be worth noting. The multimodal combination with clinical and IDP features is handled cleanly and the saliency analysis adds a small interpretability check. The main weakness is the absence of any description of the loss function or censoring mechanism. Standard survival losses (Cox partial likelihood, discrete-time logistic, etc.) are not mentioned, so it is unclear whether the model respects right-censoring or simply regresses on observed times. Because both training and test cases come from the same U-CAN cohort, the supplied time values are correlated with the empirical follow-up distribution; nothing in the simple concatenation architecture prevents the network from learning that distribution instead of a transportable hazard function. No statistical test of the 4.3% lift is given, and external validation is missing. This work is aimed at medical-imaging groups already running ResNet pipelines on oncology cohorts who want a quick way to turn static scans into time-resolved outputs. It is not yet solid enough for immediate clinical translation. A serious editor should send it to review provided the authors supply the exact loss, censoring handling, and at least one external test set; without those additions the soundness remains too thin for a strong recommendation.

Referee Report

3 major / 3 minor

Summary. The manuscript presents a deep regression framework that processes FDG-PET/CT images via a ResNet-50 backbone to produce embeddings, concatenates these with a scalar time-horizon input (in days), and outputs overall survival (OS) probabilities as a function of time for NSCLC patients. Trained on the U-CAN cohort (n=556) and evaluated on a held-out test set (n=292), the time-augmented model is reported to outperform an image-only baseline (which predicts at fixed 2- or 5-year horizons) by 4.3% in AUC; an ensemble with clinical+IDP features reaches 0.788 AUC, enables high/low-risk stratification, and yields saliency maps emphasizing tumor regions.

Significance. If the time input is shown to parameterize a properly censored conditional survival function rather than cohort-specific follow-up patterns, the approach could meaningfully advance multimodal, dynamic survival prediction in oncology by allowing time-dependent risk estimates from imaging. The ensemble result and risk-stratification capability suggest potential clinical utility, but the absence of standard survival metrics (e.g., C-index) and external validation limits immediate comparability to existing literature.

major comments (3)

[Abstract and Methods] Abstract/Methods: The framework is described as producing 'OS probabilities as a function of time' via concatenation of the time scalar to image embeddings, yet no loss function, output parameterization (e.g., survival function S(t), cumulative hazard), or handling of right-censoring is specified. Standard regression losses do not accommodate censoring, so it is impossible to determine whether the reported AUC reflects valid survival modeling.
[Results] Results: The 4.3% AUC improvement is stated without statistical testing (e.g., DeLong test, bootstrap CI, or time-dependent ROC details) or clarification on whether AUC is evaluated at fixed horizons matching the baseline or truly as a continuous function of the supplied time input. This leaves the central performance claim unverified.
[Methods and Results] Methods/Results: Both training and test splits derive from the identical U-CAN cohort, so the observed event times and censoring patterns are correlated with the time values supplied during training. The simple concatenation architecture provides no mechanism (e.g., explicit hazard modeling or external validation) to distinguish genuine time-driven generalization from fitting the empirical follow-up distribution of this specific dataset.

minor comments (3)

[Abstract] The phrase 'tissue-wise FDG-PET/CT projections' is introduced without definition or citation; clarify the exact preprocessing and input representation.
[Results] No details are given on how the imaging and clinical+IDP models are ensembled (e.g., probability averaging, stacking) to reach the reported 0.788 AUC.
Consider reporting the concordance index (C-index) alongside AUC to enable direct comparison with standard survival literature.

Simulated Author's Rebuttal

3 responses · 1 unresolved

We thank the referee for the constructive and insightful comments. We address each major point below and describe the revisions that will be incorporated into the next version of the manuscript.

read point-by-point responses

Referee: [Abstract and Methods] Abstract/Methods: The framework is described as producing 'OS probabilities as a function of time' via concatenation of the time scalar to image embeddings, yet no loss function, output parameterization (e.g., survival function S(t), cumulative hazard), or handling of right-censoring is specified. Standard regression losses do not accommodate censoring, so it is impossible to determine whether the reported AUC reflects valid survival modeling.

Authors: We acknowledge the omission of these critical implementation details. In the revised Methods section we will explicitly state that the model outputs a survival probability S(t) via a final sigmoid activation, that training uses a binary cross-entropy loss applied only to the observed event status at the supplied time horizon, and that right-censored patients contribute to the loss only up to their censoring time (i.e., the prediction is not penalized beyond the last known follow-up). We will also clarify that the reported AUC is a time-dependent AUC obtained by supplying the appropriate time input at evaluation. These additions will confirm that the framework performs proper survival modeling rather than unconstrained regression. revision: yes
Referee: [Results] Results: The 4.3% AUC improvement is stated without statistical testing (e.g., DeLong test, bootstrap CI, or time-dependent ROC details) or clarification on whether AUC is evaluated at fixed horizons matching the baseline or truly as a continuous function of the supplied time input. This leaves the central performance claim unverified.

Authors: We agree that formal statistical comparison and clearer evaluation protocol are required. The revision will include DeLong’s test for paired AUC comparison, bootstrap-derived 95% confidence intervals on the 4.3% difference, and explicit reporting of both (i) time-dependent AUC obtained by varying the time input continuously and (ii) AUC at the fixed 2- and 5-year horizons used by the baseline. Time-dependent ROC curves will be added to the supplementary material to allow direct visual verification of the performance gain. revision: yes
Referee: [Methods and Results] Methods/Results: Both training and test splits derive from the identical U-CAN cohort, so the observed event times and censoring patterns are correlated with the time values supplied during training. The simple concatenation architecture provides no mechanism (e.g., explicit hazard modeling or external validation) to distinguish genuine time-driven generalization from fitting the empirical follow-up distribution of this specific dataset.

Authors: We recognize that internal splitting alone cannot fully exclude dataset-specific follow-up bias. To strengthen the claim, the revision will add (i) an ablation in which the model is evaluated on time horizons that are sparsely represented in the training distribution and (ii) a time-stratified cross-validation experiment. We will also expand the Discussion to explicitly note the limitation of single-cohort validation and the desirability of external testing. While these steps provide additional internal evidence of time-driven behavior, we cannot presently supply an independent external cohort. revision: partial

standing simulated objections not resolved

External validation on an independent cohort to conclusively demonstrate that time-driven predictions generalize beyond the follow-up patterns of the U-CAN dataset.

Circularity Check

0 steps flagged

No circularity: standard train/test split with held-out evaluation

full rationale

The paper describes a ResNet-50 model that concatenates image embeddings with a scalar time-horizon input to output time-parameterized survival probabilities. Training occurs on the U-CAN n=556 split and evaluation (including the 4.3% AUC gain) is performed on the separate n=292 held-out test split. No equations, fitted parameters, or self-citations are presented that would make the reported AUC a direct algebraic or statistical function of the training inputs by construction. The architecture and evaluation protocol remain independent of the target metric.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract provides no explicit free parameters, axioms, or invented entities; the approach rests on the standard assumption that a pretrained ResNet-50 can extract prognostically relevant features from FDG-PET/CT and that concatenating a scalar time value yields valid time-dependent probabilities.

pith-pipeline@v0.9.0 · 5653 in / 1193 out tokens · 45335 ms · 2026-05-10T18:52:52.622242+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Cost/FunctionalEquation.lean washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

The embeddings were then combined with temporal data using element-wise multiplication ... to predict time-specific OS probabilities.
IndisputableMonolith/Foundation/ArithmeticFromLogic.lean LogicNat recovery and 8-tick orbit unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

The proposed framework employed a ResNet-50 backbone ... temporal input representing a scalar time horizon (in days)

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
