Optimization of a partial differential equation on a complex network

Martin Stoll , Max Winkler This is my paper

Pith reviewed 2026-05-24 20:04 UTC · model grok-4.3

classification 🧮 math.OC cs.NAmath.NA
keywords metric graphsPDE-constrained optimizationfinite elementspreconditioningDirichlet controlserror boundsnetwork optimization
0
0 comments X

The pith

Finite element discretization of PDE optimization on metric graphs yields rigorous error bounds and scalable preconditioners for sparse Dirichlet controls.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets up and solves an optimization problem whose constraint is a differential equation posed on a metric graph, with the control restricted to a small number of Dirichlet nodes. It discretizes this problem by finite elements, derives a priori error bounds that continue to hold after optimization, and supplies a preconditioner that keeps the resulting linear systems tractable at large scale. Numerical tests on several graphs confirm that the scheme remains stable and accurate. The approach therefore supplies a concrete, provably convergent route to design problems on networks that arise in physics and information flow.

Core claim

Discretizing the PDE-constrained optimization problem on a metric graph by finite elements produces rigorous a priori error bounds that remain valid when the controls are sparse Dirichlet nodes; an efficient preconditioning strategy then renders the discrete systems solvable at large scale, and the overall method exhibits robust performance across numerical examples.

What carries the argument

Finite-element discretization of the PDE on the metric graph together with a priori error analysis and a preconditioner for the resulting saddle-point system under sparse Dirichlet control.

If this is right

  • The proven error bounds guarantee that the computed optimal control converges to the true continuous optimum as the mesh is refined.
  • The preconditioner reduces the cost of solving the large linear systems that arise from the discretization, making the method practical for networks with thousands of edges.
  • The same discretization and analysis framework applies to a range of graph topologies and control placements demonstrated in the examples.
  • Robustness observed in the tests implies that the method can be used without extensive parameter tuning across different network problems.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same error-analysis technique could be tested on time-dependent or nonlinear equations posed on the same graphs.
  • Results on metric graphs may transfer to discrete graph Laplacians when edge lengths are taken to zero, providing a bridge to purely combinatorial network optimization.
  • The sparse-control setting suggests direct application to sensor or actuator placement problems on real infrastructure networks.

Load-bearing premise

The finite element discretization of the PDE on the metric graph admits rigorous a priori error bounds that remain valid under the optimization with sparse Dirichlet controls.

What would settle it

A computed example in which the discrete optimal control fails to converge to the continuous optimum at the predicted rate, or a large network instance in which the preconditioner iteration count grows with problem size.

Figures

Figures reproduced from arXiv: 1907.07806 by Martin Stoll, Max Winkler.

Figure 1

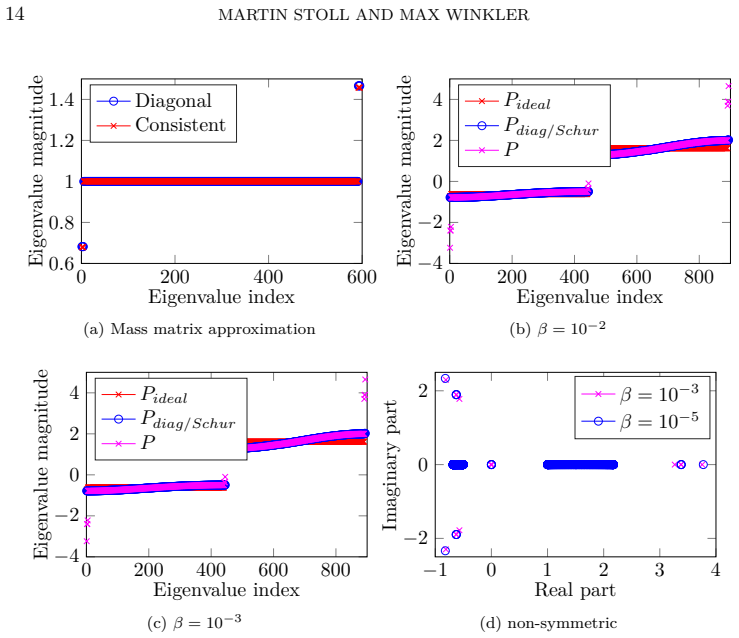

Figure 1. Figure 1: Eigenvalue plots of the preconditioned matrices. In particular, preconditioned [PITH_FULL_IMAGE:figures/full_fig_p014_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Optimal solution of the Dirichlet control problem in a star-shaped network. [PITH_FULL_IMAGE:figures/full_fig_p016_2.png] view at source ↗
Figure 3

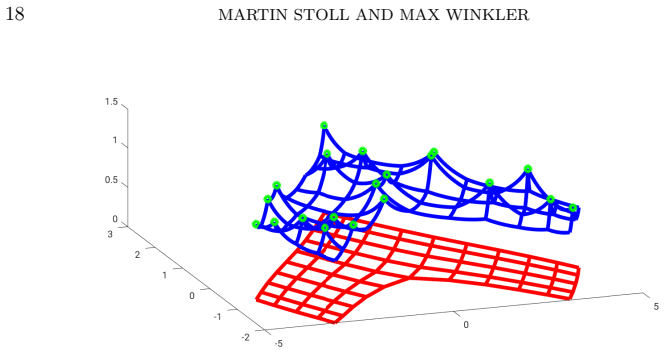

Figure 3. Figure 3: Solution of the optimal Dirichlet control problem on an L-shaped finite differ [PITH_FULL_IMAGE:figures/full_fig_p018_3.png] view at source ↗
Figure 4

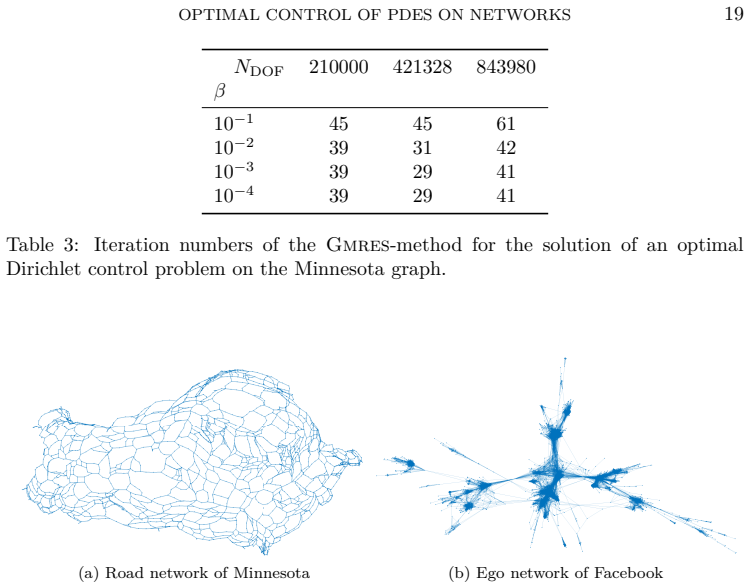

Figure 4. Figure 4: Example networks investigated in Section [PITH_FULL_IMAGE:figures/full_fig_p019_4.png] view at source ↗
read the original abstract

Differential equations on metric graphs can describe many phenomena in the physical world but also the spread of information on social media. To efficiently compute the solution is a hard task in numerical analysis. Solving a design problem, where the optimal setup for a desired state is given, is even more challenging. In this work, we focus on the task of solving an optimization problem subject to a differential equation on a metric graph with the control defined on a small set of Dirichlet nodes. We discuss the discretization by finite elements and provide rigorous error bounds as well as an efficient preconditioning strategy to deal with the large-scale case. We show in various examples that the method performs very robustly.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript addresses the optimization of a PDE posed on a metric graph, with the control restricted to a sparse set of Dirichlet nodes. It develops a finite-element discretization of the state equation, derives rigorous a priori error bounds for the discrete solution, proposes an efficient preconditioner for the resulting large-scale saddle-point systems, and illustrates the overall approach on several numerical examples that demonstrate robustness.

Significance. If the claimed a priori error bounds remain valid once the state equation is embedded in the optimization problem and if the preconditioner scales well, the work supplies a theoretically grounded and practically usable framework for a class of network optimization problems that arise in both physical modeling and information-flow applications. The explicit provision of rigorous bounds together with a scalable solver strategy constitutes a clear strength.

minor comments (3)
  1. [Abstract] The abstract states that rigorous error bounds are provided, yet the precise assumptions on the graph, the PDE coefficients, and the admissible control set are not summarized; a short sentence clarifying these hypotheses would improve readability.
  2. Notation for the metric graph (vertices, edges, lengths) and the finite-element spaces is introduced without a dedicated preliminary section; a short notation table or paragraph would help readers track the constants appearing in the error estimates.
  3. The numerical examples are described as showing “robust performance,” but the manuscript does not report iteration counts or condition-number histories for the preconditioned systems; adding these quantitative indicators would strengthen the practical claim.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive summary, significance assessment, and recommendation of minor revision. No specific major comments were listed in the report, so we have no points requiring point-by-point response at this stage.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper's central claims concern finite-element discretization of a PDE on a metric graph, derivation of rigorous a priori error bounds that remain valid under optimization with sparse Dirichlet controls, and an efficient preconditioning strategy. These rest on standard variational analysis and numerical linear algebra applied to the graph setting. No equations, fitted parameters, or self-citations are shown that reduce any claimed prediction or uniqueness result to the inputs by construction. The abstract and skeptic summary confirm the derivation is presented as independent mathematical analysis rather than a renaming or self-referential fit, making the result self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review yields no information on free parameters, axioms, or invented entities used in the work.
