Crystallographic Orientation-Dependent Magnetotransport in the Layered Antiferromagnet -- CrSBr
Pith reviewed 2026-05-22 10:33 UTC · model grok-4.3
The pith
Magnetoresistance serves as a direct probe of electronic anisotropy in CrSBr, varying strongly with current direction under perpendicular fields
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
By systematically orienting the bias current and the applied magnetic field along all three crystallographic axes, the magnetoresistance serves as a direct probe of electronic anisotropy, exhibiting pronounced variations when the current is applied along different crystallographic directions under a magnetic field perpendicular to the sample plane. For in-plane magnetic fields, conventional anisotropic magnetoresistance accompanied by hysteresis is observed, indicative of ferromagnetic behavior.
What carries the argument
Orientation-dependent magnetoresistance under controlled current and field alignments relative to the crystal axes, acting as a probe of the anisotropic Fermi surface and orientation-dependent magnetic ordering
If this is right
- A complete picture of electronic transport in CrSBr emerges as a function of bias current and magnetic field orientation with respect to crystallographic directions
- Pathways open for future experiments requiring high sensitivity of electrical resistance to magnetic field gradients
- Transport measurements confirm the orientation-dependent coexistence of ferromagnetic and antiferromagnetic ordering
Where Pith is reading between the lines
- Similar orientation sweeps could map electronic anisotropy in other layered magnets without direct momentum-space probes
- Device concepts may use these effects to sense magnetic-field direction through changes in resistance
Load-bearing premise
Observed directional differences in resistance arise from the intrinsic anisotropic Fermi surface and magnetic ordering rather than extrinsic effects such as contact resistance or sample inhomogeneity
What would settle it
Four-probe measurements on samples with minimized contacts and improved homogeneity that show no remaining directional dependence in perpendicular-field magnetoresistance would challenge the claim
read the original abstract

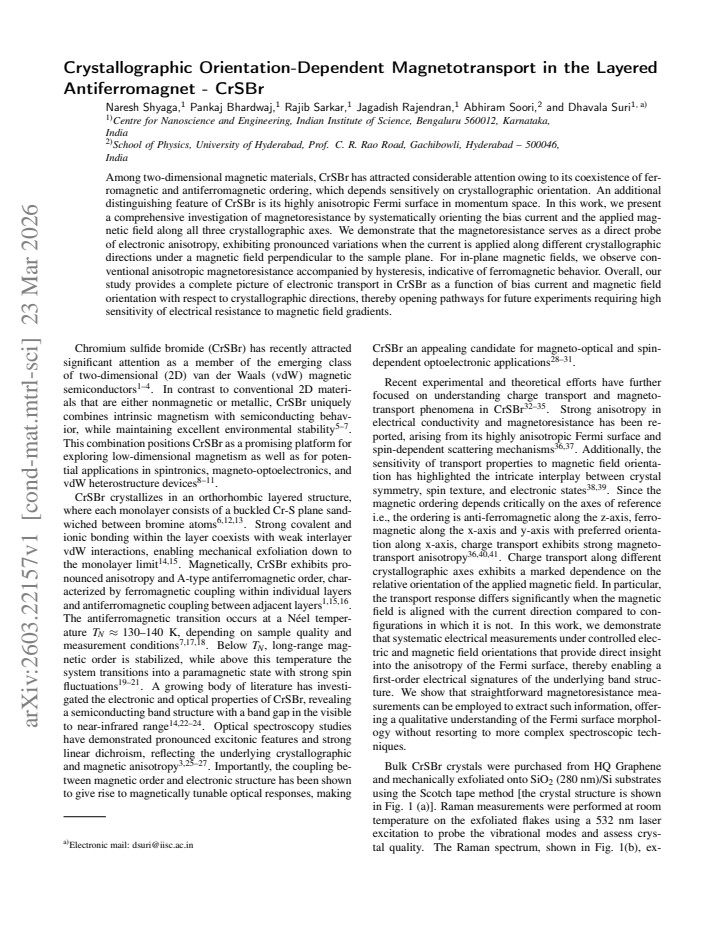

Among two-dimensional magnetic materials, CrSBr has attracted considerable attention owing to its coexistence of ferromagnetic and antiferromagnetic ordering, which depends sensitively on crystallographic orientation. An additional distinguishing feature of CrSBr is its highly anisotropic Fermi surface in momentum space. In this work, we present a comprehensive investigation of magnetoresistance by systematically orienting the bias current and the applied magnetic field along all three crystallographic axes. We demonstrate that the magnetoresistance serves as a direct probe of electronic anisotropy, exhibiting pronounced variations when the current is applied along different crystallographic directions under a magnetic field perpendicular to the sample plane. For in-plane magnetic fields, we observe conventional anisotropic magnetoresistance accompanied by hysteresis, indicative of ferromagnetic behavior. Overall, our study provides a complete picture of electronic transport in CrSBr as a function of bias current and magnetic field orientation with respect to crystallographic directions, thereby opening pathways for future experiments requiring high sensitivity of electrical resistance to magnetic field gradients.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript reports a systematic study of magnetotransport in the layered antiferromagnet CrSBr. By aligning the bias current and applied magnetic field along the three principal crystallographic axes, the authors demonstrate that magnetoresistance exhibits pronounced directional variations when the field is perpendicular to the sample plane; they interpret these variations as a direct probe of the material's anisotropic Fermi surface and orientation-dependent magnetic ordering. For in-plane fields the data show conventional anisotropic magnetoresistance accompanied by hysteresis, consistent with ferromagnetic behavior. The work concludes by providing a complete orientation-dependent transport map intended to guide future experiments that exploit resistance sensitivity to magnetic-field gradients.
Significance. If the central mapping from measured resistance to intrinsic electronic anisotropy holds, the study supplies a useful experimental reference for CrSBr and related 2D magnets, clarifying how crystallographic orientation couples to both antiferromagnetic/ferromagnetic order and Fermi-surface anisotropy. Such a data set can inform device concepts that rely on field-gradient sensing or anisotropic transport.
major comments (1)
- [Results and discussion of perpendicular-field data] The central claim that directional MR differences under perpendicular B directly reflect the anisotropic Fermi surface and orientation-dependent ordering (abstract and results) rests on the assumption that extrinsic contributions—contact-resistance anisotropy, thickness/strain gradients, or local inhomogeneity—are negligible. The manuscript does not appear to present quantitative controls (e.g., zero-field resistance ratios along a/b, multi-terminal symmetry checks, or statistics across multiple devices) that would rule out geometry- or contact-induced artifacts of comparable magnitude. This leaves the interpretation under-constrained and is load-bearing for the main conclusion.
minor comments (1)
- [Abstract] The abstract contains a typographic double dash ('-- CrSBr') that should be replaced by an en-dash for consistency with journal style.
Simulated Author's Rebuttal
We thank the referee for their careful reading of our manuscript and for identifying a key point that requires clarification. We address the concern regarding potential extrinsic contributions to the perpendicular-field magnetoresistance data below and outline the revisions we will make.
read point-by-point responses
-
Referee: [Results and discussion of perpendicular-field data] The central claim that directional MR differences under perpendicular B directly reflect the anisotropic Fermi surface and orientation-dependent ordering (abstract and results) rests on the assumption that extrinsic contributions—contact-resistance anisotropy, thickness/strain gradients, or local inhomogeneity—are negligible. The manuscript does not appear to present quantitative controls (e.g., zero-field resistance ratios along a/b, multi-terminal symmetry checks, or statistics across multiple devices) that would rule out geometry- or contact-induced artifacts of comparable magnitude. This leaves the interpretation under-constrained and is load-bearing for the main conclusion.
Authors: We agree that additional quantitative controls would strengthen the manuscript and better constrain the interpretation. In the revised version we will add zero-field resistance ratios measured along the a and b axes on the same devices, together with data from multiple independently fabricated devices to demonstrate reproducibility of the anisotropy. We will also include a brief discussion of the multi-terminal contact geometry and symmetry checks performed to confirm that the observed directional MR variations under perpendicular fields are not dominated by contact or geometric artifacts. These additions directly address the load-bearing assumption and support the link to the anisotropic Fermi surface and orientation-dependent magnetic ordering. revision: yes
Circularity Check
No circularity: experimental magnetotransport study with direct measurements
full rationale
This is an experimental characterization paper reporting measured magnetoresistance values for CrSBr under systematic variations of current and magnetic field orientations along crystallographic axes. The abstract and described content contain no derivations, equations, fitted parameters, predictions, or self-citations that reduce to inputs by construction. Claims rest directly on observed resistance data rather than any analytical chain that could exhibit self-definition, fitted-input renaming, or imported uniqueness. The study is therefore self-contained against external benchmarks with no load-bearing circular steps.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption CrSBr exhibits coexistence of ferromagnetic and antiferromagnetic ordering that depends on crystallographic orientation and possesses a highly anisotropic Fermi surface.
