Ultrafast non-thermal suppression of ferroelectricity by carrier screening in LiNbO3
Pith reviewed 2026-06-29 01:41 UTC · model grok-4.3
The pith
Even dilute photoexcited carriers suppress ferroelectric polarization in lithium niobate through transient screening.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Femtosecond laser pulses liberate trapped carriers in LiNbO3. Time-resolved second-harmonic generation and stimulated Raman scattering then show a rapid yet enduring drop in polarization and Raman susceptibility. Fluence- and temperature-dependent measurements establish that the effect is non-thermal and caused by screening from the photoexcited carriers.
What carries the argument
Transient carrier screening that reduces the ferroelectric polarization and susceptibility.
If this is right
- This provides an efficient way to modulate ferroelectricity on ultrafast timescales.
- The suppression is reversible and preserves crystal symmetry.
- It offers a route to control ferroic and competing quantum phases.
Where Pith is reading between the lines
- Such carrier screening might be used to switch between ferroelectric and paraelectric states in devices.
- Applications in optical modulators or memory could benefit from this non-thermal control.
- Testing in other ferroelectrics would show if the effect is general.
Load-bearing premise
The fluence and temperature dependent measurements are enough to prove that heating or other structural changes are not causing the observed suppression.
What would settle it
Detecting no suppression when the number of photoexcited carriers is zero, or finding that the suppression disappears immediately after carrier recombination, would challenge the claim.

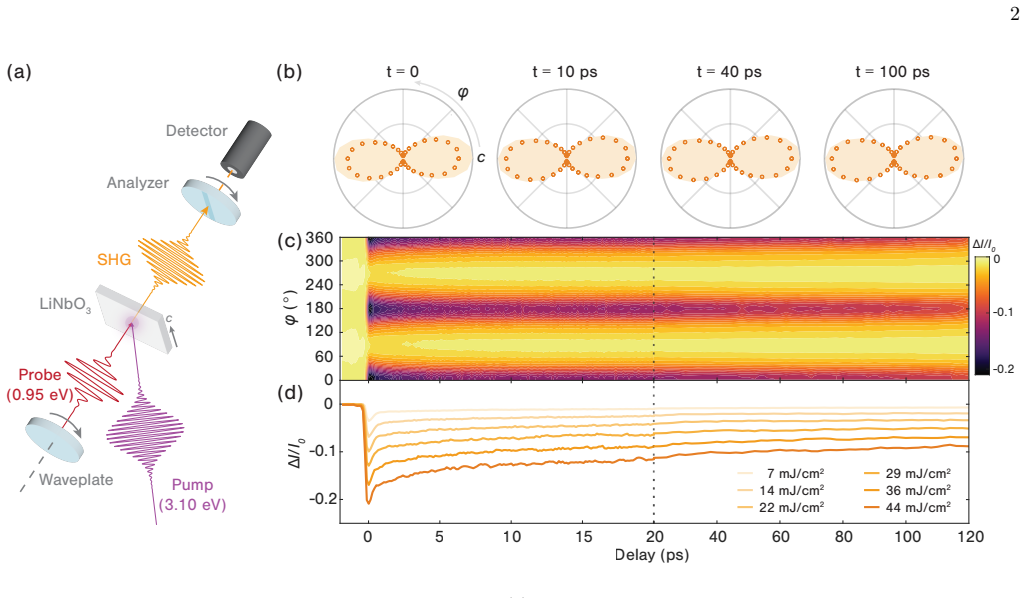

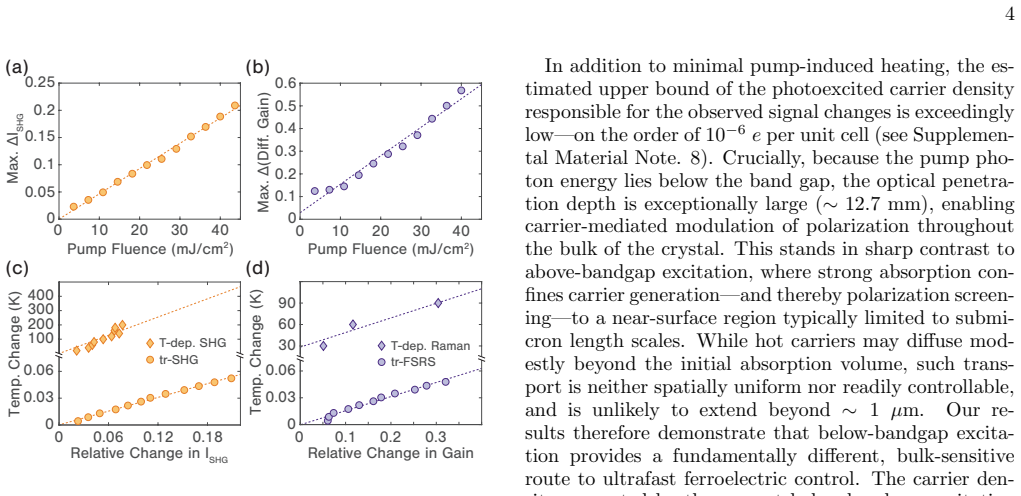

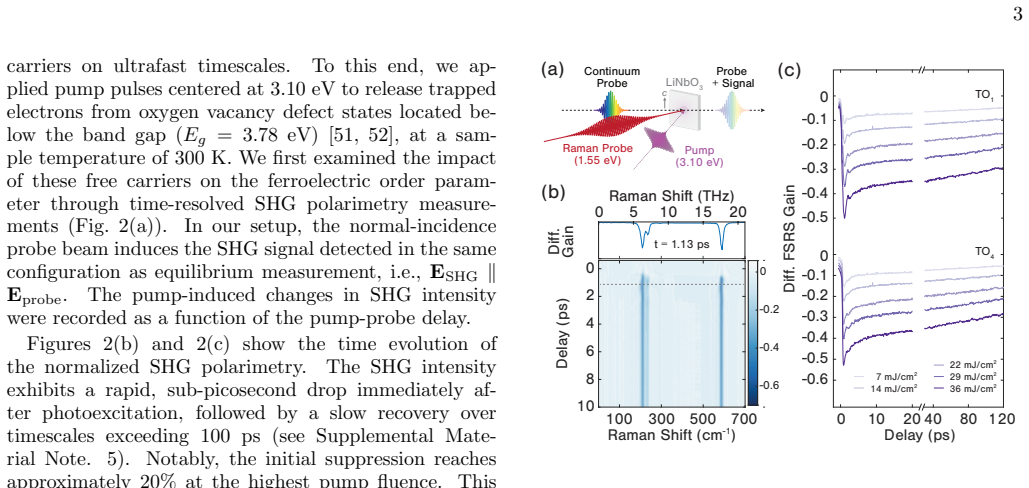

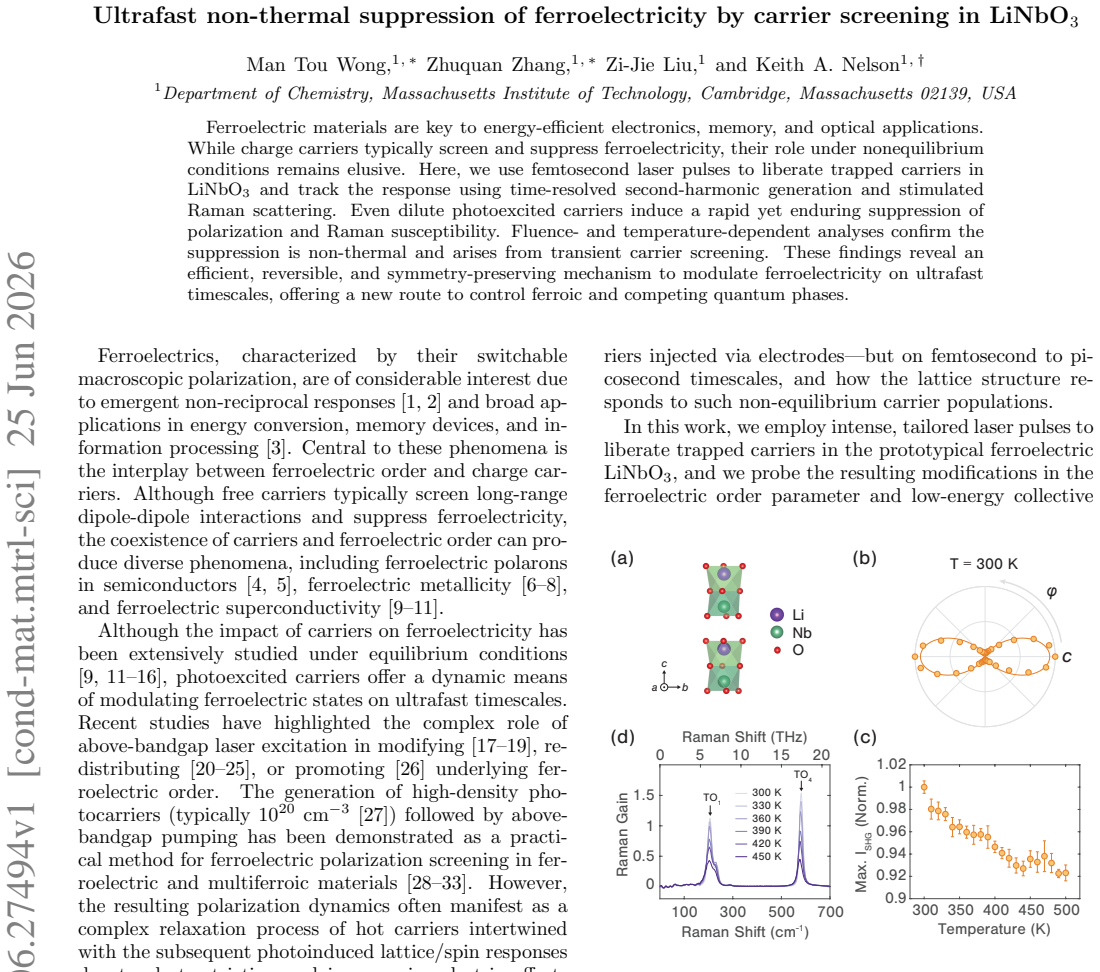

Figures
read the original abstract
Ferroelectric materials are key to energy-efficient electronics, memory, and optical applications. While charge carriers typically screen and suppress ferroelectricity, their role under nonequilibrium conditions remains elusive. Here, we use femtosecond laser pulses to liberate trapped carriers in LiNbO3 and track the response using time-resolved second-harmonic generation and stimulated Raman scattering. Even dilute photoexcited carriers induce a rapid yet enduring suppression of polarization and Raman susceptibility. Fluence- and temperature-dependent analyses confirm the suppression is non-thermal and arises from transient carrier screening. These findings reveal an efficient, reversible, and symmetry-preserving mechanism to modulate ferroelectricity on ultrafast timescales, offering a new route to control ferroic and competing quantum phases.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper reports time-resolved second-harmonic generation and stimulated Raman scattering measurements on LiNbO3 following femtosecond laser excitation that liberates trapped carriers. It claims that even dilute photoexcited carriers produce rapid yet enduring suppression of polarization and Raman susceptibility, and that fluence- and temperature-dependent analyses establish this suppression as non-thermal and arising specifically from transient carrier screening, thereby identifying a reversible, symmetry-preserving route to ultrafast ferroelectric control.
Significance. If the fluence- and temperature-dependent analyses convincingly isolate carrier screening from thermal and structural alternatives, the result would establish an efficient nonequilibrium mechanism for modulating ferroelectric order on ultrafast timescales. This would be of interest for applications in energy-efficient electronics and optical control of ferroic phases.
major comments (1)
- [Fluence- and temperature-dependent analyses] The attribution of the observed signal drop to transient carrier screening (rather than heating or photo-induced lattice changes) is load-bearing for the central claim, yet the fluence- and temperature-dependent analyses are presented without quantitative detail. No explicit comparison is shown between modeled screening length and the magnitude of the SHG/Raman drop, nor is there a subtraction of calculated lattice heating ΔT (from absorbed fluence) against the time-dependent signal. This omission prevents evaluation of whether thermal contributions are adequately excluded.
minor comments (1)
- [Abstract] The abstract summarizes the experimental approach and conclusion but contains no quantitative results, error estimates, or key analysis outputs, which reduces the standalone utility of the summary.
Simulated Author's Rebuttal
We thank the referee for the detailed and constructive review. The concern about quantitative support for excluding thermal contributions is valid and directly addresses a load-bearing aspect of our interpretation. We will revise the manuscript to incorporate the requested modeling and comparisons.
read point-by-point responses
-
Referee: [Fluence- and temperature-dependent analyses] The attribution of the observed signal drop to transient carrier screening (rather than heating or photo-induced lattice changes) is load-bearing for the central claim, yet the fluence- and temperature-dependent analyses are presented without quantitative detail. No explicit comparison is shown between modeled screening length and the magnitude of the SHG/Raman drop, nor is there a subtraction of calculated lattice heating ΔT (from absorbed fluence) against the time-dependent signal. This omission prevents evaluation of whether thermal contributions are adequately excluded.
Authors: We agree that the current presentation would benefit from explicit quantitative comparisons. In the revised manuscript we will add: (i) calculation of the expected screening length (Debye or Thomas-Fermi) using the photo-generated carrier density estimated from the absorbed fluence and the known absorption coefficient of LiNbO3, followed by a direct comparison of this length scale to the fractional suppression observed in both SHG and Raman signals; (ii) estimation of the lattice temperature rise ΔT from the absorbed energy density divided by the volumetric heat capacity, together with a time-dependent subtraction or overlay of the expected thermal contribution on the measured traces. These additions will be placed in the main text or a dedicated supplementary section and will also include the relevant material parameters and assumptions used. revision: yes
Circularity Check
No circularity: purely experimental measurements and analyses
full rationale
The paper reports time-resolved SHG and Raman measurements on LiNbO3 after photoexcitation, using fluence- and temperature-dependent data to attribute signal suppression to non-thermal carrier screening. No derivation chain, fitted parameters renamed as predictions, self-definitional relations, or load-bearing self-citations appear in the provided text. The central claim rests on independent experimental observables rather than reducing to its own inputs by construction. This is the expected outcome for a measurement-focused study.
Axiom & Free-Parameter Ledger
Reference graph
Works this paper leans on
-
[1]
Tokura and N
Y. Tokura and N. Nagaosa, Nonreciprocal responses from non-centrosymmetric quantum materials, Nat. Commun. 9, 3740 (2018)
2018
-
[2]
Su´ arez-Rodr´ ıguez, F
M. Su´ arez-Rodr´ ıguez, F. De Juan, I. Souza, M. Gobbi, F. Casanova, and L. E. Hueso, Nonlinear transport in non-centrosymmetric systems, Nat. Mater.24, 1005 (2025)
2025
-
[3]
J. F. Scott, Applications of modern ferroelectrics, Science 315, 954 (2007)
2007
-
[4]
Miyata and X.-Y
K. Miyata and X.-Y. Zhu, Ferroelectric large polarons, Nat. Mater.17, 379 (2018)
2018
-
[5]
Franchini, M
C. Franchini, M. Reticcioli, M. Setvin, and U. Diebold, Polarons in materials, Nat. Rev. Mater.6, 560 (2021)
2021
-
[6]
ferroelectric
P. W. Anderson and E. Blount, Symmetry considerations on martensitic transformations: “ferroelectric” metals?, Phys. Rev. Lett.14, 217 (1965)
1965
-
[7]
Y. Shi, Y. Guo, X. Wang, A. J. Princep, D. Khalyavin, P. Manuel, Y. Michiue, A. Sato, K. Tsuda, S. Yu,et al., A ferroelectric-like structural transition in a metal, Nat. Mater.12, 1024 (2013)
2013
-
[8]
Bhowal and N
S. Bhowal and N. A. Spaldin, Polar metals: principles and prospects, Annu. Rev. Mater. Res.53, 53 (2023)
2023
-
[9]
C. W. Rischau, X. Lin, C. P. Grams, D. Finck, S. Harms, J. Engelmayer, T. Lorenz, Y. Gallais, B. Fauque, J. Hem- berger,et al., A ferroelectric quantum phase transition inside the superconducting dome of Sr 1−xCaxTiO3−δ, Nat. Phys.13, 643 (2017)
2017
-
[10]
Hameed, D
S. Hameed, D. Pelc, Z. W. Anderson, A. Klein, R. Spieker, L. Yue, B. Das, J. Ramberger, M. Lukas, Y. Liu,et al., Enhanced superconductivity and ferroelec- tric quantum criticality in plastically deformed strontium titanate, Nat. Mater.21, 54 (2022)
2022
-
[11]
Jindal, A
A. Jindal, A. Saha, Z. Li, T. Taniguchi, K. Watanabe, J. C. Hone, T. Birol, R. M. Fernandes, C. R. Dean, A. N. Pasupathy,et al., Coupled ferroelectricity and supercon- ductivity in bilayer T d-MoTe2, Nature613, 48 (2023)
2023
-
[12]
Raghavan, J
S. Raghavan, J. Y. Zhang, O. F. Shoron, and S. Stemmer, Probing the metal-insulator transition in BaTiO3 by elec- trostatic doping, Phys. Rev. Lett.117, 037602 (2016)
2016
-
[13]
V. F. Michel, T. Esswein, and N. A. Spaldin, Interplay between ferroelectricity and metallicity in BaTiO 3, J. Mater. Chem. C9, 8640 (2021)
2021
-
[14]
Li and T
S. Li and T. Birol, Free-carrier-induced ferroelectricity in layered perovskites, Phys. Rev. Lett.127, 087601 (2021)
2021
-
[15]
F. Gu, ´E. Murray, and P. Tangney, Carrier-mediated con- trol over the soft mode and ferroelectricity in BaTiO 3, Phys. Rev. Mater.5, 034414 (2021)
2021
-
[16]
G. Li, S. Yan, Y. Liu, W. Zhang, Y. Xiao, Q. Yang, M. Tang, J. Li, and Z. Long, Unraveling the origins of ferroelectricity in doped hafnia through carrier-mediated phase transitions, npj Comput. Mater.11, 34 (2025)
2025
-
[17]
Daranciang, M
D. Daranciang, M. J. Highland, H. Wen, S. M. Young, N. C. Brandt, H. Y. Hwang, M. Vattilana, M. Nicoul, F. Quirin, J. Goodfellow,et al., Ultrafast photovoltaic re- sponse in ferroelectric nanolayers, Phys. Rev. Lett.108, 087601 (2012)
2012
-
[18]
Schick, M
D. Schick, M. Herzog, H. Wen, P. Chen, C. Adamo, P. Gaal, D. G. Schlom, P. G. Evans, Y. Li, and M. Bargheer, Localized excited charge carriers gener- ate ultrafast inhomogeneous strain in the multiferroic BiFeO3, Phys. Rev. Lett.112, 097602 (2014)
2014
-
[19]
M. P. Jiang, M. Trigo, I. Savi´ c, S. Fahy, ´E. D. Murray, C. Bray, J. Clark, T. Henighan, M. Kozina, M. Chol- let,et al., The origin of incipient ferroelectricity in lead telluride, Nat. Commun.7, 12291 (2016)
2016
-
[20]
Iwano, Y
K. Iwano, Y. Shimoi, T. Miyamoto, D. Hata, M. So- tome, N. Kida, S. Horiuchi, and H. Okamoto, Ultra- fast photoinduced electric-polarization switching in a hydrogen-bonded ferroelectric crystal, Phys. Rev. Lett. 118, 107404 (2017)
2017
-
[21]
C. Lian, Z. A. Ali, H. Kwon, and B. M. Wong, Indirect but efficient: laser-excited electrons can drive ultrafast polarization switching in ferroelectric materials, J. Phys. Chem. Lett.10, 3402 (2019)
2019
-
[22]
H. J. Lee, Y. Ahn, S. D. Marks, E. C. Landahl, S. Zhuang, M. H. Yusuf, M. Dawber, J. Y. Lee, T. Y. Kim, S. Unithrattil,et al., Structural evidence for ultrafast po- larization rotation in ferroelectric/dielectric superlattice nanodomains, Phys. Rev. X11, 031031 (2021)
2021
-
[23]
H. Yu, Y. Fukada, G. Nishida, K. Takubo, T. Ishikawa, S. Koshihara, N. Ikeda, and Y. Okimoto, Ultrafast anisotropic polarization dynamics of electronic ferroelec- tric LuFe2O4, Phys. Rev. Materials8, 064402 (2024)
2024
-
[24]
Gao and L
L. Gao and L. Bellaiche, Large photoinduced tuning of ferroelectricity in sliding ferroelectrics, Phys. Rev. Lett. 133, 196801 (2024)
2024
-
[25]
Yang and S
Q. Yang and S. Meng, Light-induced complete reversal of ferroelectric polarization in sliding ferroelectrics, Phys. Rev. Lett.133, 136902 (2024)
2024
-
[26]
Krapivin, M
V. Krapivin, M. Gu, D. Hickox-Young, S. W. Teitelbaum, Y. Huang, G. De La Pe˜ na, D. Zhu, N. Sirica, M.-C. Lee, R. P. Prasankumar,et al., Ultrafast suppression of the ferroelectric instability in KTaO3, Phys. Rev. Lett.129, 127601 (2022). 6
2022
-
[27]
Paillard, E
C. Paillard, E. Torun, L. Wirtz, J. ´I˜ niguez, and L. Bel- laiche, Photoinduced phase transitions in ferroelectrics, Phys. Rev. Lett.123, 087601 (2019)
2019
-
[28]
Takahashi, N
K. Takahashi, N. Kida, and M. Tonouchi, Terahertz ra- diation by an ultrafast spontaneous polarization modu- lation of multiferroic BiFeO3 thin films, Phys. Rev. Lett. 96, 117402 (2006)
2006
-
[29]
D. S. Rana, I. Kawayama, K. Mavani, K. Takahashi, H. Murakami, and M. Tonouchi, Understanding the na- ture of ultrafast polarization dynamics of ferroelectric memory in the multiferroic BiFeO3, Adv. Mater.21, 2881 (2009)
2009
-
[30]
Y.-M. Sheu, S. A. Trugman, Y.-S. Park, S. Lee, H. Yi, S.- W. Cheong, Q. Jia, A. J. Taylor, and R. P. Prasankumar, Ultrafast carrier dynamics and radiative recombination in multiferroic BiFeO3, Appl. Phys. Lett.100(2012)
2012
-
[31]
Zhang, J
Y. Zhang, J. Dai, X. Zhong, D. Zhang, G. Zhong, and J. Li, Probing ultrafast dynamics of ferroelectrics by time-resolved pump-probe spectroscopy, Adv. Sci.8, 2102488 (2021)
2021
-
[32]
L. P. Hoang, D. Pesquera, G. N. Hinsley, R. Car- ley, L. Mercadier, M. Teichmann, E. M. Unterleutner, D. Knez, M. Dienstleder, S. Ganguly,et al., Ultra- fast decoupling of polarization and strain in ferroelectric BaTiO3, Nat. Commun.16, 7966 (2025)
2025
-
[33]
He, K.-j
X. He, K.-j. Jin, H.-z. Guo, and C. Ge, Evolution of the electronic and lattice structure with carrier injection in BiFeO3, Phys. Rev. B93, 174110 (2016)
2016
-
[34]
L. Y. Chen, J. C. Yang, C.-W. Luo, C. W. Laing, K.-H. Wu, J.-Y. Lin, T. M. Uen, J.-Y. Juang, Y. H. Chu, and T. Kobayashi, Ultrafast photoinduced mechanical strain in epitaxial BiFeO 3 thin films, Appl. Phys. Lett.101 (2012)
2012
-
[35]
J. Chen, L. Hong, B. Huang, and H. Xiang, Ferroelectric switching assisted by laser illumination, Phys. Rev. B 109, 094102 (2024)
2024
-
[36]
Bernhardt, L
F. Bernhardt, L. M. Verhoff, N. A. Sch¨ afer, A. Kapp, C. Fink, W. A. Nachwati, U. Bashir, D. Klimm, F. E. Azzouzi, U. Yakhnevych, Y. Suhak, H. Schmidt, K.-D. Becker, S. Ganschow, H. Fritze, and S. Sanna, Ferroelec- tric to paraelectric structural transition in LiTaO 3 and LiNbO3, Phys. Rev. Materials8, 054406 (2024)
2024
-
[37]
Mankowsky, A
R. Mankowsky, A. Von Hoegen, M. F¨ orst, and A. Caval- leri, Ultrafast Reversal of the Ferroelectric Polarization, Phys. Rev. Lett.118, 197601 (2017)
2017
-
[38]
C. B. Uzundal, S. Jamnuch, E. Berger, C. Woodahl, P. Manset, Y. Hirata, T. Sumi, A. Amado, H. Akai, Y. Kubota,et al., Polarization-resolved extreme- ultraviolet second-harmonic generation from LiNbO 3, Phys. Rev. Lett.127, 237402 (2021)
2021
-
[39]
R. Zu, B. Wang, J. He, J.-J. Wang, L. Weber, L.-Q. Chen, and V. Gopalan, Analytical and numerical model- ing of optical second harmonic generation in anisotropic crystals using♯SHAARP package, npj Comput. Mater. 8, 246 (2022)
2022
-
[40]
R. F. Schaufele and M. J. Weber, Raman Scattering by Lithium Niobate, Phys. Rev.152, 705 (1966)
1966
-
[41]
A. S. Barker and R. Loudon, Dielectric Properties and Optical Phonons in LiNbO3, Phys. Rev.158, 433 (1967)
1967
-
[42]
Servoin and F
J. Servoin and F. Gervais, Soft vibrational mode in LiNbO3 and LiTaO 3, Solid State Commun.31, 387 (1979)
1979
-
[43]
Sanna, S
S. Sanna, S. Neufeld, M. R¨ using, G. Berth, A. Zren- ner, and W. G. Schmidt, Raman scattering efficiency in LiTaO3 and LiNbO 3 crystals, Phys. Rev. B91, 224302 (2015)
2015
-
[44]
Henstridge, M
M. Henstridge, M. F¨ orst, E. Rowe, M. Fechner, and A. Cavalleri, Nonlocal nonlinear phononics, Nat. Phys. 18, 457 (2022)
2022
-
[45]
Sakamoto, K
A. Sakamoto, K. Yoshino, U. Kubo, and Y. Inuishi, Tem- perature Dependence of Raman Scattering of LiNbO 3, Jpn. J. Appl. Phys.15, 2487 (1976)
1976
-
[46]
Ridah, M
A. Ridah, M. D. Fontana, and P. Bourson, Temperature dependence of the Raman modes in LiNbO 3 and mech- anism of the phase transition, Phys. Rev. B56, 5967 (1997)
1997
-
[47]
W. D. Johnston Jr and I. P. Kaminow, Temperature de- pendence of Raman and Rayleigh scattering in LiNbO 3 and LiTaO3, Phys. Rev.168, 1045 (1968)
1968
-
[48]
R. C. Miller and A. Savage, Temperature dependence of the optical properties of ferroelectric LiNbO 3 and LiTaO3, Appl. Phys. Lett.9, 169 (1966)
1966
-
[49]
J. G. Bergman, Molecular mechanics of the ferroelectric to paraelectric phase transition in LiNbO 3 via optical second harmonic generation, Chem. Phys. Lett.38, 230 (1976)
1976
-
[50]
Batignani, E
G. Batignani, E. Mai, M. Martinati, M. M. Neethish, S. Mukamel, and T. Scopigno, Temperature dependence of coherent versus spontaneous Raman scattering, Phys. Rev. Lett.133, 206902 (2024)
2024
-
[51]
K. L. Sweeney and L. E. Halliburton, Oxygen vacancies in lithium niobate, Appl. Phys. Lett.43, 336 (1983)
1983
-
[52]
Dhar and A
A. Dhar and A. Mansingh, Optical properties of reduced lithium niobate single crystals, J. Appl. Phys.68, 5804 (1990)
1990
-
[53]
Beyer, D
O. Beyer, D. Maxein, K. Buse, B. Sturman, H. T. Hsieh, and D. Psaltis, Investigation of nonlinear absorption pro- cesses with femtosecond light pulses in lithium niobate crystals, Phys. Rev. E71, 056603 (2005)
2005
-
[54]
S.-Y. Lee, D. Zhang, D. W. McCamant, P. Kukura, and R. A. Mathies, Theory of femtosecond stimulated Raman spectroscopy, J. Chem. Phys.121, 3632 (2004)
2004
-
[55]
D. R. Dietze and R. A. Mathies, Femtosecond Stimulated Raman Spectroscopy, ChemPhysChem17, 1224 (2016)
2016
-
[56]
Batignani, C
G. Batignani, C. Ferrante, G. Fumero, M. Martinati, and T. Scopigno, Femtosecond stimulated Raman spec- troscopy, Nat. Rev. Methods Primers4, 34 (2024)
2024
-
[57]
G. E. Peterson, A. A. Ballman, P. V. Lenzo, and P. M. Bridenbaugh, ELECTRO-OPTIC PROPERTIES OF LiNbO3, Appl. Phys. Lett.5, 62 (1964)
1964
-
[58]
I. P. Kaminow and W. D. Johnston, Quantitative De- termination of Sources of the Electro-Optic Effect in LiNbO3 and LiTaO3, Phys. Rev.160, 519 (1967)
1967
-
[59]
A. Mann, E. Baldini, A. Odeh, A. Magrez, H. Berger, and F. Carbone, Probing the coupling between a dou- blon excitation and the charge-density wave in TaS 2 by ultrafast optical spectroscopy, Phys. Rev. B94, 115122 (2016)
2016
-
[60]
F. Y. Gao, Z. Zhang, Z. Sun, L. Ye, Y.-H. Cheng, Z.- J. Liu, J. G. Checkelsky, E. Baldini, and K. A. Nelson, Snapshots of a light-induced metastable hidden phase driven by the collapse of charge order, Sci. Adv.8, eabp9076 (2022)
2022
-
[61]
B¨ uhlmann, E
S. B¨ uhlmann, E. Colla, and P. Muralt, Polarization re- versal due to charge injection in ferroelectric films, Phys. Rev. B72, 214120 (2005)
2005
-
[62]
Rault, T
J. Rault, T. Mente¸ s, A. Locatelli, and N. Barrett, Re- versible switching of in-plane polarized ferroelectric do- 7 mains in BaTiO 3 (001) with very low energy electrons, Sci. Rep.4, 6792 (2014)
2014
-
[63]
A. A. Grekov, A. A. Adonin, and N. P. Protsenko, Encountering domains in SbSI, Ferroelectrics13, 483 (1976)
1976
-
[64]
Maksymovych, S
P. Maksymovych, S. Jesse, P. Yu, R. Ramesh, A. P. Bad- dorf, and S. V. Kalinin, Polarization Control of Electron Tunneling into Ferroelectric Surfaces, Science324, 1421 (2009)
2009
-
[65]
Y. Wang, X. Liu, J. D. Burton, S. S. Jaswal, and E. Y. Tsymbal, Ferroelectric Instability Under Screened Coulomb Interactions, Phys. Rev. Lett.109, 247601 (2012)
2012
-
[66]
Maksymovych, A
P. Maksymovych, A. N. Morozovska, P. Yu, E. A. Eliseev, Y.-H. Chu, R. Ramesh, A. P. Baddorf, and S. V. Kalinin, Tunable Metallic Conductance in Ferroelectric Nanodomains, Nano Lett.12, 209 (2012)
2012
-
[67]
Crassous, T
A. Crassous, T. Sluka, A. K. Tagantsev, and N. Setter, Polarization charge as a reconfigurable quasi-dopant in ferroelectric thin films, Nat. Nanotechnol.10, 614 (2015)
2015
-
[68]
L. Zhu, Y. Lu, and L. Wang, Tuning ferroelectricity by charge doping in two-dimensional SnSe, J. Appl. Phys. 127, 014101 (2020)
2020
-
[69]
Zheng, Q
Z. Zheng, Q. Ma, Z. Bi, S. de La Barrera, M.-H. Liu, N. Mao, Y. Zhang, N. Kiper, K. Watanabe, T. Taniguchi, et al., Unconventional ferroelectricity in moir´ e het- erostructures, Nature588, 71 (2020)
2020
-
[70]
Q. Song, C. A. Occhialini, E. Erge¸ cen, B. Ilyas, D. Amoroso, P. Barone, J. Kapeghian, K. Watanabe, T. Taniguchi, A. S. Botana,et al., Evidence for a single- layer van der waals multiferroic, Nature602, 601 (2022)
2022
-
[71]
B. S. Dastrup, Z. Zhang, P. R. Miedaner, Y.-C. Chien, Y. Sun, Y. Wu, H. Cao, E. Baldini, and K. A. Nelson, Electromagnon signatures of a metastable multiferroic state, Phys. Rev. Lett.134, 086706 (2025)
2025
-
[72]
D. A. Bustamante Lopez, D. M. Juraschek, M. Fechner, X. Xu, S.-W. Cheong, and W. Hu, Ultrafast simultaneous manipulation of multiple ferroic orders through nonlinear phonon excitation, npj Quantum Mater.10, 24 (2025)
2025
