Beyond Flickering: Introducing Code-Modulated Motion Visual Evoked Potentials for Brain-Computer Interfacing
Pith reviewed 2026-05-19 19:16 UTC · model grok-4.3
The pith
Code-modulated motion visual evoked potentials enable functional brain-computer interfacing by replacing flicker with pseudo-random object motion.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The authors demonstrate that pseudo-random motion sequences can elicit code-modulated motion visual evoked potentials whose EEG signatures are sufficiently distinct for reliable classification, achieving 85.67 percent mean accuracy and 2.61-second average selection time in a four-class online BCI while exhibiting time- and frequency-domain characteristics closely resembling those of code-modulated flicker responses.
What carries the argument
Pseudo-random motion sequences applied to visual objects, which generate code-modulated motion visual evoked potentials (c-MVEP) whose EEG responses support online classification without heavy per-user calibration.
If this is right
- c-MVEP supports above-chance performance in online four-class selection tasks.
- Motion-based stimulation yields EEG responses with lower-frequency emphasis and wider electrode spread than flicker-based c-VEP.
- Subjective comfort ratings for motion and flicker paradigms remain comparable in short sessions.
- The approach provides a direct alternative stimulation method that can be swapped into existing c-VEP pipelines.
Where Pith is reading between the lines
- Longer sessions could reveal whether motion reduces visual fatigue or eye strain relative to continuous flicker.
- The broader spatial activation pattern may allow more flexible electrode montages or improved robustness to minor head movements.
- Combining c-MVEP with other non-flicker cues such as color or depth changes could further increase the number of distinguishable classes.
Load-bearing premise
That pseudo-random motion sequences will produce sufficiently distinct and stable EEG responses across different users and sessions to allow reliable real-time classification.
What would settle it
A follow-up experiment in which accuracy falls below 70 percent on the same four-class task when tested on a new group of participants without additional calibration or data rejection.
Figures

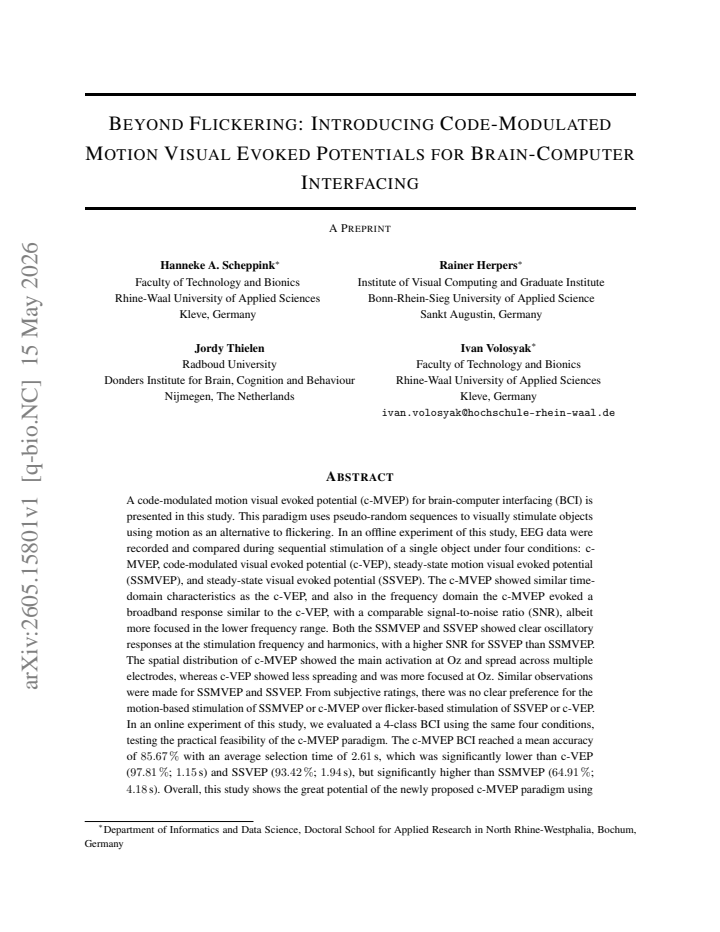

read the original abstract
A code-modulated motion visual evoked potential (c-MVEP) for brain-computer interfacing (BCI) is presented in this study. This paradigm uses pseudo-random sequences to visually stimulate objects using motion as an alternative to flickering. In an offline experiment of this study, EEG data were recorded and compared during sequential stimulation of a single object under four conditions: c-MVEP, code-modulated visual evoked potential (c-VEP), steady-state motion visual evoked potential (SSMVEP), and steady-state visual evoked potential (SSVEP). c-MVEP showed similar time-domain characteristics as c-VEP, and also in the frequency domain c-MVEP evoked a broadband response similar to c-VEP, with a comparable signal-to-noise ratio (SNR), albeit more focused in the lower frequency range. Both SSMVEP and SSVEP showed clear oscillatory responses at the stimulation frequency and harmonics, with a higher SNR for SSVEP than SSMVEP. The spatial distribution of c-MVEP showed the main activation at Oz and spread across multiple electrodes, whereas c-VEP showed less spreading and was more focused at Oz. Similar observations were made for SSMVEP and SSVEP. From subjective ratings, there was no clear preference for the motion-based stimulation of SSMVEP or c-MVEP over flicker-based stimulation of SSVEP or c-VEP. The online experiment of this study, evaluated a 4-class BCI with the same four conditions, testing the practical feasibility of the c-MVEP paradigm. The c-MVEP BCI reached a mean accuracy of 85.67% with an average selection time of 2.61s, which was significantly lower than c-VEP (97.81%; 1.15s) and SSVEP (93.42%; 1.94s), but significantly higher than SSMVEP (64.91%; 4.18s). Overall, this study shows the great potential of the newly proposed c-MVEP paradigm using motion stimulation for BCI applications, providing a valuable alternative to the c-VEP paradigm using flickering stimulation.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript introduces a code-modulated motion visual evoked potential (c-MVEP) BCI paradigm that employs pseudo-random motion sequences to stimulate objects. Offline EEG recordings compare c-MVEP to c-VEP, SSMVEP, and SSVEP in time and frequency domains, reporting similar time-domain waveforms and broadband responses for c-MVEP versus c-VEP with comparable SNR. An online 4-class BCI experiment yields mean accuracy of 85.67% at 2.61 s selection time for c-MVEP, stated as significantly lower than c-VEP (97.81%; 1.15 s) and SSVEP (93.42%; 1.94 s) but higher than SSMVEP (64.91%; 4.18 s). The work concludes that c-MVEP offers great potential as a flickering-free alternative.
Significance. If the reported online performance is reproducible without heavy per-user calibration, the paradigm would expand BCI options by substituting motion for flicker, potentially improving user comfort while maintaining usable information transfer rates. The offline SNR and spatial-distribution comparisons provide a useful baseline, but the absence of cross-validation details limits claims of robustness across users.
major comments (2)
- [Abstract / online experiment] Abstract and online-experiment section: the headline claim that c-MVEP reaches 85.67% mean accuracy (significantly higher than SSMVEP) rests on the unverified assumption that pseudo-random motion sequences elicit sufficiently distinct and stable spatiotemporal EEG patterns across participants. No information is given on whether templates were constructed from individual or pooled data, the number of subjects, or whether classification used within-subject training only; without these details the reported accuracy cannot be interpreted as evidence of calibration-light feasibility.
- [Abstract] Abstract: the statement that c-MVEP accuracy 'was significantly lower than c-VEP ... but significantly higher than SSMVEP' is presented without error bars, participant count, trial-exclusion criteria, or the statistical test and p-values used. These omissions make it impossible to assess whether the performance differences are load-bearing for the central claim of practical viability.
minor comments (2)
- [Abstract] Abstract: report standard deviations or confidence intervals alongside the mean accuracy and selection-time figures.
- [Results / subjective ratings] Subjective-ratings paragraph: clarify the rating scale and statistical comparison method used to conclude 'no clear preference' for motion versus flicker stimulation.
Simulated Author's Rebuttal
We thank the referee for the constructive feedback on our manuscript. We have addressed the concerns about missing methodological and statistical details in the abstract and online experiment sections by providing clarifications and incorporating the requested information into the revised version.
read point-by-point responses
-
Referee: [Abstract / online experiment] Abstract and online-experiment section: the headline claim that c-MVEP reaches 85.67% mean accuracy (significantly higher than SSMVEP) rests on the unverified assumption that pseudo-random motion sequences elicit sufficiently distinct and stable spatiotemporal EEG patterns across participants. No information is given on whether templates were constructed from individual or pooled data, the number of subjects, or whether classification used within-subject training only; without these details the reported accuracy cannot be interpreted as evidence of calibration-light feasibility.
Authors: We agree that these details are necessary for accurate interpretation. The online 4-class BCI experiment was performed with 10 participants using within-subject training only; templates were built individually from each participant's calibration data with no cross-subject pooling. The manuscript does not claim calibration-light operation. We have revised the abstract and methods to explicitly state the participant count, the within-subject approach, and the calibration procedure. revision: yes
-
Referee: [Abstract] Abstract: the statement that c-MVEP accuracy 'was significantly lower than c-VEP ... but significantly higher than SSMVEP' is presented without error bars, participant count, trial-exclusion criteria, or the statistical test and p-values used. These omissions make it impossible to assess whether the performance differences are load-bearing for the central claim of practical viability.
Authors: We acknowledge the need for these details in the abstract. The experiment involved 10 participants with no trials excluded. Comparisons were performed with repeated-measures ANOVA and post-hoc paired t-tests (p < 0.05 threshold); exact p-values and standard deviations (as error bars) are now included in the revised abstract and are fully reported in the results section. We have also added a brief statement on trial criteria. revision: yes
Circularity Check
No significant circularity: empirical performance metrics measured directly from EEG data
full rationale
The paper is an empirical study reporting offline and online BCI experiments with recorded EEG responses under four stimulation conditions. Accuracies (e.g., 85.67% for c-MVEP) and selection times are obtained from participant trials and statistical comparisons, not from any equations, fitted parameters renamed as predictions, or self-referential derivations. No load-bearing self-citations, uniqueness theorems, or ansatzes are invoked to justify the central results. The work is self-contained against external benchmarks of measured data.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption EEG responses to visual motion can be treated as linear and stationary enough for template-matching or correlation-based classification
Lean theorems connected to this paper
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
The c-MVEP BCI reached a mean accuracy of 85.67% with an average selection time of 2.61s... using pseudo-random sequences to visually stimulate objects using motion
-
IndisputableMonolith/Foundation/ArithmeticFromLogic.leanLogicNat_equivNat unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
CCA template-matching classifier... templates built from user-specific data
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
-
[1]
doi:10.1109/TNSRE.2018.2874975. M. Azadi Moghadam and A. Maleki. Fatigue factors and fatigue indices in SSVEP-based brain-computer interfaces: a systematic review and meta-analysis.Frontiers in Human Neuroscience, 17, Nov
-
[2]
doi:10.3389/fnhum.2023.1248474
ISSN 1662-5161. doi:10.3389/fnhum.2023.1248474. URLhttps://doi.org/10.3389/fnhum.2023.1248474. G. Bin, X. Gao, Y . Wang, B. Hong, and S. Gao. VEP-based brain-computer interfaces: time, frequency, and code modulations.IEEE Computational Intelligence Magazine, 4(4):22–26, Nov
-
[3]
ISSN 1556-603X. doi:10.1109/mci.2009.934562. URLhttps://doi.org/10.1109/MCI.2009.934562. X. Chai, Z. Zhang, K. Guan, G. Liu, and H. Niu. A Radial Zoom Motion-Based Paradigm for Steady State Motion Visual Evoked Potentials.Frontiers in Human Neuroscience, 13, Apr
-
[4]
ISSN 1662-5161. doi:10.3389/fnhum.2019.00127. URLhttps://doi.org/10.3389/fnhum.2019.00127. X. Chai, Z. Zhang, K. Guan, T. Zhang, J. Xu, and H. Niu. Effects of fatigue on steady state motion visual evoked potentials: Optimised stimulus parameters for a zoom motion-based brain-computer interface.Computer Methods and Programs in Biomedicine, 196:105650, Nov
-
[5]
doi:10.1016/j.cmpb.2020.105650
ISSN 0169-2607. doi:10.1016/j.cmpb.2020.105650. URL https://doi.org/10.1016/j.cmpb.2020.105650. X. Chen, Y . Wang, S. Zhang, S. Xu, and X. Gao. Effects of stimulation frequency and stimulation waveform on steady- state visual evoked potentials using a computer monitor. 16(6):066007,
-
[6]
Overview of operation and experiments in the ADITYA-U tokamak,
ISSN 1741-2552. doi:10.1088/1741- 2552/ab2b7d. URLhttps://doi.org/10.1088/1741-2552/ab2b7d. Y . Gao, A. Ravi, and N. Jiang. Does Inter-Stimulus Distance Influence the Decoding Performance of SSVEP and SSMVEP BCI? In2021 10th International IEEE/EMBS Conference on Neural Engineering (NER), pages 507–510. IEEE, May 2021a. doi:10.1109/ner49283.2021.9441069. U...
-
[7]
ISSN 1741-2552. doi:10.1088/1741-2560/5/4/011. URL https://doi.org/10.1088/1741-2560/5/4/011. 20 Code-Modulated Motion VEPs for BCIA PREPRINT C. Han, G. Xu, J. Xie, M. Li, S. Zhang, and A. Luo. An eighty-target high-speed Chinese BCI speller. In2017 39th Annual International Conference of the IEEE Engineering in Medicine and Biology Society (EMBC), pages ...
-
[8]
URL https://doi.org/10.1109/EMBC.2017
doi:10.1109/embc.2017.8037157. URL https://doi.org/10.1109/EMBC.2017. 8037157. C. Han, G. Xu, J. Xie, C. Chen, and S. Zhang. Highly Interactive Brain-Computer Interface Based on Flicker-Free Steady-State Motion Visual Evoked Potential.Scientific Reports, 8(1), Apr. 2018a. doi:10.1038/s41598-018-24008-8. URLhttps://doi.org/10.1038/s41598-018-24008-8. C. Ha...
-
[9]
URL https://doi.org/10.3389/ fnins.2021.757679
doi:10.3389/fnins.2021.757679. URL https://doi.org/10.3389/ fnins.2021.757679. X. Han, J. Xie, A. Luo, G. Xu, X. Zhang, J. Wang, and M. Li. Comparison of Visual Cortex Functional Connec- tivity Patterns Based on Steady-state Monochromatic Flicker and Oscillating Checkerboard Visual Stimulus. In 2018 15th International Conference on Ubiquitous Robots (UR),...
-
[10]
ISSN 1464-3510. doi:10.1093/biomet/28.3-4.321. URLhttps://doi.org/10.1093/biomet/28.3-4.321. J. Kwon, J. Hwang, H. Nam, and C.-H. Im. Novel hybrid visual stimuli incorporating periodic motions into conventional flickering or pattern-reversal visual stimuli for steady-state visual evoked potential-based brain-computer interfaces. Frontiers in Neuroinformat...
-
[11]
ISSN 1662-5196. doi:10.3389/fninf.2022.997068. URL https: //doi.org/10.3389/fninf.2022.997068. S. Li, A. Leider, M. Qiu, K. Gai, and M. Liu. Brain-Based Computer Interfaces in Virtual Reality. In2017 IEEE 4th International Conference on Cyber Security and Cloud Computing (CSCloud), pages 300–305. IEEE, June
-
[12]
URLhttps://doi.org/10.1109/cscloud.2017.51
doi:10.1109/cscloud.2017.51. URLhttps://doi.org/10.1109/cscloud.2017.51. Z. Lin, C. Zhang, W. Wu, and X. Gao. Frequency recognition based on canonical correlation analysis for SSVEP- based BCIs.IEEE Transactions on Biomedical Engineering, 54(6):1172–1176, June
-
[13]
ISSN 1558-2531. doi:10.1109/tbme.2006.889197. T. Ma, H. Li, H. Yang, X. Lv, P. Li, T. Liu, D. Yao, and P. Xu. The extraction of motion-onset VEP BCI features based on deep learning and compressed sensing.Journal of Neuroscience Methods, 275:80–92, Jan
-
[14]
doi:10.1016/j.jneumeth.2016.11.002
ISSN 0165-0270. doi:10.1016/j.jneumeth.2016.11.002. URLhttps://doi.org/10.1016/j.jneumeth.2016.11.002. V . Martinez-Cagigal, E. Santamaria-Vázquez, S. Pérez-Velasco, D. Marcos-Martinez, S. Moreno-Calderón, and R. Hornero. Non-binary m-sequences for more comfortable brain-computer interfaces based on c-VEPs.Expert Systems with Applications, 232:120815, Dec
-
[15]
doi:10.1016/j.eswa.2023.120815. URL https://doi.org/10. 1016/j.eswa.2023.120815. V . Martínez-Cagigal, J. Thielen, E. Santamaría-Vázquez, S. Pérez-Velasco, P. Desain, and R. Hornero. Brain–Computer Interfaces Based on Code-Modulated Visual Evoked Potentials (c-VEP): a Literature Review.Journal of Neural Engineering, 18(6):061002, Nov
-
[16]
ISSN 1741-2552. doi:10.1088/1741-2552/ac38cf. URL https://doi. org/10.1088/1741-2552/ac38cf. J. Meel. Spread spectrum (SS).De Nayer Instituut, Hogeschool Voor Wetenschap & Kunst,
-
[17]
doi:10.1016/j.eswa.2024.123679
ISSN 0957-4174. doi:10.1016/j.eswa.2024.123679. URLhttps://doi.org/10.1016/j.eswa.2024.123679. 21 Code-Modulated Motion VEPs for BCIA PREPRINT M. Nakanishi, Y . Wang, Y .-T. Wang, Y . Mitsukura, and T.-P. Jung. Generating Visual Flickers for Eliciting Robust Steady-State Visual Evoked Potentials at Flexible Frequencies Using Monitor Refresh Rate.PLoS ONE,...
-
[18]
doi:10.1371/journal.pone.0140703
ISSN 1932-6203. doi:10.1371/journal.pone.0140703. M. Nakanishi, Y . Wang, X. Chen, Y .-T. Wang, X. Gao, and T.-P. Jung. Enhancing Detection of SSVEPs for a High-Speed Brain Speller Using Task-Related Component Analysis.IEEE Transactions on Biomedical Engineering, 65(1): 104–112, Jan
-
[19]
URLhttps://doi.org/10.1109/tbme.2017.2694818
doi:10.1109/tbme.2017.2694818. URLhttps://doi.org/10.1109/tbme.2017.2694818. A. Rezeika, M. Benda, P. Stawicki, F. Gembler, A. Saboor, and I. V olosyak. Brain-Computer Interface Spellers: A Review.Brain Sciences, 8(4):57, Mar
-
[20]
URL https://doi.org/10.3390/ brainsci8040057
doi:10.3390/brainsci8040057. URL https://doi.org/10.3390/ brainsci8040057. H. Scheppink, S. Ahmadi, P. Desain, M. Tangermann, and J. Thielen. Towards auditory attention decoding with noise-tagging: A pilot study. InProceedings of the 9th Graz Brain-Computer Interface Conference 2024, pages 337–342,
-
[21]
9th Graz Brain-Computer Interface Conference 2024, Graz, Austria, Sept 09-12,
doi:10.3217/978-3-99161-014-4-059. 9th Graz Brain-Computer Interface Conference 2024, Graz, Austria, Sept 09-12,
-
[22]
URLhttps://doi.org/10.3390/brainsci10100686
doi:10.3390/brainsci10100686. URLhttps://doi.org/10.3390/brainsci10100686. P. Stawicki, F. Gembler, and I. V olosyak. Evaluation of Suitable Frequency Differences in SSVEP-Based BCIs. In Symbiotic Interaction, pages 159–165. Springer International Publishing,
-
[23]
URLhttps://doi.org/10.1007/978-3-319-24917-9_17
doi:10.1007/978-3-319-24917-9_17. URLhttps://doi.org/10.1007/978-3-319-24917-9_17. P. Stawicki, A. Rezeika, A. Saboor, and I. V olosyak. Investigating Flicker-Free Steady-State Motion Stim- uli for VEP-Based BCIs. In2019 E-Health and Bioengineering Conference (EHB). IEEE, Nov
-
[24]
URLhttps://doi.org/10.1109/ehb47216.2019.8969970
doi:10.1109/ehb47216.2019.8969970. URLhttps://doi.org/10.1109/ehb47216.2019.8969970. P. Stawicki, A. Rezeika, and I. V olosyak. Effects of Training on BCI Accuracy in SSMVEP-based BCI. InAdvances in Computational Intelligence, pages 69–80. Springer International Publishing,
-
[25]
URLhttps://doi.org/10.1007/978-3-030-85099-9_6
doi:10.1007/978-3-030-85099- 9_6. URLhttps://doi.org/10.1007/978-3-030-85099-9_6. J. Thielen. Addressing BCI inefficiency in c-VEP-based BCIs: A comprehensive study of neurophysiological predictors, binary stimulus sequences, and user comfort.Biomedical Physics & Engineering Express, 11(4):045017, jun
-
[26]
URLhttps://doi.org/10.1088/2057-1976/ade316
doi:10.1088/2057-1976/ade316. URLhttps://doi.org/10.1088/2057-1976/ade316. J. Thielen, P. van den Broek, J. Farquhar, and P. Desain. Broad-Band Visually Evoked Potentials: Re(con)volution in Brain-Computer Interfacing.PLOS ONE, 10(7):e0133797, July
-
[27]
doi:10.1371/journal.pone.0133797
ISSN 1932-6203. doi:10.1371/journal.pone.0133797. URLhttps://doi.org/10.1371/journal.pone.0133797. J. Thielen, P. Marsman, J. Farquhar, and P. Desain. From full calibration to zero training for a code-modulated visual evoked potentials brain computer interface.Journal of Neural Engineering, Mar
-
[28]
URLhttps://doi.org/10.1088/1741-2552/abecef
doi:10.1088/1741-2552/abecef. URLhttps://doi.org/10.1088/1741-2552/abecef. F.-B. Vialatte, M. Maurice, J. Dauwels, and A. Cichocki. Steady-state visually evoked potentials: Focus on es- sential paradigms and future perspectives.Progress in Neurobiology, 90(4):418–438, Apr
-
[29]
URL https://www.sciencedirect.com/science/article/pii/ S0301008209001853
doi:10.1016/j.pneurobio.2009.11.005. URL https://www.sciencedirect.com/science/article/pii/ S0301008209001853. I. V olosyak, A. Rezeika, M. Benda, F. Gembler, and P. Stawicki. Towards solving of the Illiteracy phenomenon for VEP-based brain-computer interfaces.Biomedical Physics & Engineering Express, 6(3):035034, Apr
-
[30]
URLhttps://doi.org/10.1088/2057-1976/ab87e6
doi:10.1088/2057-1976/ab87e6. URLhttps://doi.org/10.1088/2057-1976/ab87e6. J. Wolpaw and E. W. Wolpaw.Brain–Computer Interfaces Principles and Practice. Oxford University Press, Jan
-
[31]
ISBN 9780195388855. doi:10.1093/acprof:oso/9780195388855.001.0001. J. R. Wolpaw, N. Birbaumer, D. J. McFarland, G. Pfurtscheller, and T. M. Vaughan. Brain–computer interfaces for com- munication and control.Clinical Neurophysiology, 113(6):767–791, June
-
[32]
Event -related EEG/MEG synchronization and desynchronization: basic principles,
ISSN 1388-2457. doi:10.1016/s1388- 2457(02)00057-3. URLhttps://doi.org/10.1016/S1388-2457(02)00057-3. J. Xie, G. Xu, J. Wang, F. Zhang, and Y . Zhang. Steady-State Motion Visual Evoked Potentials Produced by Oscillating Newton’s Rings: Implications for Brain-Computer Interfaces.PLoS ONE, 7(6):e39707, June
-
[33]
doi:10.1371/journal.pone.0039707
ISSN 1932-6203. doi:10.1371/journal.pone.0039707. URLhttps://doi.org/10.1371/journal.pone.0039707. J. Xie, G. Xu, J. Wang, M. Li, C. Han, and Y . Jia. Effects of Mental Load and Fatigue on Steady-State Evoked Potential Based Brain Computer Interface Tasks: A Comparison of Periodic Flickering and Motion-Reversal based visual attention.PLOS ONE, 11(9):e0163...
-
[34]
doi:10.1371/journal.pone.0163426
ISSN 1932-6203. doi:10.1371/journal.pone.0163426. URL https://doi.org/10.1371/journal.pone.0163426. W. Yan and G. Xu. A novel motion coupling coding method for brain-computer interfaces.Biomedical Engineering / Biomedizinische Technik, 0(0), May
-
[35]
ISSN 0013-5585. doi:10.1515/bmt-2019-0257. URL https://doi. org/10.1515/bmt-2019-0257. W. Yan, G. Xu, M. Li, J. Xie, C. Han, S. Zhang, A. Luo, and C. Chen. Steady-State Motion Visual Evoked Potential (SSMVEP) Based on Equal Luminance Colored Enhancement.PLOS ONE, 12(1):e0169642, Jan
-
[36]
doi:10.1371/journal.pone.0169642
ISSN 1932-6203. doi:10.1371/journal.pone.0169642. URLhttps://doi.org/10.1371/journal.pone.0169642. 23
